Empero Emp.9ke010 User manual

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

CONTENTS

A GENERAL INFORMATION Page 2

A1 PRODUCT DESCRIPTION Page 3

A2 TECHNICAL INFORMATION Page 3

A3 TRANSPORTATION Page 4

A4 UNPACKING Page 4

B INSTALLATION Page 4

C SAFETY INSTRUCTIONS Page 5

D OPERATION Page 6

E CLEANING & MAINTENANCE Page 7

F TROUBLESHOOTING Page 8

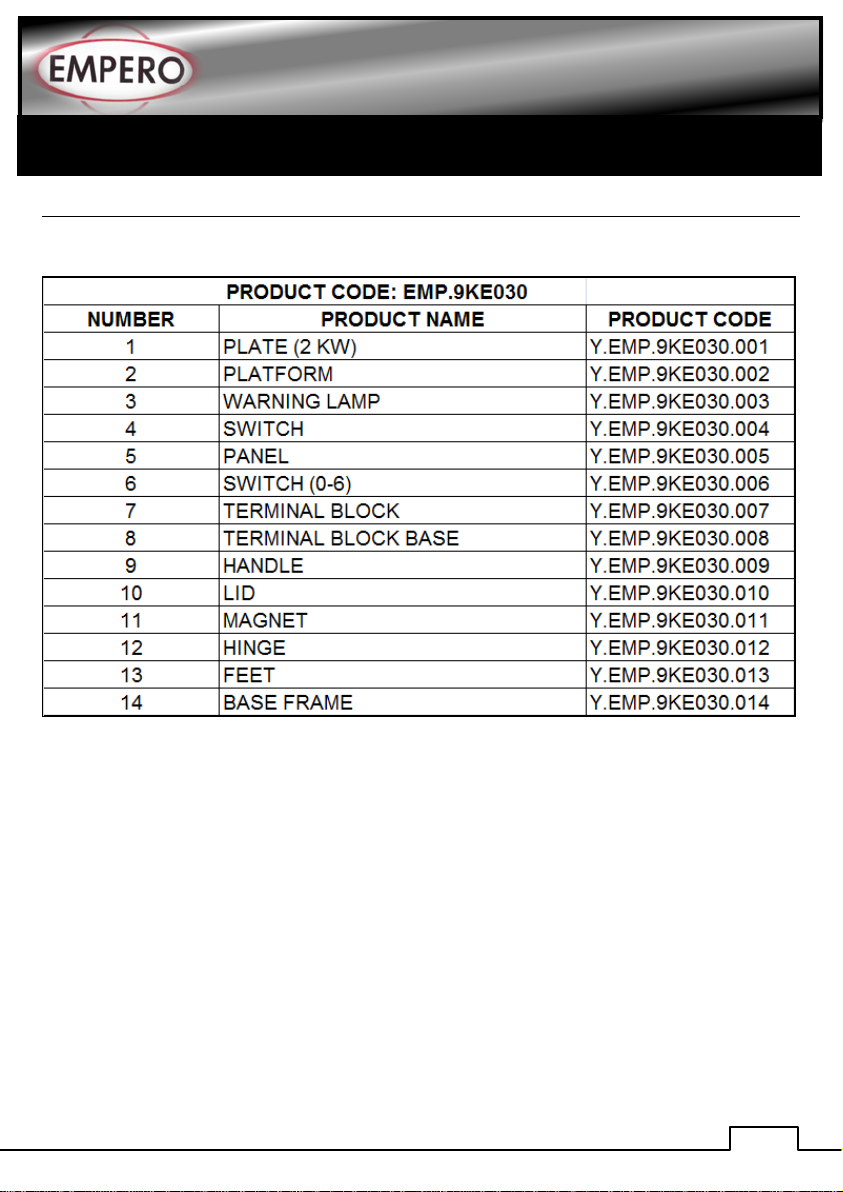

G SPARE PART LIST- EXPLODING DRAWING Page 9

H ELECTRIC CIRCUIT SCHEMA Page 17

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

A GENERAL INFORMATION

Before installing the appliance, read operation and maintenance instructions

carefully.Wrong installation and part changing may damage the product or may cause

injury on people.These are not in our company’s responsibility to damage the

appliance intentionally,negligence,detriments because of disobeying instructions and

regulations,wrong connections.Unauthorized intervention to appliance invalidates the

warranty.

1. This instruction manual should be kept in a safe place for future reference.

2. Installation should be made in accordance with ordinances and security rules of

that country by a qualified service personnel.

3. This appliance has to be used by trained person.

4. Please turn off the appliance immediately in the event of malfunction or failure.The

appliance should be repaired only by authorized service personnel.Please demand

original spare part.

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

A1 PRODUCT DESCRIPTION

*The Professional Electric Ranges With Cupboard ,that provides high efficiency has been

designed to be used in industrial kitchens.

Product Code

Dimensions (mm)

Weight (kg)

Packaging

Dimensions (mm)

EMP.9KE010

400x900x850

470x970x1000

EMP.9KE020

800x900x850

118

860x960x1020

EMP.9KE030

1200x900x850

165

1240x960x1020

EMP.9KE040

1600x900x850

215

1640x960x1020

A2 TECHNICAL INFORMATION

Product

Code

Model

Electric Inlet

Cable

(mm²)

Power

(KW)

EMP.9KE010

2 Plate Ranges With

Cupboard

400 V. AC N PE

5x2,5

EMP.9KE020

4 Plate Ranges With

Cupboard

400 V. AC 3N PE

5x4

EMP.9KE030

6 Plate Ranges With

Cupboard

400 V. AC 3N PE

5x6

EMP.9KE040

8 Plate Ranges With

Cupboard

400 V. AC 3N PE

2x(5x4)

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

A3 TRANSPORTATION

*This appliance can not be moved by hand from area to area.It must be moved on pallet with

forklift truck.

A4 UNPACKING

*Please unpack the package according to the security codes and ordinances of current

country and get rid from the pack.Parts which contacts with food are produced by stainless

steel.All plastic parts are marked by material’s symbol.

*Please check that all the parts of appliance had come completely and if they are damaged or

not during the shipping.

B INSTALLATION

*Please place the product to straight and sturdy ground,please take necessary steps against

possibility of overturn.

*Technician who will serve for installation and service for the appliance must be professional

on this subject and must have installation and service licenses by the company.

*Connection to Electric Power Supply must be done by authorized person.

*Please be sure that the voltage connected to appliance must be equal with the voltage which

is on appliance’s label.

This appliance must be connected to an earthed outlet in accordance with safety rules

and standards.

*Appliance’s earthing must be connected to earthing line on panel which is nearest to

electric installation.

*Connection to the main fuse and leak current fuse must be done in accordance with the

current regulations.

*If the location where electric ranges placed is covered with nonflammable heat insulation

material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The

appliance shouldn’t be operated under chimney hood.

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

C SAFETY INSTRUCTIONS

*Do not use the appliance in insufficient lighted place.

*Do not touch the moving attachments while the appliance operates.

*Do not install the appliance in the presence of flammable or explosive materials.

*Do not operate the appliance when the machine is empty.

*Do not load so less or more than appliance’s capacity.

*Do not attempt to use the appliance without suitable protective equipments.

*Because of any reason if there is a fire or flame flare where the appliance is

used,turn off all gas valves and electric contactor switch quickly and use fire

extinguisher .Never use water to extinguish the fire.

*All the damages because of not having earthing connection will not be on

warranty.



ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

D OPERATION

*Control Panel;

A: Heat setting button

B: Indicator lamp

*Operating;

Plug in the appliance.

Put the cooker on the range.

Adjust heat setting butttons to desired temperature.

The range reaches the desired temperature and starts to operate.

When the range’s temperature reaches to indicator temperature,the buttons on indicator

lamp become off due to having thermostat.

When the range’s temperature is reduced,indicator lamp signals and range’s temperature

reaches to desired temperature again.

Range’s heaters can be controlled by stage switch seperately.

After operation is completed,switch heat setting buttons to (0) position and unplug the

appliance.

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

E CLEANING & MAINTENANCE

CLEANING AND MAINTENANCE AFTER EVERY USE

Always turn off the appliance and disconnect from the power supply before cleaning.

Clean the outer surface of the appliance with a wet cloth and chrome shiner.

Do not use abrasive cleaning chemicals as these can leave harmful residues.

Do not clean the appliance by spraying water directly,otherwise electric motor may

get damaged.

PERIODIC CLEANING AND MAINTENANCE

Maintenance should be done by qualified person.

Get the periodic maintenance of the appliance once in every 15 days.

Check the heater’s electric connection in periodic times.

Maintenance of the appliance’s contactor should be done by compressed air

according to frequency of use.

ELECTRIC RANGES WITH CUPBOARD

Kasap Tip Dik Buzdolapları

F TROUBLESHOOTING

THE APPLIANCE DOESN’T OPERATE

1. Check if the appliance is plugged in.

2. Check the electrical connections and

voltage.

THE APPLIANCE DOESN’T COOK WELL

1. Check if it is operated at required heat

or not.

THE APPLIANCE STOPPED

1. The appliance can stop due to low

voltage.In this situation check the

voltage.

If cooking at electric ranges with cupboard is not done at suitable quality

If any function of security doesn’t work

Do not use the appliance.

*If these problems are still going on,contact with our authorized services.
