Empero Emp.7kg021 User manual

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

CONTENTS

A GENERAL INFORMATION Page 2

A1 PRODUCT DESCRIPTION Page 3

A2 TECHNICAL INFORMATION Page 3

A3 TRANSPORTATION Page 3

A4 UNPACKING Page 4

B INSTALLATION Page 4

C SAFETY INSTRUCTIONS Page 5

D OPERATION Page 6

E CLEANING & MAINTENANCE Page 7

F TROUBLESHOOTING Page 8

G INJECTOR CHANGE AND GAS SETTING Page 9

H GAS CONNECTION IMAGES Page 10

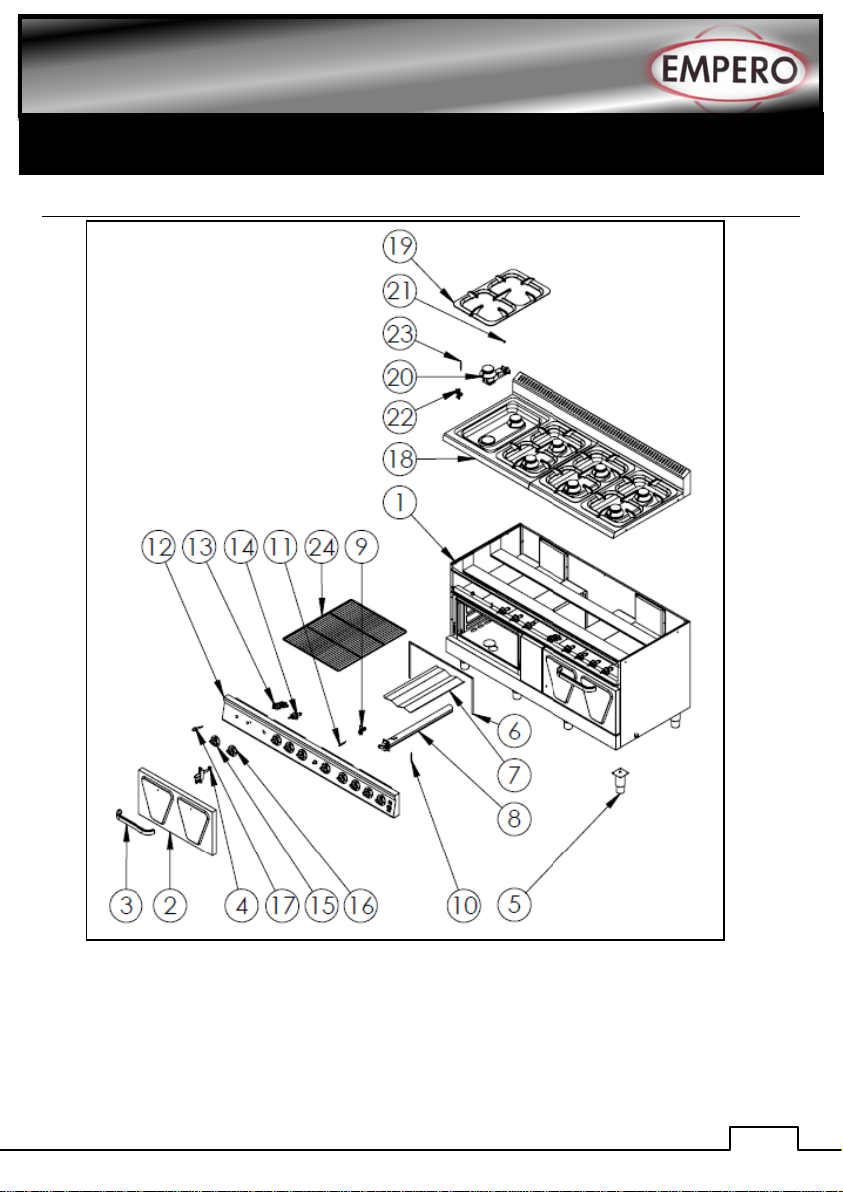

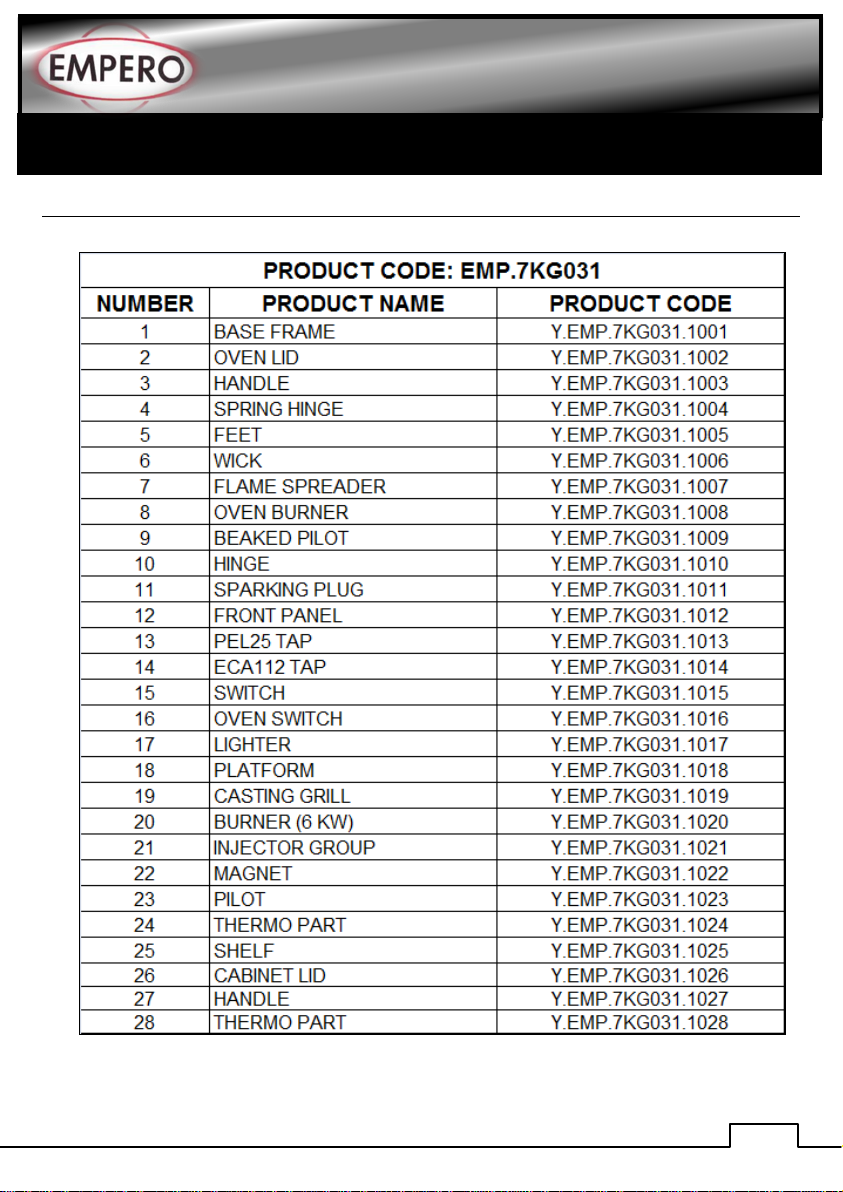

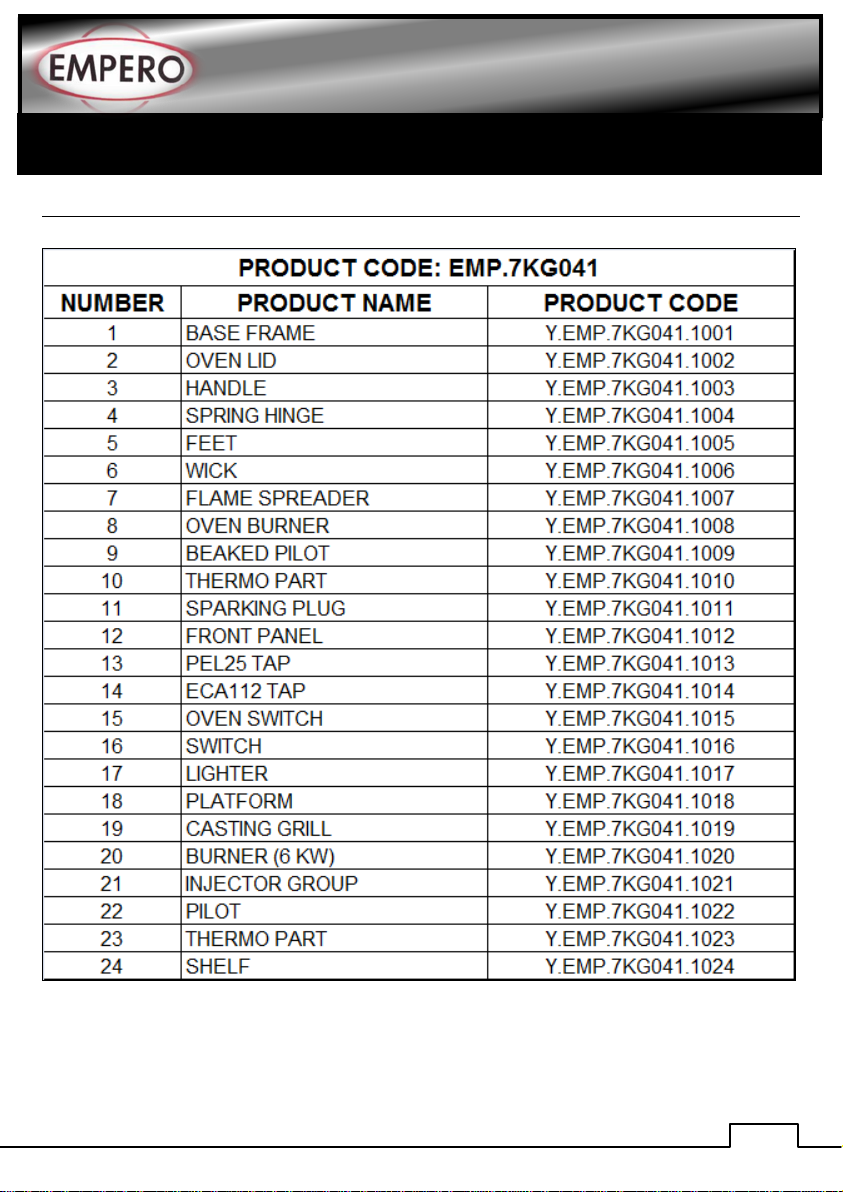

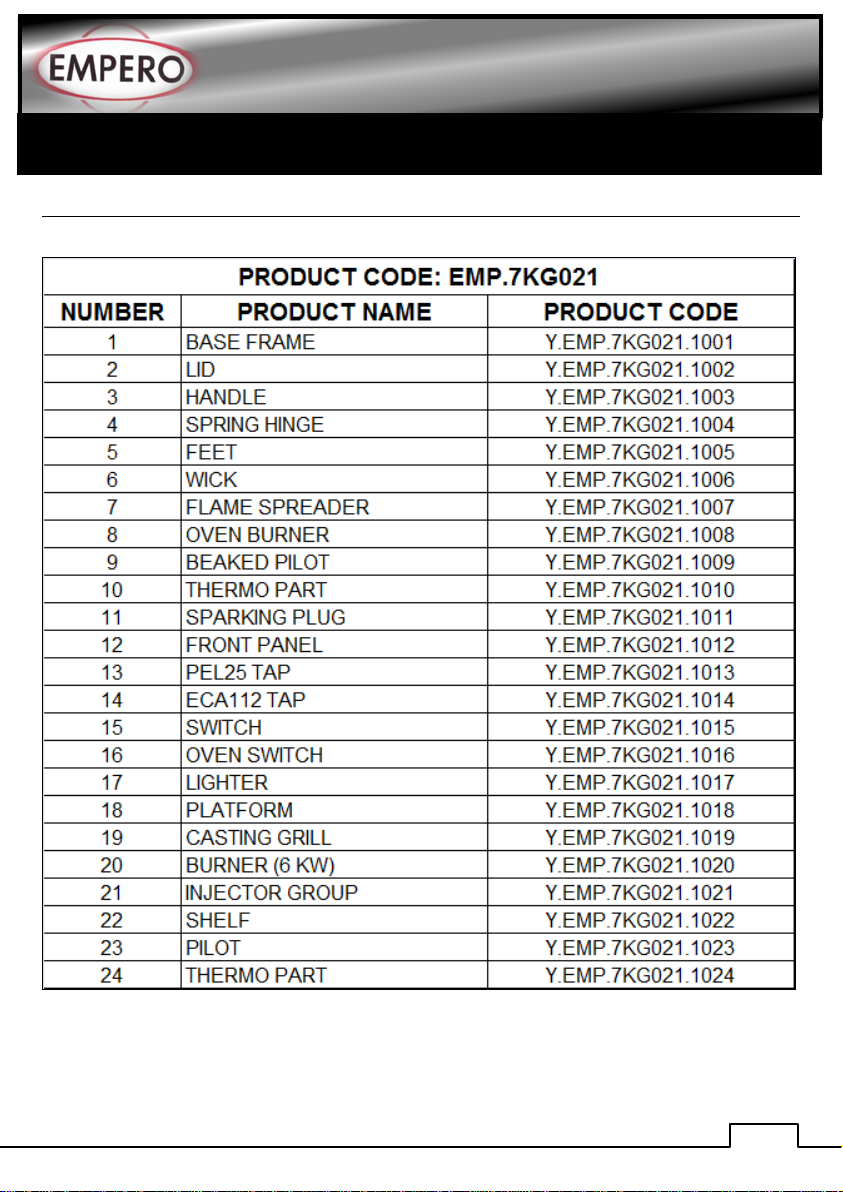

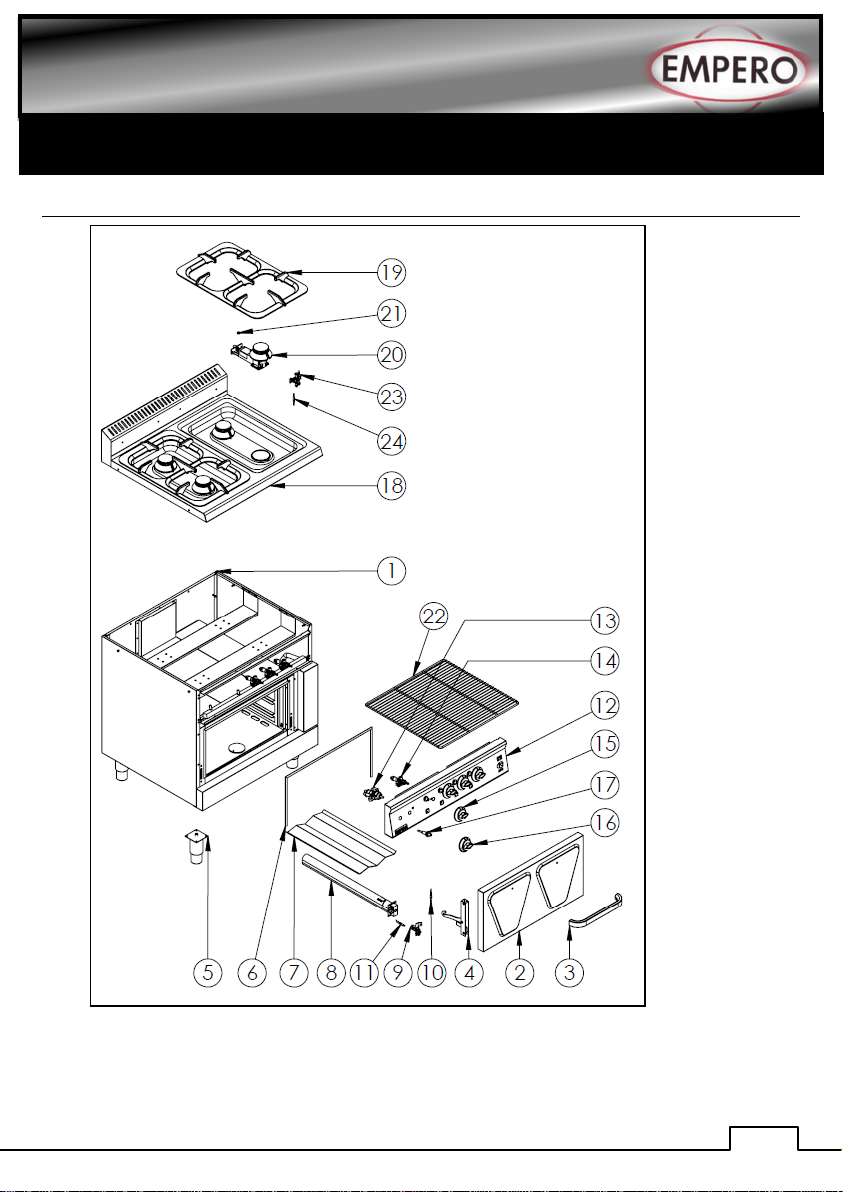

I SPARE PART LIST- EXPLODING DRAWING Page 13

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

A GENERAL INFORMATION

Before installing the appliance, read operation and maintenance instructions

carefully.Wrong installation and part changing may damage the product or may cause

injury on people.These are not in our company’s responsibility to damage the

appliance intentionally,negligence,detriments because of disobeying instructions and

regulations,wrong connections.Unauthorized intervention to appliance invalidates the

warranty.

1. This instruction manual should be kept in a safe place for future reference.

2. Installation should be made in accordance with ordinances and security rules of

that country by a qualified service personnel.

3. This appliance has to be used by trained person.

4. Please turn off the appliance immediately in the event of malfunction or failure.The

appliance should be repaired only by authorized service personnel.Please demand

original spare part.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

A1 PRODUCT DESCRIPTION

*The Professional Gas Ranges With Oven,that provides high efficiency has been designed to

be used in industrial kitcens.

Product Code

Dimensions (mm)

Weight (kg)

Packaging

Dimensions (mm)

EMP.7KG021

800x730x850

129

830x800x1020

EMP.7KG031

1200x730x850

168

1260x800x1010

EMP.7KG041

1600x730x850

248

1700x800x1020

A2 TECHNICAL INFORMATION

Product Code

Model

Power

(KW)

Gas

Consumption

(NG)

Gas

Consumption

(LPG)

Capacity

EMP.7KG021

4 Burner Gas

Ranges With

Oven

27,9

3,05 m³/h

2,28 kg/h

2xGN 2/1

EMP.7KG031

6 Burner Gas

Ranges With

Oven

4,24 m³/h

3,18 kg/h

2xGN 2/1

EMP.7KG041

8 Burner Gas

Ranges With

Oven

6,11 m³/h

4,58 kg/h

2xGN 2/1

EMP.7KG031

1 Oven + Half module cupboard

EMP.7KG041

2 Oven

A3 TRANSPORTATION

*This appliance can not be moved by hand from area to area.It must be moved on pallet with

forklift truck.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

A4 UNPACKING

*Please unpack the package according to the security codes and ordinances of current

country and get rid from the pack.Parts which contacts with food are produced by stainless

steel.All plastic parts are marked by material’s symbol.

*Please check that all the parts of appliance had come completely and if they are damaged or

not during the shipping.

B INSTALLATION

*Please place the product to straight and sturdy ground,please take necessary steps against

possibility of overturn.

*Technician who will serve for installation and service for the appliance must be professional

on this subject and must have installation and service licenses by the company.

*Connection to Gas Fitment must be done by authorized person.

*The area where the appliance is must have enough ventilation and vent-hole.

*The appliance must be connected correctly according to local and national gas standards of

your country.

*The appliance gas entrances are indicated with ‘’G’’ label on the body.

*Connection to gas fitment must be done with suitable diameter metal flex pipe and spheric

valve.The spheric valve must be immobilized to a place that is far away from heat and

accessible during the danger.After gas entrance connection done,gas leakages must be

checked.

*According to the datas on appliance information plate,gas and pressure must be adjusted.If

the gas type that is adjusted is not the suitable with gas type that is at installation place,apply

the instructions that is about adjustment of different gas type. (Event :G)

*If the location where gas ranges with oven placed is covered with nonflammable heat

insulation material,the distance between them must be 5 cm.Otherwise it should be at least 20

cm.The appliance shouldn’t be operated under chimney hood.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

C SAFETY INSTRUCTIONS

*Do not use the appliance in insufficient lighted place.

*Do not touch the moving attachments while the appliance operates.

*Do not install the appliance in the presence of flammable or explosive materials.

*Do not operate the appliance when the machine is empty.

*Do not load so less or more than appliance’s capacity.

*Do not attempt to use the appliance without suitable protective equipments.

*Because of any reason if there is a fire or flame flare where the appliance is

used,turn off all gas valves and electric contactor switch quickly and use fire

extinguisher .Never use water to extinguish the fire.

*If there is gas leakage where the appliance is, .do not fire absolutely and do not use

electric.

*Do not operate the oven by taking off or closing the back chimney.

*Definitely do not allow to check the sealing with flame.



GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

D OPERATION

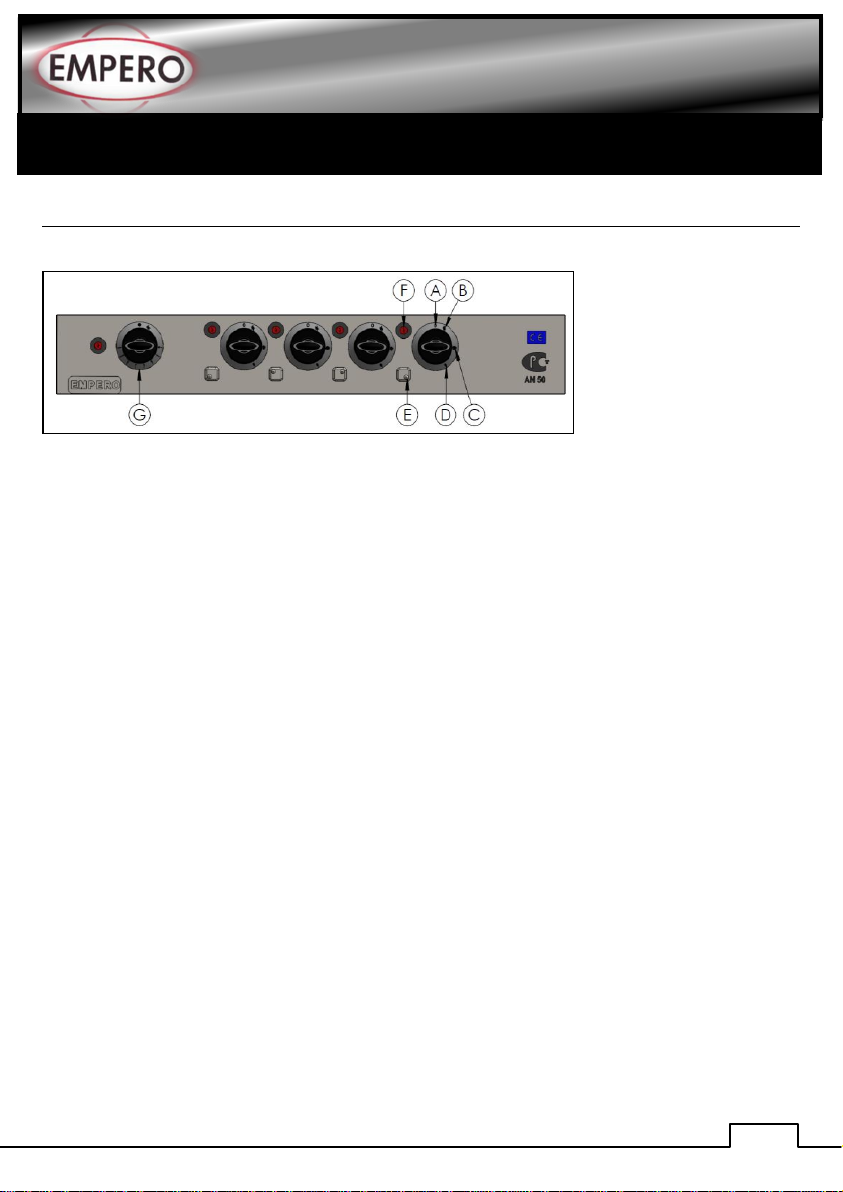

*Control Panel;

A : OFF Position

B: Lighter Position

C: Full Flame

D : Half Flame

E : Tank Position

F : Lighter

G : Oven Thermostat

*Operating;

According to type of use,make gas entrance connection from behınd the

appliance.Because the machine is operated with LPG and NG.

Turn on the gas valves.

Press the gas grill button and provide pilot position.Fire the pilot with suitable lighter.

In order to heat thermocouple’s end keep pressing to button after the pilot is fired.

For desired temperature switch to half or full flame position.

Press the button at Pilot position before firing to remove the air from gas fitment during

first operation.

The burner has features of primary and secondary burning and high burning efficiency.It

is also environmentalist and has world standards with low CO2 and CO waste gas

emission.

*Oven Operating;

Take off front side of the oven’s sheet metal.

Provide the oven to be at pilot flame position by pressing the button.

In order to heat thermocouple’s end keep pressing to button after the pilot is fired.

Adjust by turning to left according to heat datas (0-300) that are on scale on the button.

The burner has features of primary and secondary burning and high burning efficiency.It

is also environmentalist and has world standards with low CO2 and CO waste gas

emission.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

E CLEANING & MAINTENANCE

CLEANING AND MAINTENANCE AFTER EVERY USE

Turn off the gas connection before cleaning.

Clean the outer surface of the appliance with a wet cloth and chrome shiner.

Do not use abrasive cleaning chemicals as these can leave harmful residues.

Do not wash the appliance with pressure water.

Do not clena the appliance with a materials that may damage chrome material.

Wash the oven trays and grills with hot water and then dry after every use.

PERIODIC CLEANING AND MAINTENANCE

Maintenance should be done by qualified person.

These parts ; Gas storage,pilot,thermocouples,taps,burner,lighter and spark plug

cable are not maintained so they need to be changed when they have error.

Check the gas connection hoses in periodic time.If there is slit,hole..etc,change the

hoses.

Ventilate the area where the device is in periodic times.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

F TROUBLESHOOTING

THE APPLIANCE DOESN’T OPERATE

1. Check if the gas connection is done or

not.

2. If there is no gas entrance to pilot,the

appliance is not operated.

3. If the hoses that have gas entrance lose

gas due to slit,hole.etc.,the appliance is

not operated.

MEATS ARE NOT COOKED WELL

1. Check if it is operated at suitable gas

setting or not.

2. Do not overload the oven trays.

3. Check the oven heat settings.

THE APPLIANCE STOPPED

1. Gas flow is stopped automatically when

the flame is off due to having gas tap

that has safety valve.In this situation the

appliance is not operated.

2. When there is gas leakage,if there is

solenoid gas stopper alarm,gas flow is

stopped and the appliance is not

operated.Ventilate the area through the

agency of vent-hole.

If cooking at gas ranges with with oven is not done at suitable quality

If any function of security doesn’t work

Do not use the appliance.

*If these problems are still going on,contact with our authorized services.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

G INJECTOR CHANGE AND GAS SETTING

GAS RANGE BURNER-INJECTOR CHANGE CHART

Gas

Group

Gas

Small

Middle

Big

Oven

Pilot

Injector

mm

Injector

mm

Injector

mm

Injector

mm

Injector

mm

Injector

mm

G20

1,6

1,9

2,15

1,35

2,15

0,41

G25

1,6

1,9

2,15

1,3

2,15

0,41

G30

mbar

1,2

1,35

0,85

1,35

0,22

mbar

0,85

1,6

0,72

1,15

0,20

G31

mbar

1,2

1,35

0,85

1,35

0,22

mbar

0,95

1,15

1,3

0,81

1,3

0,20

Change of Upper Burner Injector;

1. Take off the burner’s upper lid and upper casting grill (Image 1)

2. Change ‘A’ injector by paying attention the datas on the chart with suitable injector.

(Image 2)

3. Adjust burner air inlet by loosening ‘B’ bolt .(Image 2)

4. Change C injector by paying attention to the datas at chart with suitable injector.For

this it is enough to take off ‘D’ fitting and pull the gas pipe to down. (Image 3)

Change of Oven Injectors;

1. Take off ‘F’ bolts from oven door lower sheet metal ‘E’ (Image 5)

2. Change oven injector ‘I’ with suitable injector (Image 6)

3. Change the oven pilot flame injector ‘C’ with suitable injector (Image 3)

Setting of Half Flame;

1. Remove the tap button and set by turning tap half flame screw (K) with suitable

screwdriver.(Image 4) Turn it to left for transformation from LPG to N.G,turn it right for

transformation from N.G to LPG.

2. After this process,operate the appliance and set it not to be deflated during transition

from full flame to half flame.

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

H GAS CONNECTION IMAGES

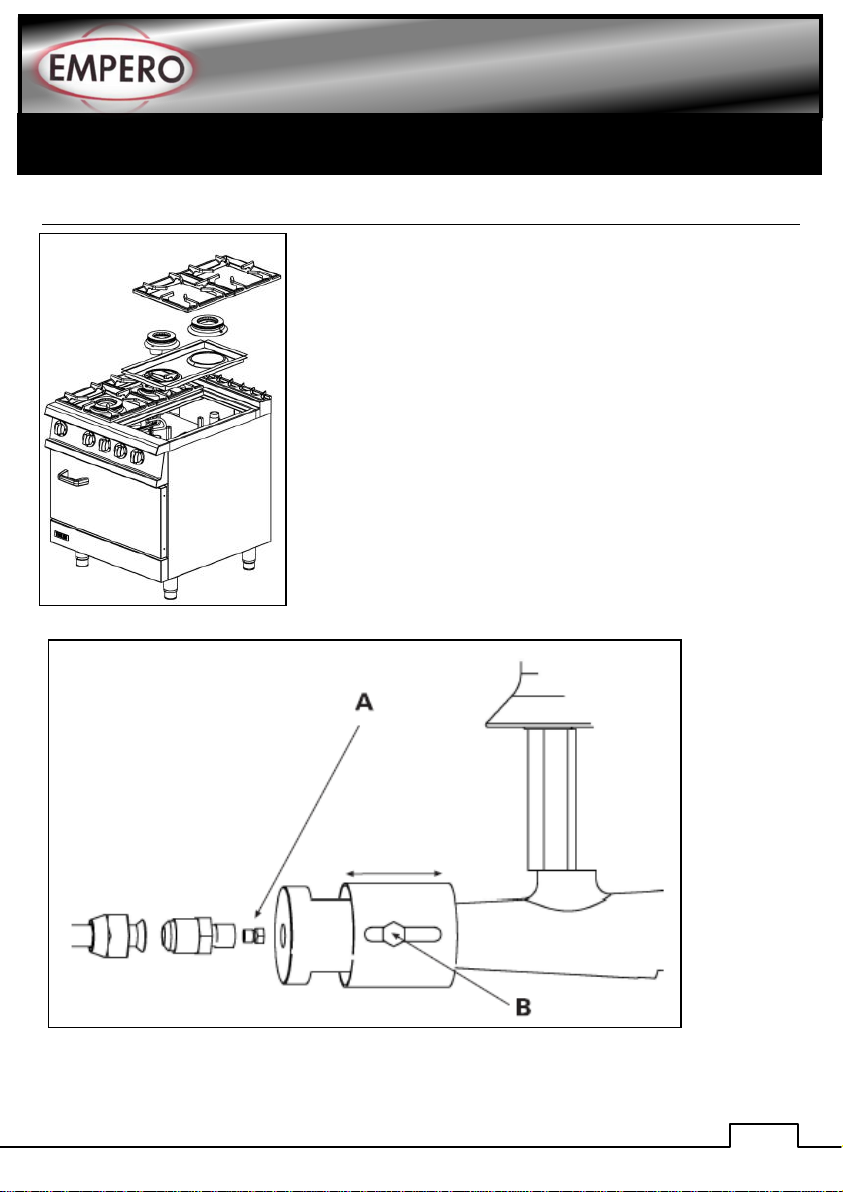

Image 1

Image 2

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

H GAS CONNECTION IMAGES

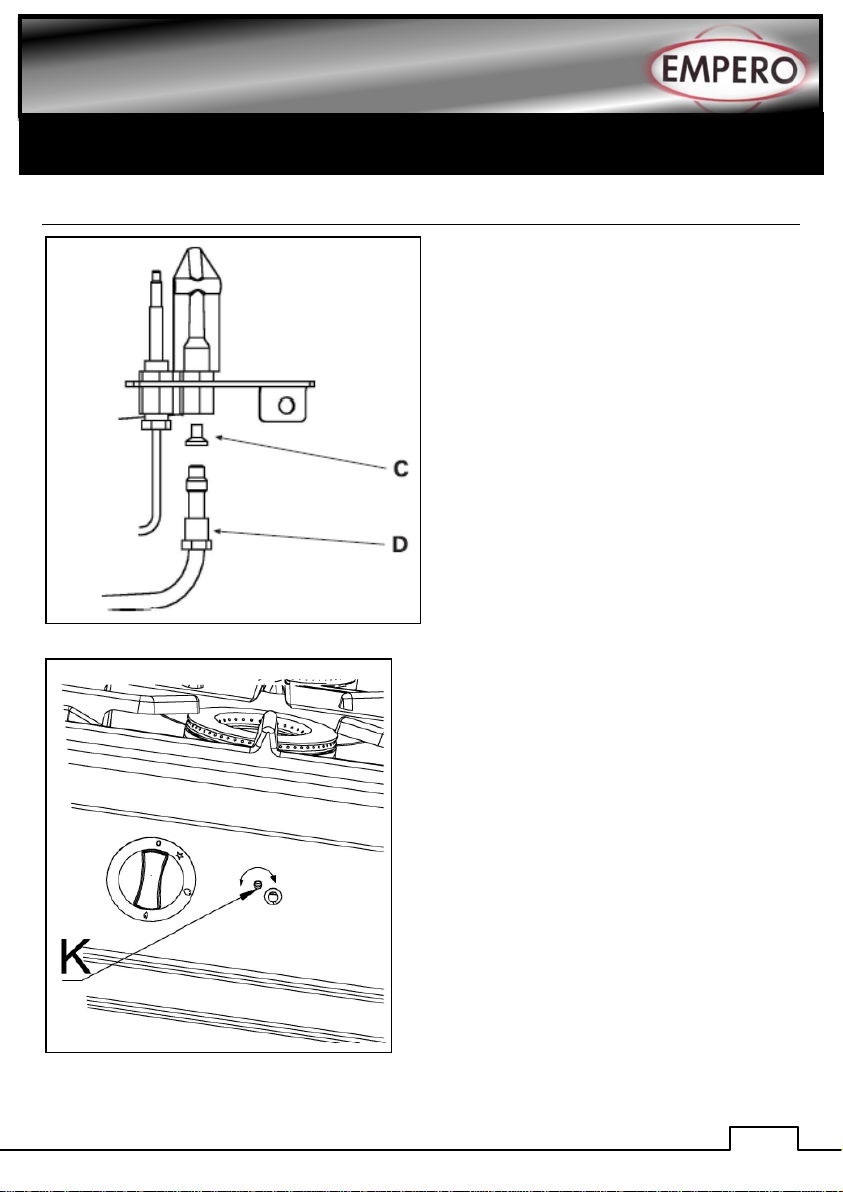

Image 3

Image 4

GAS RANGES WITH OVEN

Kasap Tip Dik Buzdolapları

H GAS CONNECTION IMAGES

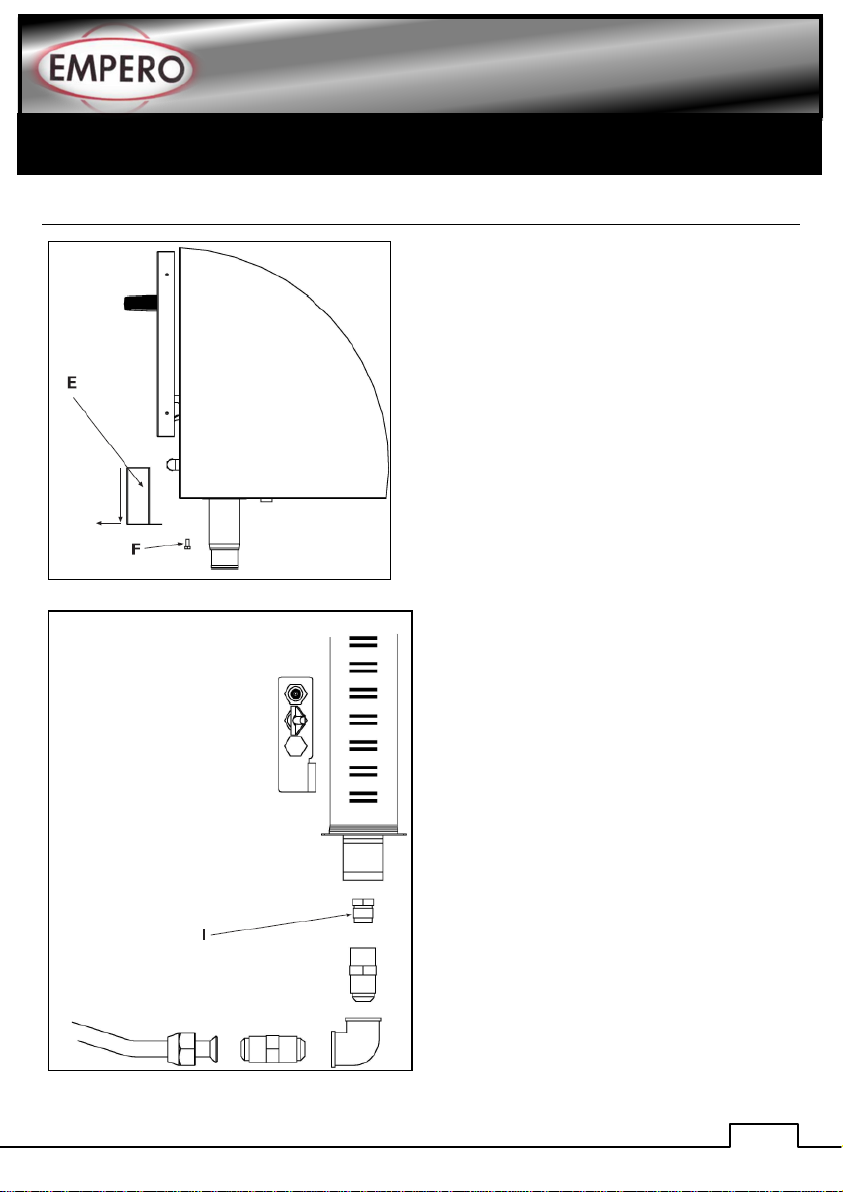

Image 5

Image 6
