Enders BOSTON BLACK 6 IKR TURBO User manual

BOSTON BLACK6 IKR TURBO
GAS GRILL/BARBACOA DE GAS/GASBARBECUE
www.enders-germany.com
886430
GB
ES
NL
INSTRUCTION MANUAL
MANUAL DE USO
GEBRUIKSAANWIJZING

2
ENGLISH
CONTENTS
INFORMATION REGARDING THIS GAS GRILL 3
SYMBOLS IN THESE INSTRUCTIONS 3
UNPACKING THE GAS GRILL 4
SAFETY NOTICE
REQUIRED TOOLS/AUXILIARY MATERIALS
PARTS DESCRIPTION
SCOPE OF DELIVERY
CONNECTING THE GAS CYLINDER 6
SAFETY NOTICE
REQUIRED TOOLS/AUXILIARY MATERIALS
ASSEMBLY PROCESS
OPERATING THE GAS GRILL 8
SAFETY NOTICE
TURNING ON THE GAS GRILL
TURNING OFF THE GAS GRILL
TURNING ON THE INFRARED GRILL
TURNING ON THE COOKING ZONE
MEANING OF SYMBOLS
TURBO ZONE
HEAT RANGE
FIRST AID MEASURES
CLEANING/SERVICING THE GAS GRILL 13
SAFETY NOTICE
STORAGE/TRANSPORT 14
SAFETY NOTICE
DISPOSAL 15
TECHNICAL SPECIFICATIONS 15
WARRANTY/WARRANTY CERTIFICATE 16

3
BOSTON BLACK 6 IKR TURBO 886430
This symbol stands for the
word ATTENTION and warns
of possible injuries or material
damages as well as damage to
the appliance.
Have another person help you here.
Useful tips and information.
Wear safety gloves during assembly,
to avoid getting cut.
Tools are required.
Do not use a cutter or similar sharp
objects when opening the packaging,
to avoid making scratches on the
product.
Furthermore, during assembly, place
a soft mat beneath the components,
to avoid scratches and damages here
as well.
Congratulations on purchasing this Enders product!
Please read and observe these instructions for use and
particularly the safety notice before using the product
and only use the product as described in these instruc-
tions, to prevent accidental injuries or damages.
Keep these instructions for future reference. If the pro-
duct is given to someone else, please include these in-
structions.
Have fun with your Enders gas grill.
INFORMATION REGARDING
SYMBOLS IN THESE INSTRUCTIONS
!
!

4
ENGLISH
REQUIRED TOOLS/AUXILIARY MATERIALS

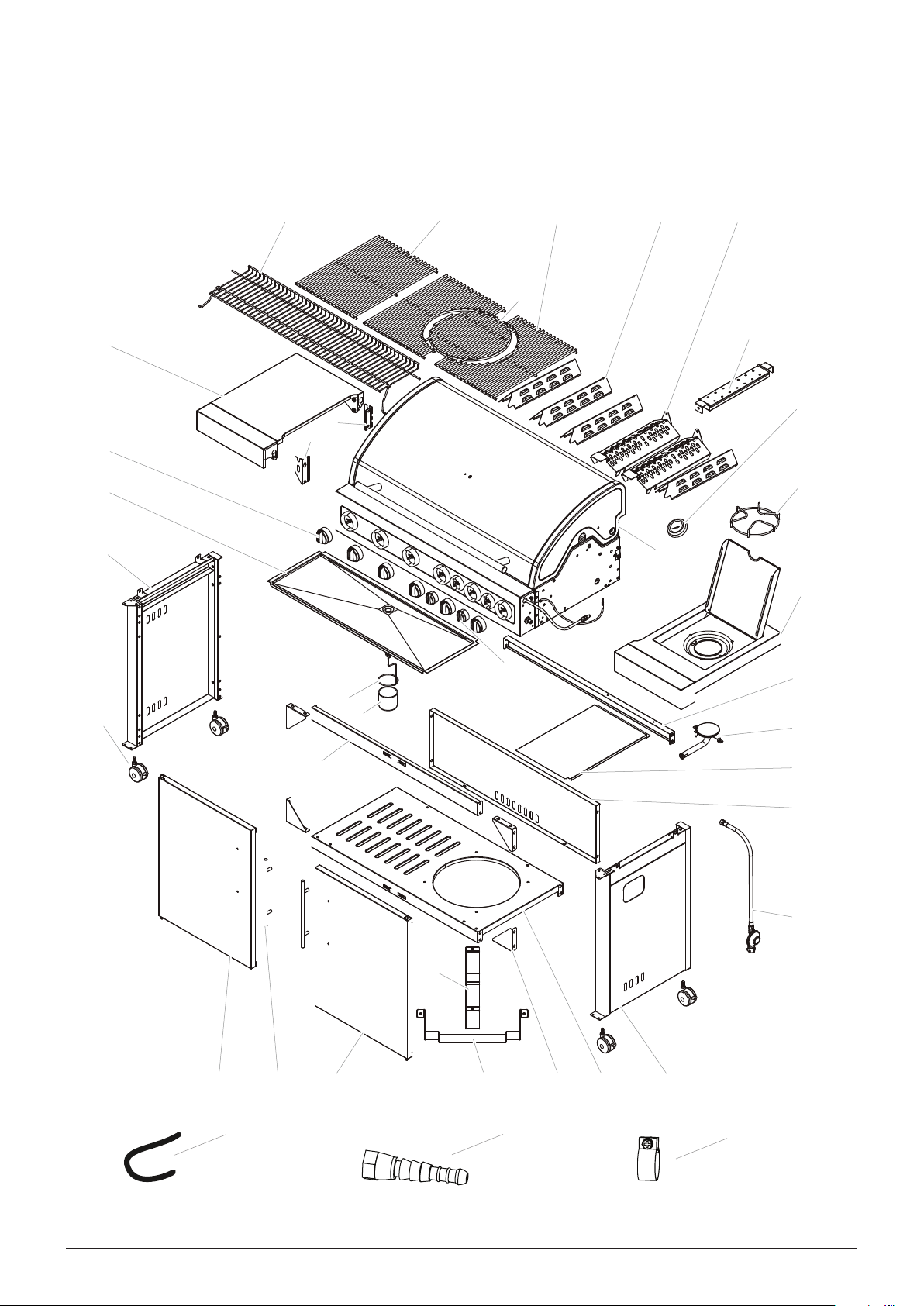

PARTS DESCRIPTION
Despite careful processing of all individual
parts, individual components can have sharp
edges. Therefore, please wear safety gloves,
to avoid getting cut.
Mortal danger due to suffocation/swallowing.
Keep the packaging material away from
children and dispose of it immediately.
Furthermore, keep small parts away from
children and their range of reach.
!
SAFETY NOTICE
UNPACKING THE GAS GRILL
No. Quantity
12
24
3 1
42
51
61
71
81
91
10 6
11 1
12 1
13 4
14 1
15 1
16 1
17 1
18 2
19 1
20 1
21 1
22 4
23 1
24 1
No. Quantity
25 0
26 1
27 1
28 1
29 1
30 1
31 1
32 1
33 1
34 1
35 2
36 0
37 0
A48
B2
C2
D2
E1

13
5
33
27
20
21
18
11
2 1
3
6 4
8
10
17
15
14
19
30
28
31
9
7
32
29
23
16
12
26
2422
34
35
25 37
36
13
5
33
27
20
21
18
11
2 1
3
6 4
8
10
17
15
14
25
19
30
28
31
9
7
32
29
23
16
12
26
2422
34
35
5
BOSTON BLACK 6 IKR TURBO 886430
SCOPE OF DELIVERY
(not included)
(not included)(not included)

6
ENGLISH
The gas grill can only be operated with a
pressure regulator. The enclosed pressure
regulator is correctly adjusted for operation
with liquefied gas ex works. Also read and
observe the assembly instructions and
instructions for use, which are separately
enclosed with the pressure regulator.
The gas hose may have to be replaced if
respective national regulations or the lifetime
of the hose line require this.
Gas hose and pressure regulator must be
replaced at regular intervals. (For this, please
refer to chapter Cleaning/Servicing.)
Get information at a specialist shop when
purchasing or renting gas cylinders.
CONNECTING THE GAS CYLINDER
Make sure that there are no sources of
ignition, open fire or the like in the vicinity,
when connecting or replacing the gas
cylinder.
Make sure that the gas hose does not have a
kink in it or is chafed and that its entire length
is accessible.
After installing the gas cylinder, please check
all connection points for leak tightness using
a commercially available leak detection spray
or soapy water. If there are no leaks, clean the
connections with water after the inspection.
Checking for leaks with an open flame is
strictly prohibited!
SAFETY NOTICE
REQUIRED TOOLS/AUXILIARY MATERIALS
!RISK OF FIRE AND EXPLOSION

7
BOSTON BLACK 6 IKR TURBO 886430
ASSEMBLY PROCESS
ATTENTION
!
Gas cylinders with maximum dimensions of
Ø 30 x 59 cm can be used and placed in the grill
cart. Larger cylinders can only be placed next
to the grill.
5 kg gas cylinder
Height: approx. 47.0 cm
Diameter: approx. 23.5 cm
(not included in delivery)
8 kg gas cylinder
Height: approx. 46.0 cm
Diameter: approx. 30.0 cm
(not included in delivery)
11 kg gas cylinder
Height: approx. 59.0 cm
Diameter: approx. 30.0 cm
(not included in delivery)
The sleeve nuts have left hand threads.
1. Place the gas cylinder next to the grill cart.
2. Screw the sleeve nut on the pressure regulator (DIN
EN 16129, Type 694)onto the screw connector on the
gas cylinder. Tighten the sleeve nut manually. Do not
use any tools, so the seal is not damaged.

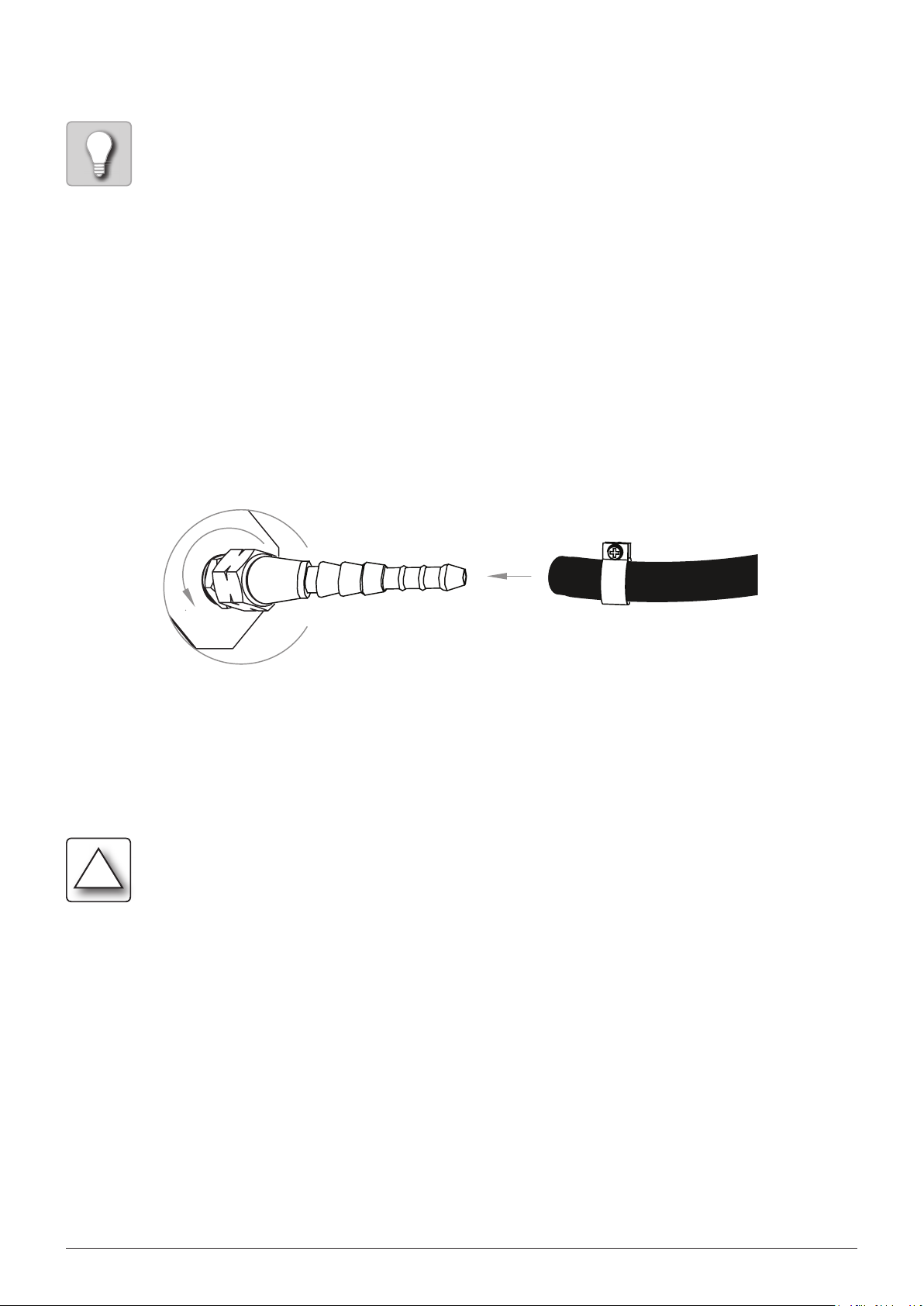

3. Screw the adapter (36) to the thread on the gas grill.
Connect the hose to the adapter nozzle and secure
with the hose clamp (37).
4. Connect the other end of the hose to the nozzle on
the pressure regulator and also secure with the
hose clamp (37).
5. Spray all sealing points with commercially available
leak detection spray or brush soapy water (ratio 1
part soap/3 parts water) onto them. Open the valve
on the gas cylinder. Bubbles will form if there are
leaks. Close the valve on the gas cylinder and rectify
the defect. Then, repeat step 5 until all leaks have
been eliminated.

8
ENGLISH
OPERATING THE GAS GRILL
Before you start grilling, you should always
think of safety first. Therefore, there are se-
veral safety inspections, which need to be
observed, before grilling.
INTENDED USE
Only use outdoors.
Read the instruction manual before operating
this appliance.
This appliance is not intended to be used
by children or person with a limited ability
to operate such appliances. It can only be
operated by persons, who are capable of
safely operating such an appliance.
Attention: Accessible parts can be extremely
hot. Keep children away.
The side shelves are not intended for direct
contact with food.
Wear protective gloves when handling hot
components.
BRISK OF FIRE AND EXPLOSION
Avoiding grease fires:
Grease and oils can self-ignite if heated to
extremely high temperatures. In not cleaned
adequately, the accumulated grease can
catch fire, which can lead to a so-called
grease fire in the grill.
Dab away excess grease/marinade from
the grill items before placing them on the
grill. This does not reduce the flavour of the
grill items but solely serves the purpose of
preventing grease fires.
Clean the appliance regularly and remove any
accumulation of grease! When doing so, pay
particular attention to grease accumulation
on the inside of the firebox, the flame covers,
the grease drip tray and the grease cup.
Never use water to extinguish burning, hot or
smoking grease/oil.
Handling the gas installation/gas grill:
Do not smoke when handling the gas
installation.
Do not place the gas cylinder near open fire.
Only use the gas grill outdoors. Make sure
the gas grill is sheltered from wind.
Keep the grill away from moisture, splash
water, etc.
Position the gas grill on an even, sturdy and
fireproof surface.
Do not move the appliance when it is being
operated.
Check the hose and pressure regulator for
tears and damages before each use. Do not
use the gas grill if the pressure regulator,
hose or gas cylinder indicate a defect or leak.
Do not leave the gas grill unattended when it
is in operation.
For protection against accidentally escaping
gas, the cylinder valve on the gas cylinder
should only be open when the gas grill is
being used.
After use, close the gas feed on the gas
cylinder.
To avoid overheating, do not cover the entire
grill surface with aluminium foil or the like. If
you have a cast iron reversible griddle, it can
be used as described in the corresponding
instructions. At the same time, only use
original Enders products. Enamelled cast
iron grates and cast iron griddles cannot
come into contact with highly acidic foods!
Keep a safe distance from flammable and
heat-sensitive materials when using the grill.
The distance must be at least 1 m.
Make sure that there are no objects or parts
of structures above the grill at a height less
than 2 m.
Make sure that the ventilation openings of the
place where the gas cylinder is positioned are
not covered.
Immediatelyclosethevalveonthegascylinder
if gas escapes or if there is a malfunction.
Protect the gas cylinder against severe direct
sunlight. The temperature cannot exceed
40°C.
SAFETY NOTICE
!

9
BOSTON BLACK 6 IKR TURBO 886430
TURNING ON THE INFRARED GRILL
1. Open the lid and turn all control knobs to the “ “
position
2. Press and hold the control knob for the infrared
burner and turn it counterclockwise to the highest
setting. (When doing so, you can hear a CLICK). The
burner ignites. If the burner does not ignite, repeat
this step.
3. If the burner does not ignite, wait approx. 5 minutes
and repeat step 2.
4. If the burner does not ignite, you can ignite
the appliance using a long match! Contact the
manufacturer, to eliminate the malfunctioning of the
ignition.
5. To turn off the infrared grill, turn the control knob
to the “ “ and close the valve on the gas cylinder.
ATTENTION!
The infrared burner is not infinitely variable.
ATTENTION!
Infrared burners cannot be used simultaneously like the
other burners.
Before grilling with the gas grill for the first time, allow
the burners to burn for 15 minutes without any grill
items, to remove residue from preserving agents. This
can lead to a slightodour development. Provide for suf-
ficient ventilation. The colour of the lid and the firebox of
the gas grill can slightly change. This is a natural pro-
cess and does not constitute a complaint.
1. Open the lid of your grill.
2. You can ignite the burners independent of one
another.
3. First, turn all control knobs clockwise to the OFF
position “ “ and then, open the valve on the gas
cylinder!
TURNING ON THE GAS GRILL
TURNING OFF THE GAS GRILL
To turn off the grill, close the valve on the gas cylinder
and turn all control knobs to the “ “ position.
4. Press one of the control knobs and turn it counter-
clockwise to the highest setting “+”. When doing so,
youcanhearaCLICK.Theburnerignites. Iftheburner
does not ignite, turn the knob back to the OFF position
“ “ and repeat these steps 3 to 4 times.
5. ATTENTION: If the burner does not ignite, turn the
control knob clockwise to the OFF position “ “ and
close the valve on the gas cylinder. Wait 5 minutes
and start with step 4 after opening the valve on the
gas cylinder again.
6. When the one burner has ignited, repeat step 4, to
ignite the other burners.
7. Regulate the heat by turning the control knob to
any setting between the highest setting “+” and the
lowest setting “-”.

TURBO ZONE
10
ENGLISH
MEANING OF THE SYMBOLS ON THE CONTROL PANEL
These symbols show you the different grill zones, which
you can control individually on the appliance.
You can start and control the second burner from
the left with this button.
Start and control the side burner on
your gas grill.
Grill zone Side burner
1. First, open the lid of the cooking zone.
2. To turn on the cooking zone, proceed as described
in items 3 to 7 in chapter “TURNING ON THE GAS
G R I L L”.
3. If the burner does not ignite, ignite the cooker
with a longer match. Contact the manufacturer, to
eliminate the malfunctioning of the ignition.
4. To turn off the cooker, turn the control knob to the “
“ position. To turn off the entire grill, close the valve
on the gas cylinder and turn all control knobs to the
“ “ position.
TURNING ON THE COOKING ZONE
ATTENTION! Only ignite the cooking zone with the lid
closed! Never close the lid of the side burner as long as
the side burner is on.
Only use a pot with at least 14 cm and a maximum 24
cmdiameter on the side burner.

11
BOSTON BLACK 6 IKR TURBO 886430
The Enders HEAT RANGE burner system in the Kansas
Pro series provides an ideal distribution of heat on the
cooking grate all the way to the outer zones thanks to
a change in the burner architecture and the protected
U technology. The new burner system consists of opti-
mized stainless steel burners and flame covers.
Specifically, the HEAT RANGE burner system provides
consistent temperatures from 80°C (ideal for low-tem-
perature cooking) up to 300°C in the cooking zone. Tem-
peratures up to 400°C are achieved directly on the grate.
Low-temperature cooking is particularly suitable for
sensitive types of meat such as tenderloin or roast beef.
Thanks to the gentle cooking process, you get juicy-de-
licious grill results.
HEAT RANGE
The HEAT RANGE burner system also offers an even
distribution of heat across the entire grill surface in the
front section. Flare-ups are minimized due to the new
flame covers. Another advantage of the burner system is
the short heating time until the maximum grilling tem-
perature is reached.
TM
TURBO ZONE
Finally a gas grill on which juicy steaks turn out
excellently – thanks to the Turbo Zone (controller
with the red ring). Because a good steak requires
the highest temperature for a short time, so that
intensive roasting by-products and grill-like flavours
can develop in the meat. The Turbo Zone is easy to
operate – simply turn it up and the searing process
of the steak can begin.
grilling in different heat zones enables a perfect
result for any type of meat
freely controllable grill zone with strong, direct heat
for perfect steaks
economical consumption

12
ENGLISH
FIREFIGHTING MEASURES
Bring bystanders to safety! If possible, close
the valve on the gas cylinder. Cool off the
gas cylinder with water. When doing so,
pay attention to your own safety! A repeated
spontaneous, explosive combustion is
possible.
In case of fire, filled compressed-gas
cylinders should be removed from the
flammable surroundings. If this is not
possible, the compressed-gas cylinders
should be protected against too intensive
heat by spraying them with water or similar
suitable means from a protected location.
MEASURES AFTER INHALING GAS
High concentrations can cause suffocation.
Symptomscanbetheloss ofthe ability tomove
and consciousness. The victim is not aware
of being suffocated. In low concentrations
dizziness, headaches, nausea and problems
with coordination can arise.
Bring the victim to a location where he/
she can breath fresh air. Call a physician or
the emergency services. Conduct first aid
measures in the event of respiratory arrest.
MEASURES AFTER SEVERE BURNING OR
SCALDING
There is an acute risk of hypothermia
and shock. Call emergency services
immediately!
Immediately extinguish possible burning
clothing with water or put out the flames
using a thick blanket.
In the case of scalding: Immediately remove
clothing.
In the case of burns: Leave clothing on the
body.
Cool with cold water for at least 15 minutes
until the pain subsides.
Cover the respective area with a sterile
Metalline compress. Place the side coated
with Metalline on the injured skin and loosely
fixate with a gauze bandage and a cravat.
Do not use any “household remedies” such
as ointments, powder, oils, disinfectants, etc.!
MEASURES AFTER MINOR BURNS
OR SCALDING
In the case of scalding: Immediately remove
clothing.
In the case of burns: Only remove clothing if
it does not stick.
Cool with cold water for at least 15 minutes
until the pain subsides.
Allow minor burns or scalding without
blistering to heal with the help of fresh air; do
not cover with a plaster or any other dressing.
FIRST AID MEASURES
!

13
BOSTON BLACK 6 IKR TURBO 886430
Dab away excess grease/marinade from the grill
items before placing them on the grill. This does not
reduce the flavour of the grill items but solely serves
the purpose of preventing grease fires.
Clean the grill after each use.
Do not use any abrasive or chloric cleaning agents.
Pull out the grease drip tray and the grease cup and
dispose of the grease in an environmentally sound
manner.
Wipe of the surfaces with a damp rag or rinse them
off with hot water. If necessary, use a mild cleaning
agent. Rinse off with water and dry all surfaces with
a microfibre cleaning cloth.
When using a mild cleaning agent, you should also
observe the manufacturer’s instructions/product
information, to avoid damage to the surface.
Allow the appliance to thoroughly dry before using it
again.
If, in exceptional cases, the burner tube is clogged,
it must be cleared using a needle or a pipe cleaner.
CLEANING/SERVICING THE GAS GRILL
Despite careful processing of all individual
parts, individual components can have
sharp edges. Therefore, please wear safety
gloves, to avoid getting cut.
Hot surface: Do not clean the gas grill until it
has sufficiently cooled off.
RISK OF FIRE AND EXPLOSION
Avoiding grease fires:
Clean the appliance each time before use,
to avoid the accumulation of grease. When
doing so, pay particular attention to grease
accumulation on the inside of the firebox,
the flame covers, the grease drip tray and
the grease cup.
Do not use any flammable cleaning agents.
Handling the gas installation/gas grill:
Repairs and servicing of the gas-conveying
parts can only be conducted by specialists
authorized to do so.
Do not make any modifications to the gas
grill or pressure regulator. The hose must
be serviced after 5 years (refer to the date of
manufacturer on the hose).
Replace the pressure regulator and the
hose after 10 years at the latest; even if no
external damage can be detected. Make sure
that the pressure regulator is approved for
your country and the gas used and that it is
adjusted to the correct output pressure (refer
to Technical Specifications) . A new hose
cannot be longer than 1.5 m.
All components, which were sealed by the
manufacturer or its representative, cannot
be manipulated or modified.
Together with oil, the gas forms an explosive
mixture. Never try to loosen tight valves or
regulator knobs with oil or penetrating oil.
The burners can be removed for cleaning
purposes.
SAFETY NOTICE
!

14
ENGLISH
Store the gas cylinder out of the reach of
children.
Keep the gas cylinder away from flammable
gases and other oxidizing substances.
Escaping liquefied gas is heavier than air
and sinks to the ground. Do not store the
gas cylinder in the house, under ground
level (e.g. basements, wells, underground
car parks, etc.) or in non-ventilated spaces,
in which escaping gas could accumulate.
Protect the gas cylinder against direct
sunlight and other heat sources.
Store the gas cylinder at temperatures
under 40°C in a well ventilated space and
where it is protected against the influences
of weather.
STORAGE/TRANSPORT
Store the gas cylinder in an upright position
and ensure it cannot topple over.
These storage instructions also apply to
empty gas cylinders because these always
contain a residual amount of liquefied gas.
If possible, do not transport the gas cylinder
in vehicles, in which the cargo bay/boot is
not separated from the driver’s cab. The
driver must be aware of the possible risks
of the load and he/she must know what to
do in case of an accident or emergency.
Transport the gas cylinder in an upright
position and ensure it cannot topple over or
slip/shift.
Make sure the valve on the gas cylinder is
closed and leakproof.
Ask your gas retailer about effective
national requirements and information.
Store the appliance in a dry room free of frost.
Close the lid of the grill and cover the appliance, to
prevent soiling and damages.
!
SAFETY NOTICE
RISK OF FIRE AND EXPLOSION

15
BOSTON BLACK 6 IKR TURBO 886430
DISPOSAL
The product packaging is made of recyclable materials,
whichcanbeused forrecycling. Disposeof thispackaging
correctly sorted in the collection bins provided.
If you want to dispose of the product, do not do so with
household waste. Ask your local waste management
company or your municipal administration about the
possibilities of an environmentally-friendly disposal,
which preserves resources.
TECHNICAL SPECIFICATIONS
This appliance was tested and approved according to
DIN EN 498:2012 and EN 484:2019. In its delivery state,
the appliance is designed for operation with liquefied
gas.
Hose length: 0.8 m
Gas cylinder: Gas cylinders with max. dimensions of
Ø 30 x 59 cm can be used and placed in the grill cart.
Model: BOSTON BLACK 6 IKR TURBO
Item no.: 886430
ΣQnHs:27,55 kW
2.003 g/h (PL 1.969 g/h)
Product-ID no.: 1936CU3748
Type of gas: Propan G31
Dest. Category p (mbar) Nozzle designation (mm)
Burner/TURBO ZONE/Cooker/Infrared burner
GB I3+(28-30/37) 37 Ø 0,85 Ø 0,98 Ø 0,85 Ø 0,98

16
ENGLISH
Attach sales receipt
We grant a 2-year warranty on the functioning of the
product. Prerequisite for this warranty is the proper
handling of the product and official proof of the date of
purchase.
The warranty expires at the end of the warranty
period or immediately if you make any modifications
to the product yourself. All components, which were
sealed by the manufacturer or its representative, cannot
be manipulated.
If, despite our quality checks, your product should be
defective, please do not bring it back to the retailer but
contact Enders directly. By doing so, we can ensure a
quick processing of your complaint.
Service:
www.enders-germany.com
Please fill it out and keep the warranty certificate as
well as the sales receipt for further enquiries!
Model name
Item number manufacturer
Serial number (see the back of the appliance)
Date of purchase
Place of purchase
WARRANTY
Subject to colour variations and technical modifications
for the purpose of product improvement.

17
BOSTON BLACK 6 IKR TURBO 886430

18
ESPAÑOL
ACERCA DE LA BARBACOA DE GAS 19
SÍMBOLOS EN ESTAS INSTRUCCIONES 19
DESEMPAQUETAR LA BARBACOA DE GAS 20
INDICACIONES DE SEGURIDAD
HERRAMIENTAS/INSTRUMENTOS NECESARIOS
DESCRIPCIÓN DE LAS PIEZAS
VOLUMEN DE SUMINISTRO
CONECTAR UNA BOTELLA DE GAS 22
INDICACIONES DE SEGURIDAD
HERRAMIENTAS/INSTRUMENTOS NECESARIOS
PROCESO DE MONTAJE
MANEJO DE LA BARBACOA DE GAS 24
INDICACIONES DE SEGURIDAD
ENCENDER LA BARBACOA DE GAS
APAGAR LA BARBACOA DE GAS
ENCENDER EL QUEMADOR INFRARROJO
ENCENDER LA ZONA DE COCCIÓN
EXPLICACIÓN DE SÍMBOLOS
TURBO ZONE
HEAT RANGE
MEDIDAS DE PRIMEROS AUXILIOS
LIMPIAR/MANTENER LA BARBACOA DE GAS 29
INDICACIONES DE SEGURIDAD
ALMACENAMIENTO/TRANSPORTE 30
INDICACIONES DE SEGURIDAD
ELIMINACIÓN 31
CARACTERÍSTICAS TÉCNICAS 31
GARANTÍA/CERTIFICADO DE GARANTÍA 32
ÍNDICE

19
BOSTON BLACK 6 IKR TURBO 886430
Este símbolo representa el tér-
mino indicativo ATENCIÓN y le
advierte de posibles lesiones
o daños materiales, así como
daños al aparato.
Deje que otra persona le ayude en
este punto.
Consejos e información útiles.
Utilice guantes de seguridad durante
el montaje para evitar lesiones por
cortes.
Se requieren herramientas.
No utilice un cúter u otros objetos
afilados similares al abrir el embalje
para no rayar el aparato.
Coloque una base blanda bajo las
piezas durante el montaje para evitar
también arañazos y daños.
¡Felicidades por adquirir este producto Enders!
Lea y tenga en cuenta este manual de instrucciones,
especialmente las indicaciones de seguridad, antes de
montar y poner en funcionamiento el aparato y utilice el
producto solo como se describe en estas instrucciones
para que no provoque lesiones o daños accidentalmente.
Conserve estas instrucciones para su referencia en el
futuro. Adjunte estas instrucciones si entrega el artículo
a terceros.
Esperamos que disfrute de su barbacoa de gas Enders.
ACERCA DE LA BARBACOA DE GAS
SÍMBOLOS EN ESTAS INSTRUCCIONES
!
!

20
ESPAÑOL
N.º Cantidad
12
24
3 1
42
51
61
71
81
91
10 6
11 1
12 1
13 4
14 1
15 1
16 1
17 1
18 2
19 1
20 1
21 1
22 4
23 1
24 1
N.º Cantidad
25 0
26 1
27 1
28 1
29 1
30 1
31 1
32 1
33 1
34 1
35 2
36 0
37 0
A48
B2
C2
D2
E1
A pesar del procesamiento cuidadoso de todas
las piezas individuales, algunas piezas pueden
tener los bordes afilados. Por eso, utilice
guantes de seguridad durante el montaje para
evitar lesiones por cortes.
Peligro de muerte por asfixia/ingestión.
Mantenga el material de embalaje fuera del
alcance de los niños y elimínelo de inmediato.
Guarde también las piezas pequeñas fuera
de su alcance.
!
INDICACIONES DE SEGURIDAD
DESEMPAQUETAR LA BARBACOA DE GAS
HERRAMIENTAS/INSTRUMENTOS NECESARIOS
DESCRIPCIÓN DE LAS PIEZAS
