Energy Z100 User manual

User Manual

23

ENGLISH
1.INTRODUCTION
Energy Sistem ® thanks you for buying an Energy ™ Mini
Music Box Z100. We hope you enjoy it.
The speaker and MP3 player that will accompany you
everywhere. With rechargeable lithium battery, you will
hear the MP3 songs on your micro SDHC card coming lively
from your speaker or through the headphone output. There
is also input for external audio source.
We encourage you to read this manual and enjoy the
product in a safe manner, with the best performance.

25
2.CARE AND MAINTENANCE
≥ Do not expose your Energy ™ Mini Music Box Z100 to
shock, dust, humidity or high temperatures.
≥ Do not use cleaning agents or abrasives.
≥ Keep it clean from dust with a soft, dry cloth.
≥ Do not disassemble the device. Any repairs must be
done by Energy Sistem Soyntec SA qualified service
personnel only.
≥ Keep Energy ™ Mini Music Box Z100 away from water or
moisture, it can be harmful to the device.
≥ Be sure to switch off your Energy ™ Mini Music Box Z100
when not in use.

3.TECHNICAL DETAILS
≥ Extensible Loudspeaker with bass enhancement system,
“Xtended Bass” (XTB)
≥ Real FTC power: 3 W (RMS).
≥ Frequency response: 150 Hz ~ 20 KHz.
≥ Size transducer: 36mm, 4 ohm.
≥ S/ N:> 80 dB.
≥ Micro SDHC Card Reader: Plays MP3 music files.
≥ Dimensions (H x Diameter) 60x70 mm.
ENGLISH

27
4.PRODUCT CONTENT
≥ Energy ™ Mini Music Box Z100.
≥ Combined cable with 3,5 mm audio connection and
charging function via USB.
≥ User manual.

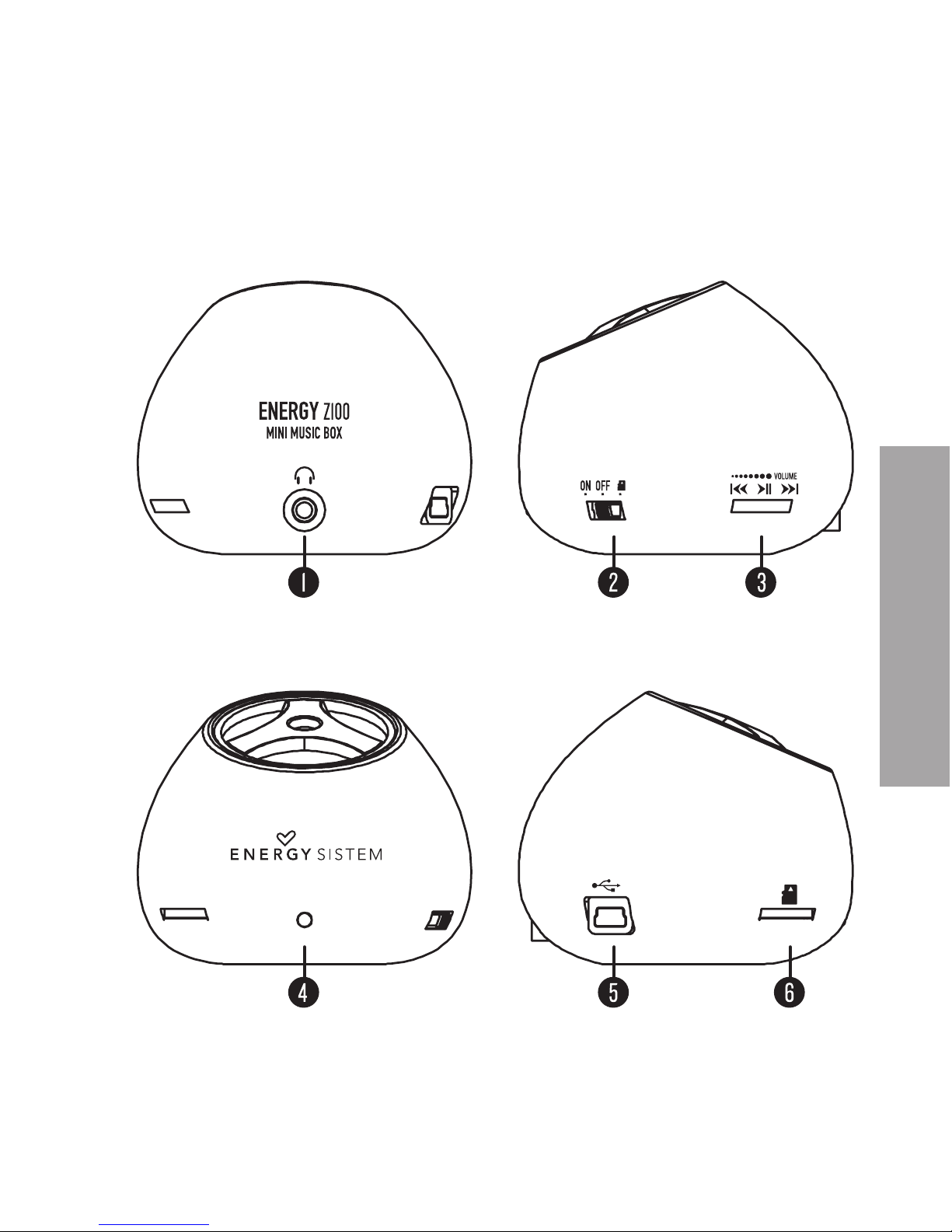

5.GENERAL OVERVIEW
1.Headphone output.
2.ON / OFF / memory card (micro SDHC) switch.
3.Volume control wheel.
4.Led status indicator.
5.Auxiliary input connection and USB charging.
6.Memory card slot (micro SDHC).



Back view
Front view
Right side view
Left side view
ENGLISH

29
6.GENERAL FEATURES
Energy Z100 ™ Mini Music Box speaker can connect any
external audio player (such as an MP3 player or laptop)
and amplify the sound itself, thanks to the line input .
Also it can be connected to headphones through output
for private listening.
"LINE-IN" FUCTION
To use line in playback, connect the mini USB audio
cable end to your Energy ™ Mini Music Box Z100 ,
and the other 3.5 mm jack cable end to the audio output
of any device like an MP3 player, a handheld computer,
etc ...
Xtended Bass (XTB) FUNCTION
The Xtended Bass (XTB) function is enabled by

unscrewing the speaker. It is an acoustic enhancement
system that provides an increase in bass power.
To unscrew the speaker, you just need to gently turn
counter-clockwise the top half.
To return it to its compact position, push together the
two halves this time and turn clockwise until both fit
tightly.

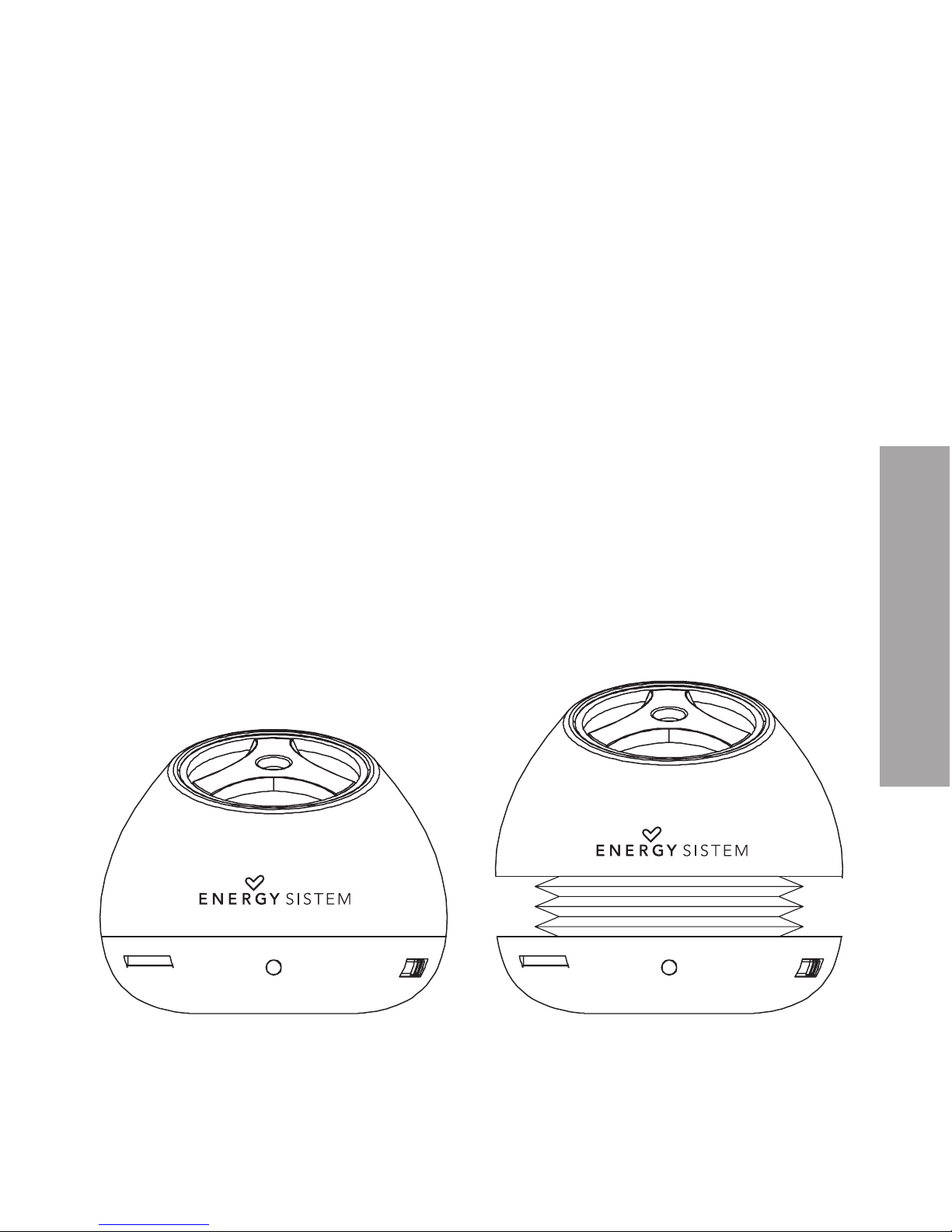

XTB disabled XTB enabled
ENGLISH

31
MP3 FUNCTION
To activate the card reader MP3 it is necessary to put a
micro SDHC card into the Z100 slot and positioning
the switch below the memory card icon. LED lamp 
will flash with red and blue color, and then start playing
MP3 music tracks.
Keeping the control wheel on the far left side or
far right side, respectively decreases or increases the
volume.
Sliding the wheel quickly to the right and pulling off,
jumps to the next track. Sliding the wheel quickly to the
left and pulling off, jumps back to the previous track.
Pressing the wheelwill pause or stop playback.
To turn off the speaker simply place the switch in OFF
