ENERMAX EB307ES User manual

Table of Contents
TABLE OF CONTENTS
CHAPTER 1 - INTRODUCTION 1
ICON 1
JAZZ EB307ES 1
SYSTEM REQUIREMENTS 2
PC REQUIREMENTS 2
MAC REQUIREMENTS 2
PACKAGE CONTENTS 2
CHAPTER 2 - INSTALLING THE HDD 3
PREPARING THE ENCLOSURE 3
HARD DRIVE ASSEMBLY 5
CHAPTER 3 - SYSTEM SET UP 7
CONNECTION TO YOUR COMPUTER 7
HOT-SWAP FUNCTION NOTICE 7
INSTALLATION ON A PC
(MICROSOFT WINDOWS) 8
WIN2000 OR WINXP OR WINVISTA OR WIN7WITH USB CONNECTION 8
WIN98/SE WITH A USB CONNECTION 8
UNPLUG PROCEDURE 8
INSTALLATION ON A MACINTOSH
(APPLE MAC OS) 9
MAC OS 9.X OR MAC OS 10.X WITH USB CONNECTION 9
MAC OS 10.2 OR 10.3 OR 10.4 OR 10.5 WITH USB 2.0 CONNECTION 9
UNPLUG PROCEDURE 9
PARTITIONING &FORMATTING 10
PC RUNNING WIN98/SE OR WINME 10
PC RUNNING WIN2000 OR WINXP OR WIN VISTA OR WIN7 11
MAC OS 12

- - 1 - -
Chapter 1 - Introduction
Icon
Throughout this manual you will see icons on the left margin that denote either Notes or Special
Remarks as outlined below:
Jazz EB307ES
Jazz EB307ES provides passive cooling with maximum durability, flexibility and practical design.
Through the steel mesh and aluminum case eliminates the need for an onboard fan, therefore
making the ideal solution for a quiet environment.
With eSATA and USB2.0 interfaces, you are able to transfer data with 3.0Gb/sec speed or “plug &
play” in any computer with USB ports.
Dimensions: 220mm x 124mm x 43mm
General Notes and Tips
Remarks for PC users and Microsoft Windows OS
Remarks for Mac users and Apple Macintosh OS

- - 2 - -
USB driver for Win98/SE is on
www.enermax.com
Mac OS 8.6 users should use
USB extension 1.41 to be able
to use USB 1.1
System Requirements
PC Requirements
•Minimum Intel Processor II 350MHz, 64MB RAM
•USB 1.1 equipped PC; WinME, Win2000, WinXP, WinVista, Win7
•USB 2.0 equipped PC; WinME, Win2000, WinXP, WinVista, Win7
•Computer must have proper port or PCI card
Mac Requirements
•Minimum Apple G3 processor, 64MB RAM
•USB 1.1 equipped Mac; Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3, 10.4, 10.5
•USB 2.0 equipped Mac; Mac OS 10.2, 10.3, 10.4, 10.5
Package Contents
•Jazz EB307ES HDD Enclosure
•External Power Adapter DC 12V (Switch 100-220V)
•USB 2.0 Cable
•eSATA Cable
•eSATA Expansion Slot Bracket
•Acrylic Stand
•User’s Manual

- - 3 - -
Chapter 2 - Installing the HDD
Preparing the Enclosure
Jazz EB307ES is on “Lock Mode” when you take it out from the package. Please follow the arrow
direction to switch it into “Unlock Mode”.

- - 4 - -
Follow the arrow direction to slide the upper cover to open the enclosure.

- - 5 - -
The hard drive jumper settings
should be master or factory
default.
Be careful not to damage any
cables or components and
double check the connection
between the cables, the
bridgeboard and your hard
drive before you close up the
case.
Hard Drive Assembly
Connect your SATA hard drive to the connector. Place the hard drive on the 2 mounting pins with
mounting holes under the hard drive.

- - 6 - -
The hard drive jumper settings
should be master or factory
default.
Be careful not to damage any
cables or components and
double check the connection
between the cables, the
bridgeboard and your hard
drive before you close up the
case.
Level the edge of the upper cover at the triangle mark and press the upper cover down. Follow the
arrow direction to close the enclosure. Switch the enclosure into “Lock Mode”

- - 7 - -
Most problems occur due to
driver problems on the Host
Card side!
If you buy a spare power
adapter for your working place
or at home, make sure the
output and polarity is identical
with the power adapter
supplied!
Chapter 3 - System Set Up
Connection to your Computer
Please connect the Jazz enclosure to your computer with the USB / eSATA cable enclosed in the
package. Using the power adapter with this product is also required.
A few tips on connecting the Jazz enclosure:
•Make sure your PCI Host Card is installed correctly
•Make sure your eSATA expansion slot bracket is installed correctly
•Double check that the Host Card driver is up to date
•If required, update your Operating System or BIOS
•Only one interface at the time can be used（Priority: eSATA ）
•Only one computer at the time can access the drive
•To use one drive on several computers, it can be shared through one computer on the network
•Do not cover the enclosure and leave enough room around it to cool down
•Do not expose the product to water or humid conditions
•Always check for visible damage and defects of power and interface cables before using it
Hot-Swap Function Notice:
zThe Hot-Swap SATA function on Jazz EB307ES will only work if your motherboard
manufacture support SATA Hot-Swap. Please check with your motherboard manufacture
before connecting the Jazz EB307ES eSATA to your computer to avoid any problems
zIf your motherboard support SATA hot-swap, please install the Hot-Swap driver before
plugging in the Jazz EB307ES eSATA cable to your computer
zIf your motherboard does not support SATA Hot-Swap, you must connect the Jazz EB307ES
eSATA cable to your computer before you turn it on to avoid the drive not being recognized in
windows. You also need to turn off your computer before you remove the eSATA cable from
the Jazz EB307ES
zYou may need to turn on the Jazz EB307ES unit before you turn on your computer

- - 8 - -
If the system doesn’t recognize
the drive, turn on the power
first, before connecting the
USB cable.
For safe removal of your drive
and to assure that no data is
lost, always follow the unplug
procedure. If not, an error
message will show up.
Installation on a PC (Microsoft Windows)
Win2000 or WinXP or WinVista or Win7 with a USB connection:
•Turn on your computer and start Windows
•Connect the Jazz enclosure and turn it on
•Let Windows search and install the driver automatically
•Open “My Computer” to see your external hard drive**
Win98/SE with a USB connection:
•Turn on your computer and start Windows
•Connect the Jazz enclosure and turn it on
•Install the driver downloaded from www.enermax.com
•Follow the onscreen instructions and install the drivers
•Open “My Computer” to see your external hard drive **
Unplug Procedure:
•Click on the taskbar icon for external hardware
•Choose your external hard drive and confirm to remove it
** For factory new drives and formatting, see “Partitioning & Formatting”

- - 9 - -
If the system doesn’t recognize
the drive, turn on the power
first, before connecting the
USB cable.
For Mac OS 8.6, the USB
extension has to be at least
v1.41.
For save removal of your drive
and to assure that no data is
lost, always follow the unplug
procedure. If not, an error
message will show up.
Installation on a Macintosh (Apple Mac OS)
Mac OS 9.x or Mac OS 10.x with USB connection:
•Turn on your computer and start Mac OS
•Connect the Jazz enclosure and turn it on
•No driver installation required
•The external drive will mount and show up on your desktop**
Mac OS 10.2 or 10.3 or 10.4 or 10.5 with USB 2.0 connection:
•Turn on your computer and start Mac OS
•Connect the Jazz enclosure and turn it on
•No driver installation required
•The external drive will mount and show up on your desktop**
Unplug Procedure: (** For factory new drives and formatting, see “Partitioning & Formatting)

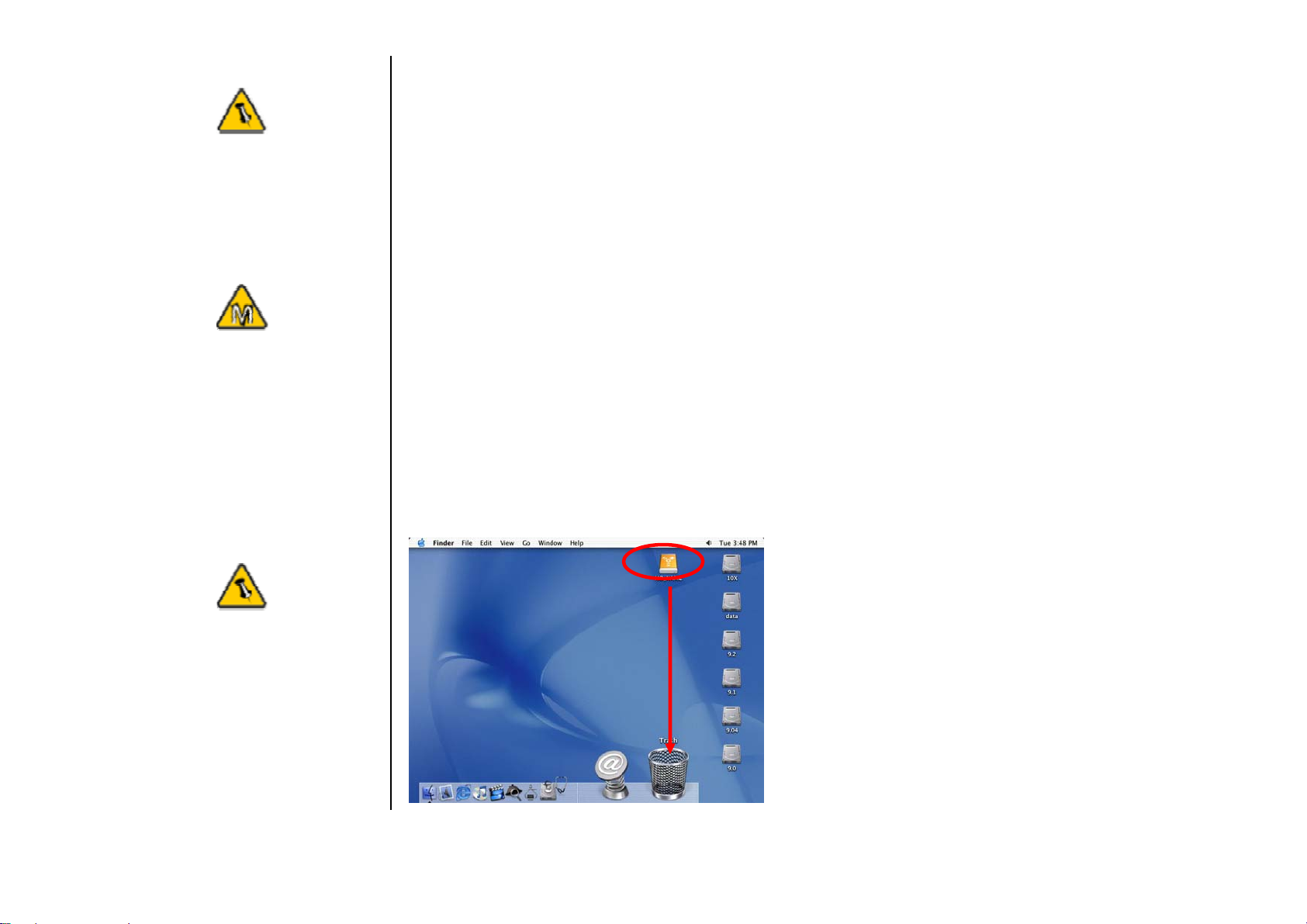

•Drag the external hard drive icon into the trash bin
•Turn off your device

- - 10 - -
You can choose to create
several partitions but be aware
that if you want to change this
at a later point, it’s required to
format the drive again or use
3rd party software.
Win98/SE and WinME do not
recognize NTFS formatted
drives, so if you want to use
your drive on those platforms,
we recommend you to use
FAT32 instead.
If you use this device to backup
your data using a 3rd party
software running MS-DOS, we
recommend you to format the
drive using FAT32.
Partitioning & Formatting
Be aware that this will destroy all your existing data on the drive, so make sure you have a backup!
This step is usually only required the first time you install a factory new hard drive, if you change
the format or want to erase all data on your drive.
PC running Win98/SE or WinME：
MS-DOS command “fdisk” (press Enter to confirm)
•Type “fdisk” and press Enter
•Select ”Y” and press Enter
•Enter "5” to change the drive
•Select the drive you want to format
•Choose “1” and follow the onscreen instructions

- - 11 - -
Mac OS does not recognize
NTFS formatted drives, to use
your device on both platforms,
we recommend you using
FAT32.
If you use Win2000 or WinXP
or WinVista or Win7 and FAT32,
the biggest single partition you
can create will be 32GB. To
create larger partitions, you
need to use the DOS
command under Win98SE or
WinME or change to NTFS
format.
If you can not see the drive,
make sure the jumper settings
of your hard drive are correct,
the drivers are installed and the
power is turned on.
PC running Win2000 or WinXP or WinVista or Win7:

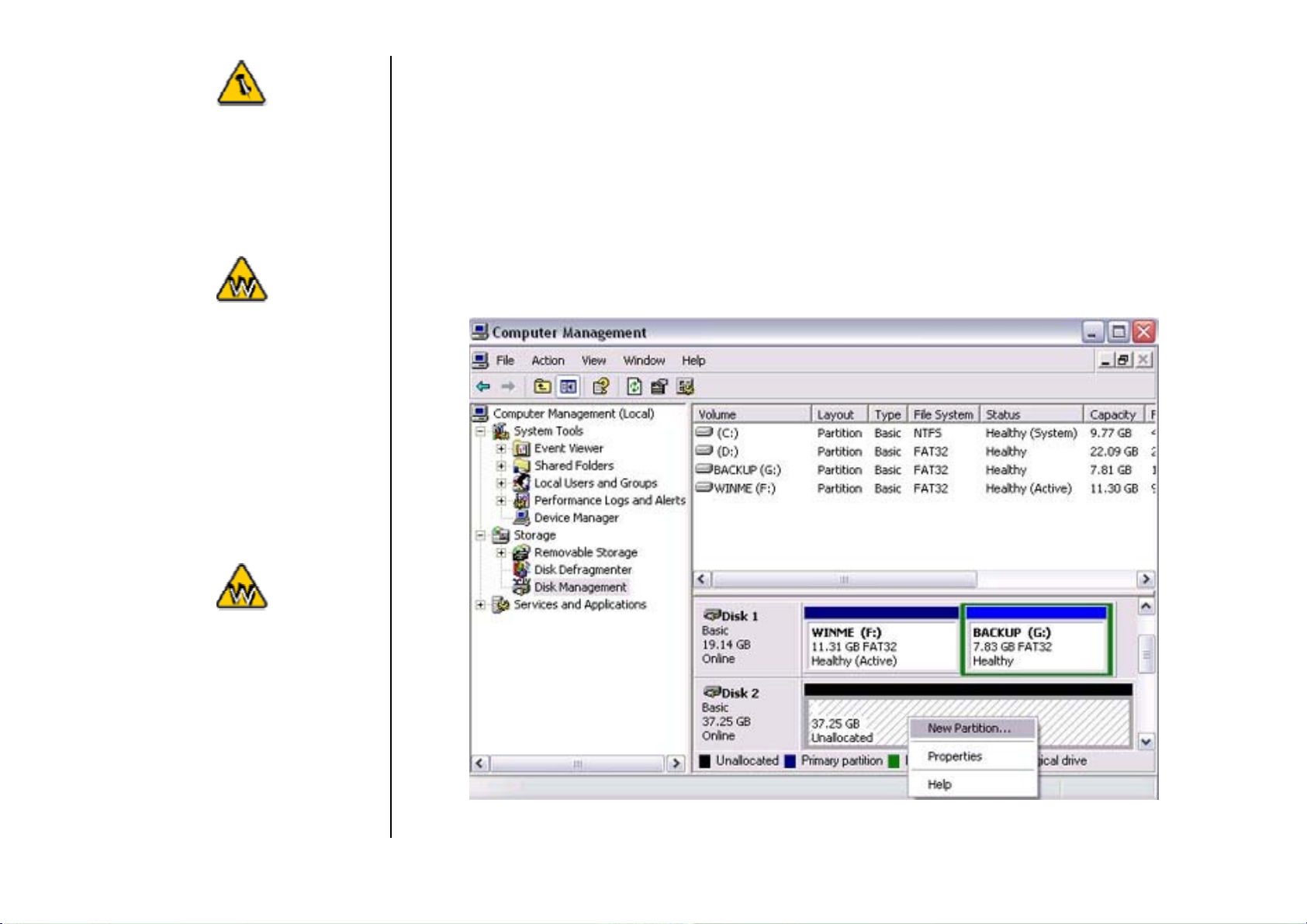

Disk Management Program
•Right click on “My Computer” and choose “Manage”
•Select “Disk Management”
•Choose the drive you want to format and right click on it for further commands (Choose New
Partition)
•Follow the Partition Wizard

- - 12 - -
If you want to use your drive on
a PC running Microsoft
Windows as well as on your
Mac, we recommend you to
use a PC to format the drive.
Choose FAT32 when formatting
and do not change anything on
the partition or format on your
Mac, otherwise the PC will not
be able to recognize the drive
anymore.
If you can not see the drive,
make sure the jumper settings
of your hard drive are correct,
there are no extension conflicts
and the power is turned on!
Mac OS:
Mac OS9.2 and earlier, does not support creating partitions on an external drive. To do that, you
would need to purchase additional 3rd party software. Initializing is no problem on all Operating
Systems.
For Mac OS X, use the Disk Utility to format and create partitions on your external disk.
•Select “Disk Utilities” in the utilities folder
•Choose your external drive and format it according to your requirement

- 13 -
Polski
Obudowa zewnętrzna HDD Jazz [EB307ES]
Instrukcja obsługi
1. Wymagania systemowe
a. Komputer PC
•Procesor Intel Pentium II 350MHz lub lepszy
•Interfejs USB 2.0 albo 1.1
•Windows 2000, Windows XP, Windows ME, Windows Vista, Win7 (bez dodatkowego
sterownika)
•Windows 98/SE (proszęściągnąć sterownik ze strony www.enermax.com)
b. Komputer Mac
•Procesor G3, 64MB pamięci RAM lub lepszy
•Interfejs USB 2.0 albo 1.1
•Mac OS od wersji 9.1
•Mac OS 8.6: interfejs USB od wersji 1.41
2. Instrukcja montażu dysku twardego
Patrz grafika na stronie 3-5

- 14 -
3. Instrukcja użytkowania
a. Instalacja sterownika
•Proszęzainstalowaćsterownik przed podłączeniem obudowy HDD do komputera.
•Windows ME/2000/XP/Vista/7: bez dodatkowego sterownika.
•Windows 98SE: Proszęściągnąć sterownik ze strony www.enermax.com.
•Mac OS: bez dodatkowego sterownika.
b. Podłączenie obudowy do komputera
•Podłączyćzasilacz do obudowy i gniazda sieciowego.
•Podłączyćobudowędo komputera kabelem USB lub eSATA.
c. Formatowanie
Przed pierwszym użyciem należy sformatowaćdysk twardy.
Uwaga: Formatowanie jest operacjąnieodwracalnąi dane nie mogązostaćodzyskane.
d. Odłączanie obudowy
Od komputera PC (Microsoft Windows)*:
1. Kliknij ikonę„Bezpieczne usuwanie sprzętu” w pasku zadań.
2. Wybierz odpowiedni zewnętrzny dysk twardy a następnie kliknij “Bezpiecznie usuń”.
Od komputera Macintosh (Apple Mac OS)*:
1. Przeciągnij ikonę“zewnętrznego dysku twardego” do kosza.
2. Odłącz obudowęod komputera.

- 15 -
*Aby uniknąć uszkodzenia urządzenia lub utraty danych, przy odłączeniu obudowy od komputera
należy zawsze przestrzegaćprocedury podanej powyżej.
4. FAQ (Pytanie i odpowiedzi)
Pytanie
Pojawia sięikona w prawym dolnym rogu ekranu, ale nadal nie mogęznaleźć zewnętrznego
dysku twardego.
Odpowiedź
a. Proszęupewnićsię, że dysk zostałpoprawnie zainstalowany.
b. Proszęsprawdzić, czy dysk twardy jest ustawiony jako “Master”.
c. Proszęsprawdzić, czy używany jest prawidłowy sterownik (dla Windows 98SE).
d. Proszęupewnićsię, że dysk twardy zostałsformatowany przed pierwszym użyciem.

- 16 -
© Copyright 2007 Enermax Technology Corporation All Rights Reserved.
The information contained in this manual is believed to be accurate and reliable. Enermax Technology Corporation assumes no responsibility for any errors
contained in this manual. Enermax Technology Corporation reserves the right to make changes in the specifications and/or design of this product without
prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only.

Table of Contents
TABLE OF CONTENTS
CHAPTER 1 - INTRODUCTION - 1 -
ICON 1
JAZZ EB307S 1
SYSTEM REQUIREMENTS 2
PC REQUIREMENTS 2
MAC REQUIREMENTS 2
PACKAGE CONTENTS 2
CHAPTER 2 - INSTALLING THE HDD 3
PREPARING THE ENCLOSURE 3
HARD DRIVE ASSEMBLY 5
CHAPTER 3 - SYSTEM SET UP 7
CONNECTION TO YOUR COMPUTER7
INSTALLATION ON A PC
(MICROSOFT WINDOWS) 8
WIN2000 OR WINXP OR WINVISTA WITH USB CONNECTION 8
WIN98/SE WITH A USB CONNECTION 8
UNPLUG PROCEDURE 8
INSTALLATION ON A MACINTOSH
(APPLE MAC OS) 9
MAC OS 9.X OR MAC OS 10.X WITH USB CONNECTION 9
MAC OS 10.2 OR 10.3 OR 10.4 OR 10.5 WITH USB 2.0 CONNECTION 9
UNPLUG PROCEDURE 9
PARTITIONING &FORMATTING 10
PC RUNNING WIN98/SE OR WINME 10
PC RUNNING WIN2000 OR WINXP OR WIN VISTA 11
MAC OS 12

- - 1 - -
Chapter 1 - Introduction
Icon
Throughout this manual you will see icons on the left margin that denote either Notes or Special
Remarks as outlined below:
Jazz EB307S
Jazz EB307S provides passive cooling with maximum durability, flexibility and practical design.
Through the steel mesh and aluminum case eliminates the need for an onboard fan, therefore
making the ideal solution for a quiet environment.
Dimensions: 220mm x 124mm x 43mm
8.66” x 4.88” x 1.69”
General Notes and Tips
Remarks for PC users and Microsoft Windows OS
Remarks for Mac users and Apple Macintosh OS

- - 2 - -
USB driver for Win98/SE is on
www.enermax.com
Mac OS 8.6 users should use
USB extension 1.41 to be able
to use USB 1.1
System Requirements
PC Requirements
•Minimum Intel Processor II 350MHz, 64MB RAM
•USB 1.1 equipped PC; WinME, Win2000, WinXP, WinVista
•USB 2.0 equipped PC; WinME, Win2000, WinXP, WinVista
•Computer must have proper port or PCI card
Mac Requirements
•Minimum Apple G3 processor, 64MB RAM
•USB 1.1 equipped Mac; Mac OS 9.1, 9.2, 10.1.5, 10.2, 10.3, 10.4, 10.5
•USB 2.0 equipped Mac; Mac OS 10.2, 10.3, 10.4, 10.5
Package Contents
•Jazz EB307S 3.5”HDD Enclosure
•External Power Adapter DC 12V (Switch 100-220V)
•USB 2.0 Cable
•Acrylic Stand
•User’s Manual
