Enplus EVO UPS 6000VA User manual

I
U P S
6K VA –10K VA
■
■■
■USER‘S MANUAL■
■■
■
2011/11 v 1.0

II
EMC Statements
CISPR 22
NOTICE: Pursuant to CISPR 22 rules, this product has been tested and thereby complies
with the conditions of a Class A digital device, which have been established for offering
sufficient protection against dangerous interference for installation in a residential area.
Installation and use of the equipment should comply with the instructions provided in order
to avoid such interference due to the amount of radio frequency energy that is radiated and
generated by the equipment. In spite of this, we cannot assure that a certain amount of
interference may not occur in some installations. If, by turning on and off, it can be deduced
that your radio or television reception is found to be influenced by harmful interference from
the equipment, it is recommended to use one of the following preventive measures:
Place the receiving antenna in a separate location or orientation.
Ensure a greater distance is achieved between the receiver and the equipment.
Ensure that your equipment is connected to an outlet on a separate circuit than the
receiver.
Contact a technician experienced with radio and TV or a dealer for further assistance.
Declaration of Conformity Request
Units labeled with a CE mark comply with the following standards and directives:
Harmonic Standards: EN 62040-1-1 1
st
/ IEC 62040-1-1 1
st
and EN62040-2 1
st
/ IEC
62040-2 1
st
EU Directives:73/23/EEC, Council Directive on equipment designed for use within
certain voltage limits
2006/95/EC, Amending Directive 93/68/EEC and 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
2004/108/EC, Amending Directive 92/31/EEC and 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark.

III
CONTENTS
1. Introduction ......................................................................................................6
2. System description ..........................................................................................6
2.1 General description .....................................................................................6
2.2 System configuration ...................................................................................8
3. Safety information............................................................................................9
4. Storage............................................................................................................10
5. Installation ......................................................................................................10
5.1 Environment ..............................................................................................10

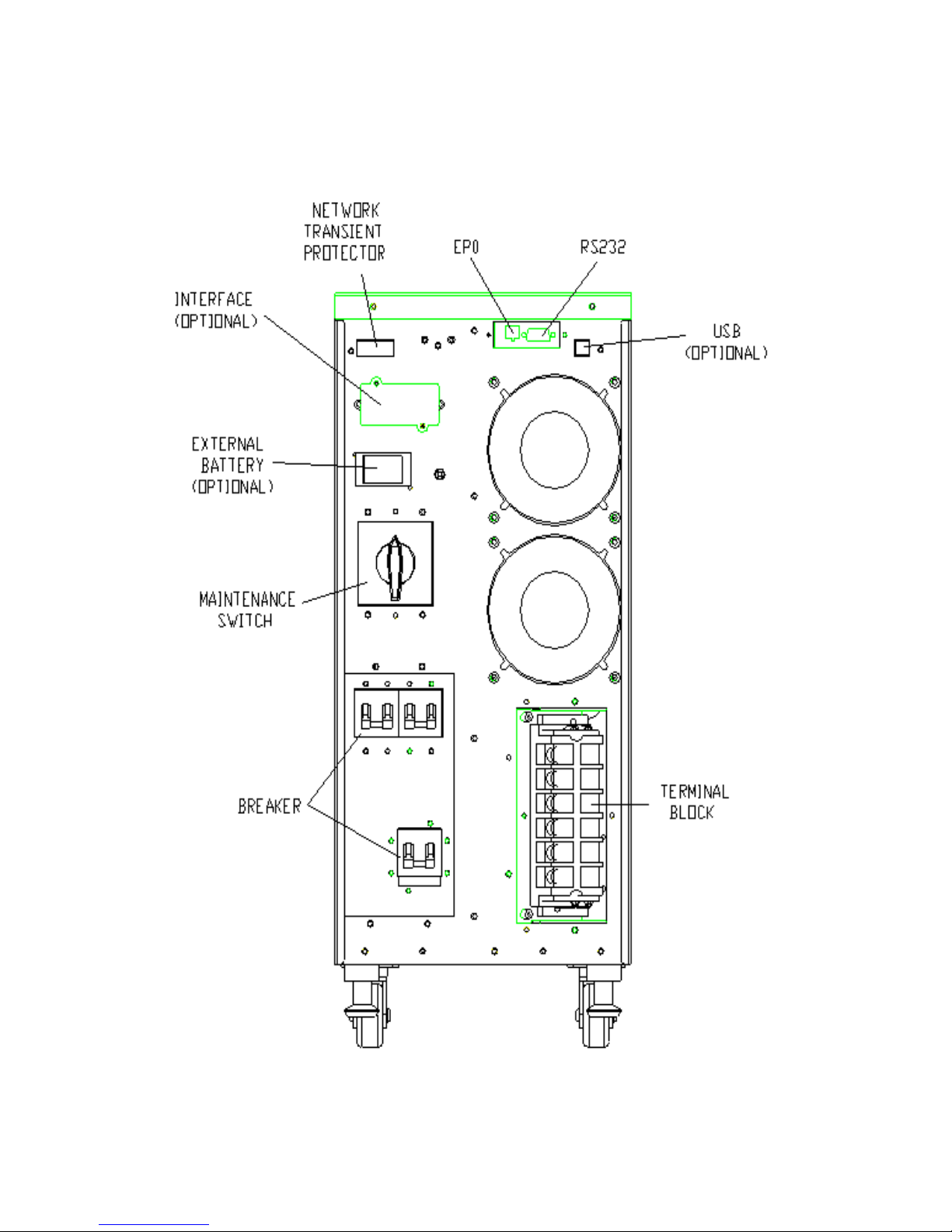

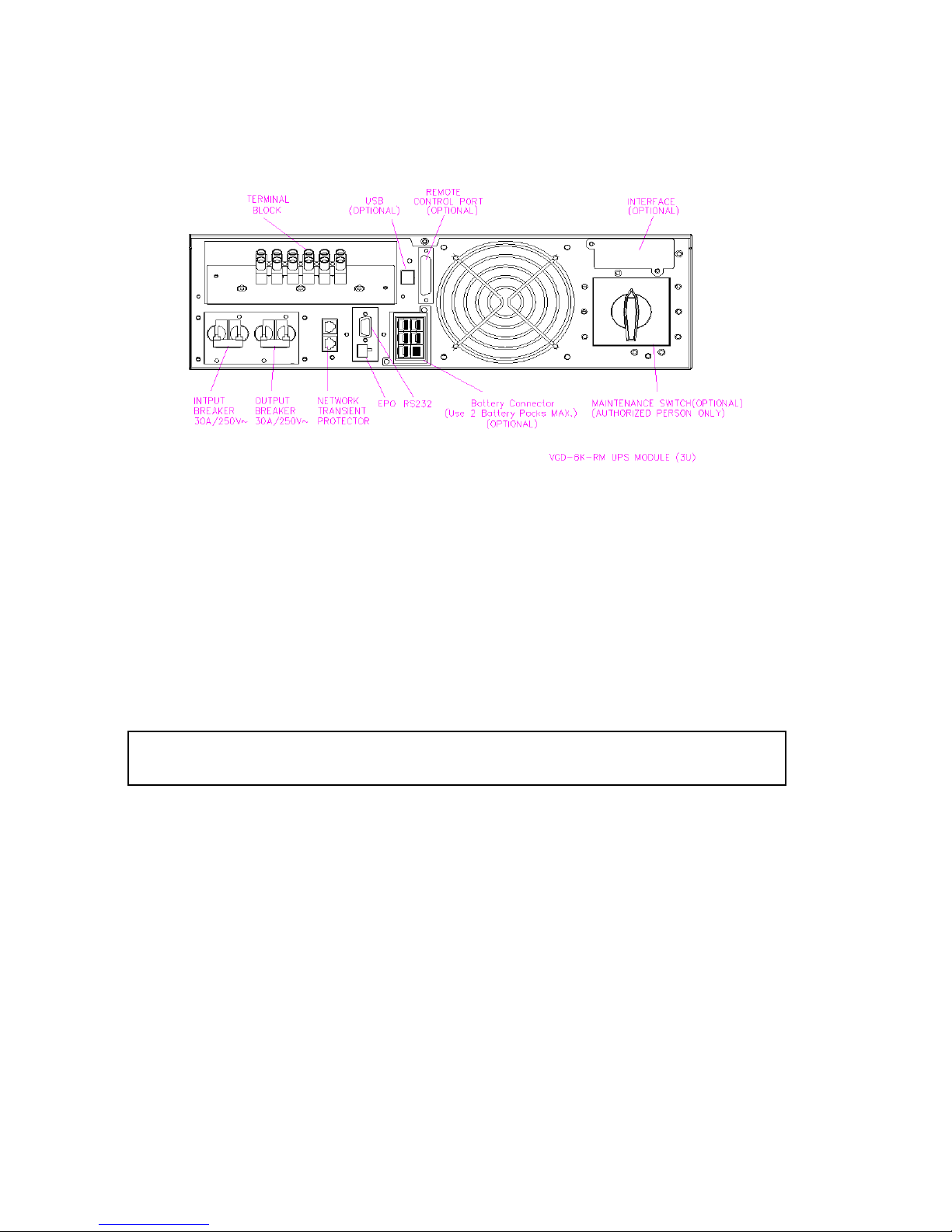

5.2 Rear panel views .......................................................................................11
5.3 Connection to mains and loads (6000 - 10000 VA) ...................................13
5.4 Default settings at the factory ....................................................................15
6. Computer and alarm connections ................................................................16
6.1 EPO port (emergency power off) ...............................................................17
7. User’s guide to operations............................................................................17
7.1 Starting and shutting down the UPS ..........................................................18
7.2 Button operation ........................................................................................18
7.3 Control panel functions..............................................................................19
7.4 Interpreting UPS messages.......................................................................23
7.5 Trouble shooting ........................................................................................24
8. Maintenance ...................................................................................................25
9. Technical Specifications................................................................................26
10. VGD RM 6KVA(3U+3U) Mechanical...............................................................38
11. Manual Bypass Operation………………………………………………………….46

IV
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTION
● C AU T I ON ( UP S H a v in g I n te rn a l B a tt e ri e s): Ris k o f el e ct ric
s ho c k - H a za rd o us l i ve p a rts i n s id e t hi s u n it a r e e n er g iz e d f ro m
t he b a tt e r y s upp l y e ven w he n t h e i np u t A C p o we r i s d i sc o n ne c te d .
● C AU T I ON ( N o Us e r s e r vi c ea b le P a rt s ): R isk o f e l e ctri c s h o ck, do
n ot r e mo v e c ov e r. No us e r se r vic e abl e p a rt s i ns i d e. Re f e r
servicing t o qual i fied ser vice per s onnel .
● C A UT I ON ( N o n- i s ol a t ed B at t e r y s up p l y) : Risk of elec t ric shoc k ,
b at t er y c irc u it i s n o t i so l a te d f ro m A C i np u t , h a z a rd ous vo l t ag e
m a y e x i st b e t we e n b at t e r y t e r m in a l s an d g r o un d . Te s t b e fo r e
touc h ing.
● W AR N I N G ( F u s es ) : To redu c e the ris k o f fi re, re plac e o nly wit h
the sa m e type and rat i n g of fu s e.
● W AR N IN G : I nte n d fo r i n s tal l at i o n i n a c o nt r ol l e d e n vi ro n m ent .
● C AU T I ON : Do not dispos e o f batte ries in a fire, t h e batte r y ma y
e xp l or e .
● C AU T I ON : D o n ot o p en o r m ut i l at e t h e b a tt e r y, r e l ea s e d
elec t rolyt e i s harmf u l t o the ski n a nd e yes.
● C AU T I ON : A bat te r y can pre s ent a ris k o f e lectr i c s hock and high
s ho r t c i rc u it c urr e nt . T he f o ll o wi n g p re c aut i o n s h o ul d b e o bs e r ve d
whe n wo rk i n g on batt e r i e s
Rem o ve watc h e s, r ings or othe r m etal objec t s .
Use to o ls with insu l ated handl e s. W ear r ubber g l oves and boots.
D o no t l a y t o ol s o r me t al p ar t s on to p o f b att e r ie s .
D is c onn e ct ch a rg i n g s o u r ce p r io r t o c onn e cti n g o r di s c on n ec t i ng
b a tt e r y t e r mi n a l s.
● To r educe t h e risk of el e c t ric sho c k , discon n ect the UPS f rom th e
m ai n s s up p l y b e fo r e i ns t a lli n g a c om p ut e r int e r fa c e s i gn a l ca b l e.
R ec o nn e ct t h e po we rs c ord o n l y a f te r s i gn a lin g i n te r con n ec t ion s
have been made.
● S er v ic i n g of b a t te r ie s s h o ul d b e per f o rm e d or s u p e rv is e d b y
p er s on n e l kn o wl e dg e o f b at t er i es a n d t he r eq u ir e d p re c a ut i on s .
K ee p u na u th o ri ze d p e rs o n ne l a wa y f r om b at t er i e s.

V
The instructions contained within this safety manual are deemed important and should be
closely followed at all times during installation and follow-up maintenance of the UPS and
batteries.
CAUTION
The unit has a dangerous amount of voltage. If the UPS indicator is on, the unit’s
outlets may have a dangerous amount of voltage even when not plugged into the
wall outlet because the battery may continue to supply power. Care should be
taken to undertake installation indoors free from electrically-conductive particles
which is under temperature and humidity control in order to reduce the risk of
electric shock. It is best to disconnect the device using the power supply cord.
Ensure that the equipment is placed in a position near the outlet where easily
accessible. Except replacing the batteries, all servicing on this equipment must
be carried out by qualified service personnel. Before conducting any maintenance,
repair or shipment, first ensure that everything is turned off completely and
disconnected.
For additional safety instructions, please use the Safety Manual as reference.
Special Symbols
The following symbols used on the UPS warn you of precautions:
RISK OF ELECTRIC SHOCK – Please observe the warning that a risk of
electric shock is present.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to the operator’s
manual for additional information, such as important operating and
maintenance instructions.
SAFE GROUNDING TERMINAL - Indicates primary safe ground
LOAD ON/OFF - Pressing this button turns on/off the output receptacles and
the Indicator light.
Please do not discard the UPS or UPS batteries as the UPS may have valve
regulated, lead–acid batteries. Please recycle batteries.

6
1. Introduction
The information provided in this manual covers single phase 6000 – 10000 VA,
uninterruptible power systems, their basic functions, operating procedures, and emergency
situations, also including information on how to ship, store, handle and install the equipment.
Only detailed requirements of the UPS units are described herein, and installation must be
carried out in accordance with this manual. Electrical installations must also carefully follow
local legislation and regulations. Only qualified personnel should conduct these installations
as failure to acknowledge electrical hazards could prove to be fatal.
2. System description
Several different kinds of sensitive electrical equipment stay protected by a UPS
(Uninterruptible Power System) including computers, workstations, process control systems,
telecommunications systems, sales terminals, other critical instrumentation, etc. The purpose
of the UPS is to protect these systems from poor quality utility power, complete loss of
power, or other associated problems.
Electrical interference abounds in many forms causing problems in AC power, from
lightning, power company accidents and radio transmissions to motors, air conditioners, and
vending machines, among others. So protection of sensitive electrical equipment is vital to
protect against power outages, low or high voltage, slow voltage fluctuations, frequency
variations, differential and common-mode noises, transients, etc.
In order to prevent power line problems reaching critical systems causing damage to
software, hardware and causing equipment to malfunction, the UPS helps by maintaining
constant voltage, isolating critical load output if needed, and cleaning the utility AC power.
2.1 General description
As a double conversion on-line UPS, it is able to supply uninterrupted, clean single-phase
power to your critical systems while keeping batteries charged continuously, regardless of
whether utility power fails or not.
In event that a power failure lasts longer than a UPS backup time, it will shut down avoiding

7
battery discharge, and as soon as voltage comes back, the UPS will automatically charge up
and start recharging the batteries.

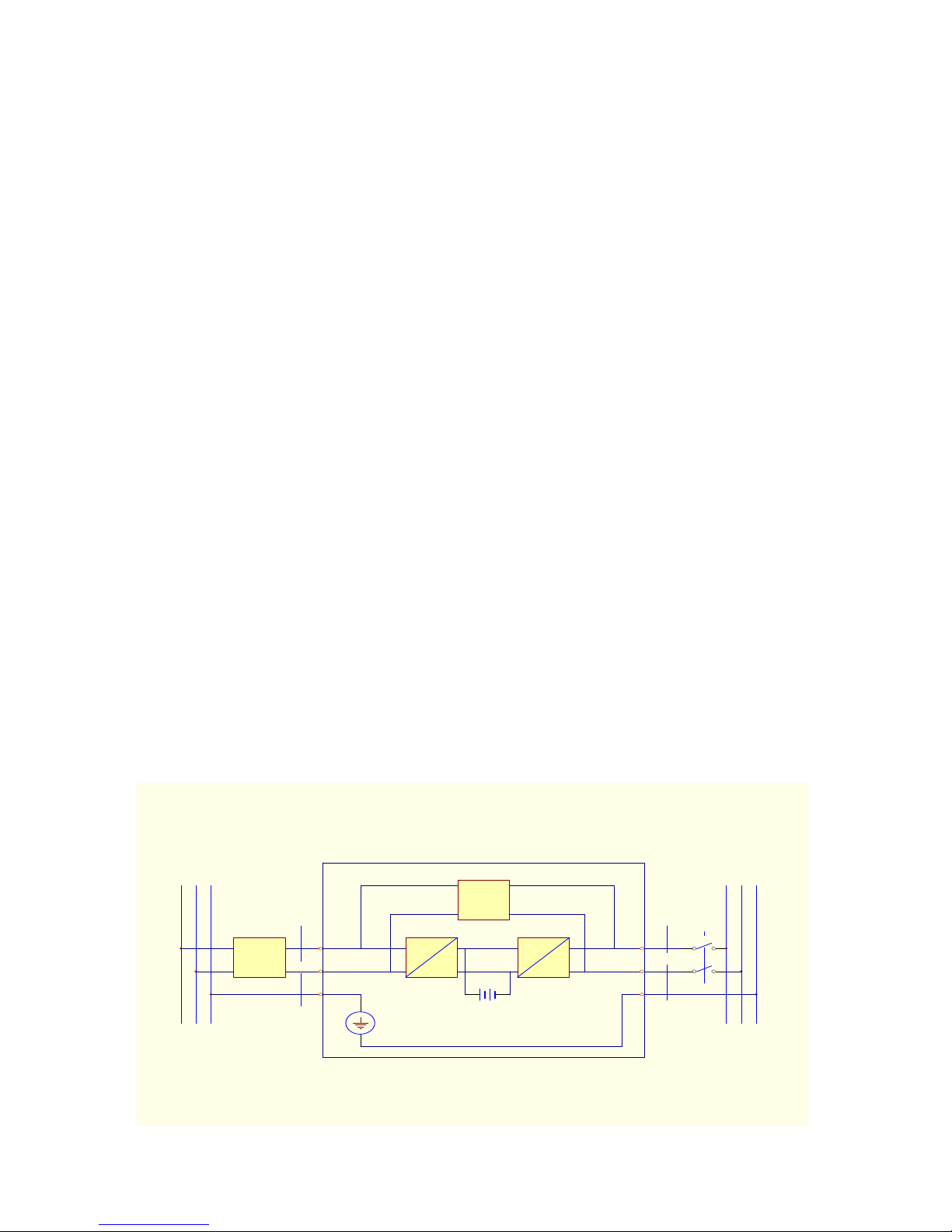

As shown in fig.1 block diagram:
An input filter reduces transients on the mains
For maintaining full battery charge, AC-power is rectified and regulated in the rectifier
feeding power to the inverter and battery converter.
DC power is converted to AC in the inverter passing it on to the load.
Power is maintained from the battery during a power failure.
The converter increases voltage appropriately for the inverter.
Fig.1. Block diagram
Efficiency Optimizer function
The Efficiency Optimizer function is a new feature for the UPS adding cost effectiveness,
minimizing power loss and reducing power consumption. Alternating between bypass and
on-line modes is achieved automatically and in accordance with the conditions of the utility
power. On-line mode may be used during times of intermittent power supply, and bypass
mode when power flows smoothly in order to obtain greatest efficiency. Irregularities can be
detected in less than a second, and on-line mode reactivated immediately. Switching back to
online mode occurs when input voltage is outside ±10% or nominal (±15% selectable), when
input frequency is outside of ±3Hz or when no input line is available.
Although high efficiency is standard, the default operation is in on-line mode. Bypass can be
F
FF
Fi
ii
il
ll
lt
tt
te
ee
er
rr
rB
BB
By
yy
y-
--
-p
pp
pa
aa
as
ss
ss
ss
s
s
ss
sw
ww
wi
ii
it
tt
tc
cc
ch
hh
hF
FF
Fi
ii
il
ll
lt
tt
te
ee
er
rr
r
C
CC
Ch
hh
ha
aa
ar
rr
rg
gg
ge
ee
er
rr
r &
&&
&
B
BB
Ba
aa
at
tt
tt
tt
te
ee
er
rr
ry
yy
y
s
ss
sw
ww
wi
ii
it
tt
tc
cc
ch
hh
hB
BB
Ba
aa
at
tt
tt
tt
te
ee
er
rr
ry
yy
y
M
MM
Mo
oo
on
nn
ni
ii
it
tt
to
oo
or
rr
ri
ii
in
nn
ng
gg
g
p
pp
pa
aa
an
nn
ne
ee
el
ll
l
R
RR
RS
SS
S2
22
23
33
32
22
2 o
oo
or
rr
r
U
UU
US
SS
SB
BB
B
S
SS
Sl
ll
lo
oo
ot
tt
t
C
CC
Co
oo
on
nn
nt
tt
tr
rr
ro
oo
ol
ll
l
&
&&
&
M
MM
Mo
oo
on
nn
ni
ii
it
tt
to
oo
or
rr
ri
ii
in
nn
ng
gg
g
P
PP
PF
FF
FC
CC
C&
&&
&B
BB
Bo
oo
oo
oo
os
ss
st
tt
te
ee
er
rr
r
I
II
In
nn
nv
vv
ve
ee
er
rr
rt
tt
te
ee
er
rr
r

8
activated in the LCD panel, though on-line can be run permanently if preferred.
Free Run Mode
The UPS operates in free run mode when input frequency is outside of the selected input
frequency range. Free run mode is when output frequency does not match input frequency.
When starting the UPS, the frequency regulation detected is 50 or 60 Hz ±0.25Hz. Please
refer to chapter 7.2 if you want bypass available while running in free run mode.
Diagnostic tests
When you start the UPS, a diagnostic test is automatically executed that checks electronics,
battery, and reports any problems on the LCD display.
An advanced battery management system always monitors the conditions of the batteries
sends any forewarnings if replacement is needed. Otherwise every 30 days of normal mode
operation, a battery discharge test is performed and any problems reported on the LCD
display.
Except during the first 24 hours after startup while the UPS is in charging mode (please see
chapter 7.2), diagnostic tests can be performed manually from the front panel at any time.
2.2 System configuration
The UPS device and the internal backup battery make up the system. Depending on the site
and load requirements of the installation, certain additional options are available as a tailored
solution.
Planning a UPS system, the following should be taken into consideration:
The total demand of the protected system shall dictate the output power rating (VA). Allow a
margin for future expansion or calculation inaccuracies from measuring power
requirements.
Backup time needed will indicate the battery size needed. If load is less than the UPS
nominal power rating then actual backup time is longer.
The following options are available:
External Battery Cabinets
Transformer cabinets

9
Maintenance bypass switches
Connectivity options (relay card, SNMP/WEB card)
The following UPS models are available
Model Backup time
Internal batteries Recharge time to 90% capacity
UPS 6000VA 4~6min 4 hours
UPS 10000VA 3~5min 4 hours
Additional External Battery Cabinets are available if more back-up time is needed.
3. Safety information
Information presented here is vital to all personnel and please also read the UPS safety
manual.
Storage and Transportation
Please handle with extreme caution since a high amount of energy is contained with the
batteries. Always keep the unit in position as marked on the packaging and never drop the
unit.
Installation
If flammable substances such as gases or fumes are present or if the room is airtight, a safety
hazard situation exists, in which no electrical equipment should be operated.
The instructions in this manual explain how to install the UPS safely. Not acknowledging
such electrical hazards may be fatal, so keep this manual for all future reference.
WARNING!
It is strongly advisable not to open the UPS cabinet as the components have very
high voltage and touching them may be fatal. Only a technician from the
manufacturer or an authorized agent may service the unit.
This UPS unit’s output receptacles carry live voltage even when not connected to
a power supply as it has its own energy source.

10
User’s operations
The only operations that users are permitted to do are:
Turning the UPS unit on and off
Operating the users interface
Connecting data interface cables
All such operations are to be performed exactly as instructed in this manual. The greatest
care possible must be taken for any of these operations and any change thereof may prove
very hazardous to the operator.
4. Storage
Please adhere to the following instructions if the UPS is not installed immediately:
Store the equipment as is in its original packing and shipping carton
Do not store in temperatures outside the range of +15°C to +25°C.
Ensure that the equipment is fully protected from wet or damp areas and from moist air.
In order to maintain the vitality of the batteries, ensure that the UPS is recharged every 6
months for at least 8 hours.
5. Installation
5.1 Environment
Ensure that all environmental concerns and requirements are met according to
these technical specifications, otherwise the safety of installation personnel cannot
be guaranteed and the unit may malfunction.
Ensure that you remember the following when locating the UPS system and battery options:
Avoid extremes of temperature and humidity. Maximal battery life can be attained with a
recommended temperature range of 15 °C to 25 °C.
Provide protection for the equipment from moisture.
Space and ventilation requirements must be met. Ensure there is 100mm behind and

11
50mm on the sides of the UPS for ventilation.
Ensure that the front of the UPS remains clear for user operation.
The External Battery Cabinets has to be installed next to the UPS or under the UPS.
Caution! The UPS and the External Battery Pack are to be installed at the same location. In
case, the UPS and the External Battery Pack are installed outside of visible distance, then
subject to the local inspection authority, User will need to add a Safety disconnect adjacent
to the UPS to provide safety isolation.
5.2 Rear panel views
6000VA Tower Rear panel

12
10000VA Tower Rear panel

13
6000VA & 10000VA RM Rear panel
5.3 Connection to mains and loads (6000 - 10000 VA)
Only qualified specialists or technicians who conform to applicable safety standards may
carry out the installation of this equipment. The installation must further comply with all
local legislation and regulations.
Follow all installation and safety instructions very carefully, otherwise those performing
installation may suffer from a hazardous situation and the UPS or load connections may
also be damaged.
The high voltage and current contained within the UPS equipment can injure
or kill personnel and damage equipment.
For electrical installation, closely observe the nominal current rating of the source.
Installing External battery cabinets
First disconnect the UPS from mains and loads before attempting an External Battery
Cabinet installation.
Use the battery cable provided with the External Battery Cabinet to connect the External
Battery Cabinet to the UPS. Connect a second battery cabinet to the first one with the
cable provided if more than one is to be installed.
Be aware of UPS parameters and changing the Battery pack quantity when using the
external battery cabinets (see chapter 7.2)

14
Installing UPS
Ensure that the installation site has all electrical connections properly carried out. In
addition, refer to figures 2 to 4 to check the fuse and cable dimensions.
Isolate and secure the source against reclosing. Both input and output circuit breakers
(located in the back) must be “OFF”.
Refer to figure 2 to 4 for single cable input and figure 2 to 4 for dual cable input.
Connect the UPS according to these diagrams. If installing dual cables, the
interconnection jumper (b*) needs to be removed as in figure 2 to 4. Fuse and cable
sizes are given in figure 2 to 4.
During installation, if it cannot be determined that neutral is grounded or the
identification of the neutral status of the mains supply is unreliable, an additional two
pole disconnect device is necessary in the building installation.
At the back of the unit you will find the Emergency Power Off (EPO), which when
open will immediately shut down the logic circuit output of the UPS as in figure 2 to 4.
Wiring the EPO signal is optional.
Caution! Local safety requirements may require a separate external Emergency Power
Off that opens output circuit breakers, and if so, use figures 2 to 4 for proper installation.
Refer to local wiring rules.
Should computer or alarm connections be used, use connections according to chapter 6
of the manual provided with that option. The connections can be referred to on the rear
panel.
The installation is now complete.
Circuit Breaker
Rectifier I/P
AC
DC
DC
AC
Wiring AWG
L N PE
INPUT
BATTERY
Static Bypass
L
N
PE
L
N
PE
Wiring AWG
L N PE
OUTPUT
External EPO

15
Power for UPS Circuit Breaker Wiring AWG or m ㎡
6000VA 40A 10 AWG or 5.5m ㎡
10000VA 60A 8 AWG or 8 m ㎡
Fig. 2
5.4 Default settings at the factory
On the LCD display you will find several of the UPS parameters to select.
Default settings are as follows:
Settings Selection Factory default
Output Voltage Setting 208/220/230/240 Vac 230V (FOR HV series)
Input/Bypass Voltage
±10%
+10/-15%
+15/-20%
+10/-15%
Input/Frequency
±2%
±5%
±7%
±5%
HE Mode Setting On/Off Off
Free Run Mode On/Off On
Bypass Enable/Disable at free run mode Disable/Enable Disable
Alarm silence On/Off Off
Site wiring alarm Enable/Disable Disable
External Battery pack setting 0, 1, 2 0
You may change default settings, but we recommend that this is done after installation and
before starting up loads. Read UPS configurations in chapter 7.2 for more information.

16
6. Computer and alarm connections
At the back of the UPS is an interface allowing direct communication with your computer
system, the location of which can be found in figure 4. There is a RS232 serial data
interface, one USB data interface and an emergency power off switch supplied. However,
the RS232 port cannot be used when the USB interface is in use.
In addition there is an optional interface slot that allows you to install different
communications cards. It can be used parallel with either the RS232 or USB ports.
Currently there are two cards available for the optional interface slot. An SNMP/WEB
card allows management and monitoring over a network or internet, and the AS/400 card
allows voltage free relay contacts. Your local dealer will have more information about
these option cards.
Connecting the UPS to a Computer
The communication device for the UPS and PC comes as a complete package with power
management software. Only the communication cable provided with UPS may be used to
connect to your computer, which is accomplished through the UPS RS232 port. Also
ensure that the operating system on your computer is supported. Instructions provided in
the power management software will help with this installation.
Other advanced power protection solutions such as SNMP are provided by your dealer.

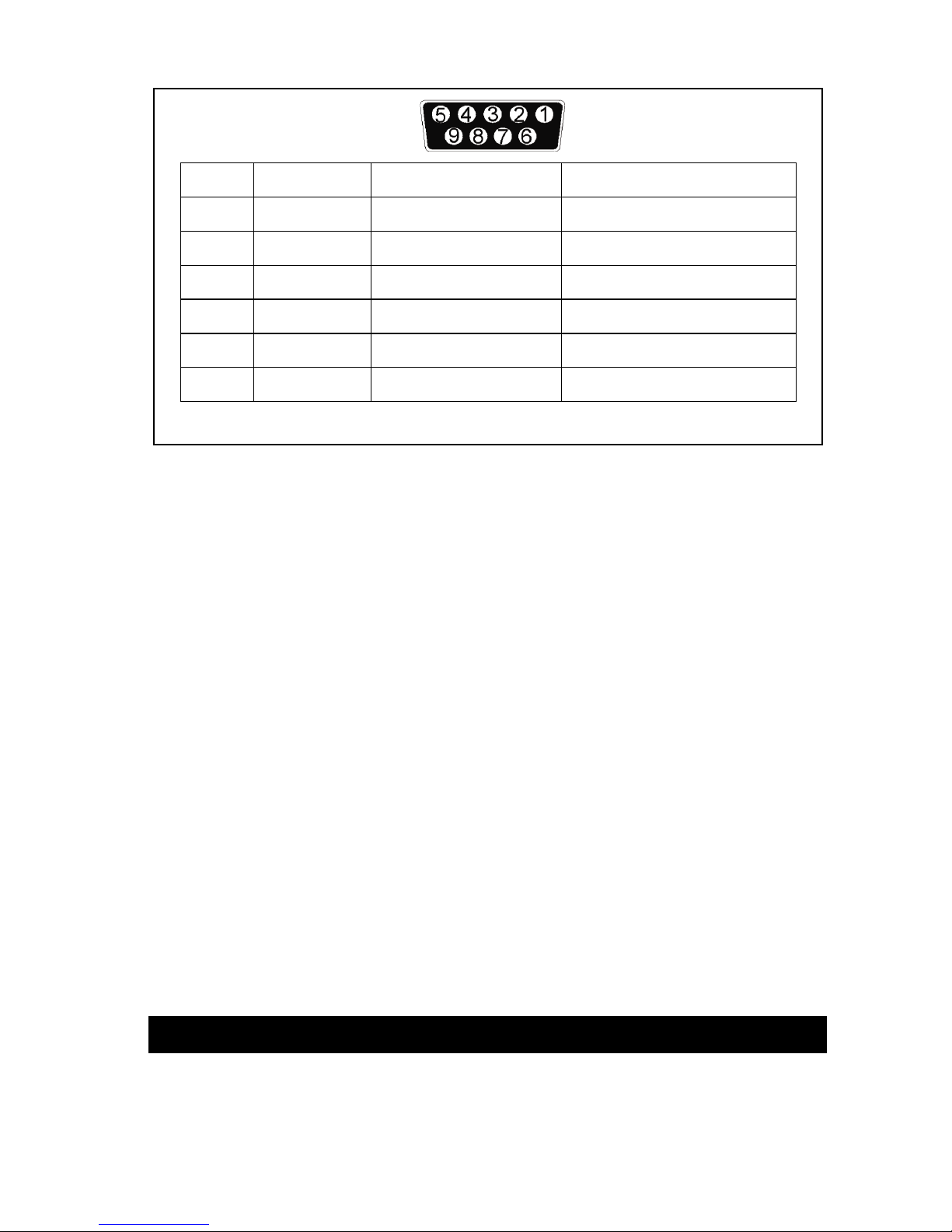

RS-232 Standard Interface port
The RS-232 interface uses a 9-pin female D-sub connector. This information consists of
data about utility, load and the UPS. The interface port pins and their functions are
identified in the following table.

17
Pin # Signal name Direction (re UPS) Functions
2 TxD Output TxD Output
3 RxD Input RxD / Inverter Off Input
5 Common Common
6 CTS Output Ac Fail Output
8 DCD Output Low Battery Output
9 RI Output +12 VDC Power
Fig.4
USB port (option)
Connecting the UPS to your computer is accomplished through the USB port on the back
of your computer. USB compliant hardware and operating system will be necessary
including installation of a UPS driver. The serial port cannot be used when using the USB
port. The USB cable is standard and can be bought separately.
6.1 EPO port (emergency power off)
A customer-supplied switch located remotely can be used to open the EPO connection
and allows UPS output receptacles to be switched off. Since the EPO shuts down the
equipment immediately, orderly shutdown procedures are not followed and not by any
power management software. The UPS will have to be manually restarted in order to
regain power to the outlets.
7. User’s guide to operations
Necessary information for operation of the unit is covered in this chapter. Normally the
UPS runs automatically, but on those few occasions such as just after installation, all the
starting and shutting down procedures are described herein.
Caution
! Max rated values 12Vdc/50mA

18
7.1 Starting and shutting down the UPS
Starting the UPS
Ensure that installation was correct and successful and that the input power cable is
connected to a well-grounded outlet.
The UPS can be started by pushing the “ON/OFF” button on the front panel.
The UPS should now start its inspection of: internal functions, main synchronization
and inverter startup. Then power should start to be supplied via the terminal block.
During this inspection, the LCD will display “Ready on”. The LED shall light up
when output power has commenced and the LCD will display “Line mode”.
Switch on the loads.
Shutting down the UPS
Shut down and turn off the loads.
Push the “ON/OFF” button on the front panel for two seconds. The alarm will sound
and the UPS will shut down.
The LCD will display UPS OFF for a few seconds.
In emergency situations, the EPO located on the back of the unit should be used.
7.2 Button operation
Please note the five operating buttons on the front panel:
1. “ON/OFF” button:
(a) Push “ON/OFF” button (at least 1 seconds) to turn on the UPS.
(b) When UPS is working, push the “ON/OFF” button(at least 2 seconds) to turn
off the UPS.
2. “STATUS” button:
Use this button to check content of UPS and the method is listed below:
(a) Push the “STATUS” button (at least 2 seconds) to check content of UPS.
Each content can be displayed by pressing at once, and it has fifteen kinds of
function to be checked.
(b) If no pressing within 10 seconds, it will return to original status.

19
3. “FUNC” button:
Each function can be enabled by pressing this button & “ENTER” button.
(a) Push the “FUNC ” button (at least 2 seconds) to choose which function that
you want. Each content can be displayed by pressing at once, and it has
fourteen kinds of function to be checked.
(b) After choosing the function, push the “ENTER” button to enter the function
that you want.
(c) Push the “FUNC” button to choose other function again.
(d) Push the “ENTER” button to enable your function.
(e) Push the “ENTER” button to confirm and enable your function.
(f) If no pressing within 10 seconds, it will return to original status.
4. “ENTER” button:
Use this button to enter 、 enable or confirm the function that you want.
5. “ESCAPE” button:
Use this button to return to main display(Line mode or Battery Mode).
7.3 Control panel functions
Operation of the UPS is indicated on the monitor panel with five LED indicators and an
LCD screen. This display is also capable of alerting the user with audible alarms.
ON ： This green LED is lit when UPS has been turned on.
ON-LINE ： When the UPS is in normal or static bypass modes, there is voltage at the
output terminals and this LED will light up in green.
ON-BAT ： While operating in battery mode.
BYPASS ： While operating in bypass mode, this LED will light up in yellow.
FAULT ： If any internal error occurs in the UPS, this LED will light up in red and give off
an audible alarm. Press any of the buttons on the front panel to turn off the
alarm.

20
Status of the UPS, measurements and alarms are all indicated on the LCD screen.

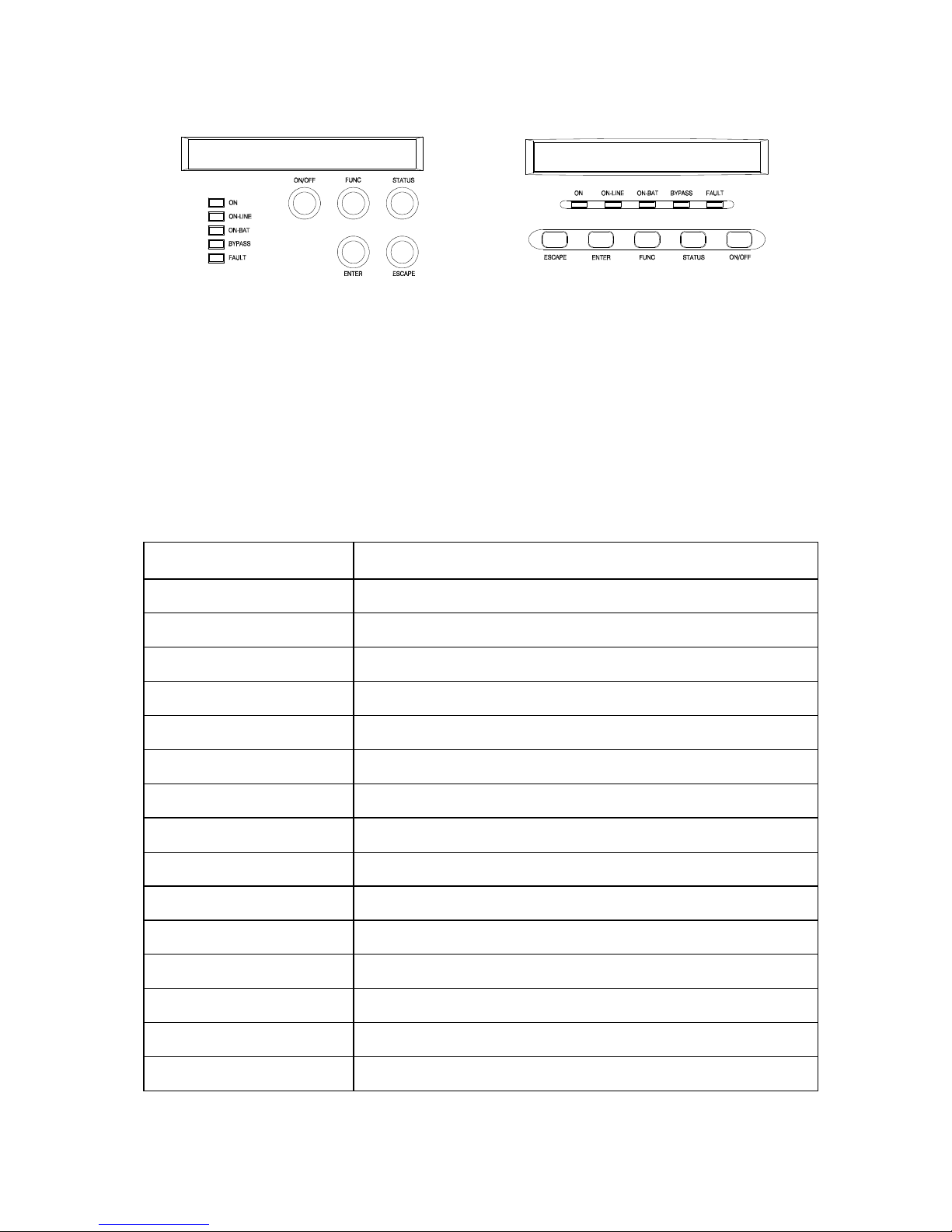

Control panel
Normal display
The UPS status is shown in normal display mode. From here you have a choice to go to UPS
meters display and the Setting display by pushing the button.
UPS meters display
Various measurements are available through the UPS meters display; pressing
the button will scroll through the following meters:
LCD message Description
O/P VOLT= xxx, xV Shows Output AC voltage
O/P FREQ= xx, x Hz Shows Output Frequency
I/P VOL T= xxx, xV Shows Input AC voltage
I/P FREQ= xx, x Hz Shows Input Frequency
BAT VOLT= xx,xV Shows Battery Voltage
O/P LOAD%= xx% Shows Load % of max load
O/P W= xW Shows Output Watts
O/P VA= xVA Shows Output VA
O/P CURR= xA Shows Output Current
BACKUP TIME= xx min Shows Estimated Backup time in minutes
BAT CHARG= xx% Shows approximate percentage of Battery capacity
TEMPERATURE= xxC Shows approximate ambient temperature
BAT PACK NUM= x Shows External Battery Pack Number
RATING = xxxxVA Shows UPS Rating
CPU VERSION xx.x Shows CPU Version
