EMC Statements
FCC Part 15
NOTICE: Pursuant to section 15 of the FCC rules, this product has been tested and thereby
complies to the conditions of a Class B (1000VA) and Class A (2000-3000VA) digital device, which
have been established for offering sufficient protection against dangerous interference for
installation in a residential area. Installation and use of the equipment should comply with the
instructions provided in order to avoid such interference due to the amount of radio frequency
energy that is radiated and generated by the equipment. In spite of this, we cannot assure that a
certain amount of interference may not occur in some installations. If, by turning on and off, it can
be deduced that your radio or television reception is found to be influenced by harmful interference
from the equipment, it is recommended to use one of the following preventive measures:
． Place the receiving antenna in a separate location or orientation.
． Ensure a greater distance is achieved between the receiver and the equipment.
． Ensure that your equipment is connected to an outlet on a separate circuit than the receiver.
． Contact a technician experienced with radio and TV or a dealer for further assistance.
ICES-003
This Class B Interference Causing Equipment meets all requirements of the Canadian Interference
Causing Equipment Regulations ICES–003. Cet appareil numérique de la classe B respecte toutes
les exigences du Reglement sur le matériel brouilleur du Canada.
Declaration of Conformity Request
Units labeled with a CE mark comply with the following standards and directives:
． Harmonic Standards: EN 50091-1-1, EN 62040-1-1 1
st
/ IEC 62040-1-1 1
st
and
EN 50091-2 / EN62040-2 1
st
/ IEC 62040-2 1
st
． EU Directives:73/23/EEC, Council Directive on equipment designed for use within
certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC

3
The EC Declaration of Conformity is available upon request for products with a CE mark.
CONTENTS
1. Introduction............................................................................................ 8
2. System description.................................................................................. 8
2.1 General description......................................................................................... 8
3. Safety Information................................................................................ 12
4. Storage ................................................................................................. 13
5. Installation ........................................................................................... 13
5.1 Environment ................................................................................................ 13
5.4 Default settings at the factory ........................................................................ 22
6. Computer and Alarm connections......................................................... 23
6.1 EPO port (emergency power off).................................................................... 25
6.2 Load segments (1000 - 3000 VA) ................................................................... 25
7. User’s guide to operations..................................................................... 26
7.1 Starting and shutting down the UPS ............................................................... 26
7.2 Button Operation.......................................................................................... 26
7.3 Control Panel functions................................................................................. 27
7.4 Interpreting UPS messages ............................................................................ 31
7.5 Trouble shooting .......................................................................................... 32
8. Maintenance ......................................................................................... 33
9. Technical Specifications ........................................................................ 34
9.1 .1Power Range 1000-3000 VA at P.F 0.8 (LV) (Tower and 19” RM model)......... 34
9.1.2 Power Range 1000-3000 VA at P.F0.9 (LV) (Tower and 19” RM model) ......... 34
9.2.1 Power Range 1000-3000 VA at P.F 0.8(HV) ................................................. 35
(Tower and 19” RM model) ................................................................................ 35
9.2.2 Power Range 1000-3000 VA at P.F 0.9(HV) ................................................. 36
(Tower and 19” RM model) ................................................................................ 36
10. Manual Bypass Operation…………………………………………………...40

4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
●This Manual Contains Important Instructions that should be Followed during Installation
and Maintenance of the UPS and Batteries.
●The equipment can be operated by any individuals with no previous experience.
●WARNING: Intend for installation in a controlled environment. Maximum ambient
temperature 40°C.
●CAUTION: Risk of electric shock. Refer to top or rear or bottom of UPS for Cautionary
markings.
●CAUTION: Risk of electric shock. Heat sinks are live. Disconnect unit before servicing.
●CAUTION (UPS Having Internal Batteries): Risk of electric shock - Hazardous live
Parts inside this unit are energized from the battery supply even when the input AC power
is disconnected.
●CAUTION (No User serviceable Parts): Risk of electric shock, do not remove cover.
No user serviceable parts inside. Refer servicing to qualified service personnel.
●CAUTION (Non-isolated Battery supply): Risk of electric shock, battery circuit is not
isolated from AC input, hazardous voltage may exist between battery terminals and ground.
Test before touching.
●WARNING (Fuses): To reduce the risk of fire, replace only with the same type and rating of fuse.
●CAUTION: Do not disconnect battery connector under load.
●ATTENTION:Hazardous through electrical shock. Also with disconnection of this unit from the
mains, hazardous voltage still may be accessible through supply from the batteries. The battery
supply should therefore be disconnected in the plus and the minus pole when maintenance or
service work inside the battery cabinet or UPS is considered.
●CAUTION (For any pluggable only): With the installation of this equipment it should be
prevented, that the sum of the leakage current of the UPS and connected consumer does not

5
exceed 3.5 mA.
●CAUTION (For permanent connection only): HIGH LEAKAGE CURRENT, Earth connection
essential before connection supply
●WARNING: Intend for installation in a controlled environment.
●CAUTION: Do not dispose of batteries in a fire, the battery may explode.
●CAUTION: Do not open or mutilate the battery, released electrolyte is harmful to the skin and
eyes.
●CAUTION: A battery can present a risk of electric shock and high short circuit current.
The following precaution should be observed when working on batteries
A. Remove watches, rings or other metal objects.
B. Use only tools with insulated handles.
C. Wear rubber gloves and boots.
D. Do not lay tools or metal parts on top of batteries.
E. Disconnect charging source prior to connecting or disconnecting battery terminals.
To reduce the risk of electric shock, disconnect the UPS from the mains supply before installing a
computer interface signal cable. Reconnect the powers cord only after signaling interconnections
have been made.
Servicing of batteries should be performed or supervised by personnel knowledge of batteries and
the required precautions. Keep unauthorized personnel away from batteries.
●CAUTION: When replacing batteries, replace with the same type and number of batteries:
One Sealed lead acid battery, rated 12 V, 9 AH max.
●CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line
cord.
●CAUTION (FOR 1000-3000VA HV Only) : To reduce the risk of fire. Connect only to a circuit
provided with 20 amperes maximum branch circuit overcurrent protection in accordance with the
National Electric Code, ANSI/NFPA 70”.
●CAUTION (FOR 3000VA with I/P Terminal Block Only) : To reduce the risk of fire. Connect
only to a circuit provided with 30 amperes maximum branch circuit overcurrent protection in

6
accordance with the National Electric Code, ANSI/NFPA 70”.
●CAUTION (FOR 1000-2000VA with I/P Terminal Block Only) : To reduce the risk of fire.
Connect only to a circuit provided with 20 amperes maximum branch circuit overcurrent
protection in accordance with the National Electric Code, ANSI/NFPA 70”.

7
The instructions contained within this safety manual are deemed important and should be closely
followed at all times during installation and follow-up maintenance of the UPS and batteries.
CAUTION
The unit has a dangerous amount of voltage. If the UPS indicator is on, the unit’s outlets
may have a dangerous amount of voltage even when not plugged into the wall outlet
because the battery may continue to supply power.
Care should be taken to undertake installation indoors free from electrically-conductive
particles which is under temperature and humidity control in order to reduce the risk of
electric shock. It is best to disconnect the device using the power supply cord. Ensure that
the equipment is placed in a position near the outlet where easily accessible. Except
replacing the batteries, all servicing on this equipment must be carried out by qualified
service personnel. Before conducting any maintenance, repair or shipment, first ensure
that everything is turned off completely and disconnected.
For additional safety instructions, please use the Safety Manual as reference.
Special Symbols
The following symbols used on the UPS warn you of precautions:
RISK OF ELECTRIC SHOCK – Please observe the warning that a risk of electric shock
is present.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to the operator’s manual for
additional information, such as important operating and maintenance instructions.
SAFE GROUNDING TERMINAL - Indicates primary safe ground.
LOAD ON/OFF - Pressing this button turns on/off the output receptacles and the Indicator
light.
RJ-45 RECEPTACLE - The receptacle provides network interface connections and
telephone or telecommunications equipment should not be plugged into it.
Please do not discard the UPS or UPS batteries as the UPS may have valve regulated,
lead–acid batteries. Please recycle batteries.

8
1. Introduction
The information provided in this manual covers single phase 1000 – 3000 VA, uninterruptible power
systems, their basic functions, operating procedures, and emergency situations, also including
information on how to ship, store, handle and install the equipment. Only detailed requirements of
the UPS units are described herein, and installation must be carried out in accordance with this
manual. Electrical installations must also carefully follow local legislation and regulations. Only
qualified personnel should conduct these installations as failure to acknowledge electrical hazards
could prove to be fatal.
2. System description
Several different kinds of sensitive electrical equipment stay protected by a UPS (Uninterruptible
Power System) including computers, workstations, process control systems, telecommunications
systems, sales terminals, other critical instrumentation, etc. The purpose of the UPS is to protect
these systems from poor quality utility power, complete loss of power, or other associated problems.
Electrical interference abounds in many forms causing problems in AC power, from lightning,
power company accidents and radio transmissions to motors, air conditioners, and vending
machines, among others. So protection of sensitive electrical equipment is vital to protect against
power outages, low or high voltage, slow voltage fluctuations, frequency variations, differential and
common-mode noises, transients, etc.
In order to prevent power line problems reaching critical systems causing damage to software,
hardware and causing equipment to malfunction, the UPS helps by maintaining constant voltage,
isolating critical load output if needed, and cleaning the utility AC power.
2.1 General description
As a double conversion on-line UPS, it is able to supply uninterrupted, clean single-phase power to
your critical systems while keeping batteries charged continuously, regardless of whether utility

9
power fails or not.
In event that a power failure lasts longer than a UPS backup time, it will shut down avoiding battery
discharge, and as soon as voltage comes back, the UPS will automatically charge up and start
recharging the batteries.
As shown in fig.1 block diagram:
●An input filter reduces transients on the mains
●For maintaining full battery charge, AC-power is rectified and regulated in the rectifier feeding
power to the inverter and battery converter.
●DC power is converted to AC in the inverter passing it on to the load.
●Power is maintained from the battery during a power failure.
●The converter increases voltage appropriately for the inverter.
Fig.1. Block diagram
Efficiency Optimizer function
The Efficiency Optimizer function is a new feature for the UPS adding cost effectiveness,
minimizing power loss and reducing power consumption. Alternating between bypass and on-line
modes is achieved automatically and in accordance with the conditions of the utility power. On-line
mode may be used during times of intermittent power supply, and bypass mode when power flows
smoothly in order to obtain greatest efficiency. Irregularities can be detected in less than a second,
and on-line mode reactivated immediately. Switching back to online mode occurs when input
voltage is outside ±10% or nominal (±15% selectable), when input frequency is outside of ±3Hz or
when no input line is available.

10
Although high efficiency is standard, the default operation is in on-line mode. Bypass can be
activated in the LCD panel, though on-line can be run permanently if preferred.
Free Run Mode
The UPS operates in free run mode when input frequency is outside of the selected input frequency
range. Free run mode is when output frequency does not match input frequency. When starting the
UPS, the frequency regulation detected is 50 or 60 Hz ±0.25Hz. Please refer to chapter 7.2 if you
want bypass available while running in free run mode.
Diagnostic tests
When you start the UPS, a diagnostic test is automatically executed that checks electronics, battery,
and reports any problems on the LCD display.
An advanced battery management system always monitors the conditions of the batteries sends any
forewarnings if replacement is needed. Otherwise every 30 days of normal mode operation, a battery
discharge test is performed and any problems reported on the LCD display.
Except during the first 24 hours after startup while the UPS is in charging mode (please see chapter
7.2), diagnostic tests can be performed manually from the front panel at any time.
2.2 System Configuration
The UPS device and the internal backup battery make up the system. Depending on the site and load
requirements of the installation, certain additional options are available as a tailored solution.
Planning a UPS system, the following should be taken into consideration:
●The total demand of the protected system shall dictate the output power rating (VA). Allow a
margin for future expansion or calculation inaccuracies from measuring power requirements.
●Backup time needed will indicate the battery size needed. If load is less than the UPS nominal
power rating then actual backup time is longer.
●The following options are available:
●External Battery Cabinets
●Transformer cabinets
●Maintenance bypass switches
●Connectivity options (relay card, SNMP/WEB card)

11
The following UPS models are available
Model Backup time
Internal batteries Recharge time to 90% capacity
UPS 1000VA 3~5 min 4 hours
UPS 2000VA 3~5 min 4 hours
UPS 3000VA 3~4 min 4 hours
Additional External Battery Cabinets are available if more back-up time is needed.

12
3. Safety Information
Information presented here is vital to all personnel and please also read the UPS safety manual.
Storage and Transportation
Please handle with extreme caution since a high amount of energy is contained with the batteries.
Always keep the unit in position as marked on the packaging and never drop the unit.
Installation
If flammable substances such as gases or fumes are present or if the room is airtight, a safety hazard
situation exists, in which no electrical equipment should be operated.
The instructions in this manual explain how to install the UPS safely. Not acknowledging such
electrical hazards may be fatal, so keep this manual for all future reference.
WARNING!
It is strongly advisable not to open the UPS cabinet as the components have very high
voltage and touching them may be fatal. Only a technician from the manufacturer or an
authorized agent may service the unit. This UPS unit’s output receptacles carry live
voltage even when not connected to a power supply as it has its own energy source.
User’s operations
The only operations that users are permitted to do are:
●Turning the UPS unit on and off
●Operating the users interface
●Connecting data interface cables
●Changing the batteries
All such operations are to be performed exactly as instructed in this manual. The greatest care
possible must be taken for any of these operations and any change thereof may prove very
hazardous to the operator.

13
4. Storage
Please adhere to the following instructions if the UPS is not installed immediately:
●Store the equipment as is in its original packing and shipping carton
●Do not store in temperatures outside the range of +15°C to +25°C.
●Ensure that the equipment is fully protected from wet or damp areas and from moist air.
In order to maintain the vitality of the batteries, ensure that the UPS is recharged every 6 months for
at least 8 hours.
5. Installation
5.1 Environment
Ensure that all environmental concerns and requirements are met according to these technical
specifications, otherwise the safety of installation personnel cannot be guaranteed and the unit
may malfunction.
Ensure that you remember the following when locating the UPS system and battery options:
●Avoid extremes of temperature and humidity. Maximal battery life can be attained with a
recommended temperature range of 15 °C to 25 °C.
●Provide protection for the equipment from moisture.
●Space and ventilation requirements must be met. Ensure there is 100mm behind and 50mm on
the sides of the UPS for ventilation.
●Ensure that the front of the UPS remains clear for user operation.
The External Battery Cabinets has to be installed next to the UPS or under the UPS.

14

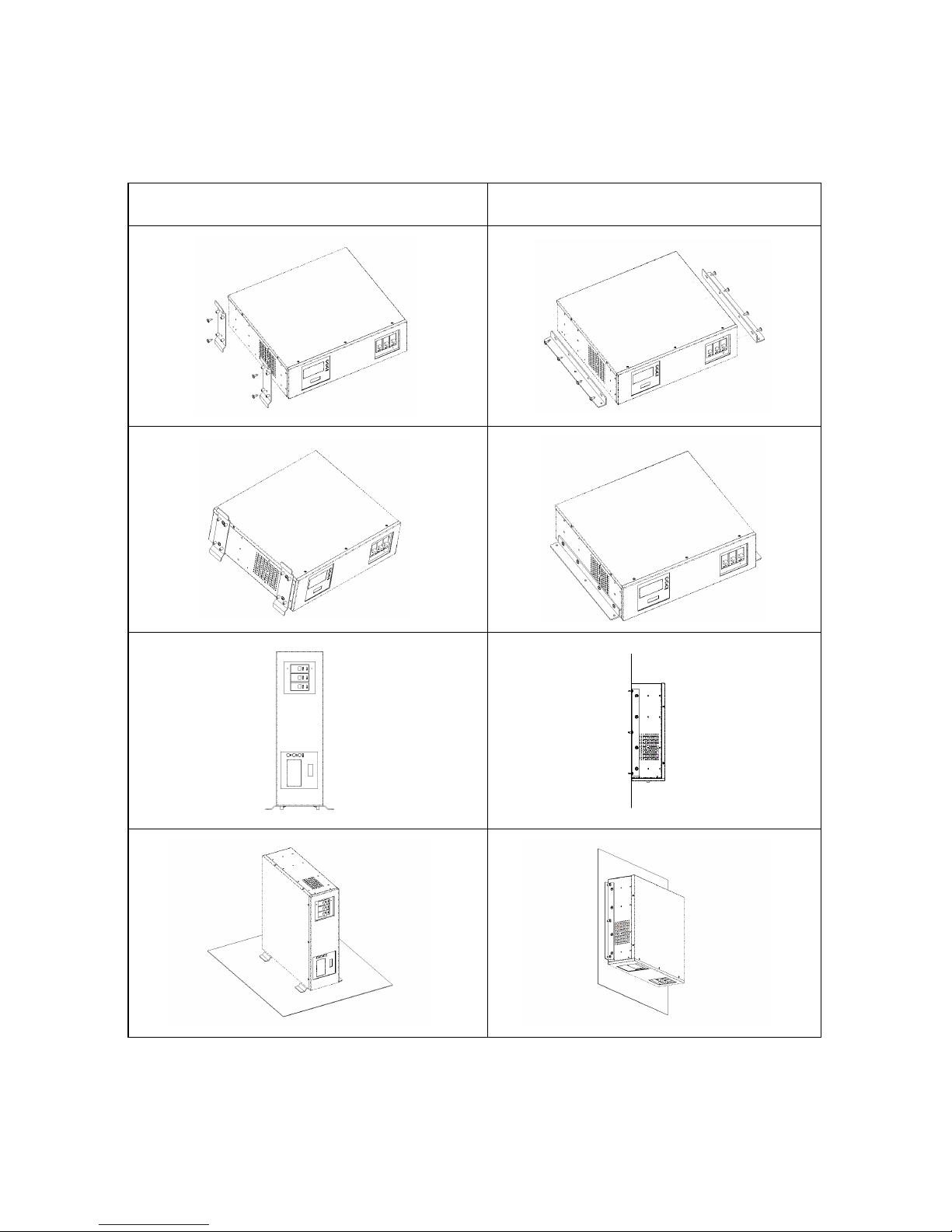

Installation with accessories of “Rack-mounted” types:
Please install the vertical and wall-mounted types of units according to the following
illustration.
V er tic al I nst a ll ati on W all - mo u n ted i n st al l at i o n.
Installation with accessories of “Rack-mounted” types:

15
Please install the types of units according to the following illustration.
Installation with bottom bracket.
Part No: RMB-06, 2 PCS.
Screw: M5*11, 4 PCS.
Installation with rear bracket
Part No: RMB-01, 2PCS.
Screw: M5*11, 4 PCS.

16
Installation with accessories of “Stack” types:
Please install the types of units according to the following illustration.
S tac k in st al l at i o n

17
5.2 Rear panel view
1KVA REAR PANEL

18
2K~3KVA REAR PANEL

19
RM(2U) 1KVA Rear Panel

20
RM(2U) 2K-3KVA Rear Panel
