EOI E-lite Star SL3-M User manual

Installation Guide
Procedures of Installation
Please confirm your local voltage and related electronic
specifications are matching the device before installation.
Applicable diameter of pole for SL3-M is 1.6" to 2.6" (1.4"
optional).
an brand - energy saving since 1995
TM
SL3-M LED Street Light
5.
6.
Close the cover and secure both clips to lock.
Make sure the luminaire is installed properly and clips on both
sides are locked well.
7. Power on for test.
4
A
A-E-12
1A
A-E-12
Unit: inch(mm)
Weight: 18.7 lbs (8.5kg)
Dimensions: 26.4" x 12.4" x 5.2"
26.4 (669)
5.2 (130)
12.4 (315)

Please read the wiring diagram below first and connect
the power cables to the right position. Be sure to screw
tightly to avoid disconnection.
4.
Wiring diagram

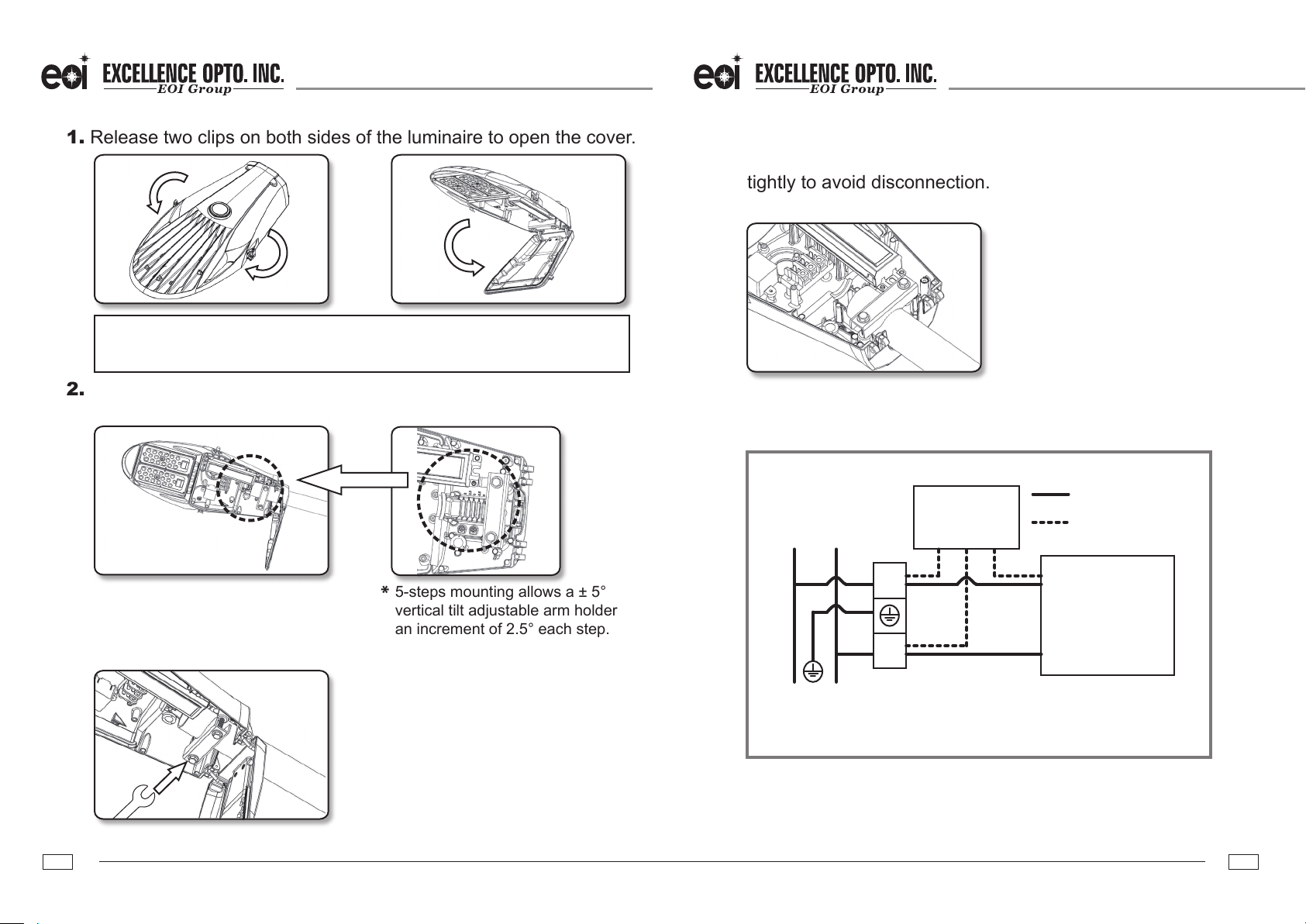

1. Release two clips on both sides of the luminaire to open the cover.
2.
3. Screw the bolts of the luminaire tightly.
5-steps mounting allows a ± 5°
vertical tilt adjustable arm holder with
an increment of 2.5° each step.
2
A
A-E-12
3A
A-E-12
*
ACL(Black)
ACN (White)
Power Supply
Photoelectric Control
Li
(Black)
Lo
(Red)
N
(White)
L N
L
N
Without photoelectric control
With photoelectric control
Ensure that the input voltage matches the voltage rating of the products.
Install the luminaire to the pole and adjust to the desired position and
angle.
*If you have a bird guard, please follow the instructions from
the SL3-M Bird Guard Installation Guide at this point.
