EWG-108 Intelligent Robot Sweeper
User Manual
eonego
Thanks for choosing eonego intelligent household
product, before using, please read this manual.

1. Safety instruction
1-1.About the user manual
1-2.The power supply
1-3.Suitable usage environment
2. Attention before useage
2-1. Attention before useage
2-2. Safety standards
2-3. About Package
2-4. Deal with problem
3. Product introduction
3-1. Structure
3-2. Performance
3-3. (APP) Install 、Login in,(WIFI)Restore
4. Operation Instruction
4-1. Side brush assembly
4-2. Battery Recharge
4-3. Turn On/Off
4-4. Key Function
5. Charging base
6. Remote control
7. Maintenance
7-1. Dust box
7-2. Primary filter
7-3. HEPA filter
7-4. Mop
7-5.Middle Brush
8. Packing List
9. Product Specifications
10. Install、Replacing the remote control battery
11. Failure checking
12. Others Questions
01
01
01、02
02
03
03
03
04
04
05
06-09
10
10
10
10
11
11、12
13
14
14
15
15
15
16
17
17
18
19、20
21
Catalogue
02
01

To Respected customers :
Thank you for choosing our intelligent robot cleaner ,this is really a meaningful
intelligent cleaner,It could easily help you sweep your room and offer a comfortable,
healthy enviroment even though you were not at home .
1. Safety instruction
1-1 About the user manual:
Before using the cleaner please follow the below basic safety precautions:
>>>Carefully read all the contents of this manual, using the machine according the man nul.
>>> Properly keep the instructions, if you will use this product transfer to the third party,
please send the instruction attached along with the product.
>>> Any wrong operateion against the user manual may result in personal injury or damage
the product,please take care when use it.
!
1-2. The power supply:
>>> A set of rechargeable batteries was used inside of the cleaner, charge with
specialized device.
>>> Please check and confirm the marked brand of the power supply voltage, ensure
the cleaner working in the suitable status .
>>> If the adapter's power cord or plug is damaged, please stop using it. Contact with our
company's after-sales service department or the authorized person to replace or repair.
>>> Don't use the power cord to drag or mo ve the charging base, nor use the power cord
as a handle .
>>> Do not twist the power cord, and don't hold the power cord at the closing or place
heavy objects on the power cord.
>>> Don't let the power cord in contact with hot surfaces or sharp surfaces.
>>> Be sure to remove the water tank when you are charging, so as not to cause leakage .
>>> Don't drag out the power cord from the socket by the way of pull the code directly.
>>> Don't use wet hand contact power plug or cleaner.
>>> Long time not to use the charging base, please drag out the power plug from the socket.
>>> Use dry cloth to clean the dust on the plug oftently .
1-3. Suitable usage environment:
>>>The cleaner is only working in indoor environment suitably, including wood ﹑rubber
floor, ceramic tile, wool carpet shortly , etc., not suitable for the long-haired carpet.
>>>Cannot be used for cleaning below conditions:
--- Water ground (including flammable liquid), for example: wetland board,
bathroom, shower room and other moist environment.
--- The stairs.
--- Furnace with open fire.
>>> When the ground have the following material,The cleaner is prohibited to use :
Attenion:
Please don't try to tear-down this cleaner by yourself.there's no part that user
can repair by themself<including the romote control>.And its only suitable
family environment to use .Both industrial or outdoor is not suitable.
more cannot be used on the surface of a liquid.

--- The objects may cause a fire ,such as c igarette ash that not put out, burning
cigarette butts, or a match.
--- Water or other liquid, especially detergent, kerosene, gasoline, paint, alcohol,
perfume,carpet cleaning, floor cleaning solution. Internal moisture
or water may cause short circuit machine.
--- The laser printer, copier toner, toner. These objects may cause fire or explosion.
>>> When use the cleaner,please don’t make it near the Hot source such as oven
or fireplace,since this may result in Deformation and aging .
.>>> Do not use machine in a potentially dangerous environment. For example, gas station,
oil depot, inflammable and explosive chemical plant.
>>> Don't use machine in outdoor. As,its will casuse the cleaner damage because of the
rain or mud, dust get into the internal space.
>>> Don't try to repair or change its performance by yourself.
>>> Don't fall, throw or extrusion the cleaner.
>>> Don't get body wet, otherwise a short-circuit that make a damage will occur.
>>> A daily maintenance is necessary.Please placing it in a clean place.
>>> Don't expose the cleaner to extremely high or low temperature environment.
It's not suitable for long-term in lower than 0 ℃ or higher than 40 ℃ environment
to use and preservation.
>>> Don't put it in liquid.
>>> Don't put it in lighted cigarettes or near open flame.
2. Attention before use:
2.1 Attention before use
>>> Please pay attention to its working space when the first time to use this cleaner,
To avoid it stop working ,please remove its barrier .
>>> For the foreseeable problems that may occur in the cleaning, should be ruled out as
soon as possible. Such as:
--- will easily upset aside the objects in a safe place.
--- whiskers on the edge of the carpet to turn over to a safe place.
--- vertical to the ground of the tablecloth, the curtain should try to make it not to
touch the ground.
--- objects to cut off the power supply with open flame.
---the power cord of the winding on the ground and the mobile obstacles.
Before cleaning,please make sure whether the brush,side brush has been
installed inside the product successfully or not .
>>>Ensure the dust container is empty, and installed in the suitable place.
>>>Before cleaning, need to check if the prosecutor sensors has been wiped clean.
>>>If you only need to clean a single room, please leave this room 's door close.
Attention:
If their is a reflective ground whose height of the steps drop more than 8
centimeters(e.g., glass), the cleaner have the potential to fall down the steps.
we are suggest that place with a layer of no reflection characteristics of cloth
or carpet in low order.and If your home is a complex Structure or with stairs,
To avoid accident occur,please pay attention to added a protective bar on
the edge of the stairs.
!

2.2 safety standards
>>> This product can't be used by the people of the mentally disabled or lack of
common sense, unless there is the one responsible for their safety in their
supervision or guidance when using this product.
>>> Properly keep the product, in children and people can reach the outside without
judgment, products work, especially need to be careful.
>>> This product is in working status, so as to prevent down others, please let
everyone in the room know this product is working.
>>> Please do not use this product as a toy to play, when children or pet near here,
please pay close attention to.
>>> If you want to change the rechargeable battery inside the host, please contact
the service department. If you use the wrong type of battery replacement, likely
to cause explosion.
>>> If you use the my company make the host of original battery and charge, there
may be a potential danger, therefore cause damage to the host is not in the warranty.
>>> Reasonable processing this product, please old batteries, batteries contain
dangerous environment of harmful substances, please do not arbitrarily discarded,
please follow the local environmental protection regulations, throw it to the
prescribed recovery site.
2.3. About the package
>>> Do not use this product packaging materials as household garbage discarded.
Please send packing material to a proper collection points in order to use these
resources again.
>>> This product packaging bags and plastic bags have led to the danger of suffocation,
should avoid to children to play, do not where children can touch.
2.4. Deal with problem
>>>If the power adapter, host and other accessories fails, please do not repair or
disassemble machines. Otherwise may cause personal injury. Please contact
me or my company after-sales service department of professional maintenance
organization is designated,By professional maintenance staff to provide after-sales
service and maintenance.

3. Product introduction
3-1. Structure：
3-1.1 Control Buttons as the figure(1) shown .
Figure（1）
Setup button2
Auto recharge Auto cleaning
Spot cleaning
Setup button1
Left side brush
Power switch
Charging socket
Cliff sensor
Middle brush
Left wheel
Mop
Buckle
Figure（2）
Dust-container
Right wheel
Cliff sensor
Speaker
Right side brush
Cliff sensor Universal wheel Charging contact sheet
3-1.2 Bottom structure as shown in figure (2).

Navigation function
Automatic route planning, sweep every place of the room .
Automatic charging (can also choose to manually)
The cleaner can automatically search for the charging base when it is low power .
Note: use this function must be equipped with the charging base.
Spot cleaning
After set this functin, cleaner will sweep the garbage areas with strong power.
Make an appointment to clean (optional)
According to your appointment time to start work.
Note: use this function must be equipped with the charging base.
Fall prevention function
Can prevent the cleaner from the table or tumbled down to the stairs.
A whirlwind brush
cleaning efficiency is high because of this structure.
Thinly body
can be easily cleaned into the bottom of the bed or sofa.
Softly tire design
Wheels with software materials, will not scratch the floor or carpet.
Low noise design
far below the ordinary vacuum cleaner
Environmental protection function
The built-in Primary filter、HEPA filter, effectively filter dust, purify the air.
Safety and energy saving
24 w ultra-low power.
The Intelligence Function
Cleaning the room just need click one button, without need monitoring.
3-2 Performance

3-3. (APP) Install 、Login in,(WIFI)Restore
3-3.1 (APP) Install
>>>Support remote operation by mobilephone with"APP"
<First: ensure your phone is connect with your home WIFI network>
<Second: ensure the cleaner is power-on,and entered the standby mode>
>>> The "APP" symbol as shown in figure (3).
For Android Mobile-phone:
1. Unicom a WIFI network with your mobilephone.
2. Scan the QR code as shown in figure (4).
3. Install the "APP"
Figure (3)
IOS Mobile-phone:
1. Unicom a WIFI network with your mobilephone.
2. Scan the QR code shown in figure (4).
3. Install the "APP"
Another way to Install the "APP":
Search "EONEGO Micro Home" in APP store,and
then click install.
Figure (4)

ConfigureWIFI
Return
Password: YYYYYY
SSID:XXXXXX<Service Name>
Authmode:
Show Password:
WIFI Password
Start
Service Name
Step3：SSID will connect to your
service，Enter your Password，and
then click“Start”.
Configure WIFI
Return
Password: YYYYYY
SSID:XXXXXX
Authmode:
Show Password:
Start
Step4: Start Configure(A little time you
should be waiting ralate to your network
speed).When it's finish,Click"I have
know",and then,click"Returrn".
Successful
I have know
Start Configure
点击
Step1：Click""EONEGO
Micro Home"APP
Step2: click"Configure WIFI"
Scan local device
All equipments
Configure WIFI
Help-Customer service
Click
Click
Click
3-3.2 <APP>Login in

Step5: click"Scan Local Device" Step6 : Click "Equipment"Code
All equipments
Scan local device
Configure WIFI
Help-Customer service
Equipment：3C:33:00:0B:77:EE(0)
Click
Note:Device number will be
subject to actual display.
Please input password
Return Offline
Password：
Next step
Step7:Please enter the password
<The default password:8888>，and
then click"Next step".
Status Bar
Battery capacity
Intranet
Return
Mode Set
Auto
cleaning
Spot
cleaning
Timing
cleaning
Auto
recharge
Time
setting
Speaker
control
Follow the Wall
Direction control
Fan control
Step 8：Entry "APP" User Operation
Interface
Click
Scan local device
All equipments
Configure WIFI
Help-Customer service
Click
Click

Status Bar
Battery capacity
Intranet
Return
Mode Set
Auto
cleaning
Spot
cleaning
Timing
cleaning
Auto
recharge
Time
setting
Speaker
control
Follow the Wall
Direction control
Fan control
Step 8：Entry "APP" operation interface
Return
Working Status
Mode Set
Fan Control
Direction control
Forward
Turn left
Fall back
Turn Right
Setup key1
Spot cleaning
Flashing area
3-3.3 <WIFI>Restore the factory Settings ( as shown in figure (5). )
(1)、Press the "setup key 1" and "spot cleaning
" key at the same time. you will hear three"di 、di 、di"
sounds at about three seconds later.then,fingers left,"week"
symbols will continue to flashing.
(2)、About 10 seconds later when you hear two sounds,
Cleaner enter into standby mode, WIFI module will be restore
to factory Settings.
(3)、Enter the APP UI, click "configuration WIFI" .
( Warm prompt: After the success configuration, It's will save the current information.When the
router replacement or in the home wireless SSID is changed, you need to reset the WIFI
module to restore factory Settings .)
3-3.4 "APP" UI
Figure (5)
Figure (6)

4. The usage of product:

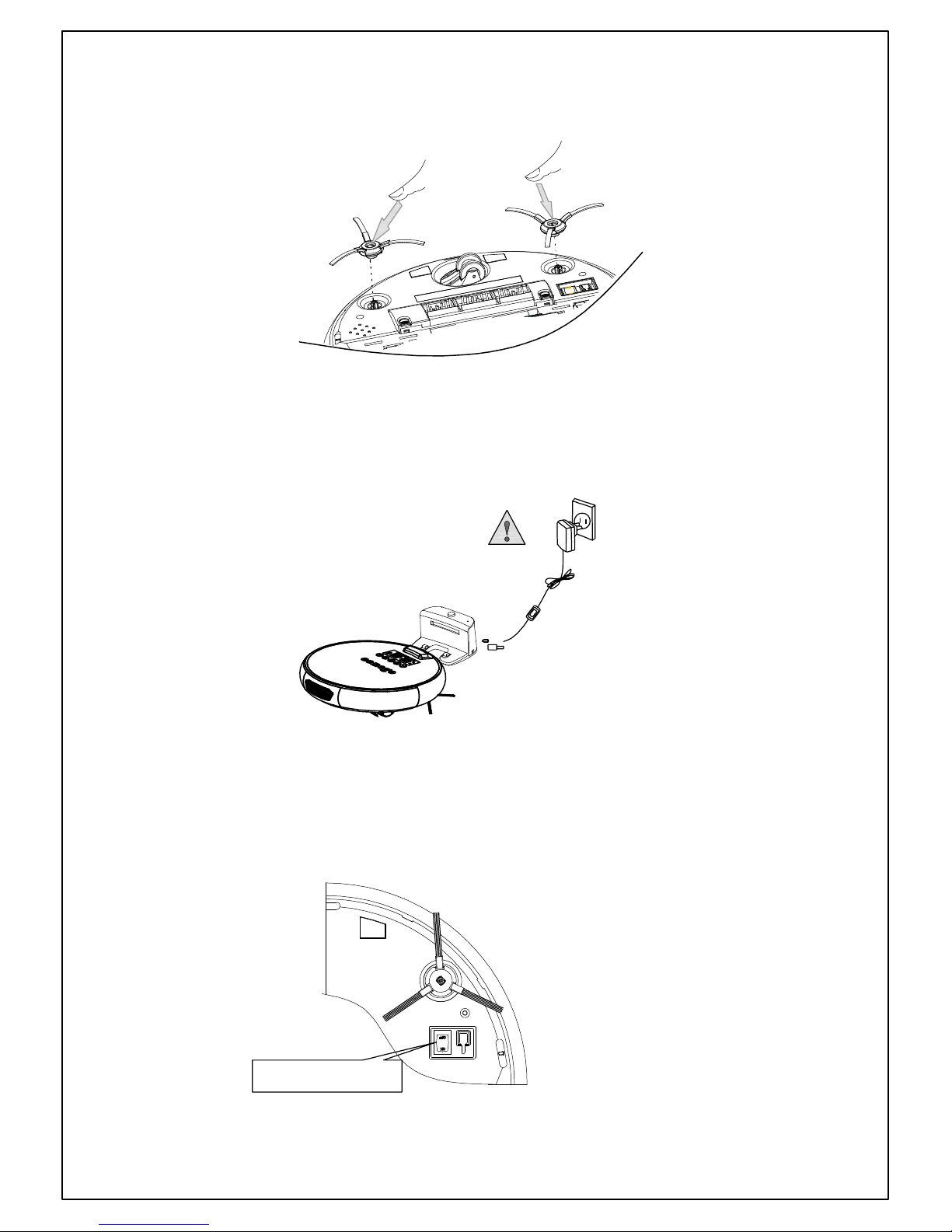

4-1 The installation of sweeping brush:
Get the side brush from the package,push in deep force directly to the side
brush Mounting holey, as shown in figure (7).
Pushing Down
4-2 Battery Charging
Before using the product, please recharge machine 4 hours, confirm the battery in a
saturated state, as shown in figure (8).
The charging machine has two ways: can use charge back any seat, also can charge
directly. Insert as picture(2) the machine charging hole soft gel gently poke, and then
connect the power adapter charging hole for charging machine.
Note:
1. Do not use this machine for a long time, please do good to save the machine
and its accessories (machine power switch "O" word press).
2. Often do not use the machine, timing charging is necessary (intervals of no
more than 15 days is the best).
4-3. Power On/off
Open the power switch to "I" word press at one end (press the "O" words said
shutdown), as shown in figure (9).
Figure (9)
Figure (8)
Power switch
Pushing Down
High Voltage Danger
Figure (7)

4-4 Control Panel
4-4.1 . Set time: in the case of standby press the "+" key (" + "key lights), enter the
time setting, in set mode according to the local clearing key or recharge key, switch
around four Numbers and the week, press the" + "key or" - "button to adjust number
or a week, Press the "auto" button to confirm the current Settings and make sure
after the completion of the machine into standby mode, the button lights on.
4-4.2 . According to the local clearing, machine start cleaning within a certain scope.
4-4.3 . According to the automatic
cleaning, automatic cleaning the key
under the light machine start,
according to the actual terrain as intelligent switch cleaning mode, such as
bow type cleaning, spiral, along the wall cleaning, around the pillar.
4-4.4. The automatic recharge: when press the "recharge" back to the key under
the light, machine into looking for automatically recharge mode, find
back filling machine entered the stage of charging, increasing power indicator
light cycle, said in charge. After a full charge into standby mode automatically.
4-4.5. Set the reservation methods: under the condition of standby press
"-" button to enter setup time mode, press "local" cleaning or "recharge" key
switch around four Numbers (press the "+" or "-" key to change the time
or weeks), adjust good reservation time and after one week According to "
automatic" confirm Settings, and then the machine into standby mode, key
light full on. To make an appointment time to, machine immediately activate
automatic cleaning function. (such as: set up the appointments until ten o 'clock,
selected week 1 and press automatic cleaning, then choose 2 weeks according
to the automatic cleaning, then automatic cleaning out and save the reservation
mode, every week 1, week 2 of the 10 o 'clock sweeping machine automatic cleaning
the room.) Note: this working mode must be equipped with recharge, just can use.
4-4.6. Border cleaning: standby, please press " " and" - "key at the same time, the
machine into border cleaning mode. If you need to other models,
please press the other relevant key and exit border cleaning mode.
5. Charging base

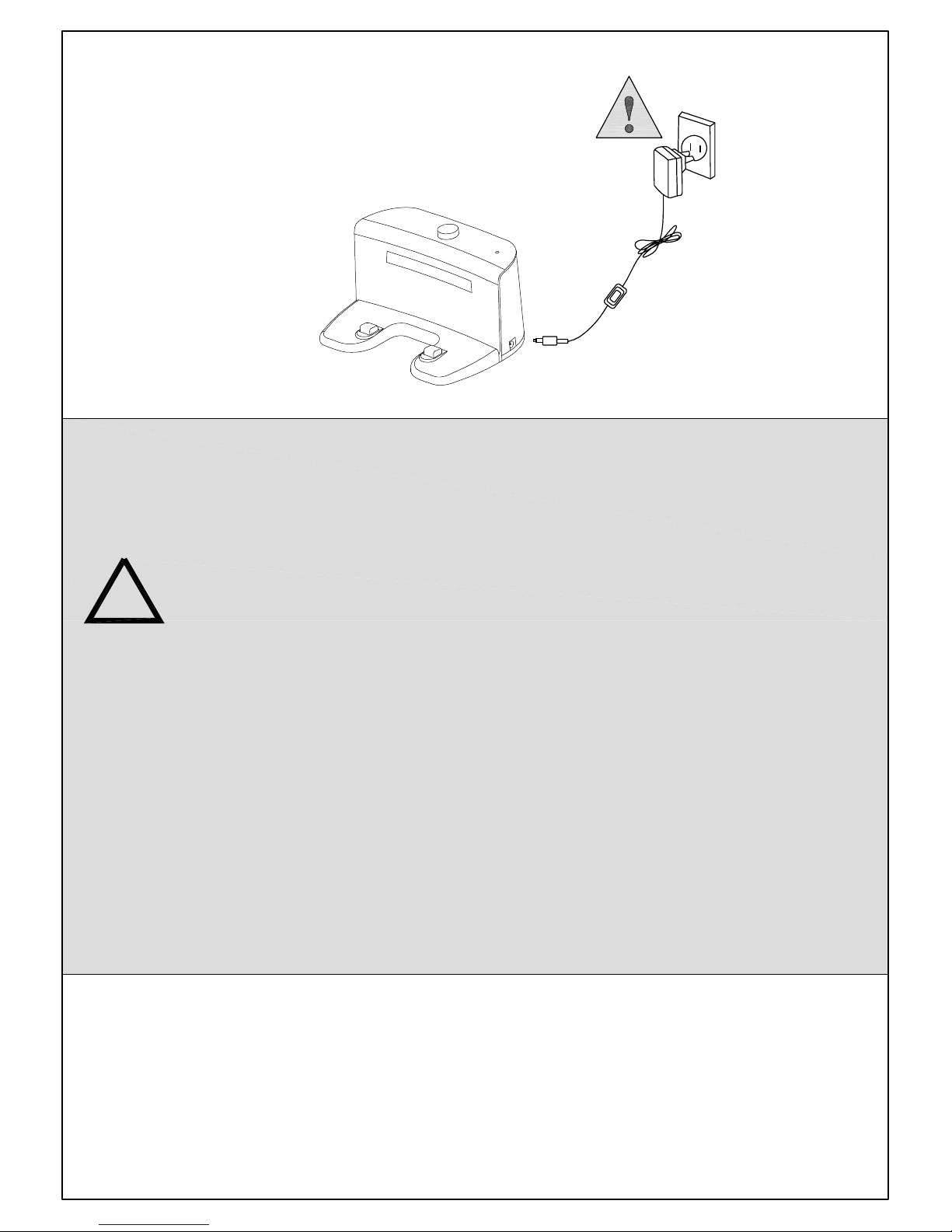

5-1. The structure, as shown in figure (11).
Spot cleaning
Setup button1
Auto cleaning
Auto recharge
Setup button2
Adapter socket
Charging contact sheet
Indicator Light
Figure (11)
Figure (10)

!
High Voltage Danger
Attention:
● Automatically search for Charging Base when the battery is about
to run out,and the power indicator on the panel will be go out.
● To seat the Charging Base in the room of a open place, Don't place
obstacles that affect the movement of the Robot within 3-5 meters
radius.
● If room area is too big, can't find Charging Base, you can put
the machine on the base about 1.5 metres before, or with
the remote control command machine near the recharge seat
(remote controlMethod of use, please reference manual on page 9.)
● Often use dry cloth to wipe the shell of charging contact and
contact patches on the Charging Base, to prevent dust and
lead to poor contact.
● The Robot must use the random matching chargers,the use
of other charger and battery, will cause the damage of the machine.
● For the first time use or reoccupy after long time need not,
8-9 hours charge is necessary before use, must charge battery
only after 2-3 times full charge discharge cycles, can achieve
the best performance.
Figure (12)
5-2. How to use the Charging Base

Press the button : Turn Left ;
Press the button : Turn Right ;
Press the button : Forward ;
Press the button : Fall back .

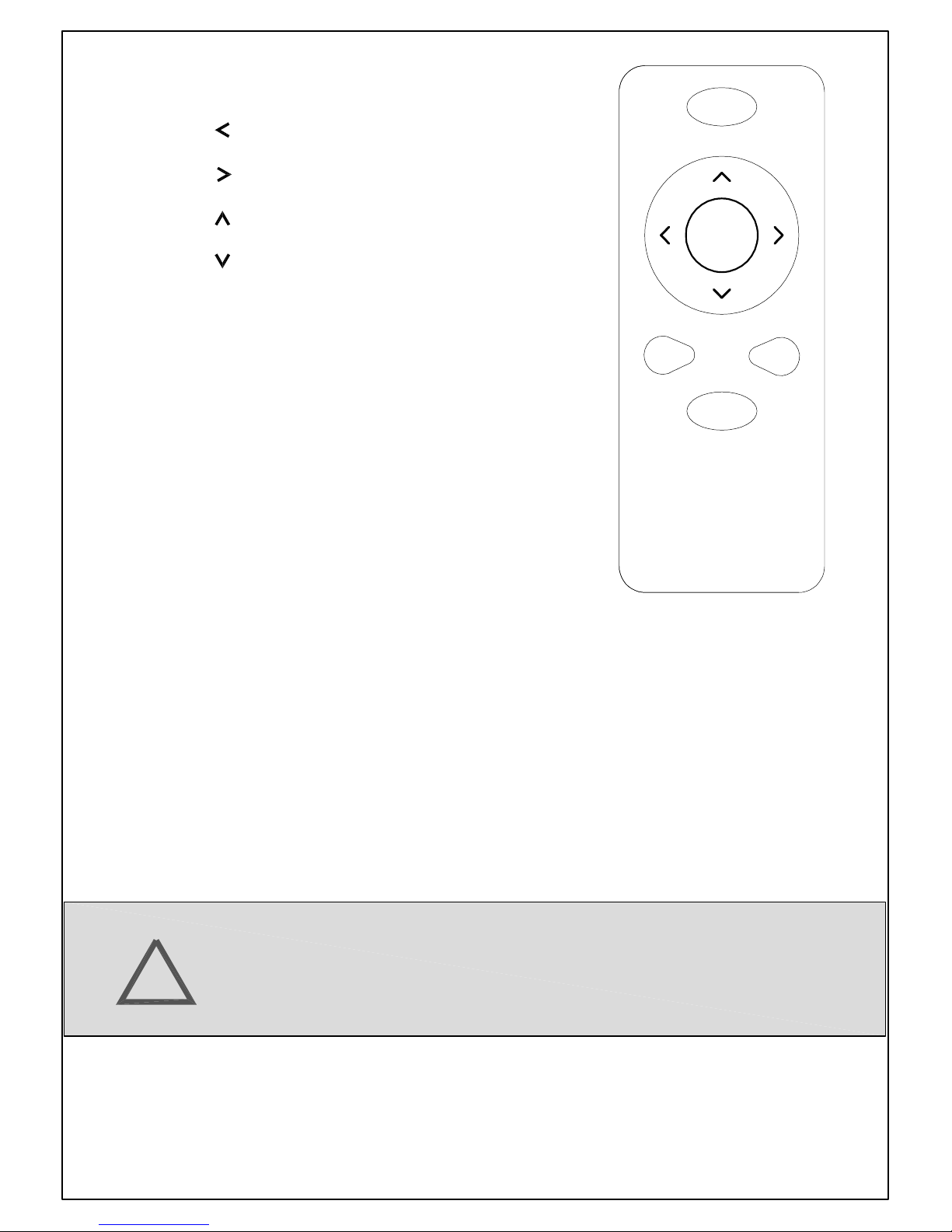

6. Remote control <as shown in figure (13) >
On/Off
On/Off : Turn on/off <Turn off by default>
Recharge : automatic looking for recharge.
Spot : sweep the garbage areas with strong power.
Auto : automatic cleaning with the planning route.
Recharge
Spot Auto
Set
6-1. Performance introduce
6-2. How to use the remote control to set time and week :
Press" set "button to enter the time setting mode,
and the first number will be flashing, said into the
figures to be set at the time (in 24 hours).
By "∨ ∧ "button to time to set the current position
and the" > "button to switch to the next one to set
the digital bits (according to the < button to switch to a digital bits). Repeat the
" > "button to set the position to the week. Set time press automatic charge back
after confirmation, then automatic cleaning button to ente r standby mode.
Figure (13)
Attention:
Using remote control distance as far as possible within 5
meters, otherwise,It's may lead to failure or not sensitive.
!

7. Maintenance
7-1. Dust box
7-1.1 Pull the buckle of the dust on the bottom of the clenar.As shown in figure (14)
7-1.2 The Dust container will bounce off.As shown in figure (15)
7-1.3 Take out the container.As shown in figure (16) .
7-1.4 Press the buckle on the side of the container box,open it with outward force.
As shown in figure(17)
7-1.5 Open the lid,sweeper the container with the brush.As shown in figure(17) .
then,taking out the trash,As shown in figure(18) .
buckle
Slowly pull
Open
buckle
plastic rib
Outward set，Convenient to take out.
Figure (14) Figure (15) Figure (16)
Figure (17)
figure (17) Figure (18)

7.2. Primary filter
Take out the Primary-filter from the container box,and clean it w ith a
Hairdryer or cleaning usually.As shown in figure(19)
7-3. HEPA filter
Take out the HEPA-filter from the container box,and clean it w ith a Hairdryer or
cleaning usually. (oftenly ,It's need to be replaced three months later).
As shown in figure(20).
Figure(21)
Dry Mop
7-4.2 The wet mop , with a capacity of 180 ml of water tank, ooze water through three
holes on the bttom.It can timely supply water, keep the mop wetly, Deeply
clean the ground .
Wet Mop
Attention
>>Do not use on the carpet!
>>It's easily to be jams when mopping the
floor,Clean up the mop in time is necessary.
>>Please remove the water tank when you
need to add water.
>>After cleaning, please clean UP the mop timely
>>Aviod leakage to the floor,don't forget to
pour out thewater in the tank.
Figure (19)
Figure (20)
Tip: The garbage will not be able to enter the dust box if not installe dust container or
nor intall at the right position.
7-4. Mop (optional)
7-4.1 Two kinds of mops <dry、wet >is contained by the cleaner. Not only can
clean the stuff on the floor, more can effectively clean the hair and dirt from the rug.
!
Attention:
Don't forget to put the Primary-filter 、HEPA-filter into the container
box again after you clean up all of them.otherwise,build in motor's
failure will occur to the container box.
Figure(22)

7-5 Middle Brush
7-5.1 Both hands push back the buttons on each side of the frame at the same time as shown in
figure (20).
7-5.2 And then pull up the frame as shown in figure(21) 。
7-5.3 Taken out the middle brush as shown in figure(22)
7-5.4 Middle Brush Module.
7-5.5 Clean the rubbish with clean brush .At the same time, please use dry cloth
to clean up middle brush is placed in the groove of bottom case. as shown in
figure (24)
Figure（20）
Figure（21）
Figure（22）
Figure（23）
图（24）

9. Product Specification:
>>>Power: 24 w
>>>Noise: < 60 db
>>>Battery type: lithium-ion battery
>>>Battery capacity: 2600 mah
>>>Battery life: 800 times
>>>Voltage: 14.8 V DC
>>>Charging time for the first time: 4 H
>>>Normal charging time: 2 -3H
>>>Battery work time: 90 -120 Minutes
>>>Dust box capacity: 600 ml
>>>Net weight: 3.3 kg
>>>Dimension:34 cm diameter:
>>>Thickness: 8.5 cm
EWG-108 Intelligent Robot Sweeper
User Manual
eonego
Thanks for choosing eonego intelligent household
product, b efore using, please read this manual.
eonego
warranty card
warranty card User ManualDry Mop
On/Off
Recharge
Spot Auto
Set
Romote Control
Adaptor Water Tank
<With a Wet Mop>
HEPA Filter
<A Primary filterBuilt-in>
Cleaning Brush
Side BrushCharging BaseRobot Cleaner
Power Adapter Specification:
Input voltage: AC 100 ‐240 v
Input current 0.8 A
Input frequency: 50/60 hz
Output voltage: DC 19 v
Output current rating: 1.0 A
Note:
The best distance tou use Remote Control
is less than 5 meters.
8. Packing List

10. Install、Replacing the Remote Control Battery
10.1. get the remote control out of the box, as picture (18)
10.2. Open the remote control battery door, as picture (19)
10.3. Put 2 batteries (battery model: AAA1.5 V) into the remote control, pay attention
to the battery is negative direction, as shown in figure (20)
Note:
Processing of waste battery, please follow the local environmental protection regulations, throw
it to the prescribed recovery site.
Please don't put the old and new, mixed type of different batteries. Long-term need not when,
please take out the battery, in order to prevent battery leakage damage the remote controller
When installing the battery, be sure to pay attention to the battery is negative direction.
That the battery is not enough, please replace the battery in time.
For a long time not to use the remote control, please remove the battery, prevent the battery
electrolyte leakage, lead to the remote control fault occurs.
Do not place the remote control in high temperature or humid place.
Do not use any foreign matter falling within the remote control, especially when replace the
battery.
Please reasonable processing the product of old batteries. Batteries contain dangerous
environment of harmful substances, please do not arbitrarily discarded.
1. Abandoned the Robot, must be taken out the battery.
2. When remove the Battery-cell, must turn off the switch.
3. Battery can not be stored in more than 45 degrees of high temperature environment or in the water.
4. Do not allow the exert force on the battery or falling from height.
5. Battery recycling must be conducted.It is forbidden to throw away 、throwa person of the
fire and explosion in case.
6. If the battery leakage, be careful not to let the fluid sticks to the skin or clothing, shall be
immediately after wipe with dry cloth To the recycle bin or specify pits, do not arbitrarily discarded.
7. Rechargeable batteries is forbidden to use.
