YANGZI YZ-GS1 User manual

Final Interpretation Rights
Belong To Yangzi Company
YZ-GS1 Sweeper
Operating Manual
Anhui Yangzi Indu strial Technology Co., Ltd
ANHUI YANGZI INDUSTRIAL TECHNOLOGY CO., LTD.

YZ-GS1 Operating
Manual
Operating Manual YZ-GS1
Contents
IMachine
Outlooking
II Technical
parameters
III. Operation
instructions
1, panel control
2, walking throttle, brake, lift leather pedal
3.Removing and installation of garbage bin
4, charging
IV.Daily maintenance and demolition and replacement of
vulnerable parts
1, main brush change
2, side brush change
V. Tips
VI. Common puzzle and treatment methods
Welcome to the YZ-GS1 electric driving sweeper, to provide you with a satisfactory service, is the
continuous pursuit of our Yangzi. Our company specializes in the production of electric driving
sweeper, the equipment introduced foreign advanced technology, using surface maintenance-free
power supply, suction, sweep, with a strong cleaning ability, no pollution and noise. Easy
operation, long continuous operation time, convenient maintenance,Can be applicable to factory
workshops, property communities, schools and other environments of the different ground
1 2
YZ-GS1

YZ-GS1 Operating
Manual
Operating Manual YZ-GS1
Part I: Out Looking
1
2
5
4
3
6

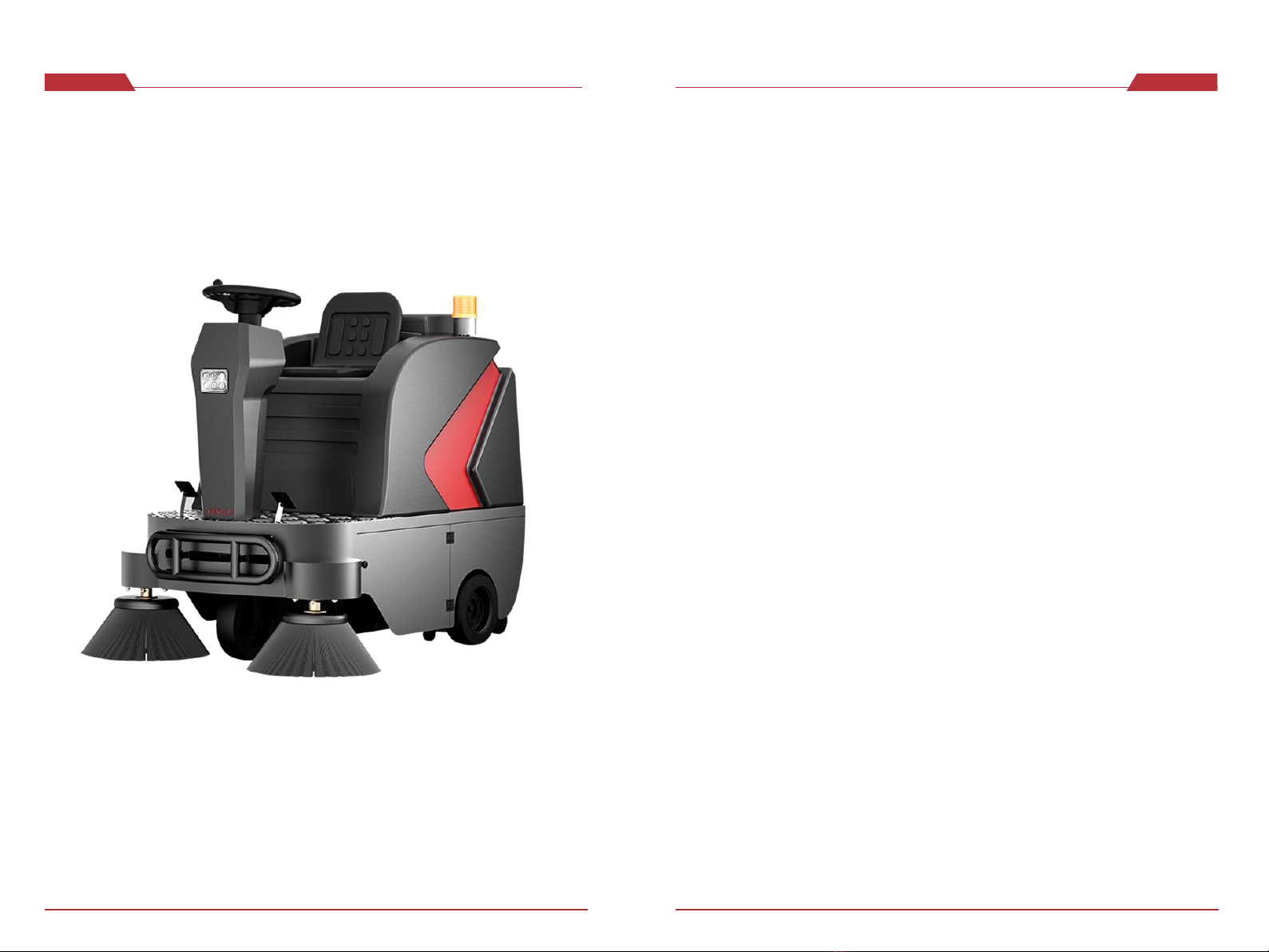

1. Steering wheel and operating panel 4. Dual brake
2. Lighting lamp 5. G arbage bin
3. Side brush 6. Main Brush
Part II Technical parameters
Parameters
Model
Data
Cleaning width
mm
1250
Side brush width
mm
2*400
Working hours
h
2-2.5
Walking motor
W
800
Battery capacity
V/ah
12v/52ah*4
Machine Weight
Kg
396
Main brush width
mm
490
Work efficiency
m2/h
6380
Garbage capacity
L
80
Rolling brush motor
W
700
Side-brush motor
W
90*2
Product Size
mm
1600*1250*1260
3 4

YZ-GS1 Operating
Manual
Operating Manual YZ-GS1
Part III: Operation
Instructions

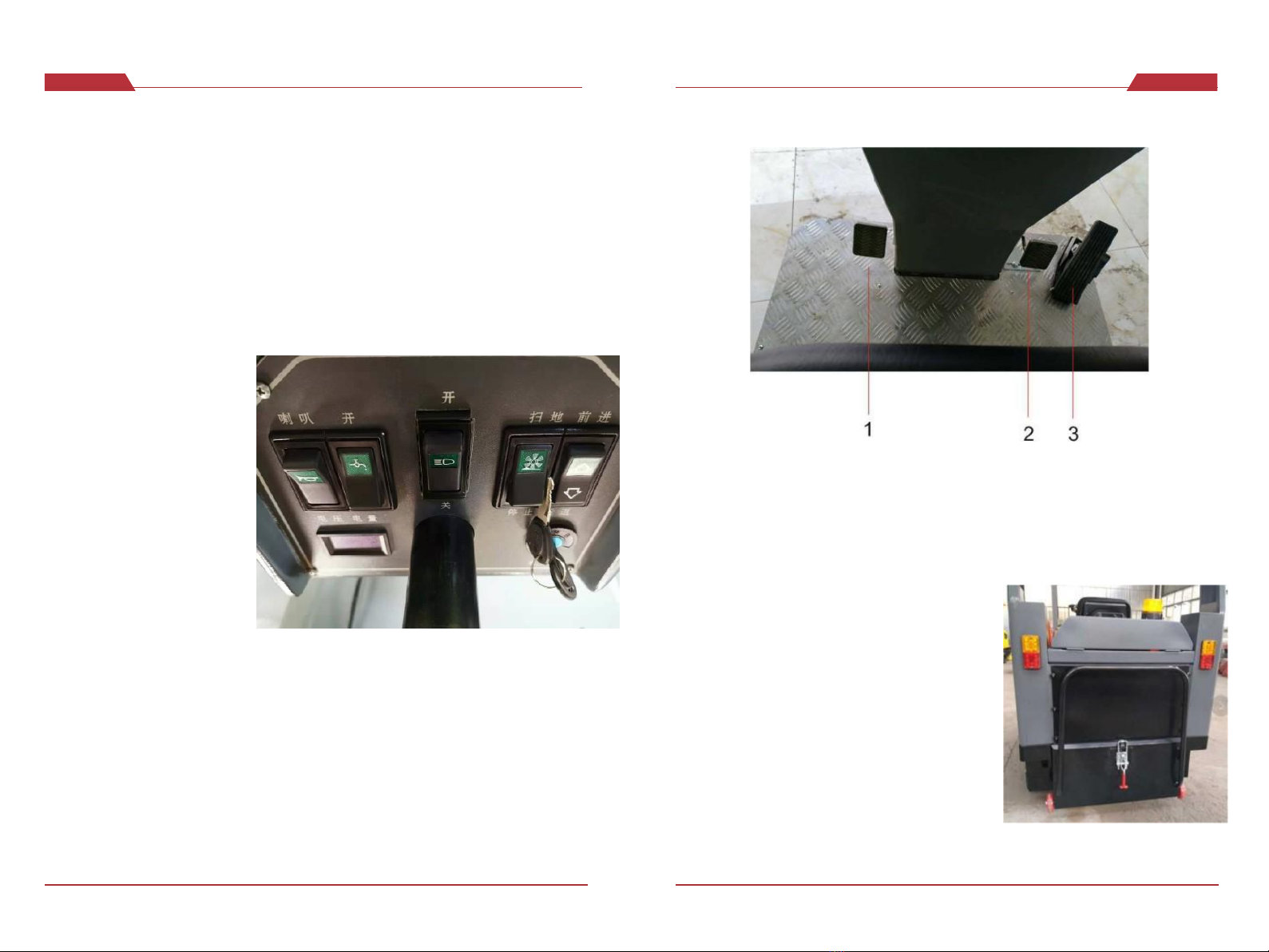

1, panel description
1. Power Switch, turn right
Power-on, turn left the power off
2. Forward back switch
3. Floor sweep switch
4. Headlamp switch
5. Sprinkler switch
6. Horn switch
7. Voltage Power display
8. Dust shock function
2, walking pedal, brake, lift pedal
1. Lift the pedal when walking normally and encounter an obstacle or large object
2. Brake pedal
3. Accelerator pedal plate
Removing and installation of garbage bin
. If you need to clear the garbage, first
open the dustbin buckle up, and then pull
the dustbin handle back, you can separate
the dustbin and the sweeping car. After
slipping the garbage, the mouth of the bin
at the correct position of the sweeper,
slowly push forward, push to the end and
then the buckle down press can put the
bin back to position.
5 6

YZ-GS1 Operating
Manual
Operating Manual YZ-GS1
4, charging
The charging plug is located on
the right side of the machine
after work finished, simply plug
the charger jack into the
sweeper as shown
Part IV Daily maintenance
1 5 4 3 2
1. main Brush 2. main brush edge baffle retaining nut
3. Main Brush Side Fender 4. main brush connection board
5. main brush connection plate retaining nut needs to replace or clean the main brush,
open the left door and unscrew the main brush connection plate plywood fixation
2, side brush replacement
When the edge brush needs to be
replaced, drop the edge brush lift rod
first, and unscrew the three rubber
nuts fixing the edge brush to remove
the edge brush. After replacing the
brush, unscrew the three rubber nuts
to secure the side brush.
Part V. Notes
① Non-professional personnel strictly operate the
sweeper
② No cleaning of silk, ribbon items
③ Deep discharge is strictly prohibited
④ No parking parking on slope
⑤ leave after power-off
⑥ prohibited in rainy days
⑦ strictly prohibited. For voltage below 31.5V,
please charge in time
7 8

YZ-GS1 Operating
Manual
Operating Manual YZ-GS1
Part VI Common phenomena and
treatment methods
1. The brakes not working.
Adjust the inner wire rope nut on both sides clockwise to achieve the same braking effect on
both sides.
2. Not walking.
Associated parts have controller (inside left side of distribution box), fuse (top
down second), two-way contactor (below the fuse), accelerator (right foot
tread), drive wheel
(Front wheel), battery, corresponding wiring jokes, connectors and clues. Damage or bad
contact with any of the parts will cause them not to walk, and replacing the damaged parts
can be restored.
3. No cleaning
As for sweeping this main component, there are 2 side brush motors, 1 main brush
motor, 1 fan 1,100A contactor (middle on the right side of the distribution box), travel
switch (on the right side of the body,
Inside of the main brush connection plate, fixed to the right board), the main and side brush
push rod, wire rope, control switch buttons, etc. The travel switch is damaged or the
adjustment is not in place, the main brush push rod is damaged, the wire rope fracture, and
the control switch button burn will cause no cleaning. Side brush motor, main brush motor,
fan motor is controlled by 100A contactors, if any of them does not work, it is a motor fault.
If none work, the reasons are
The ① sweeping switch button fails, and replace the switch.
② sweeping travel switch fails, adjust the main brush wire rope to make the travel switch; if
the travel switch is damaged, it can be replaced
The ③ 100A contactor is damaged and can be replaced.
4. No sprinkling
Sprinis mainly associated components, water tanks, water pumps, water pipes, valves,
nozzles, relays, switches and control lines.Common problems are water tank leakage,
water pipe rupture, not strict, nozzle blockage, water pump damage, electrical
and circuit failure, etc. If any joint is leaking,
Release the connection section, and then wrap the raw belt and tighten it.
5. No charging
Check whether the charger connector is connected properly, whether the charger is working
properly, and whether the charger panel shows it as indicated in the instructions. If the
connector is not plugged in, do so. Other exceptions are found, such as insurance
The wire is blown and the charger does not display, please contact the aftermarket service
personnel in time.
Ash leak
Common ash leakage is mainly caused by the air filter element is not timely dust vibration
caused by blockage
① bin sealant strip falling off or partially damaged
The ② fan is not working properly
③ front flap damage
④ main brush has filament ribbon winding or wrong installation direction
⑤ bin buckle is loose or off
⑥ cleaning speed is too fast
If the above situation is found, please make the corresponding treatment measures according
to each situation.
6. Main brush and edge brush cannot be promoted
Control the main brush, variable brush promotion is 3 putters, each work, joint control. If
1 or 2 of them are found not working, the putter can be damaged and replaced; if 3 are
found and do not work at the same time. Check its lines,
It can basically be judged that the button is damaged, and it can be replaced.
7. Steering wheel failure
Under normal circumstances, the main reason for the failure of the steering wheel is the
loose or broken chain above the front wheel, and replace the chain in time. The ② steering
wheel connection spline is loose and tighten the spline locking screws. Flines are located in
the
Above the site, the bottom of the machine.
8. Dust dust
Check whether the dust motor is damaged and whether the dust chain is loose or broken. If
damaged, replace it. Check whether the relevant lines and switch buttons are normal. If
damaged, replace them.
