Epik ELB1101 User manual

Thank you for purchasing this EPIK Learning™ product.
For more information, or to learn about other EPIK Learning products,
please visit us at: www.epiklearning.com.
User Guide
ELB1101

Important
•The Epik Chromebook is a high-density electronic product. DO NOT
attempt to disassemble the device.
• Please do not drop or bang the device.
•Avoid using this product in the following environments: Extremely hot or
cold places, high humidity, dusty areas, direct sunlight or long-term
exposure to the sun.
• The product may be cleaned with a damp cotton cloth; the use of any
chemical cleaning fluid is prohibited. Please keep the product away from
water at all times.
• Please use approved battery, battery charger and accessories only. The
use of any other type of products would be a breach of warranty and may
be dangerous.
• If you have any questions regarding the use of this product, please contact
your local dealer or contact the Epik Learning customer service center
directly at [email protected] or call [phone].
• Epik Learning will not be held responsible for any files lost due to product
damage, repair or other causes. Please be sure to follow instructions in the
User Guide and backup your files in a timely manner.

Package Contents
111
Carefully open your EPIK Chromebook box and take out
the items listed below. If any of the items are missing or
damaged, please contact your dealer immediately:
User Guide

Layout
No Name
No
Name
1 Microphone 7 Touchpad
2 Webcam 8 DC Input Jack
3 LCD Monitor 9 USB 2.0 Port
4 Audio Combo Jack
10
HDMI Port
5 USB 2.0 Port 11 Speaker
6 Micro SD Card Slot
2

Function Keys
3

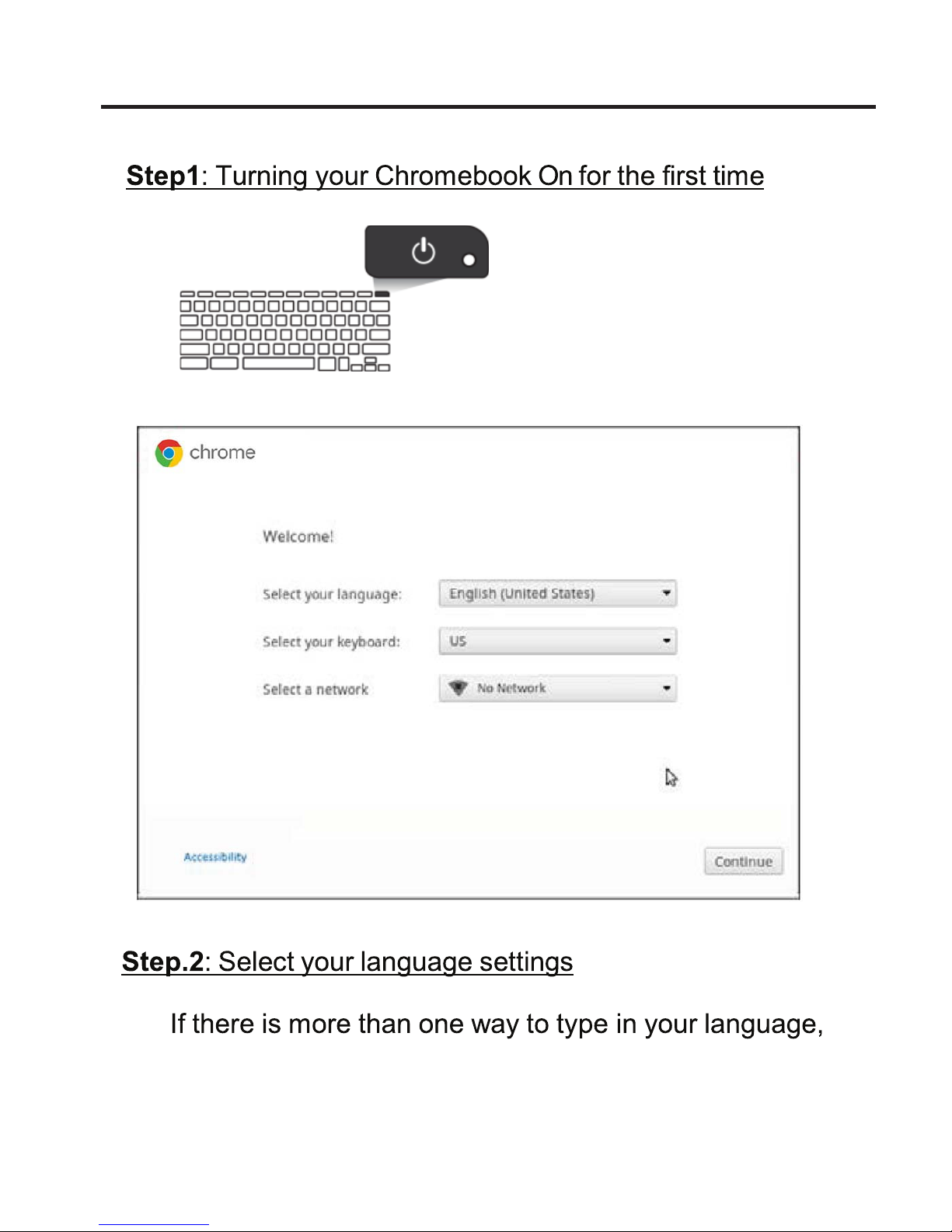

Before Powering On for the First Time
4

Getting Started
5
Press the Power button.
A dialog box will appear
as shown below.

Getting Started (Cont’d)
6
Once connected to a network and Terms of Service
are accepted, your Chromebook will automatically
download any available system updates to get the
latest Chrome OS features.

Getting Started (Cont’d)
7
Sign-in
When you reach this step, the dialog box shown
below will appear on your screen.

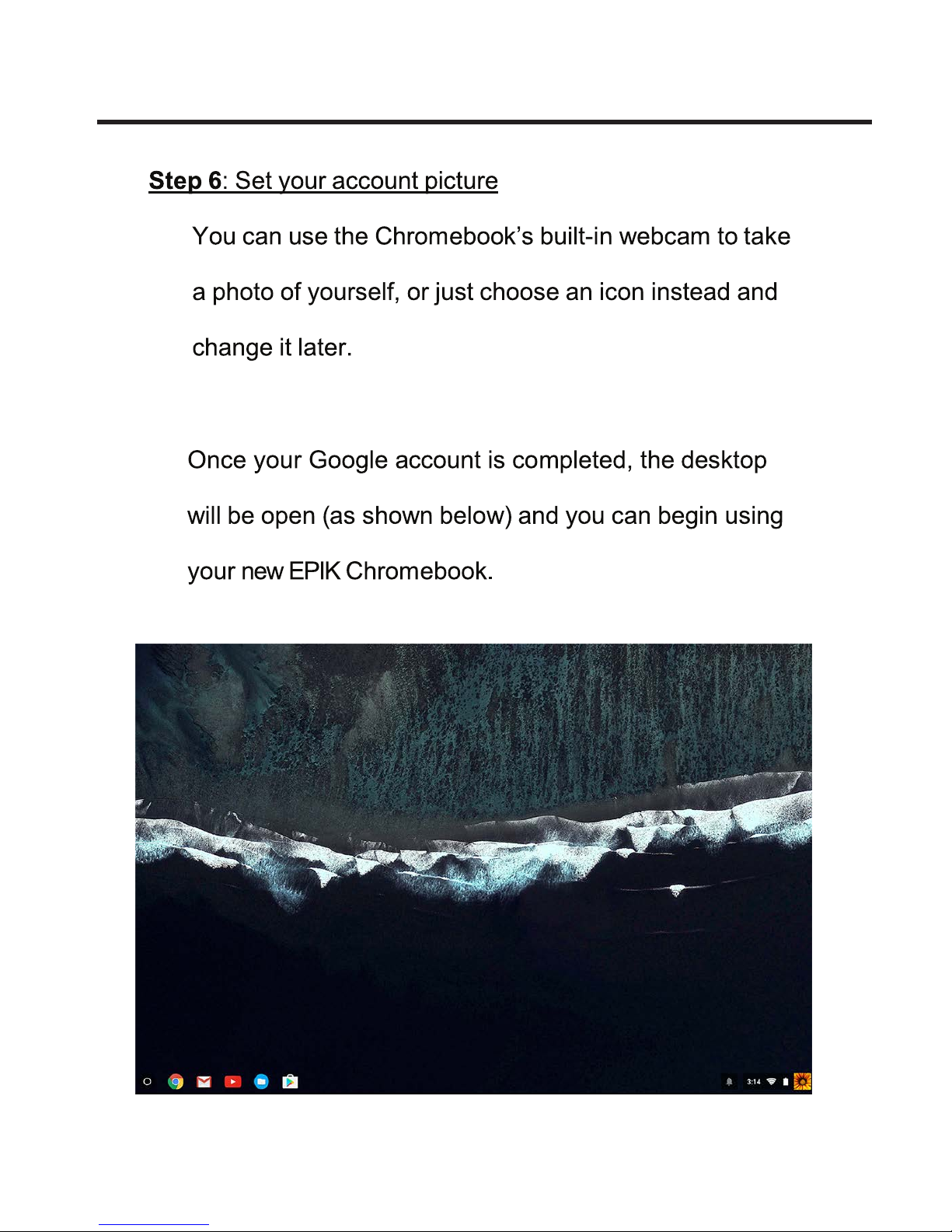

created

8
Getting Started (Cont’d)

System SPEC
9
CPU
WiFi+BT BT 4.0
LCD Panel
1.0 MHD for USB interface (720P)
2S1P,7.4V,3500mhA/Polymer Battery
>24Whr
Port & Conn
1 X Audio Jack for microphone/headphone
Dimensions 204mm(W)*290mm(D)*19.3mm(H)
1.117g(Weight)
Certification
FCC
CE
UL / CB
WEEE
RoHS
Rockchip RK3288 Cortex-A17 Quad Core
PMIC RK808
12V/2A=24Watt
Speaker Build-in 2 speakers (Stereo)
Sensor MST MH248EST
TouchPad Double points Touch PAD
OS Chrome OS
Memory
Storage
AC Adapter
Webcam
Battery
4G DDR3L
32G eMMC
1366 X 768 TN for EDP interface
802.11 a/b/g/n/ac,2X2,2.4G and 5.0G
1 X 12V DC IN
1 X HDMI(A-TYPE)
2 X USB2.0
1 X TF slot (Micro SD)
1.5W/4ohm

Notes
10
Putting your Chroomebook in the “Sleep” mode
You can also put your Chromebook to sleep by closing the lid. If you’re not signed in,
your Chromebook will turn off automatically after 8 minutes of inactivity, and goes
into sleep mode after 30 minutes of inactivity. When you are ready to “wake up” your
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee the interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult an authorized dealer or service representative for help.
Properly shielded and grounded cables and connectors must be used in order to meet FCC
emission limits. Proper cables and connectors are available from ESI authorized dealers.
ESI is not responsible for any radio or television interference caused by using other than
recommended cables or connectors or by unauthorized changes or modifications to this
equipment.Unauthorized change s or modifications could void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
• Industry Canada Class B Emission Compliance Statement:
•This Class B digital apparatus complies with Canadian ICES-003.
•Avis de conformité à la réglementation d’Industrie Canada
•Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Chromebook, simply press any key on the keyboard.

Specifications
11
No.
Item
Spec.
Note
1
8.4 V
2 7.4 V
3
3500 mAh
with 0.2 C
Discharge
4
3400 mAh
with 0.2 C
Discharge
5
0.2 C
charging
6
Charging time
6 hours
reference
Base on standard charge method
7
Max charge
current 2 A
To continue to charging
8
Max discharge
current 1 C
To continue to discharging
9
Discharge
protel Volatge 2.8 V
While continue discharging the PCM protel
10
Discharge
cut-end voltage 6.0 V
Capacity test discharg to the voltage
11
Self-discharge
Residual
capacity
＞85
%
After standard charging, storied at 25°C±5°C
for 28 days, then measure the capacity as Item 3.
12
Cycle life ＞500
Times
One cycle include one charging period and one
discharging period.Test condition:
The cycle life is the cycle times when the dis-charge
capacity is about 80% of the standard capacity.
13
Impedance
＜
250 m Ω
After Standard charging, measure the internal
resistance with AC1KHz (while measuring,clip near
2/3 place of the anode and the cathode).
Cell Voltage between 7.7V~7.9V before shipping.
(The electricity should be around 60%-70% before shipment)
Nominal Capacity refer to the capacity of 0.2C discharge
with 6.0 V cut-off,after charging with standard method.
Min Capacity refer to the capacity of 0.2C discharge
with 6.0 V cut-off,after charging with standard method.
0.2CCC charge to 8.4V,then CV charge till charge
decline to ≤ 0.02C
Charge:0.2C to 8.4V
Discharge:0.2C to 6.0V
Charge voltage
Normal voltage
Normal capacity
Min capacity
Standard
charge method

Specifications (Cont’d) / Warnings
14
Operating
Temperature
Discharge：
-20℃~55℃
Charge: 0℃
~45℃
storage periods cells should be cycled every 90 days.
The method is to do a charge-discharge cycle with
15
Battery weight
approx
150 g
The weight only as a reference
WARNINGS:
•Keep battery away from babies and children.
•Do not place battery into a microwave or high pressure container.
•Do not use a leaky battery near fire or flames.
•Do not use a damaged battery (e.g., leaking, swelling, deformation,etc.)
Proper disposal
Do not dispose of your Chromebook in municipal waste.This
product has been designed to enable proper reuse of parts
and recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercurycontaining button cell battery) should not be
placed in municipal waste. Check local regulations for
disposal of electronic products.
Battery must be stored at 8V~8.2V.Long
standard method,then charge to 8V~8.2V.

1303-01948
