Sony VAIO PCG-SR11K User manual

nN
Sony Notebook
Computer
User Guide
PCG-SR11K
© 2000 by Sony Corporation.

Sony Notebook Computer User Guide
2
nN
Notice to Users
© 2000 Sony Corporation. All rights reserved. This manual and the software described herein, in whole or
in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written
approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information
contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for
any particular purpose with regard to this manual, the software or such other information. In no event shall
Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with this manual, the software, or other information
contained herein or to use thereof.
Sony Corporation reserves the right to make any modification to this manual or the information contained
herein at any time without notice. The software described herein is governed by the terms of a separate user
license agreement.
Sony, DVgate, i.LINKTM,JogDial
TM , Mavica, PictureGear, Memory Stick and the Memory Stick logo, VAIO
and the VAIO logo are trademarks of Sony Corporation. Windows and the Windows 2000 logo are
registered trademarks of Microsoft Corporation.
Intel, MMX, Celeron and Pentium are trademarks of Intel Corporation.
All other trademarks are trademarks of their respective owners.
Specifications are subject to change without notice.

Sony Notebook Computer User Guide
3
nN
Safety Information
Owner’s Record
The model number and serial number are located on the bottom of your Sony notebook computer. Record
the serial number in the space provided here. Refer to the model and serial number when you call VAIO-
Link.
Serial number:________________________
Model number:
PCG-3216
WARNING
 Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
 To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
 Audio and picture distortion may occur if this equipment is positioned in close proximity to any
equipment emitting electromagnetic radiation.
 To prevent fire or shock hazard, do not expose your VAIO notebook computer to rain or moisture.
 Never install modem or telephone wiring during a lightning storm.
 Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations
 Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected
at the network interface.
 Use caution when installing or modifying telephone lines.
 Avoid using the modem during an electrical storm.
 Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
 Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from
mains voltage, unplug the AC adapter.
 Please make sure that the socket outlet is easily accessible.

Sony Notebook Computer User Guide
4
nN
Regulatory Information
This product conforms to the following European Directives:
73/23/EEC (Low Voltage Directive)
89/336/EEC, 92/31/EEC (EMC Directives)
93/68/EEC (CE Marking Directive)
1999/5/EC (radio equipment and telecommunications terminal equipment Directive)
This product complies with EN 55022 Class B and EN 50082-1 for use in following areas: residential,
commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using
connection cables shorter than 3 metres (9.8 feet)
The CD-ROM is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety
Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians. Improper repairs and
use can create safety hazards.
CLASS 1
LASER PRODUCT
TO EN 60825-1

Sony Notebook Computer User Guide
5
nN
As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for
energy efficiency.
The International ENERGY STAR Office Equipment Program is an international program that promotes
energy saving through the use of computers and their office equipment. The program backs the
development and dissemination of products with functions that effectively reduce energy consumption. It
is an open system in which business proprietors can participate voluntarily. The targeted products are office
equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are
uniform among participating nations.
ENERGY STAR is a U.S. registered mark.

Sony Notebook Computer User Guide
6
nN
Disposal of Lithum Ion battery
!Do not handle damaged or leaking Lithium ion batteries. Dispose of promptly and properly.
!Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions (see
below).
!The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 100°C (212°F) or incinerate. Dispose of used battery promptly.
!Keep away from children.
!Your notebook is equipped with an internal backup memory battery. For changing this battery, please contact
VAIO-Link.
 Dispose of properly at end-of-
life.
 In some areas the disposal of
lithium ion batteries in
household or business waste
may be prohibited.
 Please use the public collection
system.

Welcome
Sony Notebook Computer User Guide
7
nN
Welcome
Congratulations on purchasing a Sony VAIO notebook computer. Sony has combined
leading-edge technology in audio, video, computing and communications to provide
you with state-of-the-art personal computing.
Here are just some of the features your VAIO notebook computer has to offer (read the
details in the Specifications chapter of this guide).
 Exceptional performance - Your PC includes a fast processor, a fast CD-ROM and
an internal modem.
 Portability - The rechargeable battery pack provides hours of use without AC
power.
 Sony audio and video quality - A high-resolution LCD screen enables you to take
advantage of today’s advanced multimedia applications, games, and
entertainment software.
 Windows®- Your system includes the latest operating system from Microsoft.
 Communications -Access popular online services, send and receive e-mails,
browse the Internet...
 Excellent customer support - If you have any problem with your computer, you
can contact VAIO-Link by Internet and e-mail (see your Customer Service Guide
for addresses). Before contacting VAIO-Link, you may try to solve the problem by
reading your User Guide (troubleshooting chapter) or the manuals and Help files
for the peripherals or software.

Welcome
About the User Guides
Sony Notebook Computer User Guide
8
nN
About the User Guides
Your Documentation Pack contains paper and on-line user guides on a Documentation
CD-ROM:
Printed Documentation:
 ASetting Up poster in colour and a Getting Started brochure; a Customer Guide,
where you will find all the basic information to start using your notebook
computer;
 A complete Regulatory and safety information poster;
 A Modem Regulations Flyer applying to the modem;
 Your Sony Guarantee conditions.
Online Documentation:
1This User Guide:
 Using Your Sony Notebook Computer shows you how to use the standard
components of your system.
 Connecting Peripheral Devices explains how you can add functionality by
connecting various peripherals.
 Getting Help explains the support options available to you, and offers basic
troubleshooting tips.
 Notes on Use provides facts and advice about using your notebook computer.
 Specifications provides details on your computer, drivers and accessories. The
Compatibility Table indicates which devices are compatible with your notebook.

Welcome
About the User Guides
Sony Notebook Computer User Guide
9
nN
2Refer to your Software Guide for information on the bundled software and the
Sony applications.
 About the Software is a short description of the features of the software pre-
installed on your system.
 Customizing your notebook explains how to set your system and power
management with Sony Notebook Setup, VAIO Action Setup, PowerPanel, etc.
 Using the Product Recovery CD-ROMs explains how to perform a system and
application recovery.
3Consult the Online Help files of the software you are using for detailed
information on features and troubleshooting.

Welcome
Unpacking Your Notebook Computer
Sony Notebook Computer User Guide
10
nN

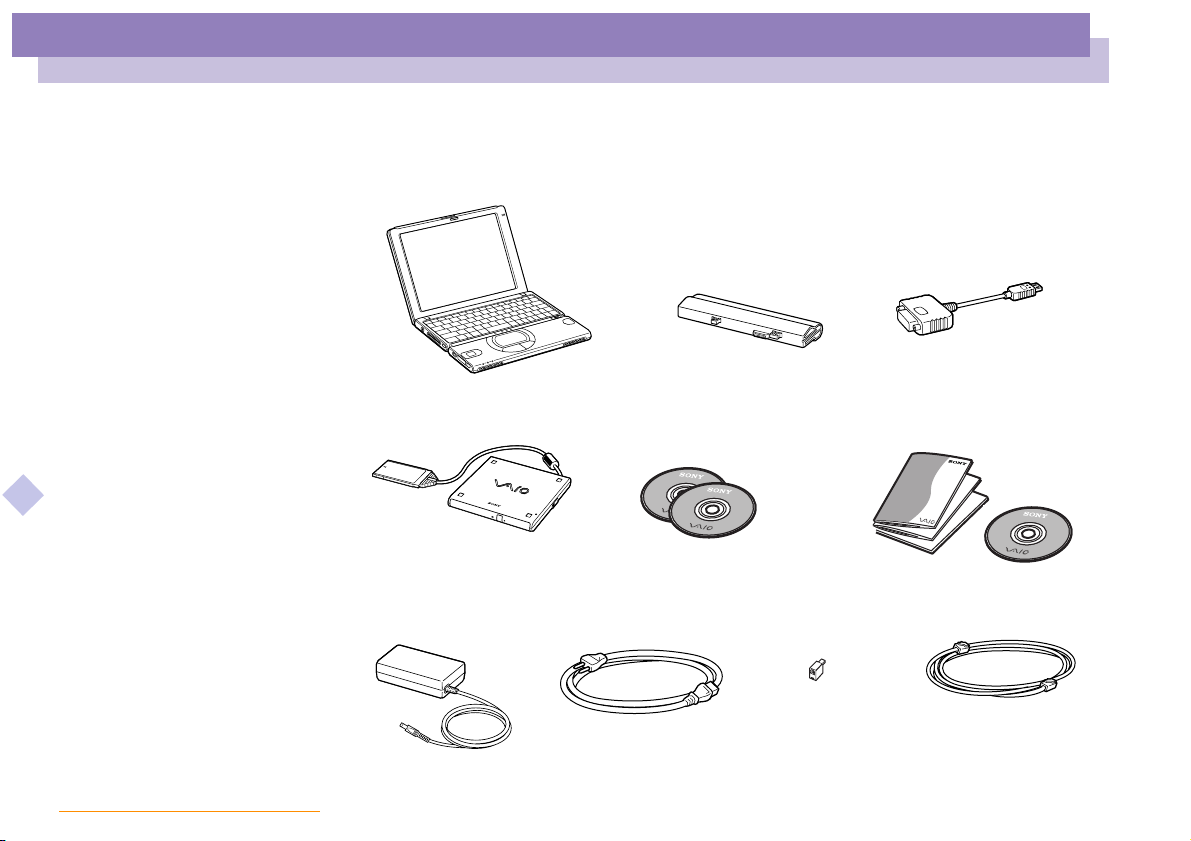

Unpacking Your Notebook Computer
Remove the following hardware items from the box:
Rechargeable battery pack
Product Recovery
CD-ROMs
AC adapter Phone plug (country specific) Phone cable
Main unit
CD-ROM drive Documentation Pack
Display Adapter
Power cord

Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
11
nN
Ergonomic Considerations
You will be using your notebook computer as a portable device in a variety of
environments. Whenever possible, you should attempt to take account of the
following ergonomic considerations to both stationary and portable environments:
 Position of your computer – Place the computer directly in front of you as you
work. Keep your forearms horizontal, with your wrists in a neutral, comfortable
position while using the keyboard, touchpad, or external mouse. Let your upper
arms hang naturally at your sides. Take breaks during sessions with your
computer. Excessive use of the computer may strain muscles or tendons.
Computer positioned directly
in front of you
Arms at desk
level
Wrists relaxed and flat

Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
12
nN
 Furniture and posture – Sitinachairwithgoodbacksupport.Adjustthelevelof
the chair so your feet are flat on the floor. A footrest may make you more
comfortable. Sit in a relaxed, upright posture and avoid slouching forward or
leaning far backwards.
 Viewing angle of the computer’s display – Usethedisplay’stiltingfeaturetofind
the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt
of the display to the proper position. Adjust the brightness setting of the display
as well.
 Lighting – Choose a location where windows and lights do not create glare and
reflection on the display. Use indirect lighting to avoid bright spots on the display.
You can also purchase accessories for your display that help reduce glare. Proper
lighting adds to your comfort and work effectiveness.
 Placement of an external display – When using an external display, set the display
at a comfortable viewing distance. Make sure the display screen is at eye level or
slightly lower when you are sitting in front of the monitor.

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
13
nN
Using Your Notebook Computer
This section describes how to start using your computer and how to use your
computer’s internal devices, such as the touchpad, the disk drives and the battery...
Locating the Controls and Connectors
Right
iHeadphone
connector (page 57) PC Card eject button (page 40) Phone Line jack (page 45)
Line in/mic
connector (page 58) PC card slot (page 40)
Jog Dial (page 31) S400 i.LINKTM
connector (page 54)
 Phone cable and connectors
are TNV (Telecommunication
Network Voltage), according
to EN60950.
1 4 7
2 5
3 6

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
14
nN

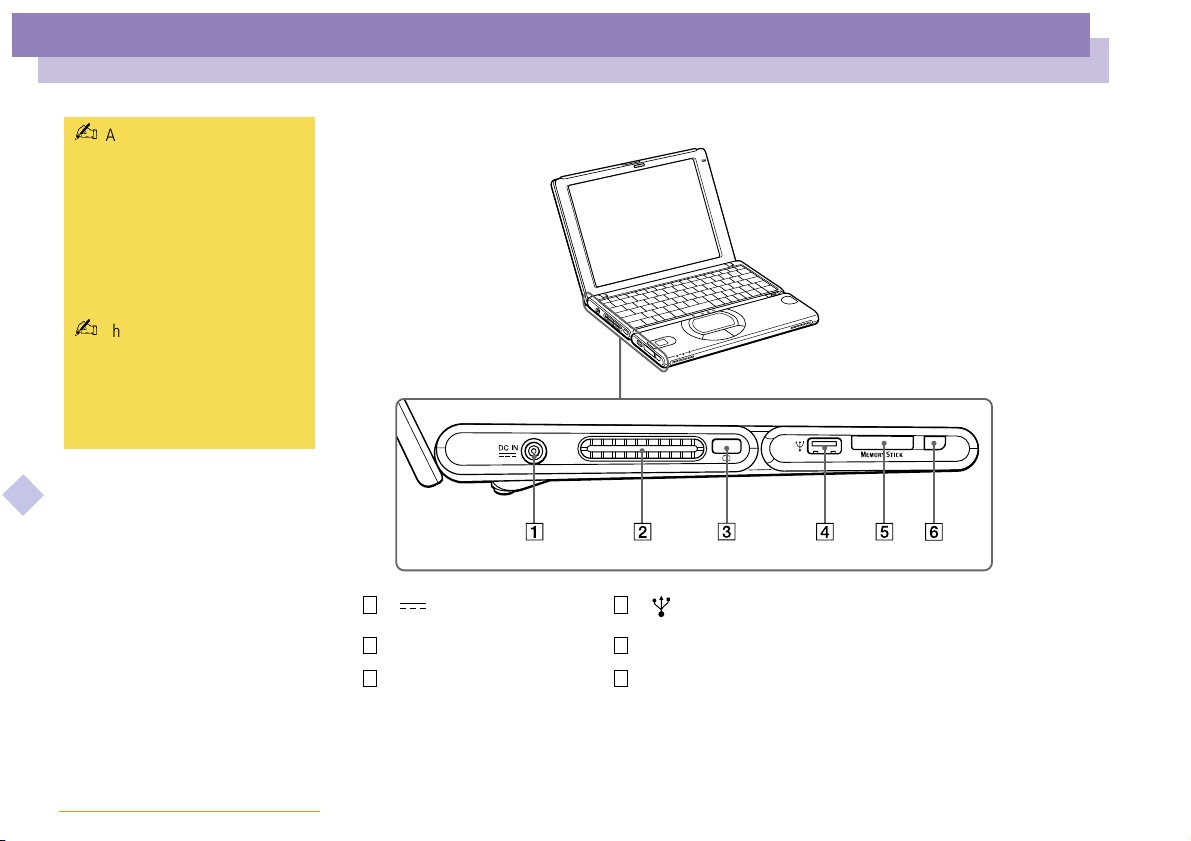

Left
DC In (page 17) USB connector (page 46)
Ventilation slot Memory Stick™slot (page 36)
Monitor connector (page 51) Memory Stick™eject button (page 36)
 AC adapter mains connector
and power cord: hazardous
voltage, according to
EN 60950.
All other connectors for this
notebook are SELV (Safety Extra
Low Voltage), according to
EN 60950.
 There is a ventilation slot
located near the DC In
connector. Do not cover the
ventilation slot when your
computer is on.
1 4
2 5
3 6

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
15
nN

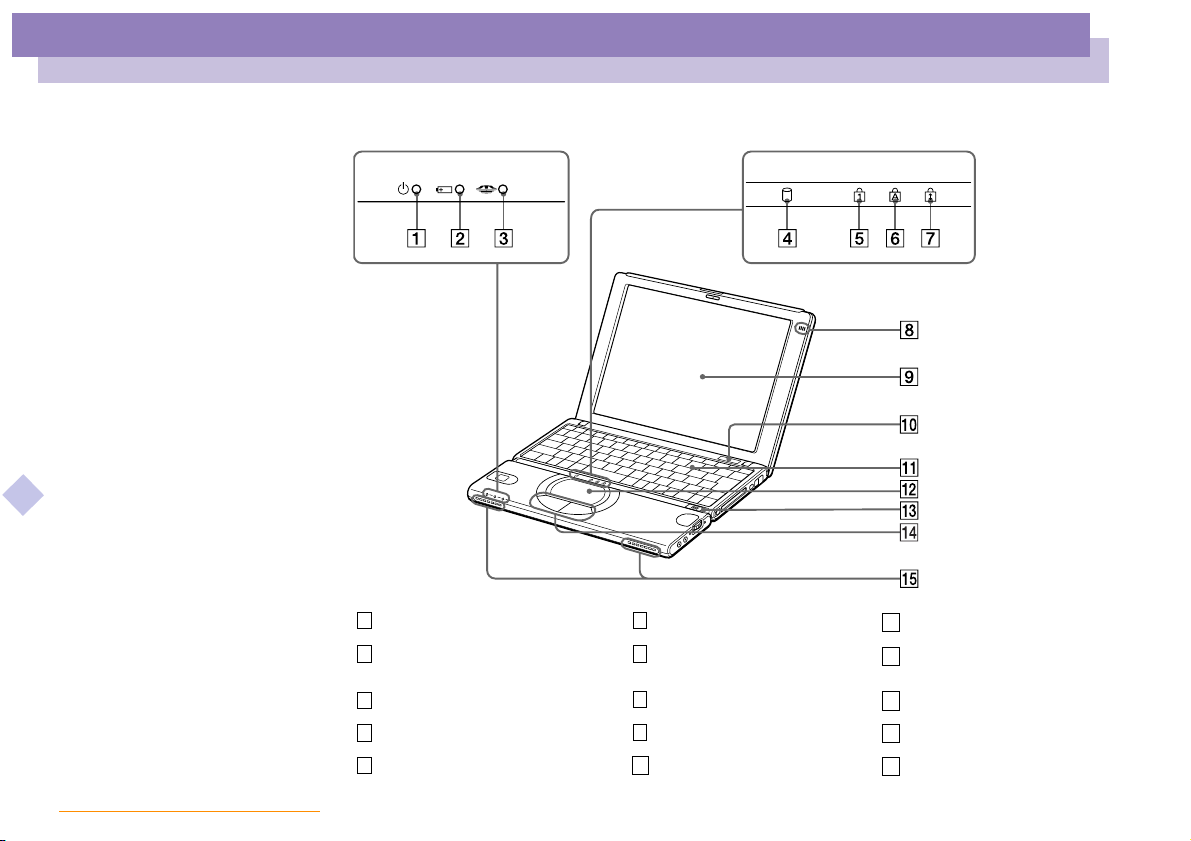

Front
Power indicator (page 28) Caps Lock indicator (page 28) Keyboard (page 25)
Battery indicator (page 28) Scroll Lock indicator (page 28) Touchpad (page 35)
Memory Stick™indicator (page 36) Internal microphone 1Power switch (page 22)
Hard disk drive indicator (page 28) LCD screen (page 29) Left/right buttons (page 35)
Num Lock indicator (page 28) ID Label Speakers
1 6 11
2 7 12
3813
4914
510 15

Using Your Notebook Computer
Locating the Controls and Connectors
Sony Notebook Computer User Guide
16
nN
Back
Bottom
Battery connector (page 18)
Battery lock lever (page 18) Battery release lever (page 18) Ventilation slot
1
1 2 3

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
17
nN
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power source.
Using the AC Adapter
1Plug the cable attached to the AC adapter into the DC In connector on the
computer.
2Plug one end of the power cord into the AC adapter.
3Plug the other end of the power cord into an AC outlet.
 Use your notebook only with
the supplied AC adapter.
To disconnect your notebook
completely from mains voltage,
unplug the AC adapter.
Please make sure that the
socket outlet is easily
accessible.
1
3
2
SELV according to EN 60950
Notebook computer
AC adapter
(supplied)
DC in
Power cord (hazardous voltage
according to EN 60950)
(supplied)

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
18
nN
Using Battery Power
Youcanusea batterypackasasourceofpower.
The battery pack supplied with your computer is not fully charged at the time of
purchase. Follow the steps below to insert and charge the battery pack.
To insert the battery pack
1Move the lock lever on the bottom of the computer to the UNLOCK position.
2Align the grooves and tabs on the battery with the tabs and notches on the back of
the computer, and then slide the battery towards the computer until it clicks into
place.
3Slide the lock lever into the LOCK position to secure the battery on the computer.
!You may lose data if you
remove the battery pack while
the computer is on and not
connected to the AC adapter
or if you remove the battery
while the computer is in
system suspend mode.
 You can remove the battery
pack without turning off the
computer when it is connected
to the mains voltage (AC
adapter).
Before you remove / insert the
battery pack, close the cover.
Battery lock lever
Battery pack
Grooves

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
19
nN
To charge the battery pack
1Connect the AC adapter to the computer.
2Insert the battery pack.
The computer automatically charges the battery (the battery indicator light flashes in
a double blink pattern as the battery charges). When the battery is 85% full, the battery
indicator light turns off This process takes about 2 hours when power is off. It takes 5.5
hours when power is on. To charge the battery completely, continue charging for
additional 3 hours.
Battery Indicator Light Status Meaning
On The computer is using battery
power.
Single blink The battery is running out of power.
Double blink The battery is charging.
Off The computer is using AC power.
Battery pack
(supplied)
Battery indicator

Using Your Notebook Computer
Connecting a Power Source
Sony Notebook Computer User Guide
20
nN
 For some software applications and some peripheral devices, your computer may not enter system hibernation
mode when battery life is low. To avoid loss of data when using battery power, you should save your data
frequently and manually activate a power management mode, such as system suspend or system
hibernation.
When the battery is running out of power, both the battery and power indicators blink.
To determine the time the battery lasts, please refer to Displaying Battery information in your Software
Guide.
Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues
to charge while you are using the computer.
If the battery level falls to below 10%, you should either attach the AC adapter to recharge the battery or shut
down your computer and insert a fully charged battery.
You can extend battery life by changing the power management modes in the PowerPanel utility. See your
Software guide, in Controlling Power Management.
The battery pack supplied with your computer is a lithium ion battery and can be recharged at any time.
Charging a partially discharged battery does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly
depleted, the battery indicator starts flashing.
When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it
uses power from the AC outlet.
