Introduction
Page 1-1
Section 1
INTRODUCTION
Components Checklist
99
99
9A. (1) Mainboard
99
99
9B. (1) Users manual
99
99
9C. (1) Floppy ribbon cable
99
99
9D. (1) ATA-66 100 Hard drive ribbon cable
99
99
9E. (1) USB Cable
99
99
9F. (1) Driver and utility
99
99
9G. (1) ATA-33 Hard drive ribbon cable
A
B
USERS
MANUAL
F
or
D
C
E
G

Introduction
Page 1-2
Mainboard Form-Factor
The board is designed with ATX form factor - the new industry standard of chassis.
ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees within the
chassis enclosure and a new mounting configuration for the power supply. With
these changes the processor is relocated away from the expansion slots, allowing
them all to hold full length add-in cards. ATX defines a double height aperture to
the rear of the chassis which can be used to host a wide range of onboard I O.
Only the size and position of this aperture is defined, allowing PC manufacturers
to add new I O features (e.g.; TV input, TV output, joystick, modem, LAN, etc.) to
systems. This will help systems integrators differentiate their products in the
marketplace, and better meet your needs.
 Smaller size promotes a smaller system size.
 I O shield does not need to be retooled in an ATX 2.01 or later. The
mainboard should be used in an ATX 2.01 (or later) compliant case.
 A smaller power supply can be used. High integration on mainboard
reduces the system costs.
PCI slots
Expandable I O
5 1/4"
Bay
3 1/2"
Bay
Figure 2: Summary of ATX chassis features
CPU
Single chassis
fan for system
ATX
Power
Supply
ATX power connec-
tor
Floppy IDE
connectors
AGP slot

Introduction
Page 1-3
Power-On/Off (Remote)
The board has a single 20-pin connector for ATX power supplies. For ATX power
supplies that support the Remote On/Off feature, this should be connected to the
systems front panel for system Power On Off button. The systems power On Off
button should be a momentary button that is normally open.
The board has been designed with Soft Off" functions. You can turn Off the
system from one of two sources: The first is the front panel Power On Off
button, and the other is the "Soft Off" function (coming from the M Bs onboard
circuit controller) that can be controlled by the operating system such
asWindows® 95 98 SE ME or Windows®2000.
Figure 4: Simple ATX Power ON/OFF Co troller
J 3
ATX
POWER SUPPLY
Case (chassis) Power
ON/OFF butto (J 3)
I/O Shield Connector
The board is equipped with an I O back panel. Please use the appropriate I O
shield (figure 3).
Figure 3: I/O back pa el layout
PS/2 Mouse
PS/2
KEYBOARD
USB port
COM1 COM2
parallel port
Speaker
Li e_i
MIC
Joystick/Midi port

Introduction
Page 1-4
Figure 5: System Block Diagram
System Block Diagram
PAC
PCI Bridge
and memory
controller
VT8633
266/200MHz
133/100MHz
66MHz
4X
Socket 370
Processors
VT8233
I/O Bridge
)+
'%
USB 0,1 USB 2,3 USB 4,5
Mouse
Keyboard
LPC
W 3697
Serial Port 1
Serial Port 2
LPT Port
FDD
1,-
1,- HDD
(ATA-66/100)
V_Link
MA [0:13]
MDS [0:7]
MD [0:63]

.A=JKHAI
Page 2-1
Section 2
FEATURES
Mainboard Features:


PROCESSOR
- Intel CeleronTM Processors with PPGA / FC-PGA socket 370 packing,
operating at 433 ~ 800 Hz
- Intel Pentium®III /CoppermineTM Processor with FC-PGA socket 370
packing, operating at 500 Hz ~ 1GHz
- VIA Cyrix III Processors with PPGA socket370 packing, operating at 500 ~
600 Hz


CHIPSET
- VIA Apollo Pro266 AGPset (VT8633+VT8233)


DRAM MODULE
- 184pin DDR DI x 3 for PC1600/2100 emory
- DRA Size: 64 B to 1.5GB


EXPANSION SLOT
- PCI x 6, 4X AGP x 1


ONBOARD I/O
Winbond 83697HF LPC I/O integrated with
- FDD, Parallel and Serial, Fast IR


ONBOARD PCI / IDE
- PCI Bus IDE Port with PIO /Ultra D A-100x 2 (Up to 4 Devices)

.A=JKHAI
Page 2-2


I/O CONNECTOR
- PS/2 ouse and PS/2 style Keyboard
- CO 1, CO 2, Printer, Audio-in/out, IC & Game Port connectors


USB
- USB connector x 6 (2 for Opt.)


BIOS
- Award Plug & Play BIOS


Built-in AC9 Digital Audio
- Dual full-duplex Direct Sound channels
- H/W Sound Blaster Pro for DOS legacy compatibility
- F synthesis for legacy compatibility
- Supports game and IDI port


EXTENDED FUNCTION
- Supports Hardware onitoring Function by VT8233
- Supports exclusive KBPO(KeyBoard Power On)
- Supports CPU Vcore/VIO setting via BIOS
- Supports CPU Clock settings via BIOS
- Supports STR(Suspend To RA ) power saving Function
- Supports Wake-On-LAN Function
- Supports Wake-On- odem Function
- P80P Debug(POST) Card onboard design with LED display


FORM FACTOR
- 305mm x 245mm ATX Size

Installation
Page 3-1
Figure 1
Mainboard Detailed Layout
Section 3
INSTALLATION

Installation
Page 3-2
Easy Installation Procedure
The following must be completed before powering on your new system:
3-1. CPU Insertion
3-2. EEPROM BIOS Remover
3-3. Jumper Settings
3-4. System memory Con iguration
3-5. Device Connectors
3-6. STR Function
Section 3-1
CPU Insertion
CPU Insertion
Step 1

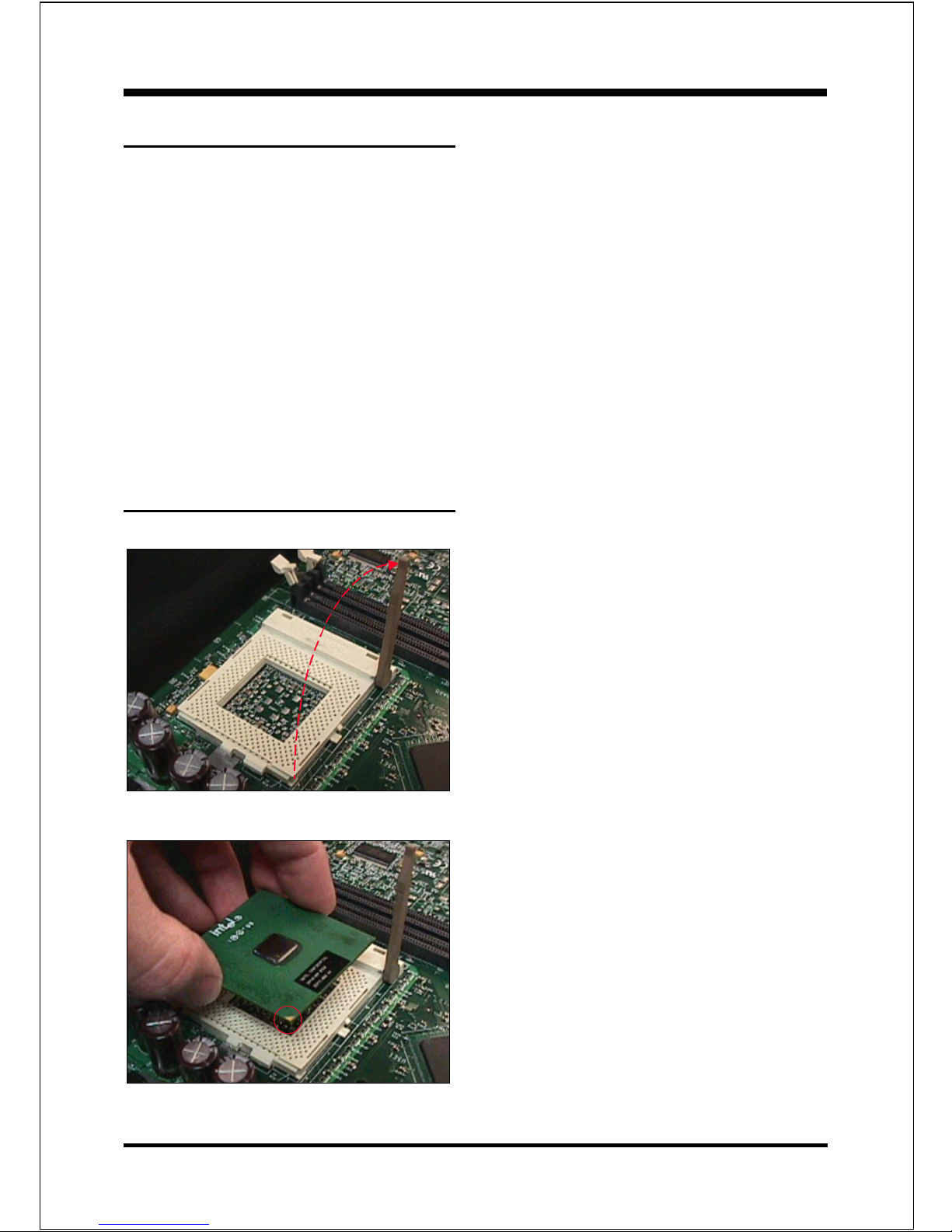

Open the socket by raising the actuation
lever.
Figure 2
Step 2
Insert the processor.
nsure proper pin 1 orientation by
aligning the FC-PGA corner marking with
the socket corner closest to the actua-
tion arm tip. The pin field is keyed to
prevent mis-oriented insertion.
Dont force processor into socket. If it does
not go in easily, check for mis-orientation
and debris. Make sure the processor is
fully inserted into the socket on all sides.
Figure 3

Installation
Page 3-3
Step 3
Close the socket by lowering and
locking the actuation lever.

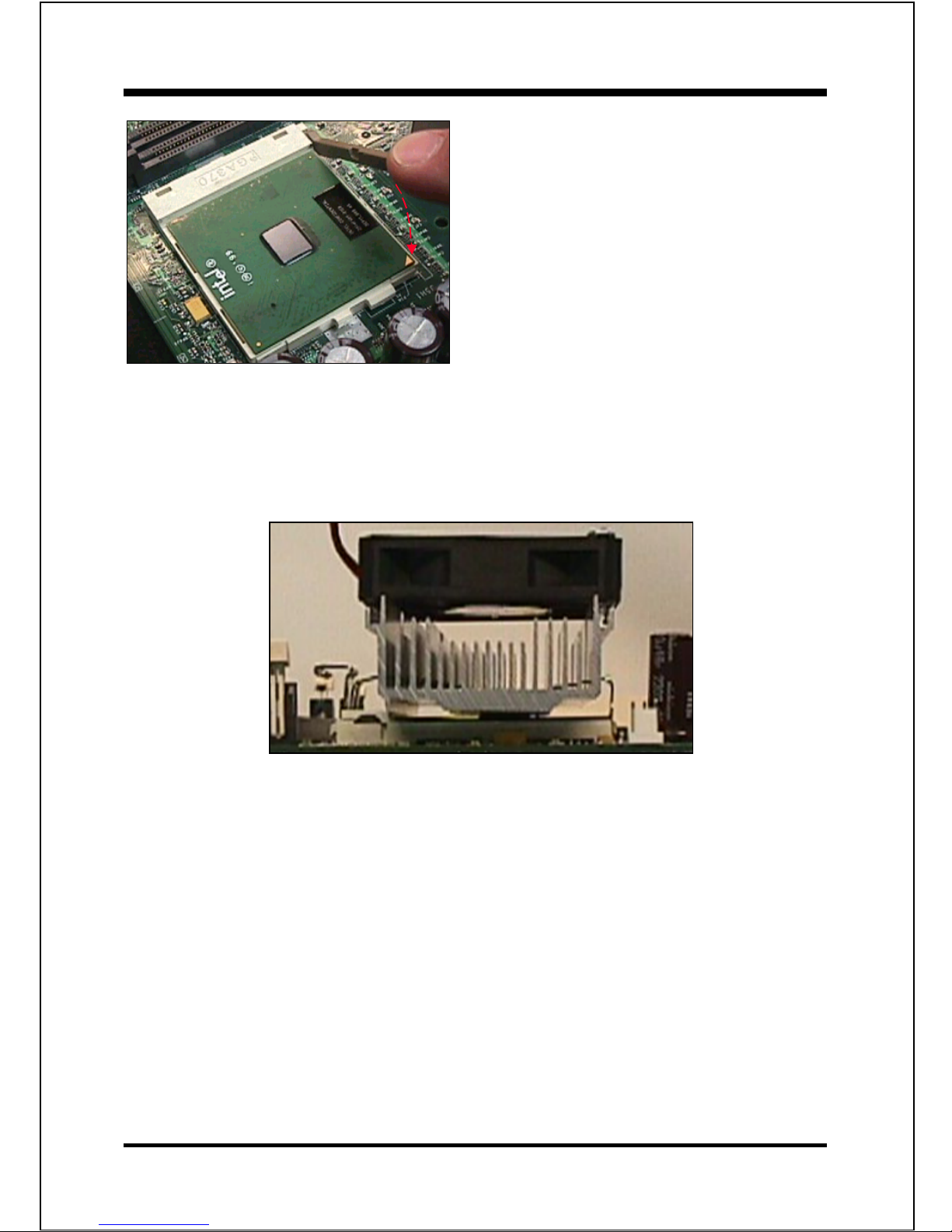

Note: Intels reference design thermal solution is an active heatsink; an extruded aluminum
heatsink based and a fan attached to the top on the fin array. (See igure 5)
Figure 4
Figure 5

Installation
Page 3-4
Section 3-2
EEPROM BIOS Remover

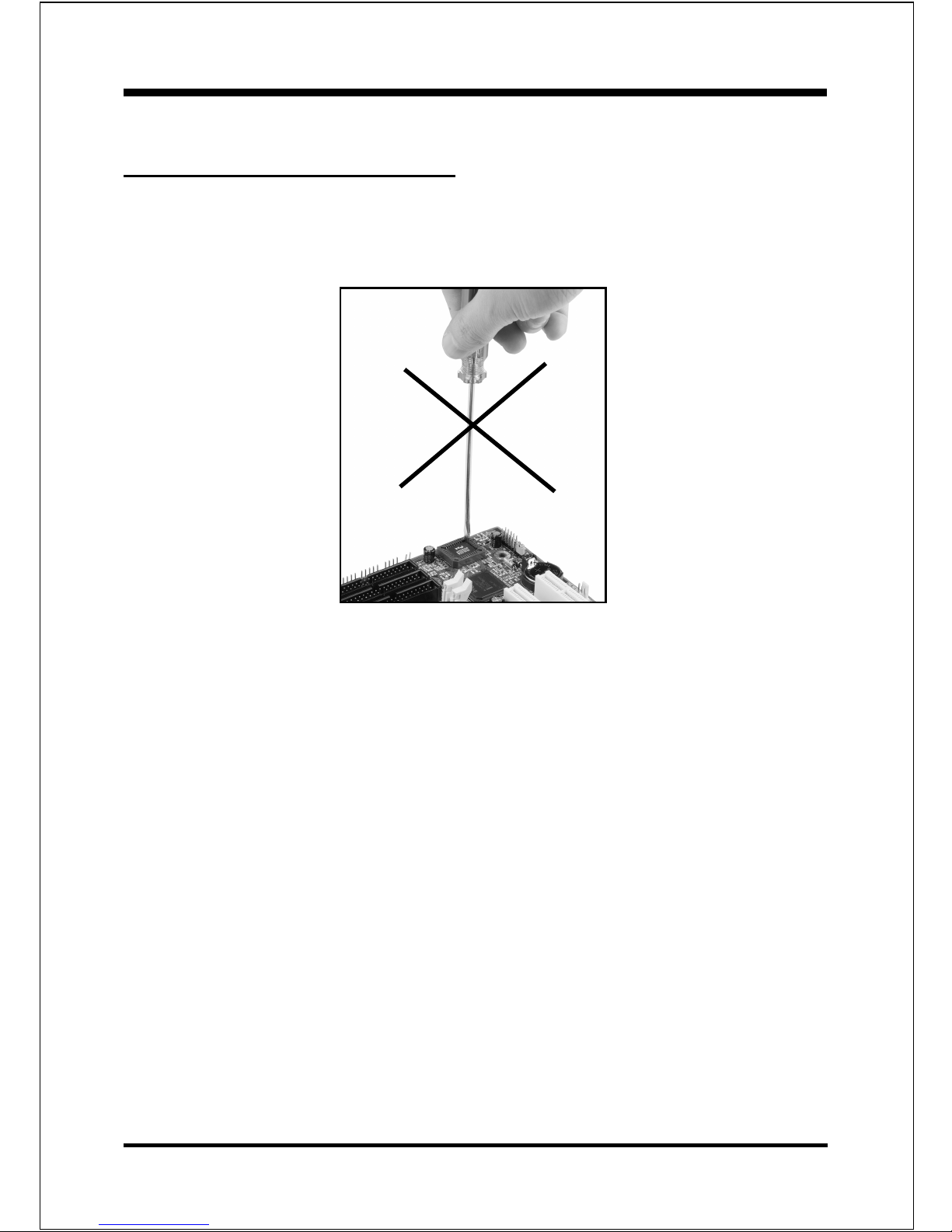

Any tend or improper way to replace the BIOS is prohibited. Otherwise , BIOS
socket may be damaged and as a result, system will fail to boot up.

Installation
Page 3-5
JCK1
CPU Host Clock Select
LED2
LED1
Debug card on board
(Please refer to Appendix C for
POST codes)
Section 3-3
Jumper Settings
The mainboard was designed with very few jumpers to make your installation
faster and easier.

JBAT1
CMOS Clear
= 1-2 Normal (Default)
= 2-3 Clear CMOS
JCK2
1KCJ2KCJkcolCtsoH
2-12-1OTUA
3-23-2zHM66
enoN3-2zHM001
enoNenoNzHM331
(Default)

Installation
Page 3-6
Section 3-4
System Memory Configuration
Memory Layout
The board supports (3) PC1600/2100 184-pin DIMMs (Dual In-line Memory Module).
The DIMMs is for DDR SDRAM (Double-Data-Rate Synchronous DRAM) only.
Figure 6 and Table 1 show several possible memory configurations.
* DDR SDRAM supports 64, 128, 256, 512MB DIMM modules.
* e recommend to use PC1600 Memory Module only for front-side bus 100MHz.
* Can not mixing the unbuffered and registered DDR SDRAM on DIMM1,
DIMM2 and DIMM3 socket.
* Supports PC1600 modules with 2-2-2 timing.
* Supports PC2100 modules with 2-2-2 timing.
DDR DIMM 1
DDR DIMM 2
Bank 0/1 DDR
Synchronous
DRAM
Bank 2/3
DDR DIMM 3 Bank 4/5
yromeMlatoT 1MMIDRDD
)1/0knaB(
2MMIDRDD
)3/2knaB(
3MMIDRDD
)5/4knaB(
BM215=
mumixaM
*MARDSRDD
,BM652,BM821,BM46
1XBM215
enoN
BG1=
mumixaM
*MARDSRDD
,BM652,BM821,BM46
1XBM215
*MARDSRDD
,BM652,BM821,BM46
1XBM215
enoN
BG5.1=
mumixaM
*MARDSRDD
,BM652,BM821,BM46
1XBM215
*MARDSRDD
,BM652,BM821,BM46
1XBM215
*MARDSRDD
,BM652,BM821,BM46
1XBM215
Figure 6
Table 1

Installation
Page 3-7
DIMM Module Installation
Figure 7 displays the notch marks and what they should look like on your DDR
DIMM memory module.
DIMMs have 184-pins and one notche that will match with the onboard DDR
DIMM socket. DIMM modules are installed by placing the chip firmly into the
socket at a 90 degree angle and pressing straight down (figure 8) until it fits tightly
into the DIMM socket (figure 9).
Figure 7
Figure 9
DIMM Module clip after installation
To remove the DIMM module simply press down both of the white clips on either
side and the module will be released from the socket.
Figure 8
DIMM Module clip before installation
C NT R K Y ZON
(2.5 V DRAM)

Installation
Page 3-8
Section 3-5
Device Connectors
Figure 10
J2,J3: Chassis Panel Connector
 Power_L D, Speaker, Reset, Power ON/Off, Turbo L D, HDD L D,
IR Conn.,
FAN1: CPU Fan Power
 A plug-in for the CPU Fan Power
FAN2: Chassis Fan Power
 A plug-in for the chassis Fan Power
FAN3: Power Fan Power
 A plug-in for the Power Supply Fan Power
WOL1: WOL (Wake On LAN) Connector
WOM1:WOM (Wake On Modem) Connector
IDE1: Ultra ATA-66/100 Primary ID Connector (Blue Color)
IDE2: Ultra ATA-66/100 Secondary ID Connector (Blue Color)
FDD1: Floppy Controller Connector (Black Color)
PW1: ATX Power Connector
 20-pin power connector
CD1: CD Audio_IN Connector
 Pin1(CD_IN_Left), Pin2/Pin3(CD_Reference), Pin4(CD_IN_Right)
PS/2 Mouse
PS/2
KEYBOARD
USB port
COM1 COM2
parallel port
Speaker
Line_in
MIC
Joystic/Midi

Installation
Page 3-9
AUX1: Auxiliary Line_IN Connector
 Pin1(Left Line_IN), Pin2/Pin3(GND), Pin4(Right Line-IN)
MODEM1: Telephony Connector for Modem audio output.
 Pin1(Audio_in), Pin2/Pin3(GND), Pin4(Mic-out to Modem)
#NIProloceriWeaNlangiStneoC
1deRccVrewoPelbaC
2etihWataD-ataD
3neerGataD+ataD
4kcalBdnuorGdnuorGelbaC
5kcalBdnuorGdnuorGesaC
6kcalBdnuorGdnuorGesaC
7kcalBdnuorGdnuorGelbaC
8neerGataD+ataD
9etihWataD-ataD
01deRccVrewoPelbaC
USB port header pin descriptions.

VCC
VCC
GND
GND
-Data
-Data
+Data +Data
#
$

USB2/3:USB port header pins for adding four additional USB ports.

Installation
Page 3-10
Device Connectors (continued)
Reset - Closed to restart system.
(This is connected to the power button on the case. Using the Soft-Off
by Pwr-BTTN feature, you can choose either Instant Off (turns system
off immediately), or 4 sec delay (you need to push the button down for
4 seconds before the system turns off). When the system is in 4 sec
delay mode, suspend mode is enabled by pushing the button
momentarily.)
Turbo LED indicator - L D ON when higher speed is selected
IDE LED indicator - L D ON when Onboard PCI ID Hard disks is
activate
J3
1
+
+
IR Connector
1. VCC 4. GND
2. NC 5. IRTX
3. IRRX
1
Power On/Off
J2
S eaker - Connect to the system's speaker for beeping
1. Speaker 3. GND
2. N/C 4. GND
Power LED - Power L D connector
1. Power L D(+) 4. NC
2. N/C 5. GND
3. GND
1
1
1
