lntroduction
The EPSON®ActionPort™ Replicator makes it easy for you to
connect your monitor, printer, and other devices to your
ActionNote™ 800 series notebook computer. When you need to
take the computer away from your desk, the ActionPort
Replicator stays connected to your office peripherals. You only
have to reconnect the replicator when you return.
The ActionPort Replicator also increases the capabilities of your
ActionNote by providing additional ports. The replicator
includes the following connectors:
Video connector supporting modes up to 1024 x 768 in 16
colors
Two serial ports
Bi-directional parallel port
Game port
Audio-out (with volume control knob)
PS/2®mouse port
PS/2 keyboard port
Two stacked PC card slots: one Type II and one Type III
(also accommodates one oversized PC card)
DC-in port.
If the audio card is installed, the audio-in, audio-out, and
microphone ports on your ActionNote are operable when the
replicator is connected. The PC card slots on the computer are
also operable, which allows you to use up to four PC cards at
the same time.
ActionPort Replicator
1

However, the other corresponding connectors on your
computer are disabled or inaccessible when you use the
ActionPort Replicator.
The ActionPort Replicator comes with its own AC adapter and
power cord. Make sure you use this adapter when you operate
your ActionNote with the replicator.
Identifying ActionPort Replicator Ports
Before you connect the replicator to your computer and
peripherals, use the following illustration to locate the ports on
the replicator:
2ActionPort Replicator

Connecting the ActionPort Replicator to the
Computer
Follow these steps to connect the replicator to your ActionNote:
1. Make sure the computer is turned off.
2. Open the port cover on the back of the ActionNote.
3. Position the replicator next to the replicator port as shown,
aligning the connectors on the replicator with the holes in
the port.
4. Push the replicator into the port connector until it snaps into
place.
ActionPort Replicator 3

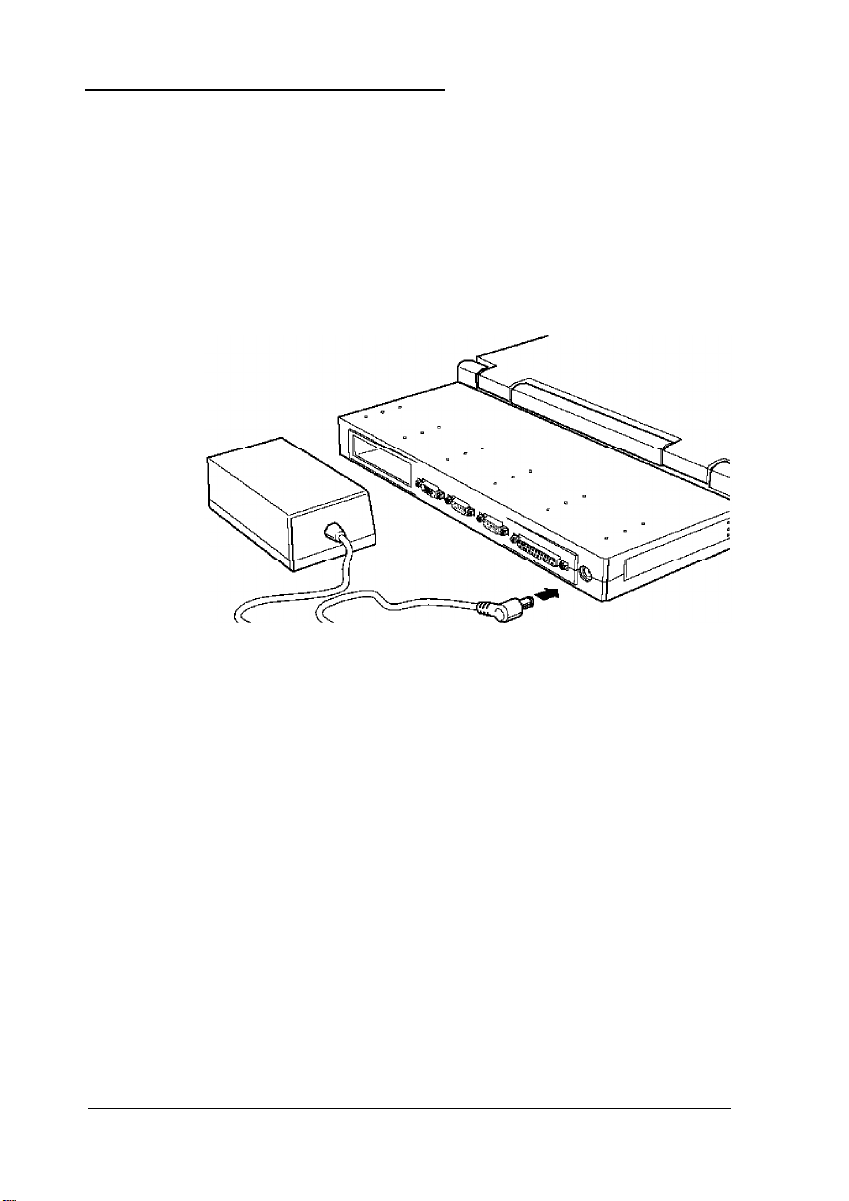

Connecting the AC Adapter
Make sure you use the international AC adapter (A882101) that
was included in your ActionPort Replicator package. Follow
these steps:
1. Connect the AC adapter cable to the DC-in port on the
replicator.
2. Connect the power cable to the AC adapter.
3. Connect the other end of the power cable to a grounded
electrical outlet.
4ActionPort Replicator

Removing the ActionPort Replicator from the
Computer
When you are ready to take your ActionNote on the road, you
can leave the AC adapter and your printer, monitor, and other
components connected to the replicator.
Follow these steps to disconnect the replicator from the
computer:
1. Make sure the computer and external components are turned
off.
2. Pull out the lever on the side of the replicator to release it
from the computer.
3. Separate the computer and the replicator.
4. Close the port cover on the ActionNote to protect the
connector.
ActionPort Replicator 5

Using the ActionPort Replicator
You use the ports on the replicator in the same way as the ports
on your ActionNote. Follow these steps to connect external
peripherals:
1. Make sure that both the computer and external device are
turned off.
2. Connect the device to the appropriate port.
3. If the connector has retaining screws, tighten them.
Refer to Chapter 4 in your ActionNote 800 Series User's Guide for
more information on connecting external devices.
Note
If you install the optional internal fax/modem in your
ActionNote, you will not be able to use the COM2 serial port
on the replicator. You can disable the fax/modem through
the Setup program if you want to use the second serial port.
Using an External Keyboard or Mouse
The ActionPort Replicator has both a PS/2 mouse port and a
PS/2 keyboard port Although the ports are physically
identical, they cannot be used interchangeably. Be sure to use
the correct port.
6ActionPort Replicator

Installing a PC Card
To install a PC card in one of the slots, follow the instructions in
Chapter 4 of your ActionNote 800 Series User's Guide. Your
system configures most PC cards automatically.
The upper slot on the replicator is slot 2 and the lower slot is
slot 3. Use the CardView™ software installed on your
ActionNote to monitor PC card usage and reconfigure your
cards or system resources if necessary.
Specifications
Interfaces
Parallel
Serial
Centronics®compatible; 25-pin, D-sub,
fern ale connector; standard S-bit parallel;
supports standard (AT compatible) and
bi-directional (PS/2 compatible) modes
Two RS-232C, programmable,
asynchronous, 9-pin, D-sub male
connectors
Video Auto-sensing, 15-pin, D-sub, female
connector for analog monitor
PCMCIA slots Accept two Type 1 or II cards, or one Type
I or II and one Type III; PCMCIA version
2.01 and JEIDA 4.1 compatible
Mouse Auto-sensing, 6-pin, mini-DIN connector
for a PSI 2-type pointing device
ActionPort Replicator
7

Keyboard Auto-sensing, 6-pin, mini-DIN connector
for a PS/2-type external keyboard or
keypad
Game port 15-pin, D-shell connector for joystick or
other game controller
Volume
control Knob adjusts sound from audio output
port on replicator
Audio output Connector for external speakers or
headphones when optional audio card is
installed in computer
Physical Dimensions
Width
11.5 in. (292 mm)
Depth 4.3 in. (110 mm)
Height 1.2 in. (29 mm)
Weight 1.3 lb (577 g)
