Equipex SODIR PSE-400 User manual

Operation Manual
For
Sodir
Griddles– PSE, PSS, & PCC -400/600/900
765 Westminster Street Providence, Rhode Island 02903 U.S.A.
Tel: [phone] Fax: [phone]
www.equipex.com e-mail: [e-mail]

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the
following:
1. Read all the instructions before use.
2. Do not touch hot surfaces; use handles or knobs.
3. To avoid electric shock, do not immerse the power cord, or any part of the unit, in any liquid.
4. Close supervision is necessary when any appliance is used, especially around children.
5. Unplug appliance from the electrical outlet when not in use, and before cleaning. Allow appliance
to cool before installing or removing any parts or accessories, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug, or if appliance should sustain
damage, or malfunction in any way. In this event, return appliance to the nearest authorized
service facility for examination, repair or adjustment.
7. The use of accessories and/or attachments not recommended by the appliance manufacturer
may cause injury or damage to the appliance, and may void your warranty.
8. Do not use outdoors.
9. Do not allow the power cord to hang over the edge of a table or counter, or to be exposed to hot
surfaces, as damage may occur.
10. Do not place appliance on or near a burner, or in a heated oven.
11. To disconnect an appliance, first turn all controls to the ‘off’ position; then unplug the power cord
from the wall outlet.
12. Do not use appliance other than for its intended use.
13. SAVE THESE INSTRUCTIONS FOR LATER USE!

INTRODUCTION
The SODIR models PSE, PSS AND PCC -400 -600 AND -900 griddles are designed
to offer quality cooking. The griddles are constructed of food service quality stainless
steel, and are equipped with fine grain cast iron, cold-rolled steel or chrome cooking
surfaces. The griddles are versatile in application, and easy to operate. The heating
elements are thermostatically controlled up to 570 F with separate controls for one
(400), two (600) or three (900) zones. These controls are equipped with an integrated
power switch for convenience. Two green and orange indicator lights per control, add
convenience for the operator. All models are equipped with a removable grease tray.
Be advised, on chrome models (PCC), use only wooden utensils or the surface may
be scratched.
Specifications:
Model Electrical Plug
Configuration
PSE/PSS/PCC-400/1120V, 1PH, 1.75KW, 15A NEMA-5-15P
PSE/PSS/PCC-400 208/240V, 1PH, 2KW. 9/10A NEMA-6-15P
PSE/PSS/PCC-600/1 120V, 1PH, 1.75KW, 15A NEMA-5-15P
PSE/PSS/PCC-600 208/240V, 1PH, 3.5KW, 15/17A NEMA-6-20P
PSS-900 208/240V,1PH, 6KW, 22/25A NEMA-6-50-P
PSS-900 208/240V,3PH, 6KW, 13/15A Cord Only
INSTALLATION
The SODIR griddle needs to be connected to a grounded outlet of proper voltage,
208/240V or 120V, depending on the model. DO NOT place the unit in a damp area or
near steam sources. Make sure that the side ventilation panels are not blocked.
Maintain at least 2” clearance at each side and rear of the griddle.

ASSEMBLY
The SODIR griddle comes from the factory completely assembled, except for the
side spacers, which need to be screwed into the threaded holes in each side of the
unit. These will help to maintain the proper clearance. It is shipped with plastic
exterior protective film, which must be removed before operation. DO NOT operate
the griddle prior to removing the protective film completely!
OPERATION
Initial Set-up
First, install the two spacer handles by screwing them into the threaded inserts, one
in either side. The griddle is shipped with an application of surfactant grease on the
plates to protect them from rusting, except for the PCC (chrome). This grease will
need to be removed prior to the seasoning process. Before operating your SODIR
griddle, we recommend that you season the surface of the grill plate with cooking oil
or shortening, again, except for the PCC models. For seasoning, wipe cooking oil
or shortening onto the grill plate using a clean, lint-free cloth, or coat the plate with
cooking oil spray. Set the griddle thermostat(s) to 300
o
F. When the temperature is
reached (the orange indicator light goes out), allow the griddle to season for 10-15
minutes and then let the griddle cool. Some smoke may appear during this process.
Wipe off excess oil using a clean, lint-free cloth. Repeat seasoning process at least
one more time. Now, your griddle is ready for use.
Preheating
To preheat the griddle, select the temperature by rotating the thermostat knob(s)
clockwise to the desired temperature setting. Both indicator lights (green and
orange) will be lit. The orange light will stay on until the griddle zone reaches the
desired temperature, and then cycle on and off. The green light will stay on until the
unit is turned off. Allow about 20 minutes for the preheating process.
Cooking
The SODIR griddles can be used for a wide variety of foods. Cooking times will vary
depending on food products, temperature settings and desired results.
ESTIMATED GRILLING CAPACITY (per hour. for preheated griddle)
Model Burgers Pancakes Steaks
-400 210 170 75
-600 320 240 115
-900 480 360 170
*Estimated per hour; capacities may vary with actual sizes and brands of products

Cleaning
WARNING: Disconnect (unplug) electrical power supply before cleaning
Cleaning is very important in maintaining a safe and well working machine. Allow the griddle
to cool before cleaning. Using a scraper or a stiff wire brush, except for the chrome (PCC)
model, scrape the debris from the grill plate. To clean the griddle, scrape or brush cooking
debris toward you into the removable grease tray. For chrome (PCC) use only wooden
utensils. Use a cloth dampened slightly with soap and water to clean the stainless steel
housing. The grease tray may be cleaned in a pot sink or dishwasher. Clean the griddle
thoroughly at the end of each day. Failure to do so may cause hard to remove build up. In
order to remove the build up from the grill plate, use industry standard food service grade
degreasers or grease removers. We do not recommend using soap and water to clean the
plate, however, if soap and water are used while cleaning the plate the griddle will need to be
re-seasoned as per the above procedure. Make sure no water enters the unit through
ventilation holes.
DO NOT use an abrasive sponge on exterior or interior surfaces
DO NOT wash the oven under running water
DO NOT spray the exterior motor housing with any liquid
DO NOT allow water to drip into the motor housing or onto electrical
components
Maintenance
You should inspect all parts on a regular basis to ensure that all is in proper working order. If a
part is damaged, have the unit repaired by an authorized service agency prior to returning the
unit to operation. If you have trouble locating a service agency in your area, please consult our
website at http://www.equipex.com/, or call us at 1-800-649-7885 and ask for customer service.

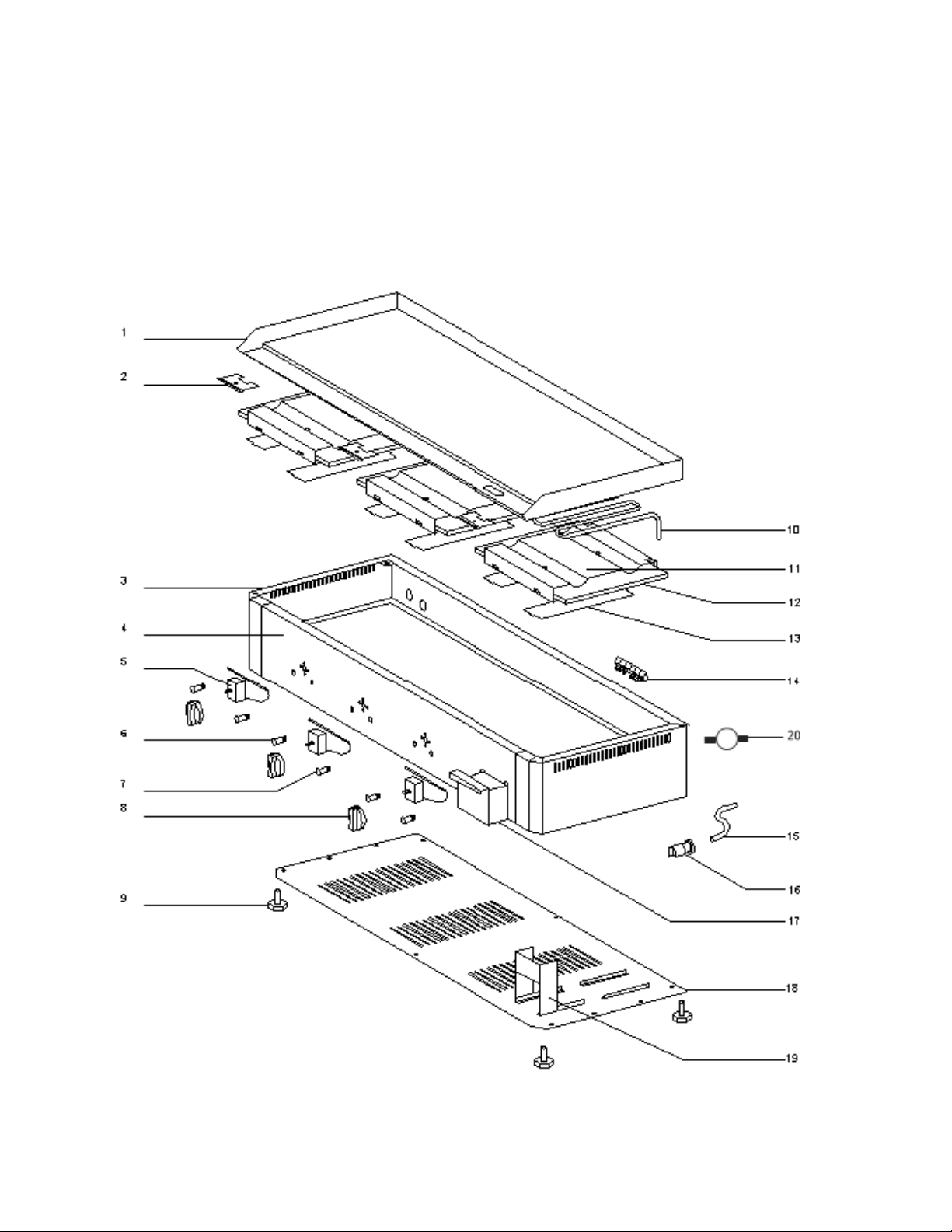

Spare Parts PSE-400

DWG#
Part Number Qty Description
1B02027+PTR 1Cast iron plate
253184 1Frame
353122 1Front panel
4A01020 1Power Switch
5A06032 1Regulating Thermostat (NT-253 40-280C)
6A08009 1Green pilot light, 220V
6A08007 1Green pilot light, 120V
7A14078 1Knob
8A08003 1Orange pilot light, 220V
8A08002 1Red pilot light, 120V
9A13017 2Foot
10 D02105 1Armoured heating element, 220V
10 D02123 2Armoured heating element, 120V
11 49018 1Element holder
12 53185 1Components protection plate
13 A16013 13-position terminal block
14 53121 1Casing
15 53183SE 1Juice tray
16 OEM0022 1Cord with plug 220V (6-20P)
16 OEM0011 1Cord with plug 120V (5-15P)
17 A10032 1Cord closer
18 53114SE 1Drip tray
19 53123 1Bottom casing
20 A13012 2Foot 10 x 20
21 53116 1Sauce protection screen
22 A06034/1 1High-Limit thermostat (135C)

PSE-600

DWG#
Part Number Qty Description
1B02026+PTR 1Cast iron plate
253187 1Frame
353118 1Front panel
4A01020 2Power Switch
5A06032 2Regulating Thermostat (NT-253 40-280C)
6A08009 2Green pilot light, 220V
6A08007 2Green pilot light, 120V
7A14078 2Knob
8A08003 2Orange pilot light, 220V
8A08002 2Red pilot light, 120V
9A13017 2Foot
10 D02169 2Armoured heating element, 220V
10 D02123 2Armoured heating element. 120V
11 49018 2Element holder
12 53188 1Components protection plate
13 A16014 16 Position terminal block
14 53111 1Casing
15 53186SE 1Juice tray
16 OEM0022 1Cord 220V, (6-20P)
16 OEM0011 1Cord 120V, (5-15P)
17 A10032 1Cord closer 16
18 53114SE 1Drip tray
19 53112 1Bottom casing
20 A13012 2Foot 10 x 20
21 53116 1Sauce protection screen
22 A06034/1 2High-Limit Thermostat (135C)

PSS-400

DWG#
Part Number Qty Description
153120SE 1Frame and steel plate assembly
237115 1Thermostat holder
353121 1Casing
453122 1Front panel
5A06032 1Regulating Thermostat (NT-253 40-280C)
5A01020 1Power Switch
6A08009 1Green pilot light, 220V
6A08007 1Green pilot light, 120V
7A14078 1Knob
8A08003 1Orange pilot light, 220V
8A08002 1Red pilot light, 120V
9A13012 4Foot
10 D02105 1Heating element, 220V
10 D02123 2Heating element, 120V
11 53077 1Element holder
12 H02048 1Insulation
13 53058 2Insulation block
14 A16013 13-Position terminal block
15 OEM0022 1220V Cord with plug 6-20P
15 OEM0011 1120V Cord with plug 5-15P
16 A10032 1Cord closer
17 53114SE 1Drip tray
18 53123 1Bottom casing
19 53116 1Sauce protection screen
20 A06034/1 1High-Limit Thermostat (135C)

PSS-600

DWG#
Part Number Qty Description
153113SE 1Frame and steel plate assembly
237115 2Thermostat holder
353111 1Casing
453118 1Front panel
5A06032 2Regulating Thermostat (NT-253 40-280C)
5A01020 2Power Switch
6A08009 2Green pilot light, 220V
6A08007 2Green pilot light, 120V
7A08003 2Orange pilot light, 220V
7A08002 2Red pilot light, 120V
8A14078 2Knob
9A13012 4Foot
10 D02169 2Heating element, 220V
10 D02123 2Heating element, 120V
11 53077 2Element holder
12 H02047 1Insulation
13 53058 4Insulation block
14 A16014 1Six Position Terminal Block
15 OEM0022 1220V Cord w/ Plug (6-20P)
15 OEM0011 1120V Cord w/ Plug (5-15P)
16 A10032 1Cord closer
17 53114SE 1Drip tray
18 53112 1Bottom casing
19 53116 1Sauce protection screen
20 A06034/1 2High-Limit Thermostat (135C)

PSS-900

DWG#
Part Number Qty Description
153129SE 1Frame and steel plate assembly
237115 3Thermostat holder
353127 1Casing
453130 1Front panel
5A06032 3Regulating Thermostat (NT-253 40-280C)
5A01020 3Power switch
6A08003 3Orange pilot light, 220V
7A08009 3Green pilot light, 220V
8A14078 3Knob
9A13012 4Foot
10 D02141 3Heating element, 220V
11 53077 3Element holder
12 H02047 1.5 Insulation
13 53058 6Insulation block
14 A16014 1Six-Position terminal block
15 1220V 3-Phase 10-4 Cord
15 OEM 0052 1220V 1-Phase cord 6-50P
16 A10032 1Cord closer
17 53114SE 1Drip tray
18 53128 1Bottom casing
19 53116 1Sauce protection screen
20 A06034/1 3High-Limit Thermostat (135C)

PCC-400

DWG#
Part Number Qty Description
153120SECH 1Frame and chrome plate assembly
237115 1Thermostat holder
353121 1Casing
453122 1Front panel
5A06032 1Regulating Thermostat (NT-253 40-280C)
5A01020 1Power Switch
6A08009 1Green pilot light, 220V
6A08007 1Green pilot light, 120V
7A14078 1Knob
8A08003 1Orange pilot light, 220V
8A08002 1Red pilot light, 120V
9A13012 4Foot
10 D02105 1Heating element, 220V
10 D02123 2Heating element, 120V
11 53077 1Element holder
12 H02048 1Insulation
13 53058 2Insulation block
14 A16013 13-Position terminal block
15 OEM0022 1220V Cord with plug (6-20P)
15 OEM0011 1120V Cord with plug (5-15P)
16 A10032 1Cord closer
17 53114SE 1Drip tray
18 53123 1Bottom casing
19 53116 1Sauce protection screen
20 A06034/1 1High-Limit Thermostat (135C)
F05052 1Wooden spatula

PCC-600

DWG#
Part Number Qty Description
153113SECH 1Frame and chrome plate assembly
237115 2Thermostat holder
353111 1Casing
453118 1Front panel
5A06032 2Regulating Thermostat (NT-253 40-280C)
5A01020 2Power Switch
6A08009 2Green pilot light, 220V
6A08007 2Green pilot light, 120V
7A08003 2Orange pilot light, 220V
7A08002 2Red pilot light, 120V
8A14078 2Knob
9A13012 4Foot
10 D02169 2Heating element, 220V
10 D02123 2Heating element, 120V
11 53077 2Element holder
12 H02047 1Insulation
13 53058 4Insulation block
14 A16014 16-Position terminal block
15 OEM0022 1220V Cord w/ Plug (6-20P)
15 OEM0011 1120V Cord w/ Plug (5-15P)
16 A10032 1Cord closer
17 53114SE 1Drip tray
18 53112 1Bottom casing
19 53116 1Sauce protection screen
20 A06034/1 2High-Limit Thermostat (135C)
F05052 1Wooden spatula
Electrical Diagrams
