ERGOBOND Zusana User manual

Zusana Chair Instruction Manual
Zusana Chair
IMPORTANT：READ THE USER'S MANUAL
BEFORE ASSEMBLING Weight Capacity : 300 lbs
by ERGOBOND
www.ergobond.com
TM
Step 4 : Join the [Figure 3] and the back
using spacers c and bolt a, tighten up
using allen key d.
Step 5 : Finish off by joining the body with
the legs.
Warning: be careful when installing the
chair on the gas spring.
Function Specification
Back knee tilt
(Pull out-lock
pull in-knee tilt)
Tension Up&Down
(Pull out-up
Pull in)
c
a
d
�

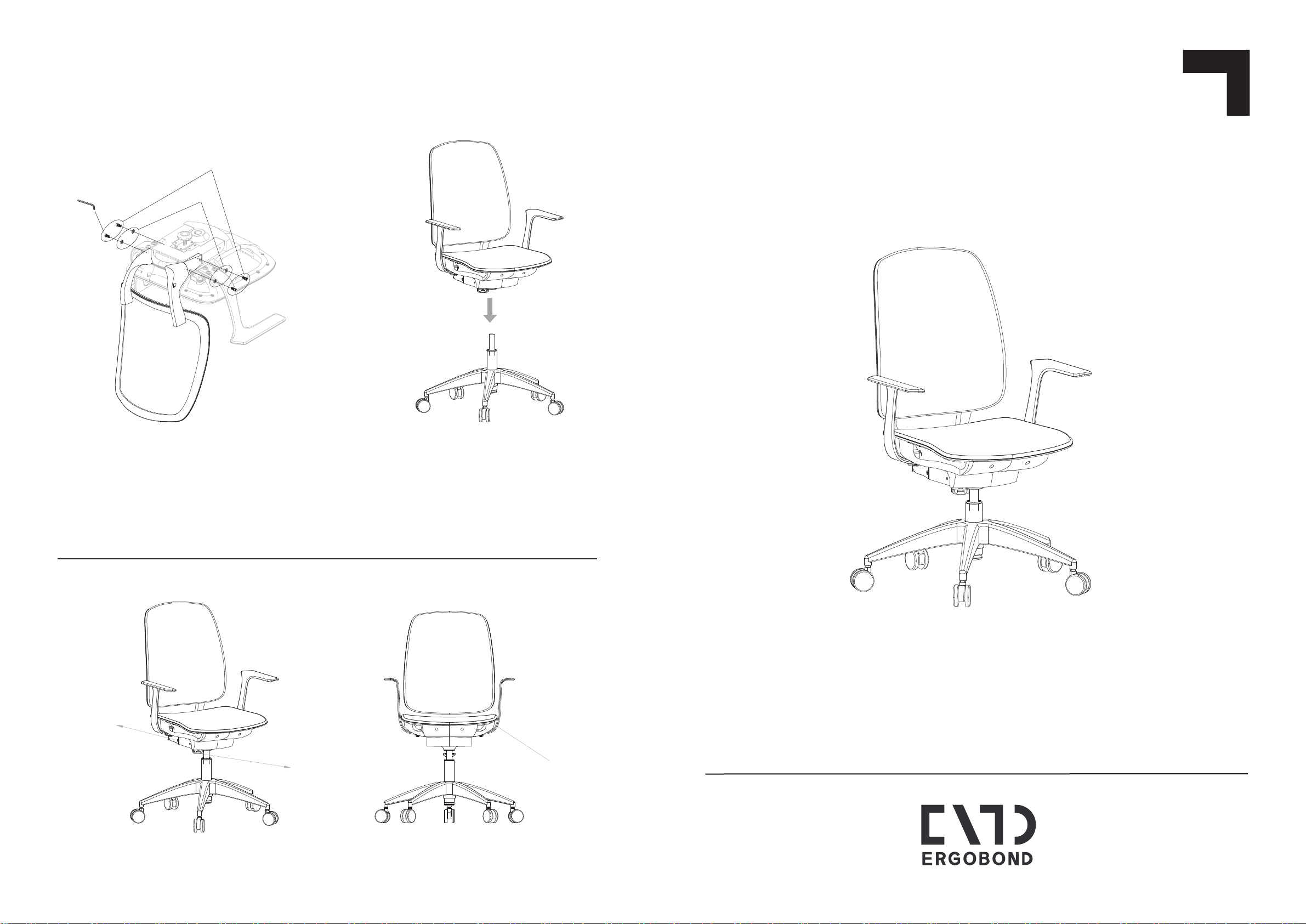

Figure 4 Figure 5
®

Assembly Instructions
Back 1pc Seat 1pcGas Spring 1pc
Part list
Hardware list
Step 3 : Instal the armrest to the base using a spacer c and bolt bfix using the allen key d.
Step 2 : Instal the gas spring into the base [Figure 1] .
Step 1 : Instal all 5 caster wheels �to the base �.
Figure 1
Note: These images are not real representations of the size.
Tip: Remove the hardware from the labelled packaged as needed.
Armrest 1pair
Base 1pc Caster 5pc
M8X25 Bolt 7pcs
b
M8X20 Bolt 5pcs
aM8 Washer 12pcs cAllen Key 1pcs
d
�
�
Figure 2
�
Figure 3
�
�
d
c
b
