ERNA MAS E175 HBS User manual
1-Motor Body Unit 12-Security lid with anti spill ring
2-On / Off -speed control Triger Button 13-Pusher
3-StainlessSteel Blending Attachment 14-Pusher tube
5-Beater Body 15-Processor bowl
6-Whisker 16-Spindle
7-Beaker 17-Chopping Blade
8-Upper cover 18-Blade Holder
9-Motor unit unlocking button 19-Shredding Blade
10-Locking buttons ( left&right) 20-Slicing Blade
11-Locking handles
POWER : 1500
W
V
OLTAGE : 220-240V~ 50/60Hz
ISOLATION CLASS :
page1
E175 HBS HAND BLENDER with FOOD PROCESSOR ATTACMENTS INSTRUCTION
MANUAL
Important Safeguards
When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or
injury to persons, basic safety precautions should always be followed, including the following:
*Read all instructions carefully, even if you are familiar with the appliance.
*To protect against the risk of electric shock DO NOT IMMERSE the appliance, Cordset or
Plug in water or other liquid.
*To clean, wipe exterior with a damp cloth.
*Close supervision is necessary when any appliance is used by or near children.Never
leave an appliance unattended when in use.
*Switch off and remove the plug from the power outlet when not in use, before assembling or
disassembling parts and before cleaning.To unplug, grasp plug and pull from power outlet.
Never pull cord.
*Avoid contacting moving parts.Keep hair, clothing and other utensils away during operation
to prevent injury and / or damage to the appliance.
*Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions
or is dropped or damaged in any manner.Return the complete appliance to your nearest
authorised service facility for examination, electrical repair, mechanical repair or adjustment.
*The use of attachments or accessories not recommended or sold by this appliance
manufacturer may result in fire, electric shock or personal injury.
*Do not operate when the appliance is empty.
*Do not use outdoors.
*Do not let cord hang over edge of a table, counter, or touch hot surface.
*Do not operate or place any part of this appliance on or near any hot surface
( such as a gas or electric burner, or in a heated oven ).
*Do not use the appliance for anything other than its intended use.
*Do not abuse the cord.Never carry the appliance by the cord or pull it to disconnect it
from the outlet instead, grasp the plug and pull to disconnect.
*When using the extension cord with your appliance make sure the extension cord is correctly
wired and rated for its use.
*This product is intended for household use only.
*Do not attempt to repair the appliance yourself; instead, take it your nearest Service Centre
or Authorised Service Agent for repair.
*Handle carefully the sharp blades especially during removing and during cleaning
*This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
*children shall not play with the appliance.
*cleaning and user maintenance shall not be made by children without supervision.
*Be careful if hot liquid is poured into the food processor or blender as it can be
ejected out of the appliance due to a sudden steaming (IEC 60335-2-14/A2:2012).
This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
page 2
How To Use
Your Hand Blender has been designed for processing small quantities or food and should not
be used for any other application.Before first use, wipe of the handle of the blender with a damp
cloth.Wash the shaft and blade in warm soapy water.Avoid submerging the appliance part above
the shaft.Dry thoroughly.
Using the Blender
The Hand Blender is suitable for making sauces, soups, mayonnaise and baby foods, screw the
blending attachment (5) to the main unit by turning counter clockwise until it locks in the
secured position. Insert the plug into a standart home power outlet.Place the food to be blended in
a suitable container. Place the blending attachment into the food to be blended and press the on / off button.
page 3
Trigerbutton increasesthe
moreyousqueeze.

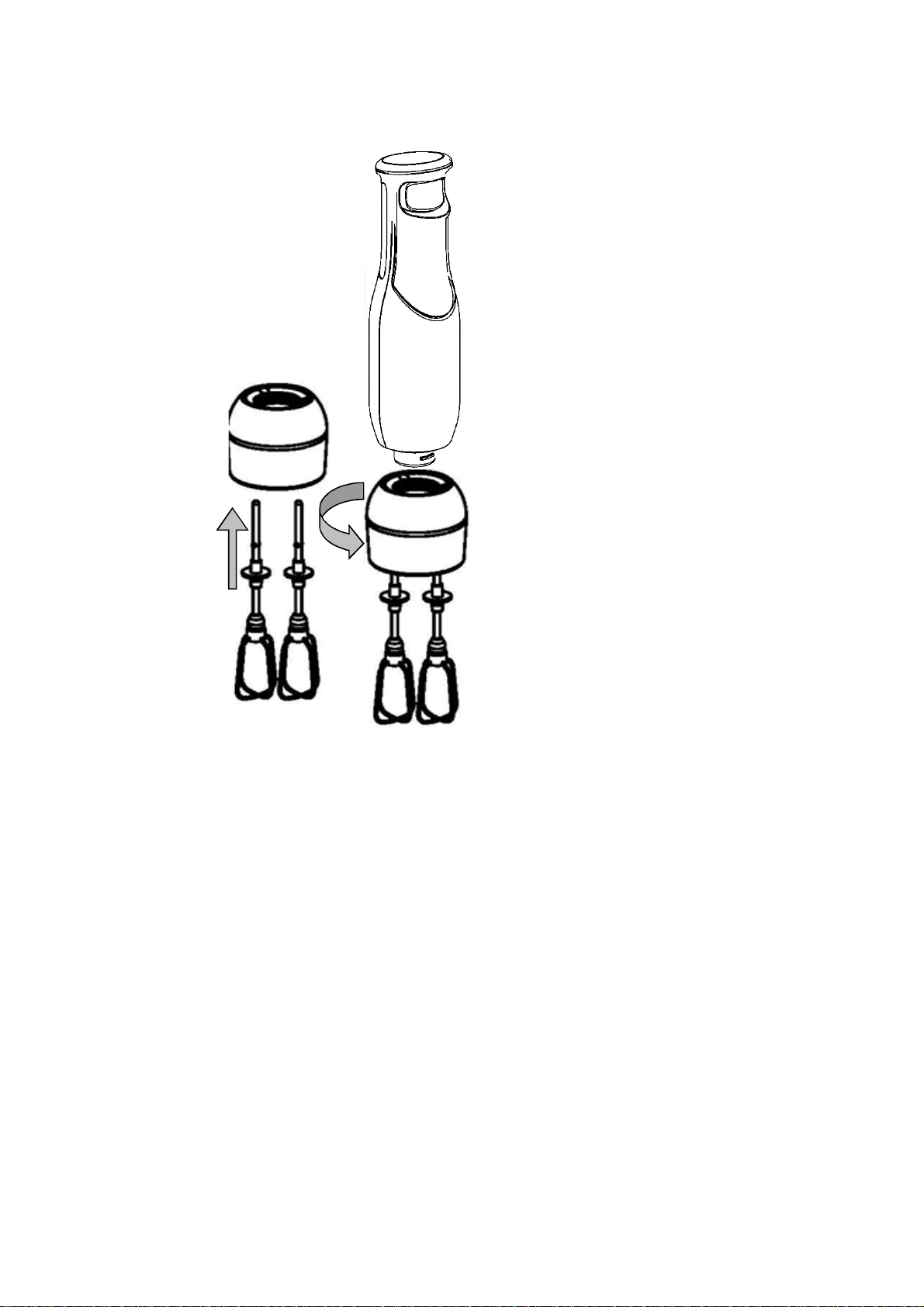

Using the Beater
Before connecting the beater onto the motor unit make sure the blender is disconnected from the
electrical outlet. Insert the whisk (7) by grasping into the beater body (6). Screw the beating attachment
to the main unit by turning counter clockwise. Insert the plug into a standart electrical outlet.
Place the ingredients to be mixed in the bowl.Press the on/off button.
You can use the beaker (6 ) or another container for beating.
ATTENTION : DO NOT OPERATE THE APPLIANCE CONTINUOUSLY
MORE THAN 10 SECONDS AND WHEN EMPTY
page 4

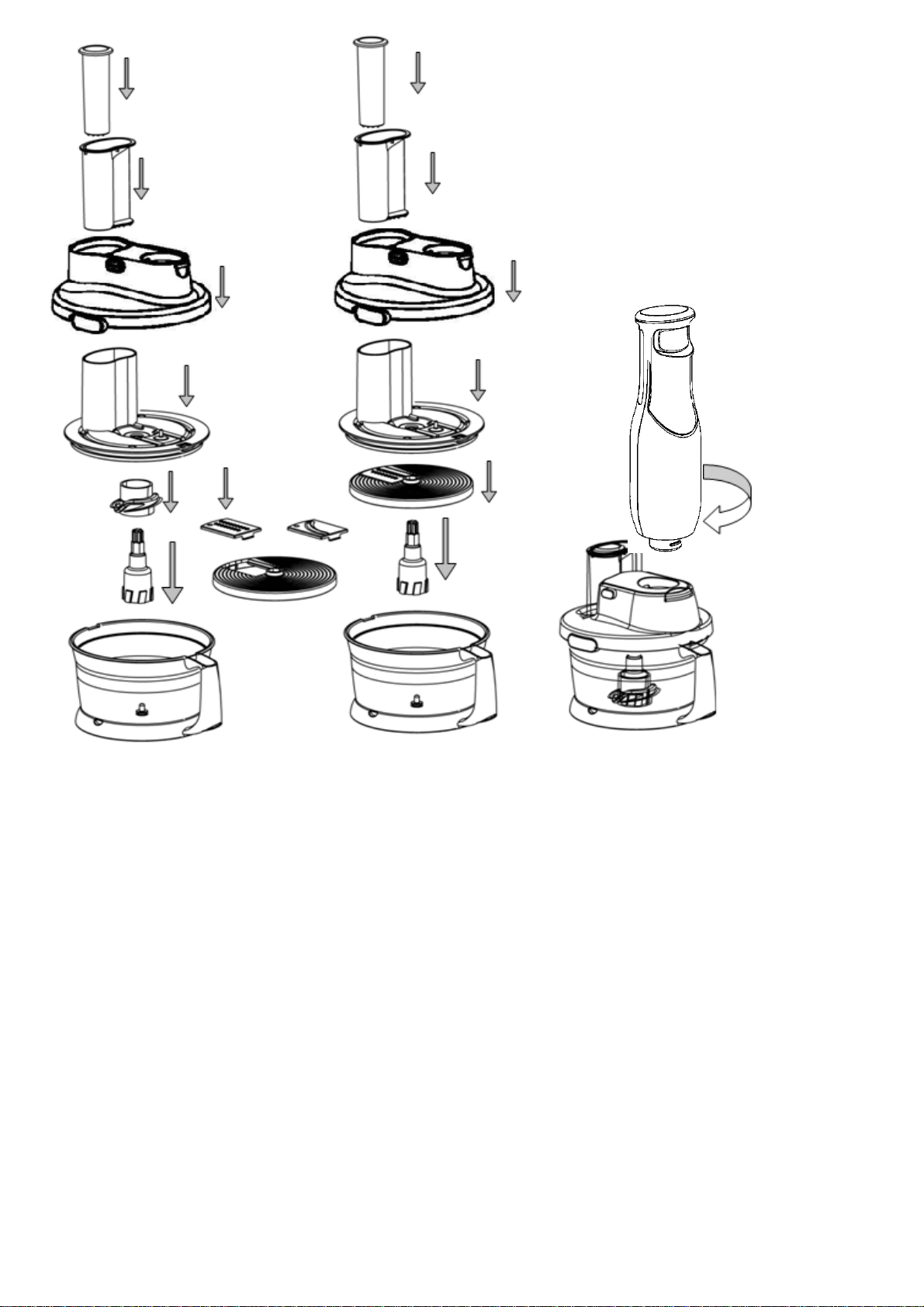

Using the Shredding&Slicing&Chopping Attachment
*Put the spindle(17) on the metal shaft of the Processor bowl (16) and place the accessory corresponding
to the required use on the spindle. Be sure that the place where the accessory support to be put
is always free of ingredients.
*Add the ingredients, respecting the max. amount, given in the tables.
*Place the security lid (13) on the Processor bowl.
*Lock the upper cover (9) securely on to the lid.
*Turn the motor unit in clockwise direction until you hear the "click" sound for locking.
*Press the on/off button.
*When you finished your work, in order to open the upper cover, first the motor block must be disassembled.
In order to disassemble the motor unit from its place, turn the motor unit in anti clockwise direction while
pressing the unlocking button ( 10 )
*To lock/unlock the upper cover press both side buttons ( 11 )
Be sure that all rotating accessory are stopped before removing the upper cover.
page 5
ATTENTION : Do not operate the appliance continiusly more than 10 seconds.
Do not operate the appliance when empty.
CHOPPE
R
Ingredients Maximum Quantities
A
ppr.Time
Butter and honey mixtur
e
450 g butter - 600 g hone
y
3 secs
Onions / Garlic ( cut in 8
)
500 g 3-6 secs
Parsley 100 g 5-10 secs
Raw meat ( fat free ) 400 g 10 secs
Nuts 300 g 5-10 secs
Fruits 700 g 10 secs
Biscui
t
300 g 5-10 secs
Carrots 400 g 5-10 secs
SHREDDING AND SLICIN
G
Ingredients Maximum Quantities
A
ppr.Time
Carrots 400 g 5-10 secs
Radish 400 g 5-10 secs
Potato 400 g 5-10 secs
Squash 800 g 5-10 secs
Cucumbe
r
800 g 5-10 secs
Switch off at the power outlet and unplug.
Immediately after use, wash stainless steel blending attachment.
Use only a damp cloth to clean the exterior.Handle the sharp blade carefully and store away from children.
Do not let the cord hang over the edge of the tables and work surface or touch hot surfaces.
AND BEATER BODY IN ANY LIQUID.
page 6
Cleaning and Maintenance
NOTE : NEVER IMMERSE THE MOTOR BASE , CHOPPING BODY, UPPER COVER
shredding disc
slicing disc.
slicing disc.
slicing disc.
Necessary Tool
shredding disc.
Necessary Tool
chopping blade
chopping blade
chopping blade
chopping blade
chopping blade
chopping blade
chopping blade
chopping blade
