Ernest Sports ES14 User manual

ADVANCED PORTABLE LAUNCH MONITOR
ES14 User Manual

Table of Contents
BASICS OF THE ES14 …………………………………………………..…………………………..3-5
POSITIONING THE ES14..………………………………………….…………………………………6
KICK STAND 7
SELECTING A CLUB…………………………………………………..………………………...……8
PROGRAMMING…………………………………………………..………………………..….… 9-22
ALTITUDE
YARDS/METERS
LOFT
DISPLAY
IDLE TIME
TIMER FOR SCREENS
RESET
APPLE
ANDROID
APP HOME PAGE…………………………………………………..……………………...........……24
RANGE SESSIONS…………………………………………………..………………………....…25-28
SESSION LOGS…………………………………………………….....................................................29
CLUB AVERAGES…………………….………………………………..………………………….…30
TUTORIAL ………………………………………………………..…………......................................31
BLUETOOTH SETTINGS.....................................................................................................................23
CALIBRATION

PRODUCT SPECIFICATIONS.............................................................................................................33
WARRANTY INFORMATIO...............................................................................................................34
CHANGING THE BATTERY...............................................................................................................35
SERVICE, REPAIRS, RETURNS.........................................................................................................32

ES14 Basics
Program
Power
Up
Down
Kickstand
Battery
AC outlet
LCD Display
Front
3

The ES14 operates on a 9V battery located under
the kickstand. To change the battery, simply remove
the battery cover and unsnap the battery connector.
Install a new battery by attaching the connector to
the new battery and placing back in the battery well.
There is an extra battery well located beneath the
functioning battery. A back-up battery may be stored
in this compartment.
Quick Tips
The word “Battery”
appearing in the lower
left hand corner of the
display indicates low
battery voltage, and a
new battery must be
installed.
Failure to change the
battery may cause
inaccurate readings by
the ES14.
4

4
PLEASE NOTE: Use of a power adapter with the
wrong voltage may result in damage to your ES14.
The correct voltage cord may be purchased from
Ernest Sports.
BUY NOW
http://www.ernestsports.com/power-adapter-es14/
Use of a power
adapter DOES NOT
charge the battery.
It is a second way
to power the ES14.
Quick Tips
5
An optional power adapter may be used with the ES14.
The optional power adapter allows the unit to be used
indoors as well as outdoors – wherever an electrical
outlet is available.

Quick Tips
Positioning the ES14
To position the ES14, place the unit 14” across from and 14”
down range of your ball placement. Measure from the center
of the kickstand.
NOTE
FACE THE FRONT
(WITH THE POWER
BUTTON) OF THE ES14
TOWARD THE BALL FLIGHT
AND AWAY FROM THE
GOLFER.
THE DISPLAY SHOULD BE
READABLE, FACING
THE GOLFER.
6
Quick Tips
The ES14 only reads
real golf balls. Foam
balls, floater balls or
limited flight golf balls
will not read correctly .
The ES14 does not
record a swinging
clubhead – a golf shot
must be performed to
receive data.

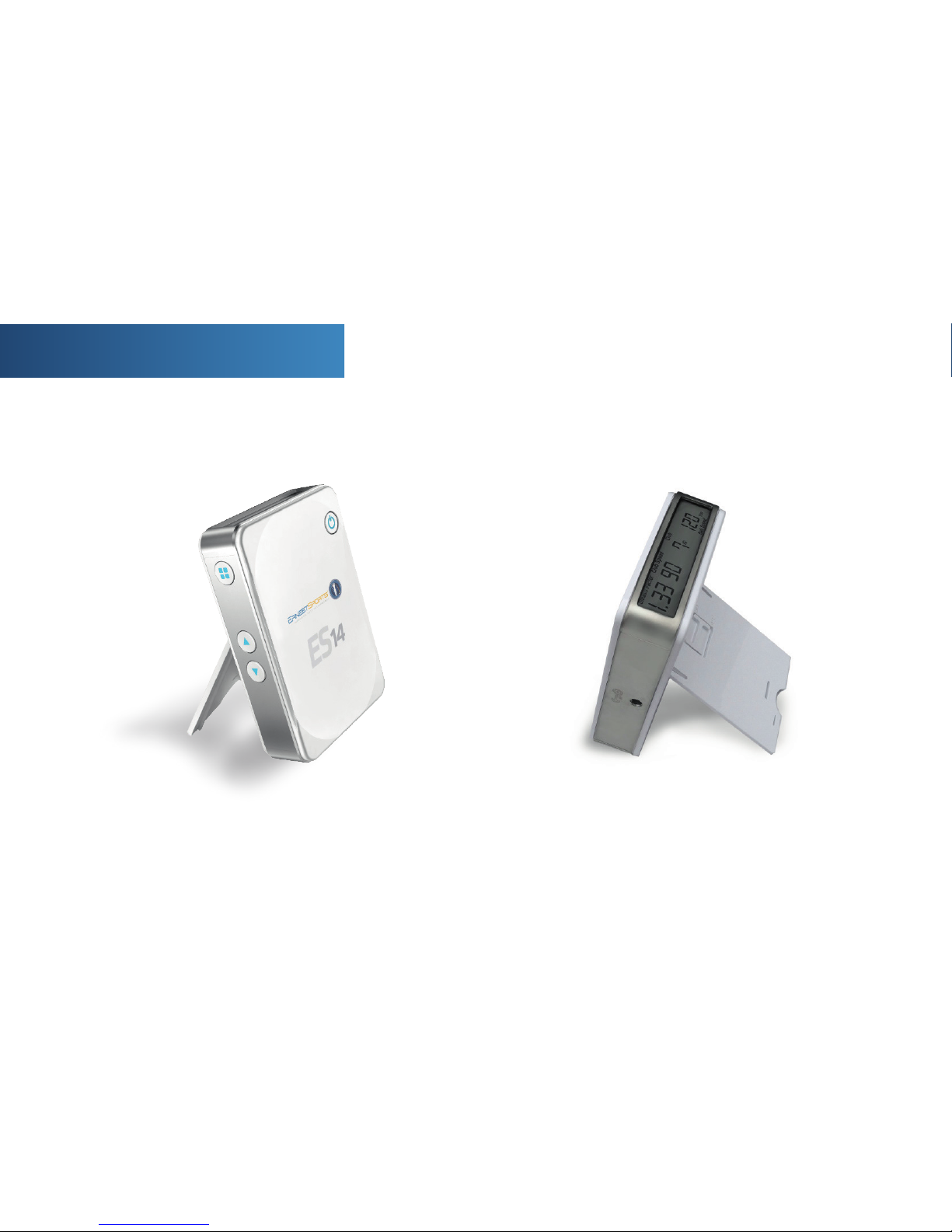

The kickstand has three positions:
1st position:
This is the most upright position, 75 degrees,
is used when hitting DRIVER thru 5 IRON
2nd position:
This middle position, 60 degrees, is used
when hitting 6 IRON thru GAP WEDGE
3rd position:
The lowest position, 45 degrees, is used when
hitting: LOB WEDGE and SAND WEDGE
1st position:
2nd position:
3rd position:
7

Selecting a club
Press the Power button. A club selection will appear on the LCD screen.
THE ES14 IS NOW READY FOR USE.
To select another club, press the Up/Down buttons until the desired club name
appears on the screen.
A listing of the club choices in the order of their rotation is found on the chart below.
D WD Driver
3 WD 3 Wood
5 WD 5 Wood
7 WD 7 Wood
2 HYB 2 Hybrid
3 HYB 3 Hybrid
4 HYB 4 Hybrid
5 HYB 5 Hybrid
2 IR 2 Iron
3 IR 3 Iron
4 IR 4 Iron
5 IR 5 Iron
6 IR 6 Iron
7 IR 7 Iron
8 IR 8 Iron
9 IR 9 Iron
P WDG Pitching Wedge
G WDG Gap Wedge
S WDG Sand Wedge
L WDG Lob Wedge
CODE CLUB CODE CLUB
8

Programming the ES14
General InstructionsforProgram Mode:
TO ENTER PROGRAM MODE:
Press the PROGRAM button once. Then use the UP/
DOWN buttons until the desired category is displayed on
the screen.
TO EXIT PROGRAM MODE:
When no selections are flashing press the UP/DOWN
buttons until a club selection appears on the screen.
Quick Tips
A FLASHING word
or number indicates it can
be changed.
NOTE: When in Program
Mode, the word “Program”
will appear at bottom of
the LCD screen.
9
TO MAKE CHANGES TO SETTINGS:
Once you have found the setting you would like to edit
press the PROGRAM button. When a word or number is
flashing it can be changed using the UP/DOWN buttons.

DEFAULT SETTINGS
The ES14 contains a number of features. Below is a listing of those features as well
as their default settings.
If you should need to change a setting (i.e.yards to meters), instructions are given
concerning each feature. However, most features can be used as is.
See Chart on p.14
Screen 1 – Smash Factor, Club Speed,
Ball Speed
Screen 2 – Spin, Carry Distance
6
IDL – Idle Timer
TMR – Timer for Screens
8 minutes
7 seconds
RST – Reset (Bluetooth)
CAL – Club Speed Calibrations
FEATURE SETTING
ALT - Altitude 1000 FT.
UNT – Unit of Measure
(Yards/Meters)
Yards
BAG - Loft Settings
DSP – LCD Display
Quick Tips
10

6
ALTITUDE (ALT)
NOTE: The default setting for Altitude is 1,000 ft. The range available in the ES14 is sea
level to 9,000 ft.
If you need to adjust this setting:
1. With the ES14 powered on, wait 2-3 seconds to allow unit to complete the power cycle.
2. Press the Program button and ALT will appear on the screen.
3. Press the Program button AGAIN and the current altitude setting will display and begin
to ash. When the numbers begin to ash, use the Up/Down buttons to select the desired
altitude setting.
To save your selection, press the PROGRAM button again.
To go to the next feature, press the DOWN button.
UNT will appear on the screen.
11

UNIT OF MEASURE (UNT)
NOTE: The default setting for UNT is yards. To change this feature:
1. With UNT displayed, press the Program button.
The Unit of Measure will begin to ash.
2. Using the Up/Down buttons, select YDS or MTRS.
To save your selection, press the PROGRAM button again.
To go to the next feature, press the DOWN button.
BAG will appear on the screen.
12

6
Below is a chart of the default setting of each club in the ES14. Check these settings
before making any adjustments.
Club Degree of Loft
Driver
3 Wood
5 Wood
7 Wood
2 Hybrid
3 Hybrid
4 Hybrid
5 Hybrid
10.5
13
16
19
17
19
22
25
Club Degree of Loft
2 Iron 17
19
22
25
28
31
35
39
3 Iron
4 Iron
5 Iron
6 iron
7 Iron
8 Iron
9 Iron
Club Degree of Loft
P Wedge
G Wedge
S Wedge
L Wedge
44
49
54
59
13

If you need to change a loft setting:

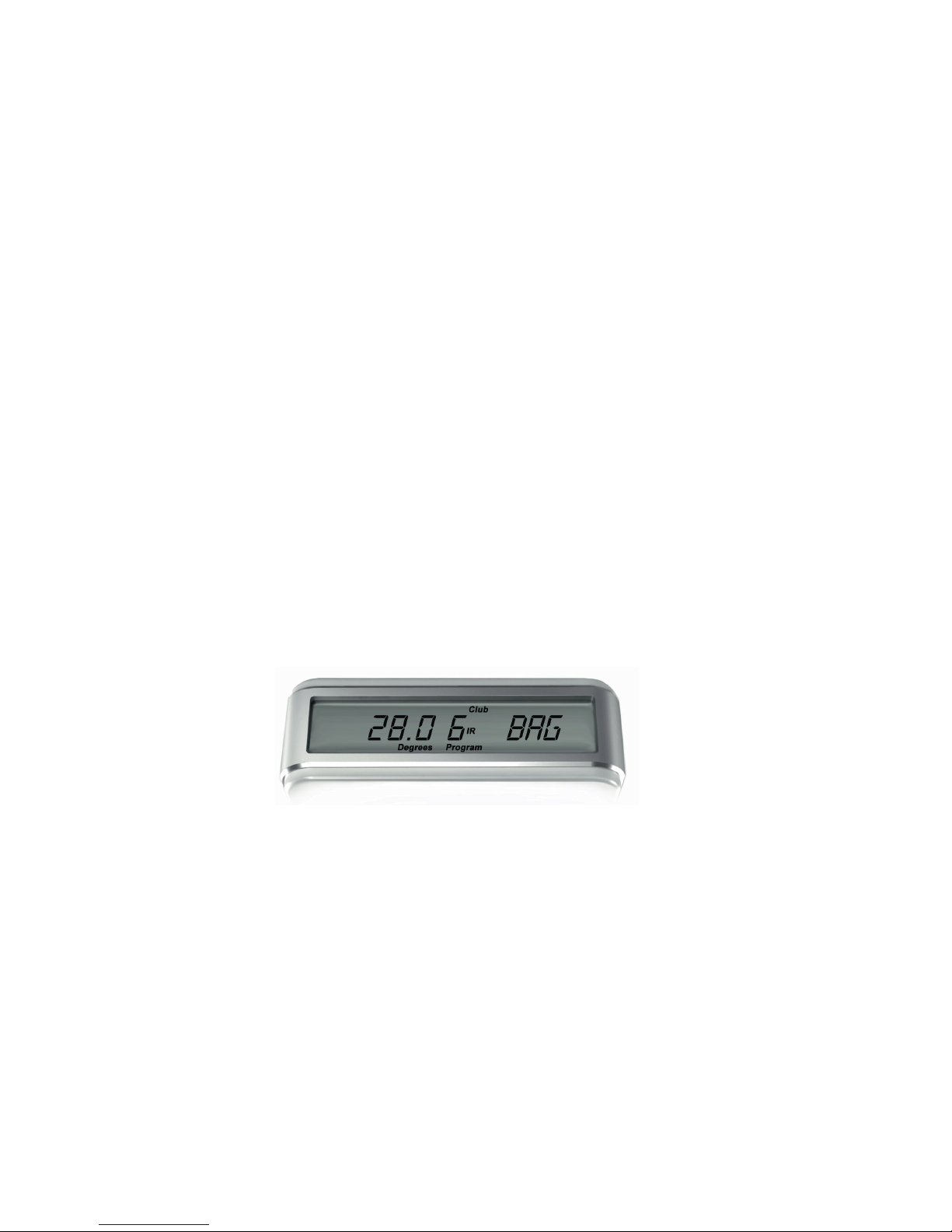

1. BAG, with current club name, will display on screen, as well as
degree of the loft.
2. Press PROGRAM button, club will begin to ash.
3. Press UP/DOWN button to locate club you want to change.
4. Use the UP button to select that club.
5. Press the Program button and the loft setting will begin to ash.
6. Use the Up/Down buttons to select the desired loft degree.
7. Press the Program button to select changed information
To change the setting of another club, press the Down button.
To go to the next feature, press the DOWN button.
DSP will appear on the screen.
14

6
DISPLAY (DSP)
The LCD located on the top of the ES14 has a large, easy-to-read display. There are
six (6) categories of information displayed on two screens, once you’ve hit a shot:
Spin
Club Speed
Ball Speed
Distance - Carry
Distance - Total
Smash Factor
(Launch Angle appears only on the ES14 App)

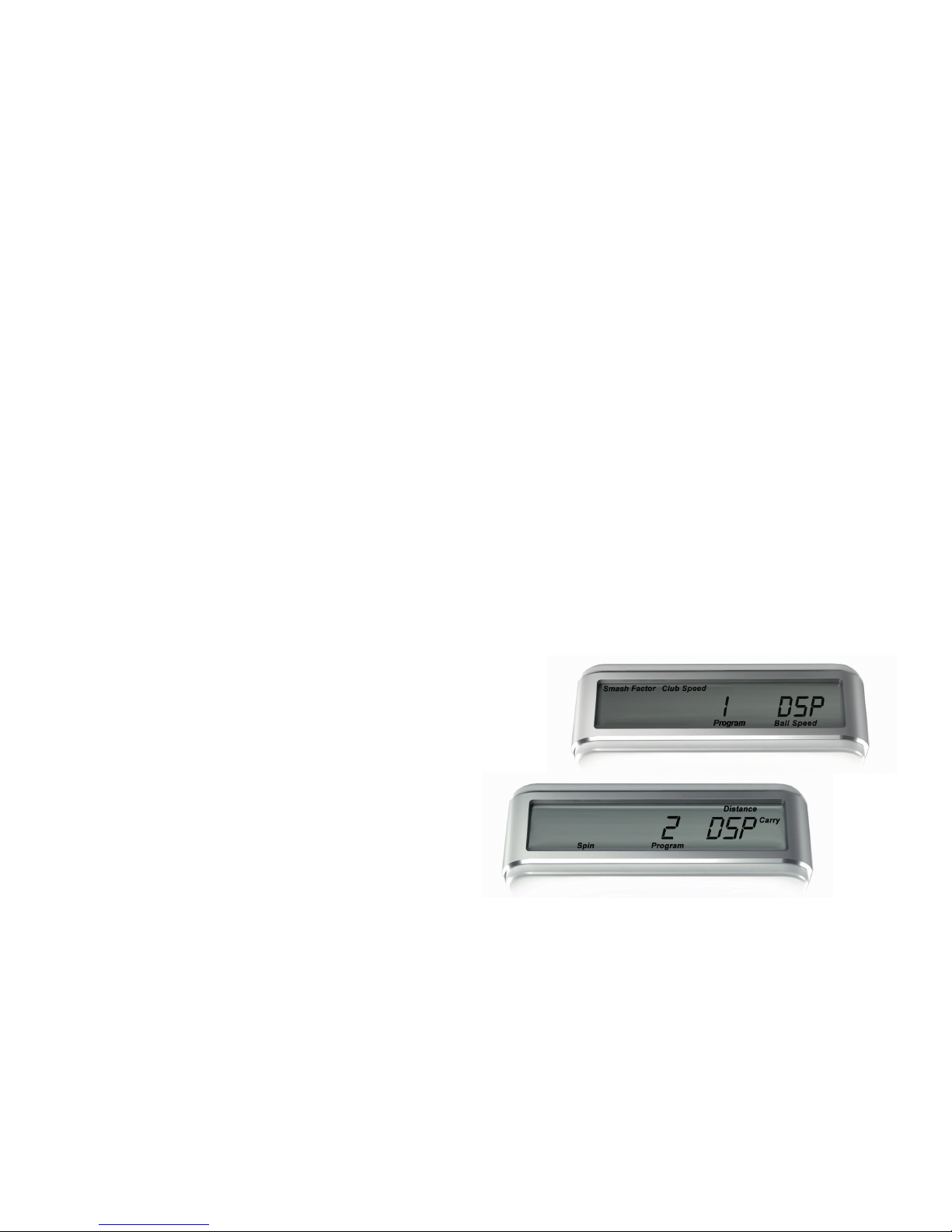

The ES14 default settings:
Screen 1: Smash Factor, Club Speed, Ball Speed.
Screen 2: Spin and Carry Distance.
Club will display on both screens.
15

General Information about the DSP
To select a category, press Down until you see
that category flashing. By pressing Up, you
keep or reject that category for that Screen.
If you accidently reject a category, simply press
Up again. It will reappear on the Screen.
NOTE: The Spin category contains a large
amount of data. Therefore, Smash Factor and
Club Speed CANNOT be displayed on the same
screen as Spin.
Quick Tips
The UP button will be used to
select or reject categories and
the Down button will allow you
to move to the next category.
UP – keeps or rejects a
category
DOWN – moves to the next
category
16
(The word “Program” will appear at the bottom of
each screen while in the Program mode.)

6
To change the settings on the Display Screens:

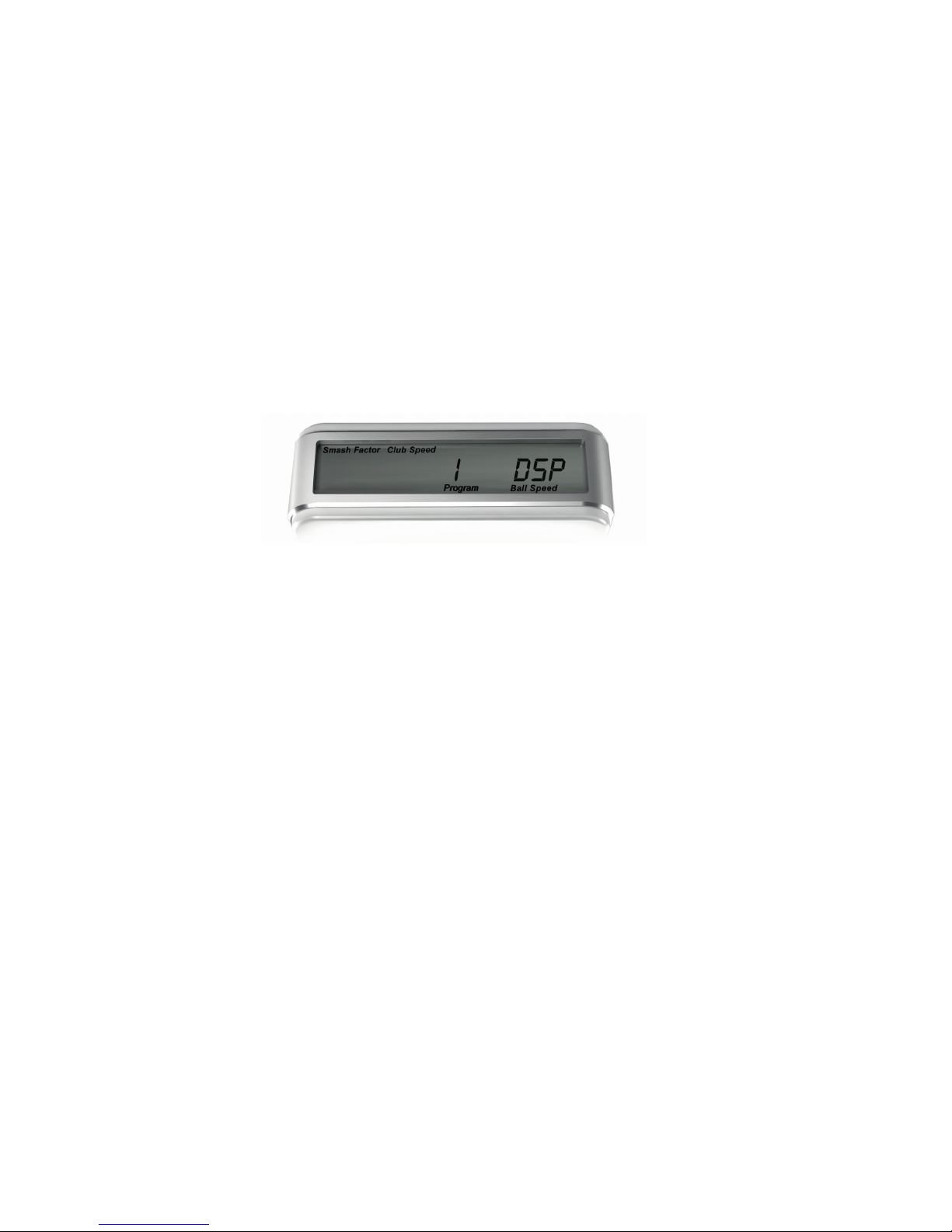

1.With DSP on the screen, press the Program button.
2. Spin will ash in the lower left corner.
3. To keep spin, press the Up button once. Spin will stop ashing.
4. Press the Down button and the next category, Ball Speed, will begin to ash.
5. To keep this category, press the Up button twice (or until it stops flashing and stays on
the screen). The category will stop flashing
Screen 1 will automatically rotate to Screen 2.
6. Spin will be flashing in the lower right hand corner. Since it was selected for Screen 1,
press Up twice – once will stop the flashing, twice will reject it.
17

6
7. Press the Down button. Ball Speed will display and flash.
8. Since it was selected on the first Screen, press the Up button twice – once will stop the
flashing, twice will reject it
9. Press the Down button and Club Speed will appear and start ashing.
10.
11. Press Down and Smash Factor will appear and start ashing.
12.To keep this category, press Up twice – once to stop ashing and once to keep.
To go to the next option, press DOWN again.
IDL will appear on the screen
18
To keep this category, press Up twice - once to stop flashing, twice to keep.

This timer will automatically turn the ES14 off if no activity has occurred for a selected
amount of time. The default setting is 8 minutes. You may change the timer to read
0 Minutes (it stays on and does not automatically turn off) to 60 Minutes (1 Hour) of
no activity.
To change the timer:

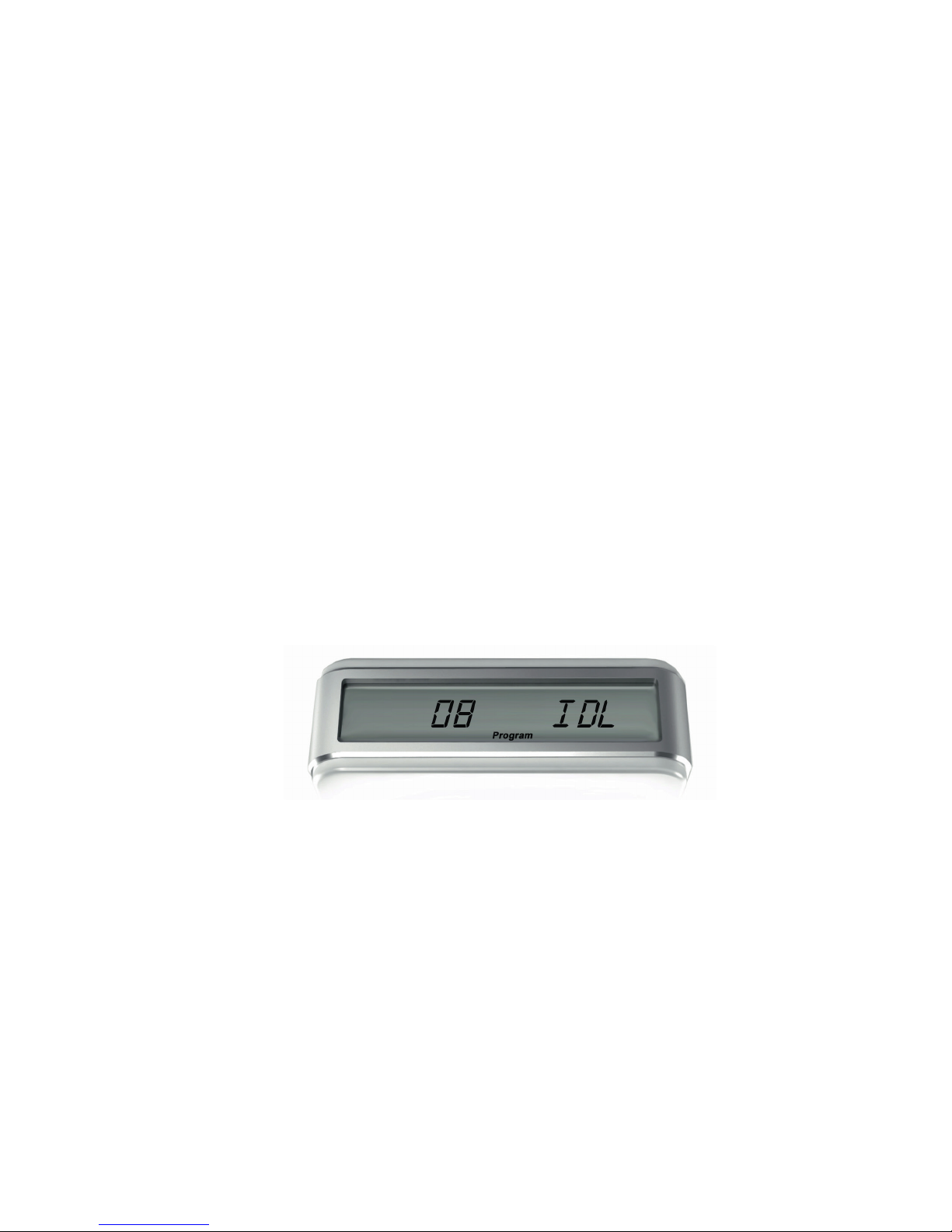

1. Begin with IDL on the screen. Press the Program button.
2. The numbers on the screen will begin to ash.
3. Use the Up/Down buttons to select the number of minutes (from 0 – 60) you desire.
To save your selection, press the Program button.
To go to the next option, press the DOWN button.
TMR will appear on the screen.
19
IDLE TIMER (IDL)
