  9. Estate TEP315V User instructions

Estate TEP315V User instructions

30" Freestanding Electric Range
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
CABINET OPENING DIMENSIONS
TEP315V
TEP340V
TES325V
TES326V
TES355V
TES356V
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Electrical: This range is manufactured with the
neutral terminal connected to the cabinet. Use a
3-wire, UL listed, 40- or 50-amp power supply
cord (pigtail). If local codes do not permit ground
through the neutral, use a 4-wire power supply
cord rated at 250 volts, 40 or 50 amps and
investigated for use with ranges. A circuit breaker
is recommended.
The model/serial rating plate is located behind the
control panel or on the oven frame behind the
storage drawer panel.
Ref. W10196158
07-30-08
*Range can be raised approximately 1" (2.5 cm) by adjusting the
leveling legs.

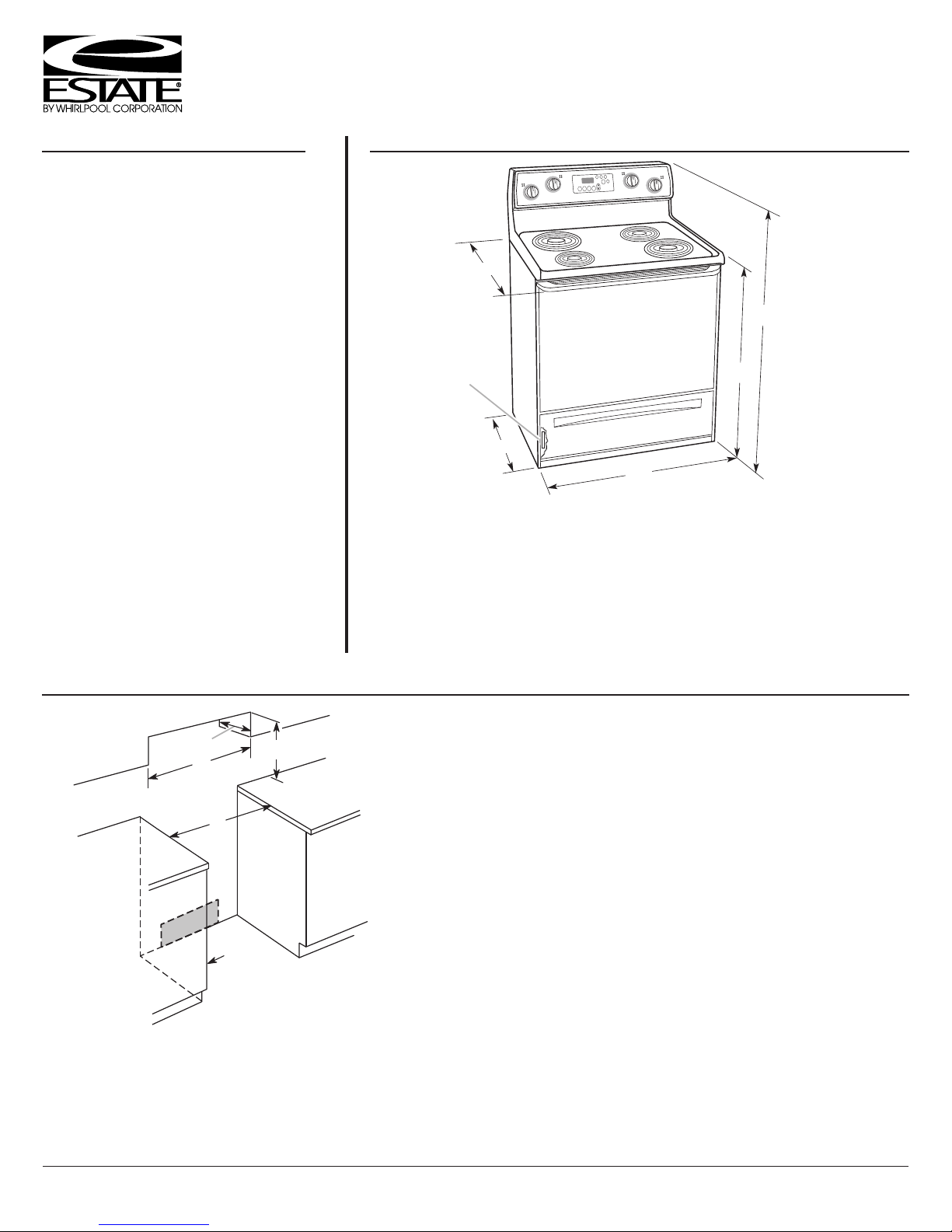

A. 27¹⁷⁄₃₂" (69.9 cm) max. depth with handle
B. 46
⁷⁄₈
" (119.1 cm) overall height (max.) with leveling legs
screwed all the way in*
C. 36" (91.4 cm) cooktop height (max.) with leveling legs
screwed all the way in*
D. 29⁷⁄₈" (75.9 cm) width
E. 25" (63.5 cm) depth
F. Model/serial rating plate (located on the left side frame
behind storage drawer panel)
A
B
C
D
E
F
A. 13" (33.0 cm) max. upper cabinet depth
B. 30" (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*.
D. 30¹⁄₈" (76.5 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
5¹⁄₂" (14.0 cm) max. from floor
F. ⁷⁄₈" (2.2 cm) min. required between cutout and cabinet door or
hinge.
A
B
D
F
E
C
Cabinet opening dimensions shown are for 25" (64.0 cm)
countertop depth, 24" (61.0 cm) base cabinet depth and
36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood or microwave hood
combination above the range, follow the range hood or
microwave hood combination installation instructions for
dimensional clearances above the cooktop surface.
A freestanding range may be installed next to combustible walls
with zero clearance.
*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal
cabinet is covered by not less than ¹⁄₄" (0.64 cm) flame retardant
millboard covered with not less than No. 28 MSG sheet steel,
0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the
cooking platform and the bottom of an uncovered wood or metal
cabinet.
®
