Esteira Athletic EXTREME 3260T User manual

Instruction Manual / Manual de Instrucciones
Treadmill
Caminadora
Esteira Ergonométrica

It is with great pleasure that we offer you the opportunity, guidance and encouragement to practice aerobic
and muscular exercises, getting like this, the physical preparation needed to feel good.
We guarantee a reliable and modern product, produced with high technology for people who care about their
well-being.
This manual covers the main information, the basic structure and the main operation and preventive
maintenance. It will help you familiarize yourself with all the equipment functions, for you enjoy it for a long time.
Es con gran placer que le ofrecemos, orientación, estímulo y oportunidad de practicar ejercicio aeróbico y
muscular, ganando la preparación física necesaria para sentirse bien.
Nosotros garantizamos un producto conable y moderno, producido con alta tecnología por personas que se
preocupan por su bienestar.
Este manual cubre los datos clave, la estructura básica y principales procedimientos de operación y
mantenimiento preventivo. Te ayudará a familiarizarse con todas las funciones del equipo para asegurar que usted
disfrute de su producto por mucho tiempo.
ATTENTION / ATENCIÓN
Carefully read the safety and usage guidelines contained herein. Follow the guidelines for correct assembly of the product.
Caution: Do not push any objects into the openings of the product. Stay clear of moving parts.
Safety and security: it is the owner's responsibility to ensure that all users are properly informed about safety precautions, use, maintenance
and care of the product.
Lea cuidadosamente las instrucciones de seguridad y uso contenidas en el presente documento. Siga las instrucciones para el correcto montaje
del producto.
Precaución: No introduzca ningún objeto en las aberturas del producto. Manténgase alejado de las piezas móviles.
Protección y seguridad: es responsabilidad del propietario asegurarse de que todos los usuarios estén bien informados sobre las precauciones
de seguridad, uso, mantenimiento y cuidado del producto.
Leia atentamente as instruções de segurança e uso contidas neste documento. Siga as instruções para a correta montagem do produto.
Cuidado: Não insira nenhum objeto nas aberturas do produto. Fique longe de peças móveis.
Proteção e Segurança: É responsabilidade do proprietário garantir que todos os usuários estejam bem informados sobre as precauções de
segurança, uso, manutenção e cuidados com o produto.
Uso impróprio para crianças e animais.
Inappropriate use for children and animals.
El uso inapropiado para los niños y los animales.
É com grande prazer que oferecemos a você orientações, incentivos e a oportunidade de praticar exercícios
aeróbicos e musculares, obtendo o preparo físico necessário para se sentir bem.
Garantimos um produto conável e moderno, produzido com alta tecnologia por pessoas que se preocupam
com o seu bem-estar.
Este manual cobre os principais dados, estrutura básica e principais procedimentos de manutenção preventiva
e operação. Isso o ajudará a se familiarizar com todas as funções do equipamento para garantir que você aproveite
seu produto por um longo tempo.

CONTENTS
SUMARIO
SUMÁRIO
english
español

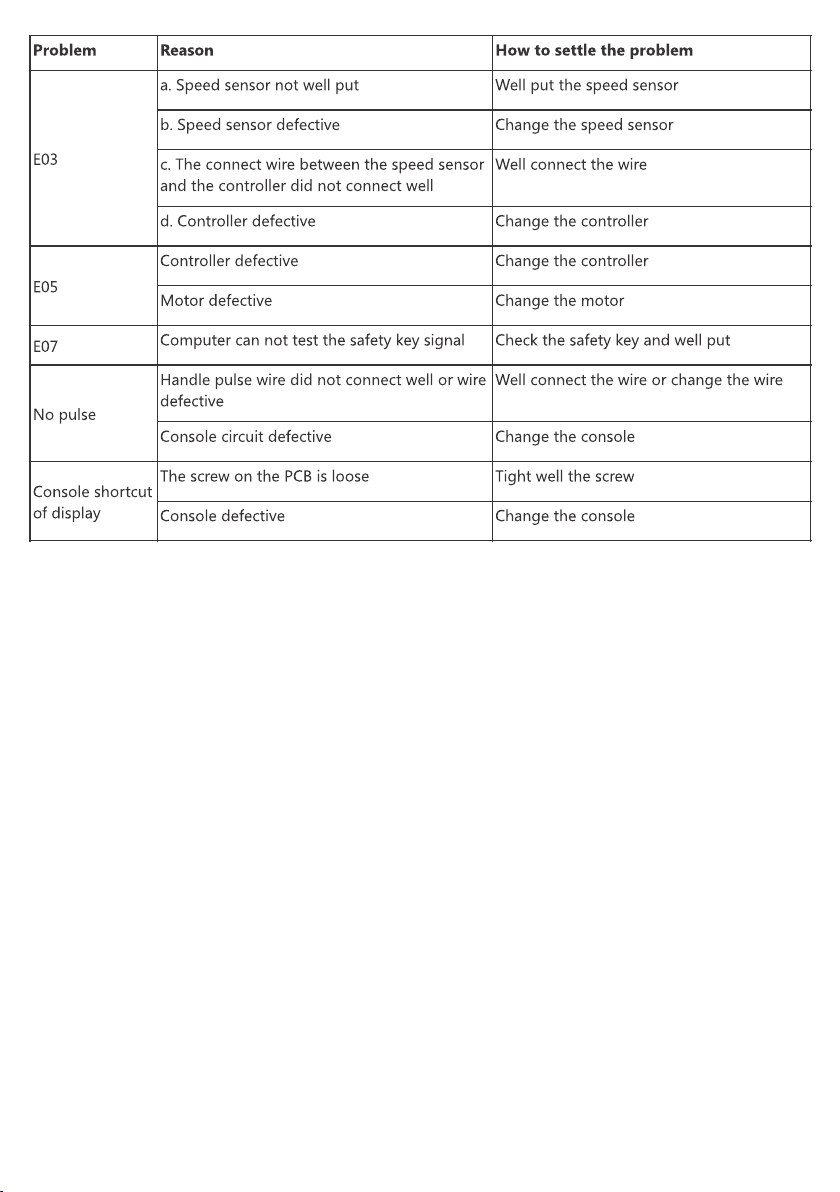

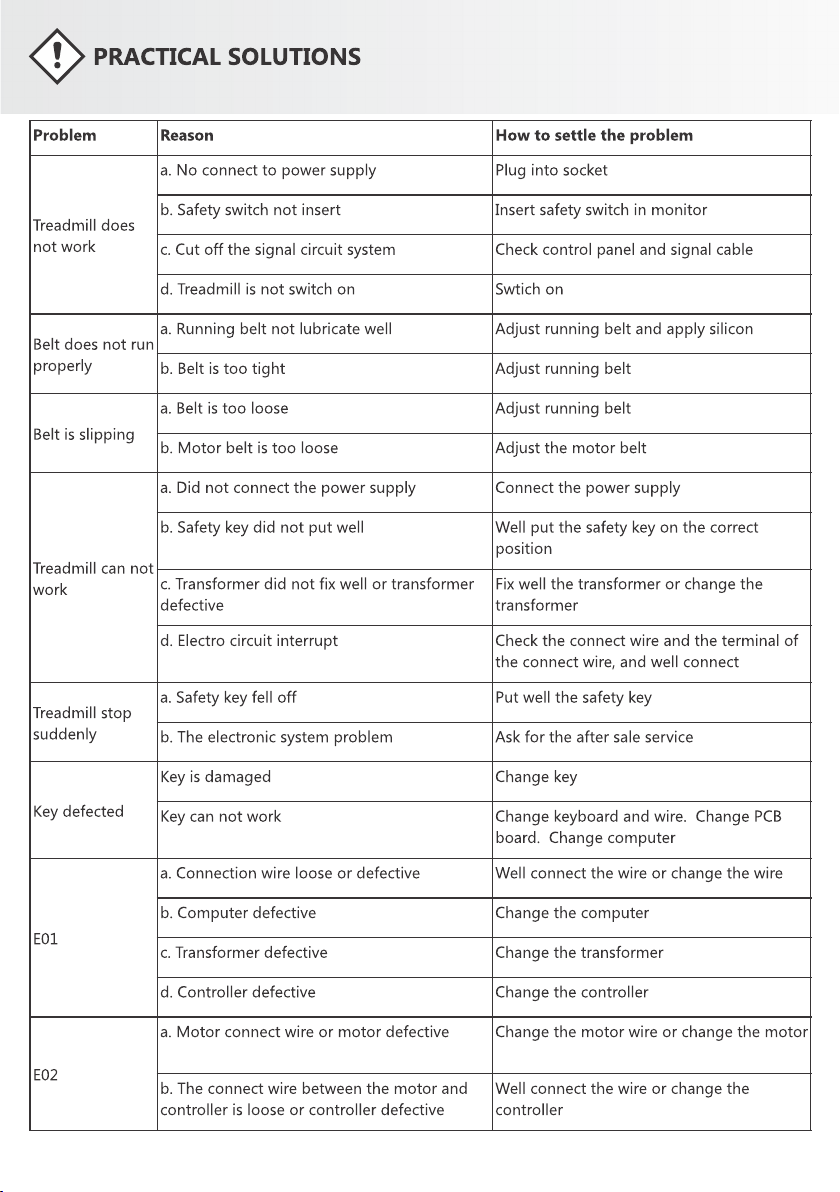

PRACTICAL SOLUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PREVENTIVE MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
COMPONENTS AND TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INTERLEAVED PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
GARANTÍA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
COMPONENTES Y ESPECIFICACIONES TÉCNICAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MONTAJE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SOLUCIONES PRÁTICAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
MANTENIMIENTO PREVENTIVO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
PROGRAMAS INTERVALADOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
INFORMACIÓN DE SEGURIDAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
português
GARANTIA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
MANUTENÇÃO PREVENTIVA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
PROGRAMAS INTERVALADOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
COMPONENTES E ESPECIFICAÇÕES TÉCNICAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SOLUÇÕES PRÁTICAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
INFORMAÇÕES DE SEGURANÇA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MONTAGEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

If the equipment is not in perfect condition, call a
technical assistant.
- Unplug the unit when not in use and every time you
perform maintenance, thus avoiding unnecessarily
overheating the transformer and motor, which could
damage and ruin your equipment.
- To prevent the motor from overheating, do not
operate the appliance for more than one hour in
domestic machines.
- Very old sockets, loose or rusted contacts, must be
replaced.
- The treadmill can trigger the protection system
(reducing the speed of the treadmill or even stopping
it) when the user's weight is greater than that specified
for the product.
Please read this manual before using the product and
retain it for future reference to avoid the risk of heating,
fire, electric shock, or injury.
It is the owner's responsibility to ensure that all users of
the equipment are adequately informed of the safety
precautions.
- Place the treadmill on a flat surface at least 30cm away
from any wall, keeping the lower part free from any
obstacles.
IMPORTANT: Unfailingly, all electrical appliances
must be grounded.
- Improper connection of the equipment grounding
conductor can result in the risk of electrocution. If in
doubt about how the machine should be grounded,
consult a licensed electrician.
- Make sure that the electrical installation (wiring, plug
and switch) that will connect the treadmill is rated for at
least 10A.
- When plugging the treadmill into the outlet, wait
about 10 seconds before using the monitor.
- If the power cord is damaged, it must be replaced by a
qualified electrician or technical personnel.
- Do not use stabilizers or extensions, or make
modifications to the power cord, and never operate the
treadmill together with other equipment on the same
outlet.
- Lack of maintenance, preventive and periodic
cleaning, can cause an increase in energy consumption.
- Never allow more than one person to use the treadmill
at the same time.
- Consult your doctor before starting and during any
exercise program. Special attention should be given to
children, pregnant women, the elderly, people with
heart problems and people with disabilities.
- The values indicated on the monitor are reference
points, they cannot be considered with sufficient
precision for clinical evaluation.
- Keep away from equipment, children and pets,
especially during use and do not insert objects into the
holes in the equipment.
- Do not stand on the treadmill when starting the
treadmill, avoiding forcing the motor. Always stand on
the sides. Get on only when the treadmill is moving very
slowly.
- Use suitable sportswear. Do not wear loose clothing
that can get caught in the equipment. To exercise,
always wear shoes, do not walk barefoot or with
sandals.
- This device is not intended to be used by people
whose physical or mental capacities are reduced or
inexperienced, unless they are supervised by a
responsible person.
B. Reseller or Authorized Technical Assistance is
authorized to change these Terms or make
commitments on behalf of the Manufacturer /
Distributor.
NOTE: Figures and photos in this manual are for
illustrative purposes only. The Manufacturer /
Distributor reserves the right to make changes to the
product without prior notice. This manual may illustrate
options that are not part of the purchased equipment.
C. Customer is responsible for unfounded technical call
costs.
A. Manufacturer / Distributor is not responsible for
accidents and their consequences arising from the
violation of the original characteristics or assembly
outside the factory settings of their products.
- Children must be supervised to ensure that they do
not play with the appliance.
General Considerations
Observations
SAFETY INFORMATION
4

COMPONENTS AND
TECHNICAL SPECIFICATIONS
Effective power
Type
Motor
2HP
Direct current
Characteristics
Minimum speed
Length
Height
Maximum speed
Inclination
Width 830mm
18.0 km/h
0 - 15%
1339 mm
1.0 km/h
1824 mm
Plugged in (stopped)
5 Km/h (full loaded)
Max. speed. (full loaded)
Electric treadmill consumption cleaned and lubricated
590 W
300W
110V
4W 4W
560W
220V
270W
Supply network
Voltage
Frequency
Minimum voltage
Maximum voltage
Circuit breaker
Wire
140V
110V
99V
2,5 mm²
50/60Hz
10A
220V
242V
198V
50/60Hz
2,5mm²
10A
Width (box)
Height (box)
Length (box)
Packaged
330 mm
1995 mm
890 mm
5
Walking surface
Lenght
Width 480 mm
480x1400mm
2900 mm
Belt

ASSEMBLY
NOTE: Place the packaging with the equipment on a level surface. It is recommended that you place a
protective cover for your floor. Exercise caution when you are loading and transporting equipment.
Unpack and assemble the equipment where it will be used.
If necessary, ask the help of someone else.
6
STEP 1
STEP 2

EASY STORAGE SYSTEM
7
Press
gently
here
STEP 3

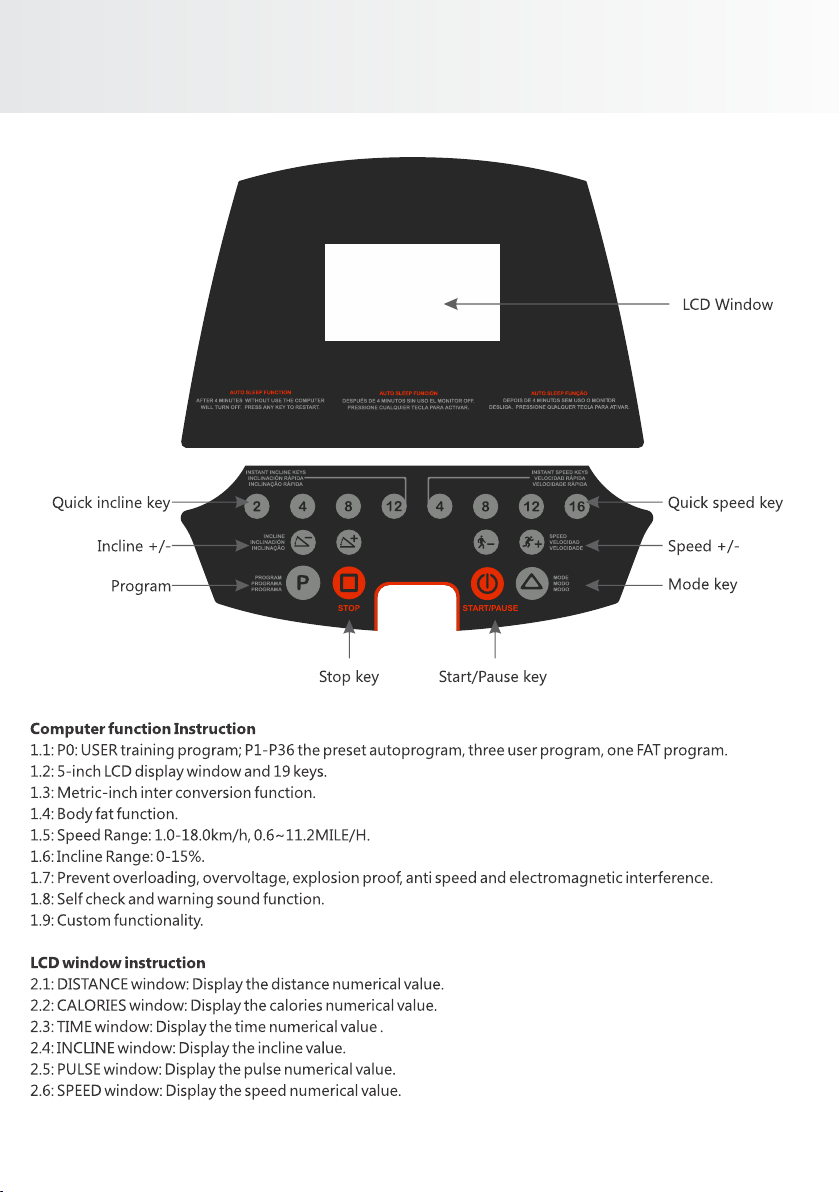

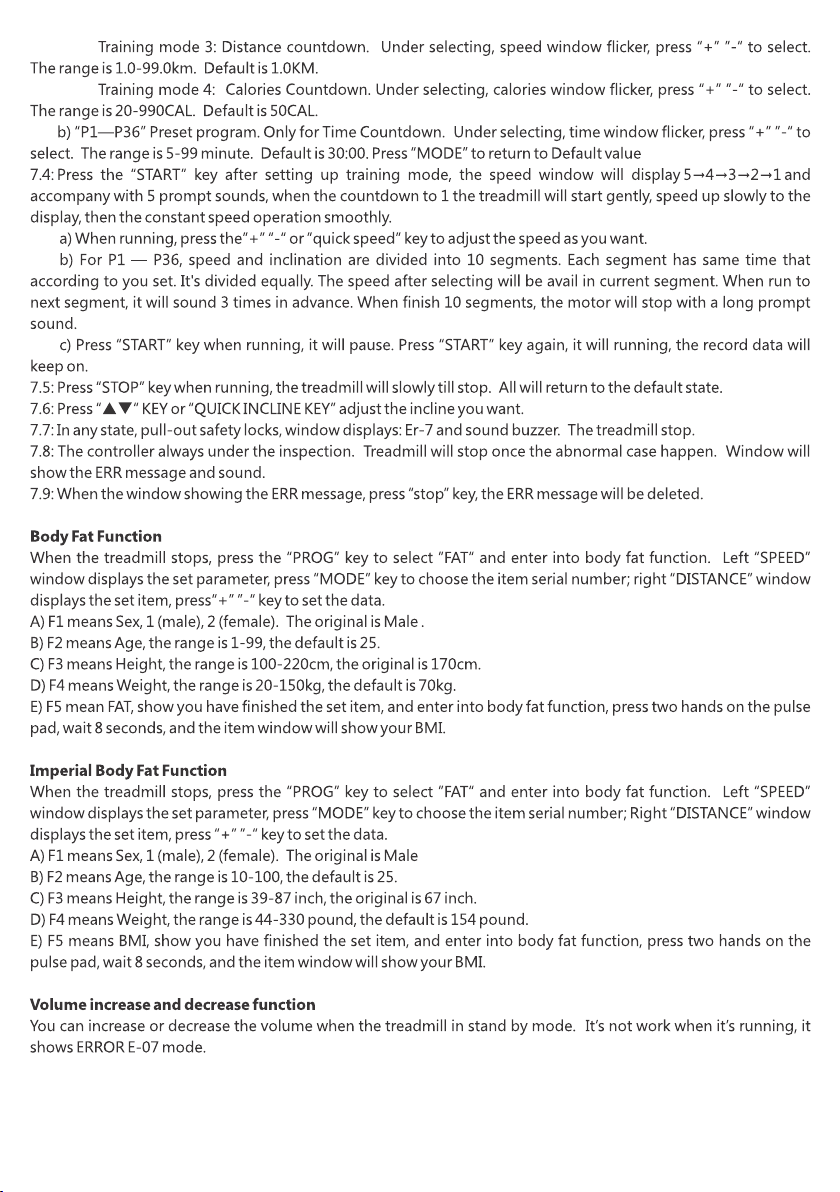

MONITOR
8

9

10

11
Enjoy all the benets offered
Your monitor is equipped with many features that will help you in the course of your workout.
Attention: Before connecting the equipment make sure the mains voltage (if it has) is in line with the
product, then plug the power cord into an electrical outlet. For safety do not use adapters or plug
another product with the equipment.
You can view the home screen some features offered as: functions, training modes, body mass index, fat potential,
interval programs and / or user, within which speed variations and inclination, among others, can be adjusted
(available resources according to each equipment). See then that the features offered on this product.
Place the power cord into the equipment and the other end into the
socket, observing that the voltage is the same as that of the equipment.
Set the switch to "I". While the machine is not in use, keep the switch in
position "0".
This is a very important safety item. The equipment will only be activated if the safety key is in the
place of accommodation in monitor.
If you want to stop your workout use the corresponding stop button, so the equipment will stop
smoothly. Do not use the security key for this purpose.
Once the equipment is not in use, keep the security key in your accommodation to avoid losing it.
When you start exercising, enter the security key on the monitor and attach the clip on your clothes.
If something goes wrong during the exercise, the key will leave the accommodation and the
treadmill will stop immediately.
Safety Key

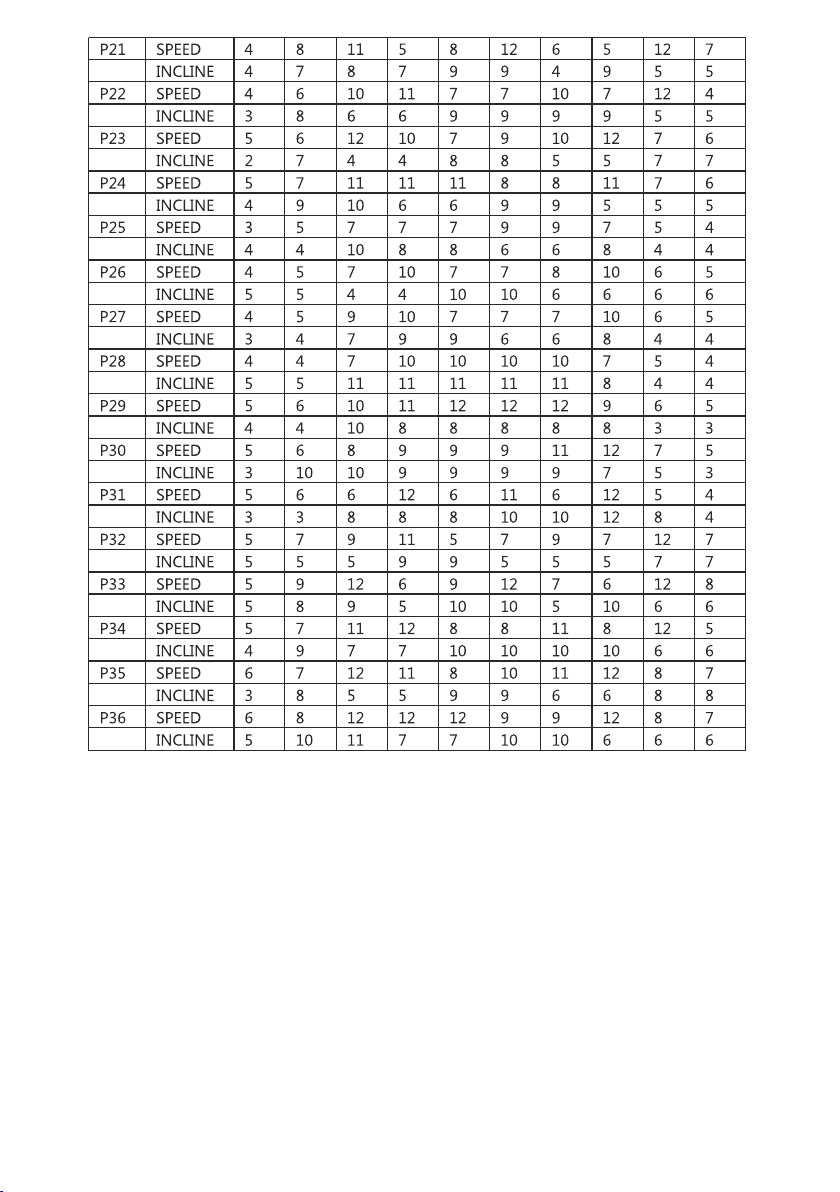

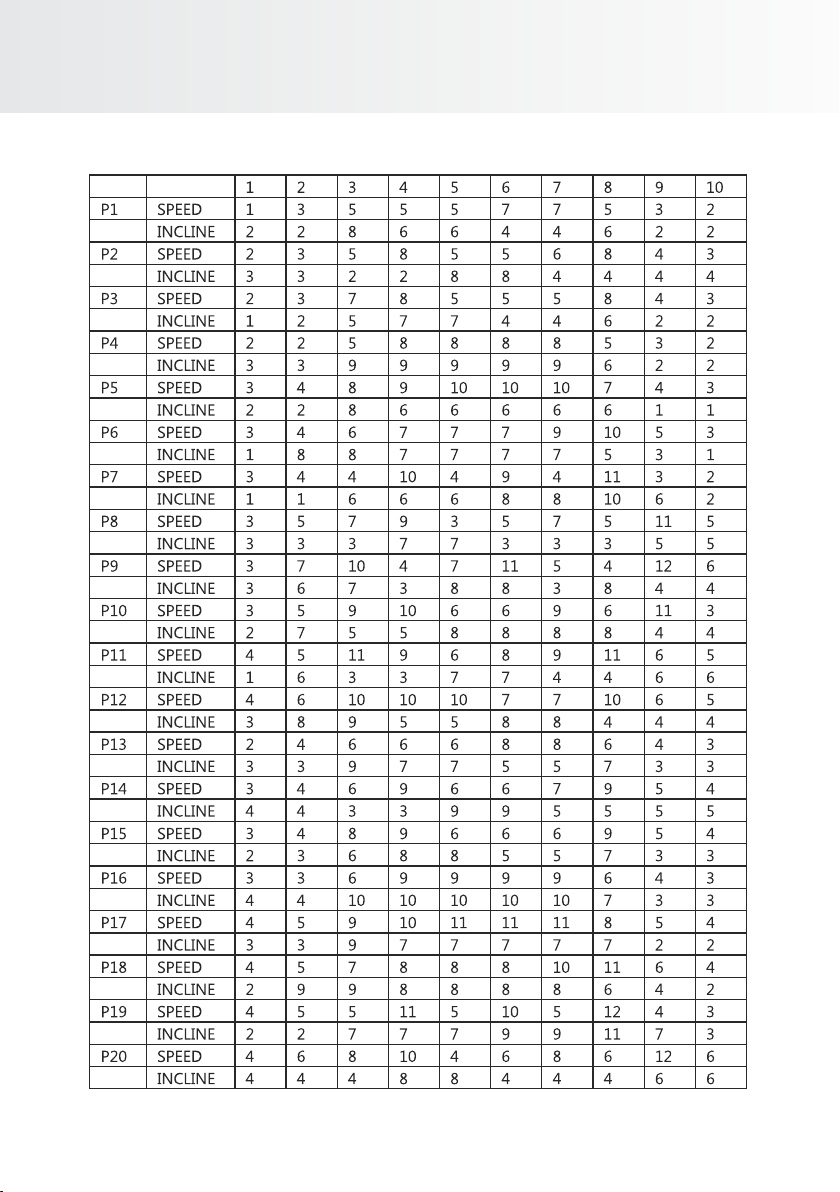

INTERLEAVED PROGRAMS
Speed Programs
12

13

14

15

IF NOT LUBRICATED, LUBRICATE BEFORE USE
- If you prefer, this cleaning can be done by a Technical Assistant (see values).
- Periodically check the lubrication of the belt and platform, if it´s dry do not use the treadmill, lubricate it
immediately. See below how to check lubrication:
- Always use original spare parts. Improper maintenance can cause damage to the product and loss of warranty.
- Lubricate the platform every 3 months or 40h, use specific silicone for treadmills.
- If the surface is slick to the touch, the no further lubrification is required;
- Observe the time of use carefully, the equipment overheating can cause damage to the motor.
IMPORTANT: BEFORE FIRST USE, MAKE SURE THE TREADMILL IS LUBRICATED,
- Never use abrasive or solvents for cleaning.
- The equipment is designed for use by 1 hour continuously, after this should be turned off for at least 30 minutes for
cooling.
- Do not leave the equipment exposed to natural agents such as sunlight, rain, dew, dust, salt spray etc.
USAGE TIME:
- Do not put the treadmill in dusty environments, wet, saunas or anywhere unventilated.
Before you use your equipment make sure it is in good condition. Check the general condition of the equipment, as
described in "Safety Information". If the equipment is not in perfect condition, contact an Authorized Technical
Assistant.
CLEANING:
LUBRICATION:
- If there is formation of sludge between belt and platform, call the Authorized Technical Assistant for proper
cleaning.
How to check running belt for proper lubrification
- Lift one side of the running belt and feel the top surface of the running deck;
- If the surface is dry to the touch, apply propper treadmill lubricant.
How to apply lubricant
1- Lift one side of running belt;
2- Pour some lubricant under the CENTRE of the running belt on the top surface of the running deck.
WARNING: This equipment is designed for residential use. We assume no responsibility when it is used by gyms,
clubs, clinics or condos.
NOTE: DO NOT overly lubricate the platform. Any excess lubricant must be wiped off.
3- Run on the treadmill at a 3km/h for 3 to 5 minutes to evenly distribute lubricant.
PREVENTIVE MAINTENANCE
16
SILICONE

17
Because of variations caused by the physical characteristics of each person (weight, height, way of running and
walking, floor elevation), the canvas can move sideways.
Belt too far to the left
Obs .: To test, walk on the treadmill for a few minutes. Repeat if necessary, until the belt is
centered.
Turn the set screw of left roll to the clockwise direction and the set screw of right roll in anti-
clockwise direction, just 1/4 turn. (Perform this operation with Allen key support).
Belt too far to the right
Turn the set screw of right roll to the clockwise direction and the set screw of left roll in anti-
clockwise direction, just 1/4 turn. (Perform this operation with Allen key support).
Obs .: To test, walk on the treadmill for a few minutes. Repeat if necessary, until the belt is
centered.
Loose belt
Turn the set screw of left roll and right to the clockwise direction 1/4 turn, increasing the
tension of the belt.
Belt alignment
Belt very stretched
Turn the left roller set screws and right in the counter-clockwise 1/4 turn, thus decreasing the
tension of the belt.

Terms of Guarantee
A. The warranty procedures will be carried out only upon
presentation of the note / original coupon tax of Sale and limitations
laid down by these Terms. The guarantee shall be provided by the
Authorized Technical Assistance Network.
C. Warranty and coverage terms start to count from the date of issue
of the sales invoice / coupon, including the legal term of 90 (ninety)
days.
D. Parts repaired or replaced under this warranty does not stop nor
extend the warranty period originally stipulated.
E. To be used by this warranty, the equipment must have been
installed by authorized technical assistant, except for residential
products.
G. No dealer is authorized to receive client product to refer you local
dealer or this take it to return to it and to provide information on
behalf of the Manufacturer / Supplier of the progress of the service.
The manufacturer / supplier or consumer support are not
responsible for any damage or delay due to this non-compliance.
H. The Manufacturer / Supplier keep available spare parts until they
cease the manufacture or import the equipment. If it ceased the
production or import of equipment Manufacturer / Supplier keep
the spare supply its line of equipment for a reasonable period of
time, according to the law.
I. Within the period of thirty (30) days if the equipment presents
F. Warranty does not cover the installation and preventive
maintenance services such as cleaning, lubrication and adjustment
of the product.
B. The conditions set out in this Agreement are guaranteed to the
first user purchaser of this product for a period of 6 (six) months
(including the legal guarantee period - first 90 (ninety) days,
counted from the date of issuance of the note / tax Coupon sale, in
the event of exclusively residential use.
WARRANTY
6 months
6 months
6 months
6 months
6 months
6 months
90 days
6 months
6 months
6 months
6 months
6 months
TIME
PARTS AND
COMPONENTS
Structure
Painting (oxidation)
Motor
Auxiliary plate
Monitor
Tilt motor
Belt
Platform
Motor Cover
Plastic parts and rubber
Power Cable
Manpower
some malfunction, the customer may choose to take the product to
an authorized posts or requesting service in your home without
travel expenses in those counties covered by the Network
Authorized Service. After the period of thirty (30) days or in
municipalities not covered by the Technical Assistance Network
Authorized expenses resulting from any transport of the equipment
to a freight service, removal or technical visit by tecnical assistent,
occur by the customer, whether or not this equipment covered by
this warranty.
C. Damage suffered by the equipment due to improper use, use of
inappropriate cleaning products, oxidation from external agents,
wear, neglect, modification, use of accessories not recommended,
inadequate design for the intended application, falls, perforations,
use and opposite installation to the operating instructions,
inadequate wiring in the electrical network, lack of grounding in
badly sized grids and / or excessive fluctuations and overloads.
A. cables, carabiners, pedals when existing in the product should be
replaced once a year.
B. The Manufacturer / Supplier is not responsible for any accidents
and their consequences, arising from breach of the original features
or assembly out of their equipment factory default.
K. Components that wear out with regular use of equipment such as
motor brushes, belts, pads, brake bands, felt, steel chains and cables,
when this equipment will have warranty for a period of 90 days from
the invoice or manufacturing defect found by the Authorized
Technical Assistance Network.
J. Lubricants, silicones for treadmills, vaseline to the guide weights
and micro oil to the joints of weight stations, should be exclusively
recommended by the manufacturer, available at Authorized
Technical Assistance Network.
D. For residential line is prohibited any type of user equipment
maintenance or a third party other than the technical assistance
network.
E. The product is used in gyms, condominiums, clinics, clubs, sauna,
submerged in water or use so that it resembles other than for
residential purpose or the application of the purpose intended.
C. Customer's responsibility are those resulting from unfounded
judged answering calls.
Note: Manufacturer / Supplier reserves the right to make changes
without notice this.
This warranty will be considered void when:
Extinction Assurance
B.Equipment repaired by a person not authorized by the
Manufacturer / Supplier, if signs of violation of its original
characteristics or non-factory assembly are found.
Comments:
A. Expiry of the warranty term.
18

INFORMACIÓN DE SEGURIDAD
Consideraciones Generales
Observaciones
19
Si el equipo no está en perfectas condiciones, llamar a
un asistente técnico.
Lea este manual antes de usar el producto y consérvelo
para consultarlo en el futuro para evitar el riesgo de
calentamiento, incendio, descarga eléctrica o lesiones.
- Coloque la caminadora en una superficie plana al
menos 30cm de distancia de cualquier pared,
manteniendo la parte inferior, libre de cualquier
obstáculo.
- Si se daña el cable de alimentación, este deberá ser
sustituido por personal técnico o electricista
matriculado.
- La caminadora puede desencadenar el sistema de
Es responsabilidad del propietario asegurarse de que
todos los usuarios del equipo estén adecuadamente
informados sobre las precauciones de seguridad.
- No utilice estabilizadores o extensiones, o hacer
modificaciones en el cable de alimentación, y nunca
haga funcionar la caminadora junto con otros equipos
en la misma toma.
- Asegúrese de que la instalación eléctrica (cableado,
enchufe y el interruptor) que conectará la caminadora
está dimensionado para al menos 10A.
IMPORTANTE: Indefectiblemente todo aparato
eléctrico debe tener descarga a tierra.
- Para prevenir el sobrecalentamiento del motor no
haga funcionar el aparato por más de una hora en
máquinas de uso doméstico.
- Desenchufe la unidad cuando no esté en uso y cada
vez que realice el mantenimiento, evitando así
sobrecalentar innecesariamente el transformador y al
motor, pudiendo dañar y arruinar su equipo.
- La conexión indebida del conductor de tierra del
equipo puede resultar en el riesgo de una
electrocución. Si tiene dudas de cómo se debe poner la
máquina con descarga a tierra, consulte con un
electricista matriculado.
- La falta de mantenimiento, limpieza preventiva y
periódica, puede causar un aumento en el consumo de
energía.
- Tomas muy viejas, contactos sueltos o oxidados,
deben ser reemplazados.
- Al conectar la caminadora en la toma, espere unos 10
segundos antes de utilizar el monitor.
protección (reducción de la velocidad de la caminadora
o incluso pararlo) cuando el peso del usuario es mayor
que el especificado para el producto.
- Utilizar ropa deportiva adecuada. No use ropa suelta
que pueda quedar atrapado en el equipo. Para
ejercitarse, siempre use zapato, no camine descalzo o
con sandalias.
- Los niños deben ser supervisados para asegurar que
no juegan con el aparato.
- No se pare sobre la cinta cuando encienda la
caminadora, evitando forzar el motor. Párese siempre
en las laterales. Súbase recién cuando la cinta esté en
movimiento muy lento.
- Consulte a su médico antes de iniciar y durante
cualquier programa de ejercicios. Debe ser dada
especial atención a los niños, mujeres embarazadas,
ancianos, personas con problemas de corazón y las
personas con discapacidad.
- Nunca permita que más de una persona use la
caminadora al mismo tiempo.
- Los valores indicados en el monitor son puntos de
referencia, no puede ser considerado con suficiente
precisión para la evaluación clínica.
- Mantener alejado de los equipos, los niños y los
animales domésticos, sobre todo durante el uso y no
introduzca objetos en los orificios del equipo.
- Este aparato no está destinado para ser usado por
personas cuyas capacidades físicas o mentales estén
reducidas o sin experiencia, salvo se tienen supervisión
por persona responsable.
A. El Fabricante/Distribuidor no es responsable de los
accidentes y sus consecuencias derivadas de la
violación de las características originales o montaje
fuera de los ajustes de fábricas de sus productos.
B. Ningún Revendedor o Asistencia Técnica Autorizada
está autorizado a cambiar estos Términos o asumir
compromisos en nombre del Fabricante/Distribuidor.
C. El cliente es responsable pelos costos de llamada
técnicas infundadas.
NOTA: figuras y fotos en este manual son meramente
ilustrativas. El Fabricante/Distribuidor se reserva el
derecho de realizar cambios en el producto sin previo
aviso. Este manual puede ilustrar opcionales que no
forman parte del equipo adquirido.

ESPECIFICACIONES TÉCNICAS
20
Potencia efectiva
Tipo
Motor
Direct current
2HP
Especificaciones
Velocidad máxima
Inclinación manual
Velocidad mínima
Ancho
Largo
Altura con inclinación
Conectada (parada)
5 Km/h (con carga plena)
Velocidad máx. (con carga plena)
Consumo eléctrico de la trotadora limpiada y lubricada
4W
110V
300W
590 W
4W
560W
270W
220V
Red de abastecimiento
Voltaje
Frecuencia
Disjuntor
Voltaje mínima
Voltaje máxima
Cable 2,5 mm²
110V
10A
50/60Hz
99V
140V
198V
2,5mm²
50/60Hz
220V
242V
10A
Ancho (caja)
Largo (caja)
Altura (caja)
Superfície de caminatas
Largo
Ancho
Lona
0 - 15%
1339 mm
830mm
1.0 km/h
1824 mm
18.0 km/h
890 mm
1995 mm
330 mm
480 mm
2900 mm
480x1400mm
Empaquetado
