ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
ETA-ECM20 & ETA-ECM20M
Electrical Control Module 20A Power Conditioner

– 2 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
TABLE OF CONTENTS
Introduction..............................................................................................................................................3
Safety.......................................................................................................................................................5
ETA-RACEWY6 – Raceway Housing, Knockouts, Ground Stud, Mounting Rails....................................6
Differences Between Electrical Control Modules (ECM) ........................................................................9
Panel Features of the ETA-ECM20 & ETA-ECM20M ..............................................................................9
ECM Features Behind the Panel ...........................................................................................................10
ECM-3BP – Raceway Blank Plate..........................................................................................................11
ECM-ACIN Wire Kit................................................................................................................................11
Wiring the ECM Modules ......................................................................................................................11
System Wiring Configurations...............................................................................................................11
Connecting an ECM Module to an ETA-ECS6RM Controller ................................................................12
ECM Data and Wiring Considerations ...................................................................................................14
Operating an ECM Without A Controller ...............................................................................................14
ECM Troubleshooting ............................................................................................................................15
Specifications.........................................................................................................................................16
Warranty ................................................................................................................................................20
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 3 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
INTRODUCTION
Thank you for purchasing the ETA Systems Electrical Control Module Raceway system. This manual is divided up into two main
sections, ETA-RACEWY6 housing and the ETA-ECM20/ETA-ECM20M modules. This manual will explain which ECM module to choose
for your application, how to configure it, and how to wire it. Note: For your safety all electrical wiring must be done by a qualified
electrician. Many of the items required to connect to the raceway system are standard electrical industry components.
There are three segments for a remote 120V AC Mains sequenced system to fully operate.
1. The Electrical Control Modules (ECM) turn ON or OFF the 120V AC Mains to the devices that are plugged into it.
2. ETA-RACEWY6 housing supports and encloses the ETA-ECM20/ETA-ECM20M modules for safety.
3. An ETA-ECS6RM controller activates the ECM modules. This manual covers the ECM modules and the ETA-RACEWY6.
The ETA-RACEWY6 is the housing that supports up to six ETA-ECM20 or ETA-ECM20M modules. There are four ½" and ¾" dual
knockouts that support standard electrical conduit components for wiring 120V AC mains into the raceway housing from the electrical
panel. If six sequenced sections are not needed there are two ECM-3BP blank plates included to cover the unused ECM module slots.
Other blank plates are available as an accessory item.
The ETA-RACEWY6 can be mounted into most racks that have at least 60" internal height. The raceways have breakaway mounting
tabs that make it convenient to secure the raceways in most applications.
The ETA-ECM20/ETA-ECM20M is an Electrical Control Module (ECM) 20A Power Conditioner and AC Spike Suppressor module that is
designed to be placed next to an ETA-ECS6RM Controller or up to 1000 ft away.
Features of the ECM modules vary allowing the customer to choose what is best for their installation. All ECM modules feature AC
spike suppression. AC Spikes, or Transients, are commonly caused by lightning storms or utility power plant grid switchovers. The
amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of
3000A. These spikes are very fast and usually only last for a very short period of time. To protect against this potential problem
incoming AC Mains have special suppression circuitry to eliminate the unwanted energy. This circuitry is very fast and can suppress
unwanted energy within a nanosecond, while sustaining the suppression for up to 2 milliseconds, thus ensuring virtually trouble free
protection. High and low AC Main line voltages are another major contributor to equipment failures. The ECM modules support EVS
circuitry which enables the module to be shut off during low and high AC Line conditions.
The ETA-ECM20M also features noise filtering for removing unwanted Radio Frequency Interference (RFI) that is commonly introduced
into the AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise from Electromagnetic
Interference (EMI) generated by items such as electric motors, switching power supplies and lightning. The benefit of these filters can
be seen on video products or audibly by reducing static pops and external signal interference.
High line can also be known as surges. Surges usually are a slower steady state rise in voltages ranging from 128VAC and up. They
can be caused from fluctuations from the utility company's power lines, or industrial equipment turning on and off, and is on the same
power leg of the building's incoming AC.
Low line is also known as brownouts. This happens when the AC Mains drops below 107VAC. Most of the time it is caused by the
utility company not being able to supply enough power during heavy utility consumption time periods, such as heat waves. Another
factor would be from voltage drops in AC lines due to long transmissions. The ETA-ECS6RM will inform you if any of these conditions
occur. Extreme variances in Unstable AC Mains voltage are one of the main reasons for equipment failure.
The ETA-ECM20 does not support the same current monitoring or EMI / RFI Filter feature as the ETA-ECM20M, ETA-20SH and the
ETA-15SH models. However, it does support AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry and Remote
Activation. Refer to selected ECM Module for full details.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 4 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ETA-RACEWY6 FEATURES
 • Holds6ETA-ECM20/ETA-ECM20MModules
 • 4ACInletLocations
 • DualKnockouts½"&¾"
 • 4RailMountingTabs
 • BreakawayMountingTabs
 • 2BlankModuleCoverPlatesIncluded
ECM MODULES KEY FEATURES
 • Manual/AutoON/OFFswitch
 • IncomingACpresentLED
 • ActiveLED
 • ACFaultLED
 • ClampingSpike&SurgeSuppressionEVSCircuitry
 • ACMainsVoltage&Currentmonitoring(VoltageonlyforETA-ECM20)
 • EMI&RFIFiltering(ETA-ECM20Monly)
APPLICATIONS
The Electrical Control Module Raceway system was designed to be flexible with features that allow it to be used in a variety of
applications. The sequenced outputs allow the turning of equipment On and Off in a particular order, to eliminate an in-rush of current
and audible pops that often occur with non-sequenced power strips. It also can be used solely for protection against lightning strikes or
voltage surges. If fuzzy video or frequent static pops occur, the AC power conditioning will eliminate or reduce those inconveniences.
The following are just a few examples of applications in which the Atlas Power Electrical Control Module Raceway system can be
used:
 • Restaurants
 • HousesofWorship
 • Schools
 • HomeTheaters
 • OfficeBuildings
 • SportsBars
 • IndustrialFacilities
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 5 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
CAUTION – WHEN INSTALLING THE PRODUCT
 • Plugging in or unplugging the power cord with wet hands may result in electric shock.
• Never move the unit with the power cord plugged into the wall, as damage to the power cord may result.
• When unplugging the cord from the wall, grasp the plug, NOT the cord.
• Never install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas where sooty smoke
or steam are present. Fire and electric shock may result.
• Keep all sides of the unit at least 31⁄2" away from objects that may obstruct air flow to prevent the unit's internal temperature rise.
WARNING – WHEN THE DEVICE IS IN USE
• To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer all servicing to
ETA Systems.
• Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from
the AC outlet and contact ETA Systems. Do not to attempt to continue operation of the product as this may cause fire or electric
shock.
• Smoke or strange smell coming from the unit.
• If the product falls or the case is damaged.
• If water or any metallic objects fall into the product.
  • If the power supply cord is damaged in any way.
• If the unit is malfunctioning.
• Do not insert or drop metallic objects or flammable materials into the ventilation holes of the product's cover, as this may result in
electric shock or fire.
• Do not place any metallic objects or containers with liquid on the top of the product. If any liquid spills into the unit, fire or electric
shock may result.
• Never operate this product or touch the power supply cord during an electrical storm, electric shock may result.
• Never exceed the wattage on the product when connecting equipment. Fire and/or property damage may result.
• Operate the product only with the voltage specified on the unit. Fire and/or electric shock may result if a higher voltage is used.
• Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and do not place heavy
objects on the power cord, including the product itself, doing so may result in fire or electrical shock.
• Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas pipe as a catastrophic
disaster may result.
• Be sure the installation of the product is stable, avoid slanted surfaces as the product may fall and cause injury or property
damage.
CAUTION – WHEN THE DEVICE IS IN USE
 • Neverplaceheavyobjectsontheproduct,causingittofalland/orbreak,resultinginpersonalinjuryandpropertydamage.In
addition, the product itself may fall and cause injury and property damage.
 • ContactETASystemsforinstructionsoncleaningtheinsideoftheunit.Largeaccumulationsofdustinsidetheunitmayresultin
heat buildup and fire.
 • Ensurethatthepowersupplyplugissecurelypluggedintothewalloutlet.Neverallowdusttoaccumulateonthepowerplugor
inside the wall outlet.
 • Whencleaningtheunitortheunitisnottobeoperatedforanextendedtimeperiod,unplugthepowercordfromthewall.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 6 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is
used use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled, objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled
with liquids, such as a vase, should not be placed on this apparatus.
16. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
PA Amplifier
Model AA35
Output Rated 35W
Designed and Engineered
by Atlas Sound
Made In CHINA
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE DECHARGE ELECTRIQUE
-NE PAS OUVRIR.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
´
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage “ within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 7 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ETA-RACEWY6 ECM HOUSING

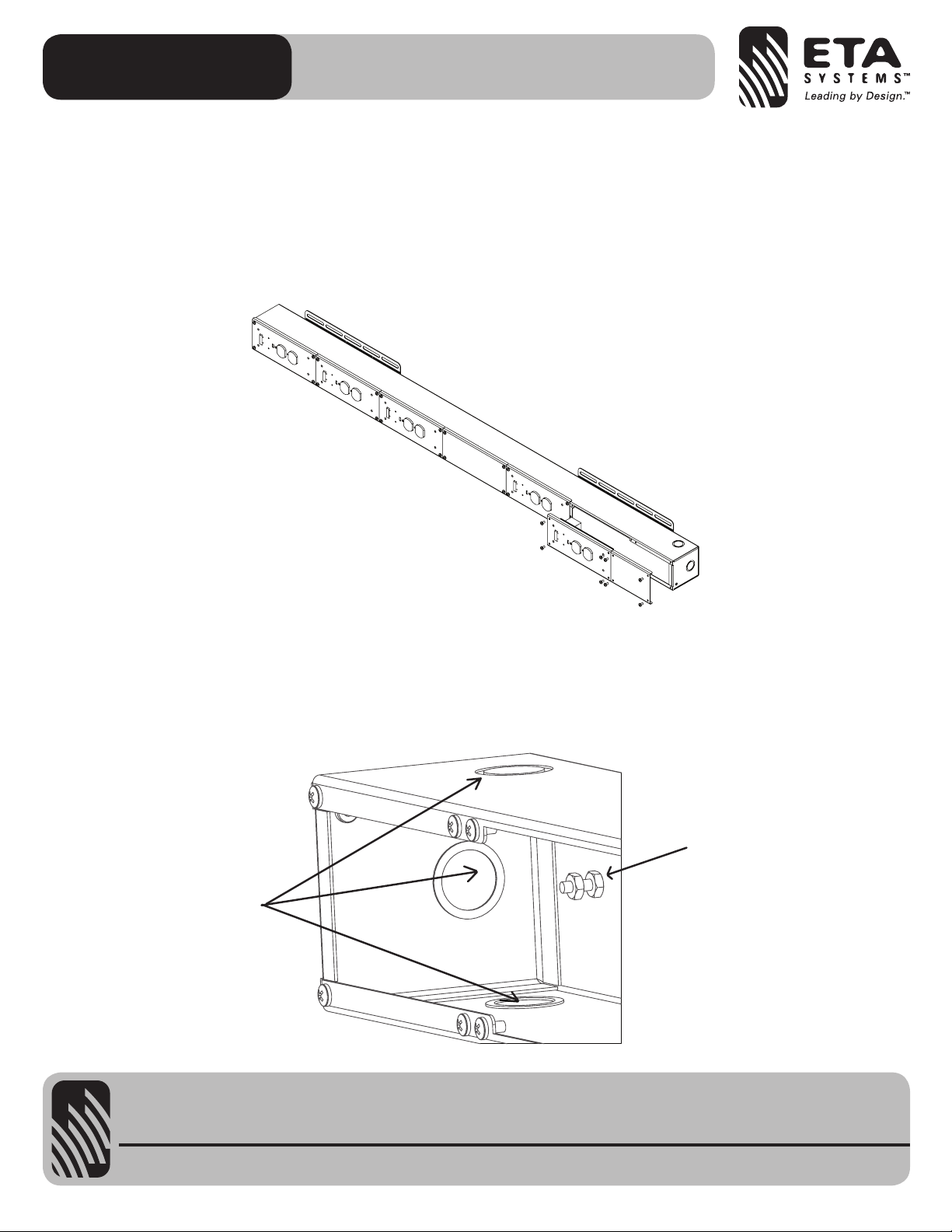

The ETA-ECM20 and ETA-ECM20M require an electrical housing. The ETA-RACEWY6 holds up to 6 ECM modules. There are standard
¾" and 1" electrical knockouts on the bottom of the raceway to support standard electrical mounting hardware. Since the Raceway can
house 6 ECM modules there can be 6 separate 20A AC legs coming into the Raceway for a total of 120A of power distribution or it
could be as simple as one 20A leg. Note: All electrical wiring must be done by a certified electrician.
All cover plates must be secured tightly. There shall be no open slots. Blank cover plates are available. Top and bottom mounting tabs
are incorporated to mount inside an ETA Systems Rack. All rack mount rails are designed to be breakaway, if they are not needed.
Simply bend the tab back and forth until the tab breaks away. Be careful of sharp edges.
RACEWAY AC INLET KNOCKOUTS
The ECM-6RACEWAY6 can support up to four AC conduit inlets. There are three knock outs on the bottom and one on the top of the
raceway. Each inlet supports a double knock out size supporting standard USA electrical fittings of 1/2" and ¾". The figure below is an
illustration of the bottom of the raceway.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 8 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
RACEWAY AC GROUND STUD
The ETA-RACEWY6 has an internal AC Mains chassis grounding stud for EARTH connection. The stud size is 10⁄32" x 1". A nut and star
washer are also supplied. The figure above shows the internal location of the stud.
RACEWAY MOUNTING RAILS
The ETA-RACEWY6 can be mounted into most racks that have at least 60” of internal height. The raceways have breakaway rail
mounting tabs that make it convenient to secure the raceway in most applications. There are four rails to secure the ETA-RACEWY6 to
a cabinet or to a wall. Multiple slots are provided for ease of installation. To break the rail tabs off, simply bend the rail tabs back and
forth with a pliers until the metal separates. Note: After the metal breaks, sharp corners may need to be filed to prevent injury.
ETA-RACEWY6 DIMENSIONS
ECM (ELECTRICAL CONTROL MODULES) MODULES
The difference between the ETA-ECM20 & ETA-ECM20M Models
The ETA-ECM20 does not support the same current monitoring or EMI/RFI Filter feature as the ETA-ECM20M, ETA-20SH and the
ETA-15SH models. However, it does support AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry, and
Remote Activation.
In certain application we suggest using an ETA-ECM20 module vs. an ETA-ECM20M, like in places where some of the features would
be redundant because of the electrical location of the ECM module. This would be a cost savings to use a less expensive ECM module
where redundant circuitry is not needed.
Example: One 20A incoming AC line where two sequenced AC outlets are required. Use one ETA-ECM20M and one ETA-ECM20
module wired in parallel. Explanation: If the AC Mains system required a sequenced outlet and did not require more than 20A of
service for a portion of the AC power system, an ETA-ECM20M module can be placed in parallel with an ETA-ECM20 module. It is not
necessary to have amperage readings from both ECM Modules because you can read the current from the ETA-ECM20M module.
It could be in parallel with a ETA-ECM20 module instead since it's on the same incoming AC line as the ETA-ECM20M. They would
have the same current reading because they are in parallel. Also, the EMI and RF filtering are across the same AC line leg, so both
ECM Modules connected to that line are filtered, no need for redundant filtering. Note: In this wiring configuration you still get the
Voltage monitoring to see if the module is active and have extra surge protection. See ECM Module wiring configurations.
5.55 3.55
56.34
3.67
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 9 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ETA-ECM20 & ETA-ECM20M MODULE PANEL FEATURES

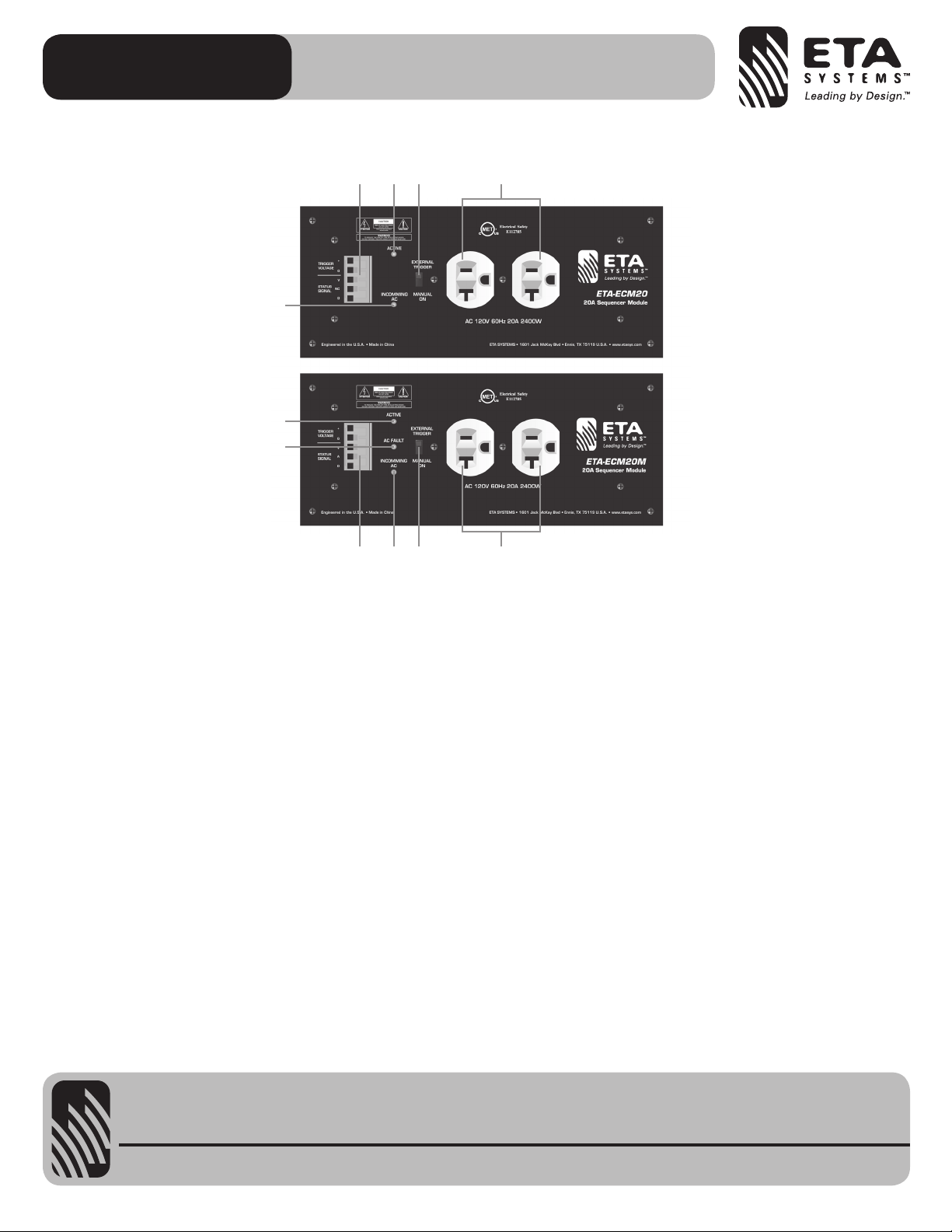

1. Trigger / Status Port Pin Identification – all signals are of low voltage and current. DO NOT MISWIRE or damage may occur.
A. (+) requires a minimum of 5 -24V DC to activate the module with 5mA of current. Note: The DCV can be supplied from any
source. The EVS protection requires the ETA-ECS6RM for operation.
B. G = Circuit Ground, Must be of the same circuit as the DCV source.
C. V = AC Voltage Status Signal, this signal reports back to the ETA-ECS6RM the Incoming AC Mains Voltage to the ECM
module.
D. A = AC Current Status Signal, this signal reports back to the ETA-ECS6RM the AC Mains Current draw at the ECM module.
Note: Not available on ETA-ECM20 type module.
E. D = Fault Status Signal, reports to the ETA-ECS6RM fault conditions of a ECM module.
2. External Trigger / Manual On Switch – The ETA-20SH and ETA-ECM20 have a manual override switch allowing them to be used
as a local Power Conditioner and Surge Suppressor. For it to be remotely monitored and activated the switch must be in the
“External Trigger” position.
3. Incoming AC LED – This LED will illuminate Red when the ECM has incoming AC power present at the module. This LED must
be ON to operate. Note: If this LED is not illuminated check the following: 1) The unit is plugged in, 2) The AC Mains Breaker
feeding the AC leg to the ECM module is OFF, 3) The internal fuse has been damaged. This should only be inspected by an
authorized technician.
4. Active LED – This LED will illuminate Green when the ECM module has sensed the proper DCV to trigger activate the power ON
circuit. Note: If connected to the ETA-ECS6RM and the EVS circuit is activated this LED will not be on. The Channel Status LED on
the ETA-ECS6RM will flash indicating a problem and will not turn the ECM module ON until the AC Mains voltage is stable.
5. AC Fault LED – If damage to the Spike Suppression circuit occurred this LED will illuminate RED. This LED will not turn OFF until
repaired. Have the ECM module inspected by a qualified technician. Note: Not available on ETA-ECM20 type module.
6. AC Mains Outlet – Two 120V AC 15A outlets.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
2
2
4
3
1
1
5
4
3
6
6

– 10 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
INTERNAL ECM FEATURES OF THE ECM MODULES
Protection behind the Panel
 • EMI/RFI Filters – ECM noise filtering for eliminating unwanted Radio Frequency Interference (RFI) that is commonly introduced
into the AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise from
Electromagnetic Interference (EMI) from such items as electric motors, switching power supplies and lightning. The benefit of
these filters can be seen on video products or audibly by reducing static pops and external signal interference.
Note: Not available on ETA-20RW type module.
 • AC Spike Protection - ECM modules feature AC spike suppression. AC Spikes, or Transients, are commonly caused by lightning
storms or utility power plant grid switchovers. The amount of energy that can be injected into the power system can be immense
with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of
time. To protect against this potential problem incoming AC Mains have special suppression circuitry to eliminate the unwanted
energy. This circuitry is very fast and can suppress unwanted energy within a nanosecond, while sustaining the suppression up to
2 milliseconds, thus ensuring virtually trouble free protection.
 • AC Surge Protection - High line can also be known as surges. Surges usually are a slower steady state rise in voltages ranging
from 128VAC and up. They can be caused from fluctuations from the utility company's power lines, or industrial equipment turning
On and Off, and are on the same power leg of the building's incoming AC.
 • EVS Protection – If an ECM Module is connected to the ETA-ECS6RM, the ETA-ECS6RM has built in intelligence that monitors
the AC lines from the ECM modules and will inform you of potentially damaging voltages. If the AC Mains voltage is between
128VAC and 132VCA or 107VAC and 101VAC the display will flash an error code indicating a potential fault has occurred and
you should check sensitive equipment. If an extreme voltage swing occurs above 128VAC or below 101VAC, the Extreme Voltage
Shutdown (EVS) protection circuit will automatically turn all remote ECM modules Off until the system is manually reset. The EVS
feature can be defeated if required via the ETA-ECS6RM EVS bypass switch. Note: Not available on ETA-20RW type module.
 • Over Current Protection – In the case of excessive current draw at the ECM module. An internal Slow Blow fuse will open
protecting the devices plugged in to the ECM module. Note: This fuse must be changed by a qualified service technician.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 11 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]

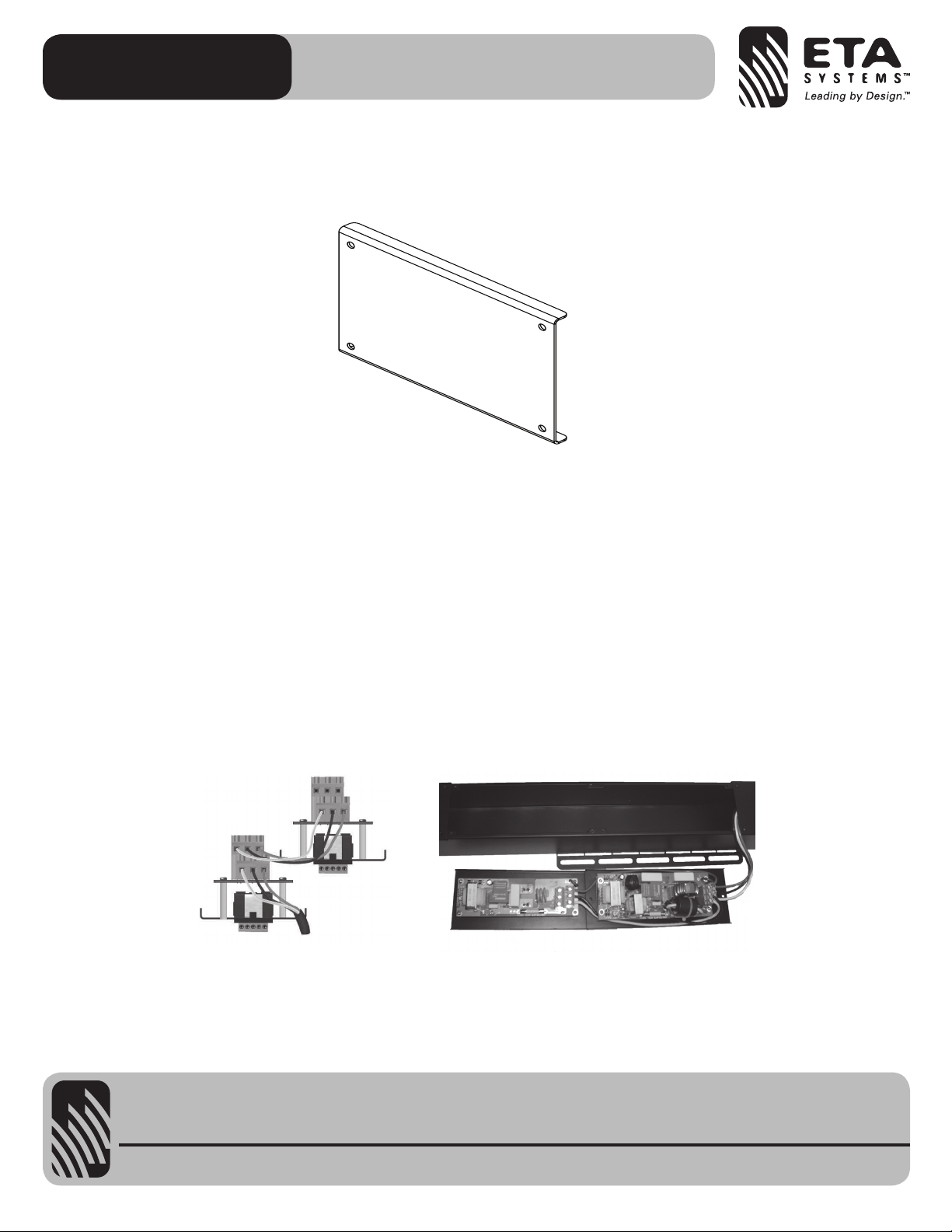

ECM-3BP MODULE BLANK COVER PLATE
The ETA-RACEWY6 can hold up to 6 ETA-ECM20 Modules; however it is ok to use less than 6 modules. The open slots on the
ETA-RACEWY6 can be covered up using an ECM Module Blank Plate cover. Two of these are included with the ETA-RACEWY6. If not
needed, discard them. If additional Blank Plates are required they can be purchased in packages of three.
ECM-ACIN WIRE KIT
ETA Systems offers a wire kit of stranded 12 guage UL wire for wiring the ETA-ECM20 Modules together plus additional length for
wiring the incoming AC to an AC Mains panel. 140" of each color of Green, White and Black are included. Note: As a reference, it takes
around a foot of wire between ETA-ECM20 modules. If they are wired on the same incoming AC Main, it is highly recommended that
you carefully measure the wire needed for the job. It may take more than one ECM-ACIN wire kit depending on how many AC Mains
are being used and the distance from the AC Mains Panel. It is not necessary to use the ETA Systems ECM-ACIN wire kit as long as it
is 12 guage and UL listed.
WIRING THE ETA-M20RW CONTROL MODULE
The ETA-ECM20 & ETA-ECM20M are designed to be mated with the ETA-RACEWY6 housing and the ETA-ECS6RM controller. The
specific job install AC power requirements and power distribution layout will dictate how the ETA-ECM20M Modules are wired into the
Raceway. Each ECM Module can be wired as a single 20A run or in a parallel configuration as illustrated below. Each ECM module has
dual 3-position screw terminal blocks that are in parallel and are clearly labeled as follows: E - Green = Ground, L - Black = Load,
N - White = Neutral.
NOTE: The above figures show the ECM wiring configuration of one 20A AC Main line coming into an ETA-ECM20M, then paralleling
with an ETA-ECM20 type module.
NOTE: It appears that the wiring is in series but the ECM-Module In/Out terminals are in parallel on the PCB.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 12 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ETA-ECM20, ETA-ECM20M MODULE SYSTEM WIRING CONFIGURATIONS
Example 1 - Single 20A AC Line
ECM wiring configuration showing one 20A AC main line coming into an ETA-ECM20M then paralleling with 5 ETA-ECM20 type
modules. Note: It appears that the wiring is in series but the ECM Module In/Out terminals are in parallel on the PCB.
Example 2 - Dual 20A AC Line (40A)
ECM wiring configuration showing two 20A AC main line coming into the raceway for a total of 40A available. The 20A legs are
separated by feeding a 20A leg to two different ETA-ECM20M Modules. The leg is then paralleled with two ETA-ECM20 type modules.
Note: It appears that the wiring is in series but the ECM Module In/Out terminals are in parallel on the PCB.
ECM MODULES CONNECTION TO AN ETA-ECS6RM CONTROLLER
ETA-ECS6 CONTROL PORTS FOR ECM MODULES
Up to 6 AC Main circuits can be activated or monitored by the ETA-ECS6RM. Each ECM control port connects to one of the following
ECM modules, ETA-ECM20M, ETA-15SH, ETA-20SH and the ETA-ECM20. For connection between the ETA-ECS6RM and an ECM
module use a 5 conductor cable that is a minimum of 22 gauge wire. We suggest using CAT5 cable due to the common availability. Pay
special attention to the port connections and DO NOT MISWIRE or damage may occur. The distance between the ETA-ECS6RM and
an ECM module can be up to 1000ft.
+5VDC
GCircuit Ground
VAC Voltage Status Signal
AAC Current Status Signal
DFault Status Signal, all signals are of low voltage and current
AC Main
in 20A
ETA-ECM20 ETA-ECM20 ETA-ECM20 ETA-ECM20 ETA-ECM20 ETA-ECM20
AC main
in 20A #1
AC main
in 20A #2
ETA-ECM20 ETA-ECM20 ETA-ECM20 ETA-ECM20 ETA-ECM20 ETA-ECM20
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
Single ETA-ECM20
Control Port

– 13 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]

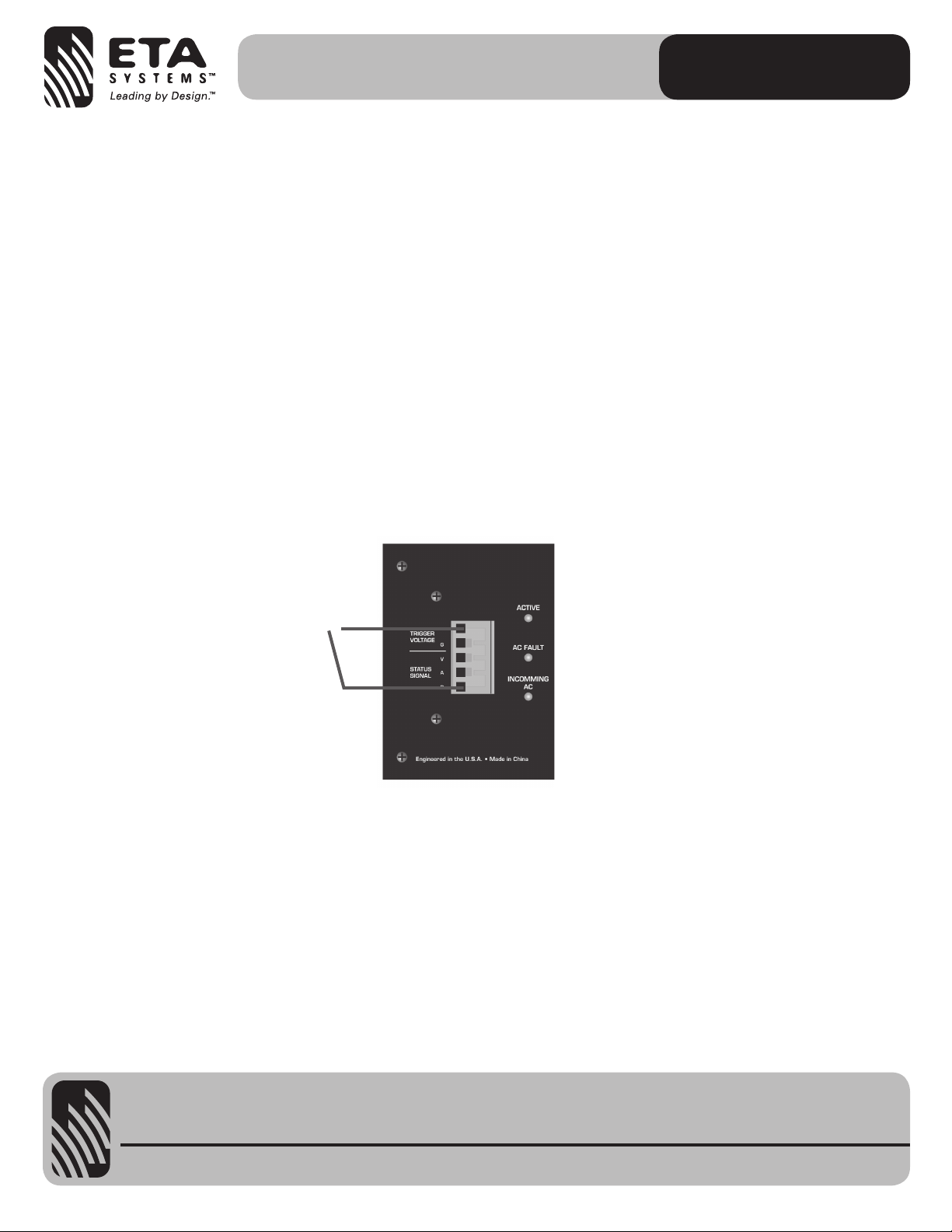

ACTIVATING AN ECM VIA ETA-ECS6RM RELAY CONTACTS
Each Channel of the ETA-ECS6RM also has a Relay contact that works in conjunction with the ECM control port. Sequencing and
timing of these connections are the same as the corresponding ECM channels. Example: Sequence 1 ECM Port output works at the
same times CH 1 Relay contact. Note: All ECM modules can be trigger using the Relay contacts to activate the ECM module. Se ECM
module for details.
ETA-ECS6 WIRING CONFIGURATION
Example 1 – ETA-ECS6RM wired to six ETA-ECM20 or ETA-ECM20M Modules.
Example 2 – ETA-ECS6RM wired to 4 ETA-ECM20 or ETA-ECM20M Modules in the ETA-RACEWY6 and two separate ETA-15SH and
ETA-20SH housings.
External DC IN Trigger
or External Contact Switch
REMOTE
CONTROL
KEY PAD IN
OUT
SYSTEM CONTROL
LAMP
SYSTEM
MASTER SLAVE1 SLAVE2
0 1 1
0
A
A B C D E
B
0
1
0 1
OFF
ON
NOTE: AFTER CHANGING SWITCH SETTINGS
THE UNIT’S POWER MUST BE RESET 20V DC IN
DELAY TIME
1 SEC 3 SEC 6 SEC
0 1 1
0
C
D
E
E
0
1
ENABLE
EVS
DISABLE
0 1
CHANNEL RELAY CONTACTS REMOTE
ACTIVATION
(NO = NORMALLY OPEN)
A NO
CH6
A NO
CH6
A NO
CH6
A NO
CH6
A NO
CH6
A NO
CH6 RMT V IN
GND
EXTSW
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
CHANNEL 6
TO/FROM ECM-20
CHANNEL 5
TO/FROM ECM-20
CHANNEL 4
TO/FROM ECM-20
CHANNEL 3
TO/FROM ECM-20
CHANNEL 2
TO/FROM ECM-20
CHANNEL 1
TO/FROM ECM-20
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
ETA-20SH
20A Sequencer Module
AC 120V 60Hz 20A 2400W
REMOTE
CONTROL
KEY PAD IN
OUT
SYSTEM CONTROL
LAMP
SYSTEM
MASTER SLAVE1 SLAVE2
0 1 1
0
A
A B C D E
B
0
1
0 1
OFF
ON
NOTE: AFTER CHANGING SWITCH SETTINGS
THE UNIT’S POWER MUST BE RESET 20V DC IN
DELAY TIME
1 SEC 3 SEC 6 SEC
0 1 1
0
C
D
E
E
0
1
ENABLE
EVS
DISABLE
0 1
CHANNEL RELAY CONTACTS REMOTE
ACTIVATION
(NO = NORMALLY OPEN)
A NO
CH6
A NO
CH6
A NO
CH6
A NO
CH6
A NO
CH6
A NO
CH6 RMT V IN
GND
EXTSW
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
CHANNEL 6
TO/FROM ECM-20
CHANNEL 5
TO/FROM ECM-20
CHANNEL 4
TO/FROM ECM-20
CHANNEL 3
TO/FROM ECM-20
CHANNEL 2
TO/FROM ECM-20
CHANNEL 1
TO/FROM ECM-20
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
STATUS
SIGNAL
DAVG+
TRIGGER
VOLTAGE
1601 Jack McKay Blvd
Ennis, TX 75119
www.etasys.com
Engineered in the U.S.A.
Made in China
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
Relay Contacts

– 14 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ECM DATA WIRE AND DISTANCE
There are six ECM control ports on the ETA-ECS6RM and up to 6 ECM Modules can be connected to the ETA-ECS6RM. The four
different types of ECM Modules require the same interface connectivity to the ETA-ECS6RM. All ECM Modules and be interchanged
with the ETA-ECS6RM. For connection between the ETA-ECS6RM and an ECM module use a 5 conductor cable that is a minimum
of 22 gauge wire. We suggest using CAT5 cable due to the common availability and low cost. Pay special attention to the port
connections and DO NOT MISWIRE or damage may occur. The distance between the ETA-ECS6RM and the ECM Module can be
up to 1000ft.
ECM MODULE ACTIVATION WITHOUT USING ETA-ECS6 OR AN ETA-ECS3 CONTROLLER
Any of the ETA-ECM20, ETA-ECM20M, ETA-15SH or the ETA-20SH Modules can be triggered to activate without using an ECS type
Controller. Any DCV supply will activate the ECM buy applying DCV 5-24VDC to the “+” and “GND” terminals. An external switch will
also activate an ECM by applying a contact to short terminals “+” and “D” together.
Note: The EVS and Voltage monitoring will be disabled using either of these methods.
The ECM can be used as standalone unit for local equipment protection. It does not need to be connected to an ETA-ECS6RM to
operate. You still get protection against AC spikes from short power surges and you get all the EMI/RFI power conditioning filtering.
Without connecting to an ETA-ECS6RM, the ECM does not utilize the Extreme Voltage Shutdown (EVS) protection and the Voltage and
Current Status readings To active the ECM via an external contact closure or switch plate, set the slide switch to “External Trigger” and
apply the contacts across terminals “+” and “D” shorting them together.
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 15 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ECM TROUBLESHOOTING
Note: All troubleshooting should be done by a certified electrician.
Issue 1: Incoming AC LED is not illuminated.
Possible Cause #1: Incoming AC mains circuit breaker has tripped due to excessive load.
Action Needed: Check the AC outlet that the ECM is plugged into for 120V AC voltage. If no voltage is present check to see if the
AC outlet is on a GFI, check to see if it was tripped. If it has not been tripped trace the AC Mains outlet back to
the electrical panel and check the AC Mains breaker to see it is tripped.
Possible Cause #2: AC Mains power is ok (120V), internal 15A (ETA-15SH) and 20A (ETA-ECM20, ETA-ECM20M, ETA-20SH) Slow
Blow fuse is blown.
Action Needed: Open ECM unit and replace the fuse with a Slow Blow type.
Issue 2: AC Fault LED is illuminated
Possible Cause: Although the Clamping Suppression circuit virtually assures protection from most transient voltage spikes and
surges, nature has a way of occasionally creating electrical forces that are beyond the capabilities of any device
to absorb without some degree of damage. In the rare instance that this occurs, the clamping circuit can be
damaged during the suppression.
Action Needed: The unit will need to be repaired or replaced. It is important to have all equipment that was connected to that
AC Mains Line to be inspected for proper operation.
Issue 3: ECM Active LED is not illuminated.
Possible Cause: Slide switch is not set to Manual ON.
Issue 4: Unit is set External Trigger, the Incoming AC LED is illuminated but the Active LED is not illuminated.
Possible Cause #1: External Switch is not connected across the “D” and “+” terminals.
Possible Cause #2: External DCV is not connected across the “+” and “G” terminals.
Possible Cause #3: External DCV voltage polarity is not correct across the “+” and “G” terminals.
Possible Cause #4: External DCV voltage is to low to activate the trigger circuit. Must be a minimum of 5vDC.
ETA-RACEWY6 SPECIFICATIONS
Type: Housing for ETA-ECM20 or ETA-ECM20M modules
Number of ECM Modules: Six
Blank Module Plates: Two included
Electrical Inlets: Qty 4
Electrical Inlet Size: ½" 7 ¾" dual knockout
Chassis Finish: Black paint
Mounting: #8 5/16” self tapping screws (28 included)
Dimensions: 3.0" H x 56.5" L x 3.375" W (7.6cm x 143.5cm x 8.5cm)
Unit Weight: 11.75 lbs (5.32kg)
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 16 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
ETA-ECM20, ETA-ECM20M SPECIFICATIONS
General
Type Power Conditioner Suppressor Module
Power Requirements 120V 60Hz
Power Consumption .5W
RoHS Compliant Yes
Safety Listings MET (UL 1449 Code)
Panel
Switched Outlets Two, 20A
Spike & Surge Suppression H-N, N-G, H-G
Manual Override Slide switch
Extreme Voltage Shutdown ETA-ECM20M Model only, (EVS) Below 102V or
Above 132V AC Line (When Used With ETA-ECS6RM)
Connectors 5 Position Phoenix Euro Block Style
Fuse Protection 20A Slow Blow
DCV Remote Trigger 5–24VDC
Remote Trigger SPST Contact
Status Signals Output for Voltage and Current Data
(ETA-ECM20M model only)
Indicators Incoming AC, Active, AC Fault
(ETA-ECM20M model only)
AC Mains Interconnect Screw terminal block
Technical Data
Current Rating 15 amps
Operating Voltage 102-132 VAC
High Voltage Surge Protection Trigger at 133 VAC, 1ms typically (When Used With
ETA-ECS6RM) (ETA-ECM20M model only)
Spike & Surge Suppression H-N, N-G, H-G
Low Voltage Protection Trigger 101 VAC, 1ms typically (When Used With
ETA-ECS6RM) (ETA-ECM20M model only)
Spike Protection Modes Circuitry on incoming AC Mains.
Minimum Spike Clamping Voltage 460 VRMS @ 3,000 amps
Maximum Spike Clamping Voltage 6000V
Maximum Spike Clamping Response Time 1 nanosecond
Spike Clamping Voltage @ 100A 1250Vp for 20µs
Maximum surge current 6,500 amps
Energy Rating @ 2ms 600 Joules
Noise Attenuation EMI/RFI Sequencer 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10 MHz
(ETA-ECM20M model only)
Temperature Range 5º to 35º C
Humidity Range 5% to 95% R.H.
Mechanical
Chassis Finish Black
Mounting #8 5/16” self tapping screws
Dimensions 3.0" H x 8.5" L x 3.5" W (7.6cm x 21.6 cm x 8.9cm)
Unit Weight ETA-ECM20=1.25 lbs(.68 kg),
ETA-ECM20M=1.75lbs (.80kg)
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 17 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
NOTES
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 18 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
NOTES
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 19 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
NOTES
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M

– 20 – etasys.com
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
LIMITED WARRANTY
This limited warranty is provided to the ultimate end user (the “Purchaser”) of an ETA Systems (“ETA”) product (“the equipment”).
ETA Warrants the Equipment against defects in materials and workmanship for a period of three (3) years on Power Distribution
Products and one (1) year on all other products from the original date of purchase. All output devices such as triac solid state relays,
electromechanical relays, output power modules, etc., shall only be warranted for a period of sixty (60) days from the original date of
purchase. This Warranty is not transferable and applies to the original Purchaser only.
The duration of this warranty is limited to claims made to ETA within the periods stated with respect to parts and labor from the date
of purchase from ETA or our distributors. The Purchaser must allow ETA, at ETA’s option, to inspect the Equipment on request and the
Purchaser must reasonably cooperate with ETA to verify the warranty claim of the Purchaser. During the warranty period, defective
equipment will be replaced or repaired to the general condition as received, at the discretion of ETA. All transportation is the
responsibility of the Purchaser or owner.
This Warranty applies only to defects in materials and workmanship and does not cover failure or damage due to shipping loss or
damage, abuse, misuse, mis-application, incorrect or varying power line voltages, lack of proper maintenance, natural disasters, Acts of
God, or unauthorized modifications, repairs or any alteration done without the expressed written permission of ETA Systems.
ETA does not warrant the fitness of the Equipment for a particular purpose and does not make any warranty, express or implied, other
than the warranty contained herein. No implied warranty on this Equipment, created by state law, shall extend beyond the term of this
warranty, and ETA shall not be liabel for any loss of use of the Equiment, or consequential damages, including damages to other parts of
the installation in which the Equipment is a part.
This Warranty is in lieu of any and all other warranties, expressed and/or implied, including any implied warranty of merchantability. No
agent, representative, dealer or employee has the authority to increase or alter the liability, obligations, and terms of this warranty or sale
of the Equipment. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
NOTE: It is strongly recommended that any Equipment returned to ETA be properly packaged and insured for its full value in case of
loss, handling, or shipping damage. ETA shall not be responsible for damage or loss of Equipment during shipping. All equipment
returned to ETA Systems for any reason must include a RETURN MATERIAL AUTHORIZATION (RMA) number on the outside of the
shipping container. Equipment returned without an RMA number will be refused and returned to the sender.
SERVICE
Should your ETA-RACEWY6 require service, please contact the ETA Systems warranty department at
1-877-689-8055, ext. 277 to obtain an RA number.
ETA Systems Tech Support can be reached at 1-800-321-6699.
Visit our web site at www.ETAsys.com to see other ETA Systems products.
©2009 ETA Systems All rights reserved. ETA003567 RevA 05/09
ETA-RACEWY6
Electrical Housing for ETA-ECM20/ETA-ECM20M
