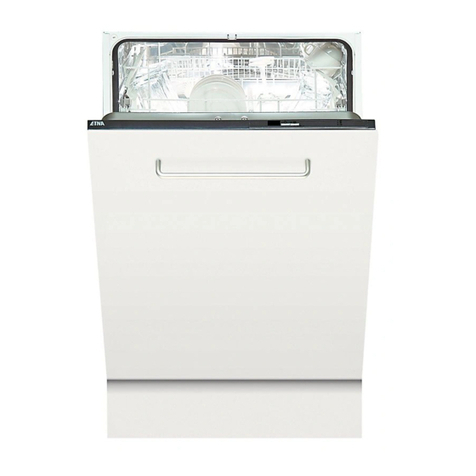

ETNA VW549ZIL User manual

VW549ZIL
INSTRUCTIONS FOR USE
ANLEITUNG
DISHWASHER
GESCHIRRSPÜLER

EN User instruction EN 3 - EN 30
DE Anleitung DE 3 - DE 30
Pictograms used - Benutzte Piktogramme
Important information - Wissenswertes
Tip - Tipp

Contact a registered installer to fit your appliance
(see “Installation instructions”). Do not connect the
appliance to the electrical mains until the installation is
complete.
This appliance is intended to be used in household and
similar applications such as:
▷staff kitchen areas in shops, offices and other working
environments;
▷farmhouses;
▷by clients in hotels, motels and other residential type
environments;
▷bed and breakfast type environments.
For EN60335-1:
• This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without
supervision.
SAFETY INSTRUCTIONS

For IEC60335-1:
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing
maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then
use a dry cloth to wipe it again.
Earthing Instructions
• This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped
with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet
that is installed and earthed in a ccordance with all local
codes and ordinances.
• Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
SAFETY INSTRUCTIONS

• Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly grounded.
• Do not modify the plug provided with the appliance, if it
does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack
of the dishwasher.
• Do not operate your dishwasher unless all enclosure
panels are properly in place.
• Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
▷Locate sharp items so that they are not likely to
damage the door seal;
▷Warning: Knives and other utensils with sharp points
must be loaded in the basket with their points facing
down or placed in a horizontal position.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep children
away from the dishwasher when the door is open.
SAFETY INSTRUCTIONS

• Check that the detergent powder is empty after
completion of the wash cycle.
• Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the
manufacturer's recommendations.
• Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
• The door should not be left open, since this could
increase the risk of tripping.
• If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• During installation, the power supply must not be
excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water
valve using new hose sets. Old sets should not be
reused.
• To save energy, the appliance will go to standby mode
automatically when there is no operation during some
time.
SAFETY INSTRUCTIONS

EN 3
CONTENTS
Your dishwasher
Introduction 4
Using your dishwasher
Description 5
Quick start 5
Control panel 6
Water softener 7
Adding salt 8
Preparing and loading dishes 9
Function of the rinse aid and dishwasher detergent 13

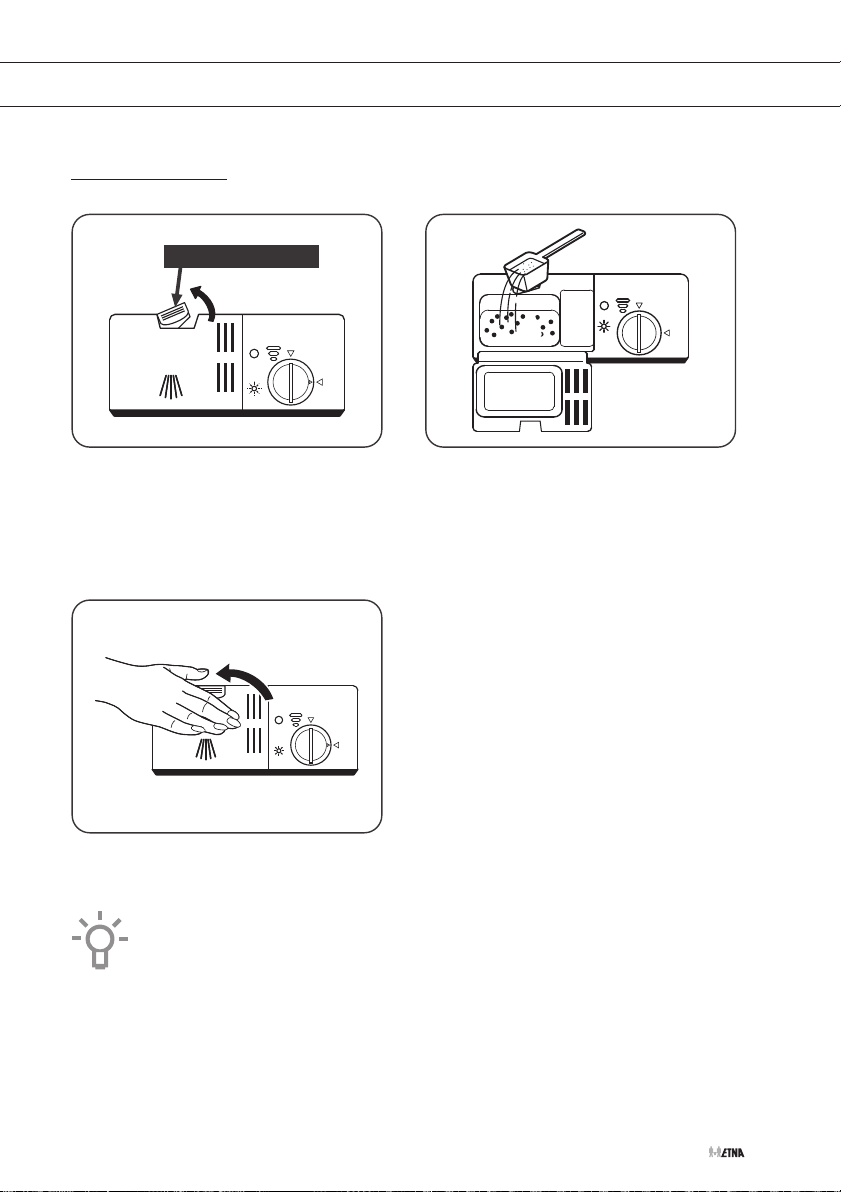

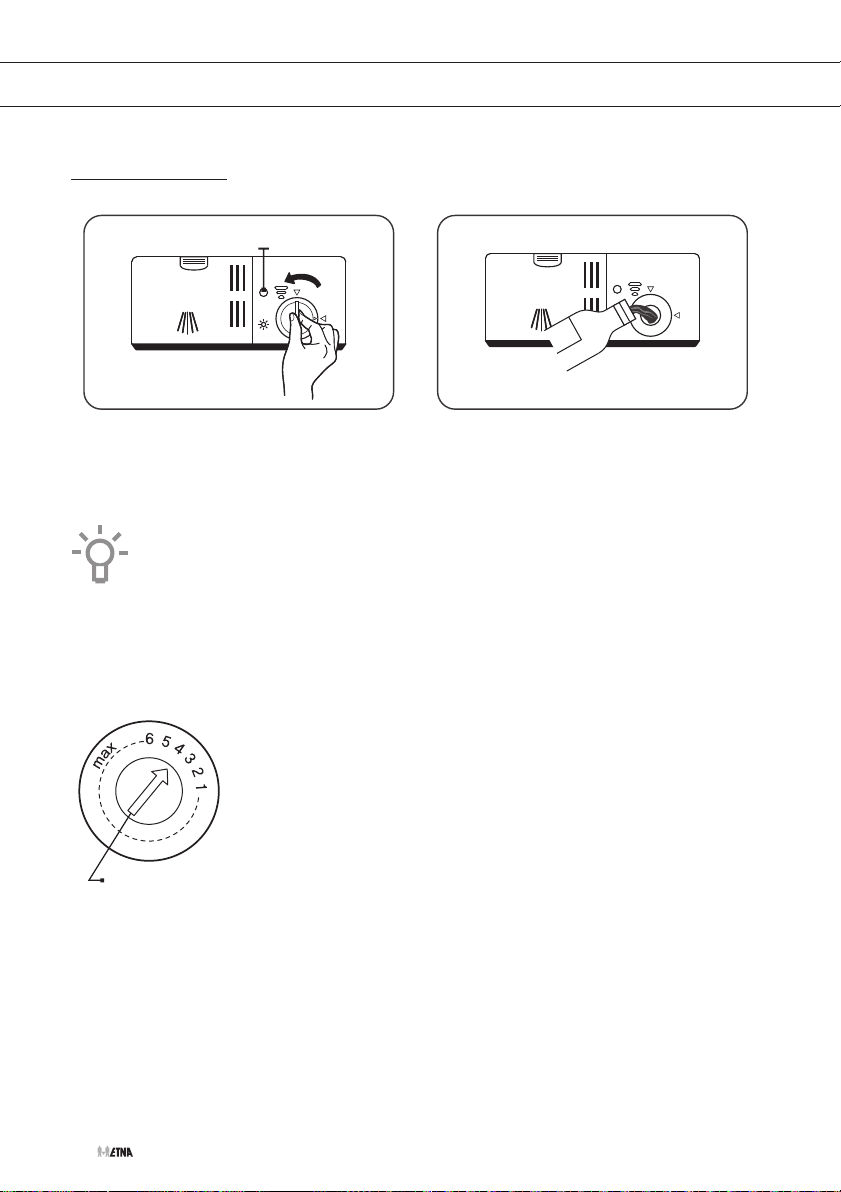

Filling the rinse aid reservoir 14
Filling the detergent dispenser 15
Programming the dishwasher
Wash cycle table 16
Starting a cycle wash 17
Changing the program mid-cycle 17
Forget to add a dish? 18
Maintenance
Filtering system 19
Cleaning the spray arms 20
Caring for the dishwasher 21
Cleaning the door 22
Errors
What should I do, if... 23
Error table 23
Technical data sheet
26
Loading the baskets according to EN50242
28
Your dishwasher and the environment
Disposal 30

EN 4
Introduction
You have chosen to purchase a Etna dishwasher.
Optimum user comfort and easy operation were paramount during the development of this
product.
This manual describes how you can get the most out of your dishwasher. It provides you with
information on how to operate the appliance, as well as background information about how it
works. You will furthermore also find maintenance tips.
The safety instructions that are relevant during the installation are included in the installation
guide. This is intended for the installation technician.
Read this manual before using the appliance. Keep this manual somewhere safe so that
subsequent users can also benefit from the information contained within.
YOUR DISHWASHER

EN 5
USING YOUR DISHWASHER
Description
Features and appearance of baskets and cutlery baskets may vary, depending on your
model.
1. Salt container
2. Detergent dispenser
3. Rainse aid reservoir
4. Lower spray arm
5. Filtering system
6. Cutlery basket
7. Cup rack
8. Upper spray arm
9. Upper basket
10. Lower basket
Quick start
Please read the corresponding content in this manual for more details about the operation.
Inside Outside
1. Setting the water softener/loading the salt.
2. Removing larges residues on the cutlery/dishes.
3. Loading the baskets.
4. Filling the dispenser and the rinse aid reservoir.
5. Selecting a program and running the dishwasher.
10
9
8
6
2
1
4
5
3
7

EN 6
USING YOUR DISHWASHER
Control panel
4321 67
5
Operation (push buttons)
1 On/Off Press this button to turn on your dishwasher, the screen lights up.
2 Half-load If you do not have too much load, you might consider using the half-load
program. This function saves water and energy. It can be used with the
programs Intensive, Normal, ECO and 90 min.
3 Delayed
start
Press this button to set a delayed start.
4 Program Select the appropriate washing program. The corresponding indicator will
be lit.
Indicators
5 Program
indicator
Intensive
Heavily soiled items include pots and pans. With dried on food.
Normal
For normally soiled loads, such as pots, plates, glasses and lightly
soiled pans.
ECO
This is standard program, it is suitable to clean normally soiled
tableware and it is the most efficient program in terms of its
combined energy and water consumption for that type of tableware.
90 Min
For normally soiled loads that need quick wash.
Rapid
A shorter wash for lightly soiled loads that do not need drying.
6 Warning
indicator
Rinse aid
If this indicator is lit, it means the dishwasher is low on dishwasher
rinse aid and requires a refill.
Salt
If this indicator is lit, it means the dishwasher is low on dishwasher
salt and needs to be refilled.
7 Delayed
start time
To show the delayed start time (3h/6h/9h).

EN 7
USING YOUR DISHWASHER
Water softener
• The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
• The appliance is equipped with a special softener that uses a salt container specifically
designed to eliminate lime and minerals from the water.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on
the hardness of the water used. This is intended to optimise and customise the level of salt
consumption. Please follow the steps below for adjustment in salt consumption.
1. Switch on the appliance;
2. Press the program button for more than 5 seconds to open the water softener settings
mode within 60 seconds after the appliance was switched on;
3. Press the program button to select the correct setting according to your local environment.
The settings will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button to confirm the setting and to end the setting mode.
Water hardness table
Adjust the salt consumption according to the table below:
Water hardness
ºClarke ºdH mmol/l Setting Corresponding
program indicator
Salt consumption
(grams/cycle)
0 - 6 0 - 5 0 - 0.94 H1 Rapid 0
7 - 14 6 - 11 1.0 - 2.0 H2 90 Min 9
15 - 21 12 - 17 2.1 - 3.0 H3 90 Min + Rapid 12
22 - 28 18 - 22 3.1 - 4.0 H4 ECO 20
29 - 42 23 - 34 4.1 - 6.0 H5 ECO + Rapid 30
43 - 69 35 - 55 6.1 - 9.8 H6 ECO + 90 Min 60
The factory setting: H3 (EN 50242)
Contact your local water board for information on the hardness of your water supply.

EN 8
USING YOUR DISHWASHER

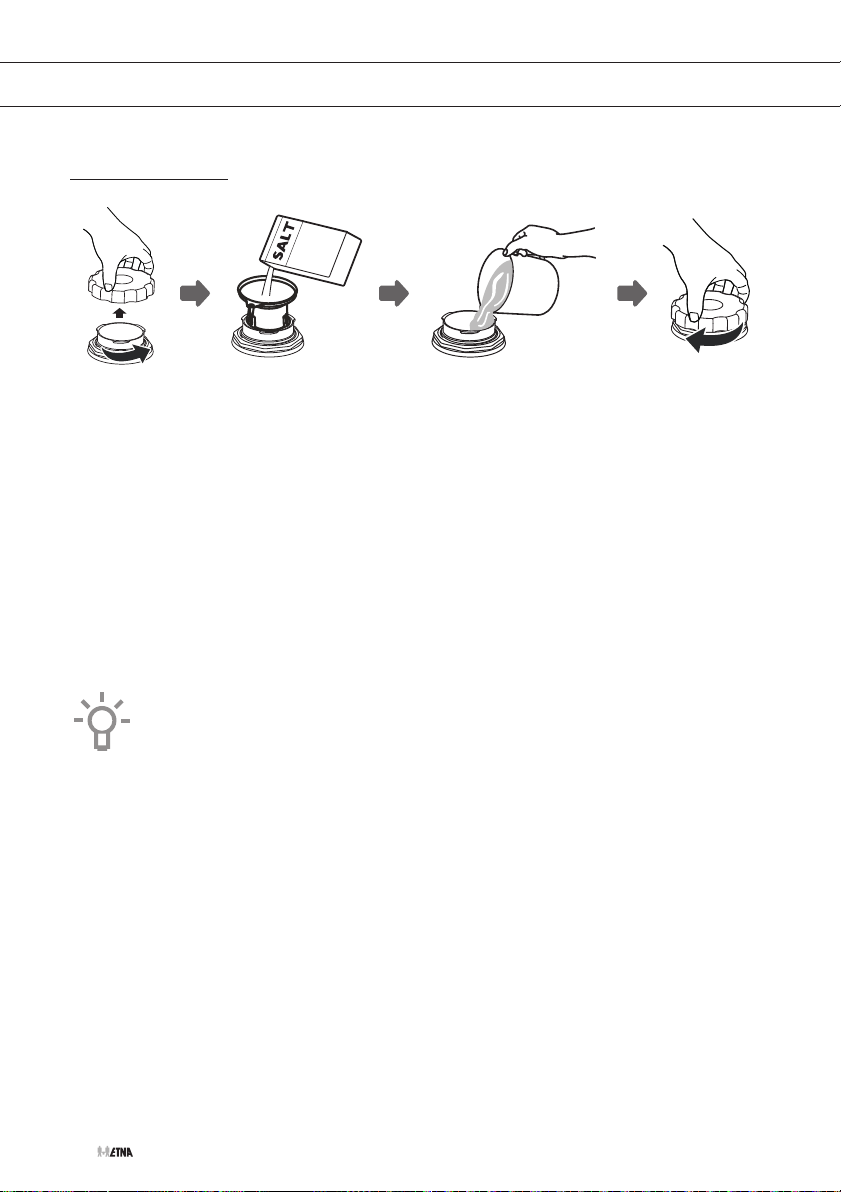

Adding salt
1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the container
3. Fill the salt container to its maximum limit with dishwasher salt (about 1.5 kg). It is normal
for a small amount of water to come out of the salt container.
4. After filling the container, put back the cap (tighten firmly).
5. The salt warning light will go off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should be started
(we suggest to use a short program). Otherwise the filter system, pump or other important
parts of the machine may be damaged by salty water. This is out of warranty.
Note! The salt container must only be refilled when the salt warning light in the control
panel comes on. Depending on how well the salt dissolves, the salt warning light may
still be on even though the salt container is filled. If salt has spilled, run a soak or quick
program to remove it.

EN 9

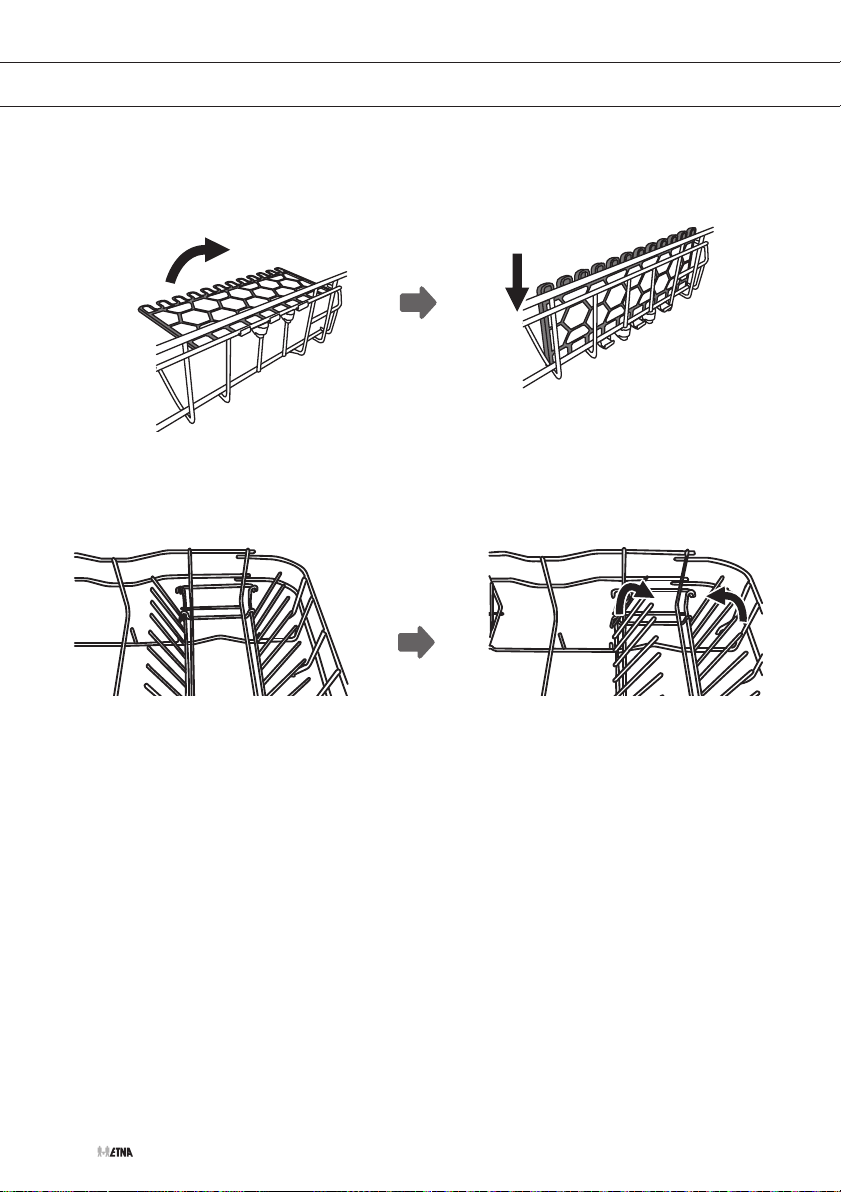

Preparing and loading dishes
• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after
the program has ended.
For washing the following cutlery/dishes are not suitable:
▷Cutlery with wooden, horn china or mother-of-pearl handles
▷Plastic items that are not heat resistant
▷Older cutlery with glued parts that are not temperature resistant
▷Bonded cutlery items or dishes
▷Pewter or cooper items
▷Crystal glass
▷Steel items subject to rusting
▷Wooden platters
▷Items made from synthetic fibres
For washing the following cutlery/dishes are of limited suitability:
▷Some types of glasses can become dull after a large number of washes
▷Silver and aluminum parts have a tendency to discolour during washing
▷Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. For best performance of the dishwasher,
follow these loading guidelines. Features and appearance of baskets and cutlery baskets
may vary, depending on your model.
• Place objects in the dishwasher in the following way:
▷Items such as cups, glasses, pots/pans, etc. are faced downwards.
▷Curved items, or ones with recesses, should be loaded aslant so that water can run off.
▷All utensils are stacked securely and cannot tip over.
▷All utensils are placed in the way that the spray arms can rotate freely during washing.
▷Load hollow items such as cups, glasses, pans etc. with the opening facing downwards
so that water cannot collect in the container or a deep base.
▷Dishes and items of cutlery must not lie inside one another, or cover each other.
▷To avoid damage, glasses should not touch one another.
▷The upper basket is designed to hold more delicate and lighter dishware such as glasses,
coffee and tea cups.
▷Long bladed knives stored in an upright position are a potential hazard!
USING YOUR DISHWASHER

EN 10
▷Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
▷Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Note: Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
Loading the upper basket
The upper basket is designed to hold more delicate and lighter
dishware such as glasses, coffee and tea cups and saucers, as
well as plates, small bowls and shallow pans (as long as they are
not too dirty). Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the lower basket
We suggest that you place large items and the most difficult
to clean items into the lower basket: such as pots, pans, lids,
serving dishes and bowls. It is preferable to place serving dishes
and lids on the side of the racks in order to avoid blocking the
rotation of the top spray arm.The maximum diameter advised for
plates in front of the detergent dispenser is of 19 cm, this not to
hamper the opening of it.
Loading the cutlery basket/cutlery rack
Cutlery should be placed separately from each other in the appropriate positions, and do make
sure the utensils do not nest together, this may cause bad performance.
Warning! Do not let any item extend through the bottom.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first, followed by the upper basket.
Warning! Items will be hot! To prevent damage, do not take glass and cutlery out of the
dishwasher for around 15 minutes after the program has ended.
USING YOUR DISHWASHER

EN 11
Adjusting the height of the upper basket type 1 (depending on the model)
The height of the upper basket can be easily adjusted to accommodate taller dishes in either the
upper or lower basket. To adjust the height of the upper basket, follow these steps:
lower position
upper position
1. Pull out the upper basket.
2. Remove the upper basket.
lower position
upper position
3. Re-attach the upper basket to the upper or lower rollers.
4. Push in the upper basket.
Adjusting the height of the upper basket type 2 (depending on the model)
lower position
upper position
1. To raise the basket to the upper position, lift the basket until both sides are at the same
height. The basket will secure into place.
2. To lower the basket, push down on the handle and release.
USING YOUR DISHWASHER

EN 12
Folding back the cup shelves
To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can
then lean the tall glasses against it. You can also remove it when it is not required for use.
raise upwards fold backwards
Folding back the rack shelves
The rack shelves can be lowered to make more room for large items.
raise upwards fold backwards
USING YOUR DISHWASHER

EN 13
Function of the rinse aid and dishwasher detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off
the dishes. Your dishwasher is designed to use liquid rinse aids.
Warning! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This
would damage the appliance.
When to refill the rinse aid dispenser
• Unless the rinse-aid warning light on the control panel is on, you can always estimate the
amount from the color of the optical level indicator located next to the cap.
• When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot
decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than
1/4 full.
• As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
Full 3/5 full 1/2 full 1/4 full Empty
Function of the dishwasher detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for
this purpose.
Warning! Proper use of the dishwasher detergent
- Use only detergent specifically made for dishwashers use.
- Keep your dishwasher detergent fresh and dry.
- Don't put powdered detergent into the dispenser until you are ready to wash dishes.
- Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach
of children.
USING YOUR DISHWASHER

EN 14
Filling the rinse aid reservoir
Rinse-Aid indicator
1. To open the dispenser, turn the cap to the "open" (left) arrow and lift it out
2. Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.
Note: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming
during the next wash.
3. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right)
arrow.
Adjusting the rinse aid reservoir
The rinse aid reservoir has 6 settings. Both the recommended setting
and the factory setting is “4”. If the dishes are not drying properly or are
spotted, adjust the dial to the next higher number until your dishes are
spot-free. Reduce it if there are sticky whitish stains on your dishes or a
bluish film on glassware or knife blades.
Dial to adjust
USING YOUR DISHWASHER

EN 15
Filling the detergent dispenser
AB
Push latch to open
1. Press the release catch on the detergent dispenser to open the cover.
2. Add detergent into the larger cavity (A) for the main wash cycle.
For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for
the pre-wash cycle.
AB
3. Close the cover and press on it until it locks into place.
Note: Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
USING YOUR DISHWASHER

EN 16
PROGRAMMING THE DISHWASHER
Wash cycle table
The table shows information about the programs.
Program Steps of the was
cycle
Detergent
pre/main
Running
time (min)
Energy
(kWh)
Water
(l)
Rinse
aid
Intensive
Pre-wash (50°C)
Wash (60°C)
Rinse
Rinse
Rinse (70°C)
Drying
5/25g
(1 or 2
pieces)
170 1.6 18.5 Yes
Normal
Pre-wash (45°C)
Wash (55°C)
Rinse
Rinse (65°C)
Drying
5/25g
(1 or 2
pieces)
180 1.3 15 Yes
(*EN 50242)
Pre-wash
Wash (45°C)
Rinse (65°C)
Drying
5/25g
(1 or 2
pieces)
190 1.02 11 Yes
90 Min
Wash (65°C)
Rinse
Rinse (65°C)
Drying
30g
(1 piece)
90 1.35 12.5 Yes
Rapid
Wash (45°C)
Rinse (50°C)
Rinse (55°C)
25g 30 0.75 11 No
*EN 50242: This program is the test cycle.
The information for comparability test in accordance with EN 50242.
Table of contents
Languages:
Other ETNA Dishwasher manuals

ETNA
ETNA TFI7001ZT User manual

ETNA
ETNA AFI8527ZT/E07 User manual

ETNA
ETNA VW547ZT User manual

ETNA
ETNA AFI8524 User manual

ETNA
ETNA GVW448ONY User manual

ETNA
ETNA VWV242CWIT/E01 User manual

ETNA
ETNA TFI8018 User manual

ETNA
ETNA VW747RVS User manual

ETNA
ETNA VWV642ZIL User manual

ETNA
ETNA VWV549ZIL User manual
