Euromaid TL10KG User manual

TL10KG

2
5
7
8
11
12
13
14
15
16
18
1
Contents
Safety and precautions........................................................................
Installation ........................................................................................
Preparation before washing..................................................................
Parts identification ..............................................................................
The operation panel.............................................................................
Quick start..........................................................................................
The washing process...........................................................................
Special features..................................................................................
programme guide.................................. .................................................
Cleaning and Maintenance .................................................................................
trouble shooting......................................................................................................
Technical specifications.......................................................................
9
Observe the following items in order to prevent from injuring yourself, others and the
damage of property:
Please observe following contents of graphics.
！！！
Warning
Caution
This indicates serious injury or death to human being
may be caused.
This will remind you that injury to people and damage
to property may occur.
Please do not directly rinse the
machine with water when
cleaning.
Please do not install the machine in
excessive wet or rainy areas to avoid
electric shocking, catching fire, faults
and distortion
accidents.
No dismantling No touching
No excessive
wet areas
No rinsing
!
This graphic represents［operation prohibited], and detailed prohibitive
items will be displayed inside the graphic.
This graphic represents［cause attention］,and detailed cautions
will be displayed inside the graphic.
This graphic represents [forcible execution], and detailed forcible
execution items will be displayed inside the graphic.
Please do not disassemble
and assemble respectively
the machine without
authorization.
Please do not insert your hand
and take out clothes inside the
wash bowl before
it is fully stopped.
2
Safety and precautions

Please do not let children climb onto
the machine or peer into it during the
spin cycle as an injury may occur.
It is prohibited to wash the clothes that have
come into contact with kerosene, gasoline,
alcohol and other flammable materials.
Please do not use the machine if there
is damage to the power cord or plug to
avoid electric shocks, short circuit of
chance of a fire.
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
Please pull out plug from the socket if the
machine is not in use.
Never pull the plug out by the power lead,
only by the plug.
Ensure machine is only plugged into a
power point that is earthed correctly to
avoid possible accidents or injury.
（earthing）
Please insert the power plug tightly.
！
!
!
Prohibited
Prohibited
Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Do not place burning candles,
mosquito-repellent incense, cigarette
and other flammable items on the
washer. No other heating
sources such as an
electric stove, air heating
fan etc. should be
placed on on
near the machine.
3
Please use correct power source. Please do not pull out or insert the
plug with wet hands to avoid electric
shocking.
Please ensure that the water inlet hose
is connected and the tap is opened
before washing
clothes.
Damage to the power cord or plug
should only be replaced by a
qualified person.
It is strictly prohibited to place and sit
children or lay
weights on the
washer.
Please do not pull the electric cord
when pulling out the
plug.
Please do not wash down jacket,
raincoat, fishing coat and similar
clothes in the
washer.
！
!
!
!
Wet hands are
prohibited
The water temperature shall not exceed
50℃ when washing
with warm water.
Prohibited
Prohibited Prohibited
Prohibited
Caution
4

Remove from the packaging
Installation of the drain hose if not fitted
· Remove package and take out the bottom board of
the cabinet from the foam cushion.
Open the lid of the washer to take out accessories.
Operation or washing on the foamed cushion is
strictly forbidden.
·
·
Base foamed cushion
Installation of the water inlet hose
5
Water inlet hose
Clamping nut
6
Installation Installation
Tightly screw the other end of the inlet hose on the
water inlet valve . (with rubber sealing ring inside).
Note: When tightening the clamping nut, evenly apply the
force and do not twist the valve in case breaking
the valve joint.
Fasten one end of the inlet hose to the tap
(there is a rubber sealing washer inside)
· Completely slide the drain
hose over the sewer.
· Fix it with the hoop.
( As shown in the figure )

Before washing, please do take out coins,
keys and other hard objects, and close
the zip to prevent clothes and
barrel from damage.
7
Inlet hose
Accessories
8
Preparation before washing Parts identification
！
NOTICE
Adjust the feet to level the machine
1
Adjustable foot (extend when
turning clockwise and shorten
when turning anti clockwise )
(Slightly tilt the machine. Adjust the foot knob
to ensure four corners of the machine are steadily
contacted with the ground. If the ground is
obviously not flat, correction should be made on
the ground surface, otherwise the washer barrel
will incline and knock the cabinet)
Install the water
inlet hose.
2
one inlet hose
two inlet hoses
Connect to the
power source.
3
4Open the
water tap.
Fix the drain
hose.
5
Upper drain
Note:
The water
will overflow
when the height
of the drain hose
is under 750mm
the flow will decrease
when over 1200mm.
750~1200mm
Put in
clothes
and
suitable
amount of
washing
powder.
6
Upper drain hose
Power cord
Agitator
Cabinet Adjustable foot knob
Handle
Control panel
Lid
Wash Spin barrel
Washing powder box
Upper drain hose
(for upper drain only)
Water inlet valve
Notice: If the power line damaged, please call maintenance or serviceman of other similar dept. to
change.

Program divide into four washing mode: REGULAR WASHING, SPECIAL PROGRAMMES,
DELICATE WASHING and TURBO CLEANING.
WASHING contain four programs: TROUSERS / PANTS, COATS, SHIRT and TOWELS.
SPECIAL contain four programs: SPORTSWEAR, DEPIGMENT, QUILT and QUICK.
DELICATE WASHING contain four programs: SILK, SYNTHETIC, BABY CLOTH and UNDERWEAR
TURBO CLEANING contain four programs: JEANS, NORMAL,HEAVY DUTY and EXTRA .
REGULAR
PROGRAMMES
HEAVY DUTY
[Power] button is used to
turn on/off the power supply.
Press the [Start / Pause] button will switch the
machine between start and pause modes.
This machine has nine water levels. Press the water level button
to select the corresponding water level.
910
The operation panel
WASH PROGRESS contains Long Soak, Medium Soak,
Light Soak, Agitating, Rinse and Spin.
Water Level Selection WASH PROGRESS Power Supply
Program Selection
Start / Pause
Trousers/Pants
Coats
Shirt
Towels
Sportswear
Depigment
Quilt
Quick
SPECIAL PROGRAMMES TURBO CLEANING
DELICATE WASHINGREGULAR WASHING
Silk
Synthetic
Baby cloth
Underwear
Jeans
Normal
Heavy Duty
Extra Heavy Duty
WATER LEVEL WASH PROGRESS
End
Long
Soak
Medium
Soak
Light
Soak
Agitating
Rinse
Spin
WASH PROGRAMMES

When the programme has finished
Programme selection
1 Install the washing
machine
3 Add the detergent 7 Connect the power
6 Turn on the water tap
8 Select the desired
programme
5 Fix the drain pipe
4 Close the lid
9 Press the
[start/pause] key
11
When the machine stops, the buzzer will buzz continuously for 6 times and
the power will be automatically cut off.
Turn off the water tap.
Pull out the power plug for safety.
1Press the [POWER] button.
3Press the [start/pause] key.
2 Select the programme, then select the water level or other attached functions.
2 Load the laundry
12
! Close the lid before star the machine, otherwise, it will stop automatically
during spin process and alarm.
! The machine will not work when the filled water does not reach the defined lever.
! After turn on the [Power], if the [Start / Pause ] button is not pressed,
the power will be automatically cut off after 10 minutes.
NOTICE
！
Quick start

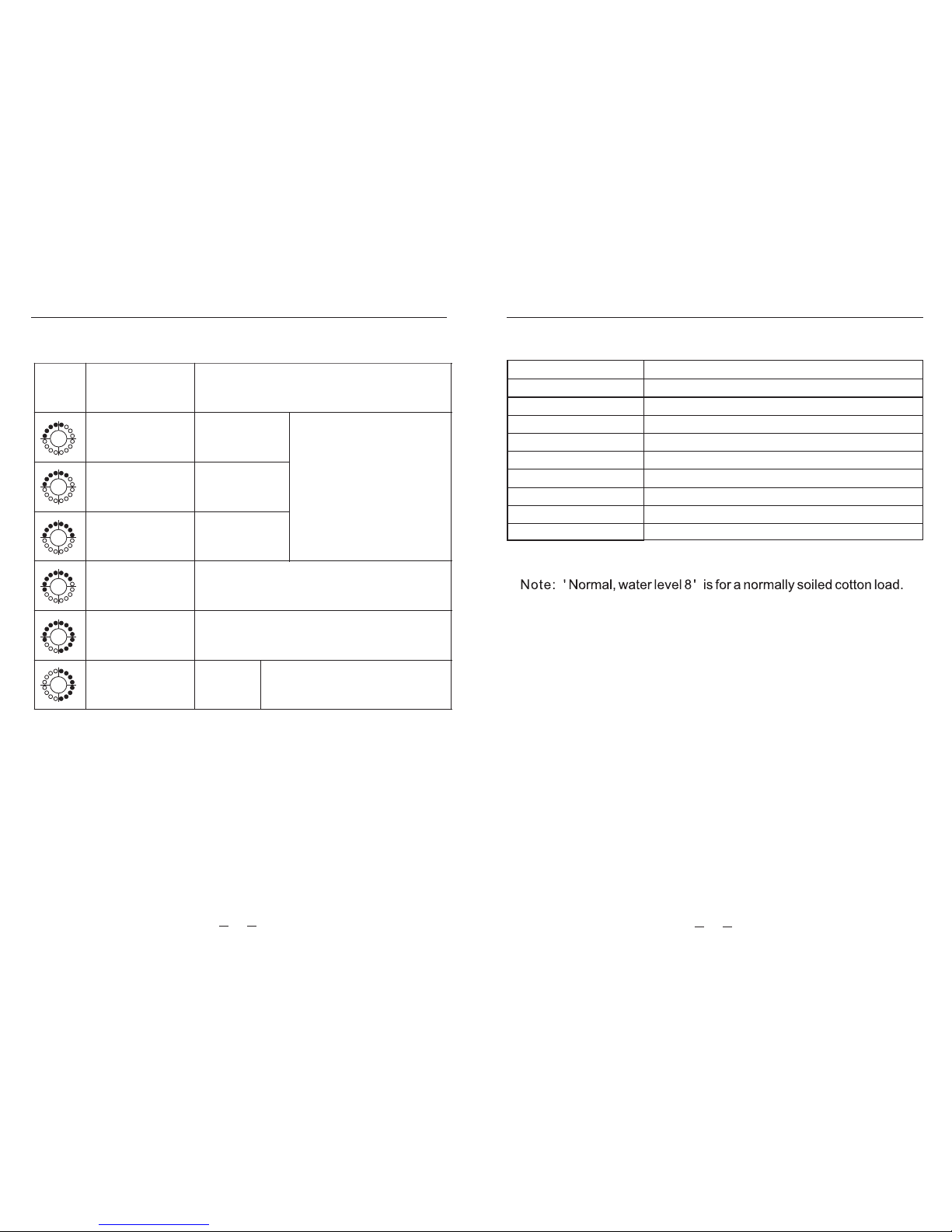

press the Wash Progress button to choose the proper washing progress：
Note: “ ” on ，“ ” off
SOA K Wash Progress
Wash Progress indicator
The washing progress
Long
Soak Medium
Soak Light
Soak
Agitating
Rinse
Spin
Spin
Spin
Spin
Spin
Spin
Rinse
Rinse
Rinse
Rinse
Agitating
Agitating
Agitating
Light
Soak
Light
Soak
Medium
Soak

13 14
TROUSERS / PANTS
This program is used to wash trousers and pants.
COATS
This program is used to wash coats.
SHIRT
This program is used to wash shirts, in shorter period and gently.
TOWELS
This program is used to wash towels.
SPORTSWEARS
This program is used to wash sportwear with little soaking.
DEPIGMENT
Wash with cold water only to prevent depigment.
QUILT
To wash quilt or thick cloths, the low water level is disabled,the
flow strength is enforced, the dynamic soakage is added,and
the washing time is extended.
QUICK
To wash light dirty cloths with only one rinsing cycle.
EXTRA HEAVY DUTY
Similar to ‘quilt’, wash with strong flow, dynamic soakage,
and extended washing time.
HEAVY DUTY
To wash heavy dirty cloths with three rinsing cycles.
NORMAL
To wash cloths contaminated by heavy oil, with short soakage and
extended washing time.
JEANS
Similar to ‘standard’, with 2 rinsing, and short soakages.
UNDERWEAR
The high water level and hot water are disabled; wash gently in
shorter period and more cycles (default as 2).
BABY CLOTH
The high water level and hot water are disabled; similar to ‘st-
andard’ washing with 3 rinsing cycles.
SYNTHETIC
To wash synthetic fibers, the high water level and hot water are
disabled.
SILK
The silk is washed gently with 2 rinsing; the high water level and
hot water are disabled.
Special features
P uide rogramme g
1-6
1-9
1-6
4-9
3 3
Note: The time required will also vary with the water pressures , different clothes
textures and different water drain conditions.
Program water
level
water
level
default
long
soak
light
soak
medium
soak
agitating
rinse
trousers/pants
1-9
9 18
coats 815
2
shirt 612
towels 7 15
silk 49
synthetic 512
baby cloth 410
underwear 38
2
jeans 610 15
normal 710 18
heavy duty 610 10 20
extra heavy duty 8 10 10 10 20
sportswear 610 18 2
depigment 712
quilt 810 10 15
quick 491
(MIN) (MIN) (MIN) (MIN) (TIMES)
SPECIAL
PROGRAMMES
TURBO
CLEANING
DELICATE
WASHING
REGULAR
WASHING

15
·
· Please keep the machine clean and perform correct
maintenance to prolong its service life of washer.
Make sure that the power plug is disconnected before the cleaning and maintenance.
16
Cleaning the water inlet hose joint
Unscrew and remove the water inlet hose joint from the washer and clean the screen of the
inlet valve with brush.
！
NOTICE
Cleaning and Maintenance
No
washing
Abnormal
draining
Abnormal
spin
trouble shooting
List of faults and inspection
Faults Inspection Items
No water
flows in
·
·
·
·
·
·
If the power is off or the fuse is burned out.
If the water supply is cut off or the water pressure is too low.
If the inlet hose is properly connected and the water tap is opened.
If the screen of the inlet valve is blocked by dirt.
If the inlet valve works. (when the inlet valve is switched on, a slight
sound will be heard)
If the [Start / Pause]button is pressed after the power
switch is pressed.
·
·
·
·
If the lid is closed.
If clothing piled up at one side of the barrel or the clothing
put in is beyond the rated capacity.
If the machine is placed unsteadily . (The ground is not flat).
If the motor belt is loose.
Note: During the de spin process, if cloth are piled at one side of the barrel, it will stop
because of unbalance. The user of the machine will detect this and try to correct it
by adding water.
If the unbalance situation can not be solved after three try ,the use will be asked
to replace the clothes manually.
If the machine does not work normally, or alarms, please check as the following list.
If the problem persists, please contact local service office or the sales service
department of our company. The customer should not dismantle the machine without
permission.
·
·
·
If the water drain hose is placed too high.
If the end of water drain hose is blocked.
If the internal rubber ring of the drain valve is blocked by dirt.
·
·
·
·
If the power is off or the fuse is burned out.
If the power supply voltage is too low.
If the water reaches to the required water level.
(The machine will not work before reaching the required water level)
If it is set to "Delay" washing mode. (It will only start upon the
reservation time)

17
Trouble shooting
18
Technical specifications
240V~ 50Hz
Rated power supply
680W
Input power of motor
10.0kg
Rated washing capacity
10.0kg
Rated spin capacity
XX
686 718 1023
Overall dimensions
Application water pressure
65kg
Weight of the whole machine
0.03MPa~0.8MPa
Washing mode Agitate
Draining mode
Spin mode Centrifugal spin
Upper drain
The following is a list of the fault indications and the alarms:
Alarm if water fi ling
or making up last
over 1 hour.
l
Display Causes Solutions
Alarm for draining
time out.
Alarm for unbalance
during spin.
Alarm for water level
sensor problem.
Alarm for communi-
cations problem.
Alarm for door lock
problem.
Check the water
tap is opened or
not.
Check if the drain
hose is placed
correctly.
Please keep the
clothes balance.
Repair
Repair
Repair
Remark: double press [Start/Pause]
to stop the alarm from the locker
and resume the normal state.
Remark: press [Start/ ]
once to unlock the lid; press
it again to stop the alarm and
resume the operation.
Ple ase cal l o ur s erv ice to
repair it, if it fails to get back
to the operational state.
Pause
