Eurotech ED-HPD8WH User manual

Please read this manual carefully before using your dryer
and keep it for future reference.
Eurotech 8kg
Heat Pump Dryer
ED-HPD8WH
INSTRUCTION MANUAL

Read and understand thoroughly this safety instructions before use. The items
indicated here are very important safety precautions, which must be followed.
Any failure and losses caused by ignoring the above mentioned items and cautions
mentioned in the operation and installation instruction are not covered by our warranty
and any liability.
The appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
The rear surface of appliance shall be placed against a wall.
The appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by a utility.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a
tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat.
If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing
oil-affected items can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by
hair care products be placed in a tumble dryer they should first be washed in hot water with extra
detergent - this will reduce, but not eliminate, the hazard.
Disassembly, repair or modification can’t be carried out by people other than professional maintenance staff.
The household electrical supply system (the current, the voltage, the cable)such as a fuse with suitable
specifications should be provided.
should meet requirements of the dryer under normal load, and safety devices.
The power plug must be connected to a three-core socket with an earth wire and is grounded properly and
reliably.
If the supply cord is damaged, it must be replaced by the manufacturer ,its service agent or similarly
qualified persons in order to avoid a hazard.
Don’t disconnect the power plug by pulling the supply cord.
Hold the power plug with your hand.
Don’t use the supply cord when connection of the power plug and the supply cord is loose.
Don’t touch the power plug with wet hands.
Wipe dust or water drops over the power plug off with dry cloth.
Don’t over-bend the supply cord or put it under heavy weight.
Don’t use the supply cord /socket /power plug if it is damaged or broken.
Don’t put combustible liquid such as gasoline, petrol and alcohol into
Don’t put clothes with that liquid into the appliance.
Don’t connect / disconnect the power plug when leakage of gas or other combustible gas occurs.
the appliance or nearby.
1

Never stop a tumble dry before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
This machine is not intended for use by young children or infirm persons without supervision.
The package materials may be dangerous to children. Put all package materials (e.g. the plastic bag) to places
unreachable to children.
Don’t touch laundries in the drying drum till the dryer stops working completely.
Don’t keep children or pets nearby when the dryer is working, for they may be trapped into the dryer.
Please check carefully the drum before closing the door.
Do not install the appliance close to fire sources or heat sources.
Do not rest any burning candles or cigarettes on the appliance.
Do not install the appliance in places with dampness or suffer from rainfalls, lest igniting damages or other
accidents occur easily due to gathered water drops on electrical components.
Do not install the dryer in places under direct sunshine, lest the plastic components and rubber
components become aged.
Do not use water shooting at the appliance when cleaning it.
In order to avoid danger of fires caused by excessive drying, do not use the appliance to dry the following
items: Cushions, quilts and the like (these items accumulate heat).
If you have washed your laundry with stain remover, you must execute an extra rinse cycle before
loading your tumble dryer.
Please make sure that no gas lighters or matches have accidentally been left in pockets of garments
to be loaded into appliance.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra
amount of detergent before being dried in the tumble dryer.
A carpet must not obstruct the openings in the base.
The exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
This appliance is designed for domestic use. It must not be used for purposes other than those for which it
was designed.
Only wash fabrics which are designed to be machine dried. Follow the instruction on each garment label.
Any electrical work required to install this appliance should be carried out by a qualified electrician or
competent person.

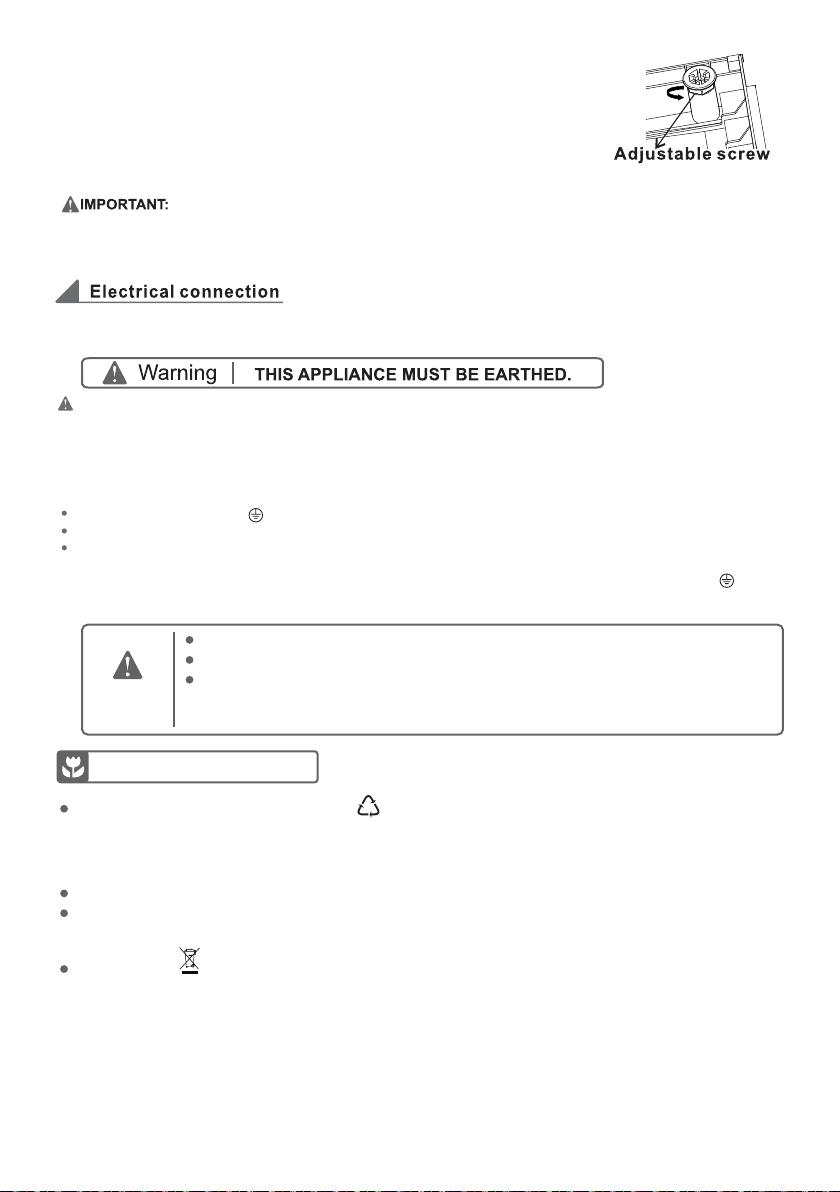

If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely
under the appliance.
Do not climb onto the dryer or rest heavy objects / heating devices or items with water or liquid leakage on
the dryer, lest deformation of the face panel and the plastic component occur.
Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause
extensive damage and must not be placed into the machine.
After having installed the appliance, check that it is not pressing or standing on its electrical supply cable, or
vent hose.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Always unplug the appliance after use, clean and maintenance.
Do not overload the appliance. See the relevant section in the user manual.
Clothes which are dripping wet should not be places in the dryer.
2

Garments which have been in contact with volatile petroleum products should not be machine dried.
If volatilecleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment
before placing in the machine.
Never use the tumble dryer if the power supply cable ,the control panel, the working surface or the base are
damaged so that the inside of the tumble dryer is accessible.
The tumble dryer is not be used if industrial chemicals have been used for cleaning.
The lint must not to be allowed to accumulate around the tumble dryer.
Do not dry unwashed items in the tumble dryer.
Fabric softeners or similar products should be used as specified by the fabric softener instructions.
The final pat of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at
a temperature that ensures that the items will not be damaged.
That the appliance must not be installed behind a lockable door ,a sliding door or a door with a hinge on the
opposite side to hat of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

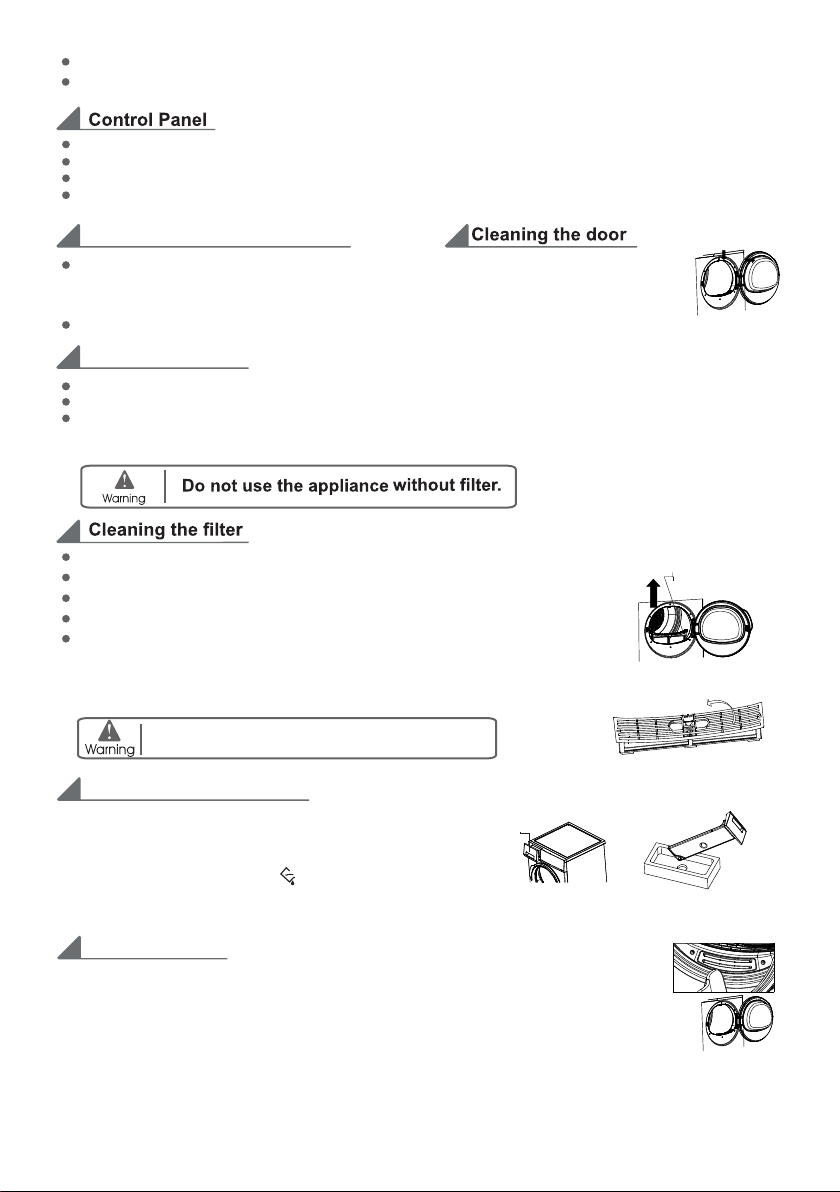

The lint trap has to be cleaned frequently.
The adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances
burning other fuels, including open fires.
Remove all objects from pockets such as lighters and matches.
Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
Hermetically sealed system.
Do not vent gases into the atmosphere.
Refrigerant(Type):R-134a(GWP=1430)
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the
opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
3

1. Programme Selection Knob 2. Time 3. Child Lock 4. Dry Level
5. Anti Crease 6. Buzzer 7. Delay Start 8. Start/Pause
9. Indicator Lights: Drainage Container
Fluff Filter
7
6
5
3
2
149
8
Control panel
Ensure that the electrical connections comply with the installation instructions.
Remove the polystryrene block and any material from the drum.
Before using your tumble dryer for the first time, we recommend that you place a few damp cloths inside the
appliance and dry for 30 minutes .There may be dust inside a brand new tumble dryer.
Open the door
Place the laundry in the drum, one item at a time ,shaking them out as much as possible.
Close the door .
Please check the laundry does not get caught between the door and filter.
4
1.Control Panel
2.Water Tank
3.Fluff filter
4.Door
5.Condenser cover
6.Adjustment leg
5
1
3
4
2
6

Turn the program selector dial to the required program. The corresponding function lights is on.
The program will be switched off if you have not pressed any button for 10 minutes.
Attention:
Some thick clothes ( jeans, big towel ).
Because of the material characteristics, some place
hard to dry.
If you find that they are not completely dry at the
end of the program. It is recommended to use the
“Time” program to dry again.
You can choose different programme base on your different clothes materials. The device has the
function with sensor the moisture in order to automatically adjust the drying time for optimal drying.
This automatic control system is fit for most programme except Warm Air, Refresh and Time.
You can choose the time of drying according to the actual situation, the knob is turned to the Time, and
you can also increase it to the desired time by pressing the Time button.
To cancel a program which is running, turn the program selector dial to “off ”.
At the end of drying, turn the selector dial to “off ” to switch the machine off before removing the laundry.
Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and before depressing the Start /Pause
button. When these buttons are pressed, the corresponding indicator lights comes on. When they are
pressed again, the indicator lights go out.
Press the “Dry level” and “Anti-Crease” buttons at the same time until a beeping sound occurs,then
the “ ”icon flash faster.
Follow the APP guidelines until the “ ”icon is always on means it’s works.
“WIFI” FUNCTION (OPTIONAL)
The buzzer can be selected during normal use. Press the “Buzzer” button
to turn off the buzzer and corresponding light. Press once again to activate
the buzzer and corresponding light. A sound will be emitted.
The “Buzzer” key is pressing Anti Crease and Delay Start at the same time for 3 second.
When the buzzer is on, if you press the “buzzer” button once more, the buzzer will be switched off.
Select the Dry level
Before you start the machine, you can choose the dry level. The dry level is divided into three
grades. ( Heavy Strong Normal )
This option is only suitable to the five programs: Standard, Cotton, Synthetic, Bulky Item, Towel.
Anti-crease is a default setting at the end of each programmes.Longer Anti-crease can be selected
while the programme is standby or pause.5

This button allows you to delay the starting of the program by 24 hours max.
This option must be selected after having selected the program and before pressing Start/Pause to
start the program.
Every time the button is pressed, the time is increased by 1 hour.
24
It can be selected in both cases before and after selecting option programme (Buzzer,Anti-creasing).
The countdown begins after you have pressed the Start/Pause button and the corresponding
light illuminates.
The display shows the remaining time. The remaining time is displayed hour by hour.
The display shows the following information:
After you have selected the program, its duration (in hours and minutes) appears on the display.
It is calculated automatically on the basis of the maximum load accepted for each type of fabric and of the
required degree of drying.
When the program starts, the remaining time is displayed every 1 minutes
Delayed Start
If you have selected a delay time by means of the relevant button, the display shows it,
The countdown is displayed hour by hour. Once you press the “Start/Pause” button, the appliance will start
the delayed process.
If you want to check the selected program ,press the “Delay Start” button again.
It shows the duration of the previously selected program.
Incorrect option selection
If you select an option that is not compatible with the program you have selected, the display shows ErS (error) .
If you select other program because of incorrect operation while the program is running, the display shows
ErS (error).
Press this button to start the dryer after having selected the program and the options. If the door of the
appliance is opened while the program is running ,this button must be pressed again after closing the door
in order to restart the program from the point at which it was interrupted. In this cases the light of the
Start/Pause button flashes to remind you that the start button needs to be pressed again.
These lights indicate the following functions:
Drying light
This light indicates that the appliance is in the drying phase.
Cooling light
This light indicates that the appliance is in the cooling phase. At the end of drying,
there is a two minutes cooling phase to cool the laundry.
End of programme light
This light is on at the end of the cooling phase.
Anti-creasing light
This light is on when anti-creasing programme is selected.
Filter light
It comes on every cycle to remind you that the filter must be cleaned at the end of
the programme.
6

All drying programmes end with 10 minutes cooling phase. If the laundry is not removed at the end of
the cycle, the dryer runs anti crease phase (default: 30 minutes, select: 120 minutes).
If you do not remove the laundry, the dryer will stop automatically at the end of the anti crease phase.
The display shows “End” and the buzzer sounds for 15 seconds when the buzzer function is on.
To finish,turn the programme selector dial to off.
When the machine is on, press meantime “Time” and “Dry level” button the system will
lock all the buttons. Then all buttons are invalid except “off ”. If you want to make the appliance to return to
the normal state ,then press “Time” and “Dry level” button for several seconds meantime again.
The function will be released in the following cases:
Open the door during operation
Take out filter drawer during operation
Water tank full
You can set again the “Child Lock” function when you restart the machine.
for several seconds,
Child Lock light
This light indicated the appliance is locked.
Buzzer light
This light is on when buzzer programme is selected.
Delay Start light
This light is on when delay start programme is selected.
Drying Type light
these lights will be on when Dry Level function is selected.
When you choose different drying intensities, the corresponding indicator light turns on.
Tank full light
It comes on after each program and also when the water tank is full. which
remind you to empty the water container.
Note! Empty the water container after each program to avoid the alarm when use in next time.
Important!
program selector dial to position “Refresh” and wait until the end of this cooling phase before removing
the laundry.
This will avoid a build-up of heat inside the appliance.
To do this first turn the dial to “off ” and then to “Refresh” and depress the“Start” button.
Modifying the program
To change a program which is running, first cancel it by turning the programme selector dial to “off ”.
Select the new program and press the “Start” button.
Attention: According to "-" for the dormant state;
- standby mode, 10 minutes later, without any operation, enter a dormant state.
- controller shows "End", 10 minutes later ,without any operation, enter a dormant state.
If the drying program has to be stopped before it reaches the end , we recommend that you turn the
7

Never tumble dry the following: Particularly delicate items such as net curtains ,woolen, silk, fabrics with metal
trim, nylon tights, bulky materials such as anoraks, blankets, eiderdowns, sleeping bags, feather quilts and any
items containing rubber foam or materials similar to rubber foam.
Always follow the instructions on garment labels:
Close pillowcases and covers with fasteners to prevent small laundry items getting tangled inside
Close press studs, zips, hooks, tie belts and apron strings. Sort laundry according to type and degree of
drying required.
Do not over-dry laundry, this avoids creasing and saves energy.
Avoid drying dark clothes with light coloured fluffy items such as towels as they could attract fluff.
The laundry must be thoroughly spun before tumble drying.
Easy-care items, e. g. shirts, should be briefly pre-spun before drying.
Knitted textiles(knitted underwear) may shrinkage a little during drying. Please do not over-dry items of
this type. It is advisable to allow for shrinkage when choosing the size of new purchases.
To avoid a static charge when drying is completed, use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for tumble dryers.
Remove the laundry when the dryer has finished drying.
If individual items are still damp after drying ,set a brief post-drying time ,but at least 30 minutes. This
will be necessary particularly for multilayered items (e.g. collars ,pockets ,etc.)
them.
Button up pillowcases ,close zip fasteners ,hooks and poppers. Tie any belts or long tapes.
To avoid laundry becoming tangled:
Close zips ,button up duvet covers and tie loose ties or ribbons(e.g.of aprons).
Turn items with double-layered fabrics inside out(e.g.with cottonlined anoraks ,the cotton layer should be
outermost) .These fabrics will then dry better.
Remove all objects from pockets such as lighters and matches .
WARNING: The appliance must not be supplied through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on and off by a utility.
Recommended loads are indicated in the program charts :
General rules:
Cotton,linen : drum full but not too tightly packed ;
Synthetics : drum no more than half full ;
Delicate fabrics and woollens : drum no more than quarter full.
8

Kind Notice: for drying bathrobe and toweling towel, the max load don’t exceed 6kg.
Drying programmes
Blend materials usual clothes and so on.
It is possible to choose different drying strength
Underwear
Time
Refresh
Warm Air
Standard
Bulky Item
Towel
Duvet
Baby Care
Cotton clothes and so on.
It is possible to choose different drying strength
4kg
4kg
1kg
3.5kg
3kg
Knitted sweater and so on.
–
8kg
8kg
2kg
–
–
2kg
Shirts
Denim
Sportswear
2kg
2kg
4kg
Chemical fiber products and so on.
It is possible to choose different drying strength
To dry the larger clothes. (bedsheet, Quilt cover)
It is possible to choose different drying strength
Towel and so on.
It is possible to choose different drying strength
Down jacket
Baby clothes
Used for drying delicate material loads, such as silk, etc.
The machine dries depend on the display time, regardless
of the drying level.
The clothes are deodorizing and fresh, and the intensity
of drying is weak.The machine dries depend on the
display time, regardless of the drying level.
Drying thick or multi-layered textiles,the machine dries
depend on the display time, regardless of the drying level.
e.g. terry towelling items.For drying individual items of
laundry or for small volumes.
Underwear
Shirts
Denim
Sportswear
Cotton
Synthetic
Wool
You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or
maintenance work .
Don’t clean the dryer by directly spraying water onto the dryer. Don’t clean the dryer with benzene, thinner,
alcohol, or acetone. Otherwise, it may cause discoloration, deformation, damage. electric shock or fire.
9

Stainless Steel Tumbler
To clean the stainless steel tumbler, use a damp
cloth with a mild, non-abrasive cleaner suitable
for stainless steel surfaces.
Remove the cleaner residue and dry with a clean cloth.
Clean periodically the interior part
of the door to remove any fluff.
Accurate cleaning ensures correct
drying.
Dryer Exterior
The enter dryer has a high-gloss finish. Clean with a soft, damp cloth. Don’t use abrasive substances.
Protect the surface from sharp objects as they may scratch or damage the finish.
Don’t place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased
pedestal or in a separate storage box.
Open the loading door.
Remove the lint filter by putting it up and open the lint filter.
Clean lint, fibre, and cotton raveling by hand or with a soft piece of cloth.
Close the lint filter and place it back into its housing.
A layer can build up on the filter pores that can cause clogging of the filter after
using the dryer for a while. Wash the lint filter with warm water to remove the
layer that builds up on the lint filter surface. Dry the lint filter completely before
reinstalling it.The lint trap has to be cleaned frequently.
Always clean the lint filter and the inner surfaces
of the loading door after each drying process.
Filter case
Clean with a soft, damp clothes. Do not use abrasive substances.
Don’t spray cleaners directly on the panel.
The control panel finish may be damaged by some laundry pre-treatment soil and stain remover products.
Apply such products away from your dryer and wipe up any spills or overspray immediately.
When cleaning the product, be sure to unplug the power cord.
Durning the drying cycle, the control panel or the door may accumulate moisture.
Water-tank
Water container collects all of the water from condenser.
Water container need to be emptied after every drying
cycle. If the water container is full, an active programme
will break off automatically. the light will comes on
and the buzzer sounds. In order to continue the
programme, the water container must first be emptied.
Water container emptied
1.Pull out water container
3.Pull the water container
in dryer
2.Tip water into pool
4.Press the Start/Pause
button
Humidty sensor
In the movement process, this device is used for induction clothing humidity, it means
that it must be carried on cleaning. Major cause of clean is must scour out the calcium
oxide boiler which on the sensor surface up. Clean the sensor in the tumbler (See picture).
10

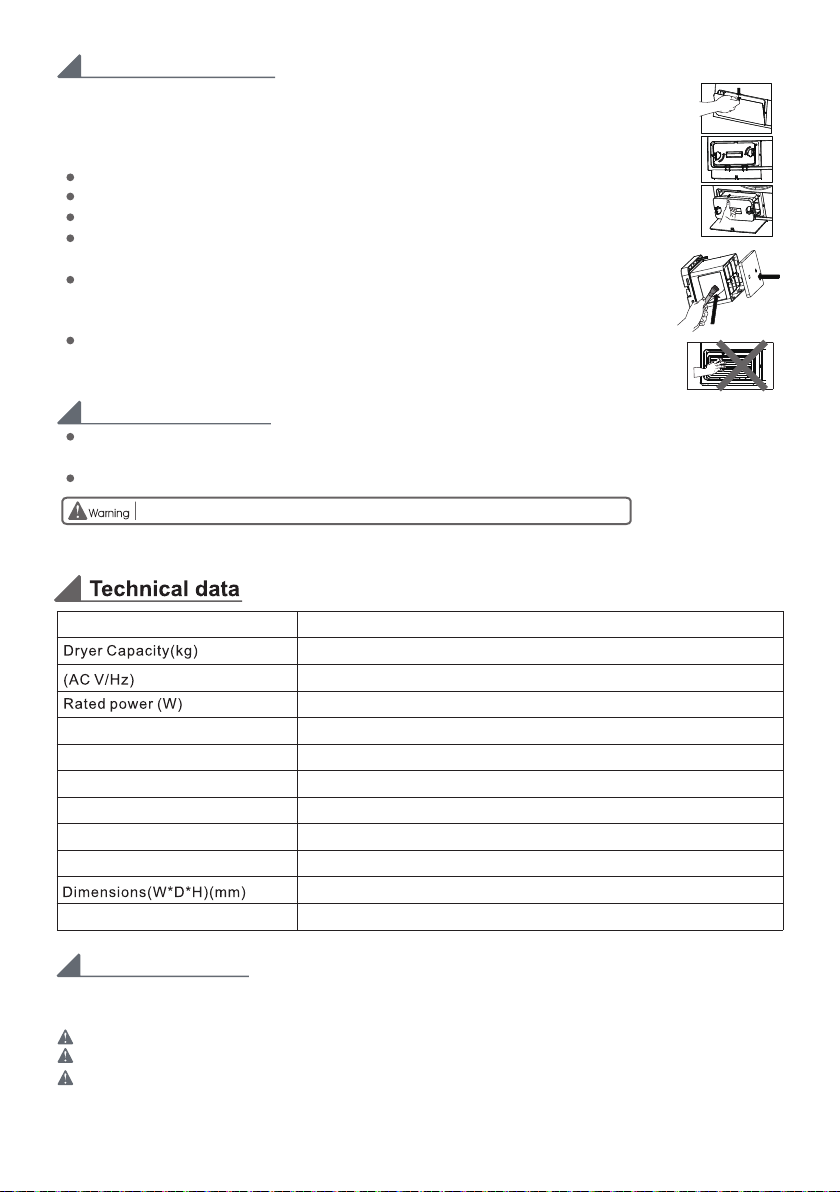

Clean the filter drawer
Lint and fibre that could not be captured by the lint filter are blocked in the filter drawer
behind the cover.
Clean the filter drawer after each drying process. There is a two-level filter in the filter drawer.
The first level is the filter drawer sponge and the second level is the filter cloth.
Press the button to open the cover.
Unlock the fixer.
Pull out the filter drawer.
Clean lint, fiber and cotton raveling on the filter cloth by hand or with a soft
piece of cloth.
When you notice a layer that may lead clogging on the filter cloth, please clean
the layer by washing in warm water. Let the filter cloth dry thoroughly before
installing back the filter drawer.
Wash the filter drawer sponge by hand to remove the fiber and lint on the surface.
After washing the sponge .squeeze it by hand and remove the excess water.
Well-dry the sponge before storing it.
Clean the evaporator
Clean the lint accumulated on the fins of the evaporator drawer with a vacuum
cleaner or a soft brush. You can also clean by hand provided that you wear protective gloves.
It is recommended to clean it at least twice every month.
located behind the filter
Never attempt to clean with bare hands. Evaporator fins can harm your hand.
IMPORTANT : If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Power(left-on mode)(W)
Power(off mode)(W)
Energy consuption at full load(kWh)
Programme time at full load(min)
Dryer Model
650
47
220-240/50
0.48
0.48
2.8
290
ED-HPD8WH
8.0
It is dangerous to alter the specifications or attempt to modify this product in any way.
Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
Any electrical work required to install this appliance should be carried out by a qualified electrician
or competent person.
A separate earth is required by some local rules.In that case,you need buy grounding wire,
screws.
clips and
Procedure
11
Weight(kg±10%)
Ambient temperature range(℃)
595X630X850
5 ~ 35
Energy efficient gear Standard

drainpipe
manual
Quantity
IMPORTANT: The appliance must not bulit-in.
Unpacking: All packing, must be removed before
using the appliance.
Check accessory:
Open the accessory bag and check the accessories.
Should the appliance be moved, it must be transported
vertically.
Malfunction Possible Cause Solution
Dryer does
not work
Drying results
unsatisfactory
Drum light does
not work(option)
Drying cycle ends
shortly after
programme starts.
"END" light
illuminated.
Drying cycle lasts
an unusually long
time
Mains plug is not plugged in.
Loading door is open.
Have you pressed the button?
Wrong programme selected.
Filter clogged.
Incorrect volume of laundry.
The sediment on humidity sensor.
Light bulb is defective.
Not enough washing loaded or
washing load is too dry for selected
programme.
Load volume is too big.
Select a different programme the next time
you dry(see "Drying Programme "section).
Clean lint filter.
Observe recommended loading volumes.
Replace light bulb.
Select higher drying level(e. g. Heavy instead
of Strong)
Reduce load volume.
Plug in at main socket.
Close loading door.
Press the button again.
note of the model, serial number and purchase date of your machine: the Service Center will require this
information.
If you are unable to identify or solve the problem, contact our service center. Before telephoning, make a
This appliance must be earthed. In case of failure or damage, earth can provide a minimum resistance
to reduce the possibility of electric shock. The power cord has grounding wire with device and power
cord with plug. Plug must be inserted into a properly installed and grounded socket(in accordance
with all local rules and standards).
Earth note
Water discharge
It’s not necessary to discharge the condensed water to the tank, it can
be drained out directly.change drainpipe.
Pull out the water pipe by means of the arrow direction ,Then install the
drainpipe.
Such as the pilers can be used if it is difficult to do.
Caution!
Before use the machine, the packaging foam must be removed from
the drum.
1.Open the loading door.
2.Pull off adhesive strips from inside machine on top of drum.
3.Remove the two packaging foam from the machine.
Removing transport safety packaging foam
two packaging foam
12

The hot air emitted by the tumble dryer can reach temperature of up to 60°C.The appliance
must therefore not be installed on floors which are not resistant to high temperatures.
A cut off plug inserted into a socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of safely.
Permanent connection
In the case of permanent connection it is necessary that you install a double pole switch.
The switch must not break the yellow and green earth cable at any point.
Warning
The wire coloured green and yellow must be connected to the terminal marked with the letter
or by the earth symbol or coloured green and yellow.
Green and Yellow-Earth
Blue-Neutral
Brown-Live
The manufacturer declines any liability should this safety measure not be observed.
Before switching on, make sure the electricity supply voltage is the same as that indicated on the
appliance’s rating plate.
Should the plug need to be replaced for any reason, proceed as described below.
The wires in the mains lead are coloured in accordance with the following code:
Any electrical work required to install this appliance should be carried out by aqualified electrician or
competent person.
Check across the corner
When press on the edge, the machine should not shake up and down.
(please check two direction) when press on the top frame (across the
corner), the dryer shakes, need to re-adjust the adjustable feet.
Do not put stacks of blanket or a rope on the floor, which could generrate
some heat and affect the machine running.
The materials marked with the symbol are recyclable.
Packaging materials
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in appropriate collection containers.
Old machine
Use authorized disposal sites for your old appliance. Help to keep your country tidy!
The symbol on the product or on its packaging indicates that this product may not be treated
as household waste. Instead it should be taken to the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local council, your household waste disposal
service or the shop where you purchased the product.
13

Ecological hints
Do not over-dry laundry,this avoids creasing and saves energy.
Select the drying programme according to the type of laundry and the required degree of dryness.
Clean the filters regularly to avoid excessive drying times and high electricity consumption.
Ventilate the room well.
To save energy and to help protect the environ ment, we recommend that you follow these hints:
Try to load the maximum capacity of the machine as small loads are uneconomical.
We undertake that if within 12 months of the date of the purchase this appliance , we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating
plate.
The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer's instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
This guarantee is in addition to your statutory and other legal rights.
Standard guarantee conditions
This guarantee does not cover
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of our manufacture which are not marketed by us.
The Symbol mean: caution, risk of fire Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough
to catch fire. Piling, stacking or storing oilaffected items can prevent heat from escaping and so create a
fire hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated
by hair care products be placed in a tumble dryer they should first be washed in hot water with extra
detergent - this will reduce, but not eliminate, the hazard.
Marking explanation
CE marking
VVolt
WHz
Tested safety
Watt Hertz
Alternating current
risk of fire
~
14

15
DH-80S5C DH-80S5U/DH-80S5K / PCB board
PE
Red
White
Brown
N L
Humidity sensor
Outlet temperature
Heating tube temperature
CN12
CN14
pump
CN10
MOTOR
Fan
CN9
Lamp
F
CN6
M
M
LED
CN2
CN3
White
CN8
White White
White
CN20
Door
Buoy
S6
S5
S4_1
CN3
White Blue
CN5
Compressor
X
CN2
White
CN4
PE
PE
operating panel Programme selector dial

DH-80S5CW DH-80S5UW / PCB board
16
operating panel Programme selector dial
PE
Red
White
Brown
N L
Humidity sensor
Outlet temperature
Heating tube temperature
CN12
CN14
pump
CN10
MOTOR
Fan
CN9
Lamp
F
CN6
M
M
WiFi Board
LED
CN2
CN3
White
CN8
White White
White
CN20
Door
Buoy
S6
S5
S4_1
CN3
White Blue
CN5
Compressor
X
CN2
Red
CN17
White
CN4
PE
PE
