Frigidaire FASE7021NW User manual

Front Load Dryer
FASE7021N W
Signature Features
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
One-Touch™ Wrinkle Release
This option features Wrinkle Release
Technology that finishes by tumbling
without heat, preventing wrinkles,
so your clothes look great every time.
No-Wash Sanitize Option
A convenient option to quickly sanitize
or refresh items without washing.
Perfect for delicate items or children’s
plush toys.
Express-Select® Controls
Easily select options and cycles with the
touch ofa button.
SilentDesign™
Designed for quiet operation.
Optional Pedestal Drawer
NSF® International Certification
Available in:
1Based on AHAM standard for 8 lb. load for various
load compositions/Quick Cycle selected.
2Based on 7.0 Cu. Ft. capacity on 36" installation
platform.
frigidaire.com
10 Dry Cycles
7.0 Cu. Ft. Electric
Optional SpaceWise® Pedestal Drawer Shown
DrySense™ Technology
Dries your clothes more precisely,
reducing wrinkles.
Fastest Full Load Dry1
Dry a full load in just 25 minutes.
TimeWise® Technology
With TimeWise® technology, wash time
equals dry time — so you don’t wait for
clothes to dry.
Ultra-Capacity Dryer2
Largest capacity lets you do the most
laundry in the least amount of time.
Classic
White
(W)

Front Load Laundry - Dryers (E & G)
Frigidaire Affinity (L models)
BC
A
C
B
A
Front Load Dryer
FASE7021N W 7.0 Cu. Ft. Electric
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FASE7021N 03/12 © 2012 Electrolux Home Products, Inc.
Specifications
subject to change.
Features
Total Capacity (Cu.Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O”
Cycle Signal Volume Control
Control Lock
Start/Pause/Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
Cycles
Dry Cycles
Specialty Cycles
Options
Temperature Selections
Dryness Level Selections
Timed Dry
Optional Accessories
Dryer Stacking Kit
15" Frigidaire Anity® Pedestal Drawers
Classic Red (R)
Classic Silver (A)
Classic White (W)
Mobile Home Installation Kit
Drying Rack
Certifications
NSF® Certified Sanitize
Specifications
Maximum Exhaust Duct Length1(Ft.)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
Accessories information available
on the web at frigidaire.com
1
Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows
and vents. Refer to Installation Guide on web for additional information.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

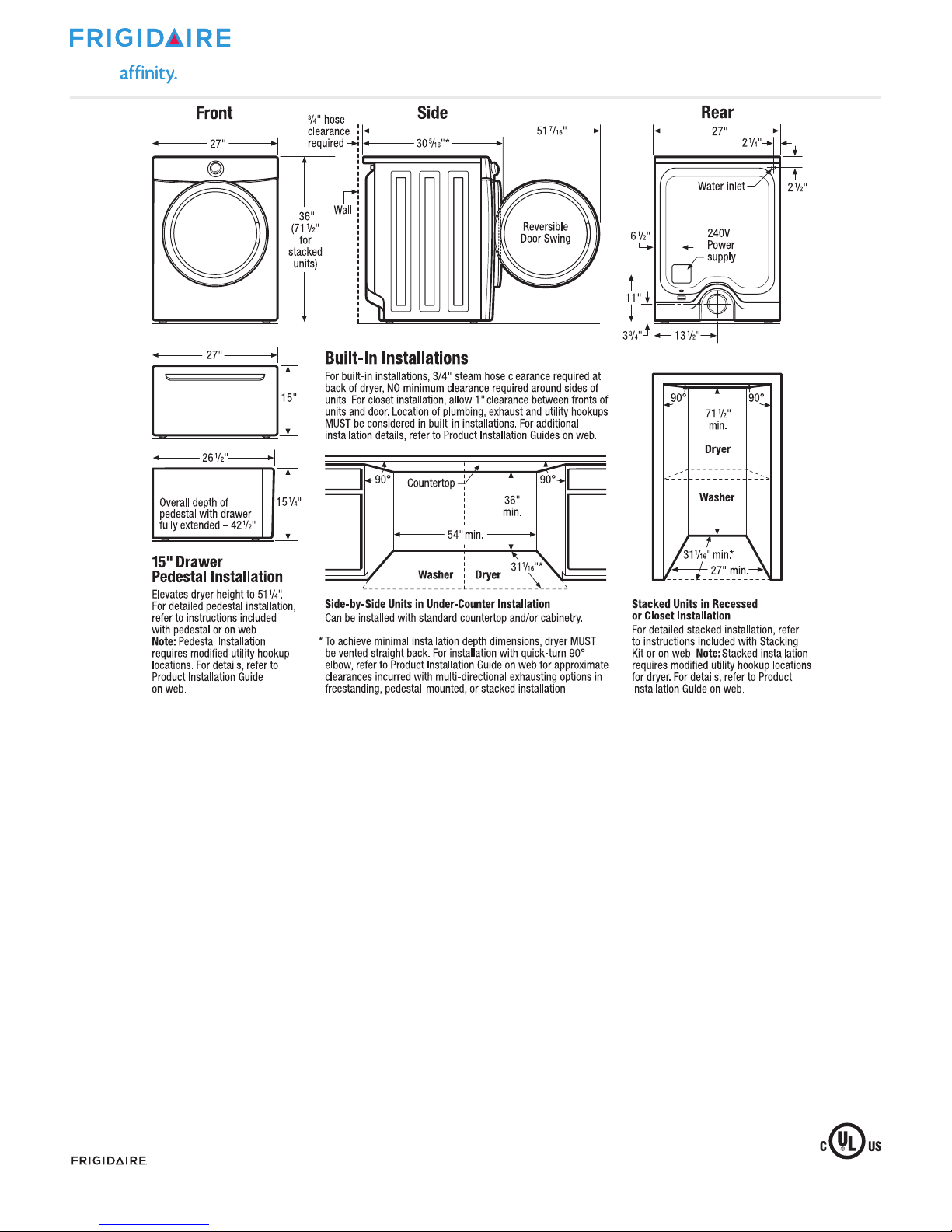

Product Dimensions
A-Height (Single)
Height (Stacked)
B-Width
C-Depth
Depth with Door Open 90˚
Pedestal Dimensions
A-Height
B-Width
C-Depth
Depth with Drawer Fully Extended
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/2"
42-1/2"
7.0
Express-Select®
Painted Steel
Yes
Color-Coordinated
Option
Yes
Yes
Yes
Yes
Yes
Yes
Chime
Yes
Yes (Key Combination)
Yes
50
Yes
Yes
SilentDesign™
Yes
10
0
5
4
30, 60, 90
PN# STACKIT4X
(W) PN# CFPWD15W
PN# 137067200
PN# 137067300
Yes
64
Right Bottom Rear
240V/60Hz/30A
5.4
24
5,500
140 Lbs.

USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FASE7021N 03/12 © 2012 Electrolux Home Products, Inc.
Specifications
subject to change.
Front Load Dryer
FASE7021N W 7.0 Cu. Ft. Electric
Front Load Laundry - Electric Steam Dryer
Frigidaire Affinity (All N Models)
Front Load Dryer Specifications
•Product Shipping Weight (approx.) – 140 Lbs.
•An electrical supply with grounded three-prong receptacle is required.
•Voltage Rating – 240V / 60 Hz / 30 Amps
•Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line. (Do not use same circuit as washer.)
•Connected Load (kW Rating) @ 240 Volts = 5.4 kW
•Amps @ 240 Volts = 24 Amps
•Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or
4-conductor NEMA 14-30 type SRDT or ST (as required), rated at
240 volt AC minimum, 30 amp power supply cord marked for
use with clothes dryers (not supplied).
•Grounding through neutral link prohibited in specific applications and
certain locales, requiring use of 4-wire system. (For detailed electrical
requirements, refer to Product Installation Guide on web.)
•Always consult local and national electric & plumbing codes.
•Can be installed alone, with or without optional 15" Drawer Pedestal,
or stacked above matching Frigidaire® Affinity Washer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)
•Can be built in with matching Frigidaire® Affinity Washer in under-
counter, recessed or closet installation. (Refer to Built-In Installations
on this page for cutout dimensions. For additional installation details,
refer to Product Installation Guide on web.)
•Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
of door. Full-length 120 sq. in. opening also acceptable. Allow
additional 1" clearance between fronts of units and closed door.
•Do NOT install in area exposed to dripping water or outdoor weather
conditions; where gasoline or other flammables are kept or stored; or
where dryer comes in contact with curtains, drapes or anything that
will obstruct flow of combustion and ventilation air.
•For garage installation, dryer MUST be located minimum 18" above floor.
•Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
•Dryer MUST exhaust to outside of building, NOT into any concealed
space.
•Exhaust installation requires minimum 4"-diameter rigid or semi-rigid
metal duct with approved, unobstructed vent hood having swing-out
damper(s). If installing rigid metal duct (preferred), do not exceed
MAXIMUM venting run length of 64 ft., allow deductions for elbows
and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM
venting run length of 8 ft., always allow deductions for elbows and
vents (Refer to Product Installation Guide on web for additional
information). Do NOT use flexible plastic or metal foil duct and use
shortest run possible.
•Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
•Water inlet hose for steam setting connects to cold water supply with
“Y” connector and requires 3/4" clearance between back of unit and wall.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Dryer Stacking Kit – (PN # STACKIT4X).
•15" Classic White Drawer Pedestal – (PN # CFPWD15W).
•Mobile Home Installation Kit – (PN # 137067200).
•Drying Rack – (PN # 137067300).
