Introduction:
This product can be operated in any Z-Wave network with other Z-Wave Plus™ certified devices from other manufacturers.
All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal
around obstacles and radio dead spots to ensure that the signal is received at its intended destination.
ZW12 is a security enabled Z-Wave Plus™ device. A security Enabled Z-Wave Plus™ Controller must be used in order to fully utilize the product.
The Device Type of the ZW12 is on/off power switch.
The Role Type of the ZW12 is Always On Slave Role Type
Key
Features
:
---Remote ON/OFF control via the Z-Wave™ controller
---Manual ON/OFF control with the front panel push button
---Support Association Group and Auto Report switch status
---Support firmware upgrades via Over-the-air (need Gateways support)
---Support Scenes
Product Overview:
A. Push button
B. Status LED
C. POWER INPUT DC:5V
D. Connect the switch
E. Relay Output

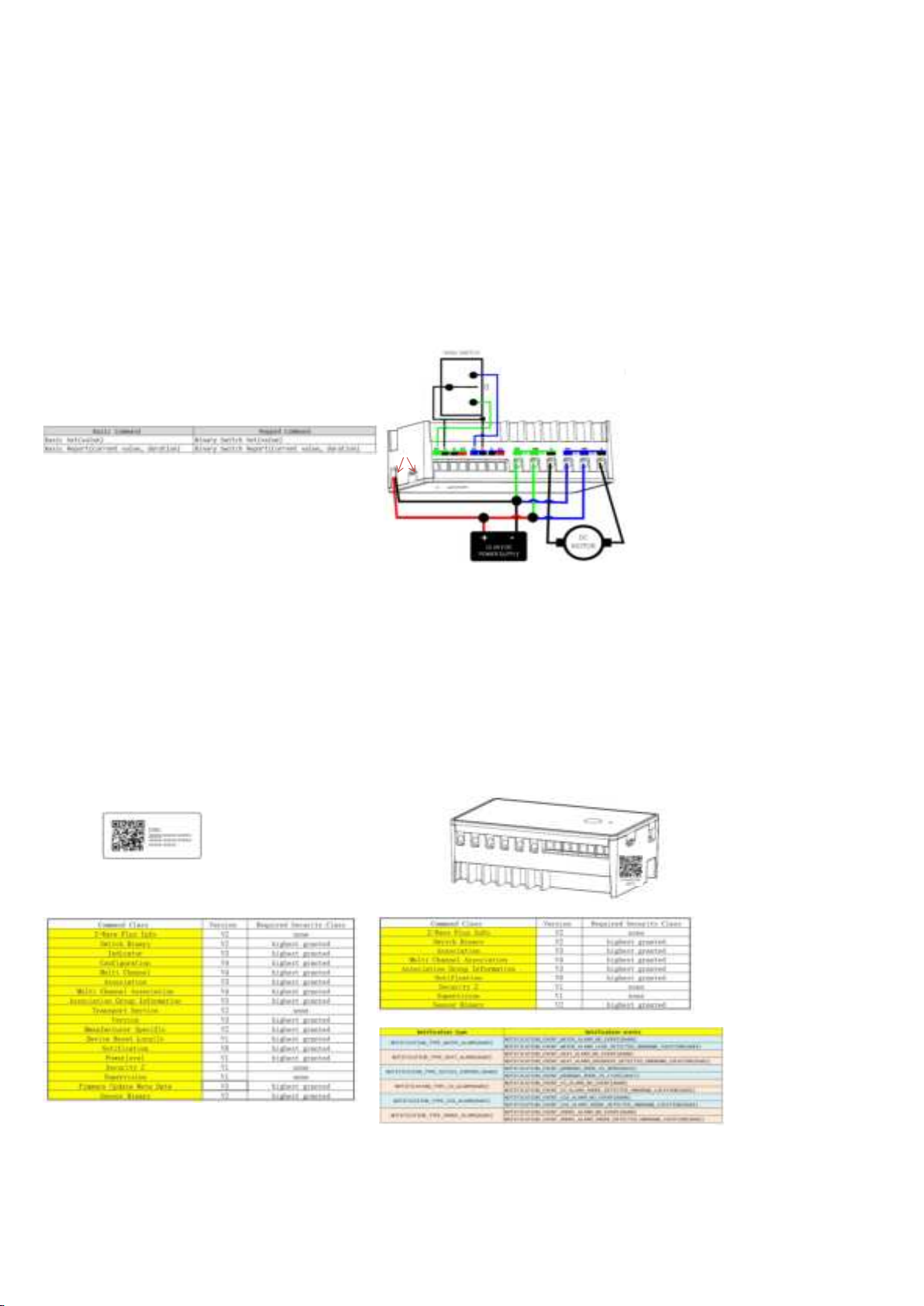

Indicator Command Class ZW12 Installation Wiring Diagram
* The indicator (blue color) will flashes according the indicator set
command received from HUB.
Basic
command
class
* The basic set command class is mapping to binary switch set.
* Basic set will control both two endpoints' relay to turn on or turn off.
Key function description
Function 1: press and hold for more than 5s,change SW1 mode
Function 2: press 2x and hold for more than 5s,change SW2 mode
Function 3: quickly press 3x Button: ADD(inclusion) OR Remove( exclusion)
Function 4: press 5x change led parameter
Function 5: press 4x, then LED lit for 4s, within this time press 4x again – LED blinks 3 times then off to FACTORY RESET
(Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable.)
Adding Your Device To A Hub
The device support two methods of inclusion,When using a Z-Wave Plus™ certified controller choose Network Wide Inclusion or SmartStart,
Network Wide Inclusion To A Z-Wave™ Network
1,Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
2,When prompted by your primary controller, click the Up or Down button three times in one second.
The device is compatible with SmartStart
SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave™ QR Code found on the top of the outlet or the back of
the box with a controller providing SmartStart inclusion.No further action is required and the SmartStart product will be added automatically within
10 minutes of being switched on and in the network vicinity.
QR
CODE
the QR code are sticked to the side of the case,DSK is included in the QR code.
DSK
The DSK code can be found on the DSK label which is attached on the packaging box.
Command Class
[ROOT ENDPOINT] ENDPOINT 1& ENDPOINT 2
Notification Type and events
[NOTES]:
1)For the root endpoint, the Notification and Sensor Binary only supported when the parameter 2 is set to 4~9 or the parameter 3 is set to 4~9.
(When one of input or both two inputs are used to sensor alarm.
2)For the endpoint 1, the Notification and Sensor Binary only supported when the parameter 2 is set to 4~9.
(When input (S1 and C) is used to sensor alarm.
3)For the endpoint 1, the Notification and Sensor Binary only supported when the parameter 3 is set to 4~9.
(When input (S2 and C) is used to sensor alarm.
A
C
D
E
B

Z-Wave™ Configuration Parameters
You may use the below configuration parameters to change settings of the corresponding functionality.
1: Restore state after power failure
Paramter No: 1(0x01) Size:1 Byte (default=1)
Value: 00 All relays automatically turn OFF once power is restored
Value: 01 All relays remember the status prior to power outage and turns back to it
Value: 02 All relays turned on after power failure
Value: 03 R1 recovered, R2 ON
Value: 04 R2 recovered, R1 – ON
2：Select switch one's type
Paramter No: 2(0x02) Size:1 Byte (default=2)
Value: 00 momentary switch
Value: 01 toggle switch (contact closed -ON, contact opened - OFF)
Value: 02 toggle switch (device changes status when switch changes status)
Value: 03 garage door mode(toggle switch type for external switch (like in value 1) + built-in 2 second auto-off timer
for Z-Wave control (so if user turns the relay on from the Z-Wave hub, it will automatically turn off after 2 seconds)
Value: 04 water alarm
Value: 05 heat alarm
Value: 06 Smoke alarm
Value: 07 Door alarm
Value: 08 CO alarm
Value: 09 CO2 alarm
* After changing the values of the parameter, first exclude the device (without setting the parameters to their default values),
wait at least 5 seconds and then re-include the device! While par=4 to 9.
3：Select switch two's type
Paramter No: 3(0x03) Size:1 Byte (default=2)
Value: 00 momentary switch
Value: 01 toggle switch (contact closed -ON, contact opened - OFF)
Value: 02 toggle switch (device changes status when switch changes status)
Value: 03 garage door mode(toggle switch type for external switch (like in value 1) + built-in 2 second auto-off timer
for Z-Wave control (so if user turns the relay on from the Z-Wave hub, it will automatically turn off after 2 seconds)
Value: 04 water alarm
Value: 05 heat alarm
Value: 06 Smoke alarm
Value: 07 Door alarm
Value: 08 CO alarm
Value: 09 CO2 alarm
After changing the values of the parameter, first exclude the device (without setting the parameters to their default values),
wait at least 5 seconds and then re-include the device! While par=4 to 9.
5: LED indicator
Paramter No: 5(0x05) Size:1 Byte (default=0)
Value: 00 led OFF when output ON,led ON when output OFF
Value: 01 led ON when output ON,led OFF when output OFF
Value: 02 led always OFF
Value: 03 led always ON
6：EP1 Auto Turn-off Timer(only switch-1 type < 4)
Paramter No: 6(0x06) Size:4 Byte (default=0)
Value: 00 timer disabled
Value: 1-65535 This Timer Turn-off
7：EP1 Auto Turn-on Timer(only switch-1 type < 4)
Paramter No: 7(0x07) Size:4 Byte (default=0)
Value: 00 timer disabled
Value: 1-65535 This Timer Turn-on
8：EP2 Auto Turn-off Timer(only switch-2 type < 4)
Paramter No: 8(0x08) Size:4 Byte (default=0)
Value: 00 timer disabled
Value: 1-65535 This Timer Turn-off
9：EP2 Auto Turn-on Timer(only switch-2 type < 4)
Paramter No: 9(0x09) Size:4 Byte (default=0)
Value: 00 timer disabled
Value: 1-65535 This Timer Turn-on
10：Input 1 trigerring(Input1 trigger the relay 1)
Paramter No: 10(0x0A) Size:1 Byte (default=1)
Value: 00 trigger disable (only notification to hub according to set par 2)
Value: 01 trigger unable (default);trigger the relay and hub notification
11：Input 2 trigerring(Input2 trigger the relay 2)
Paramter No: 11(0x0B) Size:1 Byte (default=1)
Value: 00 trigger disable (only notification to hub according to set par 2)
Value: 01 trigger unable (default);trigger the relay and hub notification
12：EP1 Manual Control
Paramter No: 12(0x0C) Size:1 Byte (default=1)
Value: 00 manual control disabled (no reports to the hub)
Value: 01 manual control enabled
Value: 02 manual control disabled (sends on/off reports to the hub)
13：EP2 Manual Control
Paramter No: 13(0x0D) Size:1 Byte (default=1)
Value: 00 manual control disabled (no reports to the hub)
Value: 01 manual control enabled
Value: 02 manual control disabled (sends on/off reports to the hub)
15：EP1 Auto Turn-Off Timer Unit
Paramter No: 15(0x0F) Size:1 Byte (default=0)
Value: 00 minutes
Value: 01 seconds
Value: 02 hours
16：EP1 Auto Turn-ON Timer Unit
Paramter No: 16(0x10) Size:1 Byte (default=0)
Value: 00 minutes
Value: 01 seconds
Value: 02 hours
17：EP2 Auto Turn-Off Timer Unit
Paramter No: 17(0x11) Size:1 Byte (default=0)
Value: 00 minutes
Value: 01 seconds
Value: 02 hours
18：EP2 Auto Turn-ON Timer Unit
Paramter No: 18(0x12) Size:1 Byte (default=0)
Value: 00 minutes
Value: 01 seconds
Value: 02 hours

24：Sw1,Sw2 setting
Paramter No: 24(0x18) Size:1 Byte (default=0)
Value: 00 Normal
Value: 01 Union (only switch type1 < 4 && switch type2 < 4)
IF both switches OFF - only one of them may be turned ON.
- turning sw1 ON : delayed 0.5 s, sw2 and R2 turned off first (immediately)
- turning sw2 ON - delayed 0.5s , sw1and R1 turned off first ( immediately )
The situation for DC motor control(SW1 control—right, SW2 control-left.
-main switch can turn ON and OFF only sw1
Support for Association Groups
ZW12 supports 3 association groups. Group 1 supports 1 node ID,Group 2 and Group 3 Supports maximum of 5 node ID’s
Association group_1:Z-Wave™ Plus Lifeline
Association group_1 is default to associate with the primary controller (Gateway/Hub/Controller) for ZW12 Status change report,
1. ZW12 will trigger AUTO report function if the Switch status had been changed.
(ex.Switch Binary Report/Indicator Report/ Notification Report/ Device Reset Locally Notification/Sensor Binary Report)
Association group_2:basic set command on/off controlt
When the output of the ZW12 is changed, On (0xFF) or Off (0x00). The ZW12 will automatically send out a related basic set
command. On (0xFF) or Off (0x00) to its associated group.
Association group_3:basic set command on/off controlt
When the output of the ZW12 is changed, On (0xFF) or Off (0x00). The ZW12 will automatically send out a related basic set
command. On (0xFF) or Off (0x00) to its associated group.
Restoring Factory Defaults
ZW12 is removed from the network and will be restored to the factory setting
All Configuration Parameters values and Association information will be restored to factory default settings and excluded from the network.
Manual Reset:press 4x, then LED lit for 4s, within this time press 4x again – LED blinks 3 times then off to FACTORY RESET
Remark : All the setting and data will be permanently deleted.
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
