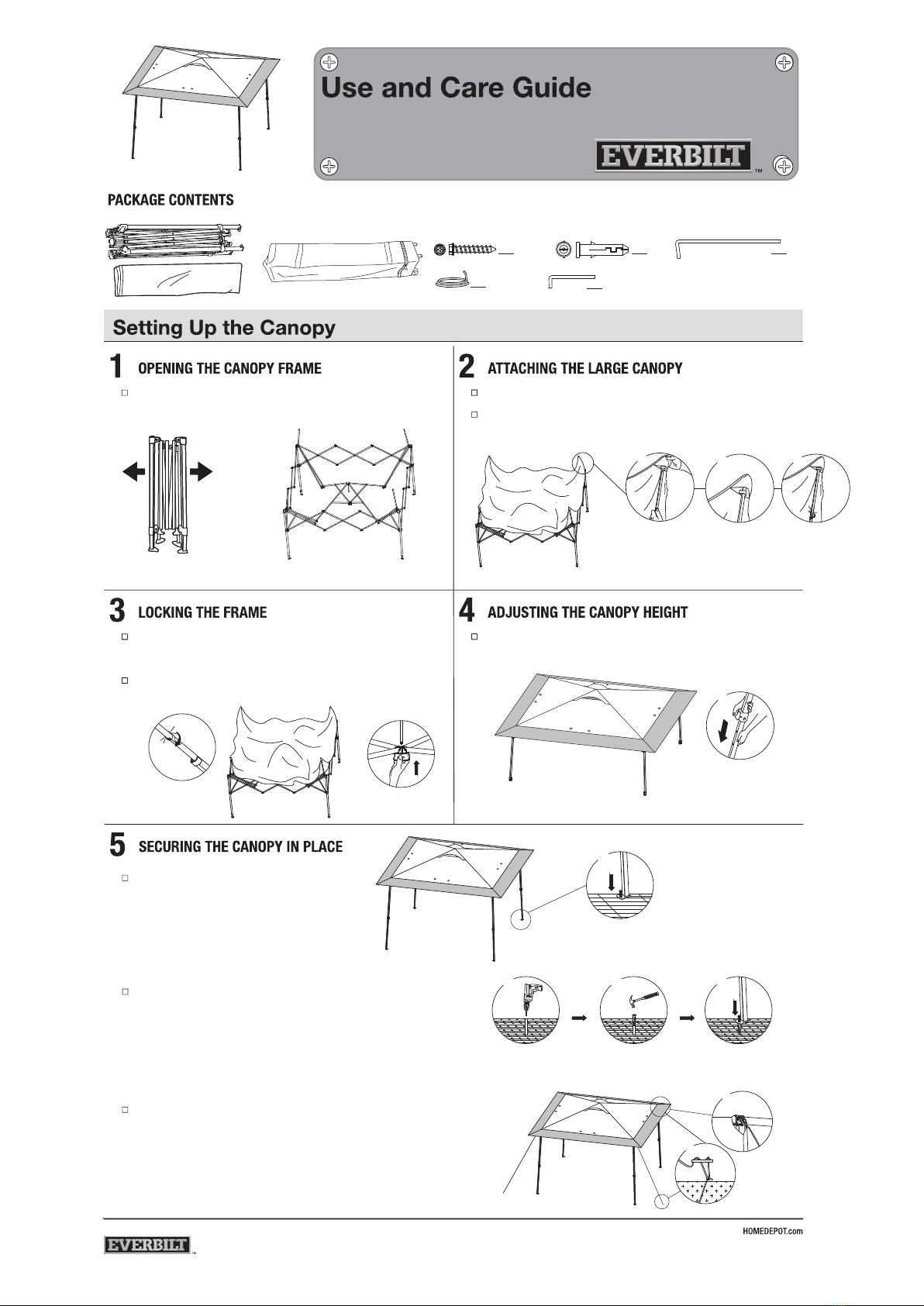

Everbilt NS PUG 144-150D User manual

12ft. x12 ft. Mega Shade Pop Up Canopy
ATTENTION!
IMPORTANT: READ THIS INFORMATION BEFORE PROCEEDING!
To avoid damage to your frame, please read the enclosed instruction
carefully before setting up your canopy.

With two persons on the diagonal ends, lift and partially pull
the canopy frame apart.
Unfold the canopy and place on top of the canopy frame.
Attach the four canopy corners to the awning poles,
Under the canopy, place one hand on the upper frame and
use the other hand to push the central hub straight up until
it clicks into the central pole.
Finish attaching the canopy top inside the canopy frame
using the Velcro loops.
Press the red button on each leg and raise or lower to adjust
the canopy height.
Measure out each leg to a proper distance and secure four stakes to
the ground. Attach the ropes to the canopytop and tie the attached ropes
to the stakes in the ground. Ensure the ropes have the proper tension
by adjusting the plastic adjusters on the ropes.
Please Contact 1-800-305-1726 for further assistance.
12 ft. x12 ft.
MegaShade Pop Up Canopy
Model: NS PUG 144-150D
4x
4x 4x
4x
4x
4x
Wooden deck
A Pistol drill is needed here.
A Pistol drill is needed here.
Concrete ground
4x 4x
Measure out each leg to a proper distance, drill four holes (ø10mm)
in the concrete ground with a pistol drill, then knock the expansion
sleeves (BB) into the holes, and secure four self tapping screws (AA)
to the concrete ground.
Measure out each leg to a proper distance and
secure four self tapping screws (AA) to the
wooden deck.
4x
4x
AA /4pcs BB /4pcs
DD /4pcs
CC /8pcs
EE /1pcs

REMOVING THE STAKES AND RETRACTING THE LEGS
Pull up all stakes from the ground.
Press the push button on each leg and retract
the legs to their original height.
UNLOCKING THE CANOPY
Go under the canopy, press the red lock button.
Pull down the central hub until it is separated
from the central pole.
FOLDING THE FRAME
Lift one leg of the frame until the two neighbouring
legs are raised off the ground. Push inward until
the frame is fully closed.
PACKING THE CANOPY IN THE STORAGE BAG
With the canopy feet facing the rollers, slide
the wheeled storage bag over the closed
canopy frame.
Close the zipper on the wheeled storage bag.
Contact the Customer Service Team at 1-800-305-1726 or visit HOMEDEPOT.com.
Please Contact 1-800-305-1726 for further assistance.
4x

To inquire about replacement parts, please call toll free 1-888-502-9589, Monday - Friday, 9:00 AM - 4:00 PM PST;
or email to [email protected]
Please Contact 1-800-305-1726 for further assistance.
ABC
F
D G H
KL
I
E
A
C
D
G
H
E
B
F
J
I
J
Part Description Reference No
. Part Description Reference No .
A Central Pole SP165
G Leg Assembly SP170
B Central Bottom Hub SP002
H Leg Extend SP171
C Top cap SP166
I M5 Bolt Kit SP172
D Slider SP167
K
L
Top Fabric SP283
J
E Ceiling assembly SP290 AA
CC
DD
F Eave Assembly SP169 BB
Wheeled Storage Bag
Self Tapping Screw
SP284
SP142
Expansion Sleeves SP142
Stakes SP178
Guy Rope SP181
M4 Bolt Kit SP228
EE L shape Wrench SP177
