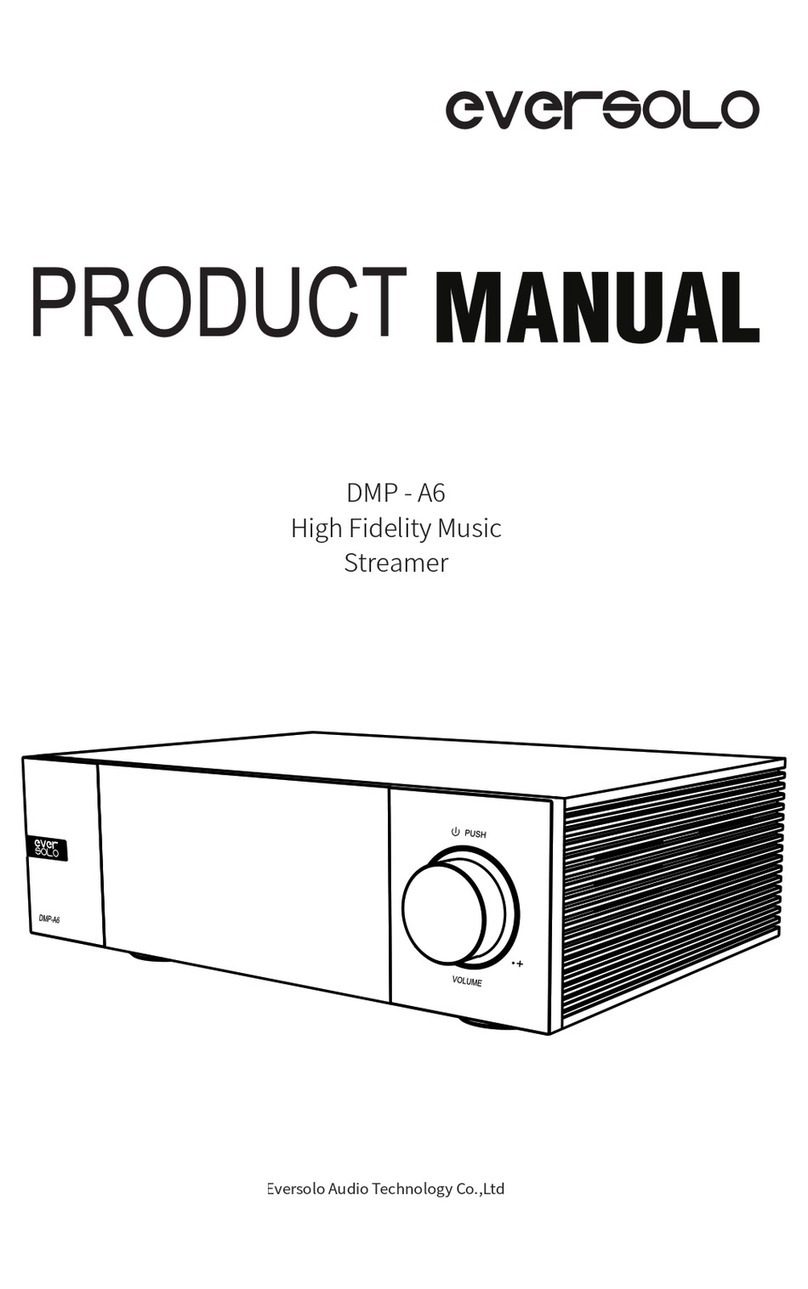

eversolo DMP-A6 Master Edition User manual

DMP - A6 高保真音乐播放器
High Fidelity Music Streamer
E
verso
l
o Au
d
io Tec
h
no
l
o
g
y Co.,Lt
d

Speci󽗉cation
Hardware
Basic Operation
System Setting
Connection and Setting
Downloads
Introduction
Content/ 目录
P3
P31
P8
P36
P2
P30
P1
P29
02
01
03
04
05
06
07
P16
P44
P23
P51
P28
P56
性能参数
硬件端口介绍
基本操作
系统设置
信号的链接与设置
资源下载
产品简介
02
01
03
04
05
06
07

Page 3
HIGH FIDELITY MUSIC STREAMER
Introduction
We appreciate your purchase of Eversolo DMP - A6 all-in-one streamer.
As a hi-res DAC streamer with great performance and craftsmanship, DMP-A6
can not only play and manage various high-resolution local music well but also
embeds various third-party high-resolution music streaming services, such as
Tidal, Qobuz, Highresaudio, Amazon Music, WebDAV, and UPnP, etc. DMP-A6 can
accommodate audiophiles' needs by supporting rich output ways like digital,
optical, coaxial, HDMI DSD multi-channel, and USB audio output.
The DMP-A6 decoding portion uses a pair of ES9038 Q2M DAC chips in
addition to an XMOS 316 audio processor. It decodes up to DSD512, PCM
768Khz@32Bit, and MQA. So that D/A conversion is completed with exceptionally
low noise and distortion.
Two-channel independent decoding design effectively avoids interference
between channels, two ES9038 Q2M DAC chips correspond to left and right
channels separately for independent D/A conversion output. High-precision
resistance and and a fully balanced circuit guarantee the lossless XLR and RCA
output signal ampli󽗉cation. Audio indicators like crosstalk, dynamic range, SNR
are greatly improved.
Versatile input ports are supported by the DMP-A6 for high specification
digital audio decoding. USB-C audio input can be used to connect with PC,
streamer, mobile phones and tablets ext. Optical and Coaxial inputs are to connect
with streamer and CD player; DMP-A6 can be served as a high de󽗉nition Bluetooth
decoder when connecting with mobile devices via Bluetooth 5.0, with the support
of APTXHD, LDAC protocols.
The DMP-A6 will provide you with a fantastic and original hifi music
experience by its excellent decoding performance and sound quality.
It is advised to read this manual to make sure the product's features are
applied correctly.

Page 4
HIGH FIDELITY MUSIC STREAMER
Body Material Aluminium alloy
Display 6.0" LCD touchscreen
DAC ES9038Q2M*2
Audio Processor XMOS XU316
Storage 4G DDR4 +32G eMMC
SSD Protocol M.2 (NVME PCIe3.0)2280 protocol, up to 4TB
USB Ports USB3.0*2
Ethernet RJ-45(10/100/1000Mbps)
WiFi 2.4G+5G
DAC Decoding Support DSD512 stereo, PCM 768KHz 32Bit, MQA
Music 󽗉le formats DSD(DSF,DFF,SACD ISO Support DST up to DSD512),
MP3,APE,WAV,FLAC,AIF,AIFF,AAC,NRG,CUE
Music Services Tidal, Qobuz, Highresaudio, Amazon Music etc
Music Streaming Roon Ready, Spotify Connect, Tidal Connect, Airplay , WebDav, UPnP,
DLNA etc
Bluetooth Input Bluetooth BT5.0, SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-C Audio Input USB compatibility: Windows (7,10,11), Mac, Android, IOS
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical/Coaxial
Input Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
Optical/Coaxial
Output Support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
HDMI Audio Output DSD64 Native multichannel/PCM 192KHz multichannel raw output,
up to 5.1
USB Audio Output Support up to stereo DSD512 Native, PCM 768KHz 32Bit, MQA
(Support DAC audio devices with UAC standard only)
Analogue Audio
Output XLR (balanced) + RCA (pre-output)
Control Methods On-screen touch control, Android/iPhone/iPad APP control
Analogue Audio
Characteristics
Output level: XLR 5 V; RCA 2.5V
Frequency response: 20Hz~20KHz XLR/RCA ( 土 0. 15dB)
Dynamic range:XLR > 128dB/RCA > 124dB
SNR: XLR >128dB/RCA >124dB
THD+N: XLR：<0.000092%(-120dB) /RCA :<0.00011%(-119dB) @A-Wt
Crosstalk：XLR>125dB/RCA>124dB
Power Supply AC 110~240V 50/60Hz ,13W
Speci󽗉cations

Page 5
HIGH FIDELITY MUSIC STREAMER
Hardware
How to install SSD:
1. Lay the device upside down on the desk, remove the screws on the cover of the SSD slot
with a screwdriver, then uncover it.
2. Pull open the fastening clip to install the SSD, secure the SSD by pressing the clip, then
restore the screws and cover.
Notes:
1. The SSD must be installed and conform to the requested speci󽗉cation.
2. It is strictly forbidden to replace the SSD while powered on because doing so will harm the
SSD.
3. SSD 󽗉le systems NTFS, EXFAT, and FAT32 are supported.
4. If the recently purchased SSD is unable to be recognized, formatting the hard disk via
“Home Screen > Files > Find the storage device > Tap the icon on left-top corner > Format”.
SSD isn't included in the device, a SSD can be installed manually after you receive the parcel
if required. M.2 (NVMe PCIe3.0) 2280 protocol SSDs up to 4TB is supported.
SSD Installation

Page 6
HIGH FIDELITY MUSIC STREAMER
5. To better support song transferring, it is advised to choose an external storage device as
the music directory. Go to "Settings >Transfer", and click " " to select the inserted external
storage device. The system will automatically create the "EversoloMusic" folder, where the
music 󽗉les will be stored.

Page 7
HIGH FIDELITY MUSIC STREAMER
Rear Panel
Descriptions:
① Power on/o󽗈
② Gigabit Ethernet network socket
③ HDMI audio only output: support DSD output
④ USB 3.0 OTG: Connect External storage device or PC transfer
(De󽗉ned in "Settings-General-USB OTG port")
⑤ USB (Audio out): USB audio output for connecting audio devices (DAC)
⑥ Coaxial input: connect CD player, set-top box, or digital turntable
⑦ Optical input: connect CD player, set-top box, or digital turntable
⑧ USB-C input: USB Audio input,Connect mobile phone(should use OTG
cable),computer,DAP and other audio sources that support USB audio output
⑨ Optical output: connect decoder or preamp
⑩ Coaxial output: connect decoder or preamp
⑪ XLR/RCA analogue output: Connect pure preamp, active speaker or power ampli󽗉er
⑫ WiFi antenna: connect to the wireless network
⑬ Bluetooth antenna: receive Bluetooth signals
* Please use the analog XLR/RCA outputs for Coaxial, Optical, Bluetooth, or USB input.
* Pointing antennas upward before using.
①
⑫ ⑬ ④ ⑥ ⑩
② ③ ⑤ ⑦ ⑧ ⑨ ⑪
Antennas diagram

Page 8
HIGH FIDELITY MUSIC STREAMER
Front Panel
Controls
KnobIndicator lightLED
Volume Control: The knob can be turned clockwise to turn up the volume and
counterclockwise to turn down the volume when the device is playing music.
*The audio setting allow you to adjust the volume step (0.5db–3db).
Rotate : Adjust volume
Short press：
Power on/Power o󽗈/Reboot/
Timed shutdown / Screen o󽗈
Long press: Power o󽗈

Page 9
HIGH FIDELITY MUSIC STREAMER
Power on / o󽗈
Power on: press the knob once to turn it on when the device is powered o󽗈.
Power o󽗈/reboot: short press the knob to see a pop-up menu and select power o󽗈 or reboot;
long press for 3 seconds to power o󽗈.
Timed shutdown: several timer are available for choosing, or you can customize one.
Screen-o󽗈: the device continues to work after screen o󽗈, tap the screen again to light it up.

Page 10
HIGH FIDELITY MUSIC STREAMER
Status Bar: input/output connection, network status, storage device, volume, and currently
playing song. Click input/output/network/storage device icons to access quick settings, click
the song info bar to enter into Music Player.
Basic Operation
Home Screen
Play/pause
Status bar Music player entrance
Function entrance
Previous track
Next track
Home
Back

Page 11
HIGH FIDELITY MUSIC STREAMER
DMP-A6 Music Player allows to play lossless music from SSD, hard drive, NAS and streaming
services app. Click "Music player entrance" to enter into Music Player interface and see
currently playing tracks, progress and control icons.
Descriptions
Favorites: add the currently playing track to my favorites.
Playback: previous/next track, pause/playback control.
Switch play mode: switch play modes between list loop, single loop, shu󽗌e play and order
play.
Play queue: a list of all tracks currently selected to be played, such as all tracks by a certain
artist or in a certain album.
Music Player
Switch play mode
Play queue
Favorites
Playback

Page 12
HIGH FIDELITY MUSIC STREAMER
Make sure to connect the network for DMP-A6, both Ethernet and WiFi are supported. Access
into “Settings > Network > WiFi”.
The music library allows you to manage and categorize local music. Click “Add Library”
to add music from local SSD, external storage devices, SMB, and NFS.Or click on the hover
window of hidden menu on the left and select "Library".
Network Connection
Music Library
Hidden menu

Page 13
HIGH FIDELITY MUSIC STREAMER
DMP-A6 will categorize the added music 󽗉les by track, artist, album etc.
“My” will show recently playing records, playlists added according to personal
preferences, and quick access to favorite tracks, artists, and albums.

Page 14
HIGH FIDELITY MUSIC STREAMER
It includes streaming services, music apps, music cloud drivers and music connect. Log in
your account to play music from third-party apps.
Note:
*More music apps will be available for download, please check the official website for
󽗉rmware updates.
Music Service

Page 15
HIGH FIDELITY MUSIC STREAMER
File Manager is used to managing 󽗉les in local storage, SSD, removable storage devices, NFS,
and SMB in the same network. Click " " to copy, paste, and delete etc.
File Manager
The device enables to copy 󽗉les from external storage device to SSD conveniently. Go to Files
Manager and select the music 󽗉le in the storage device and click " " to copy the music
󽗉le to SSD.

Page 16
HIGH FIDELITY MUSIC STREAMER
You can view, install and uninstall third-party apps. To install third-party apps, firstly
download the APK 󽗉le and copy it to a removable hard drive, insert the hard drive into this
device and 󽗉nd APK 󽗉le in File Manager, then install it by one click.
Note:
* It is recommended to install tablets apps.
Apps
Choose inputs and outputs based on how the actual device is connected.
Note:
* all digital input connections only support output audio by analogue output, not digital
output.
Inputs/Outputs

Page 17
HIGH FIDELITY MUSIC STREAMER
By connecting with a USB CD-ROM, the device can both play music from CD and rip music
󽗉les from CD. CD ripping instructions: Apps > CD > Click “ ” to start CD ripping.
Click " "to change the path for saving music 󽗉les to local storage, internal SSD, removable
storage or NFS, SMB devices in LAN.
CD Playback and Ripping

Page 18
HIGH FIDELITY MUSIC STREAMER
System settings include audio settings, display settings, network settings, general
settings, song transfer and system upgrade. The settings allow you to change the 󽗉ltering
characteristics of the RCA/XLR outputs, the audio format output from the HDMI/Optical/
Coaxial/DAC, and the formats supported by MQA.
* Set the volume to the maximum when outputting MQA via digital outputs (e.g.: USB or
SPDIF outputs). But there is no need to set the volume to the maximum when MQA is output
from internal DAC through analogue output.
Choose di󽗈erent 󽗉lter characteristics according to personal preference by Settings > "Audio
> XLR/RC Output > DAC 󽗉lter characteristics".
DAC Filter Characteristics
System Settings

Page 19
HIGH FIDELITY MUSIC STREAMER
FILTER IMPULSE RESPONSE CHARACTERISTIC Distance Edge
Fast Roll-O󽗈,
Linear Phase
Filter
Low order reverb,
natural Far Neutral
Slow Roll-O󽗈,
Linear Phase
Filter
Low order reverb,
accurate Mid far Sharp
Fast Roll-O󽗈,
Minimum
Phase Filter
High order reverb,
mellow Mid close Neutral
Slow Roll-
O󽗈, Minimum
Phase Filte
Intermediate reverb,
warm Middle Neutral
Apodizing,
Fast Roll-O󽗈,
Linear Phase
Filter
Intermediate reverb,
natural Mid far Sharp
Hybrid, Fast
Roll-O󽗈,
Minimum
Phase Filter
High order reverb,
mellow Close Sharp
Brickwall Filter High order reverb,
mellow Middle Sharp
CHARACTERISTICS

Page 20
HIGH FIDELITY MUSIC STREAMER
In "Display" menu, there are some sub-menus for screen brightness adjustment, screensaver
setting and screensaver modes.
Screen brightness: adjust brightness level of the screen display.
Knob brightness: adjust the brightness for the light surrounding the knob.
Screensaver: screensaver will be displayed without operation for a certain time. After
operation is detected again, the system will exit screensaver state. Press "Power" button can
also exit screensaver.
Screensaver mode: four screensaver modes are available for choosing.
VU meter: select di󽗈erent VU meters according to personal preference.
Display Settings
