Centurion CENDVDLFM User manual

CENDVDLFM
Multimedia player with RDS AM/FM Radio
Before attempting to connect or operate this product, please read the
instructions completey.

Contents
Important Safety Precautions 1
Operating Precautions 1
DVD Care 2
Temperature and Moisture 2
Operation Precautions 2
Installation 3
Power and Speaker Output 4
Rear Connections 5
Specifications 6
CENDVDLFM

Important Safety Precautions
• To prevent an electrical shock, do not open the housing of the DVD player.
Dangerous voltages are present in these units.
• Do not expose the units to rain or excessive moisture. Do not spill any liquid
onto or into the units. Do not operate these products with wet hands.
• Never operate the product if it is moved from a cold environment to a warm
one (or vice versa) within a 60-90 minute period. Moisture may form inside the
units and, as a result, they may not operate correctly. Should this occur, turn on
the power, take out the disc, and wait at least 60-90 minutes for the moisture to
evaporate.
• The DVD player is a CLASS 1 laser product and uses a visible laser beam that
could cause hazardous radiation exposure. Be sure to operate the player
correctly as instructed. To prevent hazardous exposure to the laser beam, do
not place your eyes close to the openings to look inside the player.
• Never put any foreign objects on the DVD tray of the player or any of the
openings of the DVD or screen as this may cause damage.
• There are no serviceable parts inside the DVD. In case of malfunction, only
approved and qualified service engineers should open the products. Opening
the DVD by unauthorised personnel will invalidate the warranty.
• To clean the DVD, disconnect the product from the power source. Use a dry
cloth.
• DO NOT use any abrasive substances or alcohol-based products, as they may
cause damage.
Operating Precautions
• Avoid placing the product in direct sunlight, high temperatures, or areas with
high moisture.
• Operate in well-ventilated areas.
• Do not cover any ventilation slots.
• Do not turn the product on or off in short intervals. When turning the unit off,
wait for at least 10 seconds prior to turning the unit on again.
• Do not operate the player with scratched, bent, broken, or irregularly shaped
discs.
CENDVDLFM Page 1

DVD CARE
Always handle the disc by the edges. Never touch the surface. To remove fingerprints and
dust, use a soft cloth and wipe in a straight line from the center of the disc to the outside
edge.(See page 28) Take care of the Remote Control. Keep the remote with your DVD
cases, where it is unlikely to be lost or damaged.
Keep liquids away from the DVD player, including beverages and cleaning liquids. Spilling
any liquid on the player can damage the electronics, resulting in an electrical shock or fire.
If the unit or remote control should become wet, turn off all power and let an
authorized dealer clean or service the equipment.
CAUTION: DO NOT ATTEMPT TO OPEN OR SERVICE THE UNIT OR REMOTE
CONTROL. THE INTERNAL PARTS ARE NOT USER SERVICEABLE.
Do not use any liquid or aerosol cleaners, anti-static spray, or thinner to clean the disc
surface.
Do not allow coins, cleaning cloths, paper and other objects to be pushed into the DVD
slot, these objects could connect with a voltage point inside the unit and cause an
electrical shock, or may short out causing unit failure or fire.
TEMPERATURE AND MOISTURE
when the inside of the vehicle is very cold and the player is used immediately, moisture
may form on the disc or the optical parts and proper playback may not be possible. If
moisture forms on the disc, wipe it off with a soft cloth. If moisture forms on the optical
parts of the player, allow the player to sit for about one hour with the power on. The
condensation will disappear naturally allowing for normal operation. Please consult your
nearest dealer for recommendations and service.
OPERATION PRECAUTIONS
Do not subject the unit to direct sunlight or extremely hot environments (e.g closed
windows on a hot summer day, heater vent, etc.). Avoid using the unit under the
following conditions: After external parking on an extremely hot or cold day, Near strong
magnetic fields, In an environment with excessive humidity, dust, or vibration
(e.g off-road travel, etc.)
Do not directly touch the disc surface. Never stick labels on the surface of the disc or
mark the surface with a pen. Always place a DVD disc back into its case after use.
CENDVDLFM Page 2

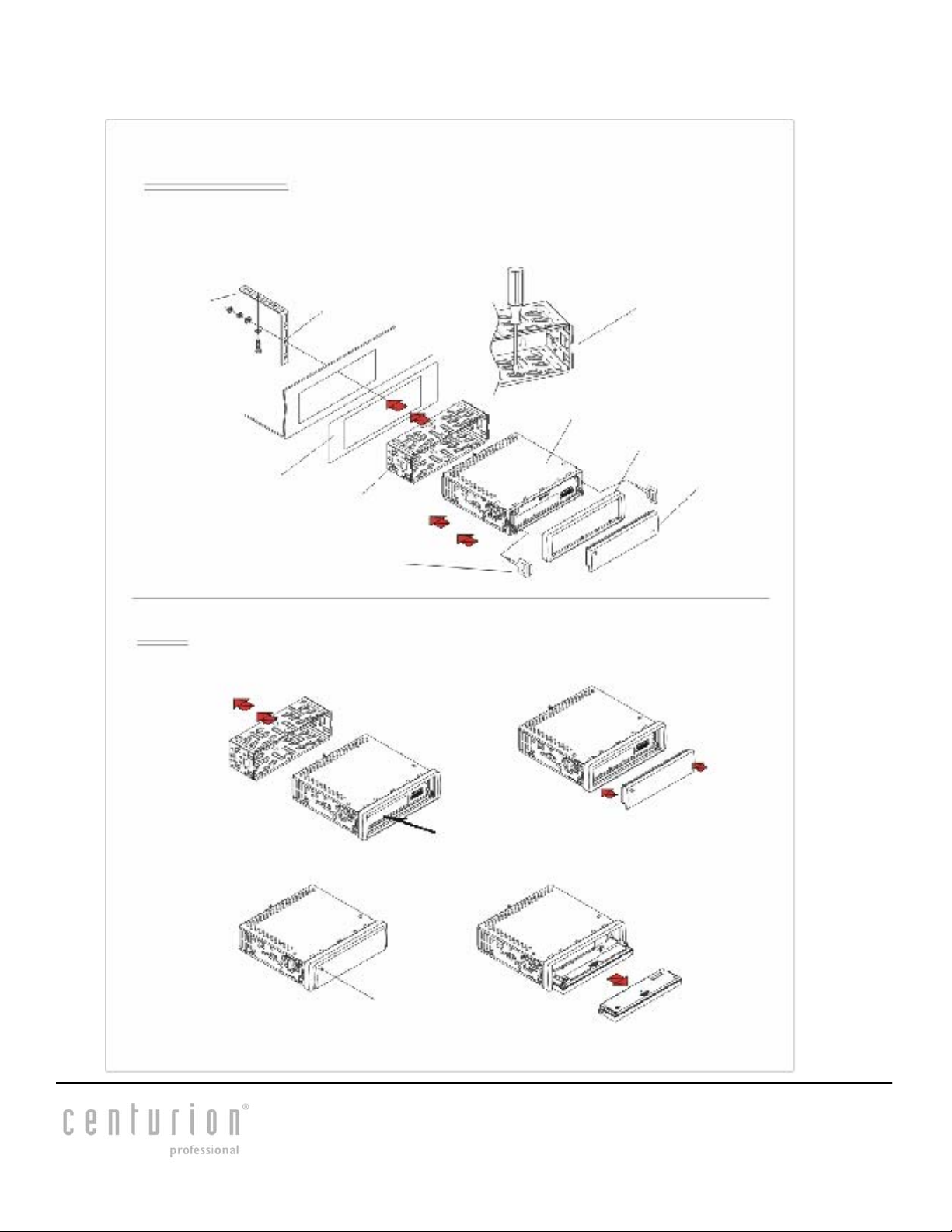

Installation
THE INSTALLATION IS DESIGNED TO PREVENT THEFT. THE CHASSIS WEARS A METAL SLIDING HOUSING.
PLEASE HAVE THE WIRING CONNECTIONS OF THE POWER SUPPLY, SPEAKERS AND ANTENNA
CONNECTED, THEN INSTALL THE METAL SLIDING HOUSING INTO THE CAR ACCORDING TO THE BELOW
DIAGRAM.
Installation
TO INCREASE THE ANTI-JAMMING,
CABABILITY PLEASE FIX THE
METAL STRAP ON THE METAL
CONNECTED TO THE BOTTOM
BRACKET OF THE CAR.
METAL STRAP SELECT THE PROPER FIXER
FOR FIXING THE SLIDING
METAL HOUSING.
UNIT CHASSIS
PLASTIC TRIM OUT
FRONT PANEL
DASH BOARD
SLIDING METAL HOUSING
TO DRAW THE CHASSIS OUT OF THE
SLIDING METAL HOUSING, INSERT
THE LEFT AND RIGHT KEY PLATES
INTO THE RIGHT POSITION OF THE
2 SIDES OF CHASSIS.
NOTE
REMOVE THE SLIDING
METAL HOUSING AWAY
TO INSTALL THE FRONT PANEL BACK
INTO THE UNIT CHASSIS, FIRSTLY
INSTALL THE LEFT SIDE BACK INTO
THE LEFT POSITION, THEN PUSH THE
RIGHT SIDE BACK TO THE UNIT
CHASSIS TILL OK.
PRESS RESET BUTTON TO RESUME
THE DISTORTED PROGRAM WHEN
THE LCD DISPLAY IMPROPERLY AND
SOME BUTTONS ARE INVALID.
RESET BUTTON
AFTER FLIPPING DOWN THE
FRONT PANEL, DRAW THE
FRONT PANEL OUT OF THE
CLIP.
OPEN BUTTON
TO INSERT DISC INTO COMPARTMENT OR EJECT DISC OUT
OF THE COMPARTMENT OR TAKE THE FRONT PANEL AWAY
THE UNIT CHASSIS, PRESS THE OPEN BUTTON TO FLIP
DOWN THE FRONT PANEL.
CENDVDLFM Page 3

Power and speaker output
NOTE:
Speakers with a 4 ohms impedance should be used to reduce the distortion at high volume
levels.
CENDVDLFM Page 4

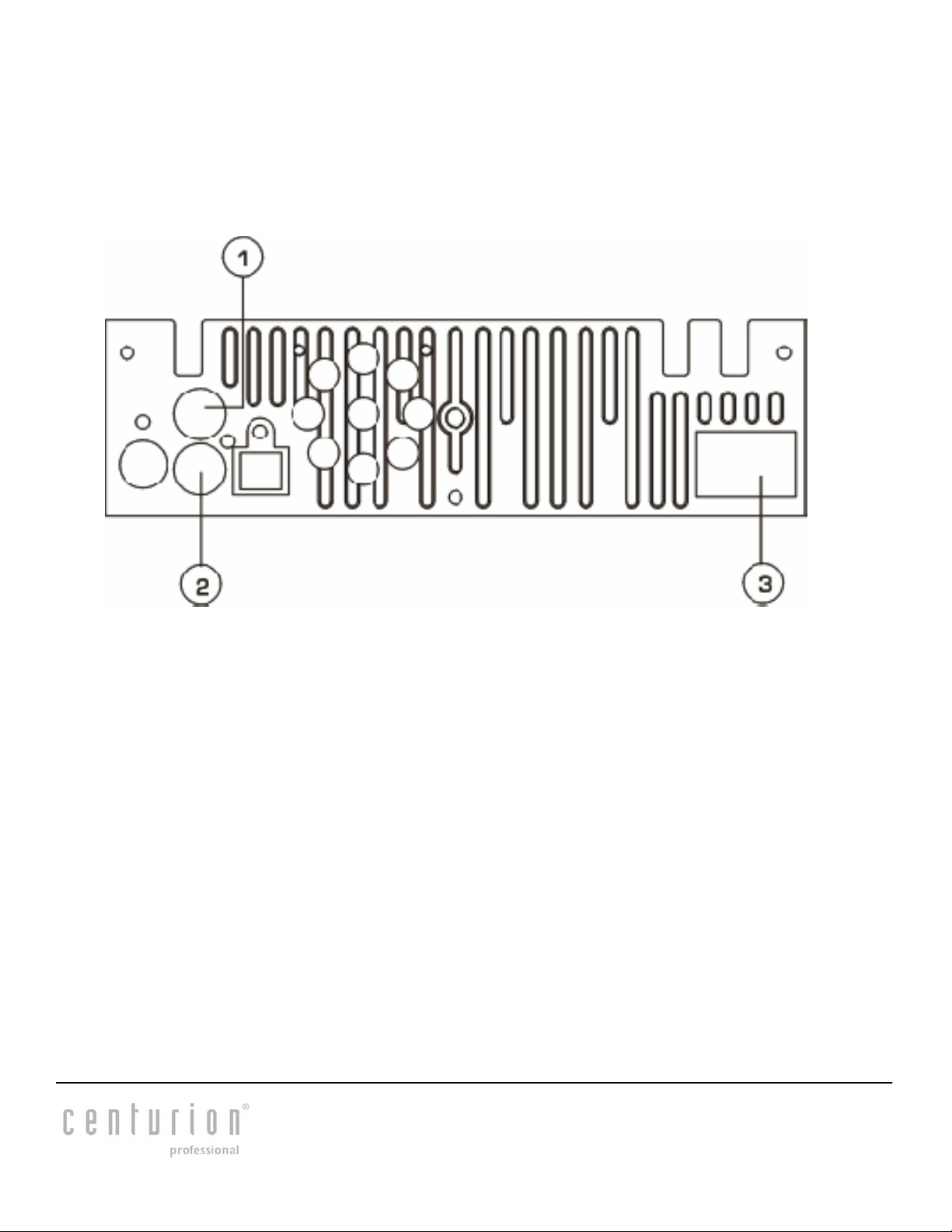

Rear Connections
1,2. VIDEO OUTPUT (2 RCA jacks)
Use a video cable to connect the video output signal to the external video monitors.
3 WIRING CONNECTING SOCKET
Main wiring loom connection.
CENDVDLFM Page 5

SPECIFICATION
GENERAL SPECIFICATIONS
Power Requirement 14.4V DC(10.8 to 15.6 allow)
Current Consumption Less than 10A
Maximun Power output 40Watts x 4
Dimensions(w x h x d) 178 x 50 x 165mm
DVD DECK SPECIFICATIONS
Format. DVD-Video Disc (2 Layer, 2 side)
Compact Disc
Video System Standard NTSC/PAL
Audio System MP3
Loading System Auto Loading
Mounting Angle 0 to +/-30
VIDEO SPECIFICATIONS
Video System .4:3 Letter Box and 4:3 Pan Scan
Video Output level 1.0Vp-p 75 ohms
Horizontal Resolution 500
AUDIO SPECIFICATIONS
line Output. > 1 V
Frequency Response 20 to 20KHz
S/N Ratio(A-vtd) 65dB
Separation 55dB
RADIO SPECIFICATIONS
FM SECTION
Frequency range 87.5MHz - 108.0MHz(EUROPE)
Usable sensitivity 3uV
I.F Frequency 10.7MHz
AM SECTION
Frequency range. 522KHz - 1620KHz(EUROPE)
CENDVDLFM Page 6

Head Office:
Centurion Electronics plc, Satellite House, City Park,
Swiftfields, Welwyn Garden City,
Hertfordshire AL7 1LY
UNITED KINGDOM
T: [phone]
F: [phone]
E: [email protected]
W: www.incarvision.co.uk
Warranty Repairs/ Product Repair
• Please keep original cash register receipt (for proof and date of purchase)
• For Warranty/Product repairs please return to original point of purchase
