ExBrite JS-MC-1526 User manual

Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
Lighted Mirrored Cabinet
Light Bar
Installation and Operating Manual

Webs it e: Http://w w w.exbrit eu sa.com Email: info@e xbriteusa.co m H otline: [phone]
Lighted Mirrored Cabinet
Light Bar
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Please read these instructions carefully to familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that pertain to your particular installation. This
will help you avoid costly mistakes. In addition to proper installation, read all operating and
safety instructions.
All information in these instructions is based upon the latest product information available at the
time of publication. J Sing LLC reserves the right to make changes in product characteristics,
packaging, or availability at any time without notice.
These instructions contain important care, cleaning, and warranty information - please leave
instructions for the consumer.
Before installation carefully inspect the new fixture for any signs of damage.
WARNING: Risk of injury or product
damage. Be careful when opening the
door to avoid pinching fingers.
WARNING: Don't use acidic or alkalic
cleaners or alcohol to clean the surface.
Use a dampened cloth to clean.
CAUTION: Risk of electric shock.
Electrical wiring may need to be
relocated.
CAUTION: Risk of property damage.
Use anchors (not provided) rated for the
loaded weight of this product. Refer to
the anchor manufacturer's instructions.
Important Information: This cabinet is
designed for either right or left door
swing. Check the wall cavity for
obstructions.
Grounding Instructions
This product should be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current.
WARNING: Risk of electric shock. Improper use of the grounding plug can result in a risk of
electric shock.
If repair or replacement of the cord is necessary, do not connect the grounding wire to either flat
blade terminal. The wire with insulation having an outer surface that is green with or without
yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the product is properly grounded.
This product is factory equipped with a specific electric cord. If the product must be
reconnected for use on a different type of electric circuit, the connection should be made by
qualified service personnel.

Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
Lighted Mirrored Cabinet
Light Bar

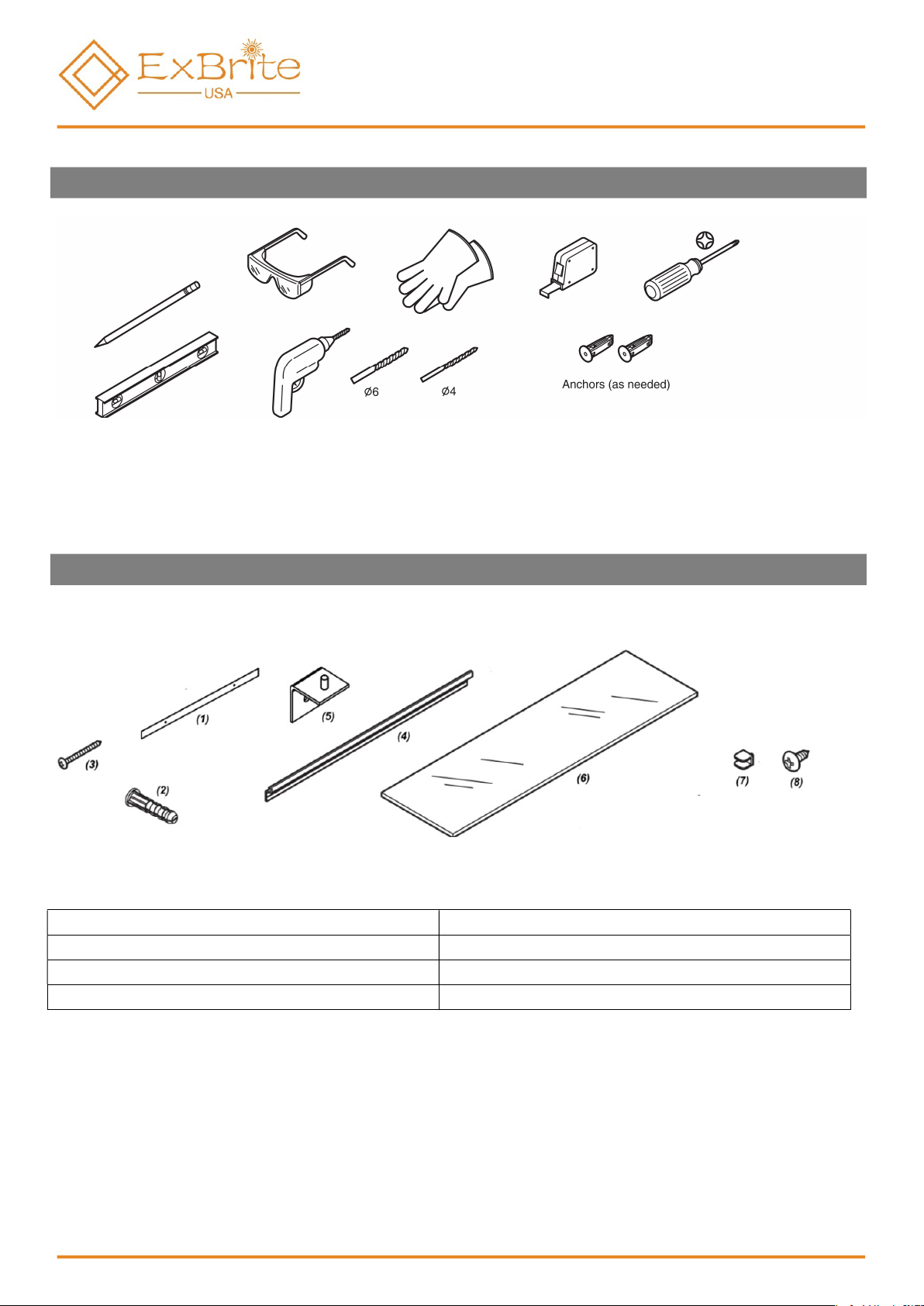

TOOLS REQUIRED
PARTS SUPPLIED
(1) Position-paper x 1PCE (2) Anchors x 3PCS
(3) Screws for wall x 3PCE (4) Mounting Bar x 1PCE
(5) Support Angle x 1PCE (6) Glass panel x 2PCS
8PCS xspilc rof swercS )8(
8PCS x
spilC )7(

JS-MC-1526 JS-MC-2026

Lighted Mirrored Cabinet
Light Bar
Light bar (optional) Light bar (optional)
JS-BAR-26-001 JS-BAR-30-001
ExBrite reserves the rights to change marked dimension without prior notice.

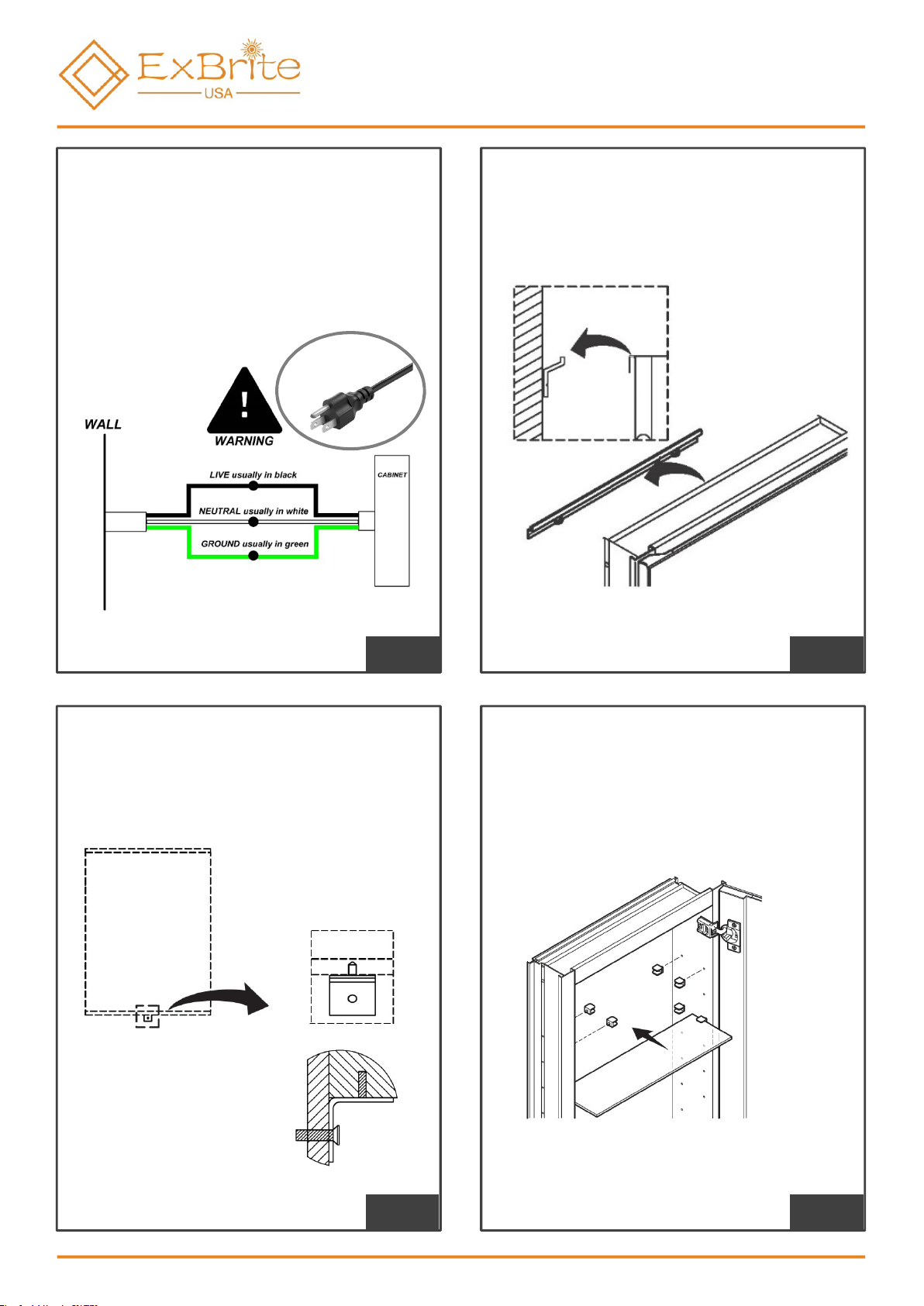

INSTALLATION for JS-MC-1526 and JS-MC-2026
Paste the position-paper on wall and make
sure it is horizontal by level.
Verify minimum clearances.
Suggest
75
"
to floor
3 "
120.0(4 ")
735.0(28 ")
120.0(4 ")
635.0(25")
3 "
Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
STEP 1 STEP 2
20.0( ")
20.0( ")
20.0( ")
20.0( ")

Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
Lighted Mirrored Cabinet
Light Bar
Drill holes. Insert anchors where needed.
Secure the mounting bar with screws.
We provide plug along with cabinet.
Optional to cut the plug directly and connect
to electrical wiring if using a wall switch.
Lift the cabinet onto the mounting bar.
Ensure the hooks engage the mounting bar.
Place the support angle on the bottom of
the cabinet. Mark hole location on wall.
Drill hole. Insert anchor where needed.
Fixed the support angle by screw.
STEP 3 STEP 4
STEP 5 STEP 6

Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
Lighted Mirrored Cabinet
Light Bar

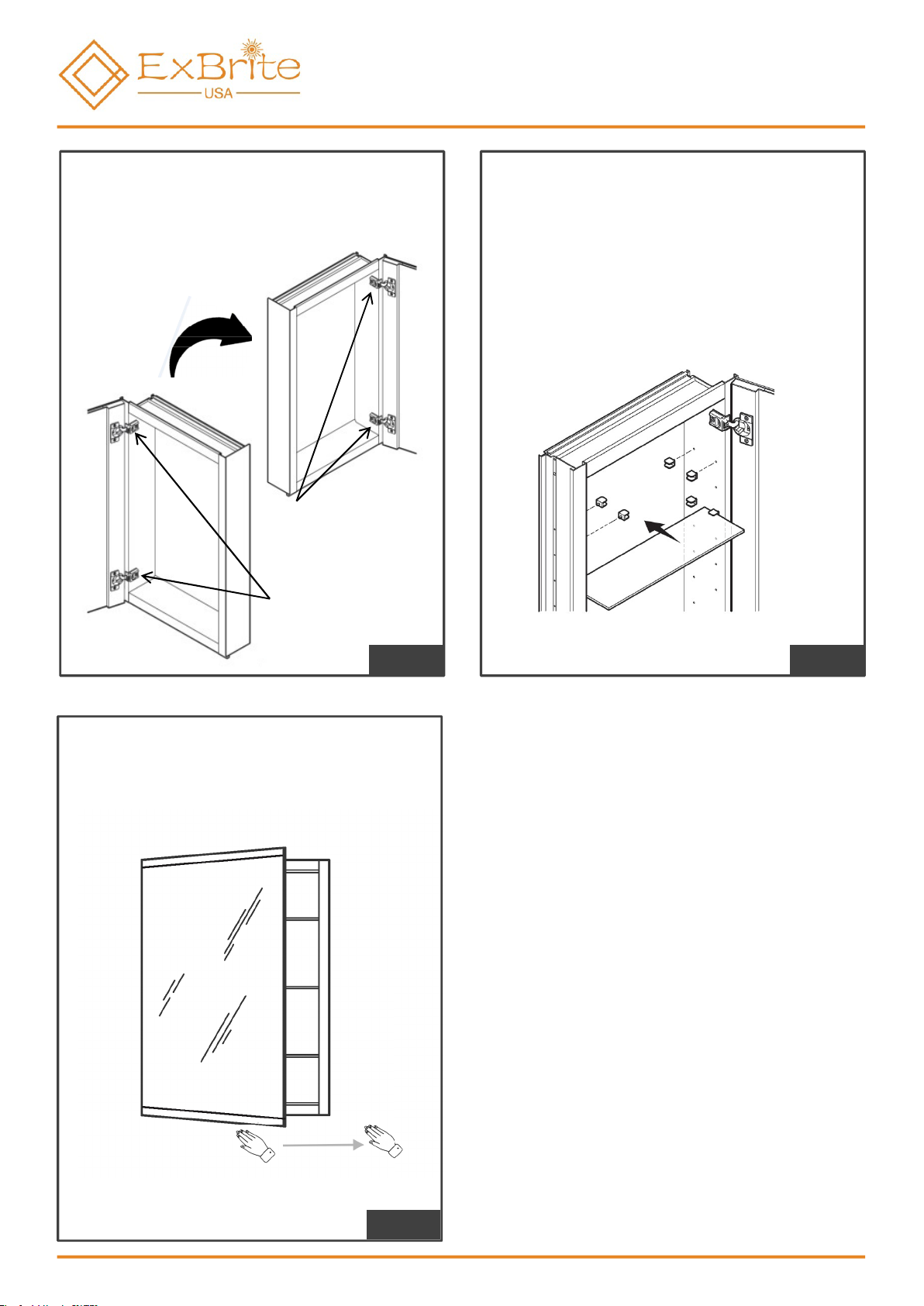

If the door is left open, it can be changed to
right open by releasing the hinge and rotate
the door, and vice versa.
Loose screws to
release hinges
Secure hinges by screws
Rotate the door
Install the clips. Insert the shelves between
the clips.
Turn on/off the light by waving your hand
underneath the cabinet or control by wall
swatch.
WAVE HERE
STEP 9
STEP 7 STEP 8

Lighted Mirrored Cabinet
Light Bar
INSTALLATION for JS-MC-2030 and JS-MC-2430
STEP 1
Verify minimum clearances.
We separate left-open door and right-open
door for these models, they are not
interchangeable. Luminous area is on top of
the cabinet.
Make sure you are installing correct one.
Paste the position-paper on wall and make
sure it is horizontal by level.
Drill holes. Insert anchors where needed.
Secure the mounting bar with screws.
STEP 4
Suggest
75"
to floor
3"
3"
STEP 2
STEP 3
Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]

Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
Lighted Mirrored Cabinet
Light Bar
We provide plug along with cabinet.
Optional to cut the plug directly and connect
to electrical wiring if using a wall switch.
STEP 5
Lift the cabinet onto the mounting bar.
Ensure the hooks engage the bar.
STEP 6
Install the clips. Insert the shelves between
the clips.
STEP 8
Place the support angle on the bottom of
the cabinet. Mark hole location on wall.
Drill hole. Insert anchor where needed.
Fixed the support angle by screw.
STEP 7

Lighted Mirrored Cabinet
Light Bar
DOOR ADJUSTMENT (IF NEEDED)
Turn on/off the light by waving your hand
underneath the cabinet or control by wall
swatch.
WAVE HERE
Adjust corresponding screws on the hinge to align the doors, ensure that gaps are even and the
doors open and close smoothly.
Adjust door gap
Adjust gap between door and
cabinet
Replace door mirror
INSTALLATION for JS-BAR-26 and JS-BAR-30 Light Bar (optional for purchase)
Paste light bar by double faced adhesive tape.
Plug in the socket on top of the cabinet. There is 2 sockets on top
of the cabinet, 1 on each side.
Control the light bar on/off by cabinet switch. It will be on/off along
with the cabinet LED light.
Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
STEP 9

Webs it e: Http://w w w.exbrit eu sa.com Email: info@exbr it eusa .com H otli ne: [phone]
Lighted Mirrored Cabinet
Light Bar
INSTRUCITON for combination
STEP 1
Make sure your door open direction is
correct
Make sure you have one LED light bar
between each cabinet
C
abinet
C
abinet
Led light bar
Measure total length of cabinets,
including the LED bar in the middle.
Adjust to your target location.
Install first (count form left to right side) cabinet according to above instruction guide.
Paste the LED light bar on the right side of the cabinet. And you should NOT put the LED
light bar flat to the cabinet door, the bar needs to be recessed by at least 1/4 ".
Lift the second cabinet onto the mounting bar, and push it to left side. Install the support
angle to fix the cabinet.
1/4"
STEP 2
STEP 3
