Excel SASMX-100001-W8 User manual

SASMX-100001-W8
INSTRUCTION MANUAL

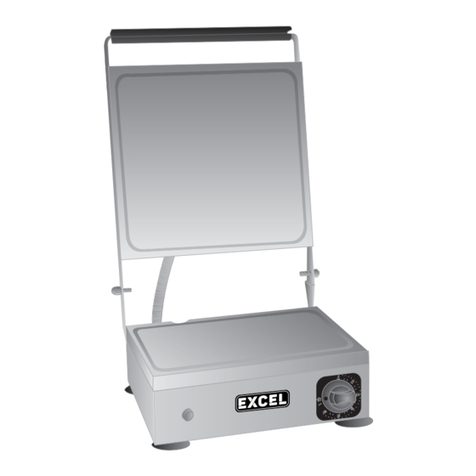

SANDWICH GRILL - MODEL: SASMX-100001-W8
ATTENTION:
-PLEASE read these instructions carefully before operating this appliance.
-The temperature is thermostatically controlled between the range of 80ºC to 200ºC (176º F
to 392ºF). A signal lamp adjacent to the thermostat indicates when the heating elements
are energized.
IMPORTANT:
-These units are designed to operate on alternating current (A.C.) only.
-DO NOT CONNECT TO DIRECT CURRENT (D.C.).
-Care should be taken when operating this appliance as HOT SURFACES may cause
burns.
-Ensure that the power supply cord does not come into contact with hot surfaces.
-Do not leave unit in operation without an attendant.
-When not in use for long period unplug the appliance.
INSTALLATION AND OPERATION:
-Check if voltage of your power system corresponds to the same specified on the machine
label.
-Before using the appliance for the first time, turn the control knob to 200ºC (392ºF), close
the lid and allow the appliance to heat for + / - 30 minutes. You will notice smoke appearing
due to the internal insulation burning, which is normal.
-After 30 minutes heating, turn temperature control down to operating desired temperature,
keep knob in this position until pilot light turns off, at this point the unit will be ready to be
used.
-To turn off the unit turn knob completely towards left.
CLEANING PROCEDURE
Always ensure that the appliance is disconnected from the main power supply before
cleaning.
-After appliance has cooled clean cooking surface and body using only a damp cloth. Never
use water jet or immerse appliance in water.
-Wipe off appliance with a dry cloth and wait at least half an hour before re-connecting to
main power out let.
50
250
200
150
100
DESL
ºC
320
122
212
302
392
482
608
ºF
OFF
The pictures/drawings are illustrations. All data can be changed without notification.
Texas Restaurant Equipment
12922 Hempstead Hwy
Houston, TX 77040
P: [phone]

29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
5.032-3
397
23.004-3
2.073-3
385
2.036-3
566
604
23.005-3
5.131-3
15.000-3
594
2.034-3
329
40.067-3
14.021-3
15.024-3
355
621
23.013-3
23.014-3
15.008-3
2.085-3
643
15.007-3
2.063-3
15.021-3
356
2.082-3
9.413-3
23.003-3
1.352-3
552
14.119-3
2.117-3
2.013-3
2.009-B
330
23.002-3
36
31
33 34
2
23
11
13
24
15
6
1
3
2
4
9
7
7
13
16
20
19
18 17
27
28
22
39
5
8
8
12
14
37
30
21
25
26
24
23
Rubber Cap
Screw (1/4")
Lid
Insulation
Screw (3/16")
Heating Element Support
Screw (4,8)
Nut (3/16")
Hinge Bar
Thermostat
Rubber Handle Protection
Washer (3/16")
Heating Element
Screw
Heating Plate
Wiring Protection
Pin
Screw (3/16")
Nut (1/4")
Right Hinge
Left Hinge
Insulation
Wire Connector
Washer (3/16")
Heating Element Protection Plate
Thermostat Bulb Retainer
Metal Foot
Screw (3/8")
Power Cord
Cord Retainer
Bottom Cover Plate
Plate
Screw (3,5)
Foot
Protection Sleeve
Pilot Light
Knob
Screw
Body
10
Item Code Description
SANDWICH GRILL (SASMX) SANDWICH GRILL (SASMX)
Technical Data
Amperage (A)
Dimensions WxHxD (cm/in)
Weight (kg/lbs)
Power (W) 1100
8.6
8.2/18
27/10.7 x 20/7.9 x 40/15.8
Wiring diagram
G
L2
L1
Voltage (V) 120
SASMX-100001-W8
32
38
24
12
35
