Operation Manual
Curvilinear Array Loudspeaker
CLa21
ARRAY Series

1

Operation Manual
2
General Information
CLa21 Operation Manual
Ver.: 1.0_UK 12/2016
©EXEL ACOUSTICS SL; all right reserved
The information contained in this manual has been
carefully checked for accuracy, at the time of going to
press, however no guarantee is given with respect to
the correctness.
Exel Acoustics SL accepts no responsibility for any
errors or inaccuracies that may appear in this manual
or the products and software described in it. Technical
specifications, dimensions, weights and properties do
not represent guaranteed qualities. As manufacturers
we reserve the right to make alterations and
modifications within the framework of legal provisions,
as well as changes aimed at improving quality.
EXEL ACOUSTICS SL
CL Encinar, 282 – Pol. Ind. Monte Boyal
45950 Casarrubios del Monte (Toledo) Spain
Phone: [phone] Fax:
e-mail: [e-mail] www.tecnare.com

Operation Manual
3
IMPORTANT SAFE INSTRUCTIONS
Before using our product, be sure to carefully read the manual and safe Instructions. Keep this document with the device all
time.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all SAFETY INSTRUCTIONS as well
DANGER and OBLIGATION warnings.
5 Only use attachments / accessories
specified by the manufacturer.
6 Use only with the cart, tripod, bracket or
table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart / apparatus
combination to avoid injury from tip-over.
7 If the equipment is used in a manner not
specified by the Exel Acoustic, the protection
by the equipment may be impaired.
8 Read all the Product Information document
before exploiting the system.
9 Read the Rigging Manual before installing
the system. Use the rigging accessories
described in the rigging manual an follow the
associated procedures.
CAUTION: Rigging should only be done by experience
professionals.
10 This speaker enclosure is capable of
creating a strong magnetic field. Please use
caution around the enclosure with data
storage devices such as phones, computers
or hard drivers.
11 Handles are for moving the system only.
12 Beware of sound levels. Never stand in the
immediate vicinity of loudspeaker driven at
high level. Professional loudspeaker
systems are capable of causing a sound
pressure level (SPL) detrimental to human
health. Hearing damage can also occur with
prolonged exposure to sound: 8h at 90
dB(A), 30 min at 110 dB(A), less than 4 min
at 130 dB(A) Source: European Directive
relating to the assessment and management
of noise 2002/49/CE
13 When setting up the loudspeaker or
loudspeaker stand, make sure they are
standing on a firm surface. If you place
several enclosure on top of one another, use
straps to secure them against movement.

Operation Manual
4
SYMBOLS USED
Important operating
instructions
Additional
information
OBLIGATION.This
instructions must
be strictly followed
Pour indequer important
Instructions
Information
complémentaire
Obligation. Cela
doit être
strictement
instructions Suivi
Wichtige
Betriebsanweisung
oder
Gebrauchsanleitung
sanleitung
Informationen.
Zusätzliche
Informationen
Pflicht. Diese
Anweisungen
müssen strikt
befolgt
Importantes
instrucciones operativas
Información
complementaria
Obligación. Estas
instrucciones
deben ser
estrictamente
seguidas

Operation Manual
5
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
EXEL ACOUSTICS SL
CL Encinar, 282. Polígono Industrial Monte Boyal. 45950 – Casarrubios del Monte (Toledo),
España (Spain).
Declara que el producto CLa21 y sus respectivas opciones, cumple con las Directivas:
Declare under our sole responsibility that devices in the CLa21 range of products, comply with
relating Directives:
(1) Directiva de Baja Tensión - 2006/95/CE
(2) Directiva de Compativilidad Electromagnética - 2004/108/CE
(3) Directiva RoHS - 2011/65/UE
(4) Directiva RAEE - 2012/19/UE
(1) Low Voltaje Directive 2006/95/CE
(2) EMC 2004/108/CE
(3) RoHS Directive 2011/65/UE
(4) WEEE Directive 2012/19/UE

Table of Contents
6
Table of Contents
IMPORTANT SAFE INSTRUCTIONS......................................................................................3
DECLARACIÓN DE CONFORMIDAD.....................................................................................5
1Introduction ...................................................................................................................7
1.1 Welcome to Tecnare ................................................................................................7
1.2 Overview the CLa21.................................................................................................8
1.3 Connections .............................................................................................................9
1.4 Processing and Amplification..................................................................................10
2Dispersion Characteristics..........................................................................................11
3Loudspeaker Connection............................................................................................12
3.1 Connecting CLa21 to PA2100 & PA900..................................................................12
3.2 Connecting CLa21 to PA2100 & PA4.450...............................................................13
3.3 Connecting CLa21 to T-Series................................................................................14
4Technical specifications..............................................................................................15

Operation Manual
7
1Introduction
1.1 Welcome to Tecnare
Thank you for choosing the high-quality Tecnare®CLa21 Curvilinear Array System
“Made in Spain” from EXEL ACOUSTICS SL.
Please spare a little time to study the contents of this manual, so that you obtain the best
possible performance from this unit.
All Tecnare®products are carefully engineered for world-class performance and reliability.
If you would like further information about this or any other Tecnare®product, please
contact us. We look forward to helping you in the near future.
As part of a continuous evolution of techniques and standards, Exel Acoustics
SL as manufacturer of Tecnare®products reserve the right to change the specifications
of its products and the content of its documents without prior notice.
Updates and supplementary information are available on the Tecnare®website:
http://www.tecnare.com
Tecnare Technical Support is available at:
(T): [phone] - [phone]
(e-mail): supp[email protected]m
Thank you again for placing your confidence in Tecnare®products.

Operation Manual
8
1.2 Overview the CLa21
The Tecnare CLa21 line source is a compact high-power curvilinear array loudspeaker,
member of the ARRAY family of loudspeakers. Its extended high-frequency headroom delivers
clarity, precision, and a unique proximity effect over its wide operating frequency range of 60 Hz
to 18 kHz. This headroom combines with a 75-degree constant directivity dispersion patter in
the horizontal plane.
The compact size and low weight of a
CLa21 line source complies with rigging
and visual limitations. Any on-site
deployment can be easily and quickly
achieved thanks to improvements over the
previous generation rigging system. Is
equally suited to touring, rental, and fixed
installation applications. High power-to-
size ratio, low profile, and ease of use
makes it an outstanding system in
corporate AV applications, and ideal for smaller venues such as theatres, ballrooms, and clubs.
In spite of its small size, CLa21 produces a peak output of 142 dB SPL with exceptionally
frequency response, making it capable of filling much larger spaces than one might expect.
A wide range of system configurations are available for the sound designer and system
engineer, allowing high level of creative freedom. With a fixed horizontal directivity of 75° and a
vertical inter-element variation from 0˚ to 13°, the CLa21 line source is fully configurable to
match any audience geometry.
For low-frequency enhancement, CLa21 pairs with Tecnare SW-18VR, which can be
flown as part of CLa21 arrays without transition hardware. The SW-18VR shares with CLa21
the advantages of excellent power-to-size ratio, improved efficiency, and versatility.
Tecnare recommends operating the CLa21 loudspeaker on a DSP controller. Tecnare
only recommends using presets developed by Tecnare Sound System. The DP-Series
Processor and T-Series Advanced System Amplifiers are ideal for this purpose.
Thanks to dedicated factory presets, it constitutes an extremely advanced and precise
drive system for the enclosures. In high-end installation projects, the T-Series amplified
controller can deliver maximum power headroom and the best possible performances. With one
transducer section per output channel and the independent DSP treatment of each loudspeaker
enclosure, this approach brings maximum discretization with a one-to-one-to-one link, from
input-to-processing-to-enclosure.
The DP-4896 Digital Loudspeaker Controllers and the T-Series amplified controllers feature
the unique Virtual Xover limiter for passive 2-way enclosures, a Tmax transducer thermal
limiters and Xmax over-excursion protection limiter.

Operation Manual
9
1.3 Connections
CLa21 loudspeaker utilizes Neutrik®SpeakON®connectors. There are two NLT4
connectors on the rear of each CLa241. These connectors mate with Neutrik®NL-4 or NL-4
compatible in-line cable connectors. All four pins of both connectors are wired in parallel to link
multiple loudspeakers on a single amplifier output. Remember that parallel connection reduces
the total impedance (Ω) seen by the amplifier.
The total impedance of loudspeaker connected in parallel must not drop below the
minimum operating impedance of the amplifier.
The following subsections describe the electrical
connections.
IN speakON®point 1+ 1- 2+ 2-
Connection LF + LF - HF + HF -
The CLa21 uses the pin assignment 1+/1+ for Low
frequency and 2+/2- for High frequency. Under special order,
the customer can required a passive version with internal
crossover network.
Using one as the input, the second connector allows for
direct connection to a second cabinet.

Operation Manual
10
1.4 Processing and Amplification
Only operate Tecnare loudspeaker with a correctly configured Tecnare preset. Tecnare
offer a complete solution that guarantees the highest level of performance. A complete range of
controllers, amplified and amplified controller with DSP are available to get this objective.
Otherwise, there is a risk of damaging the loudspeaker components.
1.4.1 Processing
There are two options using our digital controllers. Our DP2696 or DP4896. The options
vary depending on the final application. Refer to DP2696 or DP4896 user manual.
1.4.2 Amplification
To power Array Series, Tecnare recommends amplifiers with the power ratings enough
to feed the loudspeakers. For high power or live applications, it is recommended to
oversize the amplifiers relative to the nominal AES output of the subwoofers.
In certain specific cases it is possible to slightly under-power the subs or loudspeakers
as long as the amplifier will not be driven to its limits.
In any case, the Tecnare processors should be deployed in front of the amp to ensure
that the amplifiers to not go into clip.
The DP4896 processors also include:
- Virtual Xover Limiter for passive systems
- Thermal protection from power surges or overload
- Xmax Excursion displacement protection
The T20-44 amplifier is the ideal companion for maximum performance of the Sub
Series loudspeakers. This amplifier controller with DSP offer a complete both preset and
protection solution for any application.

Operation Manual
11
2Dispersion Characteristics
The graph below show dispersion angle over frequency of a single CLa21 enclosure.

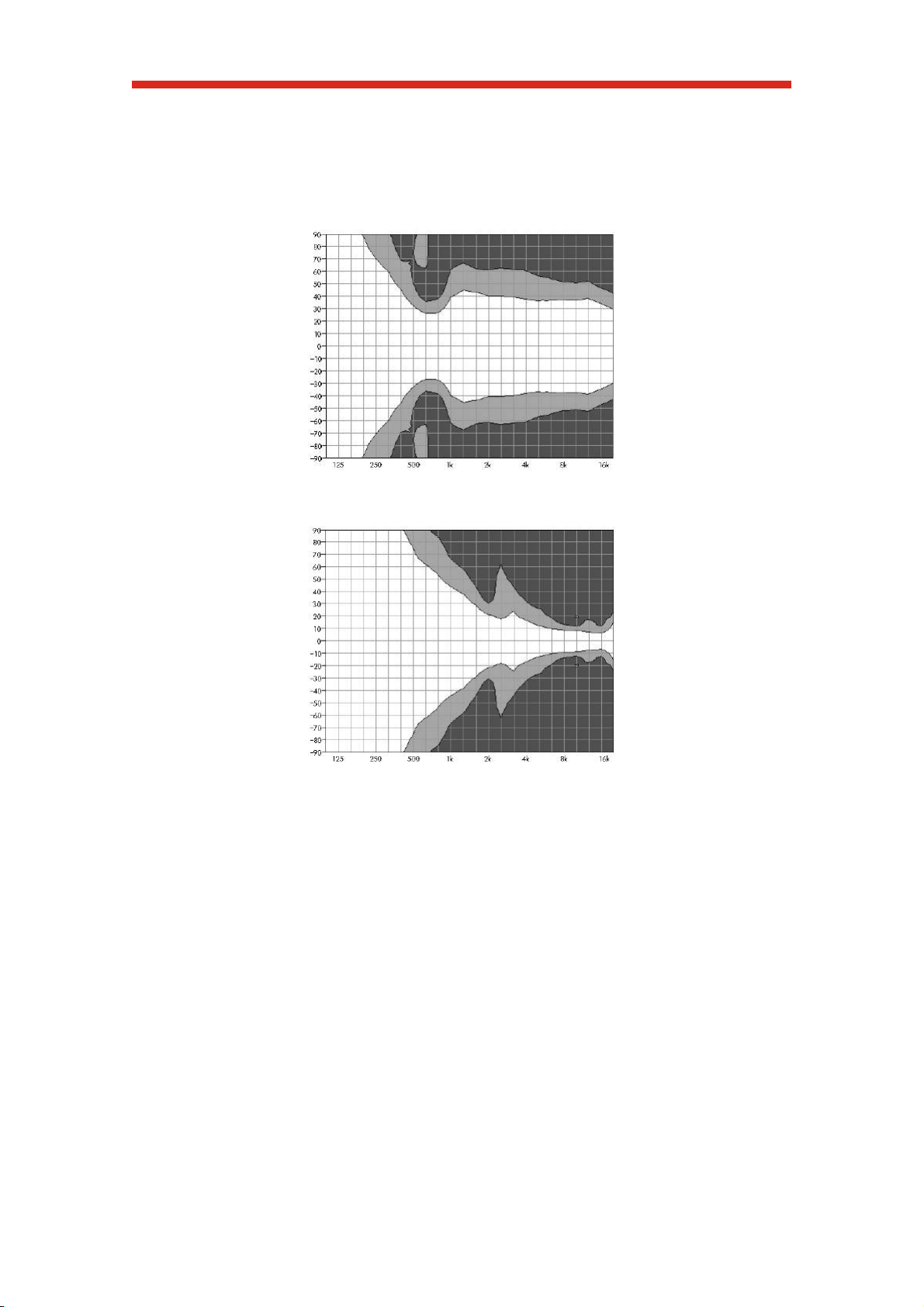

Isobar diagram CLa21 horizontal
Isobar diagram CLa21 vertical

Operation Manual
12
3Loudspeaker Connection
Tecnare®Sound Systems recommended operating the CLa21 loudspeaker together
Tecnare loudspeaker controllers.
Tecnare®only recommends using preset/amplifier developed by Tecnare, otherwise there is
a risk of damaging the loudspeaker components. DP Series Loudspeaker Controller, PA Series
amplifier and T-Series amplifier are ideal for this purpose.
Ensure that the right preset was selected before connecting the loudspeaker with the
amplifier.
Operating with an incorrect preset can damage part of the loudspeaker.
Ensure that the amplifier is properly size according to requirements. Under-power or
oversize power amplifier without the supervision of an expert may damage the loudspeaker.
Please note the technical specification section.
3.1 Connecting CLa21 to PA2100 & PA900
MAXIMUM OF 2 ENCLOSURES PER PA2100 (LF) / 4 ENCLOSURES PER PA90O (HF)
2 x CLa21 can be connected in parallel to each pair of output channels on the PA2100 and
PA900 amplifiers.
Impedance load:
1 Enclosure → LF: 8Ω; HF:16Ω 2 Enclosures → LF: 4Ω; HF:8Ω

Operation Manual
13
3.2 Connecting CLa21 to PA2100 & PA4.450
MAXIMUM OF 2 ENCLOSURES PER PA2100 (LF) / 4 ENCLOSURES PER PA4.450 (HF)
2 x CLa21 can be connected in parallel to each pair of output channels on the PA2100 and
PA4.450 amplifiers.
Impedance load:
1 Enclosure → LF: 8Ω; HF:16Ω 2 Enclosures → LF: 4Ω; HF:8Ω

Operation Manual
14

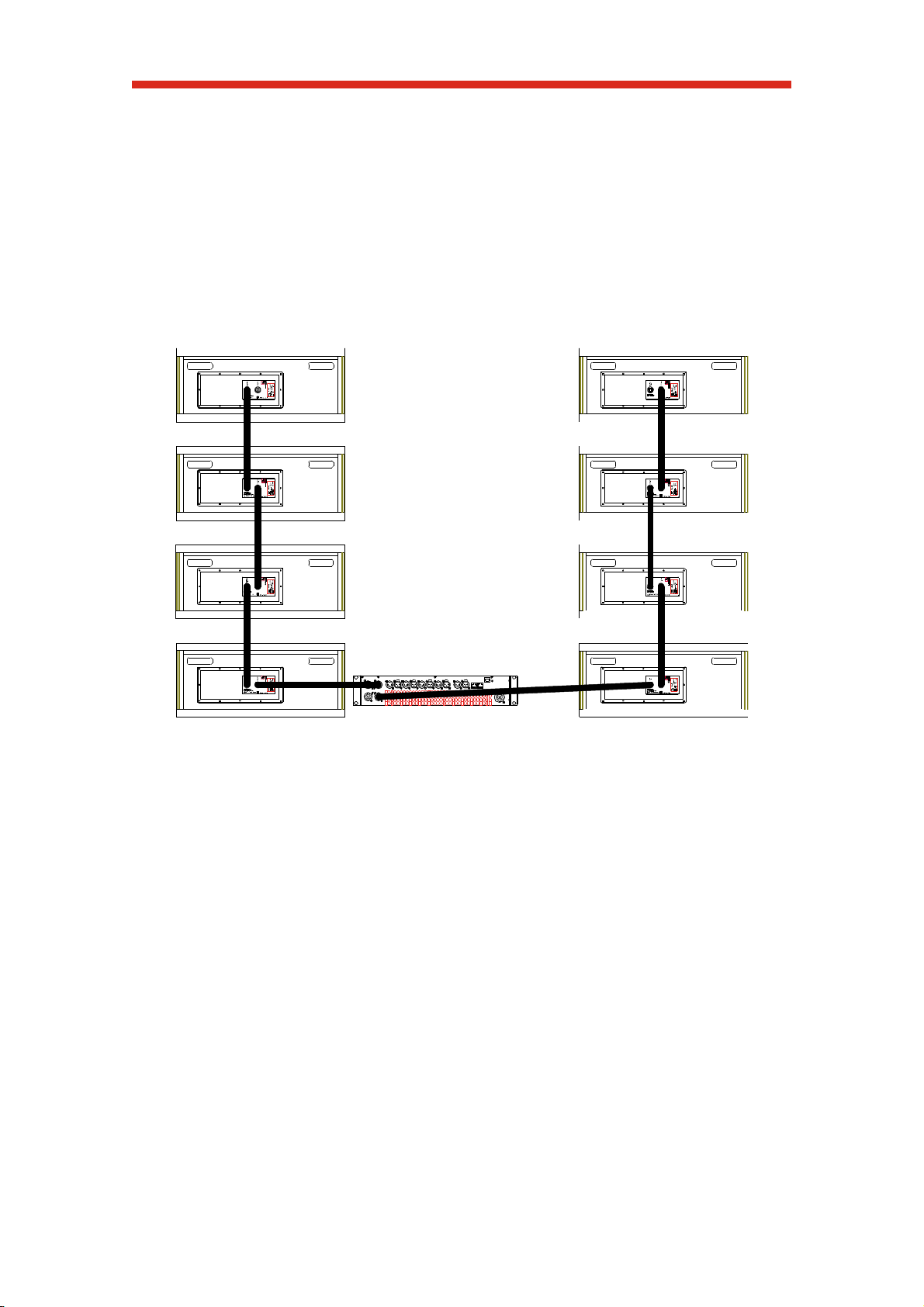

3.3 Connecting CLa21 to T-Series
MAXIMUM OF 8 ENCLOSURES PER T-SERIES
4 x CLa21 can be connected in parallel to each pair of output channels on the T-Series
amplifiers.
Impedance load:
1 Enclosure → LF: 8Ω; HF:16Ω 2 Enclosures → LF: 4Ω; HF:8Ω 4 Enclosures → LF: 2Ω;
HF:4Ω

Technical Specifications
15
4Technical specifications
ACOUSTICAL
Operating Frequency Range 60/80 (1) Hz – 18kHz±4dB (1 box), measured on axys. Recommended operating frequency range.
Response depends on loading conditions and room acoustics
Note: The low-frequency response of the system will increase according to the length of the array
Free Field Frequency
Response 80/90 (1) – 17 kHz (1 box). Measured free field 1/3-octave resolution, 4 meters.
Axial Sensitivity 108 dB (1w/1m)
Calculated SPL 136 dB continuous/142 Peak [(CLa21) preset]
Horizontal: 75º
Nominal Dispersion Vertical: Depending on array length and configuration (15º one box)
COMPONENTS
Low Frequency 2 x 10-inch cone neodymium magnets, direct radiation, bass-reflex
Nominal impedance: Loudspeaker= 16Ω, Enclosure= 8Ω
Voice coil size: 2-inch
Power Handling Capability: 300 W AES / 600 W continuous (enclosure)
Note: Power Handling measured using AES Standards= 2 hours test made with continuous pink noise
signal (6 db crest factor).
High Frequency 1 x 1.4-inch Titanium compression driver
Nominal impedance: 16Ω
Voice coil size: 3-inch
Power Handling Capability: 110 W AES / 220 W continuous
Note: Power Handling measured using AES Standards= 2 hours test made with continuous pink noise
signal (6 db crest factor).
AUDIO INPUT
Connectors IN: 1 x NL4 SpeakON®LINK: 1 x NL4 SpeakON®
Wiring Pin 1+/-: LF+/- ; Pin 2+/- HF+/-: Parallel wiring
PHYSICAL
Enclosure 16mm birch plywood. Finished in Polyurea surface
Protective Grille Powder-coated perforated steel with acoustically transparent reticulated foam
Rigging Proprietary rigging system. Four captive guide link. Two steel end frames, with magnet release pins.
Inter-enclosure angles: 0º, 1º, 2º, 3º, 4º, 5º, 6º, 7º, 8º, 9º, 10º, 11º, 12º, 13º.
One / side recessed carrying handles integrated.
Dimensions (HxWxD) 320mm x 741mm x 479mm (12.6” x 29.7” x 18.85”)
Weight 35 Kg. (77.16lbs)
(1) Standard Mode(CLa21 Preset)/Cut mode (CLa21_80 preset)
Application information is presented for guidance only. Exel Acoustics SL reserves the right to make any necessary
changes to the products and the published specifications. As part of the ongoing development program Exel Acoustics
SL tries to maintain the highest degree of product compatibility.

Operation Manual
16

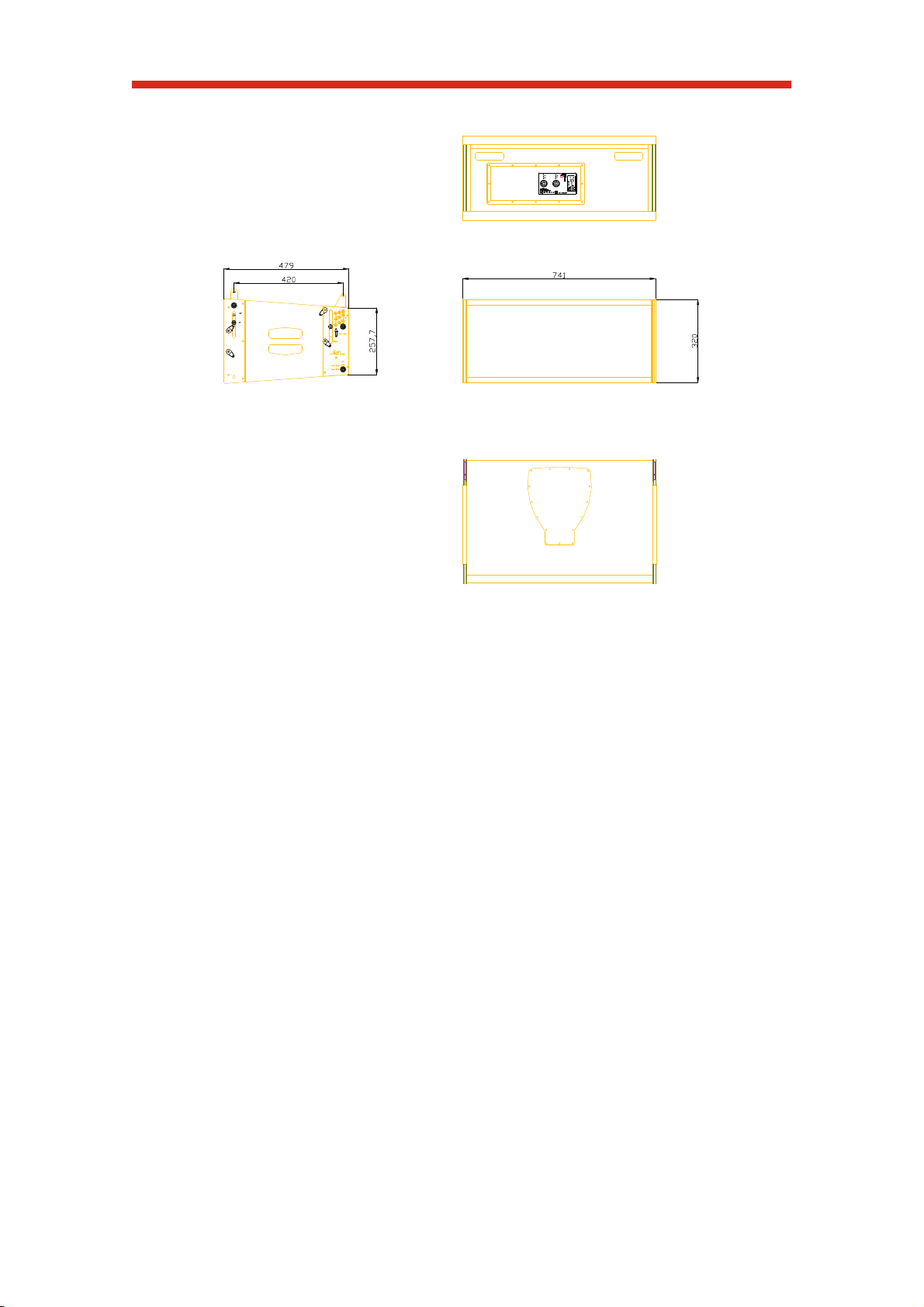

CLa21 Dimensions

Operation Manual
17

Operation Manual
18
Reinventing The Rules
©2016
Tecnare Sound Systems. All rights reserved.
CLa21 Operation manual
The contents of this manual are furnished for informational purposes only, are subject to change without notice, and
should not be construed as a commitment by Exel Acoustics SL. Exel Acoustics assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual. Except as permitted by applicable copyright law, no part of
this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, recording or otherwise, without prior written permission from Exel Acoustics. Tecnare and PCC-Net are
trademarks of Exel Acoustics SL. Podware, BvNet, Smaart and all third-party trademarks mentioned herein are the
property of their respective trademark holders.
Printed in Spain.

rev.:1.00 2016
EXEL ACOUSTICS SL
CL Encinar, 282 - Pol. Ind. Monte Boyal
45950 Casarrubios del Monte (To)
Spain
[email protected]
www.tecnare.com - www.facebok.com/tecnare
(T): [phone] - [phone]
(F): [phone]
