Gato Audio FM-2 User manual

FM-2 2-way Speaker
User Manual

Gato Audio FM-2 - 2-way Speaker
Page 2
Contents
Don’t be a stranger 2
Package contents 3
A few words on your new speakers 3
Installation 4
Mounting the driver grilles 4
Connecting your speakers 4
Bi-wiring and bi-amping 4
Placement of the speakers 5
Make it last! 5
If all else fails… 6
Technical stu 7
Technical specications 7
Drivers 7
Weight & Dimensions 7
Don’t be a stranger
Thank you for purchasing this Gato Audio product. We are absolutely condent that it will bring you many pleasurable hours of listening.
We hereby cordially invite you to join the Gato Audio family by register your product online. You may also consider signing up for our
newsletter to receive information about exciting new products, demo-events and technical updates.
All this and more on www.gato-audio.com
Our very best
Gato Audio

User Manual
Page 3
Package contents
Please check that the following is included in the two packages:
• 2 Gato Audio FM-2 speakers
• 2 front grille sets
• This manual - which you should be reading now 
A few words on your new speakers
A good cabinet is the essential foundation of any loudspeaker. The FM-2 cabinet incorporates several noteworthy details. First of all, the
cabinet is made from solid high-density berboard, and the rounded sides are laminated with ve layers of material to ensure strength,
stiness and resonance control. Secondly, the rounded shape itself ensures that stationary waves inside the cabinet never will be a
problem. Thirdly, the solid aluminium prole does not only give the speaker a unique design; it also has a function: to add mass and by
that dampening resonances and vibration. The cabinet shape will transfer vibration from the front panel to the rear panel. The aluminium
prole is mounted with a special gasket, providing instant high mass and a totally dierent resonance structure than the berboard.
Excellent drivers are the foundation of true-to-life sound: the drivers’ capability to react instantly to the provided signal together with
total control of mechanical resonance is crucial. The drivers in FM-2 are selected from the absolute best drivers available and then
modied further to comply with our demands for technical quality. The midrange reproduction of any speaker is without discussion the
most important thing at all. This is where it all happens. Whether it is the reproduction of vocals, high-hat or drums, all have important
information based in this frequency area. The bass/midrange is specially designed for mid- and high frequency response providing a clean
and dynamic impulse response second to none.
The tweeter is a state-of-the-art ring radiator design that not only yields a useful output far beyond the capability of the human ear,
thereby providing instruments with their natural harmonic structure, but also adds the crucial benets of extremely low distortion and
coloration of the reproduced material.
At the heart of the FM-2 speaker lies an advanced crossover adorned with no less than ultimate quality components: large air-core
coils, low-resonance capacitors and non-inductive resistors mounted on a high-quality berglass PCB and cast in a special resonance-
controlling epoxy resin.
Hundreds of hours have been spent designing the network to comply with the drivers’frequency response and impedance, while carefully
considering phase, resonance and impulse response. Finally, we trimmed the sound, not only providing a at frequency response but
providing a tantalizingly lifelike sound.
All of the above is draped in a beautiful exterior design, as small as possible and perfectly nished in handcrafted veneer or paint.
The supplied magnetic cloth grilles are designed to produce a minimum of coloration and distortion to the sound when mounted. Using
a small and close-tting frame clad in sound-transparent fabric ensures that any loss of audio detail is kept at a minimum, and that
diractions are well out of the critical midrange area. In addition, it oers protection for the drivers while enhancing both the beautiful
nish and the elegant, simple lines in the design even further.

Gato Audio FM-2 - 2-way Speaker
Page 4
Installation
Mounting the driver grilles
The grilles are easily fastened to the speakers magnetically when the small magnets on the grille are aligned on top of the driver screws.

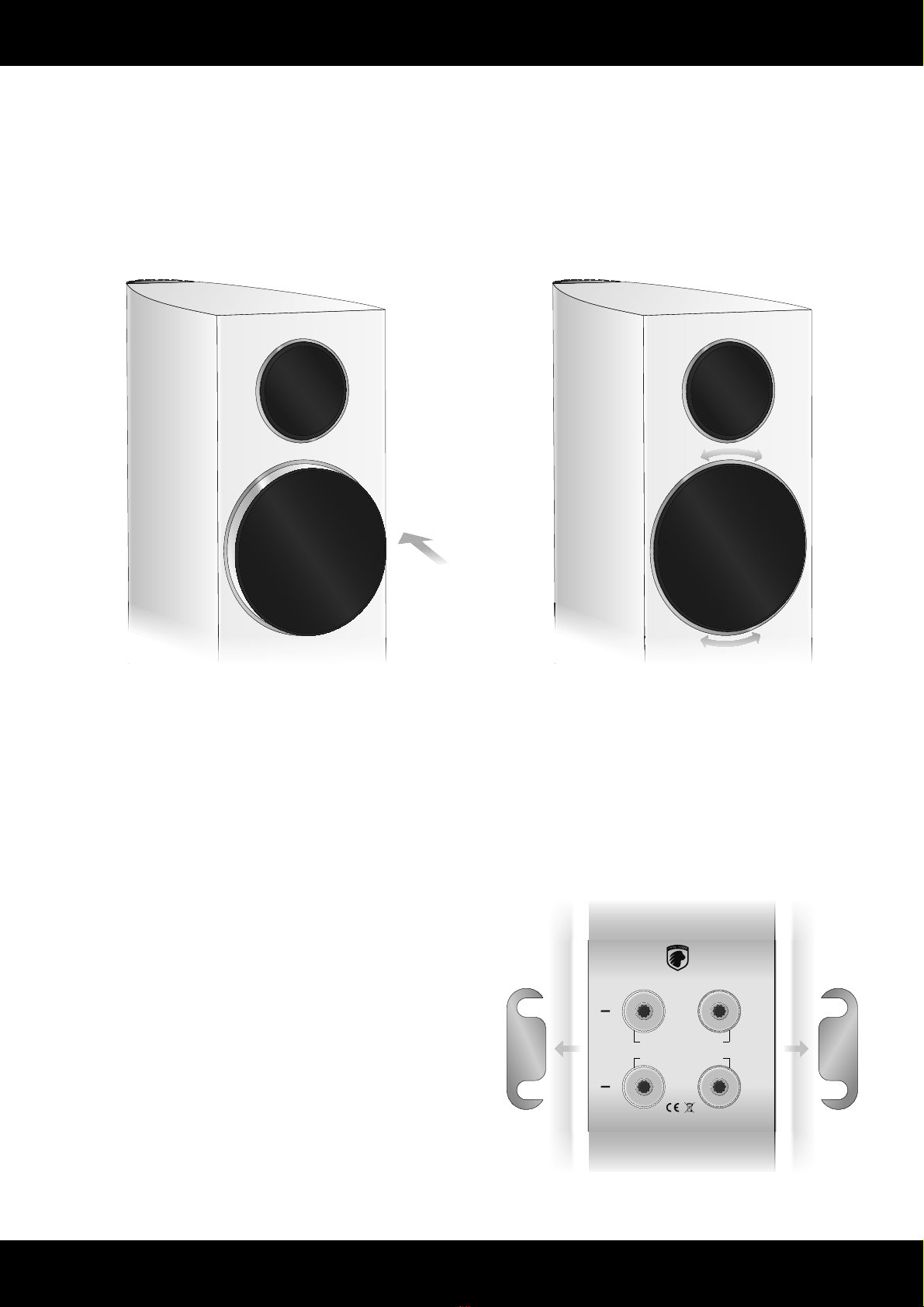

1.Place and hold the grille lightly on top of the driver as
shown below
2.Turn it clockwise or counter-clockwise until you can
feel the magnets attach to the screws below.
To detach the grille from the speaker simply turn the grille clockwise or counter-clockwise and remove it.
Connecting your speakers
Connecting your speakers to your amplier must only be performed with the amplier turned o. Otherwise damage may occur. Connect
the red speaker terminal (+) to the positive speaker output on your amplier. Now connect the white speaker terminal (-) to the negative
speaker output terminal on your amplier.
Bi-wiring and bi-amping
The FM-2 features a double set of high-quality WBT gold plated copper
binding posts that can accommodate separate cables and/or ampliers for
high and low frequency reproduction respectively.
PLEASE NOTE THE FOLLOWING IMPORTANT INFORMATION:
Permanent damage may occur to your audio system if the copper
shorting plates are not removed before connecting more than one
amplier to your speakers!
There are many theories about bi-wiring and bi-amping. Our best advice is
to experiment with dierent cables, ampliers and methods of connection.
Whatever performs best in your system might not work equally well in
another setup or in a dierent room. In general, our advice would be to
use the same kind of cable both for bi-wiring and bi-amping, and also
to use identical ampliers when bi-amping. This is simply due to the fact
that both methods will add more headroom and clarity to the sound
+
+
Gato audio
FM-2
Made in Denmark
High frequency terminals
Low frequency terminals

User Manual
Page 5
reproduction. The introduction of dierent ampliers and/or dierent cables may cause issues with sound integration
and cohesive performance.
Placement of the speakers
Just like with real estate, location is the most important factor when setting up a high-end audio system. It is impossible to give you an
exact instruction via this manual to set up your specic system perfectly in your listening room. However, we can give you some thumb
rules:

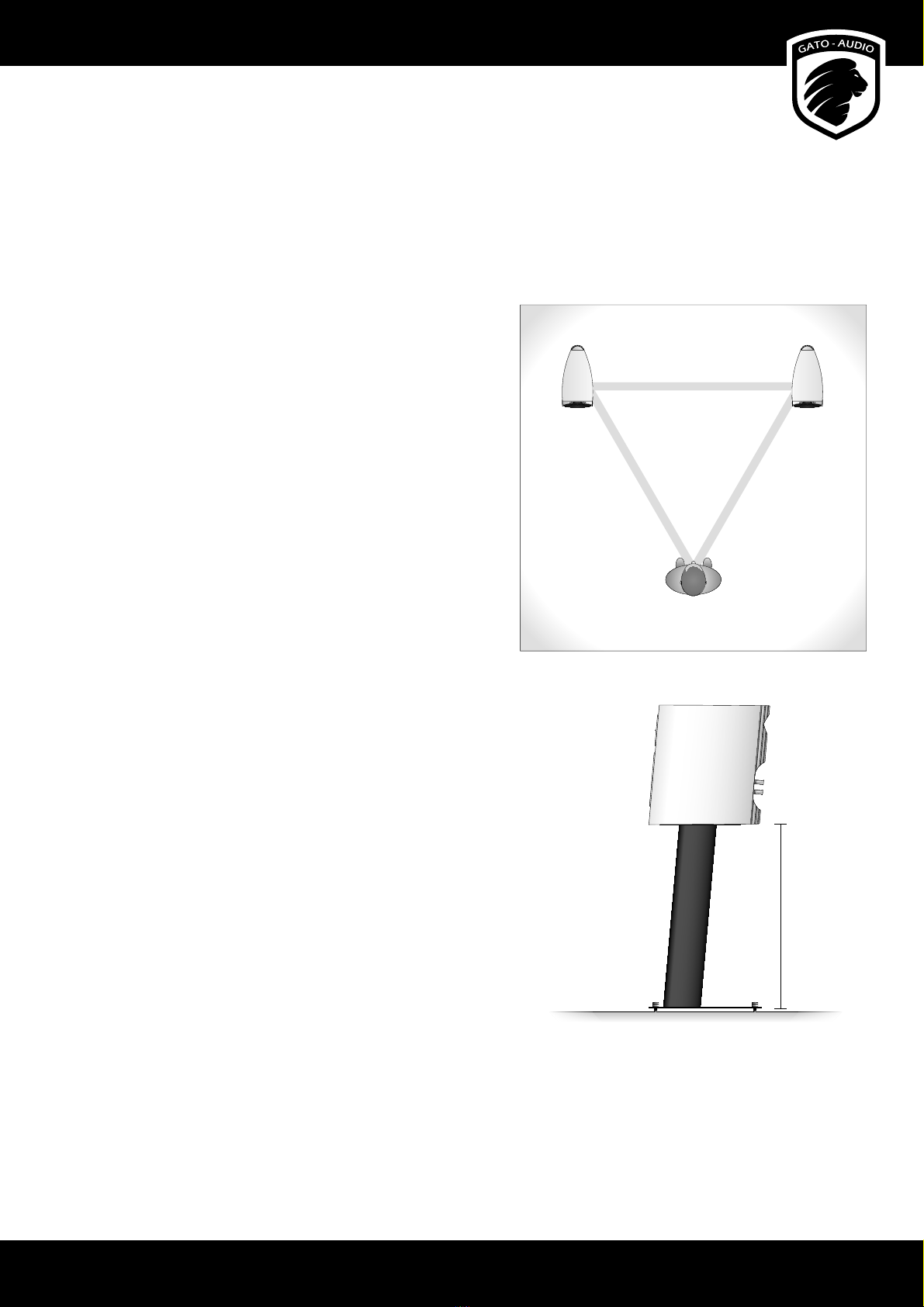

• Place your speakers at least 0.5m from the rear and side walls. Placing
a speaker close to the rear wall will provide an extension in level of
bass and coloration in the mid band.
• Basic setup should be an even-sided triangle with equal distance
between the speakers as well as the listening position.
• The FM-2 speakers are developed to play facing directly into the
listening room, so no toe-in should be needed. However, if the room
is very small and the speakers must be placed closely to the side walls,
then some degree of toe-in may be useful.
• Hard surfaces like glass, stone and wooden oors create many
reections which can make midrange reproduction sound harsh and
with a blurry soundstage. These reections can be dampened with
curtains and carpets.
• Many soft surfaces, thick carpets and furniture may on the other
hand provide too much dampening. This may cause the midrange
reproduction to become“thin”and lacking in musical timing and
energy. In such cases, it is advised to remove some of the dampening
items.
In any case, time spent setting up your speakers is by far the most
important adjustment parameter for your system. Room acoustics is a
hugely complicated eld with an almost innite number of variables.
Again: what might work well in your listening room may not be the perfect
solution in other setups.
For the best result, place the FM-2 on a solid stand with a height of approx.
60cm. Use spikes or other hard coupling material between the speaker
and the stand and also between the stand and the oor. Take extra care
that the speaker and the stand are not able to vibrate, which would cause
resonances. Make sure that the stand itself is of high quality, stable and
preferable lled with sand or other resonance dampening material.
60c m

Gato Audio FM-2 - 2-way Speaker
Page 6
Make it last!
Please use simple common sense to maintain the sound quality and lifespan of your Gato Audio speakers. Here are a few guidelines:
• Regular care: wipe the surfaces carefully by using a soft dry cloth
• Cleaning: if necessary, wipe the hard surfaces clean using a soft cloth dampened only with clean water.
• Grease stains or nger marks on the cabinets can be removed carefully with a clean soft cloth lightly dampened in a mix of clean
lukewarm water and a single drop of household washing-up liquid. Then wipe the surfaces dry using a soft dry cloth
• Be careful never to use hot water or any type of concentrated detergent, solvent, thinner, or any other volatile substance on the
surfaces, or you may cause permanent damage to the surface coating
• Keep the cabinets away from prolonged contact with rubber or PVC materials
• Do not expose the speakers to direct sunlight or other heat sources
If all else fails…
…don’t panic! Every Gato Audio product comes with a minimum 2-year warranty. Se our website for details.
This warranty does not cover damage or wear directly or indirectly caused by improper use, violence, tampering with or unauthorized
access to or servicing of any part of the product.
If you are in need of service or repair, please do not hesitate to contact us at [email protected] or visit our website www.gato-audio.com
for more information.

User Manual
Page 7
Technical stuff
Technical specications
Frequency response
Sensitivity (2,83 v)
Recommended power amplier
Nominal impedance
Connectors
Drivers
High Frequency
Mid & Low Frequency

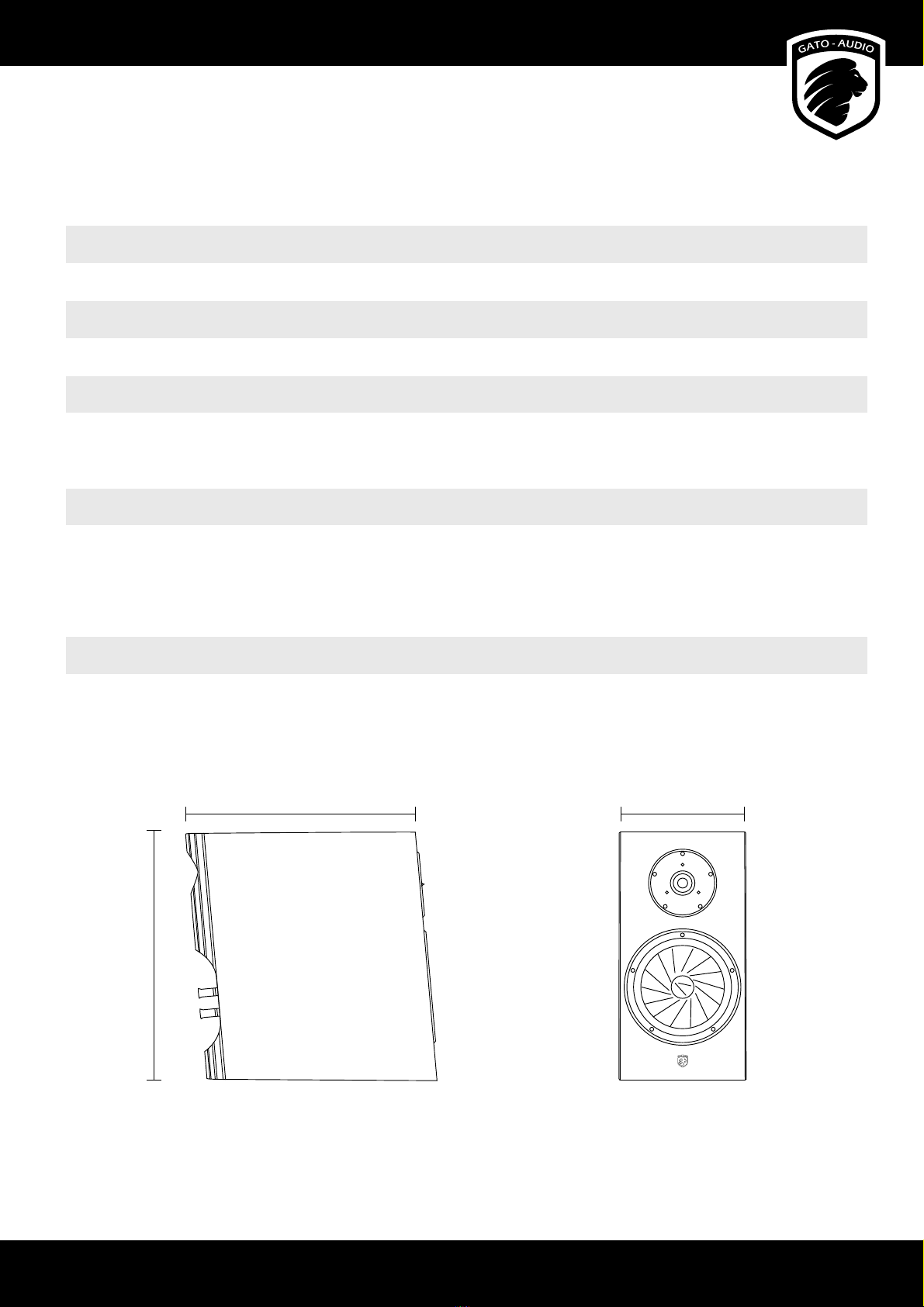

Weight & Dimensions
Weight
Dimensions
48 Hz – 25 kHz (-6 dB)
89 dB
50 to 300 Watts
4 Ω
Gold plated WBT binding post / 4 mm plugs, bi-wire
30 mm Ring Radiator, neodymium motor
180 mm sliced cone, SD-1 motor, optimized voice coil
10.5 Kg / 23.15 lb
370 mm
390 mm
200 mm

Hoerkaer 14
DK-2730 Herlev
Denmark
Phone: [phone]
www.gato-audio.com
[e-mail]
GA FM-2 MAN 1,0 1004
Gato audio
