PN2972LF
Disassembly Instructions
Princeton
Credenza
Product designed for disassembly
in a reasonable time frame.(5 minutes or less)
Required tools:
Phillips screwdriver size #2
Rubber mallet
NOTE:Any alteration to listed components will void the manufacturer's warranty.The manufacturer will not be responsible for any damage or bodlly harm
caused by alterations in accordance with national or local electrical codes and manufacturer's specifications.In accordance with the manufacturer's policy
of continual product improvement, the product presented in this document is subject to change without notice or obligation.
Safety glasses
Expert Manufacturing Inc.
Please contact Expert Manufacturing service representative
at 905.738.7575 for any questions or concerns.

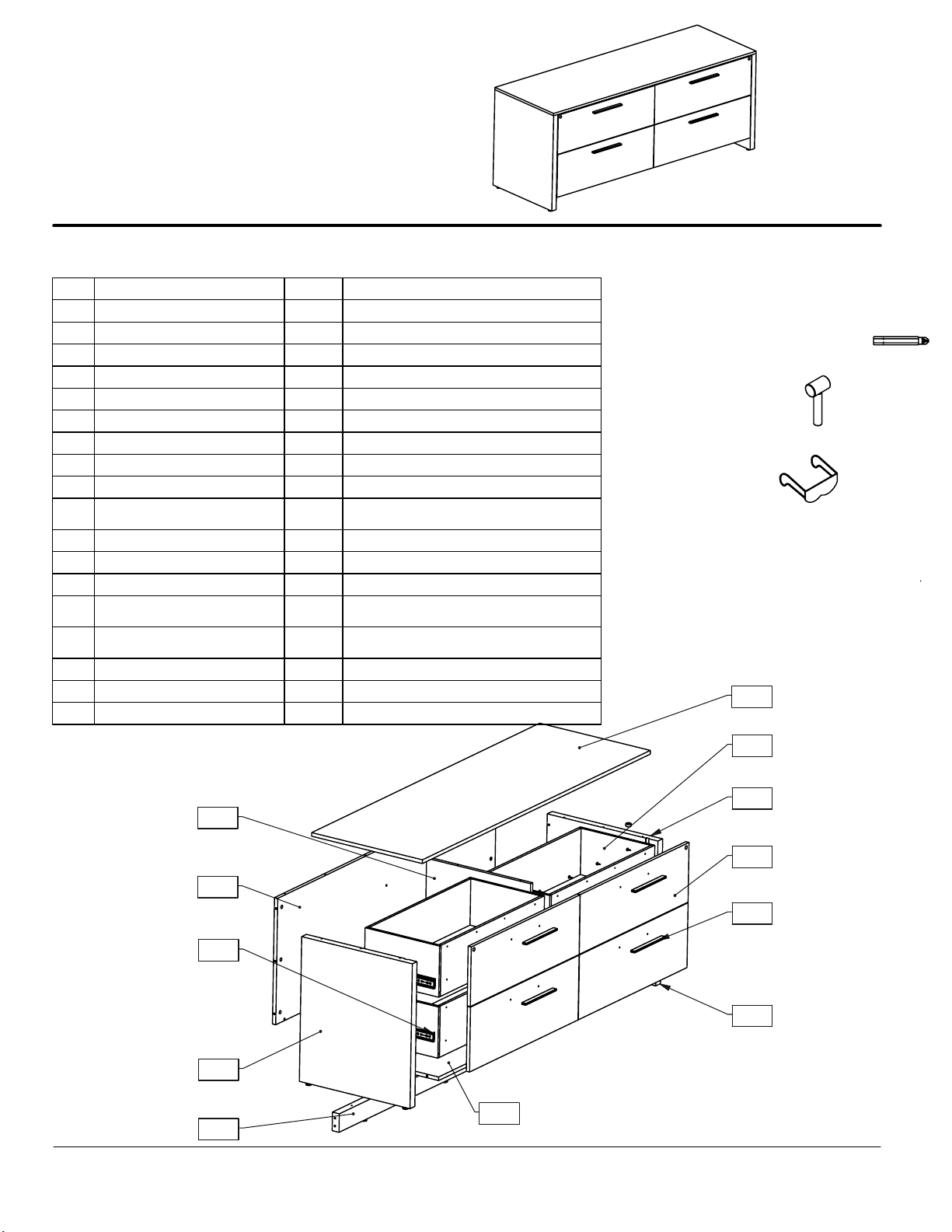

ITEM DESCRIPTION QTY MATERIAL
1 TOP PANEL 1 PARTICLE BOARD
2 GABLE LEFT 1 PARTICLE BOARD
3 GABLE RIGHT 1 PARTICLE BOARD
4 BACK PANEL 1 PARTICLE BOARD
5 BOTTOM PANEL 1 PARTICLE BOARD
6 STRETCHER 1 PARTICLE BOARD
7 DIVIDER 1 PARTICLE BOARD
8 DRAWER FILE FRONT 4 PARTICLE BOARD
9 DRAWER BOX 4 PARTICLE BOARD
10 BLUM CONNECTOR 10 STEEL&PLASTIC(PolypropylenePP)
11 BLUM SCREW 10 STEEL
12 TITUS CAM 20 STEEL
13 TITUS DOWEL 20 STEEL
14 ADJUSTABLE LEVELLER 7 STEEL&PLASTIC(PolypropylenePP)
15 T-NUT FOR LEVELLER 7 STEEL&PLASTIC(PolypropylenePP)
16 WOOD SCREW 48 STEEL
17 HANDLES 4 ALUMINUM
18 SLIDES/PAIR 24 STEEL
Page 1 of 2

C
DETAIL C
SCALE 1 : 8
D
DETAIL D
SCALE 1 : 5
E
DETAIL E
SCALE 1 : 5
F
DETAIL F
SCALE 1 : 3
Top underside
Gable
Modesty
Step
1
Step Step
NOTE:Any alteration to listed components will void the manufacturer's warranty.The manufacturer will not be responsible for any damage or bodlly harm
caused by alterations in accordance with national or local electrical codes and manufacturer's specifications.In accordance with the manufacturer's policy
of continual product improvement, the product presented in this document is subject to change without notice or obligation.
2
Untighten Titus cam
4
Untighten Blum connector
Step
3
Untighten Titus cam
Page 2 of 2
