Explore Scientific DeepSky Astro Camera Series User manual

Digital camera ·
DeepSky Astro Camera Series
EN Instruction manual

DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere Informationen
zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu finden.
EN
Visit our website via the following QR Code or web link to find further information on this product or
the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le lien
correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over dit
product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma determinado?
Entonces visite nuestra página web utilizando el siguiente enlace (código QR) para ver las versioneAs
disponibles.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specifica? Venga a
visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni disponibili.
www.bresser.de/P0510530
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA

3
Contents
1 Imprint .............................................................................................................................................................4
2 Validity note ....................................................................................................................................................4
3 About this Instruction Manual.......................................................................................................................4
4 Intended use ...................................................................................................................................................4
5 General safety instructions ...........................................................................................................................5
6 General safety instructions ...........................................................................................................................5
7 Parts overview and scope of delivery ..........................................................................................................8
8 Parts overview and scope of delivery ..........................................................................................................9
9 Installing the software and drivers .............................................................................................................10
10 Installing the software and drivers .............................................................................................................10
11 Camera mounting on telescope ..................................................................................................................11
12 Camera mounting on telescope ..................................................................................................................11
13 Using the internal USB HUB (USB 2.0).......................................................................................................12
14 Camera mounting as an autoguider ...........................................................................................................12
15 Camera mounting with optional autoguider ..............................................................................................14
16 Optimizing the camera settings for long exposures.................................................................................15
17 Cleaning and maintenance ..........................................................................................................................15
18 Disposal.........................................................................................................................................................16
19 EC declaration of conformity ......................................................................................................................16
20 UKCA Declaration of Conformity ................................................................................................................16
21 Warranty ........................................................................................................................................................16
22 Technical data...............................................................................................................................................16

4 / 20
1 Imprint
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.explorescientific.de
For any warranty claims or service inquiries, please refer to the information on "Warranty" and "Ser-
vice" in this documentation. We ask for your understanding that unsolicited returns cannot be pro-
cessed.
Errors and technical changes excepted.
© 2022 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts - in any form (e.g. photocopy, print, etc.) as
well as the use and distribution by means of electronic systems (e.g. image file, website, etc.) without
the prior written permission of the manufacturer is prohibited.
The designations and brand names of the respective companies used in this documentation are gen-
erally protected by trade, trademark and/or patent law in Germany, the European Union and/or other
countries.
2 Validity note
This documentation is valid for the products with the following article numbers:
0510500 0510510 0510520
Manual version: 0222
Manual designation:
Manual_0510500-0510510-0510530_DeepSky-Astro-Camera_en_EXPSC_v022022a
Always provide information when requesting service.
3 About this Instruction Manual
NOTICE
These operating instructions are to be considered a component of the device.
Read the safety instructions and the operating manual carefully before using this device.
Keep this instruction manual in a safe place for future reference. When the device is sold or given to
someone else, the instruction manual must be provided to the new owner/user of the product.
4 Intended use
• This device is not intended for use by persons (including children) with impaired physical, sensory
or mental abilities, or for lack of experience and/or knowledge, unless they are supervised by or
have received instructions from a person responsible for their safety on how to use this device.
• This device is for personal use only.
• The device was developed as an electronic accessory and may only be used to connect and oper-
ate the devices for private use described in this manual.

5 / 20
5 General safety instructions
DANGER
Danger of suffocation!
Improper use of this product may result in suffocation, especially for children. It is therefore imperative
that you observe the following safety information.
• Keep packaging materials (plastic bags, rubber bands, etc.) away from children! There is a danger
of choking!
• Keep cables, tapes and similar materials away from children! They could accidentally strangle and
suffocate themselves with them!
NOTICE
Danger of material damage!
Improper handling may result in damage to the unit and/or accessories. Therefore, use the device only
in accordance with the following safety information.
• Do not disassemble the device! In the event of a defect, please contact your dealer. They will con-
tact the Service Center and can arrange the return of this device for repair if necessary.
• Check this device, cables and connections for damage before use.
• Never attempt to operate a damaged device, or a device with damaged electrical parts! Damaged
parts must be replaced immediately by an authorized service agent.
• For the normal operation as intended, only use the supplied cables and connect them as de-
scribed in the manual.
NOTICE
Danger of data loss!
Do not interrupt an on-going data connection to a computer before all data has been transferred. This
could lead to data loss for which the manufacturer is not liable.
NOTICE
Privacy Protection
Respect the privacy of your fellow human beings - do not look into flats with this device, for example!
6 General safety instructions
DANGER
Risk of an electric shock!
This device contains electronic parts that are powered by a power source (AC adapter and/or batter-
ies). Improper use of this product may result in electric shock. Electric shock can cause serious or fatal
injuries. It is therefore imperative that you observe the following safety information.
• Check this device, cables and connections for damage before use.

6 / 20
• Never use the device with defective or damaged components (e.g. housing, cable, lamp, etc.).
• Do not expose the device to high temperatures. Use only the supplied AC adapter. Do not short-
circuit the device or batteries or dispose of in fire! Excessive heat and improper handling can
cause short circuits, fires and even explosions!
• Operate the device only in a completely dry environment and do not touch the device with wet or
damp body parts.
• Place your device so that it can be disconnected from the power supply at any time. The power
outlet should always be near your appliance and should be easily accessible, as the plug of the
power cord serves as a disconnect device from the mains supply.
• To disconnect the unit from the mains, always pull the mains plug and never pull the cable!
• Disconnect the power supply by pulling the mains plug when the appliance is not in use, in case of
a longer interruption of operation and before any maintenance and cleaning work.
DANGER
Risk of blindness!
Never use this device to look directly at the sun or in the direct proximity of the sun. There is a risk of
BLINDNESS!
NOTICE
Danger of material damage!
Improper handling may result in damage to the unit and/or accessories. Therefore, use the device only
in accordance with the following safety information.
• Do not disassemble the device! In the event of a defect, please contact your dealer. They will con-
tact the Service Center and can arrange the return of this device for repair if necessary.
• For the normal operation as intended, only use the supplied cables and connect them as de-
scribed in the manual.
NOTICE
Risk of voltage damage!
Only use the included power adapter for power supply! The use of other unsuitable power sources or
those not authorized by the manufacturer may result in damage to the camera and will void the war-
ranty.
NOTICE
Risk of overheating!
Always keep the ventilation slits of the thermoelectric cooling system free! Covering these slits will re-
duce cooling performance and may cause overheating and damage to the camera.
NOTICE
Risk of material damage due to solar radiation!
Do not expose the camera sensor to direct sunlight. When photographing the sun, always use sun fil-
ters specially designed for this purpose. Unfiltered sunlight will cause damage to the camera within a
very short time.

7 / 20
NOTICE
Danger of data loss!
Do not interrupt an on-going data connection to a computer before all data has been transferred. This
could lead to data loss for which the manufacturer is not liable.
NOTICE
Privacy Protection
Respect the privacy of your fellow human beings - do not look into flats with this device, for example!
NOTICE
Use of the maximum transmission speed rate
To use the full transmission speed rate, please use the included USB 3.0 connection cable and a cor-
responding computer interface.

8 / 20
7 Parts overview and scope of delivery
1
3
45
67
8
9
10
14
13
11
A
2
B
C
F
16
12
D
E
15
Illustration1: All parts of the Astro camera with rear view (connection area)
1 Camera housing 2 Ventilation slits
3 Holding thread 4 USB 2.0 socket (2x USB HUB)
5 USB 3.0 socket (1x) 6 Connection socket for DC barrel con-
nector
7 PWR function light (power supply of the
camera established)
8 SYS function light (USB connection estab-
lished)
9 TEC function light (cooling system en-
abled)
10 FAN function light (fan enabled)
11 T2 adapter (50,8mm/2" plug diameter) 12 Connection thread
13 Mains power cable with Euro plug and
C13 coupling
14 Mains power adapter 12V/3A with power
cable, DC barrel connector and C13 con-
nection socket
15 Power cable extension with barrel con-
nector coupling and DC barrel connector
16 USB 3.0 connection cable (connection to
computer)

9 / 20
Scope of delivery:
Camera (A); ); T2 adapter (B); power adapter (C); power cable (D); power cable extension (E); USB
3.0 connection cable (F); software CD; hardcase
Also required (not included):
Computer running Windows 8/10
NOTICE!This is not a stand-alone camera. A computer with Windows operating system and free
USB 3.0 interface is required for operation.
8 Parts overview and scope of delivery
4
5
A
B
C
10
67
11
D
E
12
21
8
3
4
9
Illustration2: All parts of the Astro camera
1 Camera body 2 Mounting thread (T2/M42x0,75mm)
3 Camera connection: 4 Ventilation slits
5 Function indicator light 6 USB 3.0 port
7 ST4 port 8 Plug-in adaptor 1 ¼"
9 Connection thread 10 USB 3.0 connection cable
11 DC connection cable 12 Software CD

10 / 20
Scope of delivery
Astro camera (A); 1 ¼" plug-in adaptor (B); USB cable (C); ST4 cable (D); software CD (E)
9 Installing the software and drivers
1. Insert the supplied CD-ROM into the CD drive of your computer. Alternatively, you can download
the software package from the product page and start the installation directly. The files are stored
under the category 'Software'. The link/QR code to the product page can be found on the second
page of this manual.
2. Install the 'EXPLORE Capture' software. This will also install the camera drivers automatically.
3. Remove the rubber cover of the CMOS sensor on the camera and connect it to your telescope.
The connection can be made directly via T2 thread (M42x0.75mm) or via 2" (50.8mm) plug-in ad-
apter. Always ensure that the camera is securely attached.
4. Connect the supplied AC adapter to the camera.
5. Connect the camera to the computer. Use the USB 3.0 connection cable and a corresponding free
USB 3.0 interface on the computer for this purpose.
6. Start the EXPLORE Capture software after successful installation.
7. Select the connected camera in the EXPLORE Capture software menu.
Illustration3: EXPLORE Capture: Select camera
8. The camera now continuously sends live images to the computer at the current exposure time.
9. Use the telescope viewfinder to adjust and focus on a bright star in the field of view of the camera.
To obtain a faster frame rate and a higher camera sensitivity during focusing, switch to binning
mode if necessary (see software menu "Digital Binning").
10. After successful focusing, you can start recording images or video sequences.
10 Installing the software and drivers
1. Insert the CD-ROM included in the scope of delivery into the CD drive of your computer. Alternat-
ively, you can download the software package from the product page and start the installation dir-
ectly. The files are stored under the heading 'Software'. You will find the link/QR code to the
product page on the second page of these operating instructions.
2. Install the 'EXPLORE Capture' software. This will also install the camera drivers automatically.
3. Remove the rubber cover of the CMOS sensor on the camera and connect it to your telescope.
The connection can be made directly via T2 thread (M42x0.75mm) or via the plug-in adapter. Al-
ways make sure that the camera is securely mounted.
4. Connect the camera to an available USB port on your computer using the supplied USB cable.
5. Start the EXPLORE Capture software after successful installation.
6. Select the connected camera in the EXPLORE Capture software menu.

11 / 20
Illustration4: EXPLORE Capture: Select camera
7. The camera now continuously sends live images to the computer at the current exposure time.
8. Use the telescopes´ finder scope to focus on a bright star in the cameras` field of view. To obtain a
faster image sequence and a higher camera sensitivity during focusing, switch to binning mode if
necessary (see software menu "Digital Binning").
9. After successful focusing, you can start recording images or video sequences.
11 Camera mounting on telescope
1
2
35
6
4
Illustration5: Mounting the camera on a telescope
1 Camera housing 2 Holding thread
3 Connection thread 4 50.8mm (2") T2 adapter
5 50.8mm (2") eyepiece holder 6 Eyepiece extension
12 Camera mounting on telescope
1
2
35
6
4
Illustration6: Mounting the camera on to a telescope
1 Camera housing 2 Holding thread
3 Connection thread 4 T2 or plug-in adaptor
5 Eyepiece holder 6 Eyepiece extension

12 / 20
13 Using the internal USB HUB (USB 2.0)
The camera is equipped with an built-in USB HUB with 2x USB 2.0 sockets at the rear. This can be
used to connect additional components (e.g. autoguider camera, motor focus etc.). Separate cable
connections of the accessories to the computer are omitted.
NOTICE!The use of short cable connections is recommended to reduce the risk of 'cable spa-
ghetti' and cable breakage.
14 Camera mounting as an autoguider
1
3
2
4
5
6
9
8
7
10
Illustration7: Mounting of the Astro camera as an autoguider on the guide tube
1 Guide tube 2 Socket adaptor 1 ¼"
3 Camera body 4 USB 3.0 port
5 ST4 port 6 USB cable

13 / 20
7 USB port on PC/notebook 8 ST4 connecting cable
9 ST4 port on the mount* 10 Recording device (e.g. single lens reflex cam-
era or another deep sky camera)1
*Not included in the scope of delivery.
1Additional accessories may be required for mounting a recording device.
NOTICE!This is not a stand-alone camera. A computer running the operating system Windows®
10 or 11 is required for both, photography and autoguiding.
NOTICE!Autoguiding requires an appropriate software (see below).
Autoguiding Software
The following software packages, among others, can be used for autoguiding with this camera:
PHD-Guiding, GuideDog, Metaguide, Guidemaster (free of charge) or AstroArt, MaxIm DL (fee pay-
able)
DOWNLOAD PHD-Guiding: https://openphdguiding.org
DOWNLOAD GuideDog: http://barkosoftware.com/GuideDog

14 / 20

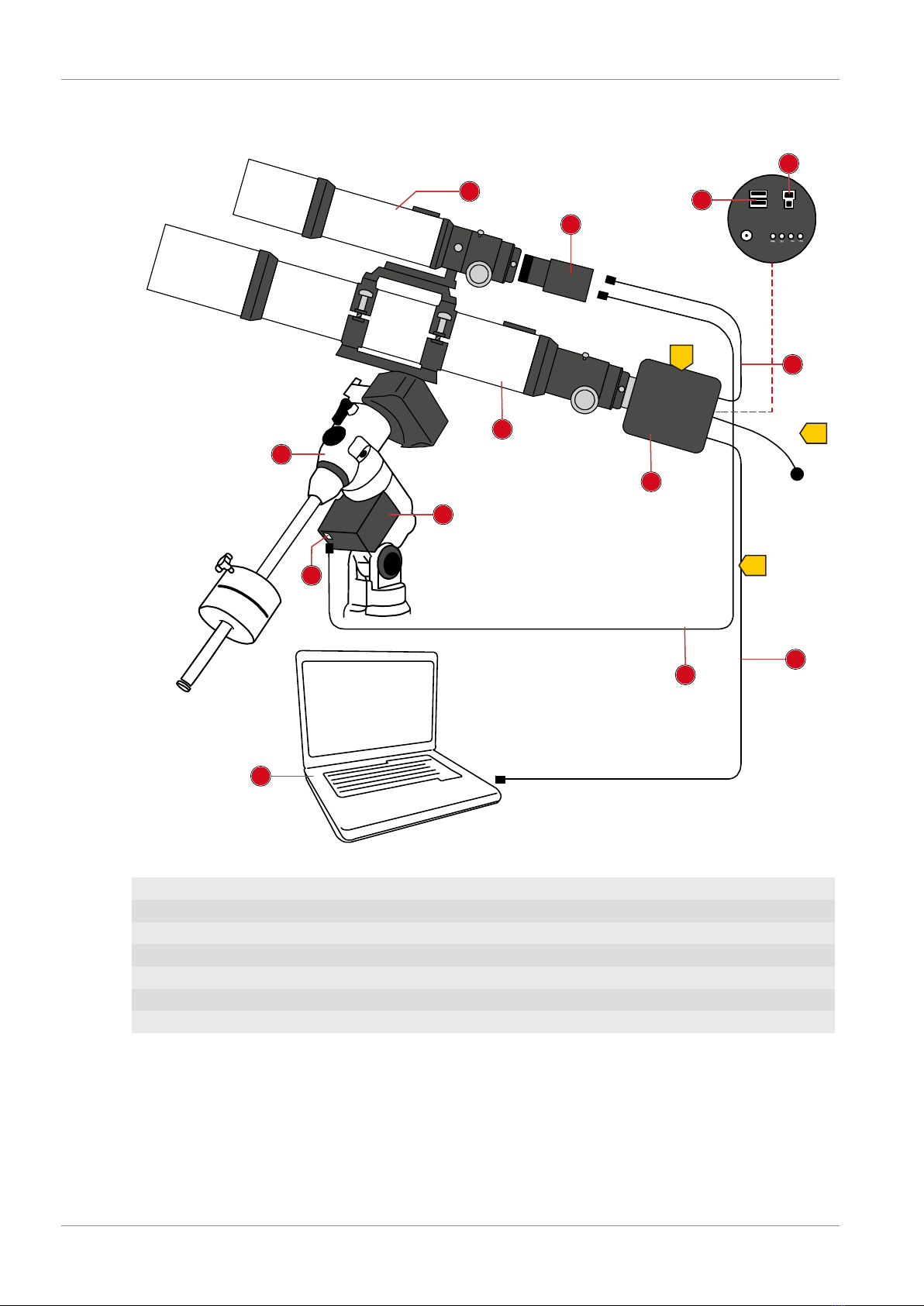

15 Camera mounting with optional autoguider
4
6
9
5
7
3
2
8
10
1
A
B
11
C
13
12
Illustration8: Mounting the Deep Sky Astro Camera with optional autoguider camera1
1 Autoguider camera12 ST4 connecting cable
3 USB 3.0 connecting cable 4 Guiding scope1
5 Telescope16 ST4-capable mount1
7 Control panel of the mount18 ST4 socket on control panel1
9 Deep Sky Astro Camera 10 Computer1
11 USB 3.0 socket on the camera 12 USB 2.0 socket on the camera
13 USB 2.0 connecting cable1
1optional accessories; not included
NOTICE!This is not a stand-alone camera. A computer with Windows operating system is re-
quired for both, photography and autoguiding.

15 / 20
16 Optimizing the camera settings for long
exposures
Image 2
Image 1 Image 3 Image 4
Illustration9: Menu windows relevant for optimization in the supplied software
To ensure that the camera delivers the best possible image results for long exposures over 1 minute,
you can optimally adjust the setting values for gain and black level depending on the desired exposure
time. Refer to Table 1 for help. Proceed as follows for the setting:
1. Select the desired exposure time (e.g. 6 minutes). (Image 1)
2. Open the "Acquisition & Resolution" settings menu. Click on the field with the current value for the
"Gain" and enter 158. Confirm the entry with [ENTER]. The value 1.58 is set. (Image 2)
3. Select the image format and bit depth according to Table 1. (Image 2+3)
4. Open the "Black Level" setting menu. Move the slider until you reach the appropriate value (e.g.
440). (Image 4)
5. Start the capturing images.
NOTICE!These are recommended guide values determined under real test conditions. Individual
adjustments may be necessary and depend on external factors such as ambient temperature.
Exposure
time
Gain Black level Format Bit depth e/ADU Read noise Full Well
6 minutes 1.58 440 RAW (fit) 12 2.03 1.81 8318.91
5 minutes 1.58 380 RAW (fit) 12 2.03 1.81 8318.91
4 minutes 1.58 303 RAW (fit) 12 2.03 1.81 8318.91
3 minutes 1.58 233 RAW (fit) 12 2.03 1.81 8318.91
2 minutes 1.58 172 RAW (fit) 12 2.03 1.81 8318.91
1 minute 1.58 112 RAW (fit) 12 2.03 1.81 8318.91
Table1: Table 1
17 Cleaning and maintenance
• Before cleaning the device, disconnect it from the power supply (remove plug or remove batteries)!
• Only clean the device externally using a dry cloth. Do not use cleaning solution to prevent damage
to the electronic parts.
NOTICE!The following steps must be performed in a clean environment to prevent dust or
other dirt from entering the camera.
1. If ice crystals form on the viewing window of the camera sensor when cooling is on, the moisture
that has penetrated can be removed as follows:
2. Allow the camera to dry for at least 12 hours in a dry environment with a minimum of 20°C room
temperature.
3. Remove the housing lock of the camera with a suitable screwdriver.
4. NOTICE!Do not open the oven door during the following procedure!
5. Place the camera in a household oven at 80°C (circulating air) for 5 hours. Then reduce the tem-
perature to 50°C for another hour

16 / 20
6. Switch off the oven after heating and wait until the oven has returned to room temperature.
7. CAUTION!Risk of burns! Wear suitable protective gloves when removing the camera from
the oven!
8. Remove the camera from the oven. Replace the housing lock and screw it in place.
9. NOTICE!Before fitting the housing lock, check that the small sealing ring is in perfect condi-
tion and correctly seated. Tighten the screw plugs by hand only.
The camera is now ready for use again.
18 Disposal
Dispose of the packaging materials properly, according to their type, such as paper or card-
board. Contact your local waste-disposal service or environmental authority for information
on the proper disposal.
Do not dispose of electronic devices in the household garbage!
According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equip-
ment and its transposition into national law, used electrical equipment must be collected sep-
arately and recycled in an environmentally sound manner.
19 EC declaration of conformity
A "Declaration of conformity" in accordance with the applicable directives and correspond-
ing standards has been prepared by Bresser GmbH. The full text of the EC declaration of
conformity is available at the following Internet address: www.bresser.de/down-
load/0510500 0510510 0510520/CE/0510500 0510510 0510520_CE.pdf
20 UKCA Declaration of Conformity
Bresser GmbH has issued a "Declaration of Conformity" in accordance with applicable
guidelines and corresponding standards. The full text of the UKCA declaration of conform-
ity is available at the following internet address: www.bresser.de/download/0510500
0510510 0510520/UKCA/0510500 0510510 0510520_UKCA.pdf
Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6HF,
Great Britain
21 Warranty
The regular warranty period is 2 years and starts on the day of purchase. For full warranty terms and
services, please visit www.bresser.de/warranty_terms.
22 Technical data
Item no. 0510500 Item no. 0510510 Item no. 0510520
Camera type: ASTRO Camera
16.0MP ATR3CMOS16000KPA
Camera type: ASTRO Camera
1.7MP ATR3CMOS01700KPA
Camera type: ASTRO Camera
7.1MP ATR3CMOS07100KPA

17 / 20
Data output: Images and
video
Data output: Images and
video
Data output: Images and
video
Image sensor: Panasonic
NM34230PLI CMOS Color
Sensor
Image sensor: SONY Exmor
IMX432 CMOS Colour Sensor
Image sensor: SONY Exmor
IMX428 CMOS Color Sensor
Adjustable resolution:
4648x3506 / 2304x1750 /
1536x1168
Adjustable resolution:
1600x1100
Adjustable resolution:
3200x2200
Adjustable binning: 1x1 / 2x2 /
3x3
Adjustable binning: 1x1 Adjustable binning: 1x1 / 2x2
Frame rate per second (FPS):
22,5).
Frame rate per second (FPS):
94
Frame rate per second (FPS):
51
Physical sensor size in pixels: x Physical sensor size in pixels: x Physical sensor size in pixels:
3200 x 2200 / 1600 x 1100
Megapixels: 16 MP Megapixels: 1.7 MP Megapixels: 7.1 MP
Sensor size: 17.6 x 13.3 mm
(4/3 in.)
Sensor size: 14.4 x 9.9 mm
(1.1 inch)
Sensor size: 14.4 x 9.9 mm
(1.1 inch)
Pixel size: 3.8 µm x 3.8 µm Pixel size: 9 µm x 9 µm Pixel size: 4.5 µm x 4.5 µm
Bit depth: 12 bit Bit depth: 12 bit Bit depth: 12 bit
Flange focal length: 17.5 mm Flange focal length: 17.5 mm Flange focal length: 17.5 mm
Shutter type: Rolling shutter Shutter type: Global Shutter Shutter type: Global Shutter
Internal camera memory: DDR
3 RAM
Internal camera memory: DDR
3 RAM
Internal camera memory: DDR
3 RAM
Thermoelectric cooling with fan:
Yes, up to 40°C below ambient
temperature
Thermoelectric cooling with fan:
Yes, up to 40°C below ambient
temperature
Thermoelectric cooling with fan:
Yes, up to 40°C below ambient
temperature
Adjustable exposure times:
150µs up to 60min
Adjustable exposure times:
150µs up to 60min
Adjustable exposure times:
150µs up to 60min
Operating temperature: -10 to
+50°C (30-80% RLH)
Operating temperature: -10 to
+50°C (30-80% RLH)
Operating temperature: -10 to
+50°C (30-80% RLH)
Cable length USB 3.0: 150cm Cable length USB 3.0: 150cm Cable length USB 3.0: 150cm
DC cable length power adapter:
200cm
DC cable length power adapter:
200cm
DC cable length power adapter:
200cm
CNC machined aluminium
housing
CNC machined aluminium
housing
CNC machined aluminium
housing
Camera diameter: 80mm;
length: 102mm
Camera diameter: 80mm;
length: 102mm
Camera diameter: 80mm;
length: 102mm
Camera weight: 0.53 kg Camera weight: 0.53 kg Camera weight: 0.53 kg
Camera connection diameter:
2.0 inch ( 50.8mm)
Camera connection diameter:
2.0 inch ( 50.8mm)
Camera connection diameter:
2.0 inch ( 50.8mm)
Camera connection thread: T2
(M42x0,75mm)
Camera connection thread: T2
(M42x0,75mm)
Camera connection thread: T2
(M42x0,75mm)
Filter thread: Yes, 2.0 inch in
receptacle
Filter thread: Yes, 2.0 inch in
receptacle
Filter thread: Yes, 2.0 inch in
receptacle
Camera connection to PC: USB
3.0
Camera connection to PC: USB
3.0
Camera connection to PC: USB
3.0
Built-in USB hub with 2 x USB
2.0 sockets
Built-in USB hub with 2 x USB
2.0 sockets
Built-in USB hub with 2 x USB
2.0 sockets
Power supply: Power adapter
12 Volt 3.0 Ampere included
Power supply: Power adapter
12 Volt 3.0 Ampere included
Power supply: Power adapter
12 Volt 3.0 Ampere included
Software EXPLORE Capture
included
Software EXPLORE Capture
included
Software EXPLORE Capture
included
Camera driver and ASCOM
driver included
Camera driver and ASCOM
driver included
Camera driver and ASCOM
driver included

18 / 20
Operating system: WINDOWS
7, 8 and 10
Operating system: WINDOWS
7, 8 and 10
Operating system: WINDOWS
7, 8 and 10
PC requirements: CPU Intel
Core2 2.8Ghz or higher / 2 GB
Ram / USB 3.0
PC requirements: CPU Intel
Core2 2.8Ghz or higher / 2 GB
Ram / USB 3.0
PC requirements: CPU Intel
Core2 2.8Ghz or higher / 2 GB
Ram / USB 3.0
Field of view for different fo-
cal lengths in arc minutes
and degrees:
Field of view for different fo-
cal lengths in arc minutes
and degrees:
Field of view for different fo-
cal lengths in arc minutes
and degrees:
400 mm - 151´x 114´ (2.5 x 1.9
degrees)
400 mm - 124´x 85´ (2.1 x 1.4
degrees)
400 mm - 124´x 85´ (2.1 x 1.4
degrees)
500 mm - 121´x 91´ (2.0 x 1.5
degrees)
500 mm - 99´x 68´ (1.7 x 1.1
degrees)
500 mm - 99´x 68´ (1.7 x 1.1
degrees)
600 mm - 101´x 76´ (1.7 x 1.3
degrees)
600 mm - 82´x 56´ (1.4 x 0.9
degrees)
600 mm - 82´x 56´ (1.4 x 0.9
degrees)
700 mm - 86´x 65´ (1.4 x 1.1
degrees)
700 mm - 70´x 49´ (1.2 x 0.8
degrees)
700 mm - 70´x 49´ (1.2 x 0.8
degrees)
800 mm - 76´x 57´ (1.3 x 0.9
degrees)
800 mm - 62´x 43´ (1.0 x 0.7
degrees)
800 mm - 62´x 43´ (1.0 x 0.7
degrees)
900 mm - 67´x 51´ (1.1 x 1.9
degrees)
900 mm - 55´x 38´ (0.9 x 0.6
degrees)
900 mm - 55´x 38´ (0.9 x 0.6
degrees)
1000 mm - 61´x 46´ (1.0 x 0.8
degrees)
1000 mm - 49´x 34´ (0.8 x 0.6
degrees)
1000 mm - 49´x 34´ (0.8 x 0.6
degrees)
1250 mm - 48´x 37´ (0.8 x 0.6
degrees)
1250 mm - 40´x 27´ (0.7 x 0.5
degrees)
1250 mm - 40´x 27´ (0.7 x 0.5
degrees)
1500 mm - 40´x 30´ (0.7 x 0.5
degrees)
1500 mm - 55´x 23´ (0.6 x 0.4
degrees)
1500 mm - 55´x 23´ (0.6 x 0.4
degrees)
1750 mm - 35´x 26´ (0.6 x 0.4
degrees)
1750 mm - 28´x 19´ (0.5 x 0.3
degrees)
1750 mm - 28´x 19´ (0.5 x 0.3
degrees)
2000 mm - 30´x 23´ (0.5 x 0.4
degrees)
2000 mm - 25´x 17´ (0.4 x 0.3
degrees)
2000 mm - 25´x 17´ (0.4 x 0.3
degrees)

DE
AT
CH
BE
Bei Fragen zum Produkt und eventuellen
Reklamationen nehmen Sie bitte zunächst mit
dem Service-Center Kontakt auf, vorzugsweise
per E-Mail.
E-Mail: ser[email protected]
Telefon*: +49 28 72 80 74 310
BRESSER GmbH
Kundenservice Explore Scientific
Gutenbergstr. 2
46414 Rhede
Deutschland
* Lokale Rufnummer in Deutschland (Die Höhe der Gebühren je
Telefonat ist abhängig vom Tarif Ihres Telefonanbieters); Anrufe aus
dem Ausland sind mit höheren Kosten verbunden.
GB
IE
Please contact the service centre first for any
questions regarding the product or claims,
preferably by e-mail.
e-mail: service@bresseruk.com
Telephone*: +44 1342 837 098
BRESSER UK Ltd
Customer Support
Suite 3G, Eden House
Enterprise Way
Edenbridge, Kent TN8 6HF
United Kingdom
* Number charged at local rates in the UK (the amount you will be
charged per phone call will depend on the tariff of your phone
provider); calls from abroad will involve higher costs.
FR
BE
Si vous avez des questions concernant ce
produit ou en cas de réclamations, veuillez
prendre contact avec notre centre de services
(de préférence via e-mail).
e-mail: sav@bresser.fr
Téléphone**: 00 800 6343 7000
BRESSER France SARL
Service après-vente
Pôle d‘Activités de Nicopolis
314 Avenue des Chênes Verts
83170 Brignoles
France
** Prix d'un appel local depuis la France ou Belgique
Service
NL
BE
Als u met betrekking tot het product vragen
of eventuele klachten heeft kunt u contact
opnemen met het service centrum (bij voorkeur
per e-mail).
e-mail: info@bresserbenelux.nl
Teléfono*: +31 528 23 24 76
BRESSER Benelux
Klantenservice
Smirnoffstraat 8
7903 AX Hoogeveen
Nederland
* Het telefoonnummer wordt in het Nederland tegen lokaal tarief
in rekening gebracht. Het bedrag dat u per gesprek in rekening
gebracht zal worden, is afhankelijk van het tarief van uw telefoon
provider; gesprekken vanuit het buitenland zullen hogere kosten
met zich meebrengen.
ES
PT
Si desea formular alguna pregunta sobre el
producto o alguna eventual reclamación, le
rogamos que se ponga en contacto con el
centro de servicio técnico (de preferencia por
e-mail).
e-mail: ser[email protected]
Teléfono*: +34 91 67972 69
BRESSER Iberia SLU
Servicio al Cliente
c/Valdemorillo,1 Nave B
P.I. Ventorro del cano
28925 Alcorcón Madrid
España
* Número local de España (el importe de cada llamada telefónica
dependen de las tarifas de los distribuidores); Las llamadas des del
extranjero están ligadas a costes suplementarios.

Bresser GmbH
Gutenbergstraße 2
46414 Rhede · Germany
www.bresser.de
@BresserEurope
Other manuals for DeepSky Astro Camera Series
1
Table of contents
Other Explore Scientific Digital Camera manuals
Popular Digital Camera manuals by other brands

FujiFilm
FujiFilm Finepix S100FS quick start

Leica
Leica S3 instruction manual

Samsung
Samsung NX300 user manual

Kodak
Kodak Pro 14n - DCS-14N 13.89MP Professional Digital SLR... user guide

Olympus
Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... specification

Olympus
Olympus CAMEDIA C-2 ZOOM Reference manual
