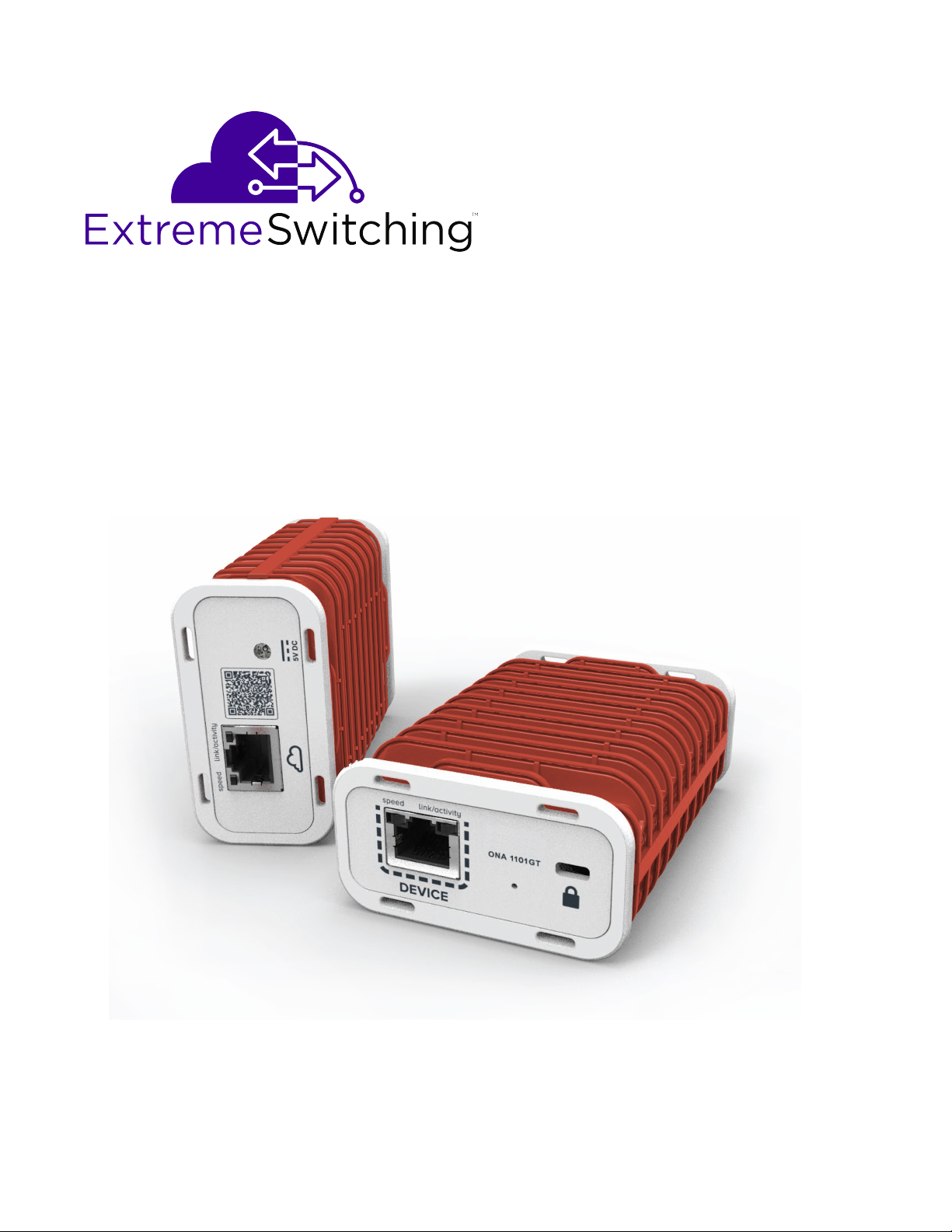

ExtremeSwitching 1101GT User manual

Open Networking Adapter 1101GT
Installation Job Aid
Release 3.0
December 2017
This Installation Job Aid provides an overview of your Open Networking Adapter (ONA).
© 2017, Extreme Networks, Inc.
All Rights Reserved. 1

Training
Ongoing product training is available. For more information or to register, you can access the Web
site at www.extremenetworks.com/education/.
Providing Feedback to Us
We are always striving to improve our documentation and help you work better, so we want to hear
from you! We welcome all feedback but especially want to know about:
• Content errors or confusing or conflicting information.
• Ideas for improvements to our documentation so you can find the information you need faster.
• Broken links or usability issues.
If you would like to provide feedback to the Extreme Networks Information Development team about
this document, please contact us using our short online feedback form. You can also email us
directly at [email protected]
Getting Help
If you require assistance, contact Extreme Networks using one of the following methods:
•GTAC (Global Technical Assistance Center) for Immediate Support
- Phone: [phone] (toll-free in U.S. and Canada) or [phone]. For the support
phone number in your country, visit: www.extremenetworks.com/support/contact
- Email: [email protected]. To expedite your message, enter the product name
or model number in the subject line.
•GTAC Knowledge – Get on-demand and tested resolutions from the GTAC Knowledgebase, or
create a help case if you need more guidance.
•The Hub – A forum for Extreme customers to connect with one another, get questions
answered, share ideas and feedback, and get problems solved. This community is monitored
by Extreme Networks employees, but is not intended to replace specific guidance from GTAC.
•Support Portal – Manage cases, downloads, service contracts, product licensing, and training
and certifications.
Before contacting Extreme Networks for technical support, have the following information ready:
• Your Extreme Networks service contract number and/or serial numbers for all involved Extreme
Networks products
• A description of the failure
• A description of any action(s) already taken to resolve the problem
• A description of your network environment (such as layout, cable type, other relevant
environmental information)
• Network load at the time of trouble (if known)
• The device history (for example, if you have returned the device before, or if this is a recurring
problem)
December 2017 Open Networking Adapter 1101GT Installation Job Aid 2

• Any related RMA (Return Material Authorization) numbers
Extreme Networks Documentation
To find Extreme Networks product guides, visit our documentation pages at:
Current Product Documentation www.extremenetworks.com/documentation/
Archived Documentation (for previous
versions and legacy products)
www.extremenetworks.com/support/documentation-
archives/
Release Notes www.extremenetworks.com/support/release-notes
Open Source Declarations
Some software files have been licensed under certain open source licenses. More information is
available at: www.extremenetworks.com/support/policies/software-licensing.
Subscribing to Service Notifications
Subscribe to receive an email notification for product and software release announcements,
Vulnerability Notices, and Service Notifications.
About this task
You can modify your product selections at any time.
Procedure
1. In an Internet browser, go to http://www.extremenetworks.com/support/service-notification-
form/ .
2. Type your first and last name.
3. Type the name of your company.
4. Type your email address.
5. Type your job title.
6. Select the industry in which your company operates.
7. Confirm your geographic information is correct.
8. Select the products for which you would like to receive notifications.
9. Click Submit.
© 2017 Extreme Networks
All Rights Reserved.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 3

Notice
While reasonable efforts have been made to ensure that the information in this document is
complete and accurate at the time of printing, Extreme Networks assumes no liability for any errors.
Extreme Networks reserves the right to make changes and corrections to the information in this
document without the obligation to notify any person or organization of such changes. For the most
current versions of Documentation, see the Extreme Networks Documentation website:
www.extremenetworks.com/documentation/ or such successor site as designated by Extreme
Networks. For a list of support telephone numbers and contact addresses, see the Extreme
Networks support website: http://www.extremenetworks.com/support/contact/.
Warranty for Extreme Products
Extreme Networks provides a limited warranty on Extreme Networks hardware and software. Refer
to your sales agreement to establish the terms of the limited warranty. In addition, Extreme
Networks’ standard warranty language, as well as information regarding support for this product
while under warranty is available to Extreme Networks customers and other parties through the
Extreme Networks Support website: http://www.extremenetworks.com/support under the link
““Policies” or such successor site as designated by Extreme Networks. Please note that if You
acquired the product(s) from an authorized Extreme Networks Channel Partner outside of the United
States and Canada, the warranty is provided to You by said Extreme Networks Channel Partner and
not by Extreme Networks.
International Regulatory Statements of Conformity
This is to certify that the device was evaluated to the international regulatory standards for
electromagnetic compliance (EMC) and safety and were found to have met the requirements for the
following international standards:
• EMC—Electromagnetic Emissions—CISPR 22, Class B
• EMC—Electromagnetic Immunity—CISPR 24
• Electrical Safety—IEC 60950-1, with CB member national deviations
Further, the equipment has been certified as compliant with the national EMC standards as detailed
in the following sections.
FCC Statement (USA only)
This device complies with Part 15 of the Federal Communications Commission (FCC) rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 4

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
ICES Statement (Canada only)
Canadian Department of Communications Radio Interference Regulations:
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la Classe B est conforme a la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigencies du Règlement sur le materiel
brouiller du Canada.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme aux normes CNR exemptes de license d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer
d’interferences et (2) cet appareil doit accepter toute interference, y compris celles susceptibles de
provoquer un fonctionnement non souhaite de l’appareil
Restriction on Hazardous Substances Directive Compliance Statement
The Restriction on Hazardous Substances (RoHS) Directive (2011/65/EU), which accompanies the
WEEE Directive, bans the use of heavy metals and brominated flame-retardants in the manufacture
of electrical and electronic equipment. Specifically, restricted materials under the RoHS Directive are
Lead (including solder used in PCBs), Cadmium, Mercury, Hexavalent Chromium, and Bromine.
Extreme Networks declares compliance with the European Union (EU) RoHS Directive
(2011/65/EU) in that Lead, which is a restricted hazardous substance, is used only in accordance to
the exemption(s) to Article 4(1), item 7 granted by the European Union.
Extreme Networks declares compliance with the European Union (EU) RoHS Directive
(2011/65/EU) in that Lead, which is a restricted hazardous substance, is used only in accordance to
the exemption(s) to Article 4(1), item 7 granted by the European Union (EU) RoHS Directive
(2011/65/EU) in the Annex —”lead in solders for network infrastructure equipment for switching,
signalling, transmission as well as network management for telecommunication”.
Notices and Safety Messages
Note:
This device is not intended for use in the direct field of view at visual display workplaces. To
avoid incommoding reflections at visual display workplaces this device must not be placed in the
direct field of view.
Note:
The device has no essential performance per IEC 60601-1-2.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 5

Caution:
Take special precautions with MEDICAL ELECTRICAL EQUIPMENT regarding EMC. It must be
installed and put in service according to the EMC information provided above in International
Regulatory Statements of Conformity.
Caution:
Portable and mobile RF communications equipment can affect MEDICAL ELECTRICAL
EQUIPMENT.
Caution:
The use of accessories other than those specified may result in increased emissions or
decreased immunity of the device.
Warning:
The equipment should not be used adjacent to or stacked with other equipment. If adjacent or
stacked use is necessary, you must observe the equipment to verify normal operation in the
configuration in which it is to be used.
Declarations and Specifications
Guidance and manufacturer’s declaration – electromagnetic immunity
The ONA 1101GT is intended for use in the electromagnetic environment specified below. The customer or
the user of the ONA 1101GT should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic
environment - guidance
Electrostatic Discharge
(ESD)
IEC 61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30 %.
Electrical fast transient/
burst
IEC 61000-4-4
± 2 kV for power supply
lines
± 1 kV for input/output
lines
± 2 kV for power supply
lines
± 1 kV for input/output
lines
Surge
IEC 61000-4-5
± 1 kV line(s) to line(s)
± 2 kV line(s) to earth
± 1 kV line(s) to line(s)
± 2 kV line(s) to earth
Voltage dips, short
interruptions and voltage
variations on power
supply input lines
IEC 61000-4-11
<5 % Ut
(>95 % dip in Ut)
for 0.5 cycle
40 % Ut
(60 % dip in Ut)
for 5 cycles
<5 % Ut
(>95 % dip in Ut)
for 0.5 cycle
40 % Ut
(60 % dip in Ut)
for 5 cycles
Table continues…
December 2017 Open Networking Adapter 1101GT Installation Job Aid 6

Guidance and manufacturer’s declaration – electromagnetic immunity
70 % Ut
(30 % dip in Ut)
for 25 cycles
<5 % Ut
(>95 % dip in Ut)
for 5 s
70 % Ut
(30 % dip in Ut)
for 25 cycles
<5 % Ut
(>95 % dip in Ut)
for 5 s
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
3 A/m 3 A/m Power frequency
magnetic fields should be
at levels characteristic of
a typical location in a
typical commercial or
hospital environment.
NOTE Ut is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration – electromagnetic immunity
The ONA 1101GT is intended for use in the electromagnetic environment specified below. The customer or
the user of the ONA 1101GT should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic
environment - guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC61000-4-3
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3 V
3 V/m
Portable and mobile RF
communication
equipment should be no
closer to any part of the
ONA 1101GT, including
cables, than the
recommended separation
distance calculated from
the equation applicable
to the frequency of the
transmitter.
Recommended
separation distance
d = 1.17* √P
d = 1.17* √P 80 MHz to
800 MHz
d = 2.33* √P 800 MHz to
2.5 GHz
Where P is the maximum
output power rating of the
Table continues…
December 2017 Open Networking Adapter 1101GT Installation Job Aid 7

Guidance and manufacturer’s declaration – electromagnetic immunity
transmitter in watts (W)
according to the
transmitter manufacturer
and d is the
recommended separation
distance in metres (m).
Field strengths from fixed
RF transmitters, as
determined by an
electromagnetic site
surveya, should be less
than the compliance level
in each frequency
rangeb.
Interference may occur in
the vicinity of equipment
marked with the following
symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which the
ONA 1101GT is used exceeds the applicable RF compliance level above, the ONA 1101GT should be
observed to verify normal operation. If abnormal performance is observed, additional measures maybe
necessary, such as re-orienting or relocating the ONA 1101GT.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distances between portable and mobile RF communication equipment
and the ONA 1101GT
The ONA 1101GT is intended for use in an electromagnetic environment in which radiated RF disturbances
are controlled. The customer or the user of the ONA 1101GT can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the ONA 1101GT as recommended below, according to the maximum output power of the
communications equipment.
Table continues…
December 2017 Open Networking Adapter 1101GT Installation Job Aid 8

Recommended separation distances between portable and mobile RF communication equipment
and the ONA 1101GT
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d = 1.17* √P
80 MHz to 800 MHz
d = 1.17* √P
800 MHz to 2.5 GHz
d = 2.33* √P
0.01 0.12 0.12 0.23
0.1 0.37 0.37 0.74
1 1.17 1.17 2.33
10 3.7 3.7 7.37
100 11.7 11.7 23.3
For transmitters rated a maximum output power not listed above, the recommended separation distance d in
metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is
the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection for structures, objects and people.
Compliant Accessories
This table lists the manufacturer compliant accessories for the ONA 1101GT.
Accessory Description Part Number
AC/DC Adapter ASIAN POWER DEVICES INC;
LITE ON TECHNOLOGY CORP
WB-10E05R
EC1105E11-E6
December 2017 Open Networking Adapter 1101GT Installation Job Aid 9

Regulatory label for Brazil
Starting the ONA
There are two ways to power the ONA, but you CANNOT use both ways at the same time:
• Connect a cable from a POE, POE+, or uPOE port on an Ethernet switch to the RJ-45 port with
the cloud symbol on the ONA.
• Use the optional external power adapter. This adapter can supply power to the ONA if there is
no PoE port available or, as a backup, if the PoE port fails.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 10

Note:
The Status LED flashes slow blinking blue as the ONA starts diagnostic tests. If you did not start
any tests, the ONA bypasses the Diagnostics and slow blinks amber during boot up. This is
normal and does not indicate any error.
Connecting the ONA to the network
Procedure
1. Use a QR code reader application to get information about your ONA. The following is a
sample of the information in the QR code. QR code information is subject to change.
•SERIAL:xxxxxxxxxxxxxxxx (Serial number of this ONA)
•MAC:xx:xx:xx:xx:xx:xx (MAC address)
•MACNUM:16 (This ONA can have one of 16 MAC addresses. The 16 total MAC addresses
available start with the address reported above in the MAC field and includes the next
consecutive 15 addresses.)
•PEC:EC1100010-E6 (Extreme Networks part number)
•MAN:EXTREME (Manufacturer’s name — Extreme Networks)
•MOD:ONA 1101GT (Model number)
•REV:xxx (Revision number of this ONA)

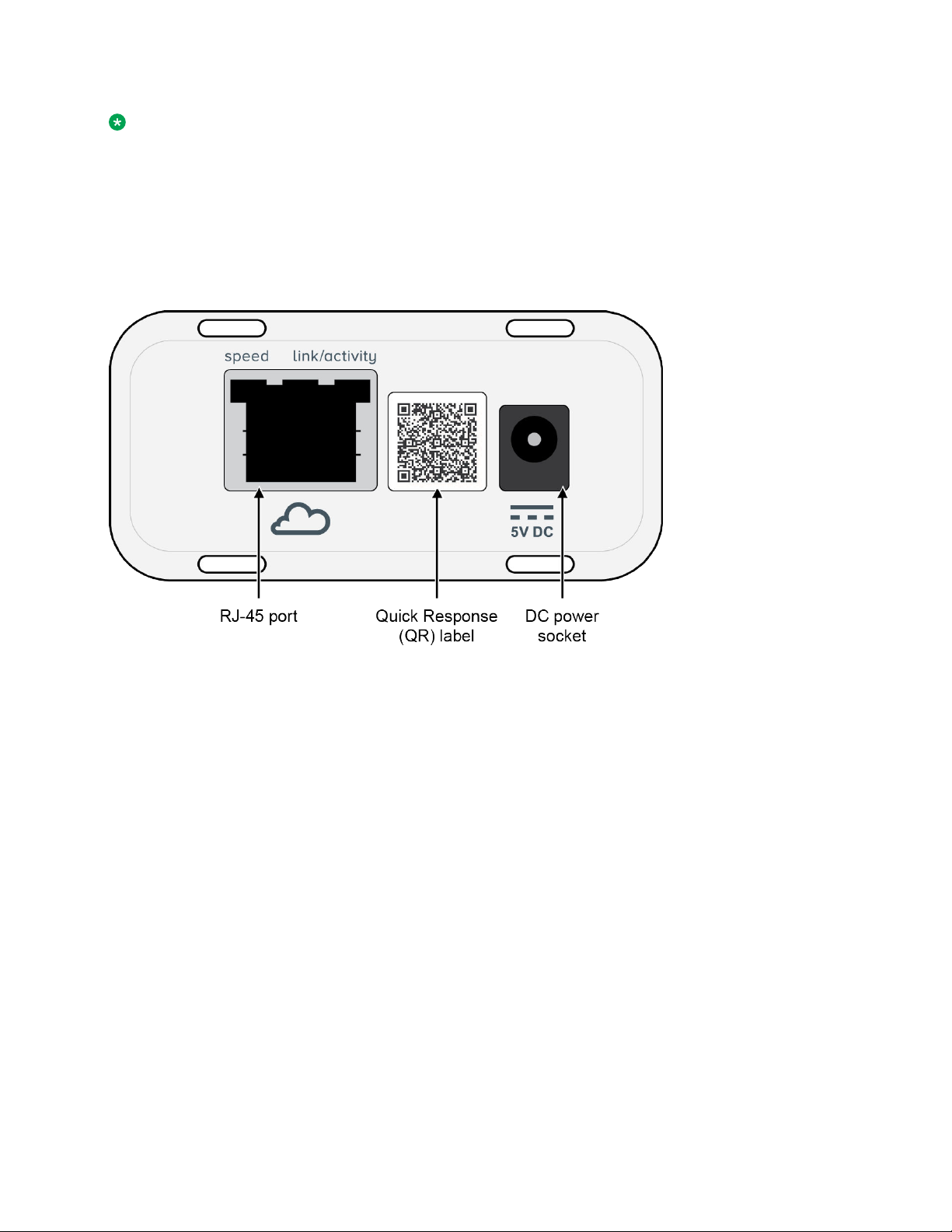

2. Use the 10/100/1000 BASE-T RJ-45 port with the cloud symbol to connect the ONA to the
network. If the upstream switch port is POE, POE+, or uPOE capable, it will also power on
the ONA.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 11

3. If PoE power is unavailable, connect the wall unit power adapter into the DC socket to
provide direct power.
The 10W 100–240 AC power adapter is sold separately and comes with four snap-in plug
adapters: Type A (U.S. and Japan), Type B (EU), Type G (UK), and Type I (AUS and China).
The part number is EC1105E11-E6.
4. (Optional) The ONA comes with zip ties that you can use to mount the ONA near the wall
unit power adapter, the device connected to the ONA, or any location you desire. There are
four slots on the top of the ONA and four slots on the bottom to give you multiple options for
securing the ONA.
Connecting your device to the ONA
Use the following figure and steps to connect your device to the ONA.
Procedure
1. Connect your device to the ONA using the 10/100/1000 BASE-T RJ-45 DEVICE port.
2. (Optional) Secure your ONA by attaching a Kensington lock to the slot above the lock icon.
3. If necessary, you can reset your ONA by inserting a paper clip into the reset switch pin hole
and pressing the switch for more than 1 second but less than 5 seconds.
Setting the ONA to factory defaults
The following parameters are the ONA factory defaults:
• Management IP Address :
December 2017 Open Networking Adapter 1101GT Installation Job Aid 12

• Management IP Subnet Mask :
• Default Gateway IP Address :
• Primary DNS Server IP Address :
• Secondary DNS Server IP Address :
• DNS Domain Name :
• SDN Controller IP Address or Name :
• Syslog Server IP Address :
• Operational Mode : 0
• Password :
Note:
All the fields are empty except the Operational Mode, which is 0 for the SDN Controller Mode.
Use the following procedure if you want to reset the ONA to the factory default parameters:
Procedure
1. Wait until the ONA starts and the Status LED flashes green. (You can enter this mode
anytime after the ONA starts.)
2. On the Device side of the ONA, insert a paper clip into the reset switch and depress it for at
least five seconds. This action clears the parameters so they are all empty fields (except for
Operating Mode) and then resets the ONA.
ONA Operational Modes
The ONA has two operational modes:
• SDN Controller Mode (Mode 0, the default mode)
• Fabric Extend Mode (Mode 1)
During reboot, the system checks the Mode parameter and proceeds accordingly. The ONA stays in
the mode you select unless you depress the reset button for at least five seconds. This causes the
ONA to revert back to the factory default parameters.
To change operational modes, use the Manual Configuration menu as described in the next section
Modifying Manual Configuration parameters on page 14.
You can also use the Manual Configuration menu to modify any of the other factory default
parameters. After you modify the parameters and save the configuration, the ONA stores your
changes in persistent memory and reboots.
Note:
Manual Configuration menu changes for default parameters are not required for SDN Controller
Mode 0 operation.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 13

ONA can be configured with a Management IP address using DHCP. If no DHCP server is available
to provide the IP address to the ONA, use the Manual Configuration menu to configure the following:
• IP address in the "Management IP Address" field
• Subnet mask in the "Management IP Subnet Mask" field
• Default gateway in the "Default Gateway IP Address" field
• (For Mode 0 only) IP address of the controller in the "SDN Controller IP Address or Name" field
Setting the ONA to SDN Controller Mode 0
The SDN Controller Mode (Mode 0) enables the ONA to use the Fabric Attach feature, and establish
control plane communication with the SDN Controller. In Mode 0, the ONA must communicate with
an Extreme Networks SDN Controller to operate correctly.
The ONA ships in Mode 0. If the mode changed and you want to use Mode 0, use one of the
following methods:
• Use the Manual Configuration menu to configure the "SDN Controller IP Address or Name" and
set the "Operational Mode" to 0.
• Depress the reset button for at least five seconds to reset the ONA back to the factory default
settings. This method clears all the parameters in persistent memory (including the controller’s
IP address) and sets the Operational Mode to 0. Because the "SDN Controller IP Address or
Name" is not configured when the ONA boots up, it uses a DNS query to get the SDN
Controller’s IP address and initiates a connection to the controller.
Setting the ONA to Fabric Extend Mode 1
The Fabric Extend Mode (Mode 1) enables the ONA to use the Fabric Extend feature. After you
select this mode, the ONA reboots and stays in Mode 1 unless you depress the reset button for at
least five seconds to enter SDN Controller Mode.
Modifying Manual Configuration parameters
To access the Manual Configuration menu to modify the parameters, press and hold the reset button
during a power on sequence.
Use the following procedure:
Procedure
1. Connect a PC to the RJ-45 port on the Device side of the ONA.
2. Insert a paper clip into the reset switch. Press and hold the reset button before applying
power to the ONA.
3. Connect the cable from the network switch to the Network side of the ONA for PoE power. If
PoE power is unavailable, connect an external power adapter.
4. Continue pressing and holding the reset button until the Status LED cycles through a red/
green/blue pattern. Then release the reset button. The Status LED will flash a steady amber,
which indicates that the Manual Configuration menu is running.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 14

5. On the PC, use a browser to connect to the ONA configuration menu with the address http://
192.168.100.1.
6. Click Edit Parameters.
7. Modify the configuration parameters that you want to change.
8. Click "Save" to store the parameters in persistent memory.
9. Click "Return to Configuration page."
10. Click "Reboot into Operational Mode."
11. Disconnect the PC.
System Status LED
The System Status LED is visible from either side of the unit.
Table 1: System Status LED
Color and Status Description
Amber (slow blinking) Booting OS (both modes)
Amber (steady) Manual Configuration menu running (both modes)
Green (slow blinking) Application starting (both modes)
Green (fast blinking) IP address is acquired by DHCP (both modes)
Green (steady) Application initialization completed. Connectivity is established and
operating (both modes)
Table continues…
December 2017 Open Networking Adapter 1101GT Installation Job Aid 15

Color and Status Description
SDN Controller mode status (in
Mode 0 only)
Red (fast blinking) Failure to obtain time of day from NTP server, rebooting in 5 seconds.
Amber (fast blinking) Failure to obtain SDN Controller IP address by DNS lookup, 3 lookup
retries, 2 second interval
Green (fast blinking) DNS lookup retry succeeded after DNS lookup failure condition
Green (steady, then fast blinking) TCP connections to SDN Controller is lost
Diagnostics tests (in Mode 0
only)
Blue (slow blinking) Diagnostics tests starting, or no Ethernet loopback detected
Red (fast blinking) Diagnostics Ethernet loopback test failed
Red (slow blinking) Diagnostics unknown error condition
Magenta (fast blinking) Diagnostics Ethernet loopback test succeeded after a previous failure
condition
Power LED
The Power LED is visible from either side of the unit.
Table 2: Power LEDs
Label Color and Status Description
Power Blue (steady) Operating normally
Table continues…
December 2017 Open Networking Adapter 1101GT Installation Job Aid 16

Label Color and Status Description
Blue (blinking) ONA is starting
Off Not operational
10/100/1000 RJ-45 Port LEDs
The RJ-45 ports on both the Network side and Device side of the ONA have two bi-colored (amber/
green) LEDs. The one on the left side indicates the port speed and the one on the right side shows
the level of link activity.
Label Color and Status Description
Speed Amber (steady) 100 Mbps
Amber (blinking) N/A
Green (steady) 1000 Mbps
Green (blinking) N/A
Off 10 Mbps
Link/Activity Amber (steady) N/A
Amber (blinking) N/A
Green (steady) Blink rate indicates level of link
activity
Green (blinking) Blink rate indicates level of link
activity
Green (blinking slow) Port disabled
Off No Link
Restarting the ONA
Restart the ONA by disconnecting and then reconnecting power as described below:
• If the ONA is connected to a PoE capable network switch, disconnect the Ethernet cable
connected to the RJ-45 port with the cloud symbol. Wait at least 45 seconds and then
reconnect it.
• If the ONA is connected to an external power adapter, disconnect it for at least 45 seconds and
then reconnect it.
Running diagnostics on the ONA
Use the diagnostics to verify that the ONA is operating properly.
To enter Diagnostics, use following procedure:
December 2017 Open Networking Adapter 1101GT Installation Job Aid 17

Before you begin
Ensure the ONA is in Mode 0. Diagnostics only run in Mode 0.
Procedure
1. Disconnect the ONA from the network switch and any device it may be attached to.
2. Use an Ethernet cable to connect the ONA Device port to its Network port, as a loopback is
required to run diagnostics.
3. Connect the ONA to an external power adapter.
4. Watch the Status LED.
a. Slow blinking Amber indicates the ONA is booting.
b. Slow blinking Blue indicates that the diagnostics started.
5. Determine if the ONA passes or fails.
a. The ONA passes if it continues flashing slow blinking Blue.
b. The ONA fails if the Status LED is either fast blinking Red (for a continuous error in the
test) or slow blinking Magenta (tests are now passing but previous tests failed).
If the ONA fails, return it to Extreme Networks.
The diagnostic tests do not exit automatically. You have to power cycle the ONA by
disconnecting the Ethernet loopback cable and the external power adapter. Then
reconnect the cables you disconnected in step 1 and the external power adapter to
reset the ONA.
If you do not disconnect the Ethernet loopback cable before resetting the ONA, the
diagnostics will restart.
If you disconnect the Ethernet loopback cable while diagnostics are running, it creates a
failure state and the Status LED flashes red, but the diagnostics continue running.
Upgrading a standalone ONA using the
Manual Configuration menu
Use this procedure to upgrade the ONA when you first receive it. This method uses a PC to access
the ONA’s Manual Configuration menu.
Procedure
1. From the PC that you are going to use for this upgrade procedure, go to the Extreme
Networks support website, https://extremeportal.force.com/, and download the ONA software
image that you want to use.
2. Connect a PC to the RJ-45 port on the Device side of the ONA.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 18

Note:
Make sure the PC’s network port is enabled with DHCP client.
3. Insert a paper clip into the reset switch. Press and hold the reset button before applying
power to the ONA.
4. Connect the cable from the network switch to the Network side of the ONA for PoE power. If
PoE power is unavailable, connect an external power adapter.
5. Continue pressing and holding the reset button until the Status LED cycles through a steady
red/green/blue. Then release the reset button and the Status LED flashes a steady amber,
which indicates that the Manual Configuration menu is running.
Note:
After this step, wait for a few seconds so that the PC gets an IP address for the ONA
over DHCP.
6. On the PC, use a browser to connect to the ONA configuration menu with the address http://
192.168.100.1.
Note:
You cannot go directly to this web page. You must complete steps 1–5 first.
7. Click Upgrade Software.
8. Select the software upgrade package that you want to upload.
9. Click Send to upload the image to the ONA. This may take up to five minutes.
Note:
Do not refresh or close the webpage during the upgrade.
10. Click Return to Configuration page.
11. Click Reboot into Operational Mode.
12. Disconnect the PC.
Upgrading a deployed ONA
See the Open Networking Adapter 1101GT Release Notes for the latest information on upgrading
ONA software on a deployed service.
December 2017 Open Networking Adapter 1101GT Installation Job Aid 19
