EyeQue Insight Plus VA102 User manual

1
Product Manual
Model: VA102

1

2
Table of Contents
Insight Vision Screener
Technical specications.........................................Page 5
Intended use................................................................Page 6
Product description..................................................Page 6
Getting started...........................................................Page 8
General testing procedures.................................. Page 12
Multiple users............................................................. Page 16
Contraindications..................................................... Page 17
Safety warning........................................................... Page 17
Warranty information...............................................Page 18
Insight Plus Accessories
Head Mount.................................................................Page 20
Remote Control..........................................................Page 29
Controller Holder.......................................................Page 33

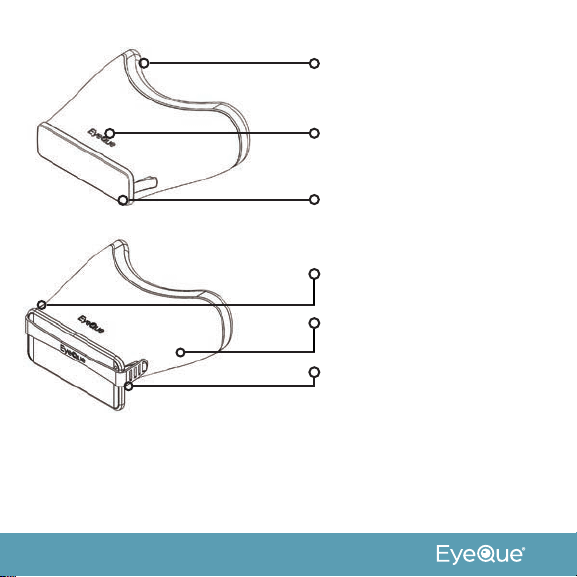

3
Soft contour padding for a
comfortable  t
The EyeQue logo indicates
that this is the “top” of the
goggles
Protective cover to prevent
dust; remove before use
Silicone elastic band to
secure your smartphone
during tests
Hooks to attach the elastic
band
Attach your smartphone
when prompted in app

4
The PD screen indicates
this is the “bottom” of the
goggles
Adjustable PD wheel
Attachment markers
Viewing windows
Remove any clear plastic
protective covers before
testing
Micro-suction tape
secures the goggles on
the smartphone screen
without causing damage
or leaving residue

5
Technical Specifications
Dimension:
Weight:
Power supply:
Finish:
Operating temperature:
Storage temperature:
Relative humidity:
Operating altitude:
Phone requirement:
Visual acuity range:
7.0 X 5.7 X 3.0 inches/ 177 X 144 X 77 mm
7.5 oz/ 213 g
None
Glossy White
32° to 95° F (0° to 35° C)
-4° to 113° F ( 20° to 45° C)
5% to 95% non-condensing
up to 10,000 feet (3000 m)
iOS 9.3 and up, Android 6.0 and up, screen
resolution PPI: >300, and active EyeQue
free Basic Membership
20/20 to 20/400

6
Intended Use
The EyeQue Insight is a self-administered, mobile application-
driven vision screening tool that uses the light from your
smartphone screen to test visual acuity, color vision, and
contrast vision.
Description
The EyeQue Insight is a self-administered vision screening
device that uses the light from your smartphone screen.
Three types of tests can be administered:
Visual Acuity:
How clearly one can see.
• If the user does not have corrective lenses: results
other than 20/20 (imperial, 6/6 in metric) may indicate
the need for vision correction.
• If the user wears corrective lenses: the test can be
conducted while the user is wearing the corrective
lenses to check if their vision correction may need to
be updated.

7
Color Deciency Test:
Ability to visually detect dierences among certain
colors.
Contrast Sensitivity Test:
Ability to visually distinguish between increments of
light versus dark (contrast).
EyeQue results are safely stored in the cloud. The results from
the Insight tests can be tracked over time, changes noted,
and presented to your eyecare professional. Findings that are
not considered normal should be discussed with your eyecare
professional.
Note:
Personal vision testing does not replace the need for an
annual eye health exam.
For ages 6 years or older. Children under 18 years of age
should use the EyeQue Insight with adult supervision.

8
Getting started
Download the app and complete your account activation
process
1. Download the EyeQue Insight app from the Google Play
or the Apple App store.
2. Launch the app and register for an account. If you
already have an EyeQue account, sign into your existing
account.
3. Locate the serial activation number on the inside of the
Insight device and enter when prompted.
4. Complete your account activation process.
Testing with your EyeQue Insight
1. Select the “Test” icon.
2. Choose the test to conduct: Visual Acuity, Color
Deciency, or Contrast Sensitivity test
• “Tutorial” provides an informational video or lets
you try out the test before beginning.
3. Measure your pupillary distance.
• Adjust your pupillary distance wheel based on

9
pupillary distance estimate displayed in the app or
from your prescription.
4. Select whether you will test with or without the EyeQue
Remote Control.
• If you test with the Remote Control, pair it within
the app when prompted.
5. Select whether you will test with or without the Head
Mount.
• if you test with a head mount, insert your device in
the head mount and attach the phone holder.
• if you do not test with additional accessories,
attach your smartphone to the device and secure it
with the elastic band.
6. Select whether you will be taking the test with or without
glasses or contacts.
7. Conrm your device is attached to your smartphone
and begin testing.

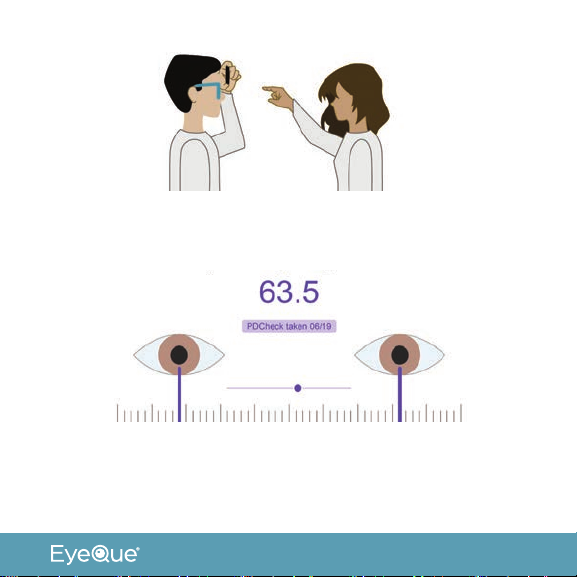

Measure your Pupillary Distance (PD)
1. To measure the PD for someone else, place the back of
the smartphone on the users forehead, just above the
eyebrows.

10
2. Slide the purple dot to align the lines on screen with the
users pupils.
3. For an accurate measurement of PD, ensure the user
focuses on a distant object.

11

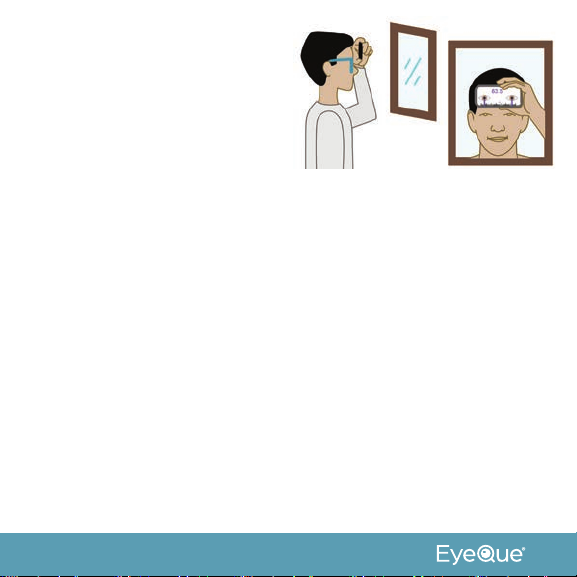

4. For self-measurement
of PD, follow the same
steps facing a mirror
Your PD value will be saved for
future tests.
How to attach the Insight device to your smartphone
1. Remove the Insight device from its box and remove the
cover under the EyeQue logo.
2. Remove any clear protective covers on the inside lenses
of the Insight device.
3. Move the adjustable PD wheel under the Insight device
until your PD value on the wheel matches the middle
pointer. Press “Next”.
4. Select whether the user will test with or without any
accessories (head mount and phone holder).
a. if you test with a head mount, insert your device in
the head mount and attach the phone holder.
b. if you do not test with additional accessories,
attach your smartphone to the device and secure it
with the elastic band.

12

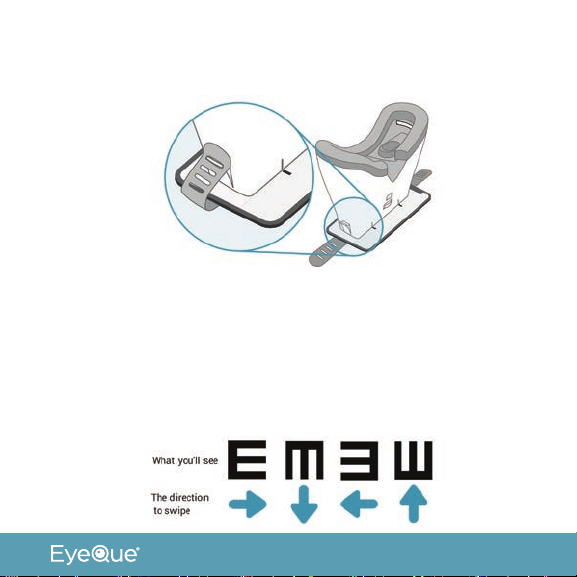

5. Align the attachment marker lines near the PD wheel of
the Insight device with the marker lines on your phone
screen.
General Testing Procedures
The following will apply to all tests with the EyeQue Insight
1. Look through the Insight device.
• Swipe in the direction of the letter “E” displayed
on the screen on the exposed portion of the
smartphone screen.

13
• If using the Remote Control, click in the direction
of the letter “E”.
2. When multiple “E’s” appear: Identify the direction of the
letter ”E” with a dot under it.
3. DO NOTSQUINT during the test even if the letters aren’t
clear to you; just guess!
4. If you make a mistake, double tap the back button on the
remote control.
5. Continue until you see the word “End”. The app will
automatically test the right eye, then left eye, then both
eyes.

14
6. Once complete, select nish to immediately review your
results.
• To delete your results, go to your dashboard.
7. Leave the Insight device attached to your smartphone
to start another test or Detach the device and return to
the app dashboard.
8. Results are also saved to your membership account and
can be viewed by signing into eyeque.com.
Visual Acuity Test
• In this test the “E” image will be shown in various sizes.
• The EyeQue Insight will simulate the reading of an
eyechart at 20 ft (6 meters).
• Use with or without corrective lenses (contacts or
glasses).
a. When used while wearing corrective lenses, you
can determine if your distance glasses or contacts
need to be updated.
b. If you do not wear corrective lenses, you can use
the Insight to determine if you may need contacts
or glasses for distance vision.

15
c. If you currently wear corrective lenses, you can
test without them on to determine your uncorrected
distance vision.
NOTE: If the country you live in does not use the imperial
20/20 system, click on “Unit Scale” and select the unit system
you use, including Metric (6/6 or 4/4), Decimal (10/10 or 1.0),
or Log Mar (0.0).
Color Deciency Test
• In this test the “E” image will be represented as colored
dots among dots of various colors.
• Each “E” will be shown one at a time and will be
approximately the same size.
• If you use corrective lenses, you should wear them while
conducting this test.
Contrast Sensitivity Test
• The “E” image will be represented in varying intensities
of black and grey.
• Several “E’s” will be shown at a time, each approximately
the same size.
• If you use corrective lenses, you should wear them while
conducting this test.

16
Results
• Any results should be discussed with your eyecare
professional for additional assessment.
Multiple Users
One device can be shared by several users.
Since user results are saved, each user must create separate
pro les within the app in order to properly track results over
time.
To create a new pro le:
• Launch the app.
• Select “pro les” in the lower navigation tab.
• Select and  ll in the pro le information. Choose an
avatar for each user.
• All test data and vision information will be hosted under
individual pro les.
• To view vision information over time, select the
pro le menu in the “pro les” tab.
• To test users with existing pro les, select the “test”
tab, then select the pro le name.
• Test results cannot be moved between pro les.
Select and  ll in the pro le information. Choose an

17
Note
Between users, clean the padding that is in contact with the
face with rubbing alcohol. Remove and/or allow the rubbing
alcohol residue to evaporate before bringing the device to the
face.
Contraindications
The device should not be shared with users that are known to
have, or exhibit signs or symptoms of, an eye infection.
Safety Warning:
Visual Acuity, Color Deciency and Contrast Sensitivity
testing with the EyeQue Insight present minimal risks.
While using EyeQue products to personally measure and
track vision has the benet of detecting changes between
regular eye exams, it does not replace a comprehensive eye
exam that evaluates ocular health or binocularity. EyeQue
urges people to visit a doctor annually for a full eye health
exam.
For ages 6 years or older.
Children under 18 years of age should use the EyeQue Insight
with adult supervision.

18
Warranty Information
Your EyeQue Insight purchase comes with a 30-day money
back guarantee and a limited 1-year parts and labor warranty.
Proof of purchase from an authorized seller (EyeQue.com,
Amazon Inc. on Amazon, EyeQue on Amazon, Kickstarter,
Indiegogo, HSN, and BestBuy.com) and serial activation
number are required for processing.
Please visit our website at www.eyeque.com/support/
for Frequently Asked Questions and additional product
information.
Please email us at [e-mail] with any questions.

19
Insight Plus Accessories
The EyeQue Insight Head Mount allows
you use your Insight vision screener
hands free. Light-weight, easy to use,
versatile, and one-size- ts-all.
The EyeQue Remote Control is
Bluetooth enabled to allow for an
intuitive test-taking experience.
The EyeQue Controller Holder is a
lightweight and ergonomic shell that
allows you to use the Remote Control
with both hands.
