ezdupe Mobile Pro User manual

Copyright 2015. All right reserved

I. INTRODUCTION ...............................................................................................................2
1. Features.................................................................................................................................................................... 2
2. LCD Front Panel Overview................................................................................................................................... 3
3. Specifications.......................................................................................................................................................... 3
II. WARNING .........................................................................................................................4
III. MENU OVERVIEW............................................................................................................4
1. Copy........................................................................................................................................................................... 4
2. Utility.......................................................................................................................................................................... 6
2.1. Format HDD.................................................................................................................................................... 6
2.2. Asynchronous Mode.................................................................................................................................... 6
2.3. Media Information......................................................................................................................................... 7
2.4. System Info..................................................................................................................................................... 7
2.5. System Update .............................................................................................................................................. 7
2.6. Setup Button Beep ....................................................................................................................................... 8
1

I. Introduction
Thank you for purchasing this Mobile Pro SD to HDD Backup Station. Mobile Pro SD to
HDD Backup Station is an ultra-thin and compact device with light weight of less than 0.5
kg. It is so small to carry around, giving you the better ability for mobile work. Whether
videos, photos or other files can be fully backed up from SD card to a hard disk drive (HDD)
anytime and anywhere, to ensure that important data is never lost. Compatible with all
major brands of SD card, Mobile Pro supports the latest SDXC card specifications as well.
Additional feature such as unique source analysis can analyze the SD card contents and
intelligently copy only data area to speed up the process time. Total up to 10 SD cards can
be backed up simultaneously to a HDD, saving you from copying SD card one by one while
achieving higher productivity on the road.
1. Features
a. Powered by a power adapter or power bank
b. User friendly and portable design makes back up of SD cards easily
c. Light weight, heavy-duty and durable construction
d. No warm-up or cool-down required
e. Standalone solution; No computer needed
f. Real-time display with detailed information
g. Supports up to10 SD card backup simultaneously
h. Easily to check the used and available space on the HDD
2

2. LCD Front Panel Overview

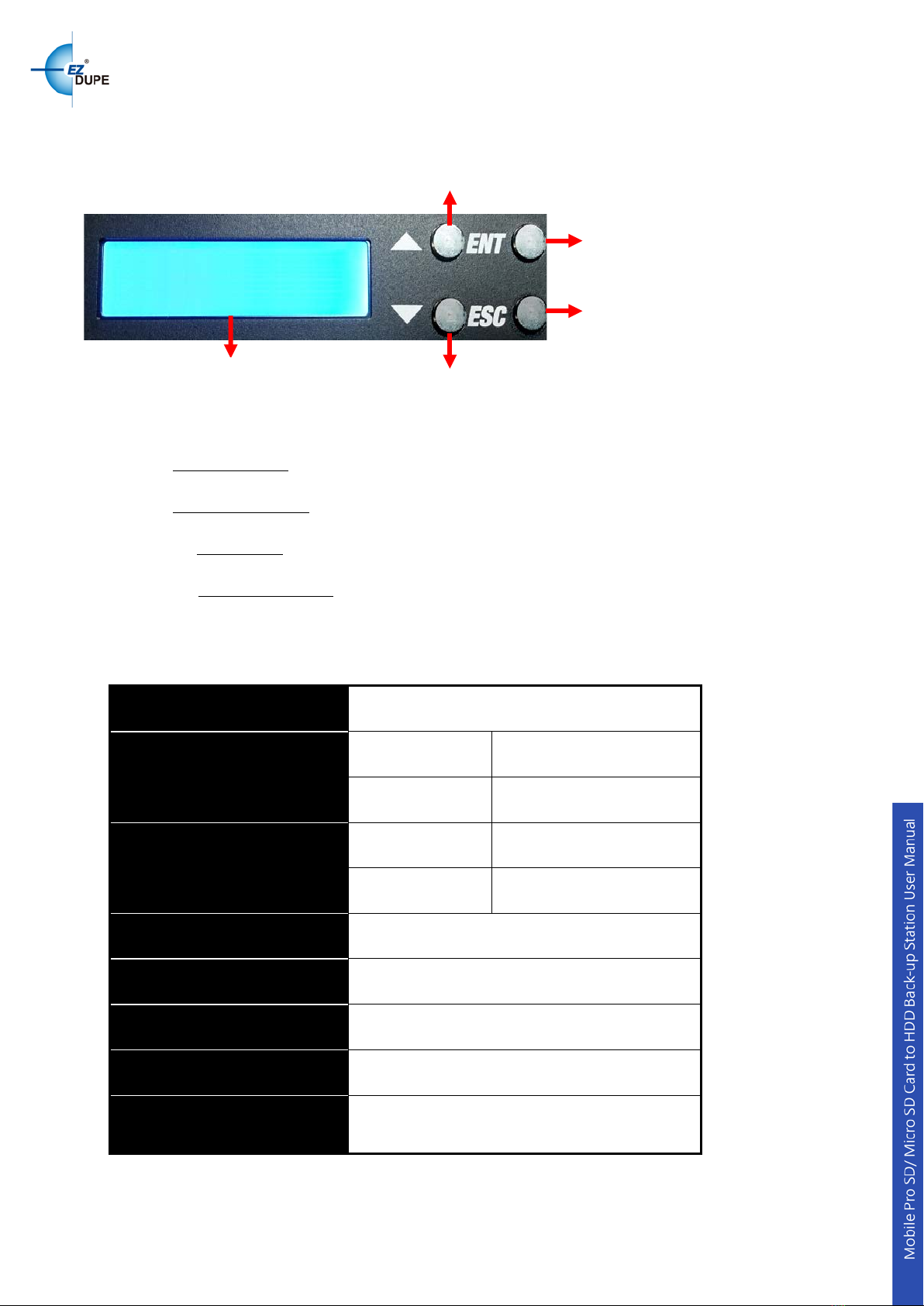

▲Button: Up, Backward:To navigate backward in the menu.
▼Button: Down, Forward: To navigate forward in the menu.
ENT Button: Enter, OK: Execute the function.
ESC Button: Escape, Cancel: Go back to the previous level in the menu.
3. Specifications
Operating Type Stand-alone (No PC Required)
Supported Media Source SD, SDHC, SDXC
Target 2.5" SATA HDD
Supported File System Source FAT16/32, exFAT.
Target exFAT
Power Requirement DC 5V/2.1A (Power Bank or Adapter)
LCD Display 2 x 16 characters (Backlit)
Buffer Memory 128MB
Control Button 4 push buttons
Speed SD Card reading speed: 25MB/sec
HDD writing speed: 150MB/sec
▼Button
LCD Screen
▲ Button
ENT Button
ESC Button
3

II. Warning
1. The tasks mentioned in this user’s manual are as following: Copy and the functions
under Utility sub menu, such as Format HDD、Format SD and Media Information.
2. The Green LED flashes during the execution process of a task. After the task is done,
the Green LED will stay solid if the process is successful, otherwise the Red LED will be
on if the process is failed.
3. Press and hold ESC button during the execution process of a task will stop and exit the
execution of the task.
4. DO NOT unplug SD card or HDD from the system during the execution process of a
task. It may cause damage to the system and media device.
5. DO NOT plug in SD card until the system boots up. It may cause abnormal results if a
SD card with quality issue is plugged in before or during the boot up process.
6. Copy speed is limited by SD card and HDD device themselves. Each SD card and HDD
has its own reading and writing speed. If the copy speed is too slow, consider replacing
with another type of SD card or HDD.
III. Menu Overview
1. Copy
This function copies the data from all the SD card(s) into the target HDD. Please insert the
SD card(s) and target HDD to the Mobile Pro backup station first, and press OK button to
start the copy process. User will be asked whether to create a new folder or not on the HDD.
Please select Yes or No, or press ESC button to exit. During the copy process, HDD and SD
cards information can be viewed by using the ▲▼ buttons to switch.
Selecting Yes:a new file folder will be created for the copied files. File folder names are
PROJ0001, PROJ0002, etc.
Selecting No: the copied files will be saved under the previously created file folder (a new
file folder will be created if there is no such one created before).
4

ESC: exit back to main menu.
For example, two SD cards need to be backed up to a HDD. Select Yes to create new folder
after Copy process starts. System will create a main file folder PROJ0001, and create sub
file folders for saving data file under PROJ0001 according to the port number for each SD
card. The file folder name is PORT01-0001 for the data copied from the SD card at port 1,
and the file folder name is PORT02-0001 for the data copied from the SD card at port 2, etc.
For the second time to copy while Yes is selected to create new folder, system will create
another main file folder as PROJ0002, and everything else remains the same as stated
earlier. If No is selected, the sub file folders will be created under the previously created
main file folder, such as PROJ0001. The sub file folder name is PORT01-0002 for the data
copied from the SD card at port 1, and the sub file folder name is PORT02-0002 for the data
copied from the SD card at port 2, etc.
No target device
(HDD is not inserted)
Final Result
▼▼
Real time status (port 1)
Real time status (HDD) Real time status
Source and target devices inserted
ENT
73.5G
3 851M
Create New Folder
No
1.Copy
Need Connect HDD
1.Copy
Ready device: 2
Copy: 2: number of sources
22.0G: Total size of files.
P: number of passed
F: number of failed
30%: rate of progress
Copy: 222.0G
P: 0 F: 0 30%
[ 1]4 2667M
12% 23 22.0G
73.5G: Remaining capacity.
851M: Copied data file size.
3: The numbers of files being
copied
4: The numbers of files
being copied.
23: Total number of
fileson SD card.
2667M: Copied file size
22.0G: Total size of files
12%: rate of progress.
Result:29 : 31
Pass
：
2Fail
：
0
ENT
5

2. Utility
2.1. Format HDD
This option allows to format the target HDD to exFAT file system format. User will be asked if
it is sure to format the target HDD before the Format.
2.2. Asynchronous Mode
Asynchronous Mode means that the Back-up station does not have to wait for all SD
cards inserted in order to start the execution of the task at the same time. No matter
the data size of the SD cards, Back-up station can asynchronously execute the task if
Asynchronous Mode is enabled. The default setting is Disable.
a. Insert HDD first, select Copy from the menu and press ENT button. Back-up station will
start to execute the task now.
b. SD card can be plugged in during the execution process, and will start to execute the task
immediately
c. SD card can be removed when it finishes the execution process and its green LED is
solid on. New SD card can be plugged into the same channel for execution of the task
again.
d. After the task is done for all SD cards, press ESC button to exit from the task.
e. Don’t need to wait for all SD cards to be done. Each channel executes the task
asynchronously.
Choose YES to proceed
[Utility]
1. Format HDD
ENT
Choose YES or NO
Format HDD?
NO
2. Utility
ENT
ENT
Complete format
Format HDD?
Complete![ 0]
HDD
Format HDD?
YES
▼
[Setup]
2. Asynchronous Mode
[
Asynchronous Mode
]
Disable
ENT
Use ▲or ▼ to select
6

2.3. Media Information
This option displays the information of selected media device, such as total capacity, file
system format and the size of data content.
2.4. System Info
This option displays general information of the system, including controller model, system
memory size, firmware version and number of sources.
2.5. System Update
This option allows to update the firmware of system when necessary. Please obtain the
proper firmware file from manufacturer, and save the unzipped file under home folder on the
SD card (DO NOT save the file under sub folder). Insert the SD card containing the
firmware into the first SD port and press ENT. It will update the system, reboot after
update, and operate under the new firmware. Only supports FAT32 file system format.
ENT
ENT
Utility under Main Menu
F0110H 128MB
V1.00.08 10-1
2. Utility [Utility]
5.System Info
Model Memory Size
Firmware Source-Target
ENT
Searching for new firmware
ENT
Utility under Main Menu
Update BIOS
Identify disc…
2. Utility [Utility]
6. System Update
Update complete!
Please wait for reboot
Update BIOS
Complete! Reboot!
HDD information
Information of SD card at port 1
▼
[# 1] 59.8G
exFAT 5M
Port # Total
Capacity
File Format Data Size
[# 0] 74.4G
exFAT 33M
2. Utility [Utility]
4. Media Information
ENT
ENT
7

2.6. Setup Button Beep
This option allows to set up button sound from the following options: Button & Warning, OFF,
Warning only. The default setting is Button & Warning.
