Ezgo RXV FREEDOM User manual

OWNER’S MANUAL / KULLANICI KILAVUZU ELECTRIC / ELEKTRİK
607747-TR
RXV FLEET
FREEDOM
®
SHUTTLE
™
2+2
ISSUED FEBRUARY 2008
YAYIN TARİHİ ŞUBAT 2008

(NOTES, CAUTIONS AND WARNINGS CONTINUED ON INSIDE OF BACK COVER)
1For any questions on material contained in this manual, contact an authorized representative for clarification.
Read and understand all labels located on the vehicle. Always replace any damaged or missing labels.
On steep hills it is possible for vehicles to coast at greater than normal speeds encountered on a flat surface. To pre-
vent loss of vehicle control and possible serious injury, speeds should be limited to no more than the maximum speed
on level ground. See GENERAL SPECIFICATIONS. Limit speed by applying the service brake.
Catastrophic damage to the drivetrain components due to excessive speed may result from driving the vehicle above
specified speed. Damage caused by excessive speed may cause a loss of vehicle control, is costly, is considered
abuse and will not be covered under warranty.
Use extra caution when towing the vehicle(s). Do not tow a single vehicle at speeds in excess of 12 mph (19 kph). Do
not tow more than three vehicles at a time. Do not exceed 5 mph (8 kph) while towing multiple vehicles. Towing the
vehicle at above the recommended speed may result in personal injury and/or damage to the vehicle and other prop-
erty. Vehicles equipped with the AC Drive motor must be towed with the Run-Tow switch, located under the passenger
seat, in the ‘Tow’ position.
If the vehicle is to be used in a commercial environment, signs similar to the ones illustrated should be used to warn of
situations that could result in an unsafe condition
Be sure that this manual remains as part of the permanent service record should the vehicle be resold.
NOTES, CAUTIONS AND WARNINGS
WASH HANDS
AFTER HANDLING!
Battery posts,
terminals and related
accessories contain
lead and lead compounds,
chemicals known
to cause cancer and
reproductive harm.
BATTERY WARNING
WASH HANDS
AFTER HANDLING!
WARNING: Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to cause cancer and reproductive harm.
BATTERIES
CONTAIN LEAD
AND RELATED PARTS
!
<
14
˚
25
%
DO NOT
DRIVE ACROSS
SLOPES IN
EXCESS OF 14˚
Throughout this guide NOTE, CAUTION and WARNING
will be used.
A NOTE indicates a condition that should be observed.
A CAUTION indicates a condition that may result in
damage to the vehicle.
A WARNING indicates a hazardous condition
that could result in severe injury or death.
A DANGER indicates a hazardous situation
that could result in death or serious injury.
Please observe these NOTES, CAUTIONS and WARN-
INGS; be aware that servicing a vehicle requires
mechanical skill and a regard for conditions that could be
hazardous. Improper service or repair may damage the
vehicle or render it unsafe.
Battery posts, terminals and related accesso-
ries contain lead and lead compounds. Wash
hands after handling.
DANGER
SAFETY

Page i
Owner’s Guide
OWNER’S GUIDE
ELECTRIC POWERED
FLEET & PERSONAL GOLF CARS
RXV GOLF CAR
RXV FREEDOM™
RXV SHUTTLE 2 + 2
STARTING MODEL YEAR 2008
ISSUED OCTOBER 2007 REVISED MAY 2008
E-Z-GO Division of TEXTRON, Inc. reserves the right to incorporate engineering and design changes to products in this Manual, without obligation to include
these changes on units leased/sold previously.
The information contained in this Manual may be revised periodically by the E-Z-GO Division, and therefore is subject to change without notice.
The E-Z-GO Division DISCLAIMS LIABILITY FOR ERRORS IN THIS MANUAL, and the E-Z-GO Division SPECIFICALLY DISCLAIMS LIABILITY FOR INCI-
DENTAL AND CONSEQUENTIAL DAMAGES resulting from the use of the information and materials in this Manual.
TO CONTACT US
NORTH AMERICA:
TECHNICAL ASSISTANCE & WARRANTY PHONE: [phone], FAX: [phone]
SERVICE PARTS PHONE: 1-888-GET-EZGO (1-888-438-3946), FAX: [phone]
INTERNATIONAL:
SALES PHONE: [phone], FAX: [phone]
E-Z-GO DIVISION OF TEXTRON, INC., 1451 MARVIN GRIFFIN ROAD, AUGUSTA, GEORGIA USA 30906-3852

Page ii
GENERAL INFORMATION
Owner’s Guide
This vehicle has been designed and manufactured in the United States of America (USA) as
a ‘World Vehicle’. The Standards and Specifications listed in the following text originate in
the USA unless otherwise indicated.
The use of non Original Equipment Manufacturer (OEM) approved parts may void the
warranty.
Overfilling batteries may void the warranty.
BATTERY PROLONGED STORAGE
All batteries will self discharge over time. The rate of self discharge varies depending on the
ambient temperature and the age and condition of the batteries.
A fully charged battery will not freeze in winter temperatures unless the temperature falls
below -75° F (-60° C).
For winter storage, the batteries must be clean, fully charged and disconnected from any
source of electrical drain.
On all electric vehicles, set the key switch to ‘N’ and the ‘RUN/TOW’ switch, located under
the passenger seat, to the ‘TOW’ position before towing the vehicle.
As with all electric vehicles, the batteries must be checked and recharged as required or at a
minimum of 30 day intervals.

SECTION TITLE PAGE NO.
TABLE OF CONTENTS
Page iii
Owner’s Guide
SAFETY .................................................................................................... Inside Covers
GENERAL INFORMATION............................................................................................ ii
SAFETY INFORMATION ................................................................................................v
LABELS AND PICTOGRAMS ...................................................................................... ix
SERIAL NUMBER LOCATION ...................................................................................... 1
BEFORE INITIAL USE....................................................................................................1
PORTABLE CHARGER..................................................................................................2
PORTABLE CHARGER INSTALLATION...............................................................2
USING THE CHARGER.........................................................................................3
UNDERSTANDING THE CHARGER .....................................................................3
LED OPERATION CODES.....................................................................................4
LED FAULT CODES..............................................................................................4
MAINTENANCE INSTRUCTIONS..........................................................................4
CONTROLS AND INDICATORS.................................................................................... 5
KEY SWITCH/DIRECTION SELECTOR ................................................................5
STATE OF CHARGE METER................................................................................5
HEADLIGHT SWITCH............................................................................................6
TURN SIGNAL SWITCH........................................................................................6
HORN ....................................................................................................................6
ACCELERATOR & BRAKE PEDALS.....................................................................6
PARKING BRAKE..................................................................................................6
RUN/TOW SWITCH...............................................................................................6
OPERATING THE VEHICLE.......................................................................................... 6
REGENERATIVE BRAKING..................................................................................7
PEDAL-UP BRAKING............................................................................................7
HIGH PEDAL DISABLE FEATURE........................................................................7
STARTING AND DRIVING.....................................................................................7
STARTING VEHICLE ON A HILL...........................................................................8
COASTING ............................................................................................................8
LABELS AND PICTOGRAMS ................................................................................8
SUN TOP AND WINDSHIELD ...............................................................................8
VEHICLE CLEANING & CARE.......................................................................................8
VEHICLE CLEANING.............................................................................................8
REPAIR...........................................................................................................................9
LIFTING THE VEHICLE.........................................................................................9
WHEELS AND TIRES...................................................................................................10
TIRE REPAIR.......................................................................................................10
WHEEL INSTALLATION......................................................................................11
LIGHT BULB REPLACEMENT.....................................................................................11
HEAD LIGHT BULB REPLACEMENT..................................................................11
TURN SIGNAL BULB REPLACEMENT ...............................................................12
TAILLIGHT/BRAKE LIGHT BULB REPLACEMENT.............................................12

SECTION TITLE PAGE NO.
TABLE OF CONTENTS
Page iv Owner’s Guide
TRANSPORTING THE VEHICLE ................................................................................. 12
TOWING..............................................................................................................12
HAULING.............................................................................................................13
SERVICE AND MAINTENANCE .................................................................................. 13
ROUTINE MAINTENANCE..................................................................................14
TIRE INSPECTION..............................................................................................14
REAR AXLE ........................................................................................................14
HARDWARE........................................................................................................14
CAPACITIES AND REPLACEMENT PARTS.......................................................15
PERIODIC SERVICE SCHEDULE.......................................................................16
BATTERIES AND CHARGING..................................................................................... 17
SAFETY...............................................................................................................17
BATTERY............................................................................................................17
BATTERY MAINTENANCE.......................................................................................... 18
AT EACH CHARGING CYCLE ............................................................................18
MONTHLY...........................................................................................................18
ELECTROLYTE LEVEL AND WATER.................................................................19
CLEANING BATTERIES
BATTERY REMOVAL & INSTALLATION.................................................................... 20
PROLONGED STORAGE ............................................................................................ 22
BATTERY CHARGING................................................................................................. 23
TROUBLESHOOTING.................................................................................................. 23
HYDROMETER ...................................................................................................23
USING A HYDROMETER....................................................................................24
GENERAL SPECIFICATIONS...................................................................................... 27
RXV ELECTRIC - FLEET VEHICLE SPECIFICATIONS...................................... 28
RXV ELECTRIC - FREEDOM VEHICLE SPECIFICATIONS ...............................29
RXV ELECTRIC - SHUTTLE 2 + 2 VEHICLE SPECIFICATIONS........................ 30
WARRANTY ................................................................................................................. 35
DECLARATION OF CONFORMITY (EUROPE ONLY) ................................................ 37

SAFETY INFORMATION
Page v
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
This manual has been designed to assist in maintaining the vehicle in accordance with procedures developed by the
manufacturer. Adherence to these procedures and troubleshooting tips will ensure the best possible service from the
product. To reduce the chance of personal injury or property damage, the following must be carefully observed:
Certain replacement parts can be used independently and/or in combination with other accessories to modify an E-
Z-GO-manufactured vehicle to permit the vehicle to operate at or in excess of 20mph. When an E-Z-GO-manufac-
tured vehicle is modified an any way by the Distributor, Dealer or customer to operate at or in excess of 20mph,
UNDER FEDERAL LAW the modified product will be a Low Speed Vehicle (LSV) subject to the strictures and
requirements of Federal Motor Vehicle Safety Standard 571.500. In these instances, pursuant to Federal law the
Distributor or Dealer MUST equip the product with headlights, rear lights, turn signals, seat belts, top, horn and all
other modifications for LSV’s mandated in FMVSS 571.500, and affix a Vehicle Identification Number to the product
in accordance with the requirements of FMVSS 571.565. Pursuant to FMVSS 571.500, and in accordance with the
State laws applicable in the places of sale and use of the product, the Distributor, Dealer or customer modifying the
vehicle also will be the Final Vehicle Manufacturer for the LSV, and required to title or register the vehicle as man-
dated by State law.
E-Z-GO will NOT approve Distributor, Dealer or customer modifications converting E-Z-GO products into LSV’s.
The Company, in addition, recommends that all E-Z-GO products sold as personal transportation vehicles BE OPER-
ATED ONLY BY PERSONS WITH VALID DRIVERS LICENSES, AND IN ACCORDANCE WITH APPLICABLE STATE
REQUIREMENTS. This restriction is important to the SAFE USE AND OPERATION of the product. On behalf of E-Z-
GO, I am directing that E-Z-GO Branch personnel, Distributors and Dealers advise all customers to adhere to this
SAFETY RESTRICTION, in connection with the use of all products, new and used, the Distributor or Dealer has rea-
son to believe may be operated in personal transportation applications.
Information on FMVSS 571.500 can be obtained at Title 49 of the Code of Federal Regulations, section 571.500, or
through the Internet at the website for the U.S. Department of Transportation - at Dockets and Regulation, then to Title
49 of the Code of Federal Regulations (Transportation)
GENERAL
Many vehicles are used for a variety of tasks beyond the original intended use of the vehicle; therefore, it is impossible
to anticipate and warn against every possible combination of circumstances that may occur. No warnings can take the
place of good common sense and prudent driving practices.
Good common sense and prudent driving practices do more to prevent accidents and injury than all of the warnings
and instructions combined. The manufacturer strongly suggests that all users and maintenance personnel read this
entire manual paying particular attention to the CAUTIONS and WARNINGS contained therein.
If you have any questions regarding this vehicle, contact your closest representative or write to the address on the
back cover of this publication, Attention: Custome Care Department.
The manufacturer reserves the right to make design changes without obligation to make these changes on units previ-
ously sold and the information contained in this manual is subject to change without notice.
The manufacturer is not liable for errors in this manual or for incidental or consequential damages that result from the
use of the material in this manual.
This vehicle conforms to the current applicable standard(s) for safety and performance requirements.
These vehicles are designed and manufactured for off-road use. They do not conform to Federal Motor Vehicle Safety
Standards of the United States of America (USA) and are not equipped for operation on public streets. Some commu-
nities may permit these vehicles to be operated on their streets on a limited basis and in accordance with local ordi-
nances.
With electric powered vehicles, be sure that all electrical accessories are grounded directly to the battery (-) post.
Never use the chassis or body as a ground connection.

Page vi
SAFETY INFORMATION
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
Refer to GENERAL SPECIFICATIONS for vehicle seating capacity.
Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability
or increase the speed beyond the factory specification. Such modifications can cause serious personal injury
or death. Modifications that increase the speed and/or weight of the vehicle will extend the stopping distance and may
reduce the stability of the vehicle. Do not make any such modifications or changes. The manufacturer prohibits and
disclaims responsibility for any such modifications or any other alteration which would adversely affect the safety of the
vehicle.
Vehicles that are capable of higher speeds must limit their speed to no more than the speed of other vehicles when
used in a golf course environment. Additionally, speed should be further moderated by the environmental conditions,
terrain and common sense.
GENERAL OPERATION
Always use the vehicle in a responsible manner and maintain the vehicle in safe operating condition.
Always read and observe all warnings and operation instruction labels affixed to the vehicle.
Always follow all safety rules established in the area where the vehicle is being operated.
Always reduce speed to compensate for poor terrain or conditions.
Always apply service brake to control speed on steep grades.
Always maintain adequate distance between vehicles.
Always reduce speed in wet areas.
Always use extreme caution when approaching sharp or blind turns.
Always use extreme caution when driving over loose terrain.
Always use extreme caution in areas where pedestrians are present.
MAINTENANCE
Always maintain the vehicle in accordance with the manufacturer’s periodic service schedule.
Always ensure that repairs are performed by those that are trained and qualified to do so.
Always follow the manufacturer’s maintenance procedures for the vehicle. Be sure to disable the vehicle before per-
forming any maintenance. Disabling includes removing the key from the key switch and removal of a battery wire.
Always insulate any tools used within the battery area in order to prevent sparks or battery explosion caused by short-
ing the battery terminals or associated wiring. Remove the batteries or cover exposed terminals with an insulating
material.
Always check the polarity of each battery terminal and be sure to rewire the batteries correctly.
Always use specified replacement parts. Never use replacement parts of lesser quality.
Always use recommended tools.
Always determine that tools and procedures not specifically recommended by the manufacturer will not compromise
the safety of personnel nor jeopardize the safe operation of the vehicle.
Always support the vehicle using wheel chocks and jack stands. Never get under a vehicle that is supported by a jack.
Lift the vehicle in accordance with the manufacturer’s instructions.
Always maintain the vehicle in an area away from exposed flame or persons who are smoking.
Always be aware that a vehicle that is not performing as designed is a potential hazard and must not be operated.
Always test drive the vehicle after any repairs or maintenance. All tests must be conducted in a safe area that is free of
both vehicular and pedestrian traffic.
Always replace damaged or missing warning, caution or information labels.
Always keep complete records of the maintenance history of the vehicle.

SAFETY INFORMATION
Page vii
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
The manufacturer cannot anticipate all situations, therefore people attempting to maintain or repair the vehicle must
have the skill and experience to recognize and protect themselves from potential situations that could result in severe
personal injury or death and damage to the vehicle. Use extreme caution and, if unsure as to the potential for injury,
refer the repair or maintenance to a qualified mechanic.
VENTILATION
Hydrogen gas is generated in the charging cycle of batteries and is explosive in concentrations as low as 4%.
Because hydrogen gas is lighter than air, it will collect in the ceiling of buildings necessitating proper ventilation. Five
air exchanges per hour is considered the minimum requirement.
Never charge a vehicle in an area that is subject to flame or spark. Pay particular attention to natural gas or propane
water heaters and furnaces.
Always use a dedicated circuit for each battery charger. Do not permit other appliances to be plugged into the recepta-
cle when the charger is in operation.
Chargers must be installed and operated in accordance with charger manufacturers recommendations or applicable
electrical code (whichever is higher).

Page viii Owner’s Guide
Notes:
SAFETY INFORMATION
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.

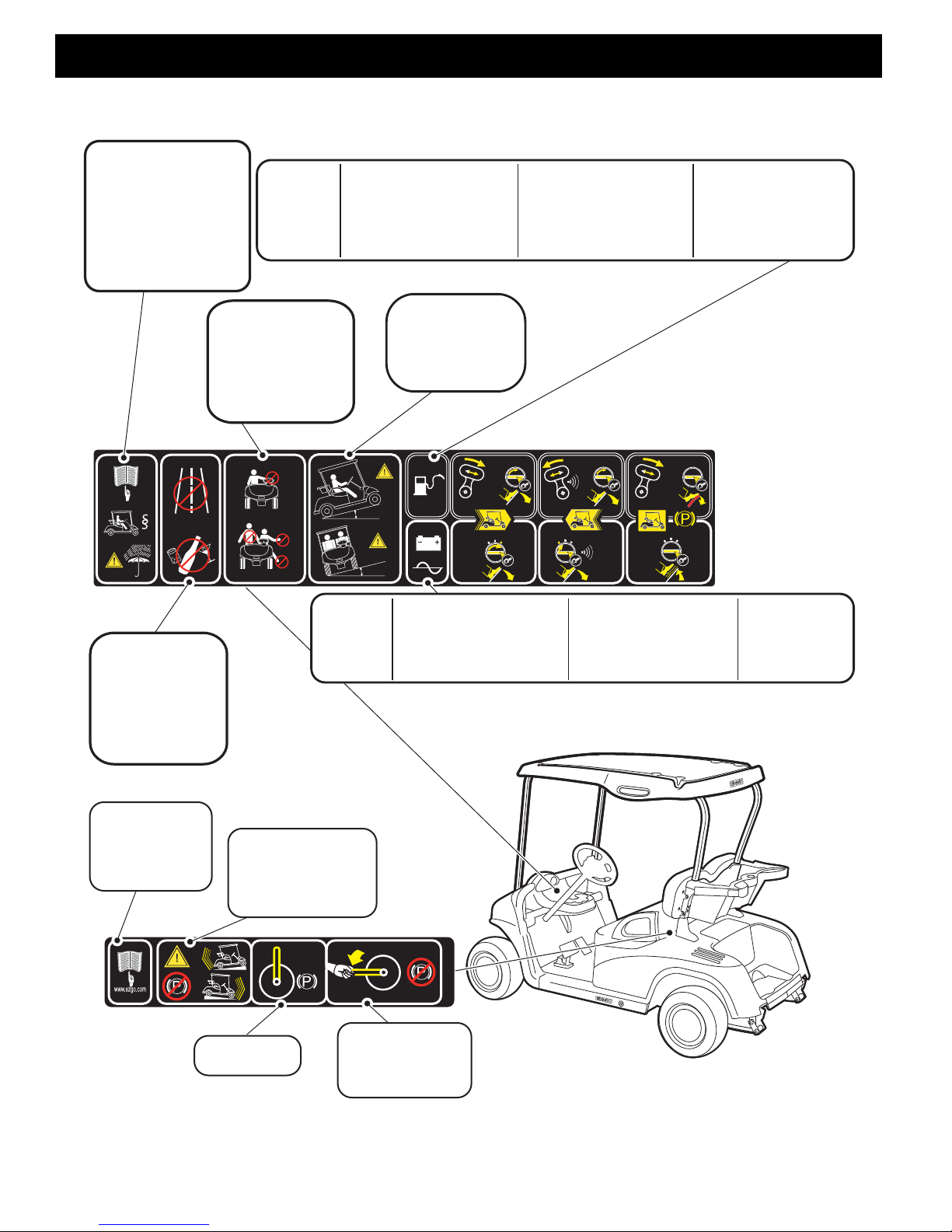

LABELS & PICTOGRAMS
Page ix
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
LABELS & PICTOGRAMS

Page x
LABELS & PICTOGRAMS
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
608522 FLEET VEHICLES
608528
608524
608529
608522
Except where PERMITTED BY LAW:
Except where PERMITTED BY LAW:
To be operated by persons with valid drivers license, in accordance with state requirements. Operate from Driver’s side only.
To be operated by persons with valid drivers license, in accordance with state requirements. Operate from Driver’s side only.
Reduce the RISK OF ACCIDENTS:
Reduce the RISK OF ACCIDENTS:
For non-road use, and in designated areas only. Do not operate under the influence of drugs or alcohol.
For non-road use, and in designated areas only. Do not operate under the influence of drugs or alcohol.
AVOID FALLS from the vehicle:
AVOID FALLS from the vehicle:
All occupants must be fully seated, keep entire body inside vehicle and hold on while vehicle is in motion.
All occupants must be fully seated, keep entire body inside vehicle and hold on while vehicle is in motion.
STARTING the vehicle:
STARTING the vehicle:
Apply service brake ,move direction selector to desired position and accelerate smoothly. On Gas Vehicle,direction selector is
Apply service brake , move direction selector to desired position and accelerate smoothly. On Gas Vehicle,direction selector is
the F-N-R. On Electric vehicle, direction selector is the key switch.
the F-N-R. On Electric vehicle, direction selector is the key switch.
DO NOT OVERLOAD this vehicle:
DO NOT OVERLOAD this vehicle:
Maximum vehicle payload is 800 lbs. (363 kg) including a maximum of 2 persons,options,and accessories.
Maximum vehicle payload is 800 lbs. (363 kg) including a maximum of 2 persons,options,and accessories.
Drive with CAUTION:
Drive with CAUTION:
Drive slowly straight up and down slopes and in turns.Use care in reverse, congested areas,and wet or loose terrain.
Drive slowly straight up and down slopes and in turns.Use care in reverse,congested areas,and wet or loose terrain.
STOPPING the vehicle:
STOPPING the vehicle:
To stop,release accelerator pedal and apply service brake.
To stop,release accelerator pedal and apply service brake.
PARKING the vehicle:
PARKING the vehicle:
Before leaving vehicle ,turn key‘OFF’. On Gas vehicle,move the direction selector to“FORWARD”and engage park brake.
Before leaving vehicle ,turn key‘OFF’. On Gas vehicle,move the direction selector to“FORWARD”and engage park brake.
Failure to follow these instructions can result in SERIOUS INJURY or DEATH
608528
Failure to follow these instructions can result in SERIOUS INJURY or DEATH
Failure to follow these instructions can result in SERIOUS INJURY or DEATH
Except where PERMITTED BY LAW:
Except where PERMITTED BY LAW:
NEVER drive on public roads. Drivers must possess a valid drivers license in accordance with local state law.
NEVER drive on public roads. Drivers must possess a valid drivers license in accordance with local state law.
AVOID FALLS from the vehicle:
AVOID FALLS from the vehicle:
Do not start moving until all occupants are PROPERLY SEATED and HOLDING ON. KEEP entire body INSIDE VEHICLE while moving.
Do not start moving until all occupants are PROPERLY SEATED and HOLDING ON. KEEP entire body INSIDE VEHICLE while moving.
Reduce the RISK OF ACCIDENTS:
Reduce the RISK OF ACCIDENTS:
Always DRIVE SLOWLY in congested areas,on wet or loose terrain, and when backing up. DRIVE SLOWLY when turning and
Always DRIVE SLOWLY in congested areas, on wet or loose terrain, and when backing up. DRIVE SLOWLY when turning and
AVOID sudden stops.
AVOID sudden stops.
ALWAYS drive straight up and down slopes. Do not coast,use BRAKE when going down a slope. NEVER drive this vehicle under the influence
ALWAYS drive straight up and down slopes. Do not coast,use BRAKE when going down a slope. NEVER drive this vehicle under the influence
of drugs or alcohol.
of drugs or alcohol.
This vehicle is NOT A TOY:
This vehicle is NOT A TOY:
Drive responsibly. NEVER leave children unattended or allow children to play on the vehicle. NEVER leave the key in the vehicle when parked.
Drive responsibly. NEVER leave children unattended or allow children to play on the vehicle. NEVER leave the key in the vehicle when parked.
DO NOT OVERLOAD this vehicle:
DO NOT OVERLOAD this vehicle:
NEVER carry more than 2 occupants on each bench seat. Do not exceed vehicleWEIGHT CAPACITY (see Owner’s Manual).
NEVER carry more than 2 occupants on each bench seat. Do not exceed vehicleWEIGHT CAPACITY (see Owner’s Manual).
DO NOT MODIFY this vehicle:
DO NOT MODIFY this vehicle:
NEVER alter this vehicle to increase travel speeds above factory specifications. ONLY authorized E-Z-GO dealers should alter the vehicle using
NEVER alter this vehicle to increase travel speeds above factory specifications. ONLY authorized E-Z-GO dealers should alter the vehicle using
approved parts. Alterations not approved or tested by E-Z-GO can create unsafe conditions and increase your chance of having an accident.
approved parts. Alterations not approved or tested by E-Z-GO can create unsafe conditions and increase your chance of having an accident.
Vehicle can roll, even on fairly level ground.
Vehicle can roll, even on fairly level ground.
Turn key switch to ‘OFF’ before releasing brake.
Turn key switch to ‘OFF’ before releasing brake.
Manual brake lever will release the park brake and can result in the
Manual brake lever will release the park brake and can result in the
vehicle moving unexpectedly.
vehicle moving unexpectedly.
608524
Vehicle can MOVE SUDDENLY when brake
is released causing SERIOUS INJURY or DEATH
BEFORE OPERATING
BEFORE OPERATING
READ all warning labels and the owner’s manual. Contact an authorized E-Z-GO dealer or visit
READ all warning labels and the owner’s manual. Contact an authorized E-Z-GO dealer or visit
www.ezgo.com for a replacement manual.
www.ezgo.com for a replacement manual.
This vehicle is equipped for personal use in most communities.However,state law or local rules may
This vehicle is equipped for personal use in most communities.However, state law or local rules may
require additional equipment in your community.
require additional equipment in your community.
SAFE OPERATION
SAFE OPERATION
Turn key to“ON” - select“forward”or“reverse”- release the parking brake (Gas vehicle only) - then slowly
Turn key to“ON” - select“forward”or“reverse”- release the parking brake (Gas vehicle only) - then slowly
depress accelerator pedal.
depress accelerator pedal.
Always bring the vehicle to a complete stop BEFORE shifting the direction selector.
Always bring the vehicle to a complete stop BEFORE shifting the direction selector.
Operate from the driver’s seat ONLY.
Operate from the driver’s seat ONLY.
PARKING
PARKING
ALWAYS fully engage the parking brake and remove the key BEFORE leaving the vehicle. In an electric
ALWAYS fully engage the parking brake and remove the key BEFORE leaving the vehicle. In an electric
vehicle set the direction selector to“neutral”and in a gasoline vehicle set the selector to“forward”.
vehicle set the direction selector to“neutral”and in a gasoline vehicle set the selector to“forward”.
MAINTENANCE
MAINTENANCE
This vehicle requires regularly scheduled maintenance (see owner’s manual). ONLY qualified
This vehicle requires regularly scheduled maintenance (see owner’s manual). ONLY qualified
personnel should service this vehicle.
personnel should service this vehicle.

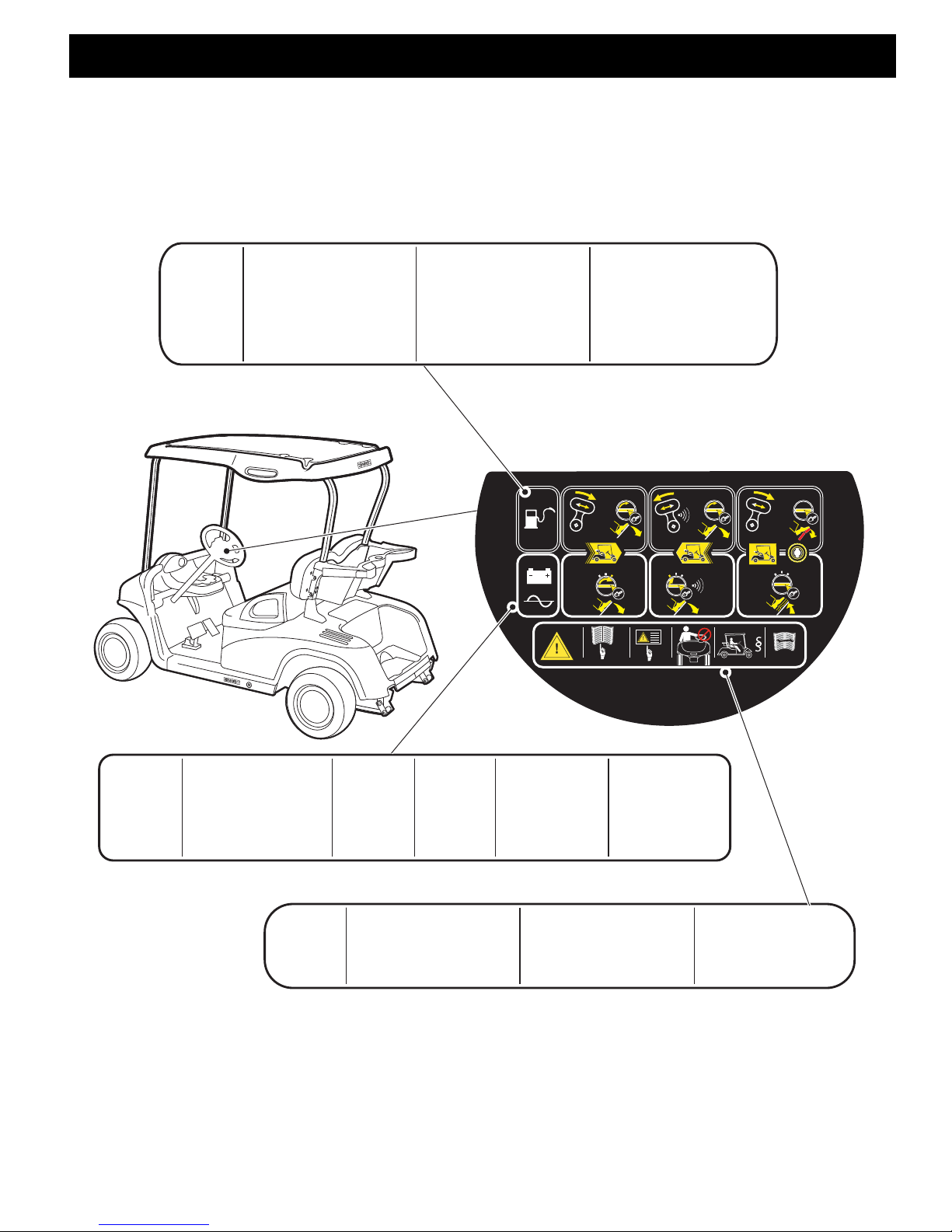

OPERATING INSTRUCTIONS
608529

LABELS & PICTOGRAMS
Page xi
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B

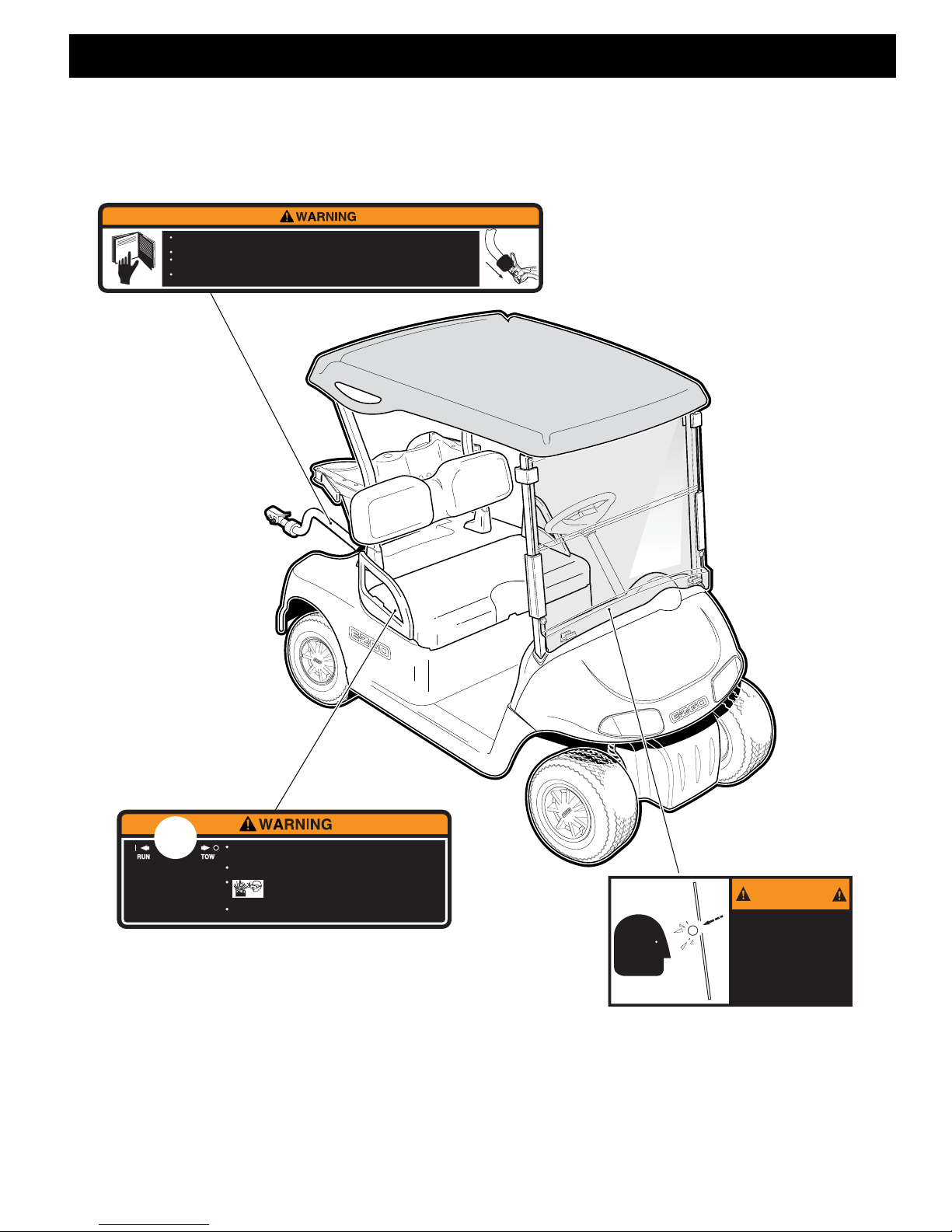

WARNING
Windshields do not
provide protection
from golf balls or
other flying objects.
608523
DO NOT alter or tamper with this unit. Unauthorized modifications can result in
DO NOT alter or tamper with this unit. Unauthorized modifications can result in
SERIOUS INJURY or damage to the vehicle and will void the warranty.
SERIOUS INJURY or damage to the vehicle and will void the warranty.
TOWING - Always select ‘TOW’
position before towing
WAIT 30 seconds after reconnecting batteries BEFORE turning key switch to
WAIT 30 seconds after reconnecting batteries BEFORE turning key switch to
‘REVERSE’, ‘FORWARD’ or ‘NEUTRAL’ positions.
‘REVERSE’, ‘FORWARD’ or ‘NEUTRAL’ positions.
608523
To disable electrical system, turn key switch to ‘OFF’ and remove battery wires.
To disable electrical system, turn key switch to ‘OFF’ and remove battery wires.
ALWAYS turn key to ‘OFF’ before disconnecting or reconnecting
ALWAYS turn key to ‘OFF’ before disconnecting or reconnecting
battery wires. ELECTRICAL ARC or BATTERY EXPLOSION can
battery wires. ELECTRICAL ARC or BATTERY EXPLOSION can
occur if key is not in the ‘OFF’ position.
occur if key is not in the ‘OFF’ position.
This device is ONLY to be used for towing E-Z-GO vehicles. NEVER tow other vehicles or equipment.
This device is ONLY to be used for towing E-Z-GO vehicles. NEVER tow other vehicles or equipment.
READ Owner’s Manual before towing
READ Owner’s Manual before towing.
NEVER tow more than 3 vehicles at one time. DRIVE SLOWLY and never tow vehicle over rough or
NEVER tow more than 3 vehicles at one time. DRIVE SLOWLY and never tow vehicle over rough or
unsafe terrain. NO RIDERS in towed cars
unsafe terrain. NO RIDERS in towed cars
.
.
MONTHLY INSPECTION: tow bar pins, attaching hardware, and front frame attachment of towed cars.
MONTHLY INSPECTION: tow bar pins, attaching hardware, and front frame attachment of towed cars.
Replace worn or damaged parts. CHECK alignment of wheels on towed cars
Replace worn or damaged parts. CHECK alignment of wheels on towed cars
.
.
FULLY ENGAGE coupling. Rubber latch-stop must be under latch release lever.
FULLY ENGAGE coupling. Rubber latch-stop must be under latch release lever.
608525
608525
EGWHL14

Page xii
LABELS & PICTOGRAMS
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
FAILURE TO FOLLOW THESE INSTRUCTIONS
MAY RESULT IN SEVERE PERSONAL INJURY.
AVOID FALLS from the vehicle and other SERIOUS INJURIES:AVOID FALLS from the vehicle and other SERIOUS INJURIES:
Never attempt to enter or exit a moving vehicle.Never attempt to enter or exit a moving vehicle.
KEEP feet, legs, hands, and arms inside the vehicle at all times.KEEP feet, legs, hands, and arms inside the vehicle at all times.
NEVER leave children unattended. Children may needNEVER leave children unattended. Children may need
assistance to remain properly seated and holding on.assistance to remain properly seated and holding on.
AVOID standing in front of, or behind vehicle.AVOID standing in front of, or behind vehicle.
ONLY 2 occupants per seat.ONLY 2 occupants per seat.
Always remain PROPERLY SEATED and HOLDING ON.Always remain PROPERLY SEATED and HOLDING ON.
608537
:
608537

Page xiii
Owner’s Guide
Notes:
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
LABELS & PICTOGRAMS

Page xiv
LABELS & PICTOGRAMS
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
608701 CE VEHICLES
608817
608701
RF
ON
OFF
I
O
ON
NF
R
OFF
O
< 14° 25%
< 14° 25%
ON
OFF
I
O
RF
F
R
OFF
O
ON
N
ON
NF
R
OFF
O
R
F
ON
OFF
I
O
608817
MAXIMUM RAMP
OR HILL
MAXIMUM CROSS
RAMP OR HILL
OPERATE FROM
DRIVER SIDE ONLY
DO NOT STAND UP
AND KEEP ENTIRE
BODY INSIDE
VEHICLE
DO NOT DRIVE
ON HIGHWAY
DO NOT OPERATE
IF USING DRUGS
OR ALCOHOL
READ THE MANUAL
OPERATE ACCORDING
TO LOCAL LAWS AND
REGULATIONS
USE CAUTION IN
BAD WEATHER
FORWARD OPERATION
* TURN KEY TO ‘ON’
* MOVE DIRECTION
SELECTOR TO ‘F’
* PRESS ACCELERATOR
PEDAL GENTLY
REVERSE OPERATION
* TURN KEY TO ‘ON’
* MOVE DIRECTION
SELECTOR TO ‘R’
* PRESS ACCELERATOR
PEDAL GENTLTY
PARK VEHICLE
* MOVE DIRECTION
SELECTOR TO ‘F’
* TURN KEY TO ‘OFF’
* APPLY PARKING
BRAKE
GASOLINE
VEHICLES
FORWARD OPERATION
* TURN KEY TO ‘F’
* PRESS ACCELERATOR
PEDAL GENTLY
REVERSE OPERATION
* TURN KEY TO ‘R’
* GENTLY PRESS
ACCELERATOR
PEDAL
PARK VEHICLE
* TURN KEY
TO ‘OFF’
ELECTRIC
VEHICLES
HANDLE UP
BRAKE IS ON
PUSH HANDLE
DOWN AND
HOLD TO
RELEASE BRAKE
READ THE
MANUAL
REPLACEMENT
AVAILABLE AT
www.ezgo.com
WARNING: WHEN
BRAKE IS OFF
VEHICLE MAY MOVE
WHEN STOPPED
ON A SLOPE

LABELS & PICTOGRAMS
Page xv
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
608819
RF
NO
FFO
I
O
NO
NF
R
FFO
O
NO
F
FO
I
O
RF
F
R
F
F
O
O
P
NO
N
NO
NF
R
FFO
O
R
F
NO
FFO
I
O
www.ezgo.com
www.ezgo.com
608819
WARNING READ THE MANUAL
REPLACEMENT
IS AVAILABLE AT
www.ezgo.com
READ ALL
LABELS
OPERATE
FROM
DRIVER
SIDE
ONLY
OPERATE
ACCORDING
TO LOCAL
LAWS AND
REGULATIONS
MAINTAIN
ACCORDING
TO SERVICE &
REPAIR MANUAL
AVAILABLE AT
www.ezgo.com
FORWARD OPERATION
* TURN KEY TO ‘ON’
* MOVE DIRECTION
SELECTOR TO ‘F’
* PRESS ACCELERATOR
PEDAL GENTLY
REVERSE OPERATION
* TURN KEY TO ‘ON’
* MOVE DIRECTION
SELECTOR TO ‘R’
* PRESS ACCELERATOR
PEDAL GENTLTY
PARK VEHICLE
* MOVE DIRECTION
SELECTOR TO ‘F’
* TURN KEY TO ‘OFF’
* APPLY PARKING BRAKE
GASOLINE
VEHICLES
FORWARD OPERATION
* TURN KEY TO ‘F’
* PRESS ACCELERATOR
PEDAL GENTLY
REVERSE OPERATION
* TURN KEY TO ‘R’
* PRESS ACCELERATOR
PEDAL GENTLY
PARK VEHICLE
* TURN KEY TO ‘OFF’
ELECTRIC
VEHICLES

Page xvi
LABELS & PICTOGRAMS
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
608525
608821
DO NOT TOW MORE THAN 3 VEHICLES
DO NOT DRIVE IN REVERSE WHEN TOWING VEHICLES
NO PASSENGERS IN TOWED VEHICLES
DO NOT TOW VEHICLES OVER UNEVEN TERRAIN
READ THE
MANUAL
REPLACEMENT
AVAILABLE AT
www.ezgo.com
WARNING
ENGAGE
LOCKING
COLLAR
WARNING
DO NOT
DRIVE
FAST
WARNING INSPECT TOW BAR
SYSTEM EVERY 30 DAYS
TOW BAR OPERATION
* PULL LOCKING COLLAR AWAY
FROM LATCH AND PRESS ON
LATCH TAB TO OPEN
* PLACE LATCH OVER FRONT
TOWING BRACKET
* CLOSE LATCH AND MOVE
LOCKING COLLAR UNDER
LATCH TAB
608769
F
R
OFF
O
ON
N
KEEP
HANDS
OUT
READ THE
MANUAL
REPLACEMENT
AVAILABLE AT
www.ezgo.com
TO REDUCE POSSIBILITY OF
BATTERY EXPLOSION TURN
KEY TO ‘OFF’ BEFORE
DISCONNECTING OR CONNECTING
BATTERY WIRES
WARNING: ATTACH TOW BAR BEFORE
TURNING KEY SWITCH TO ‘TOW’

LABELS & PICTOGRAMS
Page xvii
Owner’s Guide
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
B
B
608537
:
608820
608820
www.ezgo.com
READ THE MANUAL
REPLACEMENT
AVAILABLE AT
www.ezgo.com
WARNING OPERATE ACCORDING
TO LOCAL LAWS AND
REGULATIONS
NO MORE THAN 2
OCCUPANTS IN
EACH SEAT
DO NOT STAND UP
AND KEEP ENTIRE
BODY INSIDE
VEHICLE
DO NOT STAND IN FRONT
OF OR BEHIND VEHICLE
CHILDREN MUST BE
ACCOMPANIED BY
AN ADULT
DO NOT ALLOW
CHILDREN TO
RIDE ALONE
DO NOT GET ON OR OFF
A MOVING VEHICLE
WARNING
HOT SURFACE
608823

Page xviii Owner’s Guide
Notes:
LABELS & PICTOGRAMS
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings.
