eZway EZ1000 Specifications

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

2 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
• Always study this manual carefully before
operating the Shower Chair.
• The operator/user must always have access to
the manual.
• The Shower Chair is intended for professional
use only where the patient/resident will be
under supervision of trained personnel.
• Operating instructions and recommended
maintenance procedures are explained in the
following pages.
• If you have any questions regarding the
operation or maintenance of your EZ1000
Shower Chair and cannot find the answer in
this manual, please contact us.
• The Shower Chair is designed for years of
trouble- free operation, with proper use and
maintenance.
Mandatory to read the Operating manual
before using the equipment.
WARNING:
Table of Contents
Safety Notes ....................... 2
Introduction ....................... 3
Unpacking......................... 4
Initialization/Calibration .............. 5
Intended Use....................... 6
Safety Instructions .................. 7
General safety instructions .............. 7

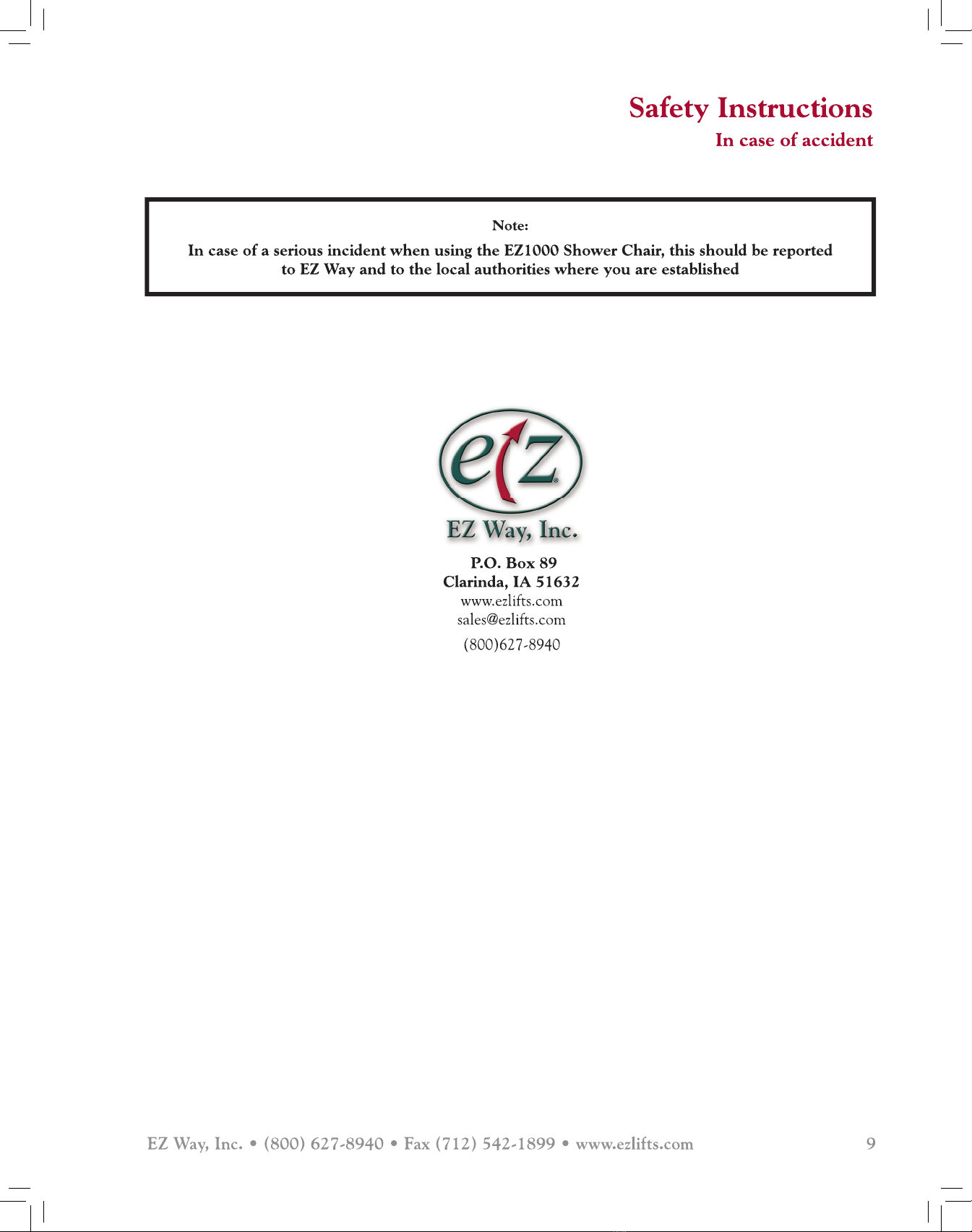

In case of accident..................... 9
Features and Controls ............... 10
Product Description ................ 11
General product description EZ1000 ..... 11
Possible combination with
other equipment ................... 12
Technical Specification .............. 13
General technical specifications ......... 13
Technical Specification .............. 14
Measurements in mm ................. 14
Measurements in inches ............... 15
User Instructions................... 16
Height & tilt adjustment .............. 16
Emergency stop ...................... 17
Charging instructions ................. 18
Battery usage recommendations ......... 19
Armrests ........................... 20
Castors............................. 21
Patient/resident handling .............. 22
- Transfer from wheelchair
onto the shower chair ............... 22
- Showering ......................... 23
- Toileting .......................... 24
Labels and Symbols................. 25
Routine Maintenance ............... 27
Before every use...................... 27
Daily maintenance ................... 27
Monthly maintenance................. 27
Maintenance every 3 years ............. 29
Maintenance every 5 years ............. 29
Disposal / Recycling ................ 30
Cleaning Instructions ............... 31
Training Record ................... 33
Maintenance Record................ 34
Safety Notes

3EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the manual before using
the equipment.
WARNING:
Make sure you have read, understand, and
applied the information on the following
pages before using the equipment.
WARNING:
Introduction
Thank you for choosing one of our quality products. We hope you enjoy the EZ1000 Shower
Chair.
This manual shall, in conjunction with staff training, ensure that the operator/user is always
using and/or operating the EZ1000 correctly.
New users must be trained by qualified and experienced staff.
Each user is required to read and understand the entire manual and show that they can apply the
instructions as specified. This applies to anyone who was not present at the in-service training.
This instruction manual should generally be kept easily accessible for every user. Copying the
whole manual is encouraged since its sole purpose is to improve the standard of training and
safety.
Please download another copy from us if the instruction manual is lost or unusable, or if it has
become illegible over time.
If you need further information, contact EZ Way, Inc.

4 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
When moving the EZ1000 from the pallet, two
people are required.
WARNING:
Unpacking
• Your EZ1000 Shower chair is delivered on a
wooden pallet surrounded by a wooden crate
wrapped in plastic.
• Start unpacking the EZ1000 by carefully
cutting and removing the plastic. Unscrew
and remove the wooden crate from the
pallet. DO NOT use any sharp tools that
may scratch the Shower Chair.
• Carefully lift off the wooden crate from
the pallet. When lifted, do so briefly and
use at least two people.
• Carefully remove the EZ1000 from the
pallet.
• See recycling instructions on page 30.

5EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Initialization/Calibration
EZ1000 from October 1, 2014.
An initialization/calibration shall be performed
on the lifting columns:
• Before first use
• Maintenance
• After replacement of lifting column/
columns.
• After replacement of the tilt actuator.
Before starting the initialization/calibration
process, make sure that the Emergency Button is
released and not activated.

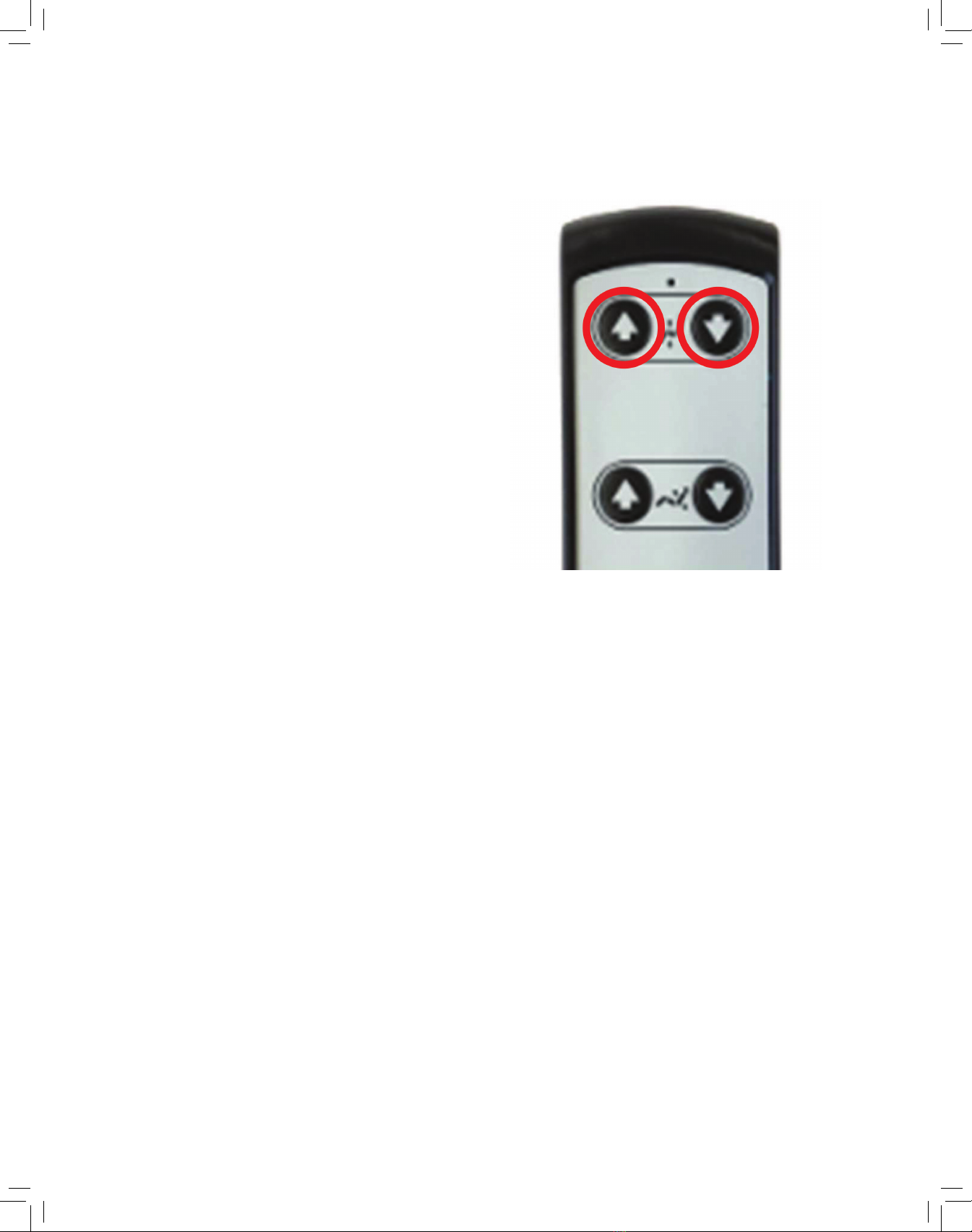

Initialization/Calibration:
• If the EZ1000 is in the lowest position raise
the chair by pressing the UP button on the
hand control.
• Press the UP and the DOWN button on
the hand control simultaneously. Keep the
buttons pressed.
• After 8-10 seconds the lifting columns will
start to lower the chair and the chair will be
tilted backwards. Keep the buttons pressed
during the whole process.
• When the EZ1000 is in the lowest position
and the chair is fully tilted backwards the
initialization/calibration is finished and the
EZ1000 is ready to be used.

6 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the operating manual
before using the shower chair.
WARNING:
Make sure you have read, understood, and
applied the information on the following
pages before using the shower chair.
WARNING:
Intended Use
EZ1000 - Shower Chair
• The EZ1000 is a battery-operated Shower Chair.
• The EZ1000 is intended to be used indoors in all types of care facilities and private homes, including
hygiene areas.
• The EZ1000 is only intended to be used for short term use Less than (<)60min when in contact with
breached or compromised skin.
• The EZ1000 is NOT intended to be used with patients that exceed a weight of (200kg) 440Ib.
Typical situations where the EZ1000 Shower Chair is used includes:
• Transporting the patient/resident to and from a showering area
• Showering and cleaning the patient/resident
• Toileting
• Pedicure
• The patient/resident must be able to sit straight up without support.
• The patient/resident is typically a person who is unable to take care of their own personal hygiene.
• The user is any adult person who is capable of reading and understands the operating manual and is
qualified to care for dependent persons/patients.

7EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Safety Instructions
General safety instructions
If you have questions regarding operation or maintenance of your EZ1000 Shower Chair and
cannot find the answer in this manual, please contact us!
• Before operating the EZ1000, make sure that all transport packages and attachments are removed so
that nothing can be pinched between sitting frames and surfaces.
• Test all functions on the EZ1000 (raising, lowering, tilting, arm rests) before use.
• The patient/resident must be positioned comfortably in the Shower Chair, with arm rests securely
down folded, and safety belts shall be locked.
• Always physically check the water temperature before and during showering of the patient/resident.
• The patient/resident must be positioned comfortably on the stretcher mattress, with side rails securely
locked.
• Make sure that all parts that comes in contact with the patient/resident are intact and without sharp
edges.
• Ensure that the Shower Chair can be moved, tilted, raised, or lowered safely to avoid any pinch
injuries on the patient/resident.
• Castor brakes must be securely locked on the Shower Chair before transferring a patient/resident and
while showering the patient/resident.
• Operate the Shower Chair carefully when transporting patients through narrow corridors or over
irregular uneven surfaces.

8 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Mandatory to read the Operating manual
before using the equipment.
WARNING:
Only qualied staff, who understand all
operating and safety procedures may
operate the Shower Chair.
WARNING:
NEVER use the EZ1000 Shower Chair in any
way that varies from the safety precautions
and operating procedures detailed in this
manual. The EZ1000 Shower Chair must not
be operated by anyone until the user has
read and understands the instructions in this
manual.
WARNING:
Never leave the patient/resident unattended.
WARNING:
Safety Instructions
General safety instructions
• During cleaning of the EZ1000, avoid skin or eye contact with detergent, which is highly caustic. If
contact is made, rinse immediately with excess water. If irritation occurs, consult a medical doctor.
Always read and follow detergent supplier instructions.
• The battery supplied is the only one approved for the Shower Chair.
• The battery charger supplied is the only one approved for the battery on the Shower Chair.
• The battery shall not be charged in wet or damp areas – Potential Shock hazard.
• It is recommended that the battery for the EZ1000 Shower Chair are charged daily or whenever the
Shower Chair is not in use. The battery cannot be overcharged.
• Make sure that all castors are clean, in place and free from damages.
• Check that all screws are tightened and free from damages.
• The Shower Chair must be inspected visually for sign of wear. The Shower Chair should not be used
if defects are noted. Prompt service is required.

10 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Features and Controls

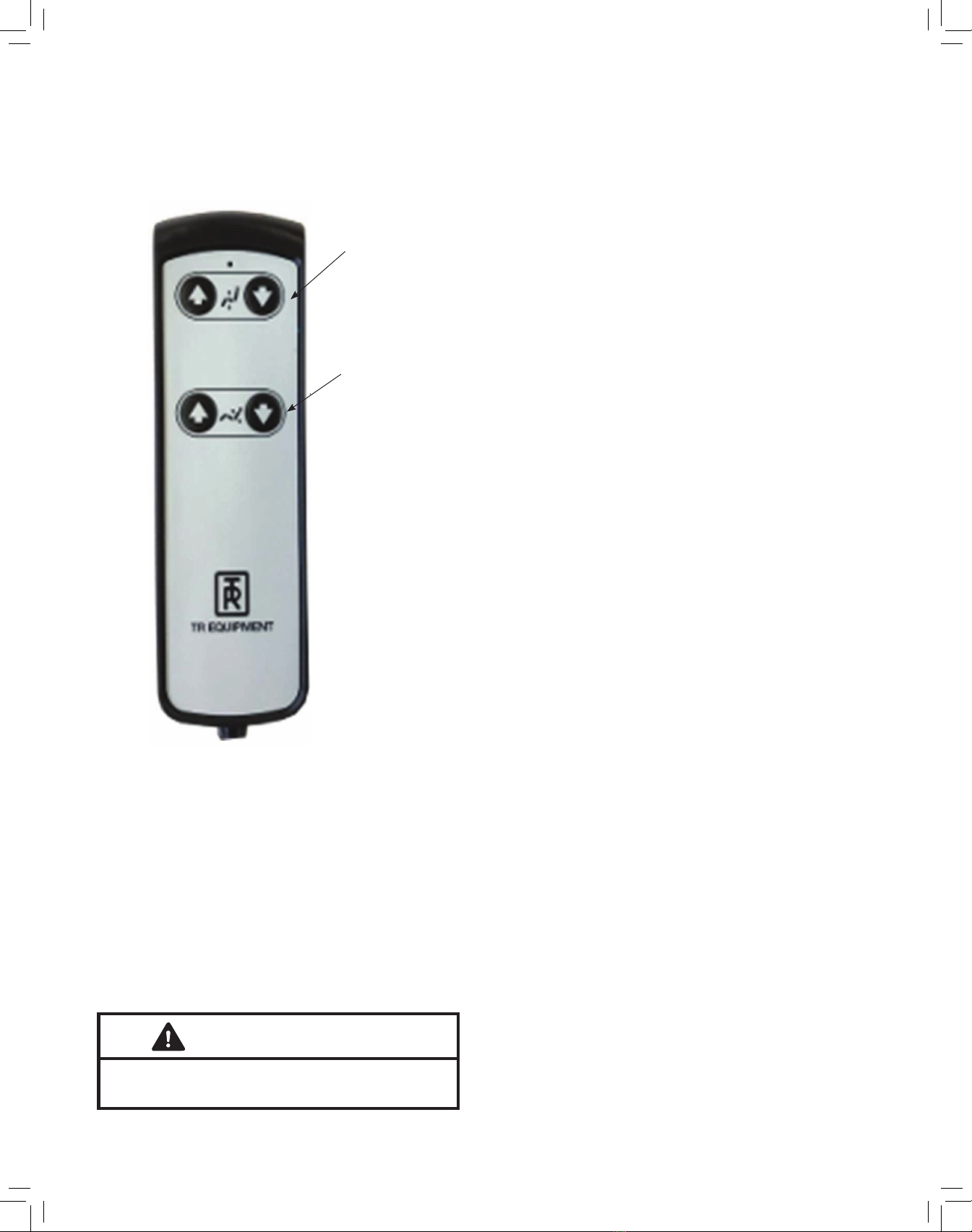

1 Lifting columns 10 Front closing arm rests (Option not
available in United States.)
2 Chair seat 11 Castors with brake
3 Chair backrest 12 Handgrip
4 Chair headrest 13 Footrest (Option)
5 Foldable armrests 14 Emergency stop
6 Leg rest 15 Safety belt
7 Bedpan incl. Lid (option) 16 Chassis base
8 Hand control 17 Snap on/off buckle
9 Battery pack 18 Chest belt (option)

11EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Product Description
General product description EZ1000
EZ1000 – Shower Chair, battery operated
Height and tilt adjustable Shower Chair. As
standard equipped with 4pcs castors with brake,
2pcs lifting columns, 1pcs tilt actuator, 1pcs hand
control, 1pcs battery pack, 1pcs battery charger, 2pcs
foldable arm rests, footrest, commode pan and lid,
and 2 safety belts.

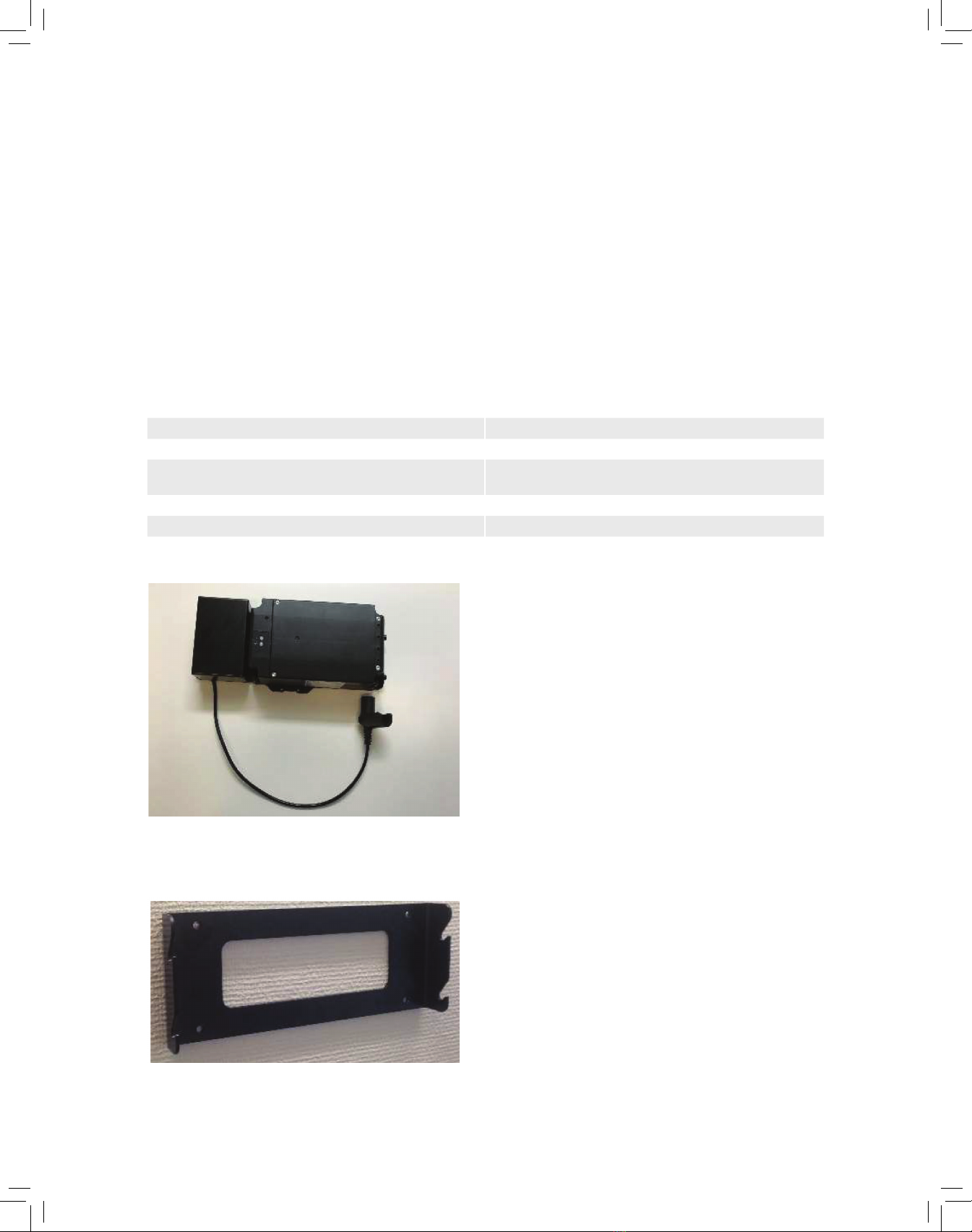

Options for EZ1000:
• Extra removable battery
• Battery wall bracket
Factory mounted option:
• Foldable and height adjustable footrest

12 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Product Description
Possible combination with other equipment
Possible equipment combinations
EZ1000 2810 Shower Panel

13EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
EZ1000 – Shower Chair
Maximum working load 200Kg / 440Ibs
Control EZ1000 Hand control
Operating range (Seat) 535 – 935mm / 21” – 37”
Operating range (Seat, Incl. Spacer kit) 588 – 988mm / 23” – 39”
Lifting stroke 400mm / 16”
Seat, Back rest, Armrest Foamed PUR (Poly urethane)
Structure Powder coated and Zink plated steel and stainless steel
Protection class IP X5
Castors Twin castors Ø100mm

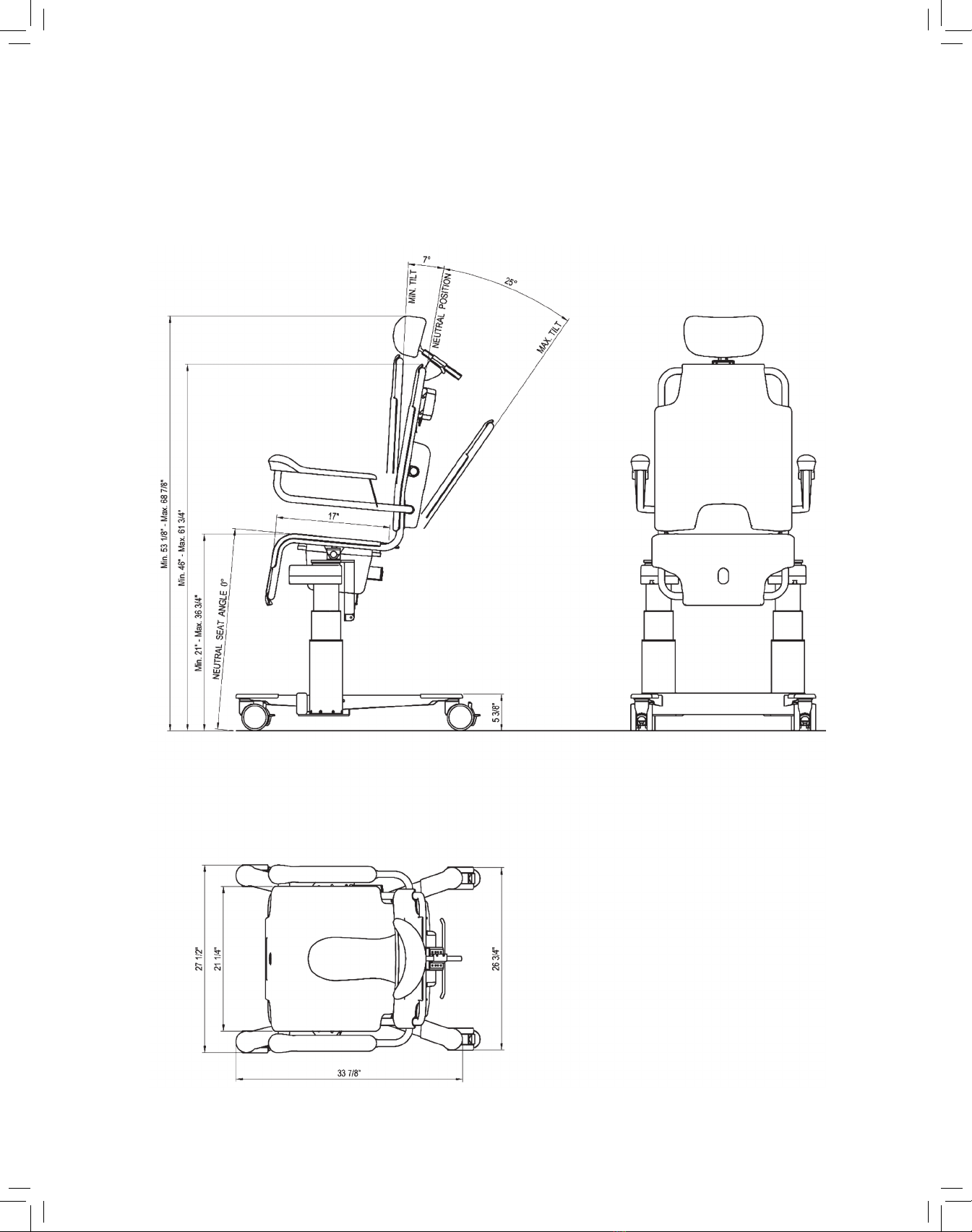

EZ1000 – Dimensions and weights
Length 860mm / 63”
Height (Head rest) 1350 – 1750mm / 53” – 69”
Height (Head rest, Incl. Spacer kit) 1403 – 1803mm / 55” – 71”
Width 700mm / 27,5”
Weight EZ1000 (excl. options) 75kg / 165Ibs
EZ1000 - Voltage
Supply voltage 24 VDC, 4Ah (Lithium-ion, rechargeable)
Battery charger input 100-240VAC, 50/60Hz
Battery charger out put 24VDC
Technical life span
Technical life span 10 years if the product is serviced and maintained according to
instructions in this manual.
Transport and storage
Ambient temperature -20°C - +70°C
-4°F - +158°F
Technical Specification
General technical specifications

14 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Technical Specification
Measurements in mm

15EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Technical Specification
Measurements in inches

16 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
User Instructions
Height & tilt adjustment
EZ1000 – Height & tilt adjustment
Always secure the patient/resident with safety
belt.
Maximum working load = 200kg (440 lb.)
WARNING:
Height adjustment
UP & DOWN
Tilt adjustment
The tilt will stop in a
neutral position.
The chair can be
tilted forward to ease
transfer using the same
button/symbol.
This shall always be
done when the chair is
in the lowest position.

17EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
User Instructions
Emergency stop
EZ1000 – Emergency stop
In case of an unexpected incident the
Emergency Stop can be activated.
• Push the Red button to activate the
Emergency Stop. The lifting columns and
tilt actuator will stop immediately.
• Turn the Red button clockwise to release the
Emergency Stop.
Maximum working load = 200kg (440 lb.)
WARNING:

18 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
Status LED indicator - colour & mode
Fully charged Green — Continuously on
Charging Green — Continuously short flashing - On (1 sec)/Off (1 sec
High capacity Green — Continuously long flashing - On (0,5 sec)/Off (4 sec)
Low capacity Orange — Continuously long flashing - On (0,5 sec)/Off (4 sec)
Under protection OFF
Charging time From empty to fully charged 8 Hours — The battery cannot be overcharged
User Instructions
Charging instructions
The battery charger is intended to only be used
indoors and in dry areas. The battery charger
shall not be installed in bathrooms or damp
areas.
It is recommended to check battery status every
morning before use (see LED indication - color
& mode). The cable connector of the battery
shall always be unplugged before the battery is
removed from the EZ1000.
Wall bracket
Removable and rechargeable Lithium-Ion,
battery 24V, 4Ah
When you buy a EZ1000 with a removable
battery, our recommendation is to purchase an
extra battery. The extra removable battery shall
immediately be put on charge to make the usage
of the EZ1000 and the charging procedure more
effective.
Batteries in storage must be put on charge to
maintain the capacity of the battery.
The battery shall be charged in a dry area easy to
locate.
The optional wall bracket shall be mounted
in a convenient and reachable height. Always
connect the battery charger to the battery before
you connect the charger to the mains.

19EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
User Instructions
Battery usage recommendations
• Before the first use, charge the battery for
at least 24 hours. If you have purchased an
extra battery put that battery on charge
when the first battery starts being used.
• If the EZ1000 is used daily, charge the
battery for at least 8 hours.
• If the EZ1000 is used intermittently during a
week, charge the battery 1-2 times per week,
for at least 8 hours each time.
• Ideally if a battery is not in use, it should
always be plugged into the charger. The
battery pack cannot be overcharged.
• If the EZ1000 is only used occasionally the
battery shall be put on charge after each use
and for at least 24 hours. The battery cannot
be overcharged.
• If the shower chair shall be stored put the
battery on charge until it will be used again
or charge the battery once per month and for
at least 24 hours each time.
• Batteries in storage not being charged every
month will eventually lose their ability to
hold a charge.

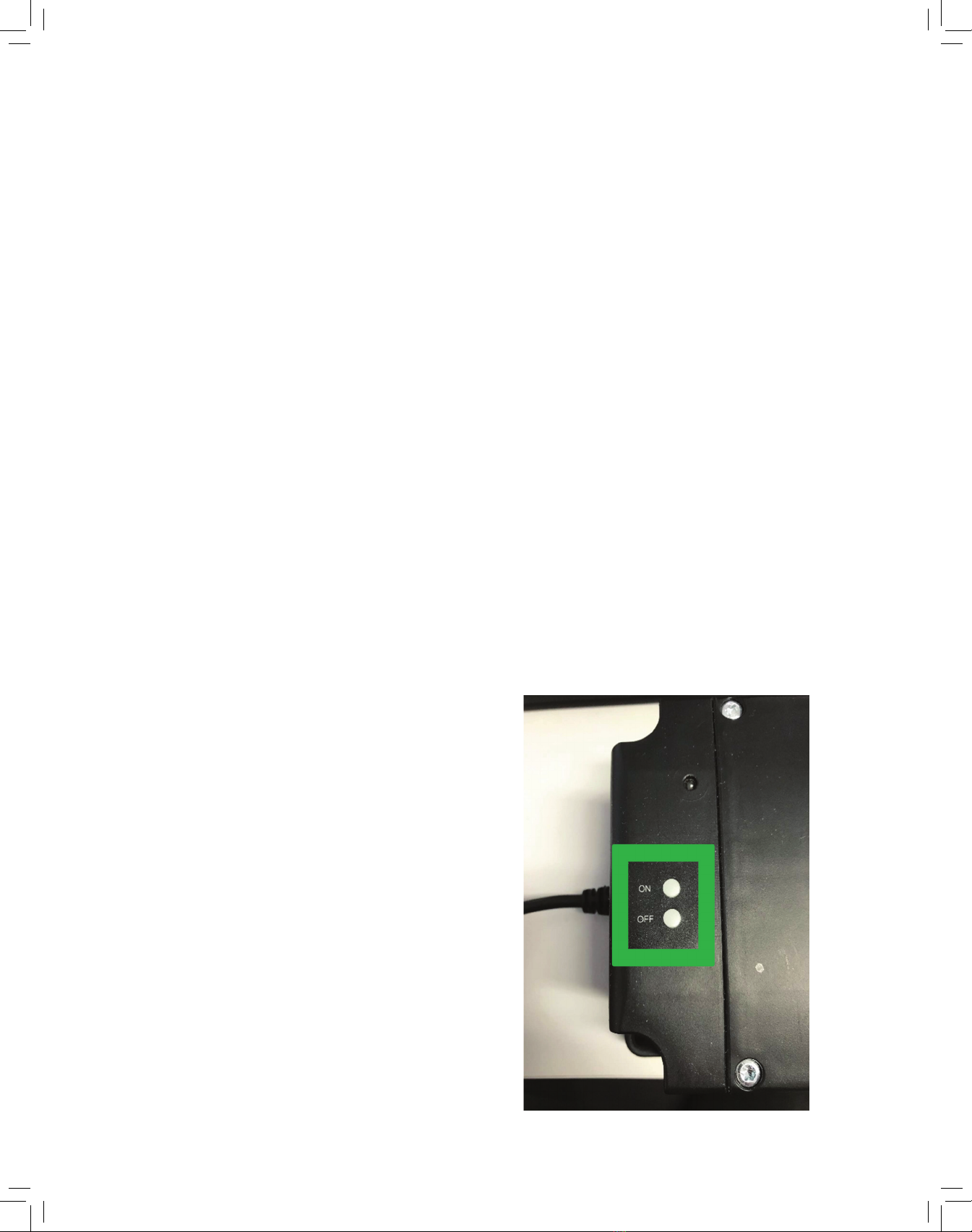

Press the ON button for 1-2 seconds to start the
battery. Press the OFF button for 3-4 seconds to
turn it off.
When you disconnect the battery and battery
charger from the mains, a beep will be heard,
and an orange light will flash for a couple of
seconds.
You can only start the battery when it’s
connected to the control box connector on the
EZ1000.

20 EZ Way, Inc. • [phone] • Fax [phone] • www.ezlifts.com
User Instructions
Armrests
The armrests are easily raised to an upraised
position when transferring the patient/resident
onto and off the chair. Pull the armrest(s)
straight up to a vertical position.
To lower and secure the armrest(s) do it in a
reverse way as stated above (lower and fold) .
