Chapter1IntroducingtheFB2710CPUBoard
Overview
The FB2710 is an AMD® G-Serial T16R low power all–in-one PC/104 CPU board. This
user’s manual provides information on the physical features, installation, and BIOS
setup.
Built to unleash the total potential of the AMD® G-Serial T16R Processor, the FB2710
is a single board computer capable of handling today’s demanding requirements.
Able to support 615MHz CPU, this unit supports 10/100/1000 Base –TX interface
network port, audio, SATA/CFAST socket, and 1 DIMM socket supports up to 4GB
DDR3L RAM, three USB2.0 ports, and a VGA controller.
Each FB2710 has two ports for I/O communications. One RS232 and one RS232/
RS422/RS485 port are available. There is also a watchdog timer that can be
configured from software to automatically reset the system.
The CPU board perfect for POS and POI applications, network systems, panel /
MMI’s, order entry kiosks and test equipment. The unit is only 101.6x95.9mm.
1
FabiaTech Corporation
SeriesComparisonTable
Model FB2710
Processor AMD® G-Serial T16R 615MHZ
Memory
204 Pin So-DIMM*1 DDR3L-1066
4GB (Max.)
Display VGA/LVDS
S-Chipset AMD Fusion Controller HUB A55E
Multi I/O Port One RS232 &
One RS232/RS422/RS485
USB 2.0 Port 3
SATA PortStorage CFAST Socket
Audio* Line -Out And MIC-In
RJ45 LAN port
(100/1000Mbps) Realtek RTL8111F
Watchdog Timer Yes
Bus PC/104
Operating Temperature
0~+ 50℃(32~122℉)
Storage Temperature -20~+70℃(-4~158℉)
Dimensions (Unit: mm) 101.6(D) x 95.9(W)
* Audio Function is optional.
* The ISA bus can’t support DMA.
2
FabiaTech Corporation
Specifications
Processor & Memory –
AMD® G-Serial T16R 615MHZ (512KB L2 Cache) Low Power Processor
One 204 pin So-DIMM socket for up to 4GB DDR3L/1066 RAM
I/O Outlets –
One 10/100/1000 base-TX Ethernet LAN port
VGA and LVDS LCD Connector
Three USB ports (2.0) and providing one AC97 audio function
One RS-232 and one RS-232/RS422/RS485 port
LED Indicator –
Providing power LED and hard disk access LED.
Storage –
CFAST Compact Flash socket for CFAST Compact Flash module
One SATA hard disk connector
Power requirement –
+5V DC only, 3.94A maximum (2.5A Typical) / Supports AT and ATX mode
function
Dimensions -
PC/104 form factor, 101.6mm x 95.9 mm (4.00” x 3.775”)
4
FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. If any of the mentioned
happens, contact us for immediate service.
•Unpack and inspect the FB2710 package for possible damage that may
occur during the delivery process.
•Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FB2710 is not supplied from us, please
make sure the specification of the cable(s) is compatible with the FB2710
system.
Note: After FB2710 is installed, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following list the accessories that may be included in your FB2710 package.
Some of the accessories are optional shipped only upon order.
•FB2710 All-In-One PC/104 CPU board.
•1 VGA adapter cable. (L:150mm)
•2 serial port adapter cables. (L:150mm)
•2 Dual USB adapter cable with bracket. (L:300mm)
•1 LAN adapter cable with FB4760x board.
•1 Compact disc containing manual file in PDF format and necessary drivers
and utilities.
Optional:
•FB4706 Audio/USB adapter board with cables. (PN: 0103020022G-21)
•One USB adapter cable. (L:270mm) (PN:7002020013G)
5
FabiaTech Corporation
6
FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the system connectors & jumper settings, and guides you to
apply them for field application.
BeforeInstallation
Before you install the system, make sure you follow the below descriptions.
1. Before removing the board from its anti-static bag, wear an anti-static strap to
prevent the generation of Electricity Static Discharge (ESD). The ESD may be
generated by man’s physical touch. It may do damage to the board circuit.
2. Install any connector, module, or add on card, be sure that the power is
disconnected from the system board. If not, this may damage the system
board components, module, or the add-on-card.
3. When you connect the connectors and memory modules, be careful with the
pin orientations.
7
FabiaTech Corporation
HardwareFeatures
The following list is for the setup of the connectors and jumpers of the FB2710.
Item Description
CN1 Battery Header (JST 2-Pin 2.0mm)
CN2 RJ45-LAN 2.0mm connector (JST 12-Pin 2.0mm)
CN3 LVDS LCD connector (DF13 30-Pin 1.25mm)
CN4 VGA connector (IDC10-Pin 2.0mm)
CN5 Power connector for LVDS LCD Backlight (JST 5-Pin 2.0mm)
CN8, CN6 RS-232 port connector (JST 10-Pin 2.0mm)
CN9 SATA Connector
CN10 AC97 signals for Audio function (IDC 12-Pin 2.0mm)
CN11 Power connector (JAE 4-Pin 2.54mm)
CN12 CFAST Compact Flash Socket
CN13 Case/CPU Cooling FAN header (JST 3-Pin 2.54mm)
CN18 USB connector header (JST 4-Pin 2.0mm)
J1 Reset header (2-Pin 2.54mm)
J2 External speaker header (2-Pin 2.54mm)
J3 Power Button header (2-Pin 2.54mm)
J4 USB connector header (10-Pin 2.54mm)
JP1 Clear CMOS data header
D2-LED Power LED
D3-LED SATA/CFAST Access LED
BUS1 PC-104 Connector
DIMM1 DDR3L So-DIMM Socket 204-pin
8
FabiaTech Corporation
10
CN9: Serial ATA hard Disk Connector
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
J4 & CN18: USB Connector Header
The CPU board supports three USB port. Any USB device can be attached to USB
ports with plug-and-play supported, J4 is10-pin connector and CN18 is 4-pin
connector header. Use the USB adapter cable and/or FB4706 Audio board, you
can attach up to 3 USB devices.
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
Pin
Signal
1 Ground
2 TX-DP
3 TX-DN
4 Ground
5 RX-DN
6 RX-DP
7 Ground
J4
Signal
J4
Signal CN18 Signal
1
USBV0
2
Ground
1 Ground
3
USBD0-
4
USBG1 2 USBD2+
5
USBD0+
6
USBD1+
3 USBD2-
7
USBG0
8
USBD1- 4 USBV2
9
Ground
10
USBV1 - -
J4
1
9
2
10
CN18
1
4
FabiaTech Corporation
CN6 & CN8: Serial Port Connectors
The Serial port 0 (CN8) is designed for multiple proposes. It could be RS-232, RS-422
or RS-485 by BIOS CMOS setting. Use the included serial cables for transferring 10-
pin IDC to 9-pin D-sub connector. The following tables show the signal connections
of these connectors.
DB9
CN6 & CN8
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
9
1
10
2
9
5
16
Pin
RS-232
DB9 RS-422
RS-485
1 -DCD 1 TX- 485-
2 -DSR 6 - -
3 RXD 2 TX+ 485+
4 -RTS 7 - -
5 -TXD 3 RX+ -
6 -CTS 8 - -
7 -DTR 4 RX- -
8 -RI 9 - -
Mode/Serial Port0
Port1
RS-232 CN8
CN6
RS-422 CN8
-
RS-485 CN8
-
Mode Select BIOS
-
9 GROUND
5 - -
10
GROUND
Shield
- -
CN2: RJ45 LAN /Adapter Connector and LED indicators
The CN2 provide LAN signals to FB4760 adapter board with cable. FB4760 is a RJ45
connector with 2 LED; the left side LED (orange) indicates data which is being
accessed and the right side LED (green) indicates on-line status.
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
RJ45
1 8
(Front View)
RJ45
Signal RJ45
Signal
1 MDI0+ 5 MDI2-
2 MDI0- 6 MDI1-
3 MDI1+ 7 MDI3+
4 MDI2+ 8 MDI3-
11
FabiaTech Corporation
J2: External Speaker Header
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
PIN
Signal
1
Speaker+
2
Speaker-
CN1: External Battery heade
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
D2: Power LED, D3: SATA and CFAST Access LED indicator
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
PIN
Signal
1
Battery +
2
Battery -
CN1
2 1
2
1
J2
12
FabiaTech Corporation

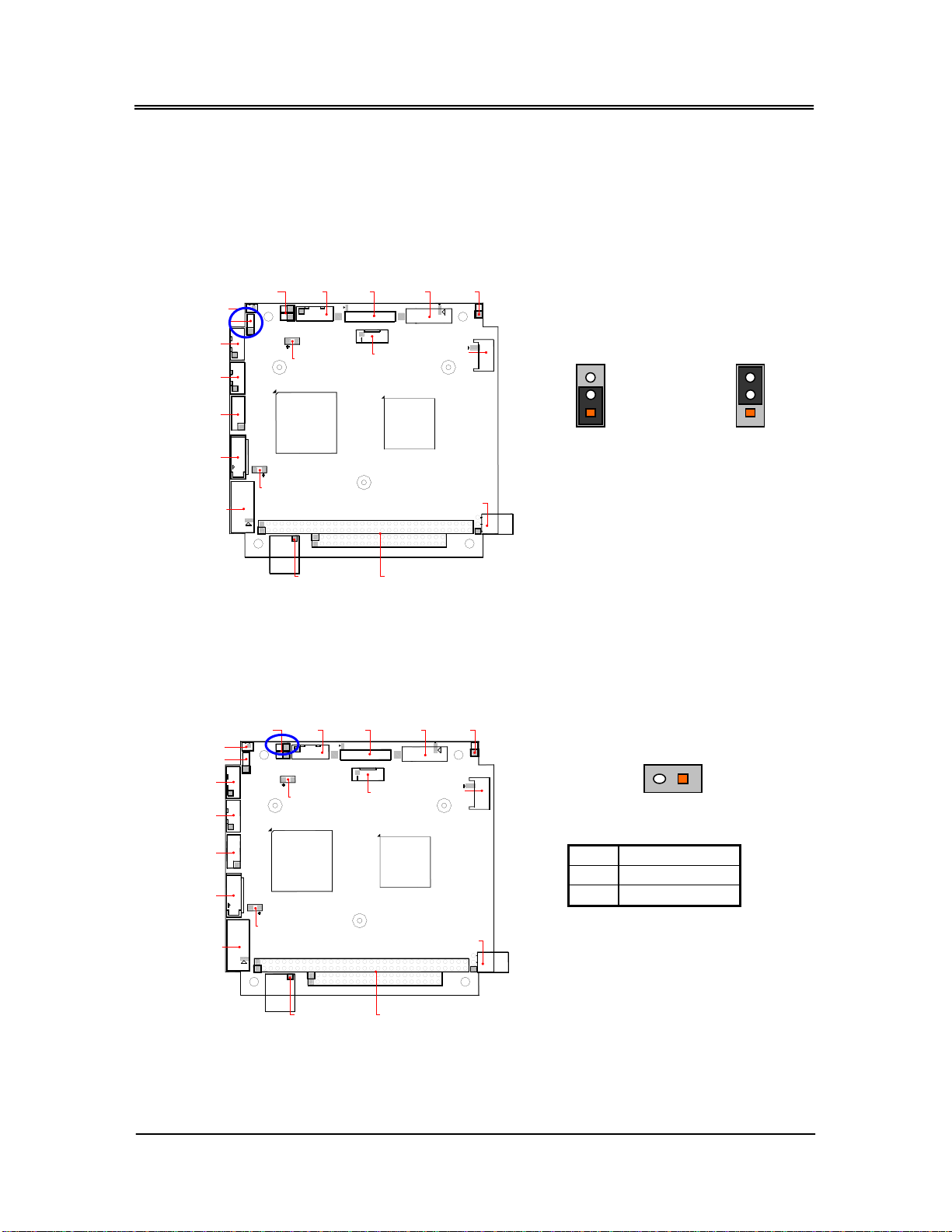

JP1: Clear CMOS Data
You can use JP1 to clear CMOS data. The CMOS stores information like system
date, time, boot up device, password, IRQ… which are set up with the BIOS. To
clear the CMOS, set JP1 to 2-3 closed and wait 3~5 sec then return to open before
powers is off. The default setting is 1, 2 closed.
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
J1: Reset Header
J1 is a 2-pin header for connecting to system reset button. Shorting the circuit of
the 2 pins makes the hardware reset and FB2710 restart system. It is similar to power
off the system and then power it on again.
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
PIN
Signal
1 Reset +
2 Reset -
J1
2 1
3
2
1
Normal Operation
Default
Clear CMOS Data
JP1
3
2
1
13
FabiaTech Corporation
BUS1: PC/104 Bus Connectors
CN6
CN8
J4
CN9
CN10
JP1
CN1 J3
J1 CN2 CN3 CN4
D2 CN5
D3
U14 U15
CN18
CN11 BUS1
J2
CN13
PC/104 A&B Pin
Pin
Signal
Pin Signal Pin
Signal Pin
Signal
A1 -IOCHK A17 SA14 B1
Ground B17
--
A2 SD7 A18 SA13 B2
RSTDRV B18
--
A3 SD6 A19 SA12 B3
+5V B19
-Refresh
A4 SD5 A20 SA11 B4
IRQ9 B20
BUSCLK
A5 SD4 A21 SA10 B5
-- B21
IRQ7
A6 SD3 A22 SA9 B6
-- B22
IRQ6
A7 SD2 A23 SA8 B7
-- B23
IRQ5
A8 SD1 A24 SA7 B8
-ZWS B24
IRQ4
A9 SD0 A25 SA6 B9
+12V B25
IRQ3
A10 IORDY A26 SA5 B10
KEY B26
--
A11 AEN A27 SA4 B11
-SMEMW B27
TC
A12 SA19 A28 SA3 B12
-SMEMR B28
ALE
A13 SA18 A29 SA2 B13
-IOW B29
+5V
A14 SA17 A30 SA1 B14
-IOR B30
OSC
A15 SA16 A31 SA0 B15
-- B31
Ground
A16 SA15 A32 Ground B16
-- B32
Ground
PC/104 C& D Pin
Pin
Signal
Pin Signal Pin
Signal Pin
Signal
C1 GND C11 MEMW#
D1
Ground D11
--
C2 SBHE C12 SD8 D2
MEMCS16#
D12
--
C3 LA23 C13 SD9 D3
IOCS16# D13
--
C4 LA22 C24 SD10 D4
IRQ10 D14
--
C5 LA21 C25 SD11 D5
IRQ11 D15
--
C6 LA20 C26 SD12 D6
IRQ12 D16
--
C7 LA19 C27 SD13 D7
IRQ15 D17
VCC
C8 LA18 C28 SD14 D8
IRQ14 D18
-
C9 LA17 C29 SD15 D9
-- D19
GND
C10 MEMR# C20 KEY D10
-- D20
GND
Note: The FB2710 does not support ISA-DMA mode. The PC/104 and ISA can’t
automatically get accessed to I/O Port resource; when set ITE8888 ISA Decode is
Positively decode, if you add on the I/O card or memory card to FB2710.You can refer
to Chapter 6 Technical Reference “ Configure Positively Decode I/O port & Memory ”
for setting up the I/O port address and Memory resource
14
BUS1 – BUS C & D
BUS1 – BUS A & B
Table of contents
Other FabiaTech Motherboard manuals
