Fabtech FTS22177 Service manual

Fabtech Motorsports | 4331 Eucalyptus Ave. Chino, CA 91710
Tech Line: 909-597-7800 | Fax: [phone] | Web: www.fabtechmotorsports.com
INSTALLATION INSTRUCTIONS
2015 FORD F150 4WD
FTS22177 - 4” BASIC SYSTEM
FTS22178 - 4” PERFORMANCE SYSTEM
FT22176i

2 of 17
FTS22176 COMPONENT BOX 1
1 FT30377BK SKID PLATE
1 FT30592BK FRONT CROSSMEMBER 4”
1 FT30593BK REAR CROSSMEMBER 4”
2 FT30491 DIFF DROP BRACKET UPPER
1 FT30621 SWAY BAR DROP BRACKET (DRIVER)
1 FT30622 SWAY BAR DROP BRACKET (PASSENGER)
1 FT30625 HARDWARE KIT
1 FT30567 DIFF DROP BRACKET CENTER 4”
1 FT30606BK DRIVER FENDER COVER
1 FT30607BK PASSENGER FENDER COVER
FTS22177 COMPONENT BOX 2 - BASIC SYSTEM
2 FT292 ALIGNMENT CAM KIT
1 FT30618 HARDWARE SUBASSEMBLY
4 FT350U UBOLTS
2 FTBK22 BLOCK 2.25”
1 FT30617D SPINDLE (DRIVER)
1 FT30617P SPINDLE (PASSENGER)
2 FTS30503 4” COILOVER
FT30618 HARDWARE SUB-ASSEMBLY
1 FT22176i INSTRUCTIONS
1 FT30619BK REAR CROSSMEMBER DIFF PLATE
2 FT30496 FRONT BRAKE LINE BRACKET
1 FT70033 REAR BRAKE LINE BRACKET
1 FT90115 BUSHING KIT
1 FTAS12 STICKER FT BLUE 10X4
1 FTAS16 DRIVER WARNING DECAL
1 FTREGCARD REGISTRATION CARD
1 FT30610 5/16” X 4” HOSE
K2193 4” BASIC W/ REAR PERFORMANCE SHOCKS
1 FTS22176 COMPONENT BOX 1
1 FTS22177 COMPONENT BOX 2
2 FTS7266 REAR PERFORMANCE SHOCKS
K2193DL 4” PERFORMANCE W/ DIRT LOGIC SHOCKS
1 FTS22176 COMPONENT BOX 1
1 FTS22178 COMPONENT BOX 2
1 FTS22183 2.5” DIRT LOGIC COILOVERS N/R (PAIR)
2 FTS810292 2.25” DIRT LOGIC NON RESI
K2193M 4” BASIC W/ REAR STEALTH SHOCKS
1 FTS22176 COMPONENT BOX 1
1 FTS22177 COMPONENT BOX 2
2 FTS6063 REAR STEALTH SHOCKS
K2196DL 4” PERFORMANCE W/ DIRT LOGIC RR SHOCKS
1 FTS22176 COMPONENT BOX 1
1 FTS22178 COMPONENT BOX 2
1 FTS22185 2.5” DIRT LOGIC COILOVERS W/RESI (PAIR)
2 FTS810292 2.25” DIRT LOGIC NON RESI
FTS22178 COMPONENT BOX 2 - PERFORMANCE SYSTEM
2 FT292 ALIGNMENT CAM KIT
1 FT30618 HARDWARE SUBASSEMBLY
4 FT350U UBOLTS
2 FTBK22 BLOCK 2.25”
1 FT30617D SPINDLE (DRIVER)
1 FT30617P SPINDLE (PASSENGER)
FT30625 - HARDWARE KIT LOCATION
BAG 1
4 5/16 SAE WASHER G5 ZINC BRAKE LINE
2 5/16-18 STOVER NUT G5 Z1
2 5/16-18 X 1 HEX BOLT G8 ZINC
8 7/16 SAE WASHER G5 ZINC SWAY BAR EXT
4 7/16-14 C-LOCK NUT ZINC
4 7/16-14 X 1-1/4 HEX BOLT G8 ZNC
4 1/2-13 X 3” HEX BOLT G8 ZNC LOWER SHOCK
8 1/2 SAE WASHER G8 ZINC
4 1/2-13 C-LOCK NUT ZINC
BAG 2
1 1/2-13 X 1-3/4 HEX BOLT G8 ZINC CENTER DIFF
4 1/2-13 X 4” HEX BOLT G8 ZNC DIFF MOUNT
16 1/2 SAE WASHER G5 ZINC DIFF MOUNT/ SKID
8 1/2-13 C-LOCK NUT ZINC
3 1/2-13 X 1-1/4 HEX BOLT G8 ZNC SKID PLATE
3 M10-1.5 X 45MM HEX BOLT CENTER DIFF
3 10MM SPLIT WASHER
3 M10 FLAT WASHER ZINC
1 M18-2.5 X 150MM HEX BOLT REAR CROSSMEMBER
2 M18 FLAT WASHER
1 M18-2.5
2 3/8-16 X 1” HEX BOLT CROSSMEMBER PLATE
4 3/8” SAE FLAT WASHER
2 3/8-16 C-LOCK NUT
BAG 3
2 5/16 SAE WASHER G5 ZINC REAR BRAKE LINE
1 5/16-18 STOVER NUT
1 5/16-18 X 1 HEX BOLT
8 9/16” SAE WASHER UBOLTS
8 9/16-18 NYLOCK NUT
8 #8 X 1/2” SELF TAP SCREW INNER FENDER PLATE
2 THREAD LOCKING COMPOUND 1 MIL

For technical assistance call: 909-597-7800 or e-mail: [email protected]
Read this before you begin installation-
Check all parts to the parts list above before beginning installation. If any parts are missing contact Fabtech at 909-597-7800
and a replacement part will be sent to you immediately.
Read all instructions thoroughly from start to finish before beginning the installation. If these instructions are not properly
followed severe frame, driveline and / or suspension damage may occur.
Check your local city and state laws prior to the installation of this system for legality. Do not install if not legal in your area.
Prior to the installation of this suspension system perform a front end alignment and record. Do not install this system if the
vehicle alignment is not within factory specifications. Check for frame and suspension damage prior to installation.
The installation of this suspension system should be performed by two professional mechanics.
Use the provided thread locking compound on all hardware.
Do not combine this suspension system with any other lift device or parts.
This suspension must be installed with Fabtech shock absorbers.
WARNING- Installation of this system will alter the center of gravity of the vehicle and may increase roll over as compared
to stock.
On EcoBoost 3.5L and 2.7L models, discard all air shields.
OEM Wheels and tires cannot be used after the installation of this kit. Larger tires cannot be installed on the OEM wheels.
Verify differential fluid is at manufacture’s recommended level prior to kit installation. Installation of the kit will reposition the
differential and the fill plug hole may be in a different position. (For example, if the manufacture recommends 3 quarts of fluid,
make sure the diff has 3 quarts of fluid). Check your specific manual for correct amount of fluid.
Recommend Tires and Wheels:
Use 35/13.50R18 tires w/ 18x9 wheels w/ 5” BS w/ minor trimming
Use 35/13.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming
Use 285/55R22 tires w/ 22x9.5 wheels w/ 5” BS w/ minor trimming
- PRE-INSTALLATION NOTES -
3 of 17
Required Tools (Not Included)
Floor Jack, Jack Stands, Torque Wrench
Assorted Metric and S.A.E sockets, and Allen wrenches
Die Grinder w/Cut-off Wheel
1-1/2” Barrel Sand Wheel, 1/2” Barrel Sand Wheel
- TOOL LIST -

6. Remove the brake caliper and place it next to the frame.
Do not overstretch the brake hose when doing so. Retain
the hardware for reinstallation. Remove the brake rotor
and save. Disconnect the vacuum lines attached to the
rear of the hub assembly. Allow the vacuum lines to hang
freely. Remove the electronic stability control (ESC) sensor
from the top of the hub. Cover the sensor to keep it free
from dirt and debris. SEE FIGURE 3
7. Carefully remove the dust cap covering the hub assembly
nut. Remove the C.V. bearing nut and save the nut and
dust cap. Remove the dust shield and save for re-
installation. SEE FIGURE 4
8. Remove the upper and lower ball joint nuts. Disconnect
the upper and lower ball joints from the steering knuckle
by striking the knuckle with a large hammer next to each
ball joint on the knuckle to dislodge the ball joints. Use
care not to hit the ball joints when removing. Retain
hardware and remove the knuckle with the hub. Use extra
care not to over extend the C.V. axle shaft when removing
the knuckle. SEE FIGURES 5-6
- INSTRUCTIONS -
FRONT SUSPENSION
1. Disconnect the negative terminal on the battery. Jack
up the front end of the truck and support the frame
rails with jack stands. NEVER WORK UNDER AN
UNSUPPORTED VEHICLE! Remove the front tires.
2. Remove and discard the factory splash guard under the
differential.
3. Locate the sway bar end links and disconnect from the
factory lower control arms, save the hardware. Locate
the sway bar frame mounts and disconnect them from
the frame, remove the sway bar from the truck. Save the
hardware and sway bar.
4. Working from the driver side of the vehicle disconnect
the brake line and ABS line from the factory knuckle. SEE
FIGURE 1
5. Disconnect the tie rod ends from the steering knuckle
by striking the knuckle to dislodge the tie rod end. SEE
FIGURE 2
FIGURE 2 - STEP 5
4 of 17
FIGURE 1 - STEP 4
FIGURE 3 - STEP 6
FIGURE 4 - STEP 7

9. Locate the lower shock mount bar pin nuts and remove.
Loosen and remove the control arm at the crossmembers
and save for re-installation. SEE FIGURES 7-8
10. Locate the three upper coilover nuts and remove. Save
the hardware. Remove the shock assembly from the
vehicle and mark “Driver” for assembly to install later with
Fabtech shock extensions. NOTE: If installing Dirt Logic
coilovers the factory coilover and hardware will not be
re-used. SEE FIGURE 9
11. Repeat steps 4 through 10 on the passenger side of the
truck.
12. Remove the factory rear crossmember from the vehicle
and discard. NOTE: Due to varinces in vehicles, the
bolt attaching the crossmember and the frame on the
drivers side may need to be cut off. SEE FIGURE 10-11
5 of 17
FIGURE 5 - STEP 8
FIGURE 6 - STEP 8
FIGURE 7 - STEP 9
FIGURE 8 - STEP 9
FIGURE 9 - STEP 10
FIGURE 10 - STEP 12

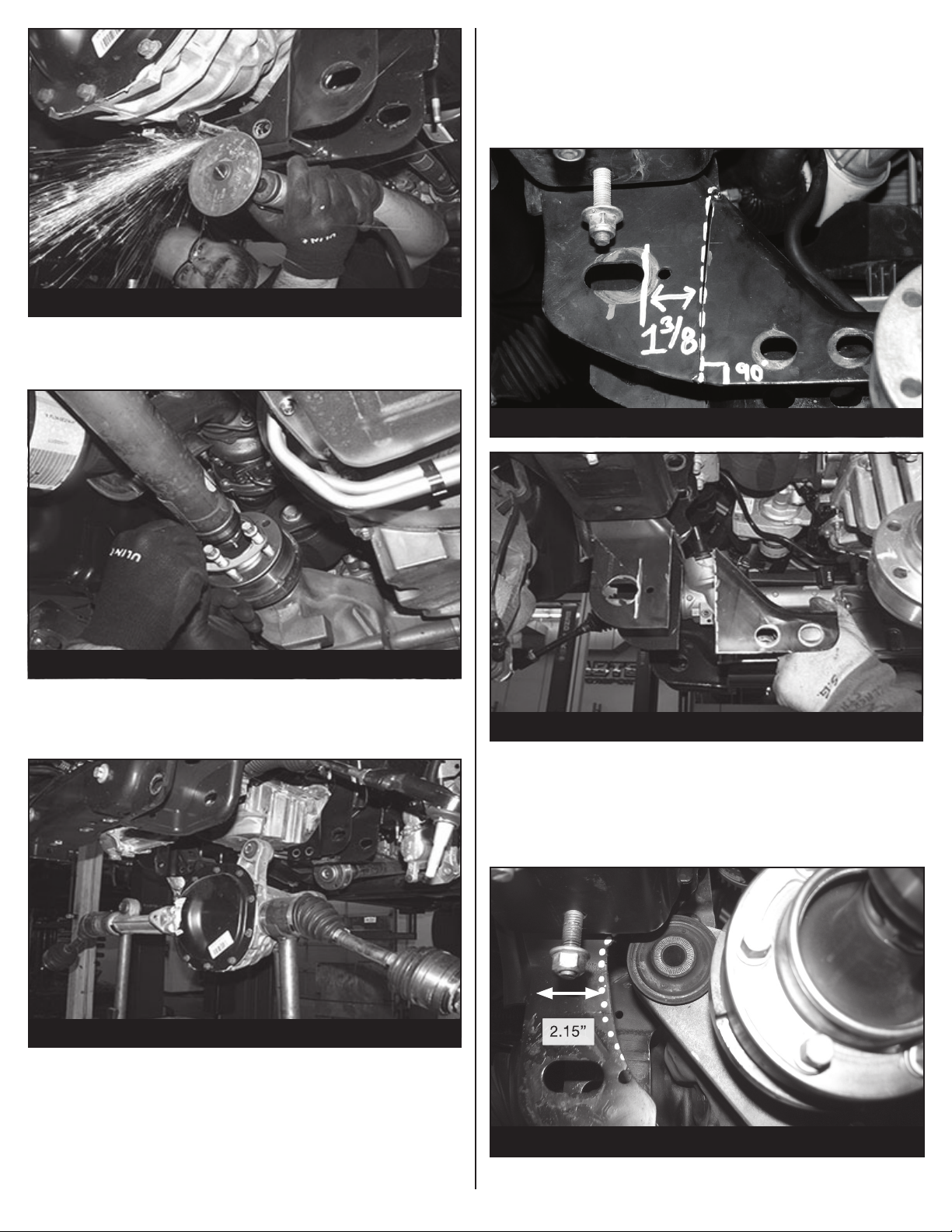

15. Locate the driver side rear lower control arm pocket. Mark
the frame 1-3/8’’ from the control arm pivot hole and 90
degrees to the bottom of the pocket where the cross
member was mounted. Using a die grinder, cut all the
way around the pocket. Discard removed portion of the
pocket. SEE FIGURES 14-15
16. Still working on the driver side rear lower control arm
pocket, locate the tab on the pocket towards the rear of
the vehicle. You will need to cut and sand a radius in the
rear side of the pocket in order to clear the differential
housing. SEE FIGURE 16
13. Remove the front drive shaft bolts where they attach to
the front differential. Support the end of the driveshaft
before removing the front differential. SEE FIGURE 12
14. Supporting the differential, remove the 3 differential mount
bolts and save for re-installation. Remove the differential
from the vehicle. SEE FIGURE 13
6 of 17
FIGURE 12 - STEP 13
FIGURE 11 - STEP 12
FIGURE 13 - STEP 14
FIGURE 15 - STEP 15
FIGURE 14 - STEP 15
FIGURE 16 - STEP 16
2.15”

17. Locate the front tab on the same mount. You will need
to sand a 1/2” on the inside to clear the differential. SEE
FIGURE 17
18. Locate the two Fabtech upper differential mounts
(FT30491). These upper differential mounts will be placed
into the factory upper differential mounts using the factory
upper differential mount hardware. Leave the hardware
loose in preparation for the differential installation.
SEE FIGURES 18
19. Locate the factory front differential and install into the
Fabtech upper differential mounts using two ½’’-13 x 4’’
hex cap bolts, washers and lock nuts. Leave all hardware
loose in preparation of the installation of the remaining
differential mounts. SEE FIGURE 19
20. Locate the Fabtech rear crossmember (FT30593BK)
and rear diff plate (FT30619BK). Install the rear diff plate
(FT30619BK) on the (FT30593BK) rear crossmember
using the 3/8” hardware. Leave loose. Next, mount
the crossmember using the factory control arm pivot
hardware. SEE FIGURES 20-22
7 of 17
FIGURE 17 - STEP 17
FIGURE 18 - STEP 18
FIGURE 19 - STEP 19
FIGURE 20 - STEP 20
FIGURE 21 - STEP 20

24. Install a ½” -13 x 4” bolt, washers and nut through the
tabs on the rear crossmember and the bushing on the
center bracket. Leave loose at this time. SEE FIGURE 27
21. Locate the center differential bracket (FT30567). Install
two of the Fabtech (FT1020) bushings and one sleeve
(FT181) into the barrel on the differential bracket.
SEE FIGURE 23
22. On the front axle tube, remove the rear and lower bolts
to allow for the new center differential bracket to be
mounted.
23. Mount the differential bracket to the center of the
differential using three M10-1.5 x 45mm bolts, lock
washers, and at washers. Mount the front tab on the diff
to the center bracket using one ½”-13 x 2” bolt, nut and
washers. Leave loose at this time. SEE FIGURES 24-26
8 of 17
FIGURE 22 - STEP 20
FIGURE 24 - STEP 23
FIGURE 25 - STEP 23
FIGURE 27 - STEP 24
FIGURE 23 - STEP 21
FIGURE 26 - STEP 23

25. Torque the M10-1.5 x 45mm bolts to 35 ft-lbs. Torque the
½”-13 x 2” bolt to 90 ft-lbs.
26. Reinstall the front drive shaft with the factory hardware
and torque to 35 ft-lbs. SEE FIGURE 28
27. Locate upper differential brackets and torque the factory
upper bolts to 90 ft-lbs and lower ½’’ bolts 127 ft-lbs.
Locate the center diff mount on the cross member and
torque the ½”-13 x 4” bolt to 90 ft-lbs.
28. Install the supplied 4” hose to the factory differential vent
tube and back on to the differential. SEE FIGURE 29
29. Locate the Fabtech front crossmember (FT30592BK).
Install the front crossmember into the factory front control
arm pockets using the factory hardware. Make sure the
skid plate tab on the crossmember is facing the Fabtech
rear crossmember. Leave the hardware loose at this time.
SEE FIGURE 30
30. Locate the Fabtech skid plate (FT30377BK). The skid
plate will span the distance between the front and rear
crossmembers directly under the front differential. Attach
the end of the skid plate with the single hole to the tab on
the back side of the front crossmember using one ½’’- 13
x 1-1/4” bolt, washers and a C-lock nut. Leave loose at
this time. Lift up the back side of the skid plate and install
it to the rear crossmember using two ½’’- 13 x 1-1/4”
bolts, washers and a C-lock nut. Torque only the 2 rear
bolts at this time to 127 ft-lbs. SEE FIGURE 31
9 of 17
FIGURE 28 - STEP 26
FIGURE 29 - STEP 28
FIGURE 30 - STEP 29
FIGURE 31 - STEP 30

31. Locate the Alignment cam kit (FT292). Locate the
factory control arms. Install the lower control arms into
the Fabtech crossmembers using the hardware in the
cam kit (FT292). Torque the cam bolts at 200 ft-lbs after
alignment. Torque crossmember bolts to 240 ft-lbs. SEE
FIGURE 32
32. If installing Dirt Logic coilovers (FTS22183 or
FTS22185) do so at this time, using the instructions
provided in the shock box. Once finished, you may
skip to STEP 38.
If using FTS30503 coilover continue to STEP 33.
33. Locate the factory coilovers removed earlier.
34. Using a spring compressor, compress the factory spring
and remove the top coilover center nut and cap. Next
install the factory spring onto the new Fabtech coilover
using the new lower isolator and re-using the factory top
cap and hardware. SEE FIGURE 33
35. Repeat Step 34 on the passenger side.
36. Install the coil over into the frame bucket using the factory
hardware. Torque 59 ft-lbs. SEE FIGURE 34-35
37. Rotate the lower control arm up and mount to the lower
coilover bar pin using the supplied 1/2”-13 X 3” bolts and
hardware. Torque to 127 ft-lbs. SEE FIGURE 36
10 of 17

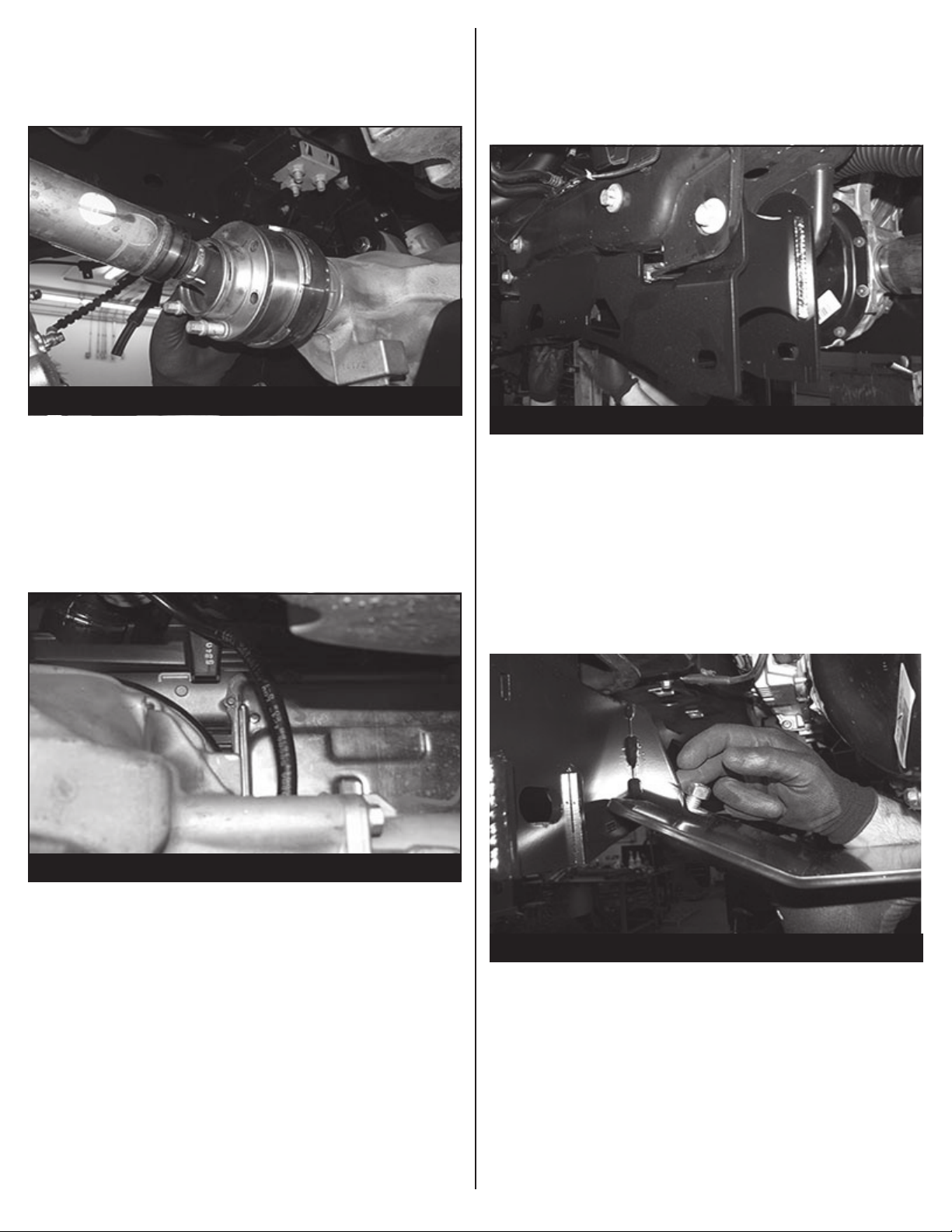

FIGURE 32 - STEP 31
FIGURE 34 - STEP 36
FIGURE 35 - STEP 36
FIGURE 36 - STEP 37
FIGURE 33 - STEP 34
FT30503

38. Locate the factory knuckle and remove the 4WD actuator
and hub assembly. SEE FIGURES 37-38 NOTE: REFER
TO FIGURE 61 ON THE LAST PAGE FOR SPECIFIC
INSTRUCTIONS ON DISASSEMBLY AND ASSEMBLY
OF THE 4WD ACTUACTOR.
39. Locate the Fabtech driver side spindle (FT30617D) and
install the factory hub. Torque the four 14mm bolts to 160
ft- lbs. SEE FIGURE 39
40. Re-install the 4WD actuator using the 3 factory bolts.
Torque to 29 ft-lbs. SEE FIGURE 40
41. Install the Fabtech knuckle onto the upper and lower
control arms. NOTE: Install the supplied spacer on the
lower ball joint. Torque the upper ball joint to 85 ft-lbs
and the lower ball joint to 110 ft-lbs. SEE FIGURE 41-42
11 of 17

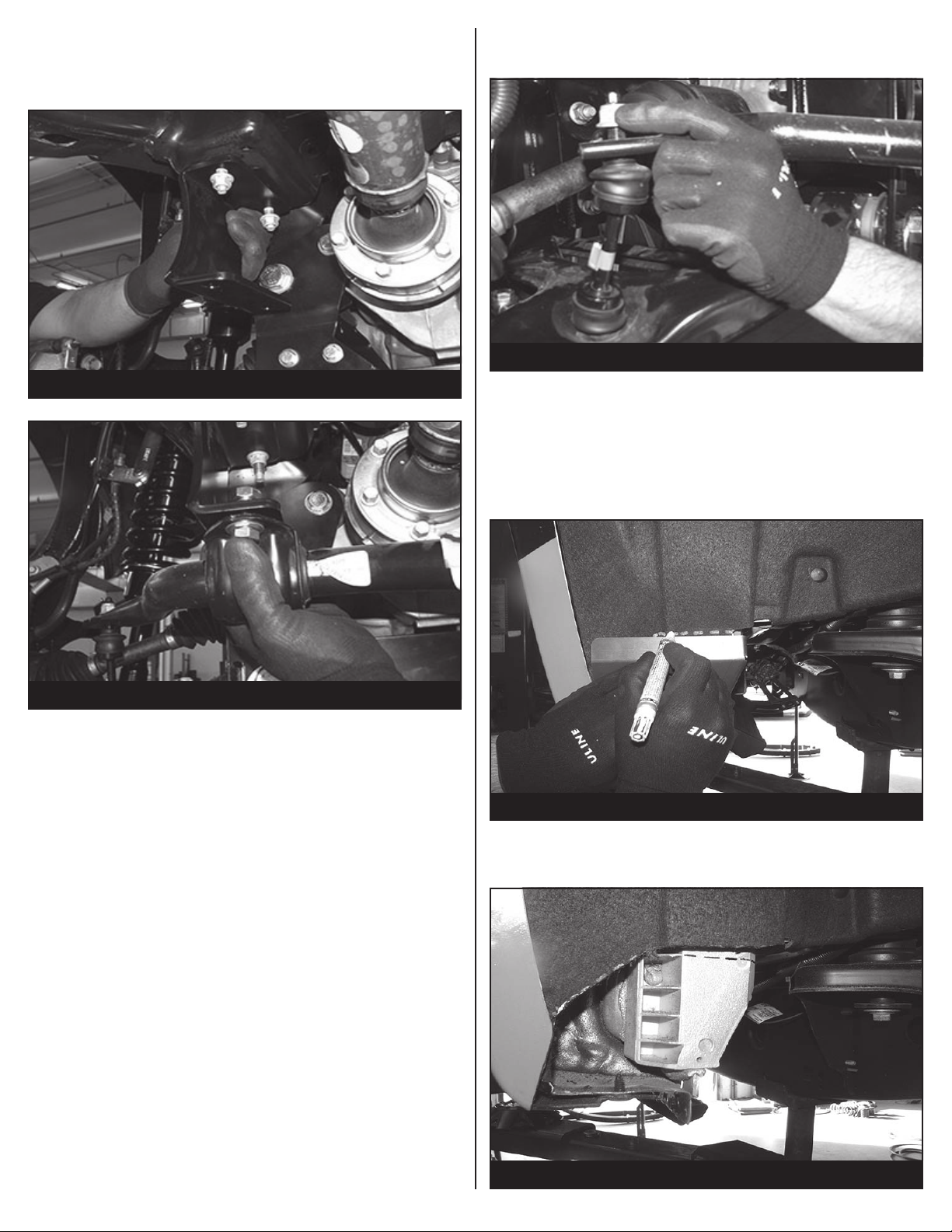

FIGURE 37 - STEP 38
FIGURE 38 - STEP 38
FIGURE 39 - STEP 39
FIGURE 41 - STEP 41
FIGURE 40 - STEP 40
FIGURE 42 - STEP 41

42. Install the wheel speed sensor. Make sure the end of the
sensor is clean. Torque to 21 ft-lbs SEE FIGURE 43
43. Install the dust shield and torque to 14 ft-lbs. Install CV
shaft nut and torque to 35 ft-lbs. Install the factory dust
cover. SEE FIGURE 44
44. Reconnect the vacuum line to the hub assembly. Using
the factory bolt Install the Fabtech brake line bracket
(FT30496) to the frame. Use the supplied 5/16”-18 X 1”
bolts and hardware to connect the brake line to the new
Fabtech bracket. Using the factory hardware, mount
factory brake line bracket to the side of the Fabtech
knuckle. After installing the factory brake line bracket,
check to insure full movement by steering the knuckle
back and forth, and make sure none of the ABS lines,
brake lines, or vacuum lines are inhibited during full test
movement of the knuckle. SEE FIGURES 45-46
45. Reinstall the original brake rotor, followed by the brake
caliper. Use a small amount of the supplied thread lock
compound on the caliper bolts and torque to 145 ft-lbs.
SEE FIGURE 47
12 of 17
FIGURE 43 - STEP 42
FIGURE 44 - STEP 43
FIGURE 45 - STEP 44
FIGURE 46 - STEP 44
FIGURE 47 - STEP 45

46. Using the supplied 7/16”-14 X 1-1/4” bolts and hardware
install the factory sway bar to the frame using the
FT30621 driver side bracket and the FT30622 passenger
side bracket. SEE FIGURES 48-49
47. Install the sway bar end to the factory lower control arm
using the factory end links. SEE FIGURE 50
48. Locate the driver side fender well cover plate (FT30606BK)
and #8 X 1/2” self tap screws. Place the cover plate on
the inside of the wheel well. Mark and cut the inner fender
liner, then mark and cut the plastic end cap like shown in
the gures below. SEE FIGURES 51-56
13 of 17

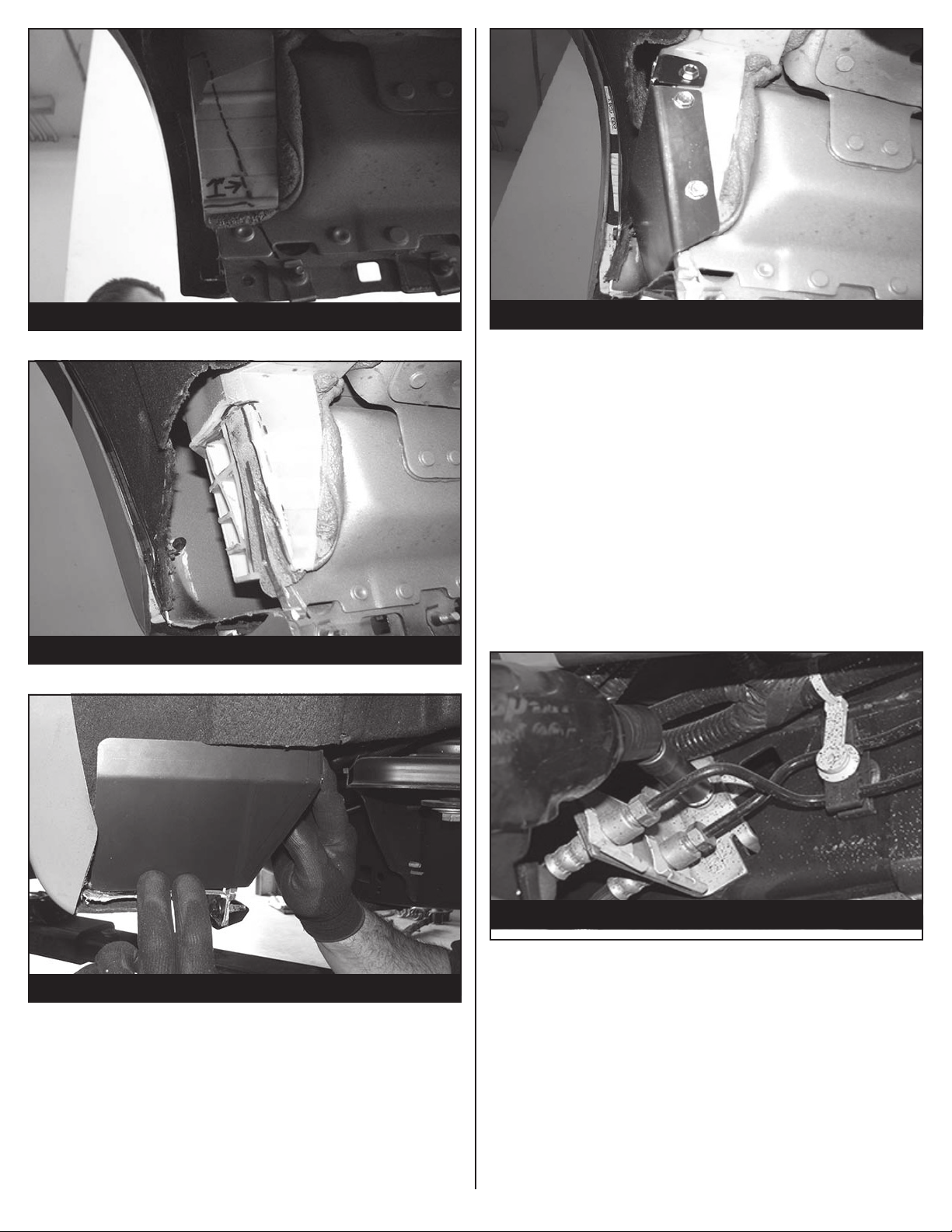

FIGURE 48 - STEP 46
FIGURE 49 - STEP 46
FIGURE 51 - STEP 48
FIGURE 50 - STEP 47
FIGURE 52 - STEP 48

49. Repeat step 48 for the passenger side.
REAR SUSPENSION
50. Jack up the rear end of the vehicle and support the frame
rails with jack stands. Release the parking brake at this
time. Supporting the rear differential, remove the rear
shocks, u-bolts, blocks and lower axle down. Use care
not to over extend the brake hose.
51. Locate the factory brake line mount on the driver side
of the frame. Locate the supplied brake line bracket
(FT70033) and attach the bracket between the factory
fame mount and the factory brake line using the factory
and supplied 5/16”-18 X 1” bolts and hardware. SEE
FIGURE 57
FIGURE 53 - STEP 48
FIGURE 54 - STEP 48
FIGURE 55 - STEP 48
FIGURE 56 - STEP 48
FIGURE 57 - STEP 51

52. Locate and install the rear lift blocks FTBK22. The
extended bump stop perch will be facing inboard of the
truck. Using the provided u-bolts, nuts and washers, align
the axle, lift blocks, and springs and torque u-bolts to 90
ft-lbs. SEE FIGURE 58
53. Locate the Fabtech performance shocks (FTS7266),
Stealth shocks (FTS6063) or Dirt Logic shocks
(FTS810292). Install the shocks using the factory
hardware and torque upper and lower bolts to 45 ft-lbs.
SEE FIGURES 59-60
54. Install tires and wheels and torque lug nuts to wheel
manufacturer’s specications. Turn front tires left to right
and check for appropriate tire clearance. Note - Some
oversized tires may require trimming of the front
bumper & valance.
55. Check front end alignment and set to factory
specications. Readjust headlights.
56. Recheck all bolts for proper torque.
57. Recheck brake hoses, ABS wires and suspension parts
for proper tire clearance while turning tires fully left to
right.
58. Check the uid in the front and rear differential and ll
if needed with factory specication differential oil. Note
- some differentials may expel fluid after filling and
driving. This can be normal in resetting the fluid level
with the new position of the differential/s.
59. Install Driver Warning Decal. Complete product
registration card and mail to Fabtech in order to receive
future safety and technical bulletins on this suspension.
Vehicles that will receive oversized tires should check ball
joints and all steering components every 2500-5000 miles
for wear and replace as required.
RE-TORQUE ALL NUTS, BOLTS AND LUGS
AFTER 50 MILES AND THEREAFTER UNTIL
FASTENERS RETAIN TORQUE SETTING.
For technical assistance call: 909-597-7800
15 of 17

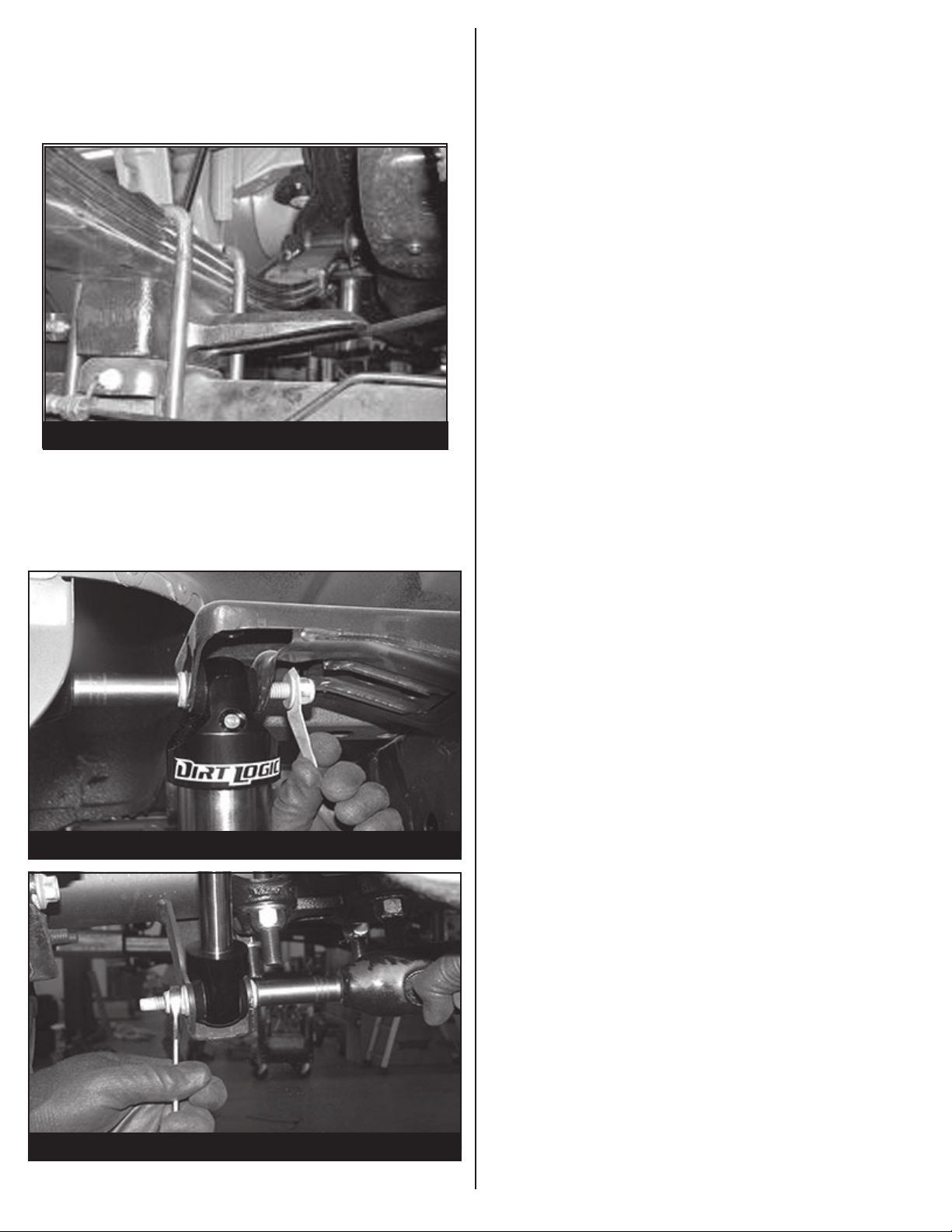

FIGURE 58 - STEP 52
FIGURE 59 - STEP 53
FIGURE 60 - STEP 53

- FIGURE 61 -
NOTE: Specifc IWE “Integrated Wheel End” installation
procedures are necessary when servicing and/or IWE
vacuum is released. When the IWE actuator is loosened at
the knuckle and/or removed from CV shaft:
• Remove the two vacuum line, compress the IWE actuator
and install a vacuum cap on the larger vacuum port (to
keep it compressed).
• Install the IWE actuator onto the halfshaft outer end (if
removed).
• Do not dislodge the IWE seal spring when installing
an IWE on a CV halfshaft outboard end or component
damage may occur.
• Allow the wheel knuckle to swing outward while keeping
the halfshaft pushed inward.
• Once clearance is available, install the halfshaft outboard
end into the wheel knuckle hub bearing.
• Connect the upper ball joint and install new nut; torque to
85 ft-lbs.
• Install the three IWE actuator to wheel knuckle retaining
bolts; torque to 106 ft-lbs
• Remove the IWE vacuum cap and reconnect the vacuum
tubes.
• Verify the spline engagement by checking for spline lash
before installing the axle nut or component damage may
occur.
• Install new axle nut; 30 ft-lbs

- Product Warranty and Warnings -
Fabtech provides a Limited Lifetime Warranty to the original retail purchaser who owns the vehicle, on which the product was
originally installed, for defects in workmanship and materials.
The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, tie rod ends, limiting
straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn.
They are warranted for 60 days from the date of purchase for defects in workmanship.
Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage
only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime
Warranty.
Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech’s instructions.
Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all
warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under
warranty.
Fabtech products are not designed nor intended to be installed on vehicles used in race applications or for racing purposes or
for similar activities. (A “RACE” is defined as any contest between two or more vehicles, or any contest of one or more vehicle
against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles,
race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of
the United States of America.
Installation of most suspension products will raise the center of gravity of the vehicle and will cause the vehicle to handle
differently than stock. It may increase the vehicle’s susceptibility to a rollover, on road and off road, at all speeds. Extreme care
should be taken to operate the vehicle safely at all times to prevent rollover or loss of control resulting in serious injury or death.
Fabtech front end Desert Guards may impair the deployment or operation of vehicles equipped with supplemental restraining
systems/air bag systems and should not be installed if the vehicle is equipped as so.
Fabtech makes every effort to ensure suspension product compatibility with all vehicles listed on the website, but due
to unknown auto manufacturer’s production changes and/or inconstancies by the auto manufacturer, Fabtech cannot be
responsible for 100% compatibility, including the fitment of tire and wheel sizes listed. The Tire and Wheel sizes listed in
Fabtech’s website are only a guideline for street driving with noted fender trimming. Fabtech is not responsible for damages
to the vehicle’s body or tires. Fabtech is not responsible for premature wear of factory components due to the installation of
oversized tires and wheels.
Fabtech’s obligation under this warranty is limited to the repair or replacement, at Fabtech option, of the defective product only.
All costs of removal, installation or re-installation, freight charges, incidental or consequential damages are expressly excluded
from this warranty. Fabtech is not responsible for damages and/or warranty of other vehicle parts related or non related to the
installed Fabtech product. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not
apply to any product that has been subject to accident, negligence, alteration, abuse or misuse as determined by Fabtech.
Fabtech suspension components must be installed as a complete system including shocks as shown on our website. All
warranties will become void if Fabtech parts are combined and/or substituted with other aftermarket suspension products.
Combination and/or substitution of other aftermarket suspension parts may cause premature wear and/or product failure
resulting in an accident causing injury or death. Fabtech does not warrant products not manufactured by Fabtech.
Depending on the condition of the factory suspension components retained after the installation of a Fabtech suspension not
all vehicles may have the same ride stance front to rear as described in the website. The blue color of suspension components
shown in all Fabtech photographs are for display purposes only. Majority of all Fabtech components will be black specifically
where noted with part numbers ending in BK.
Installation of Fabtech product may void the vehicles factory warranty; it is the consumer’s responsibility to check with their
local vehicle’s dealer for warranty disposition before the installation of the product. Some state laws may prohibit modification of
suspension to a vehicle in whole or in part. It is the responsibility of the installer and consumer to consult local laws prior to the
installation of any Fabtech suspension product to comply with such written laws.
It is the responsibility of the distributor and/or the retailer to review all warranties and warnings of Fabtech products with the
consumer prior to purchase.
Fabtech reserves the right to super cede, discontinue, change the design, finish, part number and/or application of parts when
deemed necessary without written notice. Fabtech is not responsible for misprints or typographical errors within the website or
price sheet. For the most recent Product Warranty and Warnings visit our website www.fabtechmotorsports.com
Instruction Sheet Part# - FT22176i REV. AK 07/13/15
17 of 17
