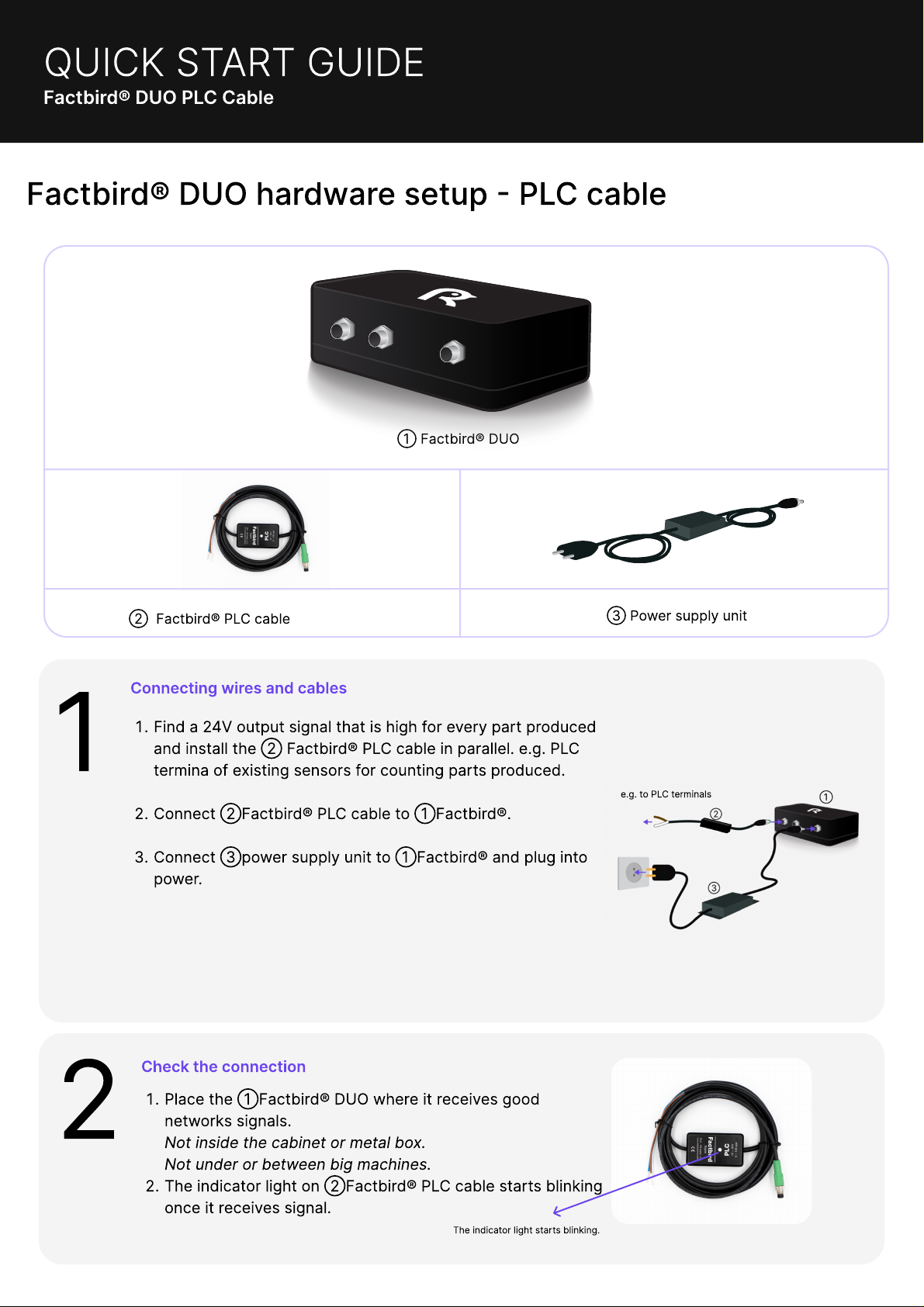

QUICK START GUIDE
Factbird® DUO PL able
1/2
Factbird® DUO hardware setup - PLC cable
➀ Factbird® DUO
➁ Factbird® PLC cable ➂ Power supply unit
Place the ➀Factbird® DUO where it receives good
networks signals
Not inside the cabinet or metal box
Not under or between big machines
The indicator light on ➁Factbird® PLC cable starts blinking
once it receives signal.
1
2
onnecting wires and cables
heck the connection
e.g. to PLC terminals
The indicator light starts blinking.
Find a 24V output signal that is high for every part produced
and install the ➁ Factbird® PLC cable in parallel. e.g. PLC
termina of existing sensors for counting parts produced.
Connect ➁Factbird® PLC cable to ➀Factbird®
Connect ➂power supply unit to ➀Factbird® and plug into
power.
