F&D F3800X User manual

1. Turn on/off the unit.
2. Sound:Switch between Normal & Prologic sound effects.
3/7. Decrease or Increase the volume level.
4. Previous:
a. USB/SD mode: Short press to select previous song and long
press to select previous folder.
b. FM mode: Short press to select previous stored station, FM LED
dispaly flash once. When it reaches to 1st stored station/channel,
short press of this key does not change the channel & LED dispaly
remains bright.
c. Bluetooth mode: short press to select previous song.
5. Play/Pause/Scan/BT Pair:
a. USB/SD Mode: Short press for play/pause the music playback.
b. FM Mode: Short press to start Auto Search & this will store the
found frequencies (channels) automatically.
c. Bluetooth mode:short press to play/pause music. long press
will enter in to pairing mode, blue LED dispaly will flash fast.
6. Source:
Switch between BT,DVD, AUX, USB/SD and FM mode. LED dispaly
on subwoofer panel will be bright to indicate related source mode.
8. Next :
a. USB/SD mode: Short press to select next song and long press to
select next folder.
b. FM mode: Short press to select next stored station, FM LED
dispaly flash once. When it reaches to last stored station/channel,
short press of this key does not change the channel & LED dispaly
remains bright.
c. Bluetooth mode: short press to select next song.
1
2
3
4
5
6
7
8
1. Standby
2. Sound
3. Decrease volume
4. Previous
22
23
1.Standby ON/OFF
2.Source button
3.Bluetooth pairing button
4.Tune + button
5.Volume decrease
6.Tune – button
7.FM auto scan button
8.Play/Pause button
9.Previous button
10.Center volume increase button
11.Front volume increase button
12.Front volume decrease button
13.Center volume decrease button
14.Bass decrease button
15.Press to mute or unmute the sound
16.Sound button
17.Light/Reset button
18.Volume increase button
19.FM station Memory button
20.Next button
21.Rear volume increase button
22.Rear volume decrease button
23.Bass increase button
24.Numeric keys
25.Enter key
1. : Turn on/off unit.
2. Source: Switch betweenBT, DVD, AUX, USB/SD and FM mode.
3. :short press to enter in to Bluetooth mode & long press will enter
in to Pairing mode.,blue LED dispaly will flash fast.
4/6. Tune+/-: FM mode:
Fine Tuning: Short press to increase or decrease one step (100Khz),
FM LED dispaly flash once. LED dispaly stop flashing once it reaches
to Minimum or Maximum frequency.
Manual Tuning: Long press of this key works for Manual tuning,
It finds the next available frequency.
5/18. : Decrease or increase the master volume.
7. Scan: FM mode: Short press to start Auto Search & this will store
the found frequencies (channels) automatically.
8. :Play/Pause:
a.USB/SD Mode: Short press for play/pause the music playback.
b.Bluetooth mode:short press to play/pause music.
9. :Previous
a.USB/SD mode: Short press to select previous song and long press to
select previous folder.
b.FM mode: Short press to select previous stored station, FM LED dispaly
flash once. When it reaches to 1st stored station/channel, short press
of this key does not change the channel & LED dispaly remains bright.
c.Bluetooth mode: short press to select previous song.
10/13. Center+/-: Increase or decrease volume of center speaker.
11/12. Front+/-: Increase or decrease the volume of front speakers.
14/23. SW+/-: Increase or decrease the volume of subwoofer.
15. : Press it to mute or unmute the sound.
16. Sound: switch between Normal & Prologic sound effects.
17. Light/Reset: short press to turn on/off light.long press to go to
default settings.
19. MEM: Short press of this key work to store tuned station through
Fine or Manual tuning. FM LED dispaly flash once to indicate
store/save operation.(max. 100 stations).
20. :Next
a.USB/SD mode: Short press to select next song and long press to
select next folder.
b.FM mode: Short press to select next stored station, FM LED dispaly
flash once. When it reaches to last stored station/channel, short
press of this key does not change the channel & LED dispaly remains
bright.
c.Bluetooth mode: short press to select next song
21/22. Rear+/-: Increase or decrease volume of rear speakers.
Bluetooth pairing
Switch to Bluetooth mode, F3800X will automatically search the
Bluetooth device. If the device paired before, F3800X will connect
automatically.
If can't find paired device, F3800X will enter pairing mode
automatically, bluetooth LED dispaly under pairing button flashes quickly.
1. Active "Bluetooth" function on your device and search for "F3800X".
Enter "0000" if your device asks for the PIN code..
2. After pairing successfully, bluetooth LED dispaly will be bright, and
ready for playing music.
Recommend to adjust suitable volume before playing music.
Tips:To make sure your PC or notebook is working well with our
Bluetooth speakers, it is recommended that you check with your
PC or notebook vendor first. Make sure the correct Bluetooth
driver software is installed

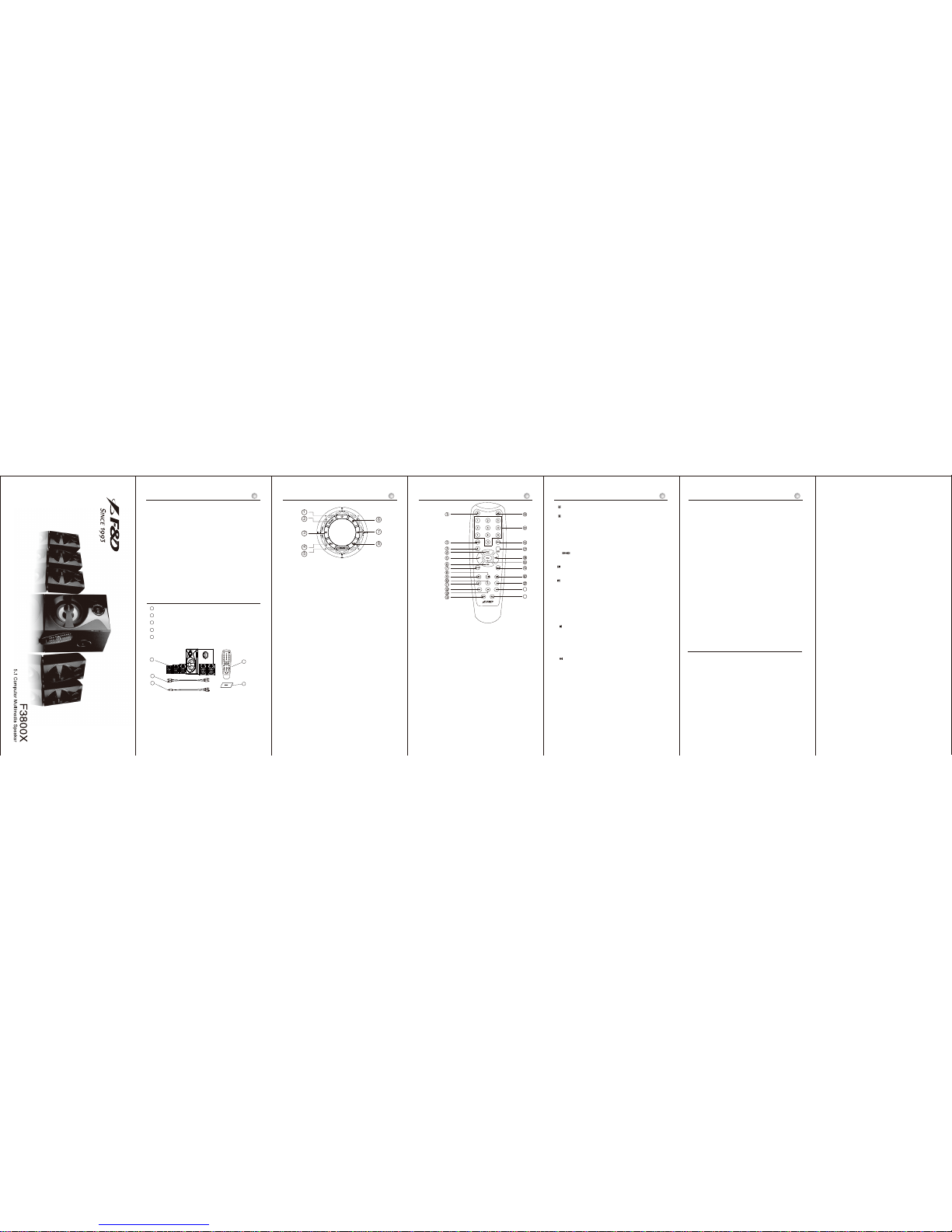

Caution 1Front panel keys 2Remote control Remote control keys function
3 4 5
* Do not place system in high temperatures or humid
environments, keep the system dry and handle with care
to avoid damage.
* In order to avoid electric shock and other accidents, do not
open the back panel cover for repair without
professional guidance.
* In case fragments or other liquids are accidentally sprinkled
inside the cabinet, please switch off the power immediately.
* In case of repair,please come to F&D's professional
maintenance for help.
* Switch off the power and unplug from the power jack
when the system is not on work.
* Keep the cabinet vent far from the wall by 20mm at least
and the air vent should not be blocked.
Packaging content
1
２
３
４
５
Speaker 1unit
RCA to RCA cable 3pcs
RCA to 3.5mm cable 1pc
Remote control 1pc
Manual & warranty card 1pc
User Manual
2
14
5
3
Light
Light
A.Using SOUND key you can convert 5.1 channel into
5.0CH/PROLOGIC effect through AUX Input.
B.To get the real 5.1 effect, connect 5.1CH output of your DVD to the
input of F3800X & select "PROLOGIC" through sound key of remote
control.
Prologic function
5. Play/Pause/Scan/BT Pair
6. Source
7. Increase volume
8. Next
24. (0-9 ) Numeric Keys
a. USB/SD Mode: directly press numeric keys through remote to
select your favorite song if you know the song number in the
folder. One folder limits to 999 songs and press “9 9 9” within
short time to select 999th song. The system will automatically
play the last song of the folder if you press number excess of song
numbers of that folder.
b.FM Mode: directly press numeric keys through remote to select
your favorite station if you know the station number (1~100).Or press
3 or 4 digits of frequency to play that station, for example,
1026 for 102.6 MHz station. If station not found, the unit will
state at current station only.
25. Enter key:Confirm setting.

6
1
2
3
4
5
6
7
8
9
10
12
11
1. AUX L/R input
2. DVD F.R/F.L input
3. DVD S.R/S.L input
4. DVD SW/Center input
5. Speaker front right output
6. Speaker front left output
7. Speaker center output
8. Speaker rear right output
9. Speaker rear left output
10. Power switch
11. FM antenna
12. Power cable

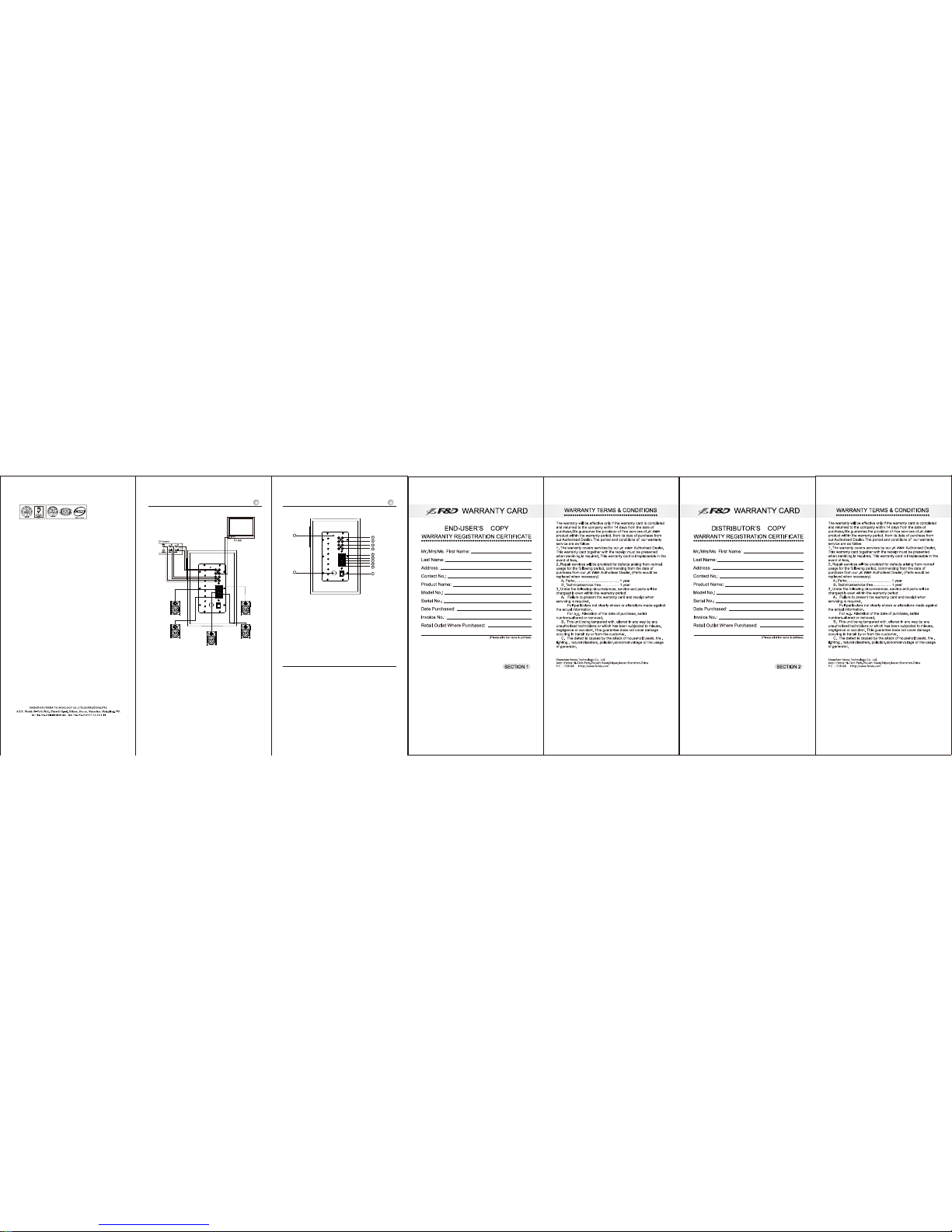

System connection 7 Instruction of rear board
Output Power(RMS)：30W+10WX5
Speaker Unit:
Satellites: 3”
Subwoofer: 5.25”
Frequency Response：
Satellites: 40Hz-125Hz
Subwoofer: 120Hz-20KHz
S/N Ratio：≥70dB
Separation：≥40dB
Power:220V-240V AC 50/60Hz 0.32A
Unit size：
Satellites: W115XD104XH176mm
Subwoofer: W193XD282XH298mm
Specifications
