Fantasy Spas Aspire User manual

OWNER’S MANUAL

115/230V System
Locating the Spa Serial Number:
The spa serial number label is located inside the equipment compartment. Equipment
compartment access panel is below the spas topside control panel. You will need the spa model
and serial number to properly register your spa and activate coverage. Write your spa information
in the space provided.
DATE PURCHASED:
PURCHASED FROM:
SPA MODEL:
SERIAL NUMBER:
Please read this Owner’s Manual carefully, as it is designed to provide you with the information
you will need to ensure the safe, secure use of your spa.
IMPORTANT: Watkins Wellness reserves the right to change specifications
and/or design without notification and without any obligation.
SPA SPECIFICATIONS
Model Spa
Seating
(person)
Length Width Height Dry Weight Water
Capacity
Gal / liters
Electrical
Specs
60Hz
Aspire®2 72" / 183 cm 47" / 119 cm 29" / 74 cm
250 lbs / 113 kg 125 gal / 473 l 115 or 230V
Embrace®2 70" / 178 cm 70" / 178 cm 31" / 79 cm 270 lbs / 122 kg 185 gal / 700 l 115 or 230V
Drift®4 70" / 178 cm 64" / 163 cm 33" / 84 cm 290 lbs / 132 kg 190 gal / 719 l 115 or 230V
Enamor®4 81" / 206 cm 63" / 160 cm 33" / 84 cm 325 lbs / 147 kg 260 gal / 984 l 115 or 230V
Enamor®Premier 4 81" / 206 cm 63" / 160 cm 33" / 84 cm 365 lbs / 166 kg 260 gal / 984 l 115 or 230V
Entice®5 86" / 218 cm 77" / 196 cm 33" / 84 cm 400 lbs / 181 kg 300 gal / 1136 l 115 or 230V
Entice®Premier 5 86" / 218 cm 77" / 196 cm 33" / 84 cm 445 lbs / 202 kg 300 gal / 1136 l 115 or 230V
Splendor®
Premier
5 78" / 198 cm 78" / 198 cm 33" / 84 cm 360 lbs / 163 kg 265 gal / 1003 l 115 or 230V
All spas above use a 50 sq. ft. lter except for the ASPIRE which uses a 25 sq. ft lter.
CAUTION
DO NOT OPERATE SPA BEFORE READING THIS MANUAL
Failure to read this manual and follow its instructions may result in unsafe operation and or
permanent damage to your portable spa.
Most cities, counties, states, and countries require permits for exterior construction and electrical
circuits. In addition, some communities have codes requiring residential barriers such as fencing
and/or self-closing gates on the property to prevent unsupervised access to a pool or spa by
children. Be sure to check with your local agencies for specific requirements.
If you need additional information and/or assistance, please contact your local Dealer.
See page 7
Owner's Record

TABLE OF CONTENTS
CONTENTS
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS 1
IMPORTANT SPA INSTRUCTIONS 4
INSTALLATION
PLANNING A LOCATION FOR YOUR SPA 5
PLACING THE SPA 6
EQUIPMENT ACCESS
EQUIPMENT ACCESS PANEL 7
ELECTRICAL REQUIREMENTS
ELECTRICAL REQUIREMENT 8
CONFIGURING SYSTEM 9
ELECTRICAL WIRING DIAGRAM FOR 230V USE 10
CONTROL PANEL OPERATION
TEMPERATURE ADJUSTMENT 11
JETS OPERATION 11
OPERATIONAL MODES 12
SMART WINTER MODE 12
DIAGNOSTIC LCD MESSAGE 13
COMPONENT OPERATION
SPA COMPONENT OPERATION 14
FILL UP AND START-UP INSTRUCTIONS
FILLING THE SPA WITH WATER 15
APPLYING POWER 15
ADDING START-UP CHEMICALS
WATER CHEMISTRY GUIDELINES 16
SPA MAINTENANCE
FILTER CARTRIDGE MAINTENANCE 17
SURFACE CARE 18
COVER CARE 18
CABINET CARE 18
SPA LED REPLACEMENT 18
DRAINING OR WINTERIZING
DRAINING YOUR SPA 19
WINTERIZING YOUR SPA 19
TROUBLESHOOTING PROCEDURES
NO COMPONENT OPERATION 20
PUMP DOES NOT OPERATE, BUT THE LIGHT DOES 20
POOR JET ACTION 20
WATER IS TOO HOT 20

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
1
IMPORTANT SAFETY
INSTRUCTIONS
READ AND FOLLOW ALL
INSTRUCTIONS
AVOIDING THE RISK TO CHILDREN
DANGER:
• RISK OF CHILD DROWNING. Extreme
caution must be exercised to prevent
unauthorized access by children. To avoid
accidents, ensure that children cannot use
a spa unless they are supervised at all
times.
WARNING:
• To reduce the risk of injury, do not permit
children to use this product unless they are
closely supervised at all times.
• To reduce the risk of injury, lower water
temperatures are recommended for young
children. Children are especially sensitive
to hot water.
DO:
• Make sure you always lock the child
resistant locks after using the spa for your
children’s safety. Every spa is equipped
with a locking cover that meets the ASTM
F1346-91 Standard for Safety Covers.
• Test the water temperature with your hand
before allowing your child to enter the spa
to be sure that it’s comfortable. Children
are especially sensitive to hot water.
• Remind children that wet surfaces can be
very slippery. Make sure that the children
are careful when entering or exiting the
spa.
DON’T:
• Allow children to climb onto the spa cover.
• Allow children to have unsupervised
access to the spa.
AVOIDING THE RISK OF
ELECTROCUTION
Risk of Electrocution
• Connect only to a grounded source.
• Do not bury the power cord. A buried
power cord may result in death or serious
personal injury due to electrocution if direct
burial-type cable is not used, or if improper
digging occurs.
• A ground terminal (pressure wire
connector) is provided on the control
box inside the unit to permit connection
of a minimum No. 10 AWG solid copper
bonding conductor between this point and
any metal equipment, metal water pipe,
metal enclosures of electrical equipment,
or conduit within 5 ft (1.5 m) of the unit as
needed to comply with local requirements.
WARNING:
• To reduce the risk of electrical shock,
replace a damaged cord immediately.
Failure to do so may result in death or
serious personal injury due to electrocution.
• Your spa is provided with a Ground Fault
Circuit Interrupter for user and equipment
protection. To ensure proper operation of
this important safety device, test according
to the following instructions per electrical
configuration.
115 VOLT, CORD-CONNECTED
MODELS:
• The GFCI is located at the end of the
power cord. Before each use, with the
unit operating, push the TEST button.
The unit should stop operating and the
GFCI power indicator will go out. Wait
30 seconds and then reset the GFCI by
pushing the RESET button. The GFCI
power indicator will turn on, restoring
power to the spa. If the interrupter does
not perform in this manner, there may
be an electrical malfunction and with
SAFETY INFORMATION

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
it, the possibility of an electric shock.
Disconnect the power until the problem
has been corrected.
NOTE: This will reset the filter cycle.
230 VOLT, CONVERTED MODELS:
• A ground terminal is provided on the
control box. To reduce the risk of electric
shock, connect this terminal to the
grounding terminal of your electrical service
or subpanel with a continuous green,
insulated copper wire. The wire must be
equivalent in size to the circuit conductors
supplying the equipment. In addition, a
bonding terminal (pressure wire connector)
is provided on the outside of the control
box for bonding to local ground points.
To reduce the risk of electric shock, this
connector should be bonded with a No.
8 AWG solid copper wire to any metal
ladders, water pipes, or other metal within
5 ft (1.5 m) of the spa to comply with local
requirements. The means of disconnection
must be readily accessible, but must be
installed at least 5 ft (1.5 m) from the spa.
• Your spa requires a suitably rated circuit
breaker to open all ungrounded supply
conductors.
• Your spa must have a ground fault circuit
interrupter in an electrical subpanel. Before
each use of the spa and with the unit
operating, push the TEST button on the
breaker. The switch should click over to the
“Trip” position. Wait 30 seconds and reset
the GFCI breaker by switching it completely
off and then completely on. The switch
should then stay on. If the interrupter
does not perform in this manner, it is an
indication of an electrical malfunction
and the possibility of an electric shock.
Disconnect the power until the fault has
been identified and corrected.
IMPORTANT: Failure to wait 30 seconds
before resetting the GFCI may cause the
spa’s Power Indicator (on the control panel)
to blink. If this occurs, repeat the GFCI test
procedure.
DANGER: RISK OF
ELECTRICAL SHOCK
• Install spa at least 5 feet (1.5 m) from all
metal surfaces. A spa may be installed
within 5 ft (1.5 m) of a metal surface if each
metal surface is permanently connected
by a minimum No. 10 AWG solid copper
conductor attached to the wire ground
connector on the terminal box that is
provided for this purpose if in accordance
with National Electrical Code.
• Do not permit any electrical appliances,
such as a light, telephone, radio, or
television within 5 ft (1.5 m) of a spa.
Failure to maintain a safe distance may
result in death or serious personal injury
due to electrocution if the appliance should
fall into the spa.
• Install your spa in such a way that drainage
is away from the electrical compartment
and from all electrical components.
DO:
• Be sure your spa is connected to the power
supply correctly - use a licensed electrical
contractor.
• Disconnect the spa from the power supply
before draining the spa or servicing the
electrical components.
• Test the Ground Fault Circuit Interrupter
before each use.
DON’T:
• Use the spa with the equipment
compartment door removed.
• Place electrical appliances within 5 ft
(1.5m) of the spa.
• Use an extension cord to connect the spa
to its power source. The cord may not be
properly grounded and the connection is
a shock hazard. An extension cord may
cause a voltage drop, which will cause
overheating of the jet pump motor and
motor damage.
• Attempt to open the electrical control box.
There are no user serviceable parts inside.
RISKS TO AVOID
SAFETY INFORMATION

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
3
DANGER: RISK OF INJURY
• DO NOT sit in the filter compartment area.
Sitting in this area can cause:
a) Restriction of Filter Pump suction/vacuum
b) Damage to components
• Both can result in bodily harm. Should
damage occur to components in this area,
replace immediately!
To reduce the risk of injury to persons, DO
NOT remove floating weir, basket, and filter
located in the filter compartment while the
spa is running.
• The suction fittings in the spa are sized to
match the specific water flow created by
the pump. Never replace a suction fitting
with one rated less than the flow rate
marked on the original suction fitting.
• There is a danger of slipping and falling.
Remember that wet surfaces can be very
slippery. Take care when entering or exiting
the spa.
• Never operate spa if the suction fittings are
broken or missing.
• People with infectious diseases should not
use the spa.
• Keep any loose articles of clothing or
hanging jewelry away from rotating jets or
other moving components.
Increased side effects of medication
• The use of drugs, alcohol or medication
before or during spa use may lead to
unconsciousness with the possibility of
drowning.
• Persons using medications should consult
a physician before using a spa; some
medication may cause a user to become
drowsy, while other medication may affect
heart rate, blood pressure, and circulation.
• Persons taking medications which
induce drowsiness, such as tranquilizers,
antihistamines or anticoagulants should not
use the spa.
Health problems affected by spa use
• Pregnant women should consult a
physician before using spa.
• Persons suffering from obesity or with a
medical history of heart disease, low or
high blood pressure, circulatory system
problems, or diabetes should consult a
physician before using spa.
Unclean water
• Keep the water clean and sanitized with
correct chemical care. The recommended
levels for your your spa are:
Free Available Chlorine (FAC): 3.0-5.0 ppm
Total Alkalinity: 40 - 120 ppm
Water pH: 7.2 - 7.8
Calcium Hardness: 50- 150 ppm
IMPORTANT: Turn jet pump on for at least ten
minutes after adding ANY spa water chemicals
into the filter compartment.
• Clean the filter cartridge monthly to
remove debris and mineral buildup
which may affect the performance of the
hydromassage jets, limit the flow, or trip the
high-limit thermostat which will turn off the
entire spa.
AVOIDING THE RISK OF
HYPERTHERMIA
Prolonged immersion in hot water can result in
HYPERTHERMIA, a dangerous condition which
occurs when the internal temperature of the body
reaches a level above normal (98.6°F / 37ºC). The
symptoms of hyperthermia include unawareness
of impending hazard, failure to perceive heat,
failure to recognize the need to exit the spa,
physical inability to exit the spa, fetal damage in
pregnant women, and unconsciousness resulting
in a danger of drowning.
WARNING:
The use of alcohol, drugs, or medication can
greatly increase the risk of fatal hyperthermia in
hot tubs and spas.
TO REDUCE THE RISK OF INJURY:
SAFETY INFORMATION

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
• The water in the spa should never exceed
104°F (40°C). Water temperatures between
100°F (38°C) and 104°F (40°C) are
considered safe for a healthy adult. Lower
water temperatures are recommended
for extended use (exceeding 10 minutes)
and for young children. Extended use can
cause hyperthermia.
• Pregnant or possibly pregnant women
should limit spa water temperatures to
100°F (38°C). Failure to do so may result in
permanent injury to your baby.
• Do not use spa immediately following
strenuous exercise.
AVOIDING THE RISK OF SKIN
BURNS:
• To reduce the risk of injury, before entering
a spa the user should measure the water
temperature with an accurate thermometer.
• Test the water with your hand before
entering the spa to be sure it’s comfortable.
SAFETY SIGN
A SAFETY SIGN in the owner’s package. The
sign, which is required as a condition of Product
Listing, should be permanently installed where it is
visible to the users of the spa.
IMPORTANT SPA
INSTRUCTIONS
The following contains important spa information,
and we strongly encourage you to read and apply
them.
DO:
• Use and lock the cover when the spa is not
in use, whether it is empty or full.
• Follow the Spa Care and Maintenance
recommendations stated in this manual.
• Use only approved accessories and
recommended spa chemicals and cleaners.
DON’T:
• Leave the spa exposed to the sun without
water or the cover in place. Exposure to
direct sunlight can cause solar distress of
the shell material.
• Roll or slide the spa on its side. This will
damage the siding.
• Lift or drag the cover by using the cover
lock straps; always lift or carry the cover by
using the handles.
• Attempt to open the electrical control box.
There are no user serviceable parts inside.
Opening of the control box by the spa
owner will void the warranty. If you have an
operational problem, carefully go through
the steps outlined in the Troubleshooting
section. If you are not able to resolve the
problem, contact your authorized dealer.
Many problems can easily be diagnosed
over the telephone by an Authorized
Service Technician.
SAFETY INFORMATION

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
5
INSTALLATION
PLANNING A LOCATION
FOR YOUR SPA
Consider these things when determining where to
place your spa.
SAFETY FIRST:
Make sure your spa is positioned so access to the
equipment compartment and side panels will not
be blocked. Be certain your installation will meet
all city and local safety codes and requirements.
PLANNED USE OF SPA:
How you intend to use your spa will help you
determine where you should position the spa. For
example, will you use it more for recreational or
therapeutic purposes? If your spa is mainly for
family recreation, leave plenty of room around it for
activity and lawn furniture. If you will use it more
for relaxation and therapy, you’ll probably want to
create privacy around the spa.
PRIVACY:
Think of your surroundings during all seasons to
determine your best privacy options. Consider the
view of your neighbors when you plan the location
of your spa.
VIEWS:
Think about the direction you will be facing
when sitting in your spa. Do you have a special
landscape you will find enjoyable? Perhaps there
is an area that has a soothing breeze during the
day or a lovely sunset in the evening.
ENVIRONMENT:
If you live in a climate with a snowy winter and hot
summer, a place to change clothes or a house
entry near the spa is convenient. A warmer climate
may require shade from the hot sun. Consider
placement of trees, shrubs, patio cover or perhaps
a gazebo structure to provide what you will need.
Indoor installations require adequate ventilation.
When the spa is in use, considerable amounts of
moisture are produced. This moisture can damage
walls and ceiling surfaces over time. Special paint
is available to resist moisture damage. Remember
that spas periodically require drainage, so plan
your environment accordingly.
KEEP CLEAN:
Prevent dirt and foliage from being tracked into
your spa by utilizing concrete for paths and access
areas. Check the location of spill paths from
gutters, trees, and shrubs.
SERVICE ACCESS:
Many people choose to install tile or custom wood
around their spas. If you are installing your tub
with custom decorative trimming, remember to
allow for access to it for service. Should you need
service, a technician may need to remove the tub’s
door panel, or access it from beneath. It is always
best to design special installations so the spa can
still be moved, or lifted from the ground.
A GOOD FOUNDATION:
Your new spa needs a good solid foundation. The
area your spa sits on must be able to support the
spa, the water in it and those who use it. If the
foundation is inadequate, it may shift or settle after
the spa is in place, causing stress to the shell or
components. NOTE: Do Not shim your spa in any
manner, as this could cause the cabinet to warp,
thereby voiding the warranty.
BE AWARE:
Damage caused by inadequate or improper
foundation support is not covered by the spa
warranty. It is the sole responsibility of the spa
owner to provide a proper foundation for the spa.
Make sure the foundation where the spa is placed
drains water away from the spa. Proper drainage
will keep components dry from rain and wet
weather.
Your spa weight must always be considered
when installing your spa. If you are installing it
on an elevated wood deck or other structure, it
is advisable to consult a structural engineer or
contractor to ensure the structure will support the
weight.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
INSTALLATION
IT IS STRONGLY RECOMMENDED THAT
A QUALIFIED, LICENSED CONTRACTOR
PREPARE THE FOUNDATION FOR YOUR SPA.
A reinforced concrete pad at least four inches thick
is recommended for your spa. The reinforcing rod
or mesh in the pad should be attached to a bond
wire.
INDOOR INSTALLATION:
Be aware of some special requirements if you
place your spa indoors. Water will accumulate
around the spa, so flooring materials must provide
a good grip when wet. NOTE: The Ice Bucket
drain (on some spas) is designed to drain at the
bottom exterior of the spa. Therefore, any water
accumulated at the backside of the spa is probably
water draining from the Ice Bucket, and not a spa
leak. Proper drainage is essential to prevent a
build-up of water around the spa. When building
a new room for the spa, it is recommended that a
floor drain be installed. The humidity will naturally
increase with the spa installed. Water may get into
woodwork and produce dryrot, mildew, or other
problems. Check for airborne moisture’s effects
on exposed wood, paper, etc. in the room. To
minimize these effects, it is best to provide plenty
of ventilation to the spa area. An architect can help
to determine if more ventilation must be installed.
PLACING THE SPA
CHECK THE DIMENSIONS OF YOUR
SPA:
Compare the spa dimensions to the width of
gates, sidewalks, and doorways along the delivery
route used to bring the spa into your yard. It
may be necessary for you to remove a gate or
partially remove a fence in order to provide an
unobstructed passageway to the installation
location. Also, keep in mind—if you are using
special equipment to place your spa into an area it
will be necessary to include those measurements
and weights.
PLANNING A DELIVERY ROUTE:
Check the width of gates, doors and sidewalks
to make sure your spa will pass through
unobstructed. You may have to remove a gate
or part of a fence to allow for adequate width
clearance. If the delivery route will require a
90-degree turn, check the measurements at the
turn to ensure the spa will fit. Check for protruding
gas meters, water meters, A/C units, etc., on
your home which will cause obstructions along
the delivery path to your yard. Check for low roof
eaves, over hanging branches or rain gutters that
could be an obstruction to overhead clearances.
SPECIAL CIRCUMSTANCES:
The use of a crane for delivery and installation is
primarily to avoid injury to your spa, your property
or to delivery personnel.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
7
EQUIPMENT ACCESS
EQUIPMENT ACCESS PANEL
Spa without wood siding:
To access the equipment compartment:
• Remove 4 screws from Equipment Access Panel Door then remove door.
Spa with wood siding:
To access the equipment compartment:
1. Remove screws from wood panel then slightly remove wood siding from spa knowing light
wires are still attached.
2. Pull on each light wire to remove from base. Remove wood panel from spa and set aside.
3. Remove screws from inside door panel, then remove inside panel and set aside.
Equipment Compartment
Pull on Wire to Remove
12
3
Screw
Screw
Equipment Access
Outside Wood Panel
Equipment Access
Inside Panel Door
Topside Control Panel
Screw
Equipment Compartment
Equipment Access
Panel Door
Serial Number
Electrical Recess
& Drain Hose
(Cut-Outs may also be
located under door)

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
ELECTRICAL
REQUIREMENT
DO NOT POWER THE SPA WITHOUT
FIRST FILLING WITH WATER!
DANGER – RISK OF ELECTRIC SHOCK
Installations that do not conform to the
following procedures and requirements
may expose users to electric shock. Non-
conforming installations will not be covered
under warranty.
If installed in the United States, the electrical
wiring of this spa must meet the requirements
of the National Electric Code (NEC) and any
applicable state or local codes. The electrical
circuit must be installed by an electrical contractor
and approved by a local building electrical
inspection authority.
1. Installations within 5 ft (1.5 m) of any metal
surfaces must ground the metal surfaces to the
hot tub. Use an 8 AWG solid copper wire and
attach it to the grounding lug on the control,
located in the equipment compartment.
2. Only a licensed electrician may install power to
the spa.
3. Power supply installation must include a
suitably rated ground fault circuit interrupter
(GFCI) as required by NEC. The circuit
breaker must be dedicated and should not be
shared with any other appliances. It must be
labeled and easily accessible to users.
4. The electrical supply for the spa must include a
suitable rated switch or circuit breaker to open
all ungrounded supply conductors to comply
with the National Electric Code. The
disconnecting means must be readily
accessible to the spa’s occupant but installed
at least 5 feet (1.5 m) from the spa water.
5. 230V Power supply lines must be hard wired
into the control box. DO NOT use extension or
plug-type cords of any kind. The use of a shut-
off box near the hot tub is also recommended.
This box provides a quick and convenient
method to shut off power to the hot tub for
emergencies and maintenance.
6. Supply lines must be properly sized as per the
NEC. A ground line must be provided that is as
large as the largest current carrying conductor,
but no less than 8 AWG. Use copper wiring only.
7. Please open the front cover of the control box,
and follow the instructions and wiring diagram
printed on the backside.
8. All 115 V powered models must use the
provided 15 ft (4.5 m) GFCI cord and be
pluged directly into a dedicated grounded wall
outlet between 6' (1.8 m) and 10' (3 m) from
the spa.
9. CAUTION, 230V POWERED SPAS – These
spas must be hard wired with a GFCI to your
household electrical service box only. Do not
use an extension cord or any other
disconnect-able power cord. The use of an
extension cord or a disconnect-able power
cord is highly dangerous and will void all
warranties!
• Wire size must be appropriate per NEC and/or
local codes.
• Wire size is determined by length of run from
breaker box to spa and maximum current
draw.
• THHN copper core wire is recommended.
• All wiring must be copper to ensure adequate
connections. Do not use aluminum wire.
ELECTRICAL REQUIREMENTS
Equipment access is below the topside
control panel on most spas.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
9
ELECTRICAL REQUIREMENTS
CONFIGURING SYSTEM
SELECTING THE VOLTAGE FOR
YOUR SPA
Your spa is designed to operate at either 115V 15
amp; 115V 30 amp, or 230V 50 amp circuit.
• When the spa is setup for 115V, the heater will
provide approximately 1000 watts of heat only
when the pump is operating in LOW speed and
the thermostat is calling for heat (NOTE: The
heater does not operate when the pump is on
high speed).
• When the spa is connected to 115V 30 amp,
the heater will provide approximately 1000
watts of heat when the pump is operating in
LOW or HIGH speed and the thermostat is
calling for heat.
• When the spa is connected to 230 volts, the
heater will provide approximately 4000 watts of
heat when the pump is operating in LOW or HIGH
speed and the thermostat is calling for heat.
All electrical connections must be made in
accordance with the wiring information contained
on the electrical control box cover and the NEC.
115 VOLT INSTALLATION (CORD
CONNECTED)
Spas come with a factory-installed power supply
GFCI cord and are to be plugged into a grounded
type 115 volt, 15 ampere receptacle. No other
electrical appliance or fixture can be used on this
circuit.
IMPORTANT: Under NO circumstances should
an extension cord be used. Use of an extension
cord will seriously degrade the performance of the
equipment and can create an electrical hazard.
115 VOLT 30A OR 230 VOLT 50A
(PERMANENTLY CONNECTED FIELD
CONVERSION)
• A 115 volt, 30 ampere configuration requires a
30 ampere GFCI Subpanel (not included).
• A 230 volt, 50 ampere configuration requires a
50 ampere GFCI Subpanel (not included).
Either one of these installation requires a licensed
electrician.
IMPORTANT: After powering up the spa (for 5 minutes) on 115V 30 amp or 230V 50 amp field conversions,
a program configuration is required. Press and Hold JETS button for 30 seconds to access the Low Level
(LL) settings on the control panel. Use the +/- button to change the setting from LL1 Factory Default (non
concurrent heat and high speed) to LL2 (concurrent Heater and High Speed pump) configuration. Press the
MODE button within 25 seconds to save the new program setting.
Field Converted 115V 30 Amp Control Box Field Converted 115/230V Control Box
To convert, remove the cord from the terminal
block and replace with White, Black and Green
#10 wires and connect to 30 amp GFCI Subpanel.
Subpanel
WhiteWhite
GreenGreen
BlackBlack
Subpanel
WhiteWhite
GreenGreen
BlackBlack
RedRed
To convert, remove the cord and brown jumper
wire from the terminal block. Remove other
end of brown wire from connector and remove
from box. Place Red, White, Black and Green
#8 wires onto terminal block and connect other
end to 50 amp GFCI Subpanel.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
ELECTRICAL WIRING
DIAGRAM FOR 230V USE
It is recommended that a licensed electrician in-
stall the power to your spa in accordance with the
National Electric Code and/or any local electrical
codes in effect at the time of installation.
Power supply installation must include a properly
rated GFCI circuit breaker. The circuit must be
dedicated and should not be shared with any other
appliances. The power supply must be hard wired
into the power pack.
White Neutral Wire that is connected
to Spa Neutral goes HERE.
230V Wiring Instructions:
4 wires/Minimum 50 amp GFCI Breaker
#8 AWG 75°C Copper Wire Minimum (less
than 100’ (30 m) length)
Special Note:
If the GFCI breaker trips immediately after
attempting to turn on, please check the
White Neutral Wire that is connected to the
spa.
From the House
Breaker Box To the Spa
ELECTRICAL REQUIREMENTS
Red
White
Black
Green

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
11
INITIAL START-UP - When the spa is first
powered up the control system begins a 2 minute
Startup Mode. Different codes will display on the
screen. Once Startup Mode completes, the actual
temperature is displayed on the screen, and the
spa will then begin to heat and maintain the water
temperature and the first filter cycle will start. Your
spa has been designed so that it will automatically
heat the water to the factory set temperature of
100°F (38°C) unless you set the spa to a different
temperature. If power is disconnected from the
spa, it will automatically revert back to the last
saved set temperature when power is reapplied.
TEMPERATURE ADJUSTMENT
80°F - 104°F (26.5°C - 40°C)
T he temperature can only function between
80°F - 104°F (26.5°C - 40°C). The last measured
temperature will constantly display on LCD.
Press the Plus or Minus buttons to display the
set temperature and indicator . Each time either
button is pressed again, the set temperature will
increase or decrease depending on which button
is pressed. After five seconds, the LCD will
automatically display the current spa temperature.
The “heater” indicator lights up when the
heater is on. It flashes when there is a request
for more heat, but the heater is not on. Once set
temperature is reached the indicator shuts off
and the low speed of the jet pump turns off after
30 seconds (if not in filter cycle).
JETS OPERATION
Firmly press the Jets button once to activate the
low speed of the pump and again for the high
speed. Firmly press the Jets button again to turn
off the pump. If left running the low or high speed
pump will automatically turn off after 1 hour. The
"Jets" indicator light next to the button will blink
when jet pump is on low speed and is solid on
high speed.
MULTI COLOR LED LIGHT
Press the Light button once to turn on the light,
the light indicator next to the button is lit when the
light is on. Press the button again to turn the light
off. Every time the light is quickly turned off and
on a new light mode will appear. The sequence
is as follows: White, Full color wheel, Amber,
Blue, Red, Green, Purple, color wheel 1,
color wheel 2 and abrupt color wheel. The last
light mode used will come back on when the light
is turned off for more than 2 seconds. NOTE: If left
on, the light will automatically turn off after 4 hours
of operation.
FILTER CYCLES
There are two filter cycles: the first cycle (F1)
starts right after power up and the second cycle
(F2) will start 12 hours later. The default duration
for the first filter cycle is 1 hour, and 30 minutes
for the second cycle. Filter cycles only run at low
speed. The “Filter” indicator lights up when a
filter cycle is on. The duration of each filter cycle
can be modified.
ADJUSTING PRESET FILTER
CYCLES
Filter duration is programmable between 0.5 and 6
hours in 30 minute increments (0.5 hours) for both
filter cycles. To program the cycle times:
1. Press and hold Program Mode button for 5
seconds until F1 is displayed.
2. Press the Plus or Minus button to adjust
the cycle time for F1.
3. Press the Program Mode button to store
the F1 cycle and move to the F2 cycle.

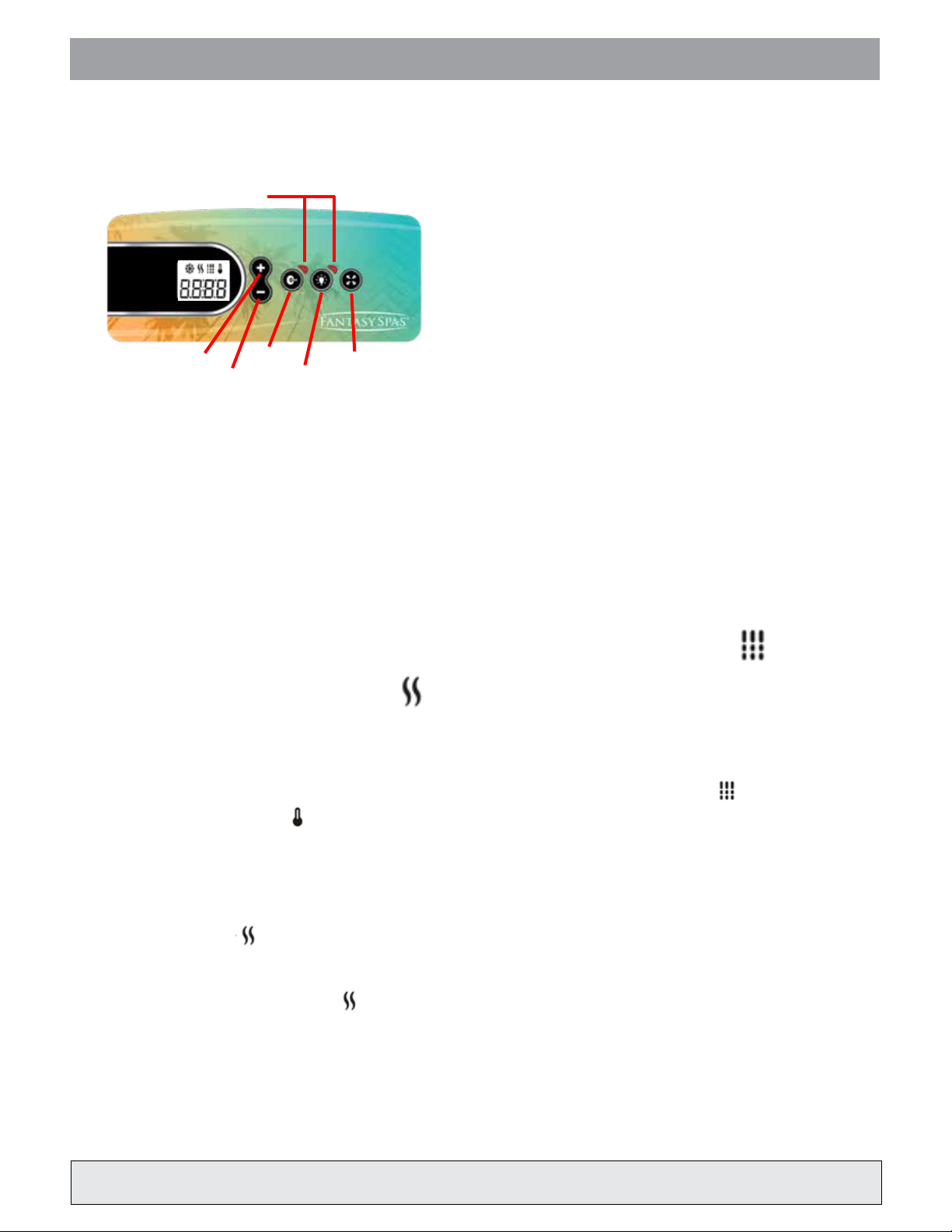

CONTROL PANEL OPERATION
Jets
Indicator Lights
Temp Minus
Temp Plus
Light Program
Mode

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
CONTROL PANEL OPERATION
4. Press the Plus or Minus button to adjust
the cycle time for F2.
5. Wait 15 seconds to allow the exit timer to
expire and store the setting.
IMPORTANT: To reset the first filter cycle start
time, skip step 5 and continue pressing the
Program Mode button until the actual temperature
is displayed. Powering down of the spa will also
reset the first filter start time.
FILTER CYCLE SUSPENSION: The
filter cycle will be suspended every time a jet pump
or light is activated manually during the filter cycle
time. The suspension will end 10 minutes after the
completion of the manual use.
OPERATIONAL MODES
The Standard Mode is the default operational
mode preset from the factory. In order to program
the spa to operate in the Economy mode you must
enter the programming mode to make the change.
NOTE: Freeze Protection (Smart Winter Mode) will
assert as necessary during all modes.
STANDARD MODE: (St) Is programmed
to maintain the desired temperature with periodic
water circulation (sampling) to sample and heat
the water to the set temperature.
ECONOMY MODE: ( Ec) Water sampling
and heating of the water will be done normally
during the filter cycles, outside of these periods
the water temperature will be regulated 20°F
(11°C) below selected set temperature.
SLEEP MODE: ( SL) Water sampling and
heating is only done during the filter cycles
while trying to bring the spa water up to the set
temperature.
QUIET MODE: ( NT) Maintains temperature
with periodic sampling between the start of F1
and the end of F2 while not allowing any water
sampling to happen between the end of F2 and
the start
of F1.
To enter the programming screen and toggle
between Standard, Economy, Sleep and Quiet
Modes the following is required:
1. Press and hold the Program Mode button
for 5 seconds.
2. Press the Program Mode button several
times until St, Ec, SL, or nt is displayed.
3. Use the Plus or Minus button to choose
between the Modes.
ST = Standard Mode, Ec = Economy
Mode, SL = Sleep Mode and NT = Quiet
Mode.
4. Wait 15 seconds to allow the exit timer to
expire and store the setting.
OFF MODE: This mode allows you to stop all
spa functions for 30 minutes to perform quick spa
maintenance. To place the spa in OFF MODE,
press and hold the Jets button for 5 seconds.
The display will toggle between OFF and water
temperature when in the OFF MODE. To stop the
OFF MODE before the 30 minute cycle time is
complete, simply tap (short press) the Jet button.
FAHRENHEIT/CELSIUS SETTING
To change water temperature display to either
Fahrenheit or Celsius, press and hold Mode button
for 5 seconds until F1... is displayed. Press the
Program Mode button several times until F or C
is displayed. Press the Plus or Minus button to
change. Wait 15 seconds to allow the exit timer to
expire and store the setting.
SMART WINTER MODE
The Smart Winter Mode (SWM) is used to prevent
water from freezing in the plumbing of the spa.
As soon as there is a risk of freezing, THIS
PROTECTION AUTOMATICALLY KICKS IN.
The SWM protection will turn back off only after
24 hours without a risk of freezing. During this 24
hour period, the Smart Winter Mode icon remains
on; the icon blinks when the purge is active.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
13
CONTROL PANEL OPERATION
DIAGNOSTIC LCD MESSAGE
Message Meaning Action Required
No message on display.
Power has been cut off to the spa.
The control panel will be disabled until power
returns. Spa settings will be preserved until
next power up.
HL The system has shut the heater
off because the temperature at the
heater has reached 122°F (50°C).
Do not enter the water!
DO NOT ENTER THE WATER. Remove the
spa cover and allow the water to cool down,
then shut power off and power your spa up
again to reset the system.
If spa does not reset, shut off the power to the
spa and contact your local Dealer.
AOH Temperature inside the equipment
compartment is too high 194°F
(90°C), causing the internal
temperature in the control system to
increase above normal limits.
Open equipment compartment and wait until
error clears.
PRR A problem is detected with the
temperature probe.
Call your Dealer or service supplier.
OH The water temperature in the spa
has reached 108°F (42°C). Do not
enter the water!
Remove the spa cover and allow the water to
cool down to a lower temperature. Call your
dealer or service supplier if problem persists.
UPL No low level configuration software
has been installed into the system.
Call your Dealer or service supplier.
FLO No water flow is detected by the
control system but flow is expected.
Make sure that the jet pump is running and
water is flowing; check and clean filters; make
sure water valves are open; make sure spa
has a proper water level. If problem persists,
call your Dealer or service supplier.
Smart Winter Mode will
automatically go on when a risk of
freezing occurs.
No action is required, it will automatically go off
when the treat of freezing is no longer there.
See previous page for more information.
Warning! Shock Hazard! No User
Serviceable Parts.
Do not attempt service of the control box. Contact
your local Dealer for assistance. Follow all owner
manual power connection instructions. Installation
must be performed by a licensed electrician
and all grounding connections must be properly
installed.
WARNING! DO NOT ENTER SPA IF
WATER IS TOO HOT
Water is too hot. Overheat protection heater
is deactivated. Spa water temperature is above
acceptable limits. When the actual water
temperature is approximately 2º F (1º C) above
the set temperature, the jet pump will stop
operating to reduce (frictional) heating. If the
spa water temperature continues to rise and gets
above 108º F (42ºC), the spa will go into an “OH”
overheat condition.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
COMPONENT OPERATION
SPA COMPONENT
OPERATION
AIR CONTROL VALVE
The air control valve serves to regulate the
amount of air mixed with the water when the jets
are operational. Rotate all the air control valves
counterclockwise and observe the increased jet
action. Rotating the air control in the opposite
direction to turn air off and allow the jets to work
with water only. Turn the air controls off when the
spa is not in use, this will prevent cold air from
entering the spa and will keep heating cost to a
minimum. The ozone jet, will always produce air
bubbles when pump is on.
HYDROTHERAPY JETS
The hydrotherapy jets are recessed in the
wall of the spa. Rotate the medium jet faces
to turn the jets on or off. Turning a jet on or
off will increase or decrease the effects of any
jets not in the closed position.
DIVERTER VALVE (WHEN EQUIPPED)
The diverter valve on your spa allows you to direct
the flow of water from the pump to one of two
combinations of jets. The function of the diverter
valve can best be learned by experimentation.
Turn the large valve all the way to one side or the
other to see which jets are on.
OZONE GENERATOR (OPTIONAL)
The ozone system enhances the quality of the spa
water when used to supplement the spa owner’s
regular water maintenance program. Contrary to
some information circulated throughout the pool
and spa industry regarding ozone systems, ozone
CAN'T be used as a single-source sanitizer,
water clarifier, anti-foamer, and mineral chelating
agent. A secondary source sanitizer must be
used to maintain 3.0 - 5.0 ppm of Free Available
Chlorine (FAC). Watkins Wellness recommends
that a chemical maintenance program based on
recognized and documented industry standards
still be followed when using an ozone purification
system to assure water sanitation and the highest
quality purified water.
WATERFALL (WHEN EQUIPPED)
Your spa has a control valve to operate the
amount of flow through the waterfall from no flow
to a steady stream. This valve is attached to the
waterfall.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
15
FILL UP AND START-UP INSTRUCTIONS
The following procedures should be followed on
initial startup and whenever the spa is drained for
routine maintenance.
FILLING THE SPA WITH
WATER
1. Clear all the debris from your spa.
2. Verify Drain cap is attached and tight.
3. Be sure to open all jets to allow as much air as
possible to escape from the plumbing during
the filling process.
4. Insert a garden hose into filter compartment to
fill your spa.
NOTE: Do not use hot or softened water.
5. As the water level rises, check inside the
equipment compartment for water leaks. It may
be necessary to tighten unions and/or fittings
that may have loosened during delivery. There
is no need to call for service; this can easily be
done. If assistance is required, contact your
local Dealer.
6. Under normal circumstances keep the water
level half way between the top of the spa and
the top of the gray filter ring or just above the
highest jets (whichever is higher).
Failure to keep enough water in your spa may
result in damage to your system and invalidate
your warranty. If your spa filter is sucking in air
causing the pump to cavitate, you need to add
water!
IMPORTANT: Loosen drain cap and allow
water to exit hose bib for 5 seconds to help
prime the jet pump, then tighten drain cap. If
the jet pump still is not primed after running
repeat step.
7. Check the filter installation and make sure the
filter is not loose.
APPLYING POWER
1. Turn power to spa "ON" (after filling spa) from
the main panel at the house and the subpanel.
2. Press the Jets button on the topside control
panel to activate the spa. Rotate all the air
control valves counterclockwise and observe
the increased jet action (air mixed with water).
3. While the pump is running check again for
water leaks at the drain, unions, or fittings in
the equipment compartment (leaks may have
occurred during transit). If water is leaking from
one of these areas, there is no need to call for
service. Simply tighten the fitting. If assistance
is required, contact your local Dealer
4. After checking your spa for leaks it is now time
to adjust your spa settings. Press the Up or
Down button on your topside control panel until
the display indicates your desired temperature
is set.
UNIONS

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
ADDING START-UP CHEMICALS
WATER CHEMISTRY
GUIDELINES
The following step-by-step instructions are a
recommended guideline for balancing water
chemistry. If unsure about any step in the
process, please contact your local Dealer.
Initially, it is advisable to identify what minerals
(e.g. iron) are present in the local source water.
This will provide a better understanding of how
to treat the water. Please follow the four steps
below and be sure to achieve the correct levels
in each area before moving onto the next step.
ADD all chemicals into filter compartment while
running jets for 10 minutes.
STEP #1: ESTABLISH PROPER PH
LEVEL:
The recommended range for pH is between
7.2 and 7.8. If the reading is too high, lower
the pH by using a pH Down/Decreaser
(sodium bisulfate). If the pH level needs to
be increased, do so with a pH Up/Increaser
(sodium hydrogen carbonate). Any pH Up
or Down should be added one teaspoon
at a time, waiting one-half hour between
application and re-measuring.
STEP #2: MEASURE TOTAL
ALKALINITY:
The ideal range is between 40-120 parts per
million (PPM). If the total alkalinity is too high,
it should be reduced by using an Alkalinity
Down/Decreaser (sodium bisulfate). If the
total alkalinity is too low, it can be increased
by adding an Alkalinity UP/Increaser (sodium
bicarbonate or sodium hydrogen carbonate).
These products should be added in small
amounts – a teaspoon at a time. After adding
one teaspoon, wait one half hour before
re-measuring. Once the safe range of total
alkalinity is established, proceed to the next
step.
STEP #3: DETERMINE CALCIUM
HARDNESS:
It is important to bring the calcium reading to
between 75-150 PPM. If the reading requires
adjustment, it should now be corrected. If
the water is too soft (a low reading) calcium
hardness should be added to the water to
increase the PPM reading. If the water is too
hard (a high reading), it can be corrected by
either: (A) a mixture of hard and soft water
added to attain a reading in the safe range,
or (B) addition of stain and scale control. If
calcium hardness is a problem with the local
source water (either too hard or too soft) a
test kit, which measures calcium hardness, is
essential.
STEP #4: SANITIZING:
After steps 1-3 are complete, the spa must
be sanitized using Chlorine (sodium
dichlor). Add 2 teaspoons of Chlorine, and
increase as necessary to reach a level of
3-5 ppm. Check and maintain this level
weekly, and before and after using the spa.
IMPORTANT NOTE: A granulated sodium
dichlor is highly recommended for sanitizing
spa water, granular bromine may also be
used
. Never use compressed sanitizers
even with a floater. As with any other
chemicals, the sanitizer should be introduced
to the spa with the jets running a minimum of
10 minutes.
WEEKLY SHOCK:
Using a potassium monopersulfate (MPS)
shock, add approximately 2 oz. over the
filter while the jets are running. Shocking is
achieved by adding the MPS to turbulent
water. Leave the cover up and jets on high for
10 minutes. Then shut jets off and return the
cover to the closed position to maintain heat.

For further inquiries, please contact our Customer Service Team
Email: [email protected] Phone: [phone]
17
SPA MAINTENANCE
FILTER CARTRIDGE
MAINTENANCE
Every month, the filter cartridge should be
cleaned to remove the objects and particles
that have lodged in the cartridge pleats. Using
household water pressure and a garden hose
with a pressurized nozzle, push water from
inside to outside of the pleats, forcing all the
trapped particles out. NOTE: Never run your spa
without a filter cartridge!!! This will invalidate your
warranty.
NOTE: Filter cartridges should be replaced every
six to eight months or earlier when needed. Dirty
filters can cause your spa pump to burn out and
will invalidate your warranty.
FILTER CARTRIDGE REMOVAL
AND CLEANING INSTRUCTIONS
Spa uses a screw in filter cartridge that is easily
removed.
• Turn off the power to the spa, (by turning OFF
the subpanel breaker).
• Push down slightly and turn filter basket
counter clockwise to unlock, then pull the
basket and weir out.
• Unscrew the filter cartridge counter clockwise
and bring it out of the spa (requires many
turns).
• Rinse cartridge using a garden hose. Rotate
and separate filter pleats while spraying water
to remove all dirt and debris possible. Let filter
dry and look for calcium deposits (scaling) or
an oil film. If you find these, you will need to
deep clean your filter cartridge with a “spa filter
cleaner” solution to break down and remove
unwanted deposits and oils. (For longer filter
life you should soak filter in solution regularly.)
CAUTION! Always use proper eye protection
when using chemicals, or high-pressure water.
Read instructions on cleaning products and follow
applicable safety and warning instructions listed on
label.
CAUTION! Never scrub the filter cartridge with a
brush, as this will cause the filter to wear out and
come apart. Never let the spa pump run without
a filter cartridge in the skimmer compartment.
Running the spa without a filter cartridge may
permit debris to enter the spa plumbing and void
the warranty!
• Replace filter cartridge, then reinstall basket
and weir, (insert and rotate clockwise to lock
into position). DO NOT OVERTIGHTEN!
• Turn spa’s power back on.
