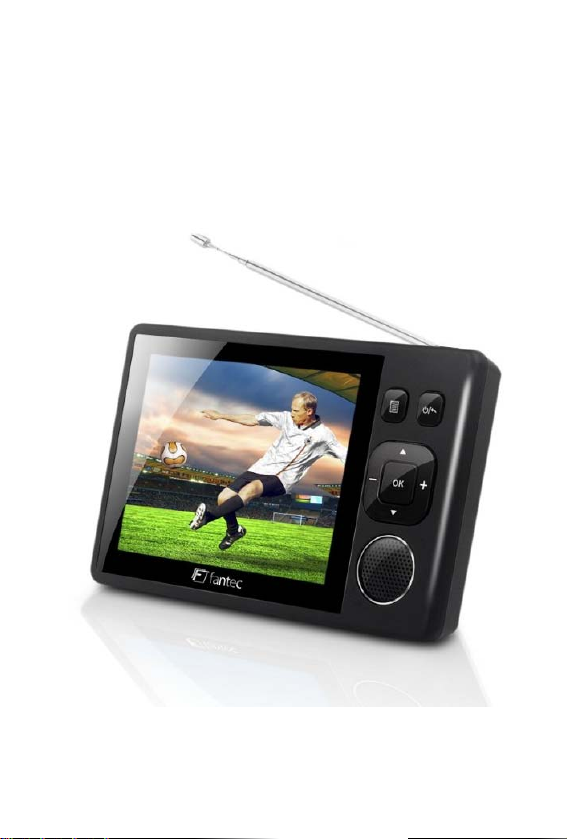

Fantec DTV-35 User manual
3.5” Portable DVB-T TV
Model: FANTEC DTV-35
User Manual
Table of contents
1About the Portable TV..........................................2
2Introduction...........................................................3
2.1Power On/Off............................................3
2.2Channel switch..........................................3
2.3Volume Control .........................................3
2.4Program list...............................................3
2.5Sub-menu..................................................3
2.6Reset..........................................................3
3System Setup.........................................................4
3.1Manual Scan..............................................4
3.2Auto Scan..................................................4
3.3System setting...........................................4
3.4Display setting...........................................4
3.5Factory Default .........................................4
3.6Version ......................................................4
4Use of battery........................................................5
5Accessories ...........................................................5
6Specifications........................................................6
EN 1
1 About the Portable TV
Menu Button
Power Button / Return Button
Channel +
Channel -
Vol +
Vol -
Confirm Button
DC Jack
Earphone Jack
EN 2
2 Introduction
2.1 Power On/Off
Power On: Press button and hold for 3 seconds, the system will start
up.
Power Off: Press button and hold for 3 seconds, the system will pop up
a dialog box as follow:
Press OK to power off the player.
2.2 Channel switch
Press ▲▼ to channel +/-.
2.3 Volume Control
Press to increase or decrease the volume.
2.4 Program list
Press under TV/Radio playback mode to show the program list and
press ▲▼ to select the TV/Radio channel, then press OK to confirm.
2.5 Sub-menu
Press OK under TV/Radio playback mode to enter the sub-menu as follow:
Move the cursor and press OK to enter these functions, and then you can
press the Direction Key to select different option, press to return and
exit this sub-menu.
2.6 Reset
If the player suspend hanged up, please insert a sharp stick into the reset hole
and press lightly, the system will clear all setting and power off.
EN 3
3 System Setup
Press to enter the system setup menu as follow:
3.1 Manual Scan
Move the cursor to and press OK to start MANUAL SCAN; you can
set the start frequency, end frequency and band width manually.
3.2 Auto Scan
Move the cursor to and press OK to start AUTO SCAN base on the
Country setting.
3.3 System setting
Move the cursor to and press OK to enter system setting menu, you
can setArea, Time Zone, OSD Language.
3.4 Display setting
Move the cursor to and press OK to enter Display Setting menu, you
can set LCD Brightness, Contrast, Hue and Aspect Ratio option.
3.5 Factory Default
Move the cursor to and press OK to load Factory Default setting.
3.6 Version
Move the cursor to and press OK to show the Hardware and Software
version information.
EN 4
4 Use of battery
Precautions
Please fully charge the battery when you use the unit for the first time.
For the first 3 times the charging takes at least 8 hours to extend the life
time of the battery. The unit will get warm when the unit is in use, this is
normal. Please power off when the unit is not used for a long time. The
unit will be automatically powered off when the battery is too low.
Warning
zCharge the battery with the provided AC/DC adapter.
5 Accessories
Accessories
Please check the accessories according to the following list:
AC/DC adapter
User manual
EN 5
EN 6
6 Specifications
Specifications
Digital TV tuner DVB-T module
Antenna Built-in telescopic antenna to receive the digital
terrestrial TV programs
Panel 3.5" TFT-LCD Display with the resolution of
320*240 pixel
IO - Earphone jack
- DC-in Jack
Buttons
- Reset Hole
- Volume key
- Navigation key
- Menu key
- Esc key /power on/off
Battery Lithium-ion rechargeable battery
(2400mAh, 3.7V)
Watch DTV up to 4 hours (Earphone Mode)
Dimensions 117 x 75 x 16.1 mm
Weight 165g with battery
Regulations CE, RoHS
Watch DVB-T
programs Support digital teletext, EPG
Language English, German, Spanish, Italian, Dutch,
French, Danish, Finnish, Swedish
Channel Scan Auto scan / Manual scan
