Sony LocationFree LF-X11 User manual

Operating Instructions
2-655-608-11(1)
LocationFree TV
LF-X11
© 2005 Sony Corporation
E:\passage\LF-X1_GB-DTP\00GB01COV-WW.fm masterpage: Right
LocationFreeTV
2-655-608-11(1)

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB02SafeReg-
WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
2
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
Owner’s Record
The serial numbers are located at the side of the Base
Station. Record the serial number in the space
provided below. Refer to them whenever you call
upon your Sony dealer regarding this product. The
nameplate is located on the bottom of the Base
Station.
Model No. LF-X11
Serial No.____________________________
Contacting Sony
If, after reading these operating instructions, you
have additional questions related to the use of your
Sony television, please call our LocationFree
Customer Support
LocationFree Customer Support
1-866-925-SONY (7669) - U.S. & Canada
1-239-768-7688 - International
9:00 a.m. - 9:00 p.m. EST, Mon.-Fri. (English Only)
LocationFree Web sites
<U.S.>
http://www.sony.com/locationfree/
<Canada>
http://www.sonystyle.ca/locationfree/

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB02SafeReg-
WW.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
3

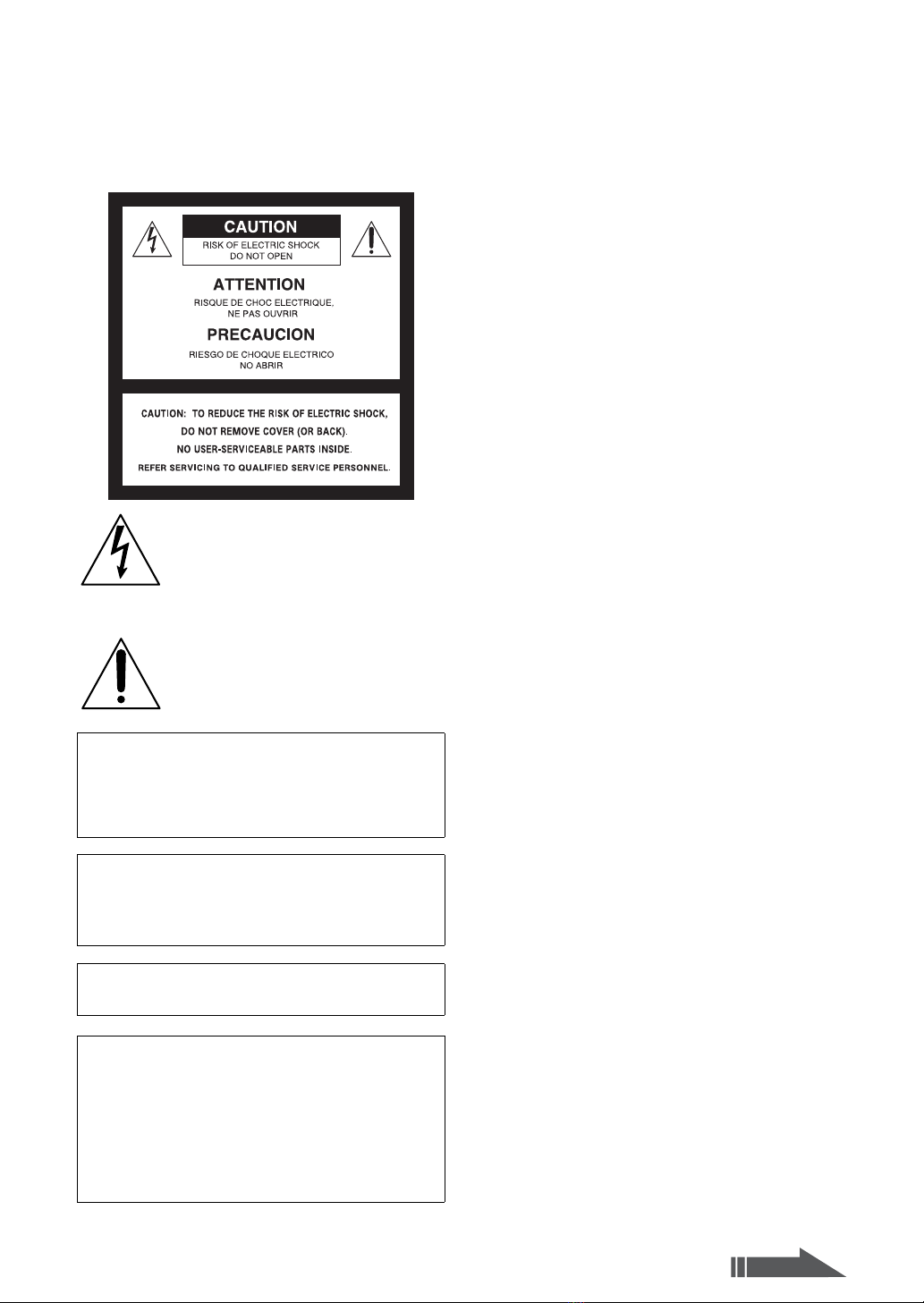

WARNING
To reduce the risk of fire or shock hazard, do not
expose the TV to rain or moisture.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This equipment must not be co-located or
operating in conjunction with any other antenna
or transmitter.
FCC Radiation Exposure Statement:
The available scientific evidence does not show that any
health problems are associated with using low power
wireless devices. There is no proof, however, that these
low power wireless devices are absolutely safe. Low
power Wireless devices emit low levels of radio
frequency energy (RF) in the microwave range while
being used. Whereas high levels of RF can produce health
effects (by heating tissue), exposure to low level RF that
does not produce heating effects causes no known adverse
health effects. Many studies of low level RF exposures
have not found any biological effects. Some studies have
suggested that some biological effects might occur, but
such findings have not been confirmed by additional
research. The LF-X11 has been tested and found to
comply with the Federal Communications Commission
(FCC) guidelines on radio frequency energy (RF)
exposures. The maximum SAR levels tested for the LF-
X11 has been show to be 2.4GHz 1.42 W/kg,5.2GHz 0.45
W/kg at Body.
* This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
* When using the unit with 802.11a (5.15-5.25GHz), use
indoors.
LF-X11
Contains FCC ID : AK8IRF303
Contains IC : 409B-IRF303
Heat
The Base Station and/or the AC power adapter may heat
up during operation. This is not a malfunction.
Note on using the Monitor
Avoid touching hot areas of the surface of the product for
long periods, especially if you have sensitive skin. Doing
so may cause swellings or blisters as symptoms of
moderate temperature burn.
CAUTION
Danger of explosion if battery is incorrectly
replaced.
Replace only with the same or equivalent type.
Do not let this unit get wet. Never spill liquid of any
kind on the unit. If any liquid or solid object fall
through the unit, do not operate the unit. It may result
in electric shock or damage to the unit.
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference,
and
(2)this device must accept any interference received,
including interference that may cause undesired
operation.
Continued

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB02SafeReg-
WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
4
NOTIFICATION
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference with radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
FCC WARNING
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
For customers in the United States
This product contains mercury. Disposal of this product
may be regulated if sold in the United States. For disposal
or recycling information, please contact your local
authorities or the Electronics Industries Alliance
(http://www.eiae.org).
This class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numerique de la classe B est conforme a la
norme NMB-003 du Canada.
Trademarks
• LocationFree is a registered trademark of Sony
Corporation.
• Memory Stick, Memory Stick Duo, Memory
Stick PRO Duo, MagicGate, MagicGate
Memory Stick PRO Duo and are registered
trademarks or trademarks of Sony Corporation.
• NetFront by ACCESS Co., LTD, is installed for
the browser functions on this device.
• NetFront is registered trademark of ACCESS
Co., Ltd. in Japan and other countries.
• A portion of the software for this device
includes modules developed by the
Independent JPEG Group.
• Copyright 2004 Adobe Systems Incorporated.
All rights reserved. Patents Pending.
• Ethernet is a registered trademark of XEROX
Corporation.
• This device uses Macromedia®Flash®Player
technology. Macromedia Flash and
Macromedia are trademarks or registered
trademarks of Macromedia, Inc. in the United
States and other countries.
• Intent is a registered trademark of Tao
Group Limited.
• Java is a trademark or registered trademark of
Sun Microsystems, Inc. in the United States
and other countries.
• All other company names and product names
mentioned here may be the trademarks or
registered trademarks of their respective
companies.
• The symbols for ™ and ® are omitted in these
instructions.
RECYCLING LITHIUM-
ION RECHARGEABLE
BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by
returning your used rechargeable batteries to
the collection and recycling location nearest
you.
For more information regarding recycling of
rechargeable batteries, call toll free
1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking
Lithium-Ion batteries.

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB02SafeReg-
WW.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
5
Since communication via the wireless LAN
function is established by radio waves, the
wireless signal may be susceptible to
interception. To decrease this danger, the
LocationFree TV supports various security
functions. Be sure to correctly configure the
security settings in accordance with your
intended purpose and network environment.
Wireless LAN security function of the
LocationFree TV
• No encryption
Because raw data is transmitted, there is a
danger of interception.
This setting is not available for wireless LAN
communication between the Base Station and
the Monitor.
•WEP
WEP is the wireless LAN security technology
specified by IEEE802.11. It applies encryption
to communications. There are two types of
encryption key length; 64-bit key and 128-bit
key. The 128-bit encryption key assures a
higher security level. A decryption technique
exists, however, so using the same encryption
key for an extended period of time is not
recommended.
• WPA-PSK with TKIP encryption
WPA is a security technology developed to
correct for the deficiencies of WEP. The
LocationFree TV utilizes WPA together with
TKIP encryption. WPA-PSK with TKIP
encryption assures the highest security level
among the technologies supported by the
LocationFree TV.
Security settings of the LocationFree TV
• The security for wireless LAN communication
between the Base Station and the Monitor is set
to WEP as the factory default. To increase the
security level, switch to WPA-PSK. Note,
however, that the communication stability may
differ depending on which technology you use,
WEP or WPA-PSK.
• When connecting the Monitor to a wireless
LAN environment other than that for
communication with the Base Station, the
Monitor should be configured in accordance
with the security setting of the wireless LAN
environment. For settings information, contact
the network administrator.
About Wireless
Security

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB03LF-
X11TOC.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
6
Contents
About Wireless Security........................................................................................ 5
What is LocationFree TV? .................................................................................. 10
Identifying Parts and Controls............................................................................. 11
Preparations ................................................................ 14
Checking the Package Contents .......................................................................... 14
About Base Station Installation ........................................................................... 15
Connecting to TV Signal ..................................................................................... 15
Connecting Other Devices................................................................................... 16
Connecting to the Internet ................................................................................... 19
Turning On the Power ......................................................................................... 20
How to Use the Monitor ...................................................................................... 23
About Easy Setup ................................................................................................ 24
Easy Setup (Basic)............................................................................................... 25
Basic Operations......................................................... 27
Displaying the [Index] Window .......................................................................... 27
About Monitor Connection Modes...................................................................... 28
Guide to On-Screen Icons.................................................................................... 29
TV/Video....................................................................... 31
Watching TV and Video...................................................................................... 31
Using the TV/Video Screen................................................................................. 32
Using Wide Range Mode .................................................................................... 33
Selecting a Secondary Audio Program (SAP)..................................................... 34
Capturing Images................................................................................................. 35
About the Sub-Screen.......................................................................................... 36

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB03LF-
X11TOC.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
7
Using LocationFree TV On the Go............................. 37
Switching the Monitor Connection Mode ........................................................... 37
Using Monitor On the Go.................................................................................... 38
NetAV............................................................................ 44
What is NetAV?................................................................................................... 44
Overview of NetAV Setup .................................................................................. 44
Check Your Internet Connection......................................................................... 45
Easy Setup (NetAV) ............................................................................................ 45
NetAV Check ...................................................................................................... 46
Using NetAV ....................................................................................................... 46
Web Lite ....................................................................... 48
Viewing Web Pages............................................................................................. 48
Using the Web Lite.............................................................................................. 49
Viewing PDF Files On the Web.......................................................................... 51
Other Web Lite Functions ................................................................................... 51
Mail ............................................................................... 52
Using the Mail Window ...................................................................................... 52
Other Mail Functions........................................................................................... 54

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB03LF-
X11TOC.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
8
Album ........................................................................... 55
Using the Album Window................................................................................... 55
Other Album Functions ....................................................................................... 56
Memory Stick............................................................... 57
Using a Memory Stick......................................................................................... 57
Initializing a Memory Stick................................................................................. 59
Other Functions and Settings .................................... 60
Watching TV/Video Via Wired LAN at Home................................................... 60
Adjusting the Screen Backlight........................................................................... 61
Adjusting Video and Audio Quality.................................................................... 62
Changing the Wireless Channel Manually (Home Wireless).............................. 63
Stopping Wireless Signal Emissions From the Monitor ..................................... 64
Setting Up TV Channels Manually ..................................................................... 65
Configuring the On-Screen Remote .................................................................... 67
Learning Commands for On-Screen Remote ...................................................... 69
Configuring the Base Station LAN Connection Manually.................................. 71
Setting Up the Base Station as a Wireless Access Point ..................................... 72
Advanced NetAV Settings................................................................................... 74
Registering LocationFree Devices....................................................................... 77
Other Setup Windows.......................................................................................... 80
Resetting Factory Defaults .................................................................................. 81
Checking Storage Size......................................................................................... 83
Configuring the Monitor LAN Connection Manually......................................... 83

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB03LF-
X11TOC.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
9
Others........................................................................... 85
Memory Stick Folder for Copying Images to the Album.................................... 85
Characters Selectable with Keyboard [Shift] ...................................................... 85
To Set Up the Base Station Without the Monitor................................................ 85
Status LED........................................................................................................... 86
Troubleshooting................................................................................................... 87
Specifications....................................................................................................... 92
Index .................................................................................................................... 95
Note
The screen samples used in this manual are only example images.
z Tip
Further information about this model is also available on following website.
LocationFree TV FAQ pages:
http://www.sony.com/locationfree/faq/

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB04C00-WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
10

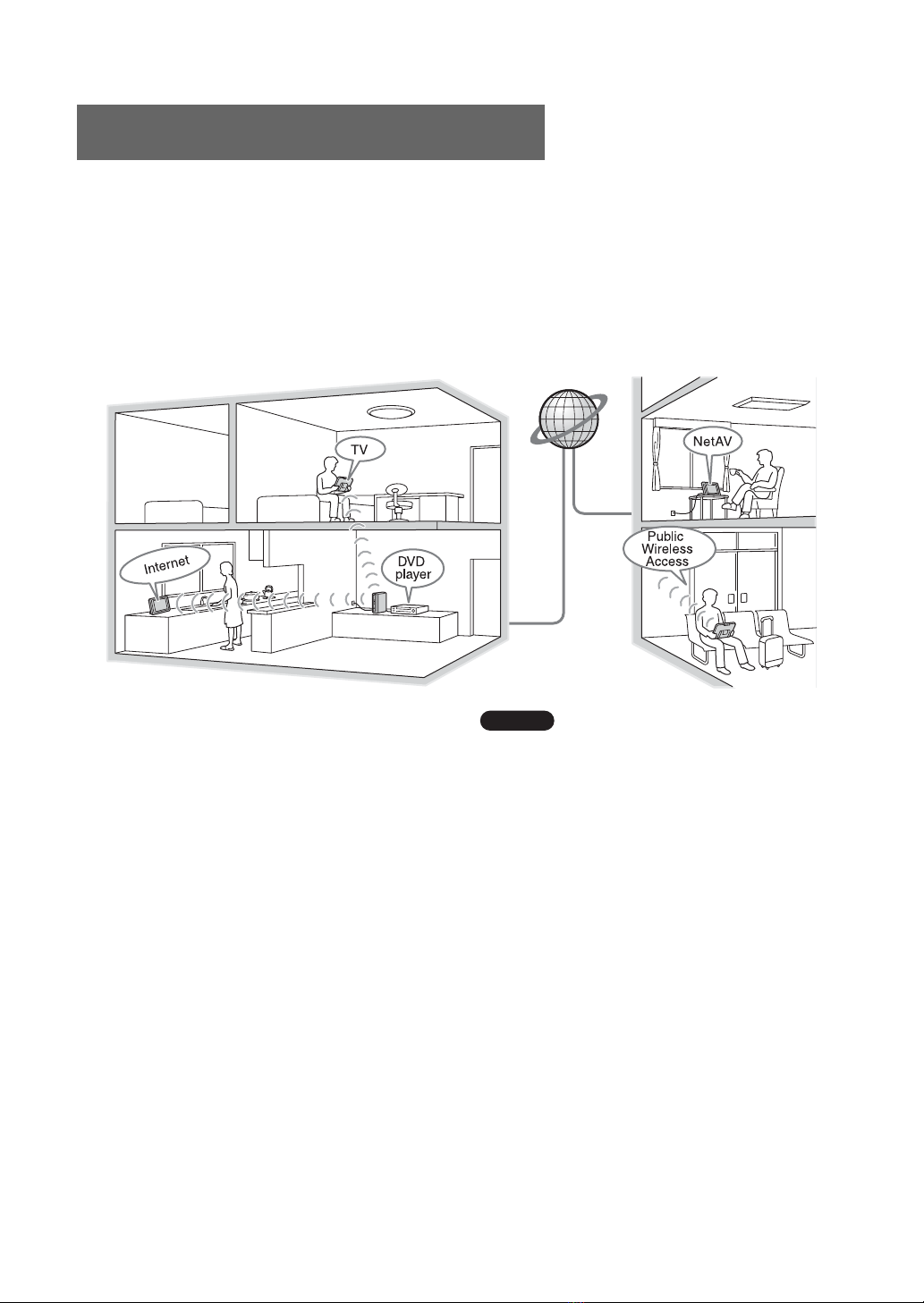

The LocationFree TV is an advanced, portable TV that allows you to watch TV or video, browse the
Web, check your e-mail and manage your digital photos whether you are at home or not. When you are
at home, you can carry the Monitor around the house and use it anywhere within its wireless
transmission range. When you are away from home, you can watch the same TV programs and videos
by accessing your Base Station via the Internet.
By installing LocationFree Player on your computer, and registering the computer with the Base Station,
you can use the LocationFree NetAV function on your computer as well.
Enjoy the LocationFree TV, no matter where you are. Welcome to the world of LocationFree TV!
z Tips
• The LocationFree TV is composed of a Monitor and
a Base Station that communicate with each other
over a wireless or wired connection.
• The Monitor operates on a rechargeable battery, so it
does not need a power cord. You can also connect an
AC power adapter.
• When the power is turned on, the Base Station
continuously emits a wireless signal.
Note
The LocationFree TV transmits on the 2.4 GHz and 5
GHz* wireless channels. In the average home, this
gives it a coverage range of about 100 feet (30 meters).
If other devices in the vicinity emit electrical waves,
such as a wireless LAN device or microwave oven, the
strength of the wireless signal may decrease. The
materials used in the construction of a building’s walls
and floors may also affect the signal strength.
* At the time of purchase, the LocationFree TV is set
up to select the best channel automatically, either 2.4
GHz or 5 GHz.
What is LocationFree TV?
Home On the Go

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB04C00-WW.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
11

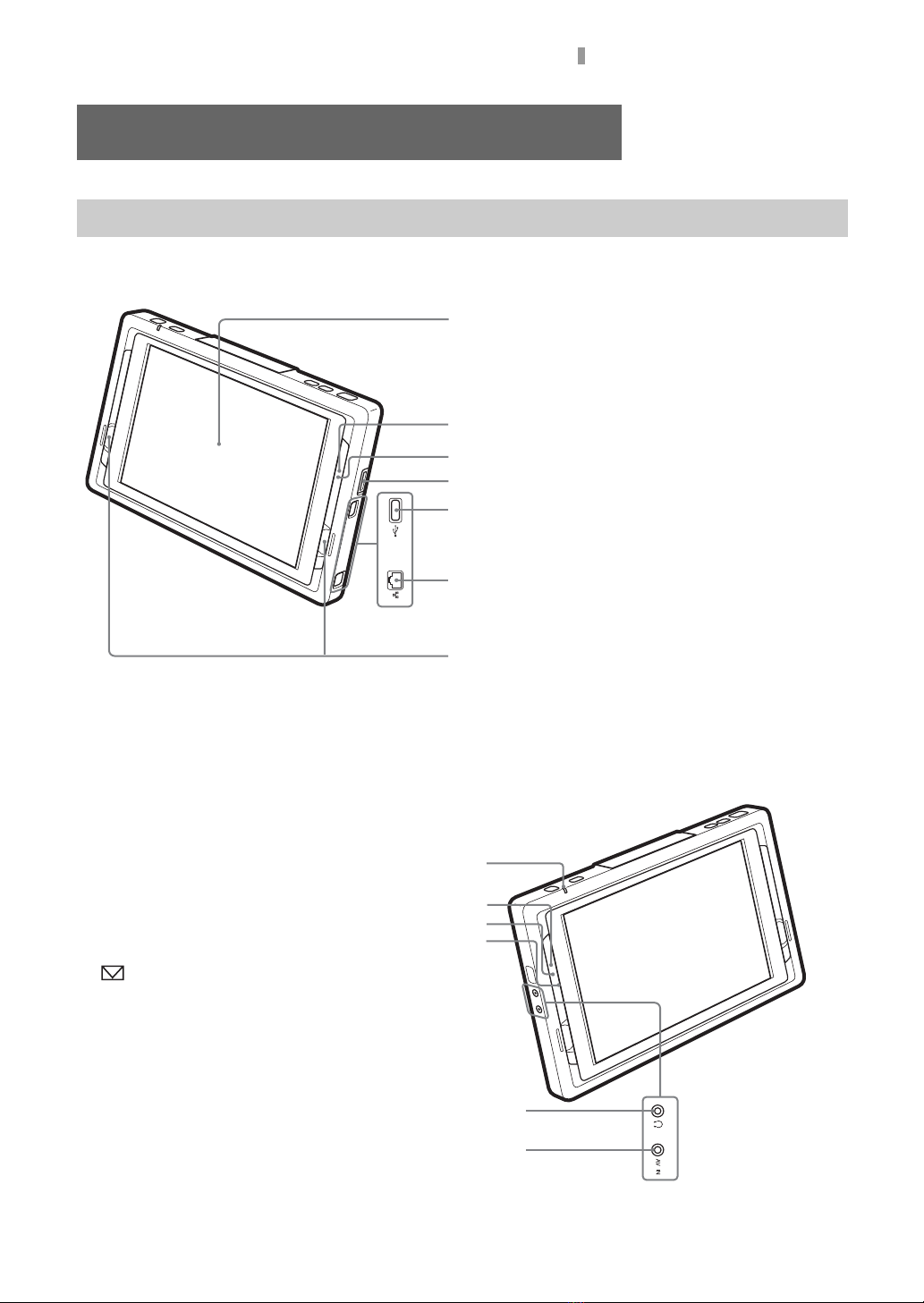

Identifying Parts and Controls
Identifying Parts and Controls
Monitor
1LCD (Liquid Crystal Display)/Touch Panel
2Memory Stick LED (1page 57)
Orange: A Memory Stick is being accessed.
3WIRELESS LED
Indicates the wireless function status.
Blue: Connected with the wireless network on the
5 GHz channel.
Green: Connected with the wireless network on
the 2.4 GHz channel.
Turns blue or green momentarily, then turns off for
3 seconds:
Wireless communications are enabled, but the
LocationFree TV is not communicating with the
Base Station or a wireless LAN access point (it is
emitting a wireless signal).
Off: Monitor’s wireless emission is disabled.
4Memory Stick slot (1page 57)
Insert a Memory Stick.
5USB port
Connect a USB keyboard (not supplied).
6LAN port (1page 19)
Connect a LAN cable (not supplied).
7Speakers
8POWER LED (1page 21)
Green: The power is on.
Red flashing: A malfunction has occurred.
9eBattery charge LED (1page 22)
Red: The battery is charging.
Off: Battery charging has finished.
0New mail LED
Red : New mail has arrived.
Disabled when the Mail window is open.
qaIR receiver for Learning Remote
qsiHeadphone jack (stereo mini)
qdAV IN jack
Use an AV mini cable (VMC-N320TP or
VMC-N120TT, not supplied) to connect a digital
video camera or other AV device.
4
5
2
3
6
7
1
Front and right sides
Left side
qs
qa
0
9
8
qd

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB04C00-WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
12
qf POWER button (1page 21)
Turns the Monitor power on and off.
qg CAPTURE button (1page 35)
Saves the currently displayed image in the
album.
qh VOLUME +/– buttons (1page 31)
Adjusts the speaker volume.
qj INDEX button (1page 27)
Displays the [Index] window.
qk Stylus/stylus compartment
ql Monitor handle (1page 23)
Pull out the handle when carrying the Monitor.
w; Monitor stand (1page 23)
wa Battery (1page 20)
ws DC IN jack (1page 21)
Connect the Monitor AC power adapter
(supplied).
q
f
q
g
q
j
q
k
q
h
Top
q
l
w
;
w
a
w
s
Rear

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB04C00-WW.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
13
Identifying Parts and Controls

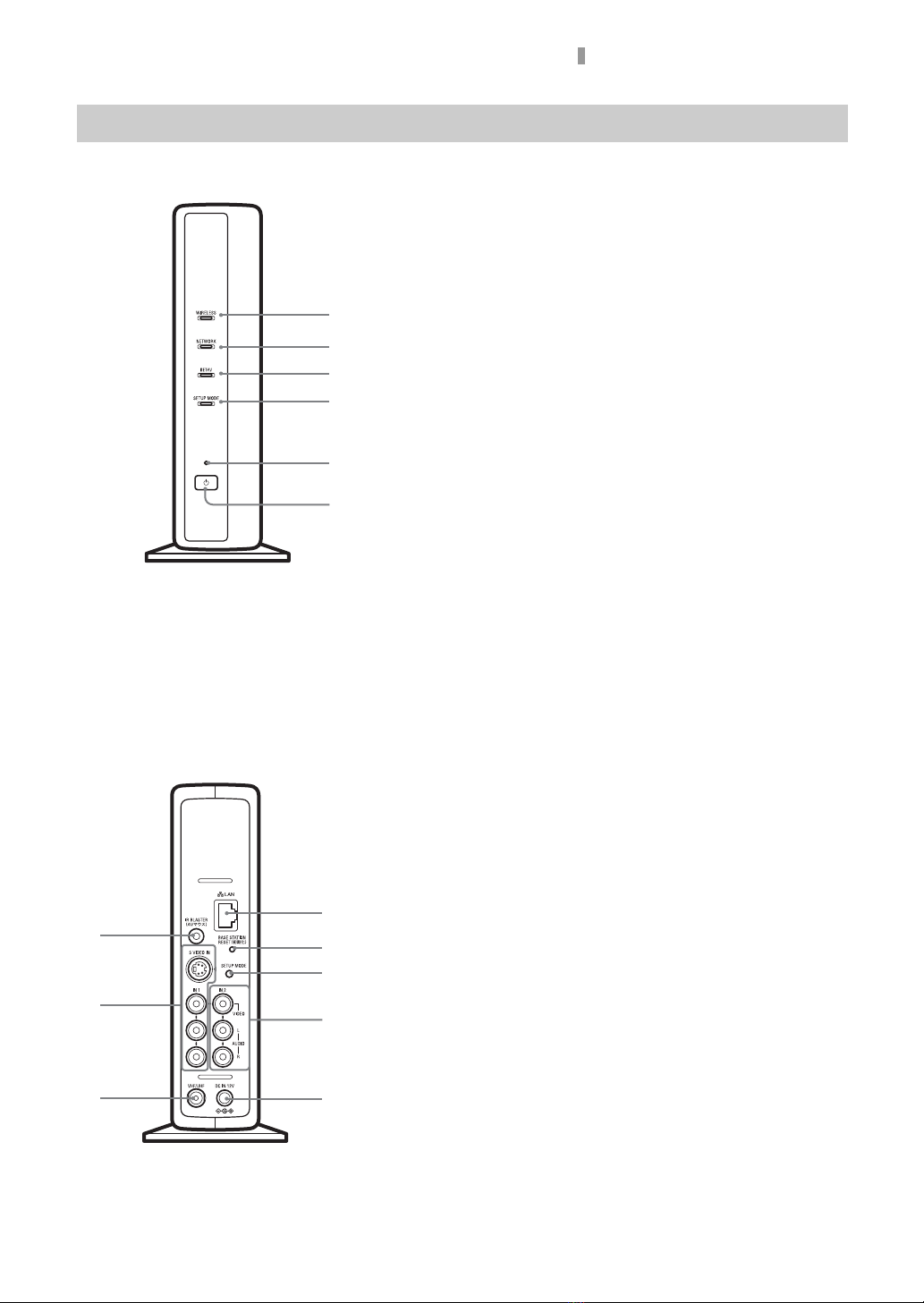

Base Station
1WIRELESS LED
Indicates the wireless function status.
Blue: Connected with the Monitor on the 5 GHz channel.
Green: Connected with the Monitor on the 2.4 GHz channel.
Turns blue or green momentarily, then turns off for 3 seconds:
Wireless communications are enabled, but wireless
communication with the Monitor is not taking place.
2NETWORK LED
Indicates the connection status to an external network, such as the
Internet.
Green blinking: Attempting to connect.
Green: Connected to the network. The LED blinks quickly when
data is transmitted.
Off: Not connected.
3NETAV LED
Indicates the connection status with the LocationFree device.
Green quick blinking: NetAV authentication has failed.
Green slow blinking: Attempting to connect with NetAV.
Green: Connected with NetAV.
Umber blinking: Updating dynamic DNS.
Umber: Dynamic DNS failure.
Off: Not connected.
Red: The Base Station is being initialized.
4SETUP MODE LED
Umber: The Base Station is in Setup mode.
Umber blinking: Registration of a LocationFree device is available.
5POWER LED (1page 21)
Green: The power is on.
Red blinking: A malfunction has occurred.
6POWER button (1page 21)
Turns the Base Station power on and off.
7LAN port (1page 19)
Connect a LAN cable (not supplied).
8BASE STATION RESET button (1page 81)
Initializes all settings on the Base Station to the factory defaults.
9SETUP MODE button
Press to register the LocationFree devices, or to make the Base
Station settings without the Monitor.
0IN 2 (AUDIO/VIDEO) terminal (1page 16)
Connect audio and video cables.
qaDC IN jack (1page 20)
Connect the AC power adapter (supplied).
qsVHF/UHF jack (1page 15)
Connect an antenna cable (not supplied).
qdIN 1 (S-VIDEO/AUDIO/VIDEO) terminal
( 1 page 16)
Connect audio cables and either a video or S-video cable.
qfIR BLASTER port (1page 17)
Connect the IR Blaster (supplied).
Front
1
2
3
5
4
6
Rear
qa
0
8
9
7
qf
qd
qs

LocationFreeTV
2-655-608-11(1)
14
Preparations

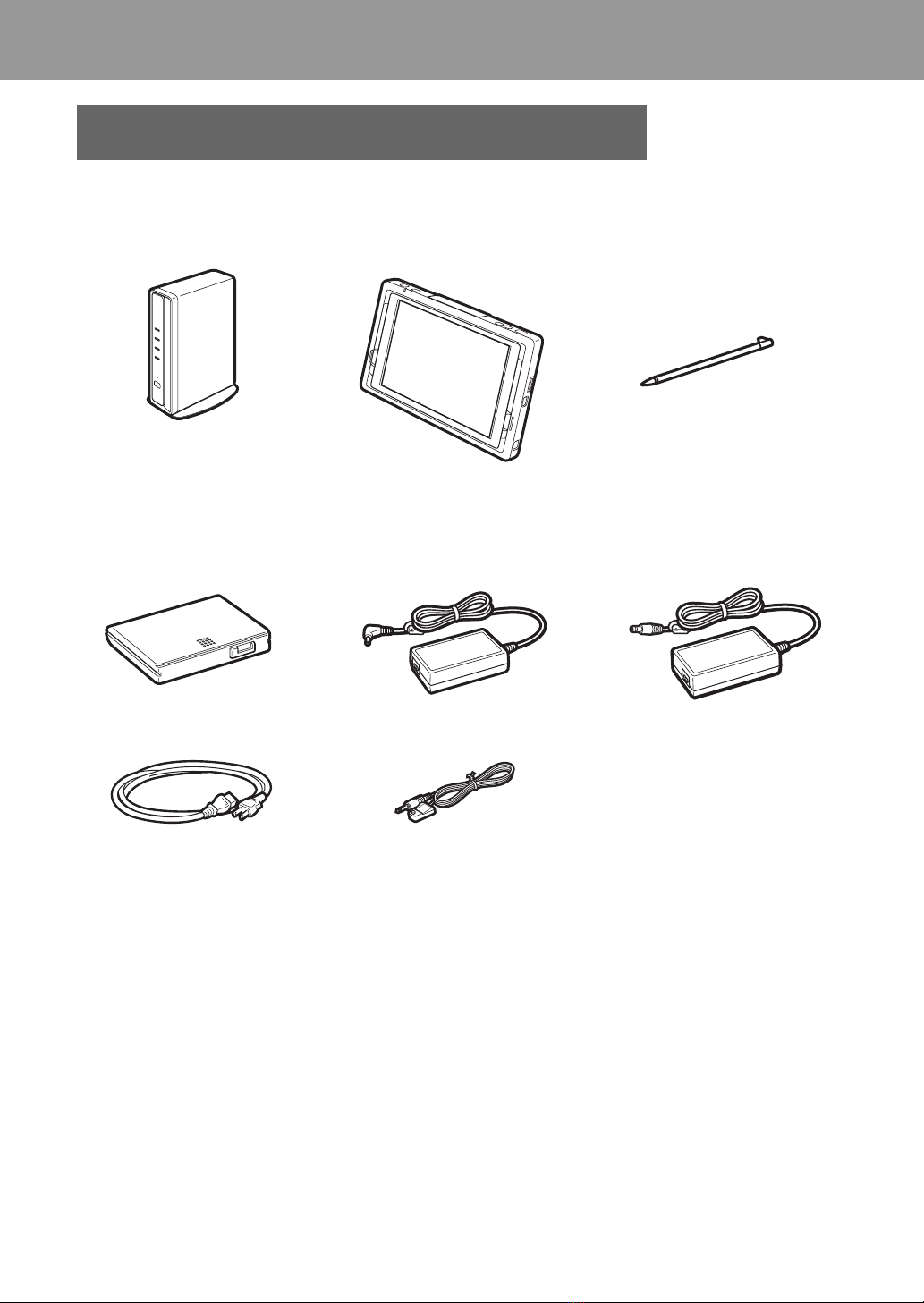

After unpacking, check that all the following items have been included:
* One license key for LocationFree Player is supplied.
Checking the Package Contents
zBase Station (1) zMonitor (1) zStylus (1)
* At the time of purchase, the Base
Station is already mounted on its
stand.
zBP-LX11A battery (1) zAC-LX1B AC power adapter
for the Base Station (1)
z AC-LX1M AC power adapter
for the Monitor (1)
zPower cord (2) zIR Blaster (1)
zOperating instructions (1)
zQuick Start Guide (1)
zLocationFree Player software CD-ROM (LocationFree Player
software*and Operating Instructions) (1)
zImportant Software Notice (1)
zDynamic DNS Terms-of-Use Agreement (1)
zInstructional DVD (1)
zWarranty card (1)

LocationFreeTV
2-655-608-11(1)
Preparations
15
• The SSID, WEP key, and initial password are
on the label affixed to the side of the Base
Station. This information is needed when you
are configuring Base Station settings from a
computer, not from the Monitor, and when you
are establishing a wireless connection from a
LocationFree device to the Base Station while
in Setup mode. When using LFA-PC2, the Base
Station should be installed so that you can
easily see its side.
• The Base Station should be installed at least 10
cm from the wall.
The procedure for connecting to a TV antenna
differs depending on the type of antenna jack.
Some antenna jacks require a separate converter
or splitter (not supplied). For more information,
contact your Sony dealer.
Connecting to a set-top box
There are two different procedures for connecting
a set-top box (STB), depending on whether the
set-top box connects to the antenna cable (not
supplied) or to the video input terminal on the
Base Station.
Connecting to the antenna cable
Connecting to the video input
terminal
See “Connecting Other Devices”. (1page 16)
About Base Station
Installation
Connecting to TV
Signal
Rear of Base Station
Antenna cable (not supplied)
to antenna
Rear of Base Station
Antenna cable
(not supplied)
Antenna cable
(not supplied)
Signal flow
Cable outlet
STB

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB05C01-WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
16
You can connect other devices featuring an A/V output terminal such as a VCR, AV receiver, DVR,
DVD player/ recorder to the Base Station.
Refer also to the operating instructions that came with the connected equipment.
Watching video on a connected
device
Select [Video 1] in the [Index] window. You can
operate the connected device using the on-screen
remote control on the Monitor (1page 27).
z Tip
To operate other devices from the Monitor, you must
connect the supplied IR Blaster. For details, see the
next page.
Note
If you have connected a DVD player to the Base
Station via a VCR, the VCR’s copy guard function
may distort or dim the DVD picture. Connect the DVD
player directly to the video input terminal on the Base
Station.
Connecting Other
Devices
to the S-video and
A/V output jacks
You can also connect to
the IN 2 terminal.
Rear of Base Station
:Audio/video signal flow
S-video and A/V cable
(not supplied)
If your VCR is not equipped with an
S-video jack, use a standard audio/
video cable (e.g., VMC-810S, not
supplied). Antenna cable
(not supplied)
to VHF/UHF
output jack
or

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB05C01-WW.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
Preparations
17
Attach the supplied IR Blaster to the device
connected to the Base Station.
By attaching the IR Blaster, you can control the
connected device with the on-screen remote
control.
To locate the infrared receiver, refer to the
operating instructions for the connected device.
Be sure to place the IR Blaster above the infrared
receiver.
Note
Do not remove the backing paper from the IR Blaster
yet.
After confirming that the remote control works
correctly, remove the backing paper from the rear
side of the IR Blaster and then secure the IR
Blaster in place.
When controlling two devices with the IR
Blaster, position the devices and the IR Blaster as
shown.
Note
For details on setting up a device, refer to the operating
instructions of the device.
If the infrared receivers on two devices do not line
up and cannot be controlled with the single
supplied IR Blaster, you need to purchase a plug
adapter (not supplied) and another IR Blaster.
Connect the plug adapter to the IR BLASTER
port on the Base Station and connect each IR
Blaster to a port on the adapter plug.
See “Configuring the On-Screen Remote”
(1page 67) for information about how to switch
the on-screen remote for two devices to a single
input terminal.
z Tips
• If the IR Blaster cable is too short, use the extension
cable (RK-G138, not supplied).
• Infrared receivers on Sony VCRs and other products
are identified with the symbol.
• You can set up 2 on-screen remote controls for each
video input connector. These on-screen remote
controls allow you to operate 2 devices connected
directly to the Base Station, and to control video
input via those devices.
Connecting the IR Blaster
IR Blaster
Infrared transmitter
Infrared receiver
Backing paper
IR Blaster
Infrared receivers

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB05C01-WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
18
Use a mini AV cable (not supplied: VMC-N320TP,
VMC-N120TT) to connect a digital video camera
directly to the AV IN jack on the left side of the
Monitor.
Connecting a Digital Video
Camera Directly to the
Monitor

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB05C01-WW.fm
masterpage: Right
LocationFreeTV
2-655-608-11(1)
Preparations
19
* To determine the type of your modem, check with your Internet service provider.

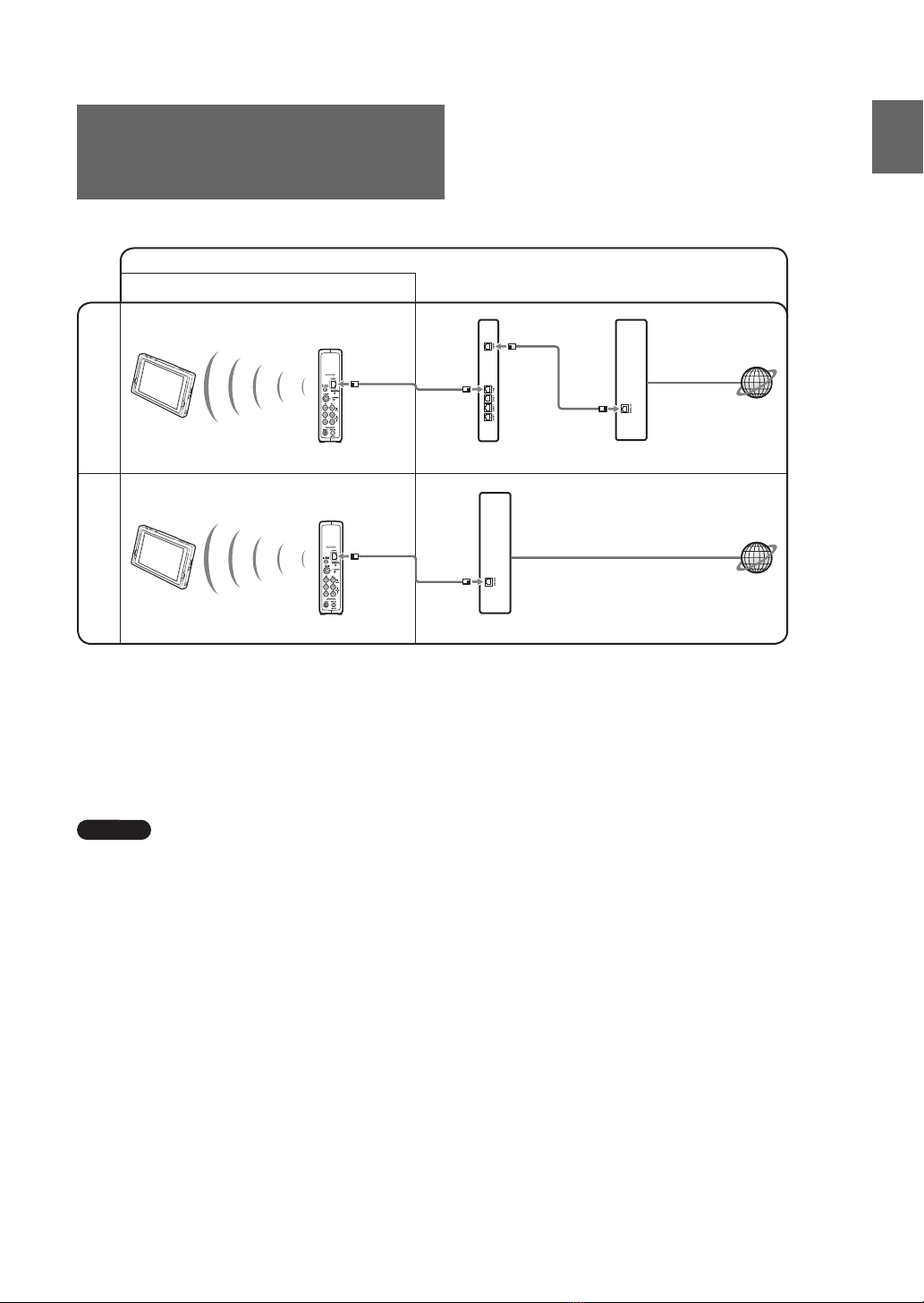

Connecting to the router
Using a LAN cable (not supplied), connect the LAN terminal of the Base Station to your router. The
connection method you should use depends on your ISP and equipment. For more information, contact
your ISP.
Notes
• Depending on your ISP, you may not be able to connect multiple devices, such as the Base Station and several
computers. For more information, contact your ISP.
• To determine what kind of LAN cable (not supplied) you use, refer to the operating instructions for your router,
cable modem, or DSL modem.
• For details on setting up the connection, refer to the operating instructions for your router, cable modem, or DSL
modem. If you have any questions, contact your ISP.
• Further information about configurations is also available on the following website.
LocationFree TV FAQ pages:
http://www.sony.com/locationfree/faq/
Connecting to the
Internet
Connect to watch TV at home Connect to watch TV away from home
Modem without
router function Modem with
internal router
Base station
to LAN
port
Base station
to LAN
port
DSL or
cable modem
Router
to Internet
DSL or cable modem with
internal router
to Internet

F:\M_K\SONY\5051480_LF-
X11_OI\2655608111\2655608111\2655608111_LF-X11\00GB05C01-WW.fm
masterpage: Left
LocationFreeTV
2-655-608-11(1)
20

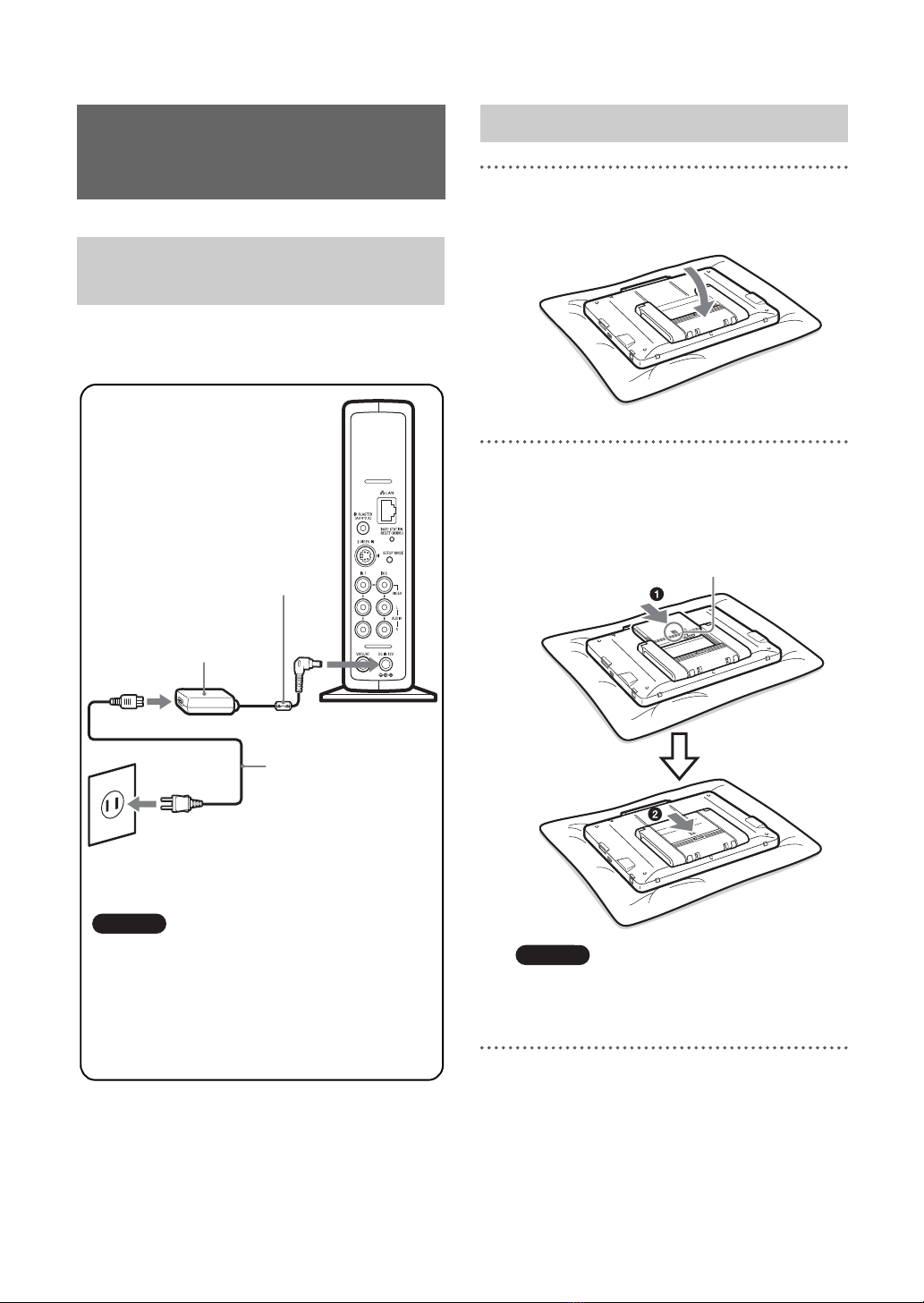

Connect the power cord when you finish making
all other connections.
1 Place the Monitor on a soft cloth with the
LCD screen face down.
2 From the top of the compartment (1), slide
the battery in as far as it will go (2). Keep
the Monitor stand closed when inserting the
battery.
Notes
• Insert the battery so that the side with the
symbol faces upward.
• Insert the battery until you hear it click.
Turning On the
Power
Connecting the Power Cord to
the Base Station
Note
• Use only the supplied AC power adapter (AC-
LX1B).
• Do not bundle the Base Station AC power
adapter cord and the antenna cable (not supplied)
together. Doing so may interfere with your
television reception.
Connect the power cord to the Base
Station AC power adapter (AC-LX1B),
and the AC power adapter to the DC IN
jack on the Base Station, then plug the
power cord into a wall outlet.
Base Station rear panel
Wall outlet Power cord (supplied)
AC-LX1B AC power
adapter (supplied).
To DC IN
Ferrite core
Do not remove the
ferrite core.
Inserting the Battery
Symbol
