Farmtrac Ft 6050 cross User manual

NOTE TO THE OWNER

Thank you for purchasing your new Farmtrac tractor. :

This Manual has been prepared to assist you in the correct procedure for running-in, driving and operating your

new tractor and to assist you in the correct method of maintenance to keep it in peak condition.

Your tractor has been designed and built to give maximum performance, economy and ease of operation under a

wide variety of operating conditions. Prior to delivery, the tractor was carefully inspected, both at the factory and

by your Authorized Dealer to ensure that it reaches you in optimum condition. To maintain this condition and

ensure trouble-free operation, it is important that the routine services, as specified in this manual, are carried out

at the recommended intervals.

The precautions to be observed to ensure your safety and the safety of others. Read the safety precautions and

follow the advice offered before operating the tractor.

The vehicle reference serial number are also recorded on the pre-delivery inspection sheet that was provided to

you by your Authorized Dealer and should be quoted to the Dealer should the tractor require service.

Read this Manual carefully and keep it at a convenient place for future reference. This manual must be considered

as an integral part of your tractor. If at any time you require service or advice concerning your tractor, do not

hesitate to contact your Authorized Dealer. He has trained personnel, genuine parts and the necessary

equipment to carry out all your service requirements.

Following these introductory pages, this manual is split into four sections. Section A describes the controls and

instruments and advises the correct method of operating your new tractor. Section B details lubrication and

maintenance procedures and includes a comprehensive service chart. Section C outlines the specifications of

your tractor.

Escorts Limited has a Company policy of continuous improvement and development. Designs, materials and

specifications are subject to change without notice and without any liability whatsoever.

All data given in this book is subject to production variations. Dimensions and weights are approximate only and

the illustrations do not necessarily show tractor in standard condition. Some of the equipment/accessories

described in the text may also not be fitted on your tractor. For exact information about any particular tractor,

please consult your Authorized Dealer.

E-mail - [email protected]

NOTE : The Operator Manual is in accordance with standard ISO 3600 : 1996.

----------------------- To Users -----------------------

Escorts appreciates your selection of FT 6050 CROSS tractor for your

application.

No one should operate the tractor unless they read and understand the

information in this manual.

This manual contains the instructions and data on the safety and operation

of the tractor. Follow the operation procedures to make sure that your tractor

operates at MAXIMUM EFFICIENCY. The operator must keep this manual

in the cab of the tractor.

If there is anything in the manual that is not clear or you do not understand,

please contact our service technician. We (Escorts) are NOT responsible

for damages from / to any operator's actions who operates the tractor.

The OPERATOR'S MANUAL is an important part of the tractor and shall be

read and followed by every person operating the tractor.

The data (data, specifications, illustrations) in this manual is for tractor in

production at the time of this manuals publication. We reserve the right to

make changes to this manual at any time, without obligation.

Thank you!

Escorts Limited

CONTENTS

Page

Owner’s Address and Tractor Identification 1

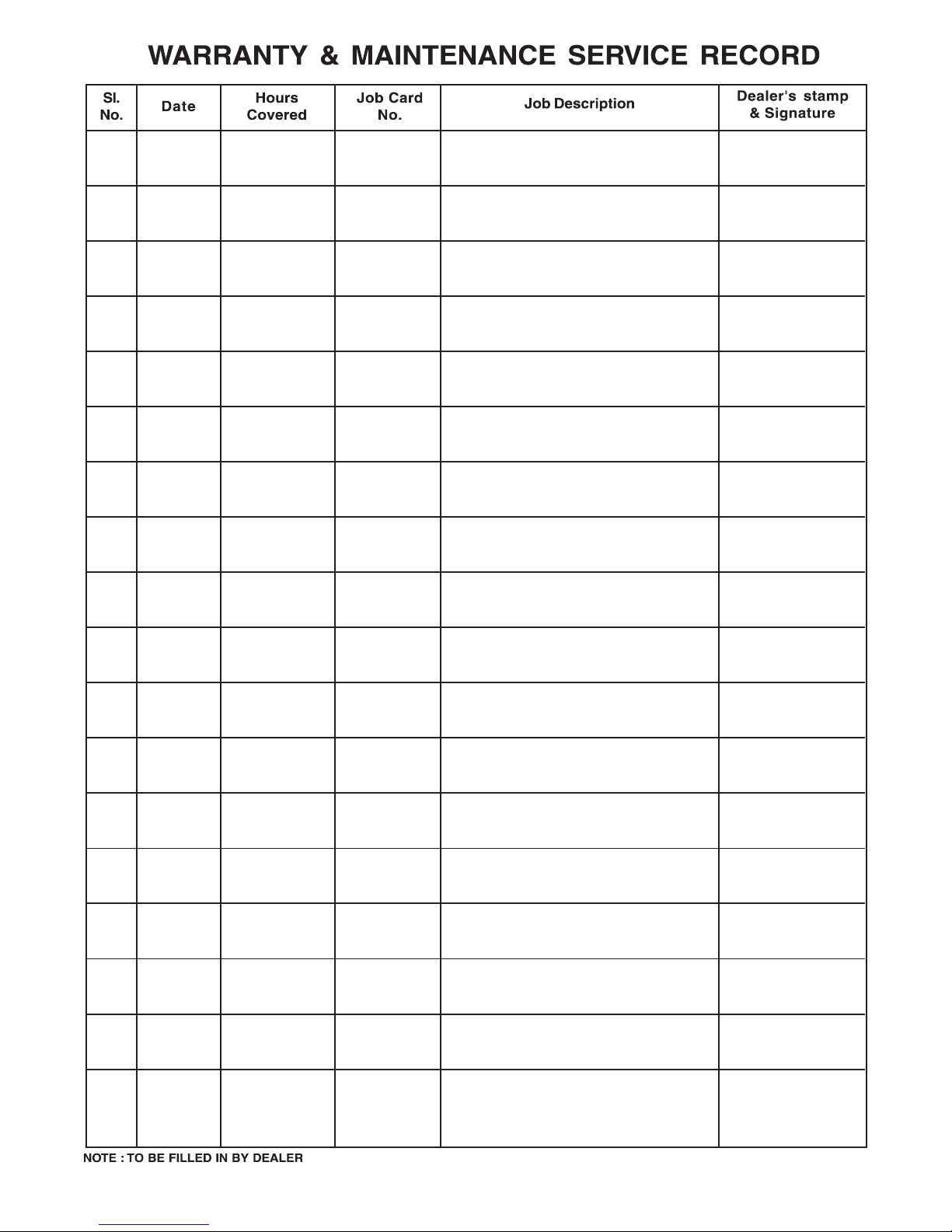

Warranty & Maintenance Service Record 8

Universal Symbols 11

Safety Instructions

Safety Precautions 12

Safety SYMBOLS 16-17

Safety Decals 18

How to get top performance from tractor 22

SECTION A CONTROLS, INSTRUMENTS AND OPERATION

Operator’s Seat 2

Seat Belt, Safety Frame Or Roll Bar 2

Control Levers 3

Instruments and Controls 4

Starting the Engine 6

Stopping the Engine 7

Tractor Parking 8

Foot Controls 8

Battery Isolator 9

Clutch Safety Switch 9

Transmission 10

Running in Procedure 10

Power Take Off (PTO) 11

Hearing Protection 12

Hydraulic System 14

Auxiliary Spool Valve 16

Three Point Linkage 17

Front Wheel Track Adjustment 20

Toe In Measurement 20

Rear Wheel Track Adjustment 21

Tractor Weighting 22

Liquid Ballasting 23

Tire Inflation 24

Hydraulic Trailer Brake 25

SECTION B LUBRICATION AND MAINTENANCE

Lubricant and Maintenance Chart 2

Routine Servicing 5

General Maintenance 19

Trouble Shooting 24

Tips on fuel Saving 27

SECTION C SPECIFICATIONS

(DEALERS'S STAMP)

2

Customer Name

Address

Zip Code

Phone No.

Mobile No.

Date of Birth

:...................................................

Model

Tractor Sr. No.

Engine No.

Chassis No.

Battery Sr. No.

Date of Delivery

Dealer Code

Dealer Name

Dealer Address

:.....................................................

Customer Name

Address

Zip Code

Phone No.

Mobile No.

Date of Birth

:...................................................

Model

Tractor Sr. No.

Engine No.

Chassis No.

Battery Sr. No.

Battery Make

FIP Sr. No.

FIP Make

Alternator No.

Alternator Make

Front Tyre No. LH

/Make RH

Rear Tyre No. LH

/ Make RH

:......................................................

:...................................................

:................................................

3

4

5

Customer Name

Address

Zip Code

Phone No.

Mobile No.

Date of Birth

:...................................................

Model

Tractor Sr. No.

Engine No.

Chassis No.

Battery Sr. No.

Date of Delivery

Dealer Code

Dealer Name

Dealer Address

:.....................................................

Customer Name

Address

Zip Code

Phone No.

Mobile No.

Date of Birth

:...................................................

Model

Tractor Sr. No.

Engine No.

Chassis No.

Battery Sr. No.

Battery Make

FIP Sr. No.

FIP Make

Alternator No.

Alternator Make

Front Tyre No. LH

/Make RH

Rear Tyre No. LH

/ Make RH

:......................................................

:...................................................

:................................................

6

Customer Name

Address

Zip Code

Phone No.

Mobile No.

Date of Birth

:...................................................

Model

Tractor Sr. No.

Engine No.

Chassis No.

Battery Sr. No.

Date of Delivery

Dealer Code

Dealer Name

Dealer Address

:.....................................................

Customer Name

Address

Zip Code

Phone No.

Mobile No.

Date of Birth

:...................................................

Model

Tractor Sr. No.

Engine No.

Chassis No.

Battery Sr. No.

Battery Make

FIP Sr. No.

FIP Make

Alternator No.

Alternator Make

Front Tyre No. LH

/Make RH

Rear Tyre No. LH

/ Make RH

:......................................................

:...................................................

:................................................

7

8

9

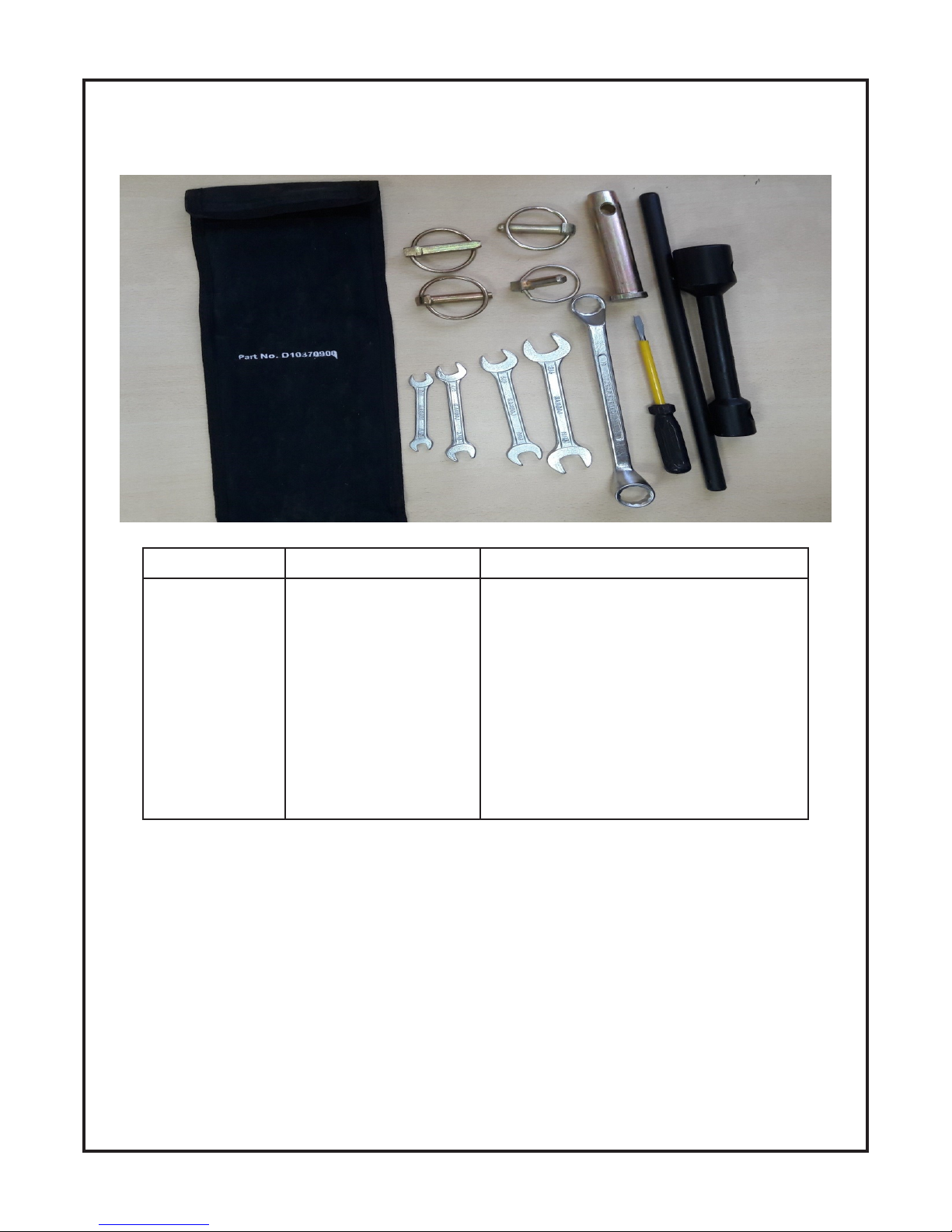

Tool Kit applicable in Farmtrac Model

Tool Kit (2WD) D10370900

Sr. No.

1

2

3

4

5

6

7

8

9

10

Description Rang of Spanner

D-Ended Spanner 3/8 - 5/16

D-Ended Spanner 1/2 - 7/16

D-Ended Spanner 5/8 - 9/16

D-Ended Spanner 3/4 - 11/16

Ring Spanner 19 - 21

Wheel Spanner 21 - 30

Wheel spanner rod 1

Screw driver 1

Linch Pin 4

Top Link pin 1

10

As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments,

controls, switches and fuse box. The symbols are shown below with an indication of their meaning

UNIVERSAL SYMBOLS

11

Parking Brake

4 Wheel Drive

A careful operator is the best operator. Most accidents can be avoided by observing certain precautions to

prevent the possibility of injury or damage. The following precautions should be taken to help prevent accidents.

Read them carefully before operating your new Farmtrac tractor.

THE TRACTOR

OPERATING THE TRACTOR

1.

2.

3.

4.

Ensure that an implement coupled to the three-

point linkage does not contact any part of the cab,

if cab is provided.

Never leave equipment in the raised position.

If the engine or power steering ceases operating,

stop the tractor immediately.

Always engage 'Position Control' when attaching

equipment, transporting equipment and when no

equipment is attached. Be sure hydraulic couplers

are properly mounted and will disconnect safely in

case of accidental detachment of the implement.

Ensure any attached equipment or accessories

are correctly installed, are approved for use with

the tractor, do not overload the tractor and are

operated and maintained in accordance with the

instructions issued by the equipment or accessory

manufacturer.

Remember that your tractor, if abused or

incorrectly used, can be dangerous and become a

hazard both to the operator and to bystanders. Do

not overload or operate with attached equipment

which is unsafe, not designed for a particular task

or is poorly maintained.

WARNING: Hearing protection must be worn

when operating this tractor if a safety cab is not

fitted.

Always drive the tractor with care and at speeds

compatible with safety, especially when operating

over rough ground, crossing ditches or slopes or

turning to avoid overturning the tractor.

DRIVING THE TRACTOR

Never allow the tractor to over-run when going

downhill, particularly with trailed equipment attached.

Keep the tractor in One same gear when going downhill

as used when going uphill. Do not coast or free-wheel

down hills. Use extreme caution while operating on

steep slopes and use a low gear to maintain control

with minimum braking.

Lock the foot brakes pedals together when travelling

on the highway.

When operating in the field unlock the brake pedals.

1.

2.

3.

4.

11.

12.

13.

14.

15.

16

Read this Manual carefully and familiarize yourself

with all the controls before attempting to operate

the tractor. Working with unfamiliar equipment or

lack of operating knowledge may lead to accident.

Do not permit anyone to ride on the tractor with the

operator.

Use the foot steps and assist handles when getting

on or off the tractor. It is recommended that you face

the tractor when mounting or dismounting. Keep

steps and platform clear of mud and debris.

Replace any warning sign on the tractor that

becomes damaged or is painted over. Replace all

missing, illegible or damaged safety decals.

1. Never start the engine while standing beside the

tractor. Always sit in the tractor seat, fasten seat

belt and ensure that the Roll Over Protective

Structure (ROPS) is in place before starting the

engine.

2. Apply the parking brake, place the P.T.O. lever in

the "OFF" position, set the control levers in the

down position, the remote control valve levers in

the neutral position and the transmission in neutral

before starting the tractor.

3. Do not bypass the safety starter switch. Consult

your Authorized Dealer if your safety starter

controls are not operating correctly.

4. Stop the engine, disconnect P.T.O. and apply the

parking brake before dismounting.

5. Do not engage the parking brake while the tractor

is in motion.

6. Never get off the tractor while it is in motion.

7. Never park the tractor on a steep incline.

8. To provide maximum lateral stability, add liquid

ballast to tires, use cast iron wheel weights and set

front and rear wheels to maximum tread width

commensurate with the op eratio n being

performed.

9. Do not tie ropes, chains, or cables to the axle or

other parts of the chassis. Always hitch the load to

the tractor's drawbar in the lowest possible

position, except when pulling implements

specifically designed for and properly attached to

the three point hitch.

10. Do not operate the tractor with a light front end. If

the front tends to rise with heavy implements at the

rear, install front end or front wheel weights.

SAFETY PRECAUTIONS

!

SAFETY INSTRUCTIONS

12

CAUTION : Your Farmtrac tractor is not

equipped with a Spark Arrestor. Where there is a

risk of fire to the crop or environs or local

legislation so requires, a suitable Spark Arrestor

must be installed.

5. Reduce speed before turning or applying the brakes.

Brake both the wheels simultaneously when making

an emergency stop.

6. Do not engage the differential lock when turning the

tractor. When engaged, the lock will prevent the

tractor ta k ing the t u r n an d ma y re su l t in

overturning of the tractor.

7. If the tractor drive wheels are stuck, shift to reverse

gear and back out, to prevent from lifting the front

wheels off the round and possibly rolling the tractor

over backwards.

8. Slow moving vehicles on highways are dangerous.

Use a slow moving (SMV) sign in conjunction with red

lights, tail lights, and flashing warning lights.

9. Use extreme caution and avoid hard application of

the tractor brakes when towing heavy loads. Any

towed vehicle whose total weight exceeds that of the

tractor must be equipped with brakes for safe

operation.

10. Watch where you are going especially at row ends,

on roads, around trees and any low hanging

obstacle.

11. Dip the tractor lights when meeting a vehicle at night.

Ensure the lights are adjusted to avoid blinding the

driver of an on coming vehicle (applicable only twin

beam Head lamps are fitted.

12. Always check overhead clearance, especially when

working in confined spaces.

13. Engage the clutch slowly when driving out of a ditch,

gully or up a steep hillside. Disengage the clutch

promptly if the front wheels rise off the ground.

BOARDING AND LEAVING THE TRACTOR

1. Never try to get on or off a moving tractor or jump

off the tractor to exit.

2. Face the tractor when getting into or out the tractor.

Do not use the controls as hand holds to prevent

inadvertent machine movements.

3. Always keep steps and floor clean to avoid slippery

conditions.

OPERATING THE P.T.O.

1. Ensure the P.T.O. guard is always installed and put

the P.T.O. shaft cap when the P.T.O. is not being

used,

2. Shut off the engine and wait for the P, T.O. shaft to

stop turning before getting off the tractor to

connect or disconnect P.T.O. driven equipment.

3 Apply the parking brake and block the rear wheels,

front and rear, when operating stationary P.T.O.

driven equipment.

4. To avoid injury never clean, unclog, adjust or

service P.T.O. driven equipment while the tractor

engine is running.

5. Never wear loose clothing when operating the

P.T.O. or when near equipment that is rotating.

SERVICING THE TRACTOR

Keep the tractor and equipment, particularly

brakes and steering, maintained in a reliable and

satisfactory condition to ensure your safety and

comply with legal requirements.

Stop the engine and disconnect battery terminals

before performing any service on the tractor.

To prevent fire or explosion, keep open flames

away from the battery. To prevent sparks which

could cause explosion, use jumper cables

according to instructions.

The fuel oil in the injection system and fluid in the

hydraulic system are under high pressure and can

penetrate the skin. Unqualified and unauthorized

persons should not remove or attempt to adjust a

pump, injector, nozzle orany other part of the fuel

injection system. This also may be unlawful under

certain circumstances. Failure to follow these

instructions can result in serious injury.

Use your hand to check for leaks. Use a piece

of cardboard or paper to search for leaks.

The cooling system operates under pressure

which is controlled by the radiator cap. It is

dangerous to remove the cap while the system is

hot. Allow the engine to cool, then turn the cap

slowly to the first stop and allow the pressure to

escape before removing the cap entirely.

Continuous long term contact with used engine oil

may cause damage to skin. Avoid prolonged

contact with used engine oil. Wash skin promptly

with soap and water

Some components on your tractor, such as

gaskets and friction surfaces (brake linings, clutch

linings, etc.), may contain asbestos. Breathing

asbestos dust is dangerous to your health. You

are, therefore, advised to have any

DO NOT

1.

2.

3.

4.

5

6.

7.

8.

SAFETY INSTRUCTIONS

13

6. Before operating implements, study the implement

manufacturer's handbook. Certain implements

require special operating techniques

DO’S

Stop the engine and relieve pressure before

connecting or disconnecting hydraulic or fuel

lines.

Tighten all connections before starting the

engine or pressurising lines.

If fluid is injected into the skin obtain medical

attention immediately or gangrene may result.

main ten anc e or repair opera tio n s on such

components carried out by an Authorised Dealer. If,

however, service operations are to be undertaken on

parts that contain asbestos, the following essential

precautions must be observed

Ÿ Work out of doors or in a well ventilated area

Ÿ Dust found on the tractor or produced during work on

the tractor should be removed by extraction and not by

blowing.

Ÿ Dust waste should be dampened, placed in a sealed

container and marked to ensure safe disposal.

Ÿ If any cutting, drilling etc., is attempted on materials

containing asbestos, the item should be dampened

and only hand tools or low speed power tools used.

9. Do not run the tractor engine in a closed building

without adequate ventilation as exhaust fumes may

suffocate you.

10. Do not modify or alter or permit anyone else to modify

or alter the tractor or any of its components or any

tractor function without first consulting your

Authorised Dealer.

11. Tractor wheels are heavy. Handle them with care and

ensure that, when stored, they cannot topple and

cause injury.

DIESEL FUEL

1. Under no circumstances should gasoline, alcohol or

blended fuels be added to diesel fuel. These

combinations can create an increased fire or

explosive hazard. In a closed container, such as a fuel

tank, these blends are more explosive than pure

gasoline Do not use blended mixture.

2. Never remove the fuel cap or refuel with the engine

running or hot.

3. Do not smoke or allow an open flame near the fuel

tank or while refueling the tractor Wait for the engine to

cool before refueling.

4. Maintain control on the fuel filler pipe nozzle when

filling the tank.

5. Do not fill the fuel tank to capacity. Allow room for

expansion.

6. Wipe up spilled fuel immediately.

7. Always tighten the fuel tank cap securely.

8. If the original fuel tank cap is lost, replace it with an

approved cap. A non-approved cap may not be

safe.

9. Keep equipment clean and properly maintained.

10. Do not drive equipment near open fire.

11. Never use fuel for cleaning purpose.

12. Use diesel fuel with a minimum cetane rating of 40

(Diesel fuel no. 2) at ambient temperatures above -

70°C(20°F) or Diesel fuel no. 1 below this

temperature. At very low ambient temperatures and/or

at high attitude, a fuel with a higher cetane rating is

required.

13. Diesel fuel with a sulphur content above 1.3% is not

recommended.

14. Precaution should be taken to ensure that stored

fuel is kept free of dirt, water, etc.

15. Fuel should be stored in black iron tanks, not

galvanised tanks, as the galvanised coating will

react with the fuel and form compounds that will

contaminate the injection pump and injectors.

16. Bulk storage tanks should be installed away from

direct sunlight and angled slightly so that the

outlet pipe is at the higher end. In this way

sediment in the tank will settle away from the

outlet pipe.

17. To facilitate moisture and sediment removal a

drain plug should be provided at the lowest point

(at the opposite end to the outlet pipe). If there is

no filter on the outlet pipe, then a funnel with a

fine mesh screen should be used when filling the

tractor fuel tank.

18. Fuel purchases should be arranged so that

summer grade fuels are not held over and used in

winter and vice-versa.

19. Refill the fuel tank via filler tube which is on the

rear left-hand side of the hood.

CAUTION : The fuel oil in the injection system is

pressurized and can penetrate human skin with fatal

results. Adjustment of fuel injection equipment should

not be carried out by unqualified person.

SAFETY FRAME OR ROLL BAR

Your tractor may be equipped with a safety frame or

roll bar which must be maintained in a serviceable

condition. Be careful when driving through doorways

or working in confined spaces with low headroom.

Under no circumstances :

I) Modify, drill, weld or alter the safety frame or roll

bar in any way. Doing so could render you liable

to legal prosecution in some countries.

ii) Attempt to straighten or weld any part of the

safety frame, roll bar or retaining brackets which

have suffered damage. By doing so you may

weaken the structure and endanger your safety.

iii) Secure any parts on the safety frame or roll bar

or attach if with other than the special high

tensile bolts and nuts specified.

iv) Attach chains or ropes to the safety frame or roll

bar for pulling purpose.

v) Take unnecessary risks even though your safety

frame or roll bar affords protection possible.

SAFETY INSTRUCTIONS

14

!

Safety rules - Explosions and fires

Fire and explosion prevention

Fuel or oil leaks, or spills on hot surfaces or electrical

components can cause a fire.

Crop material, dead branches, debris, bird nests or

flammable material can ignite on hot surfaces.

Remove dead branches and debris from the machine at

least once a day and in any case at the end of the working

day, especially in the areas surrounding the hot

components such as the engine, transmission, exhaust,

battery, etc. Depending on the working conditions and

environment, more frequent cleaning may be needed.

Safety rules - Battery

General safety rules for the battery

Always wear eye protection when working on the batteries.

Do not create sparks or have open flame near the battery.

Ventilate when charging or using in enclosed area.

The negative terminal (-) must be disconnected first and

reconnected last.

When welding on the machine, disconnect both battery

terminals.

Do not weld, grind or smoke near a battery.

To start the engine with auxiliary batteries or jumper wires,

follow the steps outlined in the instruction manual. Do not

short across terminals.

When storing and handling the batteries, keep to the

manufacturer's instructions.

Battery posts, terminals and related accessories contain

lead or lead compounds. Wash your hands after

maintenance Keep out of reach of children and other

unauthorized persons.

Battery acid causes burns. Batteries contain sulfuric

acid.

Avoid contact with skin, eyes, or clothing.

Antidote (in case of external contact):

• rinse with water.

Antidotes (eyes):

• Flush with water for 15 minutes.

• Consult a doctor promptly.

Antidote (if swallowed)

• Drink large quantities of water or milk.

• Do not induce vomiting.

• Seek medical attention immediately.

SAFETY INSTRUCTIONS

15

! !

SAFETY FIRST

This symbol, the industry’ s”Safety Alert Symbol” is used throughout this manual and on labels on the

machine itself to warn of the possibility of personal injury of personal injury. Read these instructions

carefully.

It is essential that you read instructions and safety regulations before you attempt to repair or use this unit.

16

DANGER

: Indicates an imminently hazardous situation which, if not avoided, will result in death

or serious injury.

!

WARNING

: Indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

!

CAUTION

: Indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injury.

!

IMPORTANT

: Indicates that equipment or property damage could result if instruction are not

followed.

NOTE : Gives helpful information.

!

SAFETY INSTRUCTIONS

SAFETY SYMBOLS

CARE OF DANGER, WARNING AND CAUTION LABELS

1. Keep Danger, Warning and caution labels clean and free from obstructing material.

2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth.

3. Replace damaged or missing danger, warning and caution labels with new labels from your

local FARMTRAC Dealer.

4. If a component fixed with danger, warning and caution labels is replaced with new part, make

sure new labels are attached in the same location as the replaced component.

5. Mount new danger, warning and caution label by applying on a clean dry surface and

pressing any bubbles to outside edge.

17

SAFETY INSTRUCTIONS

CARE OF DANGER, WARNING AND CAUTION LABELS

18

SAFETY INSTRUCTIONS

(1) Part No.: D10510110

CAUTION

Engine oil

1. Before operating tractor, check the flow meter, if the amount of

oil is insufficient, please refill the oil.

2. Do not mix a different kind of oil.

check a classification and manufacture.

Coolant

1. Check the amount of coolant in the supplement tank. if the coolant

is insufficient. refill the coolant as followed.

Refill the coolant through the inlet of the supplement tank only.

Open the cap of the supplement tank and refill the water below the

full line.

2. In winter, please use antifreezing solution.

3. If not using an anti freezing solution, please drain the water after

finishing the work.

Fuel Filter

1. RemoveWater in the transparent bowl cup promptly.

2. Please wash element every 100 hours with diesel.

3. Please change the bowl cup in case that the bowl cup has holes or

transformed.

Air Cleaner

1. Clean the air cleaner before operating.

2. Clean or change every 100-200 hrs.

Pull out the Air from fuel

1. Please refer to the operators manual.

CAUTION

!

(2) Part No.: D10510140

(3) Part No.: D10510160

Farmtrac FT 6050 CROSS User manual

Popular Tractor manuals by other brands
