Fas-Trak Ultra-Trak 5017 User manual

5-IN-1 PRESSURIZED FLOORING APPLICATOR
MODEL 5017
ULTRA-TRAK
USER MANUAL
OPERATING & CLEANING INSTRUCTIONS

CONGRATULATIONS ON
YOUR NEW ULTRA-TRAK
We had you in mind when we developed this applicator.
Through a mix state-of-the-art technology and common-sense engineering
we designed the most time efficient and easy to use 5-In-1 applicator ever.
Our proprietary patented technology is industry proven
and solves the two biggest challenges floor care specialists face:
labor savings and superior results.
The Ultra-Trak can be used on
tile, terrazzo, concrete, gym floors and all hard floor surfaces.
MAXIMIZE
FINISH QUALITY
MINIMIZE
COSTS
MAXIMIZE
EFFICIENCY
FULL SUPPORT
CONTACT US
1-708-570-0650
[e-mail]
WWW.FASTRAKIND.COM

FRIENDLY ADVICE
Clean the unit after each shift - it only takes a minute.
Stay away from the baseboards/corners; people don’t walk there!
Switch the unit “OFF” about 10 feet before making a turn. Then make the turn
and switch unit back “ON”.
You can always turn the unit “OFF” and do unusual areas, as there is plenty of
chemical on the pad.
If the unit begins to streak or starve for lack of chemical STOP and check the
suction hose. Chances are, debris here is the cause of the issue.
Always have a full container ready to go! Check your factory container of
chemical on the unit occasionally so you don’t run out during your work.
EASY TIPS
TIPS FOR GETTING
THE BEST RESULTS
A
B
C
D
E
F
ULTRA-TRAK TECH LINE
GENERAL ENQUIRIES
EMAIL US
OUR WEBSITE
WE ARE HERE TO HELP
1 708 570 0650
1 800 840 3162
[e-mail]
www.fas-trakind.com
PERSONAL ONLINE
TRAINING SESSIONS
WITH MARK
Schedule a personal Facetime
Training Session with Mark by
calling 708 250 5465.
CONTACT US

1PREPARATION
Ensure the batteries are fully charged.
Use a paperclip to check the manifold is clear before each use.
Presoak applicator pad with desired coating product and hand wring.
1.0 - GETTING STARTED
2ATTACH
HEAD ASSEMBLY

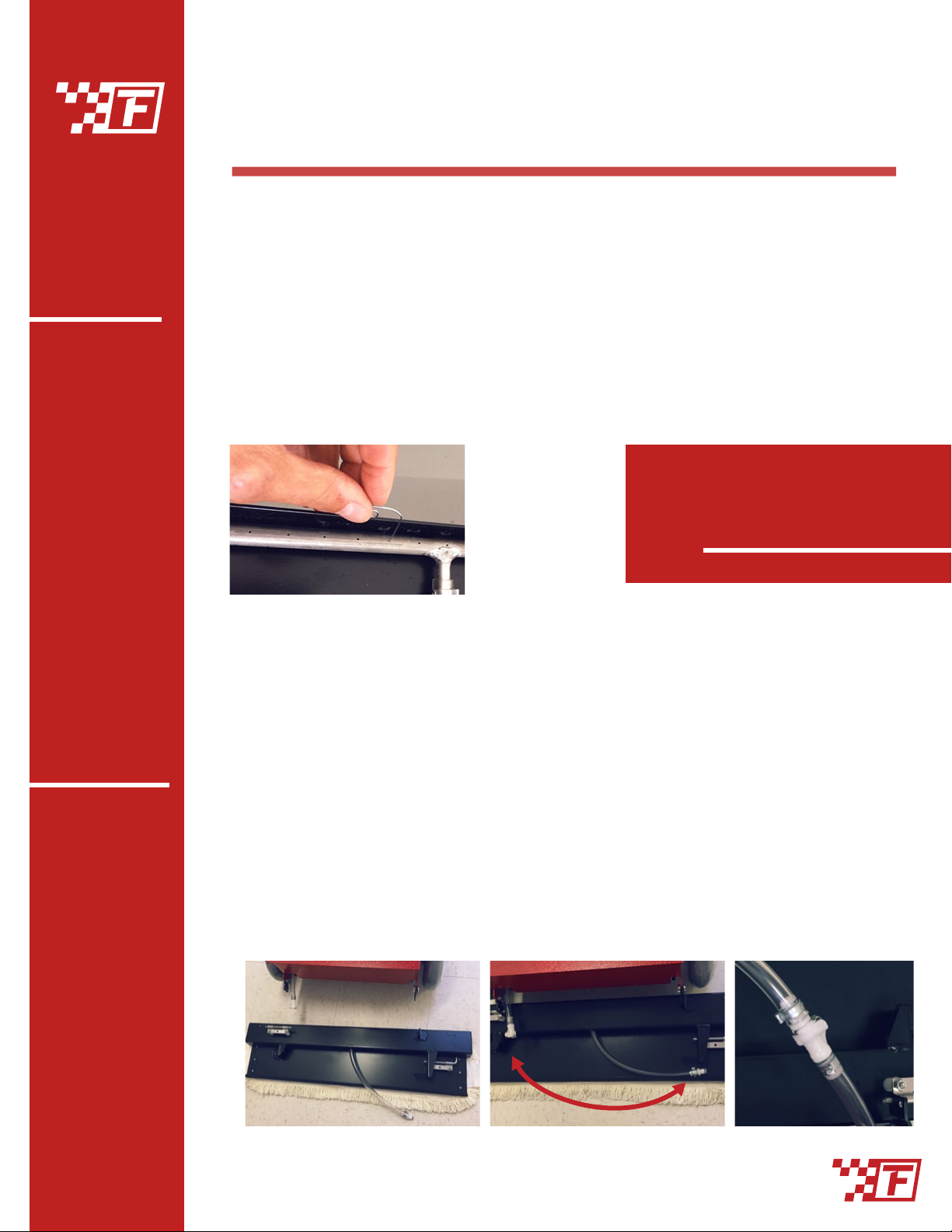

Insert the stud pin.
Insert the spring latch bracket on the other side.
Connect the feed hose connectors together and twist to lock.
2.0 - HOW TO ATTACH THE HEAD ASSEMBLY
USING THE ULTRA-TRAK
CHECKING THE MANIFOLD BEFORE
EACH USE ENSURES BEAUTIFUL
EVEN COVERAGE, EVERY TIME.
A
B
C
A
B
C

3INSERT LIFT HANDLE
INTO HEAD ASSEMBLY
Insert the end of lift handle hole into the post on the head assembly.
Lift the head assembly off the floor and hook it into the “up” position.
3.0 - HOW TO INSERT THE LIFT HANDLE
4LOAD THE
FLOORING PRODUCT

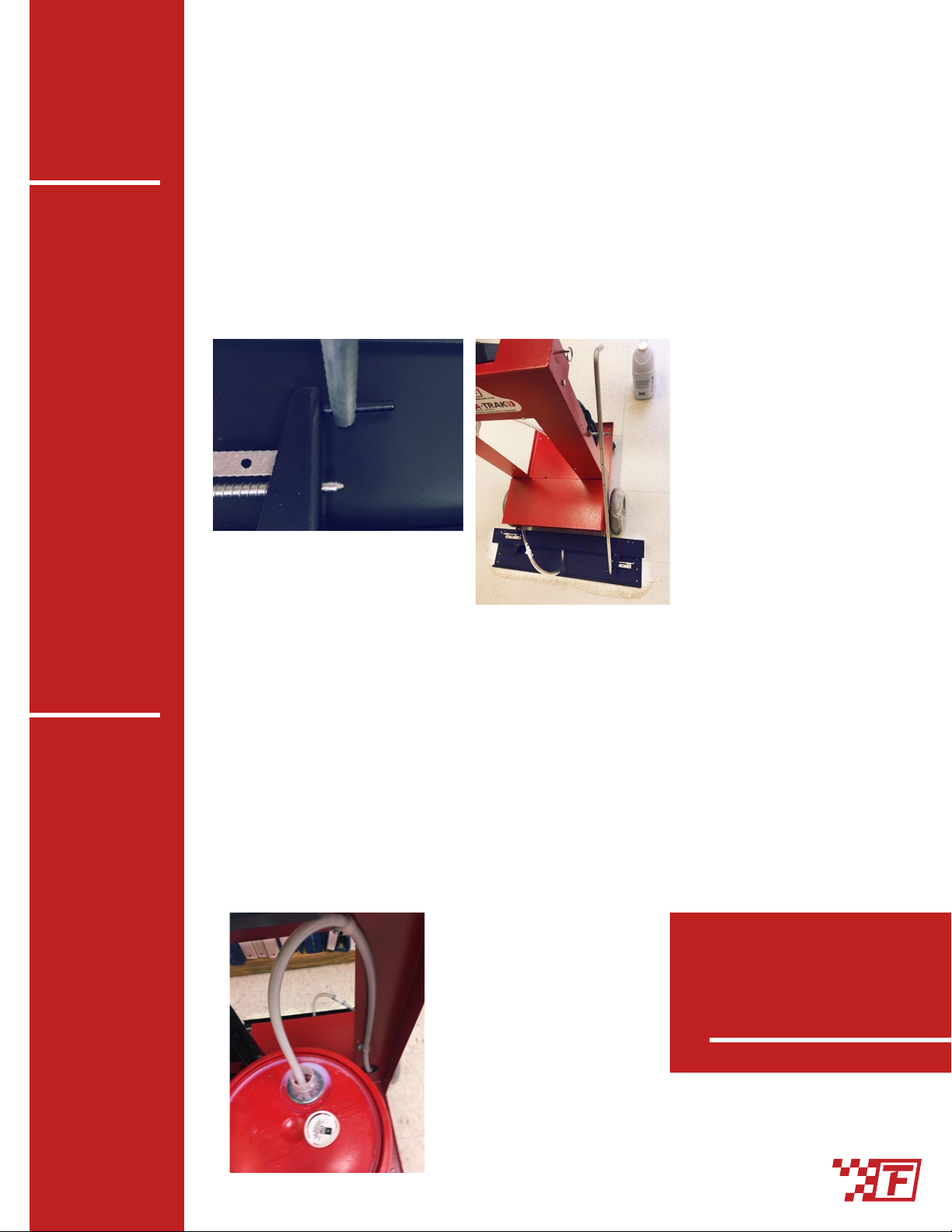

Place the factory 5 gal pail/BIB container on the base of the machine.
Insert the suction hose into the pail/ container.
The metal suction filter at the end of the suction hose should be flat on the
bottom of the container.
4.0 - HOW TO LOAD THE PRODUCT
SIMPLY INSERT THE
TUBE DIRECTLY INTO THE
FACTORY CONTAINER.
NO TRANSFER REQUIRED!
A
B
A
B
C

5PREPARING THE
ULTRA-TRAK FOR USE
Position the Ultra-Trak where you are going to begin application.
Use the lift handle to lower the head assembly down to the floor,
Set the “Power On” switch to “On.”
Press the “Manual Pump” switch and hold until solution flows through the
distribution tube onto the floor.
5.0 - PRIME THE ULTA-TRAK
Ensure you have enough solution on the pad to prevent streaking.
While lifting and lowering the head assembly, move the Ultra-Trak back and
forth to saturate the pad with solution.
5.1 - SATURATE THE APPLICATION PAD
ENSURE THERE IS ENOUGH
SOLUTION ON THE PAD. IF
THE PAD IS NOT SATURATED,
STREAKING CAN OCCUR.
A
B
C
D
A
B

6PRODUCT
FLOW RATE
The Ultra-Trak dispenses product when pulled. Each revolution of the wheels
activates the pump and dispenses solution.
The amount dispensed is controlled by the timer setting.

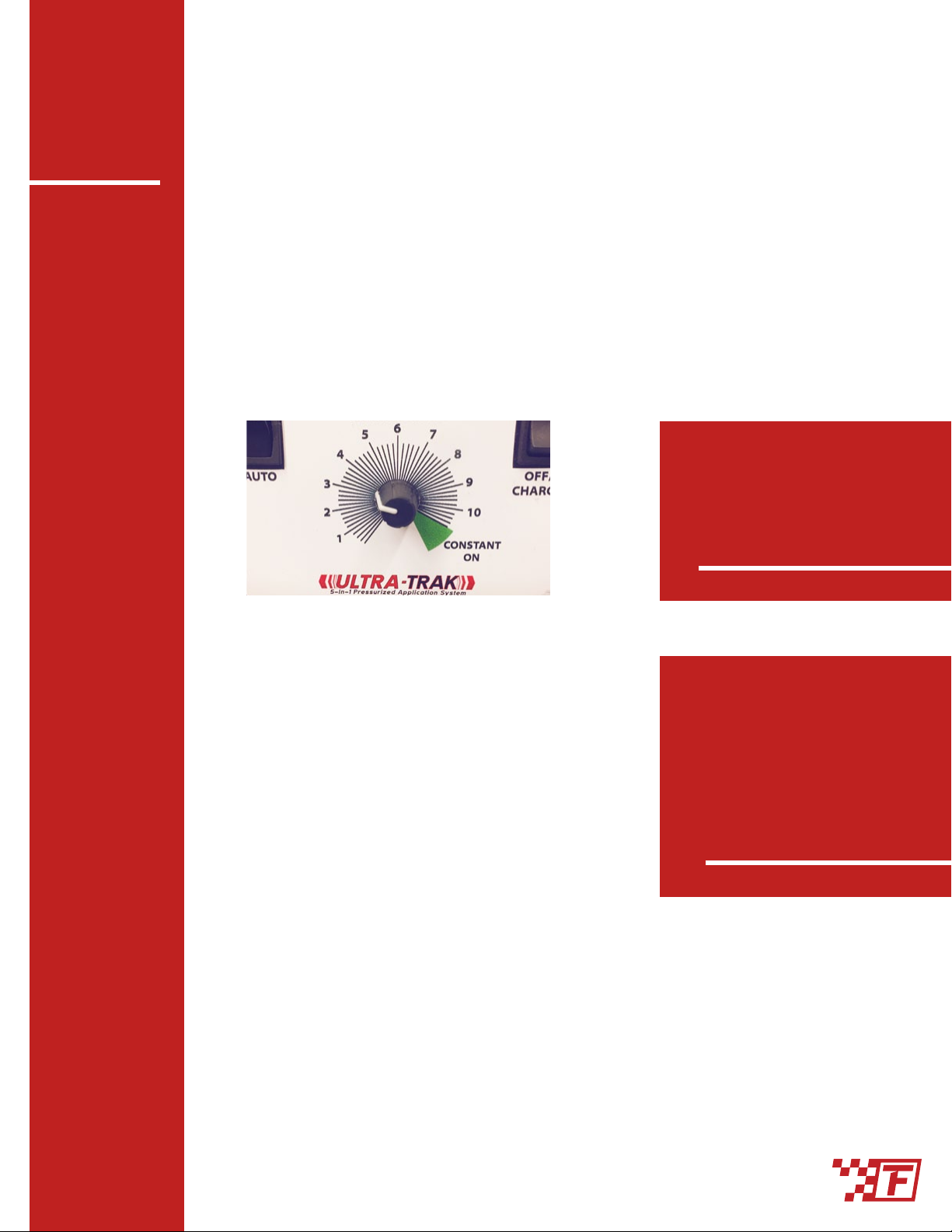

Flow rate is usually between 2-5 on the dial, depending on the requirements of
your coating product..
Walk the Ultra-Trak about 25 feet and adjust the flow rate accordingly.
6.0 - PRODUCT FLOW RATE: TIMER SETTING
THE PUMP IS ONLY
ACTIVATED WHEN THE
MACHINE IS PULLED.
PUSHING THE MACHINE DOES
NOT ACTIVATE THE PUMP.
A
B
C
D
10 FEET AHEAD OF
COMPLETING A PASS, TURN
“OFF” THE POWER SWITCH TO
ALLOW FOR DISPENSER LINE
DRAINAGE. ONCE THE UNIT IS
POSITIONED FOR THE NEXT
PASS, TURN “ON” THE POWER
& RESUME WALKING SPEED.

7USING THE
ULTRA-TRAK
Begin pulling in a straight line.
Once the initial line is complete, a “wet edge” must be maintained with an
overlap of 3 to 4 inches per pass.
Stay 3 inches away from the edges to avoid finish accumulation at the edges.
Between coats, cover the head assembly with the black Velcro vinyl bag in to
protect the manifold and pad from drying out.
7.0 - MAIN AREAS
Use the Micro-Trak detail
applicator for edges & corners.
Use on the first and/or last
coat to speed up the process.
7.1 - FOR SMALL AREA
EDGES & CORNERS:
WE RECOMMEND THE
MICRO-TRAK
A
B
C
D
A
B

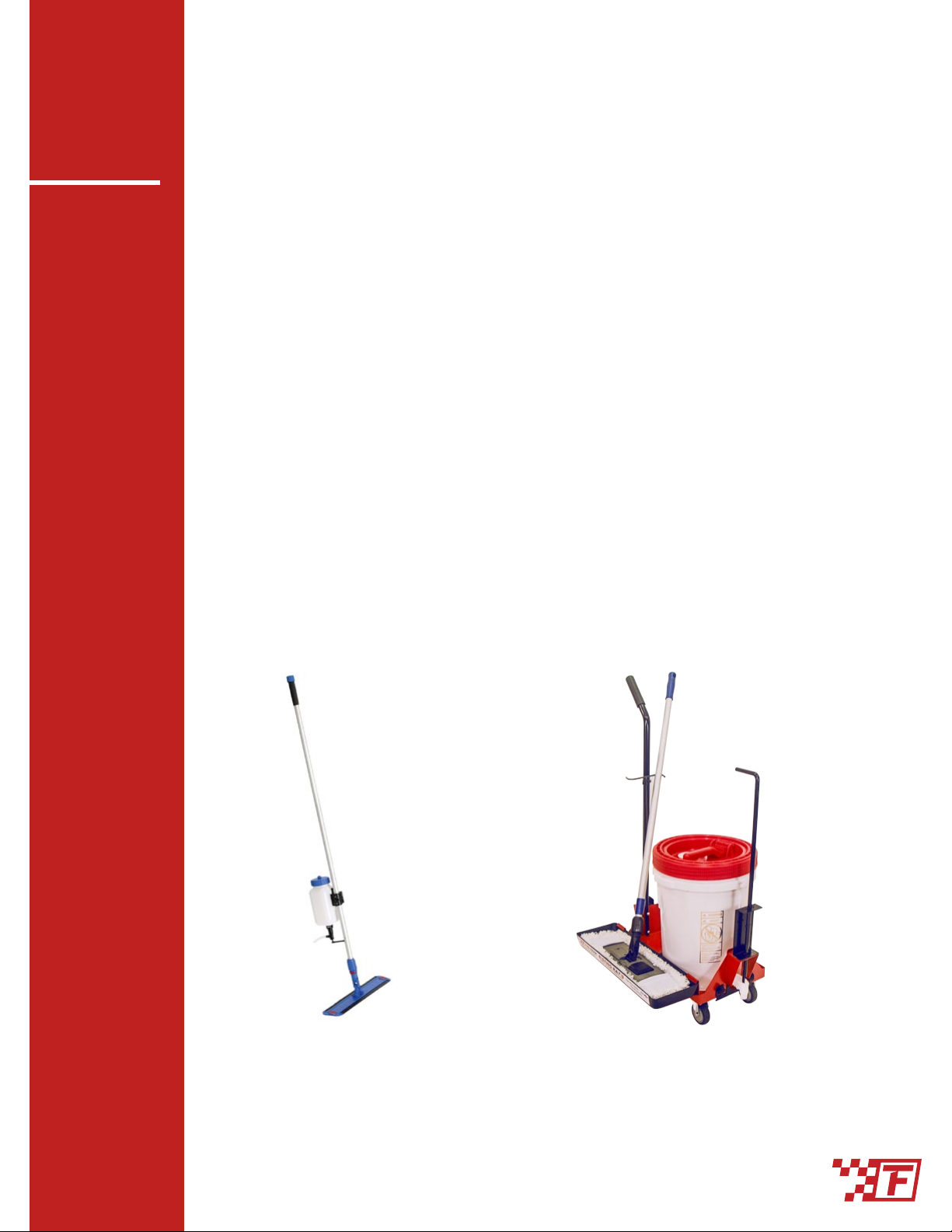

THE MICRO-TAK THE STING-RAY
ALTERNATIVELY...
For areas too large for a Micro-Trak, and
too small for convenient use of an Ultra-
Trak, consider the Sting-Ray. Its easy
product dispensing and 18” applicator
provides for smooth and even coating of
medium-sized surface areas.

8FINISHING UP
Near the completion of each job, on the last 20 - 30 feet, pull the suction hose
out of the solution container and use up the solution left in the system.
Turn unit “off” 15 feet before you finish an area to draw excess finish from pad.
Pull the lift handle in the up position to get head off the ground for easy
cleaning and transport/storage.
Cover the head assembly with the black Velcro vinyl bag to protect the manifold
and pad from drying out before cleaning.
8.0 - FINISHING UP
DO YOU HAVE OPERATIONAL
QUESTIONS OR PROBLEMS?
ULTRA-TRAK TECH LINE
GENERAL ENQUIRIES
EMAIL US
OUR WEBSITE
WE ARE HERE TO HELP
1 708 570 0650
1 800 840 3162
[e-mail]
www.fas-trakind.com
A
B
C
D
PERSONAL ONLINE
TRAINING SESSIONS
WITH MARK
Schedule a personal
Facetime Training
Session with Mark by
calling 708 250 5465.
CLEANING HOOK
STORAGE HOOK

CLEANING
OVERVIEW
TOP TIPS
9
DO NOT MACHINE WASH OR
MACHINE DRY THE FINISH PAD.
RINSE AT SINK WITH COOL WATER.
VISIT OUR WEBSITE TO SEE THE
ULTRA-TRAK FREQUENTLY ASKED
QUESTIONS PAGE.
THE CORDLESS ULTRA-TRAK COMES
WITH A STRONG RECHARGEABLE
BATTERY THAT RUNS FOR 4-7
HOURS PER CHARGE.
Cleaning out the Ultra-Trak base only takes 1 minute!
It is extremely important that it cleaning is done properly. Why? Unused solution
can dry and cause the distribution tube and pump to become inoperable.
Take care of the Ultra-Trak, and it will take care of you.
WHAT DO I NEED?
- A Paper clip.
- Approximately 1 gallon of water or solvent.
- A sink for rinsing with cold water.
- The black plastic Cleaning Tray.

PLAN & PREPARE
A clean 5-gallon container of water (or solvent) approximately 1/3 full. This
is also a good place to keep the mop pad and black vinyl cover if it cannot be
rinsed out right away after a job is complete after you flush the unit first.
10.1 - PREPARE IN ADVANCE
A
10
Near the completion of each job, raise the suction hose out of the solution
-container and use up the solution left in the system on the last 20 to 30 feet.
10.0 - PLAN YOUR JOB EXIT
A

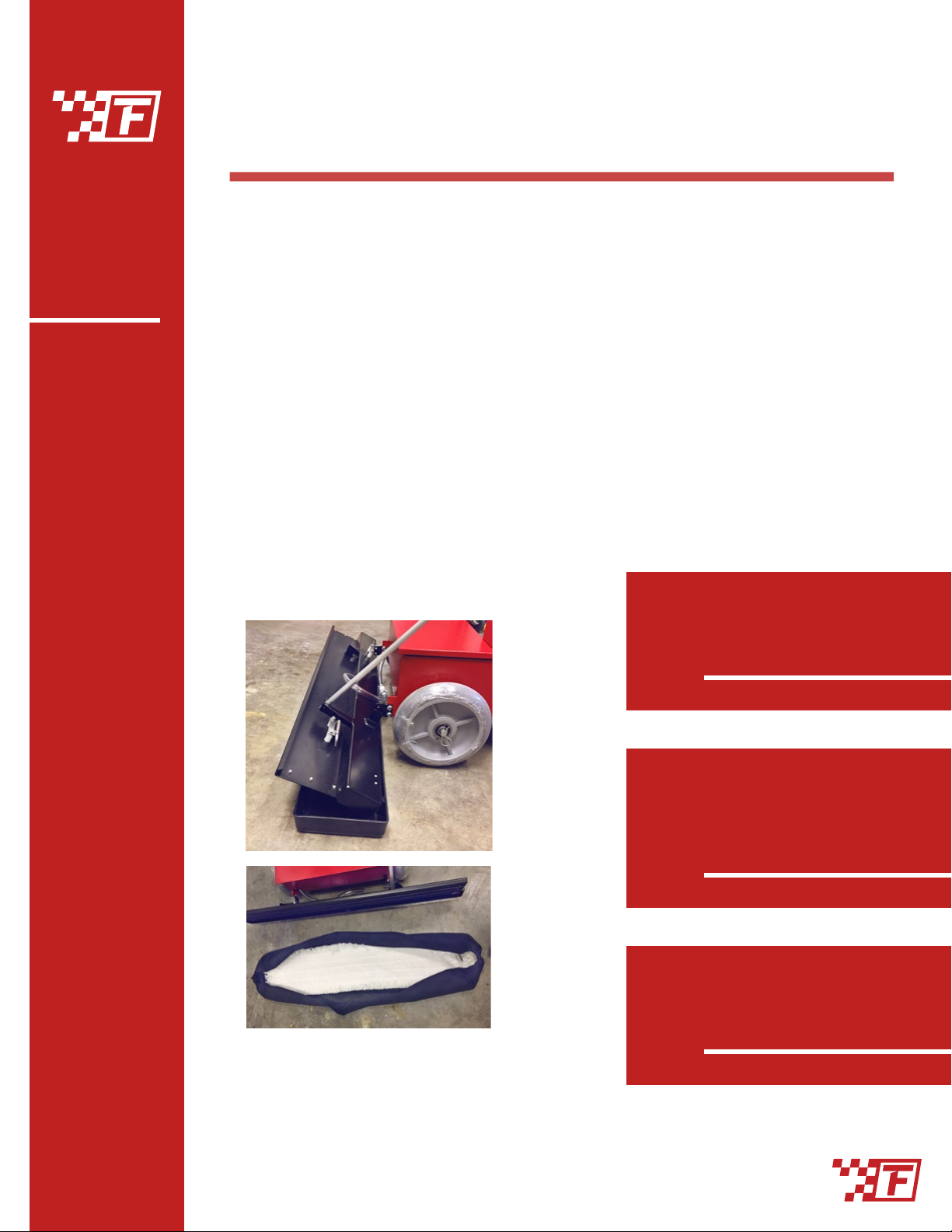

Drop the lift handle to the “second” hook & position over the black cleaning tray.
Remove excess water from the finish pad and wring it out and hang to dry.
10.2 - REMOVE THE BLACK BAG & FINISH PAD TOGETHER
A
B
Remove the factory container and recap the unused portion for future use.
Zero waste.
10.1 - RECAP THE CONTAINER
A

11 CLEANING UP
Clean the system with clear water or solvent, according to the flooring finish
applied, using the 5 gal pail.
Place the suction hose into the 5 gal pail and press the “manual pump” switch
to clean the system.
Run water for about 15 seconds till it is clear.
Remove suction hose and purge the water out.
11.0 - HOW TO CLEAN THE PUMP SYSTEM
A
B
C
D
CLEANING THE
HEAD ASSEMBLY
12
Remove the head assembly and rinse with cool water.
Remove the yellow end caps & verify the inside of the distribution tube is clean.
Use a scrub pad to remove any build up collected on the tube near the holes.
Use a paper clip to clear any blocked holes on the tube.
Place the yellow end caps back on the tube.
Reinstall back on the head assembly.
12.0 - HOW TO CLEAN THE HEAD ASSEMBLY
A
B
C
D
E
F

PACKING AWAY
Batteries should be re-charged each time the machine is used. The 12-volt
Genius charger should be plugged into a 110-volt outlet in a dry, indoor area.
Make sure the “Power” switch is in the “Off/Charge” position. Low batteries may
require up to 5 hours of re-charging.
Wipe the Ultra-Trak down with a clean towel after each use.
13.0 - PACK UP CORRECTLY FOR NEXT TIME
A
B
13
WATCH THE ULTRA-TRAK
HOW-TO VIDEO
Scan this QR Code with your
phone to be taken to the How
To Use The Ultra-Trak video.
