Fast lane Xps ad17270 x-6 nightcrawler User manual

Transmitter Function

& Battery Installation

CAUTION-ELECTRIC TOY:

Not recommended for children under 8 years of age. As with

all electric products, precautions should be observed during

handling and use to prevent electric shock.

CAUTION-SUPERVISION REQUIRED ELECTRIC

TOY- UNPLUG WHEN NOT IN USE.

AD17270 X-6 NIGHTCRAWLER

Instruction Manual

CONTENTS

Contents Battery Requirements

Vehicle x 1 7.2V rechargeable battery pack x 1 1.Vehicle: 1 x 7.2 V rechargeable battery pack (Included)

Transmitter x 1 Wall charger x 1

Instruction Manual x 1 USB Charging Cable x 1 2.Transmitter: 4 x AA/LR6 battery (Not included)

Clips x 3

)

Charging method (1) Charging method (2)

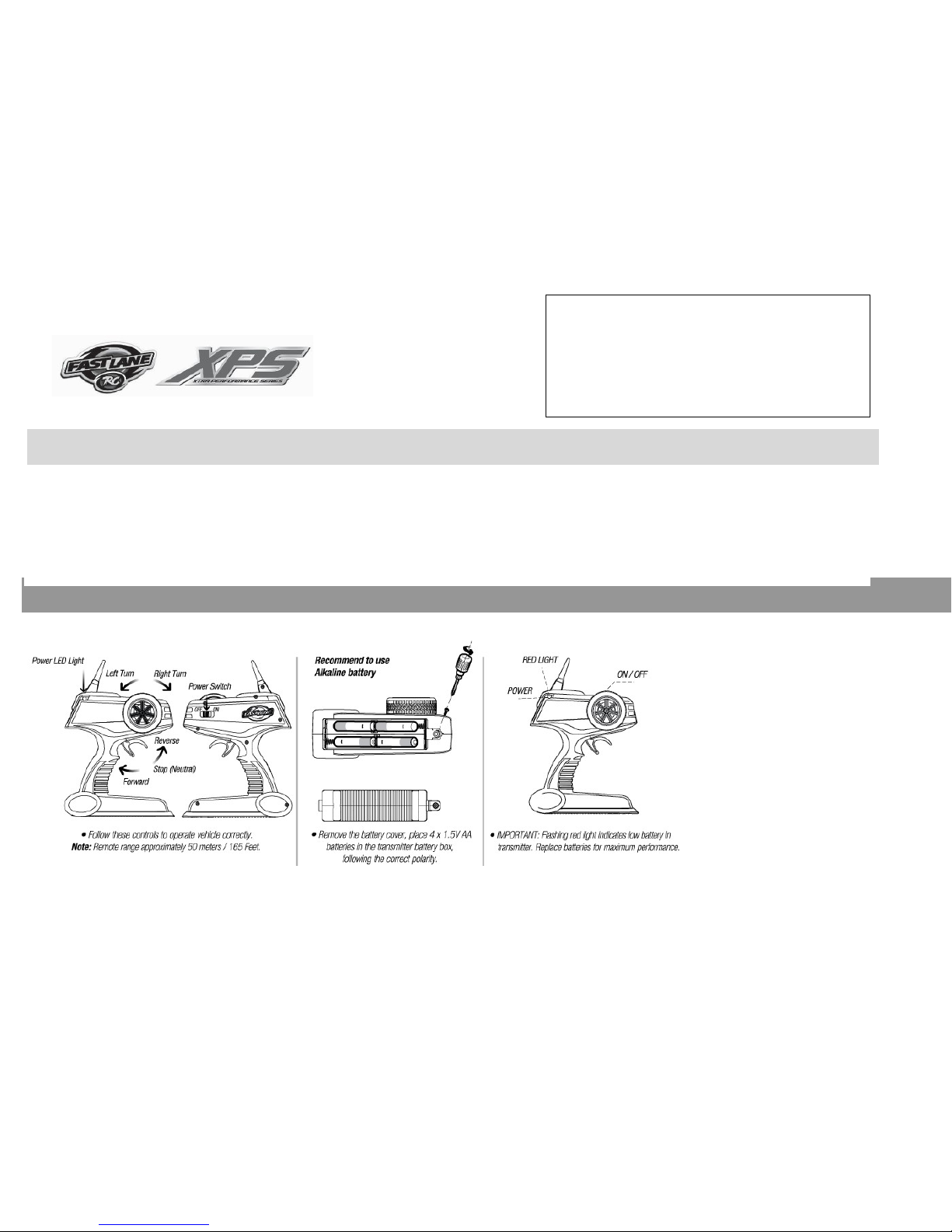

Follow these controls to operate vehicle correctly.

Note : Remote range approximately 48 meters /

160 Feet.

· Remove the battery cover, place 4 x 1.5V AA

batteries in the transmitter battery box, following the

correct polarity.

·IMPORTANT: Flashing RED light indicates low battery in

transmitter. Replace batteries for maximum performance.

Battery Charging & Installation

charging method (1) charging method (2)

Charging method (1)

Charging method (2)

To insert rechargeable battery pack into the vehicle,

follow diagram above. (Note: Make sure rechargeable

battery is properly connected by noting correct polarity

on plug, otherwise RED light inside vehicle won’t turn

Battery Pack

USB charge Cable

Computers

and other

devices

available

USB port

Battery Pack

USB charge Cable

Charger

For Family Socket

Battery Location

To charge battery pack using a computer or other device, follow

diagram above.

To charge battery pack using wall charger,

follow diagram above.

RED light in USB will turn ON while charging. RED light will turn OFF to indicate charge is complete.

Note: Charging time is approximately 4 hours. Vehicle running time is approximately 10-15

minutes depending on terrain and driving style.

Important : : FOR MAXIUM PERFORMANCE, YOU MUST FULLY CHARGE BATTERY BEFORE FIRST USE.

When vehicle is switched ON, the RED light inside the vehicle

will turn on to indicate a full charge. If RED light inside the

vehicle flashes slowly, battery needs to be re-charged.

Note: to locate light you must look through the vehicle's

window OR under the vehicle's shell.

on when vehicle is switched ON)

OPERATION

Left Turn Forward Forward Right Turn Forward

Left Turn Reverse Reverse Right Turn Reverse

FAST LANE IS A MARK OF (EST UNE MARQUE DE/ES UNA MARCA DE) GEOFFREY, LLC, A SUBSIDIARY OF

(UNE FILIALE

DE/UNA SUBSIDIARIA DE) TOYS“R”US, INC.

MADE IN CHINA (FABRIQUÉ EN CHINE/FABRICADO EN CHINA)

DISTRIBUTED IN THE UNITED STATES BY (DISTRIBUÉ AUX ÉTATS-UNIS PAR/DISTRIBUIDO EN LOS ESTADOS

UNIDOS POR)

TOYS“R”US, INC., WAYNE, NJ 07470

IMPORTED BY (IMPORTÉ PAR/IMPORTADO POR) TOYS“R”US (CANADA) LTD. (LTÉE),

2777 LANGSTAFF ROAD, CONCORD, ON L4K 4M5

DISTRIBUTED IN AUSTRALIA BY (DISTRIBUÉ EN AUSTRALIE PAR/DISTRIBUIDO EN AUSTRALIA POR)

TOYS“R”US

(AUSTRALIA (AUSTRALIE)) PTY LTD.(LTÉE), REGENTS PARK NSW 2143

www.toysrus.com www.toysrus.ca

CONFORMS TO THE SAFETY

REQUIREMENTS OF ASTM F963.

INPUT: 100-240VAC -60HZ MAX 0.2A

OUTPUT: 5VDC 500mA

Do not mix old and new batteries.

Do not mix alkaline, standard

(carbon-zinc),

or rechargeable batteries.

Contents and colors may vary.

8+ 7.4V INCLUDED

AA X 4 NOT INCLUDED

If vehicle pulls to the left or right during forward

Driving, the Steering Trim may need to be

adjusted. The Steering Trim is located on the

bottom of the vehicle between the front wheels.

Wheel

Alignment

Note: If vehicle steers to the left,

adjust trimmer to the right.

If vehicle steers to the right, adjust

trimmer to the left.

ISSUE CAUSE CORRECTION

Vehicle does not work, red LED on transmitter is flashing

SLOWLY.

Battery in transmitter is low. Replace batteries with new 4x 1.5V AA batteries. (Alkaline batteries are

recommended)

Vehicle does not work, red LED on transmitter is ON, red

LED on vehicle is OFF.

Rechargeable battery is not well

connected to the vehicle.

Un-plug and plug rechargeable battery into the vehicle, ensure red LED on vehicle is

ON.

Vehicle does not work, red LED on transmitter is ON, red

LED on vehicle flashes SLOWLY

Rechargeable battery is LOW. Re-charge the vehicle by following charging instruction on page 1. Make sure USB

charging cable is well connected to the battery pack.

Note: RED light in USB will turn ON while charging. RED light will turn OFF to indicate

charge is complete.

Vehicle can't be controlled after running a period of time. Interfered by other radio device nearby.

Move to an open area with no interference.

Vehicle out of range. Lift up transmitter and move close to vehicle.

Low battery. Check battery light on vehicle. If RED light flashes, vehicle needs to be re-

charged. If RED light is not flashing check the batteries in the transmitter.

Vehicle is not driving straight. Front wheel alignment is off. Refer to wheel alignment section on page 2 to adjust.

Vehicle stops running suddenly. Vehicle safety feature triggered. Release trigger immediately, then pull it again, after 5-10 seconds

vehicle should recover.

Low battery voltage. Charge rechargeable battery pack.

Vehicle starts to run very slowly and steering becomes

difficult.

Battery power is not enough. Charge rechargeable battery pack.

If vehicle is not responding to the transmitter. Vehicle and transmitter need to be

RESET and paired once again.

Ensure both vehicle and transmitter are in the "OFF“ position, Next turn the

transmitter and vehicle "ON", then both RED light in the transmitter and

vehicle stop flashing, reset is successful.

Note: If multiple vehicles are being paired at the same time and in the same

area, there will be interference. As a result. each vehicle must be paired

individually.

Warning: Do not touch trigger and steering wheel of transmitter while paring

Trouble Shooting

ATTENTION

For safe operation of your Vehicle, keep the wheels free from materials that can bind them, including hair, fibers dust, grit, etc., and keep the battery connection clean and dry. Wipe down your Vehicle if it gets dirty

. Examine the included battery charger (transformer) and the battery for damage to wiring, plugs, enclosures, and other parts before each operation. If any part is damaged, the charger should be discarded.

It is recommended that this toy and all accessories be periodically examined for potential hazards and that any potentially hazardous parts be repaired or replaced.

BATTERY CAUTIONS

• Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are only to be charged under adult supervision. • Different types of batteries or new and used batteries are not to be mixed. • Only batteries of the same

or equivalent type as recommended are to be used. • Battery chargers used with toy are to be regularly examined for damage to the cord, plug, enclosure and other parts, and that, in the event of such damage. • Batteries are to be

inserted with the correct polarity. • Exhausted batteries are to be removed from the toy. • The supply terminals are not to be short-circuited. • The toy must not be used with this charger until the damage has been repaired. •

Keep packaging and instruction manual because they contain important information.

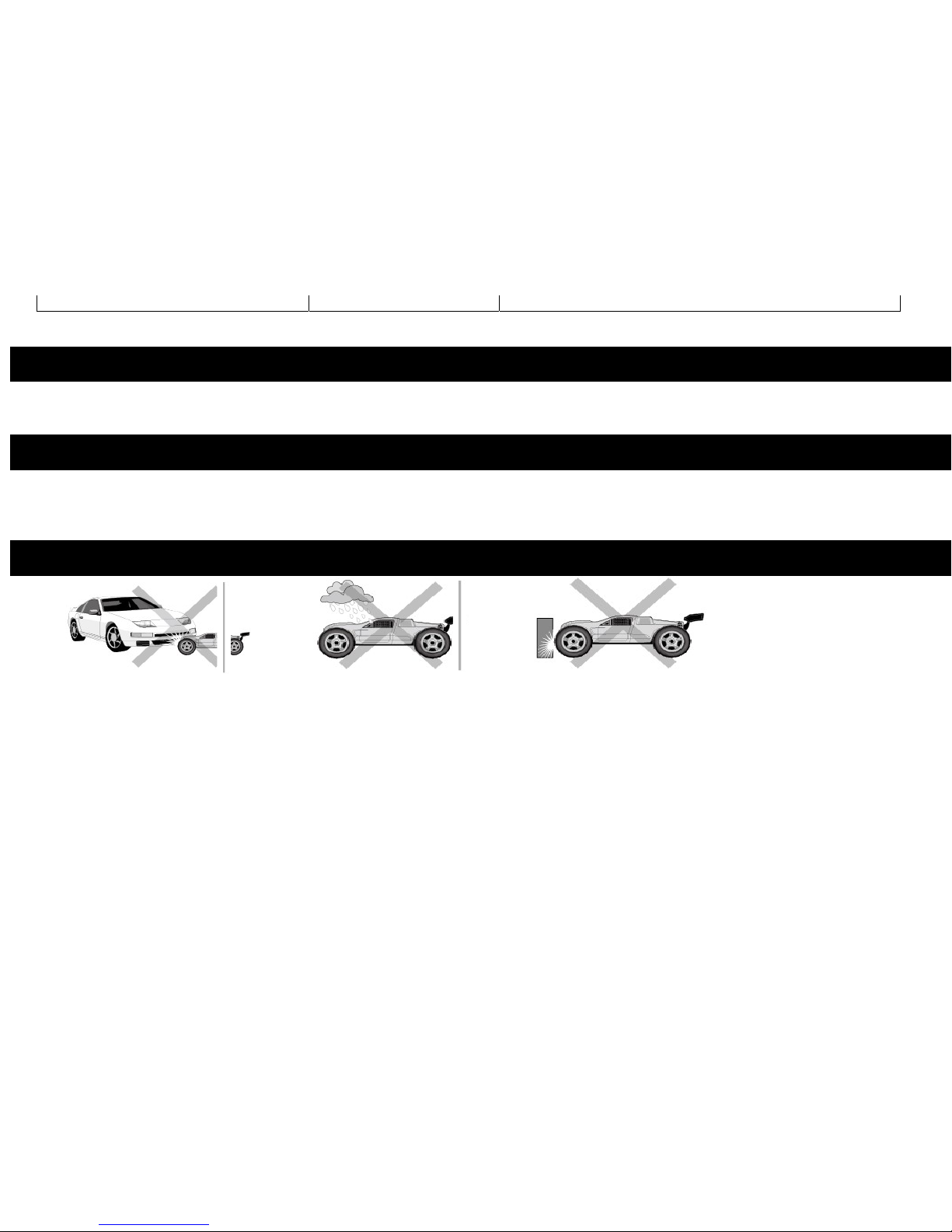

DRIVING CAUTIONS
